Midea Aqua Tempo Super II Series Dimension Guide

1 Aqua Tempo Super II
201902 3
Part 1 - General Information
Part 1
General Information
1 Aqua Tempo Super II System .................................................................. 4
2 Unit Capacities ...................................................................................... 5
3 Nomenclature ........................................................................................ 5
4 System and Design Unit Selection .......................................................... 6
5 Typical Applications ............................................................................... 8

Aqua Tempo Super II
4 201902
Midea Aqua Tempo Super II Engineering Data Book
1 Aqua Tempo Super II System
1.1 System Schematic

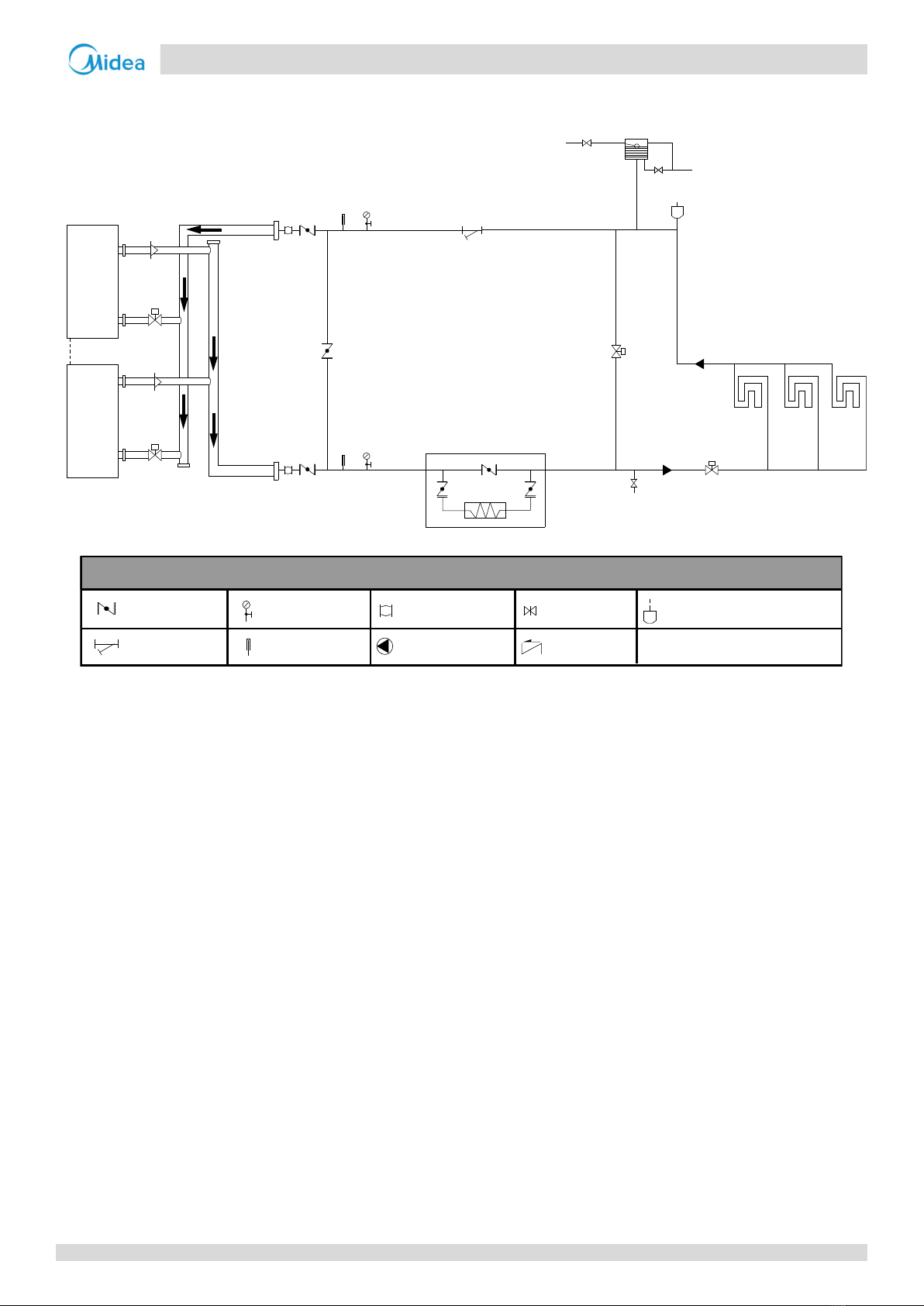

Figure 1-1.1: System schematic
Aqua Tempo Super II is an integrated air-to-water space heating and space cooling heat pump system. The outdoor heat
pump system extracts heat from the outdoor air and transfers this heat through refrigerant piping to the plate heat
exchanger in the hydronic system. The heated water in the hydronic system circulates to low temperature heat emitters
(floor heating loops or low temperature radiators) to provide space heating. The 4-way valve in the outdoor unit can
reverse the refrigerant cycle so that the hydronic system can provide chilled water for cooling using fan coil units.
The heating capacity of heat pumps decreases with ambient temperature. Aqua Tempo Super II is reserved an auxiliary
electric heater control port to provide additional heating capacity for use during extremely cold weather when the heat
pump capacity is insufficient. The auxiliary electric heater also serves as a backup in case of heat pump malfunction and for
anti-freeze protection of the outside water piping in winter.
Master unit
Expansion tank
Water replenishment valve
Water discharge valve
Differential pressure
by-pass valve
Drain valve
Two-way valve
Three-way valve
FCU
Auxiliary electric heater
unit
unit
Y-type filter,
requiring≥ 16 mesh
Slave unit
Max 16 units
FCU
FCU
Stop valve Pressure gauge Gate valveFlexible joint
Y-shaped filter Thermometer Circulating pump Check valve
Automatic discharge valve
Legend

1 Aqua Tempo Super II
201902 5
Part 1 - General Information
2 Unit Capacities
Table 1-2.1: Aqua Tempo Super II unit capacity range and unit appearances
Capacity 30kW 60kW 90kw
Model MC-SU30(M)-RN1L MC-SU60(M)-RN1L MC-SU90-RN1L
Appearance
Power
supply 380-415V/3Ph/50Hz
3 Nomenclature
30
U
S
M
R N1
-
L -
C
M
Operating range
L: Low ambient temp. cooling
Refrigerant
N1: R410A
Power supply
R: 380-415V/3phase/50Hz
Hydraulic Module
M: With hydraulic module
Empty: Without hydraulic module
Rated heating capacity (kW)
Special function code
U: DC inverter compressor
Series code
S: Super II
Chiller
Midea

Aqua Tempo Super II
6 201902
Midea Aqua Tempo Super II Engineering Data Book
4 System and Design Unit Selection
4.1 Selection Procedure
Step 1: Total heat load calculation
Calculate conditioned surface area
Select the heat emitters (type, quantity, water temperature and heat load)
Step 2: System configuration
Decide whether to enable or disable auxiliary electric heater
Step 3: Selection of outdoor units
Determine required total heat load on outdoor units
Set capacity safety factor
Select power supply
Provisionally select Aqua Tempo Super II unit capacity1 based on nominal
capacity
Correct capacity of the outdoor units for the following items:
Outdoor air temperature / Outdoor humidity / Water outlet temperature2 /
Altitude / Anti-freeze type
Is corrected Aqua Tempo Super II unit capacity ≥ Required total heat load
on outdoor units3
Yes No
Aqua Tempo Super II
system selection is
complete
Select a larger model or enable
auxiliary electric heater operation
Notes:
1. Up to 16 units can be connected together, giving a system cooling/heating capacity range of 30kW to 1440kW.
2. If the required water temperatures of the heat emitters are not all the same, the Aqua Tempo Super II’s outlet water temperature setting should be set at
the highest of the heat emitter required water temperatures. If the water outlet design temperature falls between two temperatures listed in the outdoor
unit's capacity table, calculate the corrected capacity by interpolation.
3. If the outdoor unit selection is to be based on total heating load and total cooling load, select Aqua Tempo Super II units which satisfy not only the total
heating load requirements but also the total cooling load requirements.

1 Aqua Tempo Super II
201902 7
Part 1 - General Information
4.2 Aqua Tempo Super II Leaving Water Temperature (LWT) Selection
The recommended design LTW ranges for different types of heat emitter are:
 For floor heating: 30 to 35⁰C
 For fan coil units: 30 to 45⁰C
 For low temperature radiators: 40 to 50⁰C
4.3 Optimizing System Design
To get the most comfort with the lowest energy consumption with Aqua Tempo Super II, it is important to take account of
the following considerations:
 Choose heat emitters that allow the heat pump system to operate at as low a hot water temperature as possible
whilst still providing sufficient heating.

Aqua Tempo Super II
8 201902
Midea Aqua Tempo Super II Engineering Data Book
5 Typical Applications
5.1 Space Heating Through Floor Heating Loops
Floor heating Loops are used for spaces heating.
Figure 1-5.1: Space heating through floor heating loops (standard unit without hydronic module)
Master unit
Expansion tank
Water replenishment valve
Water discharge valve
Floor
Heating
Loops
Floor
Heating
Loops
Floor
Heating
Loops
Differential pressure
by-pass valve
Drain valve Two-way valves
Auxiliary electric heater
unit
unit
Y-type filter,
requiring≥ 16 mesh
Slave unit
Max 16 units
Stop valve Pressure gauge Gate valveFlexible joint
Y-shaped filter Thermometer Circulating pump Check valve
Automatic discharge valve
Legend

1 Aqua Tempo Super II
201902 9
Part 1 - General Information
Figure 1-5.2: Space heating through floor heating loops (customized unit with built-in hydronic module)
Master unit
Expansion tank
Water replenishment valve
Water discharge valve
Differential pressure
by-pass valve
Drain valve
Auxiliary electric heater
unit
unit
Y-type filter,
requiring≥ 16 mesh
Slave unit
Max 16 units
Floor
Heating
Loops
Floor
Heating
Loops
Floor
Heating
Loops
Two-way valve
Two-way
valve
Two-way
valve
One-way
valve
One-way
valve
Stop valve Pressure gauge Gate valveFlexible joint
Y-shaped filter Thermometer Circulating pump Check valve
Automatic discharge valve
Legend

Aqua Tempo Super II
10 201902
Midea Aqua Tempo Super II Engineering Data Book
5.2 Space Heating and Space Cooling Through Fan Coil Unit
Fan coil units are used for space heating and cooling.
Figure 1-5.3: Space heating and space cooling through fan coil unit (standard unit without hydronic module)
Master unit
Expansion tank
Water replenishment valve
Water discharge valve
Differential pressure
by-pass valve
Drain valve
Two-way valve
Three-way valve
FCU
Auxiliary electric heater
unit
unit
Y-type filter,
requiring≥ 16 mesh
Slave unit
Max 16 units
FCU
FCU
Stop valve Pressure gauge Gate valveFlexible joint
Y-shaped filter Thermometer Circulating pump Check valve
Automatic discharge valve
Legend

1 Aqua Tempo Super II
201902 11
Part 1 - General Information
Figure 1-5.4: Space heating and space cooling through fan coil unit (customized unit with built-in hydronic module)
Master unit
Expansion tank
Water replenishment valve
Water discharge valve
Differential pressure
by-pass valve
Drain valve
Two-way valve
Three-way valve
FCU
Auxiliary electric heater
unit
unit
Y-type filter,
requiring≥ 16 mesh
Slave unit
Max 16 units
FCU
FCU
Two-way
valve
Two-way
valve
One-way
valve
One-way
valve
Stop valve Pressure gauge Gate valveFlexible joint
Y-shaped filter Thermometer Circulating pump Check valve
Automatic discharge valve
Legend

Aqua Tempo Super II
12 201902
Midea Aqua Tempo Super II Engineering Data Book
5.3 Space Heating Through Floor Heating Loops And Space Cooling Through Fan Coil Unit
Floor heating loops and fan coil units are used for space heating and fan coil units are used for space cooling. In space
cooling mode, the 2-way valve is closed to prevent cold water entering the floor heating loops.
Figure 1-5.5: Space heating through floor heating loops and space cooling through fan coil unit (standard unit without hydronic module)
Master unit
Expansion tank
Water replenishment valve
Water discharge valve
Differential pressure
by-pass valve
Drain valve
Two-way valve
Three-way valve
FCU
Auxiliary electric heater
unit
unit
Y-type filter,
requiring≥ 16 mesh
Slave unit
Max 16 units
FCU
FCU
Floor
Heating
Loops
Floor
Heating
Loops
Floor
Heating
Loops
Two-way valves
Stop valve Pressure gauge Gate valveFlexible joint
Y-shaped filter Thermometer Circulating pump Check valve
Automatic discharge valve
Legend

1 Aqua Tempo Super II
201902 13
Part 1 - General Information
Figure 1-5.6: Space heating through floor heating loops and space cooling through fan coil unit (customized unit with built-in hydronic module)
Master unit
Expansion tank
Water replenishment valve
Water discharge valve
Differential pressure
by-pass valve
Drain valve
Two-way valve
Three-way valve
FCU
Auxiliary electric heater
unit
unit
Y-type filter,
requiring≥ 16 mesh
Slave unit
Max 16 units
FCU
FCU
Floor
Heating
Loops
Floor
Heating
Loops
Floor
Heating
Loops
Two-way valve
Two-way
valve
Two-way
valve
One-way
valve
One-way
valve
Stop valve Pressure gauge Gate valveFlexible joint
Y-shaped filter Thermometer Circulating pump Check valve
Automatic discharge valve
Legend

Aqua Tempo Super II
14 201902
Midea Aqua Tempo Super II Engineering Data Book

Aqua Tempo Super II
201902 15
Part 2 - Engineering Data
Part 2
Engineering Data
1 Specifications ...................................................................................... 16
2 Dimensions and Center of Gravity ........................................................ 19
3 Piping Diagrams ................................................................................... 22
4 Wiring Diagrams .................................................................................. 27
5 Capacity Tables .................................................................................... 32
6 Operating Limits .................................................................................. 36
7 Hydronic Performance ......................................................................... 37
8 Sound Levels ........................................................................................ 40
9 Accessories .......................................................................................... 44

Aqua Tempo Super II
16 201902
Midea Aqua Tempo Super II Engineering Data Book
1 Specifications
Table 2-1.1: Specifications
kW 30 60 90
Model name MC-SU30-RN1L MC-SU60-RN1L MC-SU90-RN1L
Power supply V/Ph/Hz 380-415/3/50
Cooling 1
Capacity kW 27.6 55 82
Rated input kW 10.95 21.83 36.8
EER 2.52 2.52 2.23
SEER 4.41 4.20 4.32
Heating2
Capacity kW 31.4 61.6 90
Rated input kW 10.64 20.07 32.8
COP 2.95 3.07 2.74
SCOP 4.01 3.85 3.99
Seasonal space heating energy efficiency class A++ A++ A++
Max. running current A 18 36.8 60
Air side heat
exchanger
Type Finned tube Finned tube Finned tube
Fan motor type DC motor DC motor DC motor
Fan motor quantity 1 2 3
Air flow rate 12,500 24,000 38,000
Water side heat
exchanger
Type Plate Plate Plate
Volume L 2.44 5.17 7.05
Water flow m3/h 5 9.8 15
Water pressure drop kPa 55 61 75
Refrigerant system
Refrigerant type R410A R410A R410A
Refrigerant charge kg 10.5 17.0 27.0
Throttle type EXV EXV + Capillary EXV
Sound power level dB(A) 74 82 89
Sound pressure level3 dB(A) 65.8 72.1 80.1
Net dimensions (W×H×D) mm 1870×1175×1000 2220×1325×1055 3220x1513x1095
Packed dimensions (W×H×D) mm 1910×1225×1035 2250×1370×1090 3275x1540x1130
Net/Gross weight kg 300/310 480/490 710/739
Pipe connections Water inlet/outlet mm DN40 DN50 DN50
Controller Wired controller Wired controller Wired controller
Operating temperature
range
Cooling °C -10 to 43 -10 to 43 -10 to 43
Heating °C -15 to 30 -15 to 30 -20 to 30
Water outlet
temperature range
Cooling4 °C 5 to 20 5 to 20 5 to 20
Heating °C 25 to 55 25 to 55 25 to 55
Notes:
1. Cooling: Chilled water inlet/outlet temp.12/7°C; outdoor ambient temp. 35°C DB.
2. Heating: Warm water inlet/outlet temp. 40/45°C; outdoor ambient temp. 7°C DB/6°C WB.
3. Sound pressure level is measured at a position 1m in front of the unit and 1.1m above the floor in a semi-anechoic
chamber.
4. Capacity and efficiency data calculated in accordance with EN14511.

Aqua Tempo Super II
201902 17
Part 2 - Engineering Data
Table 2-1.2: Specifications
kW 30 60
Model name MC-SU30M-RN1L MC-SU60M-RN1L
Power supply V/Ph/Hz 380-415/3/50
Cooling 1
Capacity kW 28.2 55
Rated input kW 10.93 22.54
EER 2.58 2.44
SEER 3.72 3.73
Heating2
Capacity kW 30.8 60
Rated input kW 10.62 21.2
COP 2.90 2.83
SCOP 3.27 3.45
Seasonal space heating energy efficiency class A+ A+
Max. running current A 19.7 36.9
Air side heat
exchanger
Type Finned tube Finned tube
Fan motor type DC motor DC motor
Fan motor quantity 1 2
Air flow rate 12,500 24,000
Water side heat
exchanger
Type Plate Plate
Volume L 2.44 5.17
Water flow m3/h 5 9.8
Pump head m 18 15
Water pressure drop kPa 55 61
Refrigerant system
Refrigerant type R410A R410A
Refrigerant charge kg 10.5 17.0
Throttle type EXV EXV + Capillary
Sound power level dB(A) 78 87
Sound pressure level3 dB(A) 68 73
Net dimensions (W×H×D) mm 1870×1175×1000 2220×1325×1055
Packed dimensions (W×H×D) mm 1910×1225×1035 2250×1370×1090
Net/Gross weight kg 335/345 515/525
Pipe connections Water inlet/outlet mm DN40 DN50
Controller Wired controller Wired controller
Operating temperature
range
Cooling °C -10 to 43 -10 to 43
Heating °C -15 to 30 -15 to 30
Water outlet
temperature range
Cooling4 °C 5 to 20 5 to 20
Heating °C 25 to 55 25 to 55
Notes:
1. Cooling: Chilled water inlet/outlet temp.12/7°C; outdoor ambient temp. 35°C DB.
2. Heating: Warm water inlet/outlet temp. 40/45°C; outdoor ambient temp. 7°C DB/6°C WB.
3. Sound pressure level is measured at a position 1m in front of the unit and 1.1m above the floor in a semi-anechoic chamber.
4. Capacity and efficiency data calculated in accordance with EN14511.

Aqua Tempo Super II
18 201902
Midea Aqua Tempo Super II Engineering Data Book
Table 2-1.3: Pump specifications
Pump model name YKB-650-2-1 YKB-1500-2-1
Corresponding unit model name MC-SU30M-RN1L MC-SU60M-RN1L
Power supply 380-415 V/3Ph/Hz 380-415 V/3Ph/Hz
Rated power 0.65 KW 1.5 KW
Rated current 1.6-1.8A 3.15A
Rated water flow 4.7 m3/h 10m3/h
Rated pump head 22.8 m 27.8 m
Rated speed 2770-2820 r/min 2890-2910 r/min
Max operating temperature 55 °C 55 °C
Max operating pressure 1M Pa 1M Pa
Power factor 0.82-0.72 0.87-0.82
Efficiency 72.9%-73.9% 84.2%-84.9%
Started current 580-620 % of Rated current 850-930 % of Rated current
Resistance class IP55 IP55
Insulation class F F
Net/Gross weight 11.9 kg/14.4 kg 32.6 kg/35.1 kg

Aqua Tempo Super II
201902 19
Part 2 - Engineering Data
2 Dimensions and Center of Gravity
MC-SU30(M)-RN1L
Figure 2-2.1: MC-SU30(M)-RN1L dimensions and center of gravity (unit: mm)
Left view
Top view
470
204
485
485
200
Front view
Bottom view
880
Hole for anchor bolt Φ15
1870
680
1870
788
1175
485
1000

Aqua Tempo Super II
20 201902
Midea Aqua Tempo Super II Engineering Data Book
MC-SU60(M)-RN1L
Figure 2-2.2: MC-SU60(M)-RN1L dimensions and center of gravity (unit: mm)
Front view
210
234
470
Front view
2220
1055
Top view
1325
Left view
Bottom view
1105
958
2220
Hole for anchor bolt Φ15
815
555
485
555

Aqua Tempo Super II
201902 21
Part 2 - Engineering Data
MC-SU90-RN1L
Figure 2-2.1: MC-SU90-RN1L dimensions and center of gravity (unit: mm)
