Read This Manual
Inside you will find many helpful hints on how
to use and maintain your air conditioner properly.
Just a little preventative care on your part can
save you a great deal of time and money over
the life of your air conditioner. You'll find many
answers to common problems in the chart of
troubleshooting tips. If you review the chart of
Troubleshooting Tips first, you may not need
to call for service.

1
CONTENTS
Contact an authorised service technician for repair or maintenance of this unit.
Contact the installer for installation of this unit.
The air conditioner is not intended for use by young children or invalids
without supervision.
Young children should be supervised to ensure that they do not play with the
air conditioner.
If the power cord is to be replaced, replacement work shall be performed by
authorised personnel only.
Installation work must be performed in accordance with the national wiring
standards by authorised personnel only.
!CAUTION
SOCIABLE REMARK
Sociable remark......................................................................................................................2
SAFETY PRECAUTIONS
Warning .................................................................................................................................3
Caution ..................................................................................................................................4
OPERATIING INSTRUCTIONS
Parts names ........... .............................................................................................................5
Operation temperature...........................................................................................................7
Manual operation ..................................................................................................................7
Airflow direction control .........................................................................................................8
How the air conditioner works ...............................................................................................9
CARE AND MAINTENANCE
Care and maintenance ..........................................................................................................10
TROUBLESHOOTING TIPS
Troubleshooting tips .............................................................................................................14
OPERATION TIPS
Operation tips ............ ..........................................................................................................12

2
SOCIABLE REMARK
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
A) The municipality has established collection systems, where electronic waste can
be disposed of at least free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least
free of charge.
C) The manufacture will take back the old appliance for disposal at least free of
charge to the user.
D) As old products contain valuable resources, they can be sold to scrap metal
dealers.
Wild disposal of waste in forests and landscapes endangers your health when
hazardous substances leak into the ground-water and find their way into the food
chain.
When using this dehumidifier in the European countries, the follow
informations must be followed:

3
SAFETY PRECAUTIONS
3
To prevent injury to the user or other people and property damage, the following instructions must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The
seriousness is classified by the following indications.
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
!
!
WARNING
Always do this.
Never do this.
!
CAUTION
This symbol indicates the possibility of injury or damage to property.
Connect with the power
properly.
Do not modify power cord
length or share the outlet
with other appliances
Always ensure effective
earthing.
Disconnect the power if
strange sounds, smell, or
smoke comes from it.
Ventilate room before operating air
conditioner if there is a gas leakage from
another appliance.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
It may cause electric shock or
fire due to heat generation.
No earthing may cause electric
shock.
It may cause fire and electric
shock.
It may cause explosion, fire and, burns.
It may cause electric shock or fire
due to heat generation.
It may cause electric shock.
It may cause failure of machine
or electric shock.
It contains contaminants and
could make you sick.
It may cause fire and electric
shock.
It may cause electric shock or fire.
This could damage your health.
No installation may cause fire
and electric shock.
It may cause electric shock.
It may cause an explosion or fire.
It may cause failure and electric shock.
Do not operate or stop the
unit by switching on or off
the power.
Do not operate with wet
hands or in damp
environment.
Do not allow water to run
into electric parts.
Do not drink water drained
from air conditioner.
Do not use the power cord
close to heating appliances.
Do not damage or use an
unspecified power cord.
Do not direct airflow at
room occupants only.
Always install circuit
breaker and a dedicated
power circuit.
Do not open the unit
during operation.
Do not use the power cord near
flammable gas or combustibles, such
as gasoline, benzene, thinner, etc.
Do not disassemble or modify unit.
!!
!!
!!!!
!!
!!
WARNING
!
Use the correctly rated
breaker or fuse.
There is risk of fire or electric
shock.
!!

4
SAFETY PRECAUTIONS
!
CAUTION
When the air filter is to be
removed, do not touch the
metal parts of the unit.
It may cause an injury.
Do not clean unit when
power is on as it may cause
fire and electric shock, it may
cause an injury.
Operation with windows
opened may cause wetting
of indoor and soaking of
household furniture.
When the unit is to be
cleaned, switch off, and turn
off the circuit breaker.
Stop operation and close
the window in storm or
hurricane.
Use caution when unpacking
and installing. Sharp edges
could cause injury.
Do not clean the air
conditioner with water.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
This could injure the pet or
plant.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
Ventilate the room well
when used together
with a stove, etc.
An oxygen shortage
may occur.
Do not use this air cond-
itioner to preserve preci-
sion devices, food, pets,
plants, and art objects.
It may cause deterioration
of quality, etc.
It may cause failure of
product or fire.
Do not use for
special purposes.
Turn off the main power
switch when not using
the unit for a long time.
If water enters the
unit, turn the unit off
and disconnect the
power , contact a
qualified service
technician.
!!
!!
!!
!!
!!
!!
!!
It may cause failure of
appliance or accident.
Appearance may be
deteriorated due to change
of product color or
scratching of its surface.
Do not place obstacles
around air-inlets or inside
of air-outlet.
Do not use strong detergent
such as wax or thinner. Use
a soft cloth for cleaning.
If bracket is damaged, there
is concern of damage due to
falling of unit.
There is danger of fire or
electric shock.
Ensure that the installation bracket of
the outdoor appliance is not damaged
due to prolonged exposure.
Do not place heavy object on the
power cord and take care so that
the cord is not compressed.
Operation without filters
may cause failure.
Always insert the filters
securely. Clean filter
once every two weeks.
!!
!!
!!

5
Parts names
Outdoor unit
OPERATING INSTRUCTIONS
Indoor unit
NOTE:
All the pictures in this manual are for explanation
purpose only. Your air conditioner may be slightly
different. The actual shape shall prevail.
4
3
5
2
6
1
10
9
12
13
11
788
1. Front panel
2. Air inlet
3. Air filter
4. Air outlet
5. Horizontal air flow grille
6. Vertical air flow louver
7. Display panel
8. Remote controller signal receiver
9. Remote controller
10. Manual control button
11. Connecting pipe, drain hose
12. Air inlet (side and rear)
13. Air outlet
Indoor unit
Outdoor unit
Indicator Lights on Display Window
The operation indicator lights flash rapidly (five times per second.) when safety protection
features come into operation.The display panel of indoor unit will look like one of the following:
122345
DEFROSTDEFROST TIMERTIMER
AUTOAUTO OPERATIONOPERATION
Signal receptor Signal receptor
122345
AUTO DEFROST
TIMERTIMEROPERATIONOPERATION
Note: For cooling only models(>21000Btu/h unit), indicator light is FAN ONLY.
22
AUTO indicator
This indicator illuminates when the air conditioner is in AUTO operation.
DEFROST indicator (For Cooling & Heating models only)
This indicator illuminates when the air conditioner starts defrosting automatically or
when the warm air control feature is activated in heating operation.
1
22
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FANSPEED
SWING
TIMERON
ECONOMY
ON/OFF
TIMEROFF
RESETLOCK
SETTEMPERATURE( C)
FOLLOW
MELED
DISPLAY
ION
TURBO

Special functions
Air quality is the key to comfort, this air conditioner is equipped with Ionizer device. Ionizer can
generate abundant anions to fill the room with refreshing and nature air. Your whole family will
enjoy a natural, pure and healthy air everyday.
Clean Air function(optional)
Follow Me function(optional)
To activate the Follow Me feature, point the remote control towards the unit and press the Follow
Me button. T
If the unit does not receive the Follow Me signal during any 7 minute interval, the unit will beep
to indicate the Follow Me mode has ended.
he remote display is actual temperature at its location. The remote control will send
this signal to the air conditioner every 3 minutes interval until press the Follow Me button again.
The remote control serves as a remote thermostat allowing for the precise
temperature control at its location.
6
OPERATING INSTRUCTIONS
3
4
Displays the temperature settings when the air conditioner is operational.
OPERATION indicator
This indicator flashes after power is on and illuminates when the unit is in operation.
TIMER indicator
This indicator illuminates when TIMER is set ON/OFF.
TEMPERATURE indicator
5
NOTE: This manual does not include Remote Controller Operations, see the
<<Remote Controller Instruction>> packed with the unit for details.

7
Manul operation can be used temporarily in case you can not find the remote controller or
its batteries are exhausted.
OPERATING INSTRUCTIONS
Manual operation
Operating temperature
Mode
Cooling operation
Heating operation
Drying operation
Temperature
1. If air conditioner is used outside of the above conditions, certain safety protection
features may come into operation and cause the unit to function abnormally.
2. Room relative humidity less than 80%. If the air conditioner operates in excess of this
figure, the surface of the air conditioner may attract condensation. Please sets the vertical
air flow louver to its maximum angle (vertically to the floor), and set HIGH fan mode.
3. Optimum performance will be achieved within these operating temperature.
Room temperature
Outdoor temperature
17 C 32 C
18 C 43 C
17 C 30 C
-7 C 24 C
17 C 32 C
18 C 43 C
~
CAUTION:
~
~
~
~
~
Manual control
button
Panel
AUTO/COOL
Open and lift the front panel up to an angle until
it remains fixed with a clicking sound.
One press of the manual control button will lead
to the forced AUTO operation.
Close the panel firmly to its original position.
Once you push the manual button, the operation
mode is shifted in an order as: AUTO, COOL, OFF.
Push the button twice, the unit will operate in
forced COOL mode. This is used for testing
purposes only .
Third press will stop the operation and turn off
the air conditioner operation.
To restore the remote controller operation, use
the remote controller directly.
CAUTION:
1
3
2

8
OPERATING INSTRUCTIONS

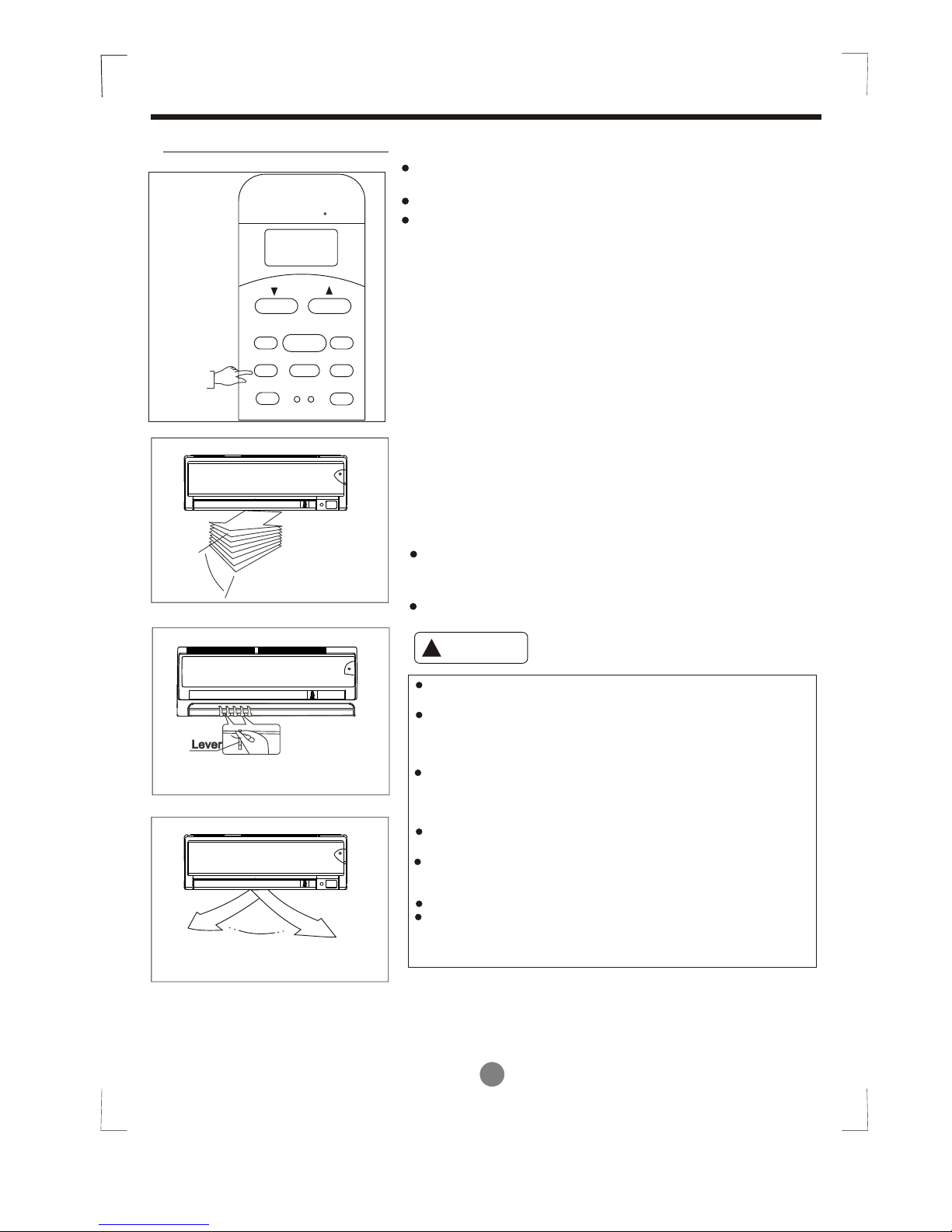

Airflow direction control
Adjust the air flow direction properly otherwise, it might
cause discomfort or cause uneven room temperatures.
Adjust the horizontal louver using the remote controller.
Adjust the vertical louver manually.
To set the vertical air flow(Up--Down) direction
Perform this function while the unit is in operation.
Keep pressing the SWING button on the remote
controller to move the louver to the desired direction.
Press SWING button to lock louver in desired position.
To set the horizontal air flow direction (left - right)
Adjust the vertical louver manually using the lever on the
left or right side of the vertical louver arm (Depending on
model). Take care not to catch fingers on the fan, horizontal
louver or to damage vertical louvers. When the air
conditioner is in operation and the horizontal louver is in
a specific position, move the lever at left (or right, depending
on model) end of the air outlet to the desired position.
To automatically swing the air flow direction (up - down)
Perform this function while the air conditioner is in operation.
Keeppressing the SWING button without releasing for more
than 2 seconds, the horizontal louver will swing up and down
automatically.
To stop the function, press the SWING button again.
The SWING button will be disabled when the air conditioner is not in
operation(including when the TIMER ON is set).
Do not operate the air conditioner for long periods with the air flow
direction set downward in cooling or dry mode. Otherwise,
condensation may occur on the surface of the horizontal
louver causing moisture to drop on to the floor or on furnishings.
Do not move the horizontal louver manually. Always use the SWING
button. If you move this louver manually, it may malfunction during
operation. If the louver malfunctions, stop the air conditioner once and
restart it.
When the air conditioner is started immediately after it was stopped,
the horizontal louver might not move for approximately 10 seconds.
Open angle of the horizontal louver should not be set too small, as
COOLING or HEATING performance may be impaired due to too
restricted air flow area.
Do not operate unit with horizontal louver in closed position.
When the air conditioner is connected to power (initial power), the
horizontal louver may generate a sound for 10 seconds, this is a
normal operation.
CAUTION
!
Range
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
SWING
TIMER ON
ECONOMY
ON/OFF
TIMER OFF
RESET LOCK
SET TEMPERATURE( C)
FOLLOW
ME LED
DISPLAY
ION
TURBO
Range

9
AUTO operation
When you set the air conditioner in AUTO mode, it will
automatically select cooling, heating(cooling/heating
models only), or fan only operation depending on what
temperature you have selected and the room temperature.
The air conditioner will control room temperature
automatically round the temperature point set by you.
If the AUTO mode is uncomfortable, you can select
desired conditions manually.
SLEEP operation
When you push SLEEP button on remote controller during
cooling, heating(cooling only type without), or AUTO operation ,
the air conditioner will automatically increase (cooling) or
decrease (heating) 1 per hour.
The set temperature will be steady 2 hours later. And the air
conditioner will be timer off in 7 hours. The fan speed will be
automatically controlled. This feature can maintain the most
comfortable temperature and save more energy for you.
DRYING operation
The dry mode will automatically select the hehumidifying
operation based on the difference between the set
temperature and the actual room temperature.
The temperature is regulated while dehumidifying by
repeating turning on and off of the cooling operation or
fan only. The fan speed indicator will display AUTO and
low speed will be used.
Cooling Cooling
Time
DRYING operation
Room
temperature
set temperature
Cooling
Fan only
Fan only
To achieve optimal performance, please note the following:
Adjust the air flow direction correctly so that it is not directed
on people.
Adjust the temperature to achieve the highest comfort level. Do
not adjust the unit to excessive temperature levels.
Close doors and windows on COOL or HEAT modes, or perfor-
mance may be reduced.
Use TIMER ON button on the remote controller to select a time
you want to start your air conditioner.
Do not put any object near air inlet or air outlet, as the efficiency
of the air conditioner may be reduced and the air conditioner
may stop running.
Clean the air filter periodically, otherwise cooling or heating per-
formance may be reduced.
Do not operate unit with horizontal louvre in closed position.
1 hour
1 hour
Set
Temperature
Cooling
1
1
Heating
SLEEP operation
OPERATING INSTRUCTIONS

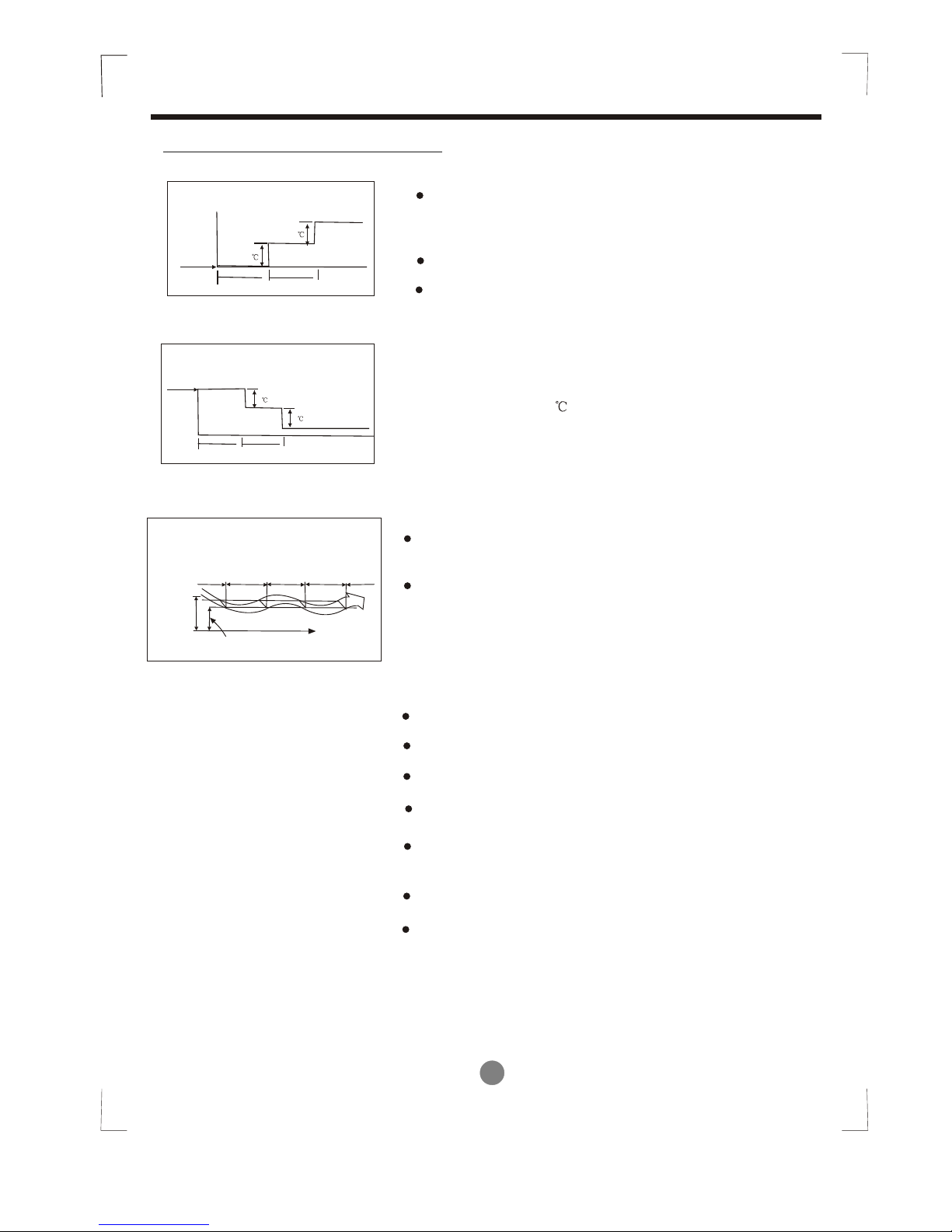

How the air conditioner works
Optimal operation
1
1
1 hour 1 hour
Set
Temperature
SLEEP operation
7 hours timer off

10
Cleaning the Grille, Case and Remote Controller
Thinner
A cloth dampened with cold water may be used
on the indoor unit if it is very dirty. Then wipe it with
a dry cloth.
Do not use a chemically treated cloth or duster to
clean the unit.
Do not use benzine, thinner, polishing powder, or
similar solvents for cleaning. These may cause
the plastic surface to crack or deform.
Never use water hotter than 40 C to clean the front
panel, it could cause deformation of discoloration.
CAUTIONS
No
Household
Drain
Cleaner
CARE AND MAINTENANCE
Care and maintenance
Turn the system off before cleaning. To clean, wipe with
a soft, dry cloth. Do not use bleach or abrasives.
NOTE: Supply power must be disconnect before
cleaning the indoor unit.
Filter Handle

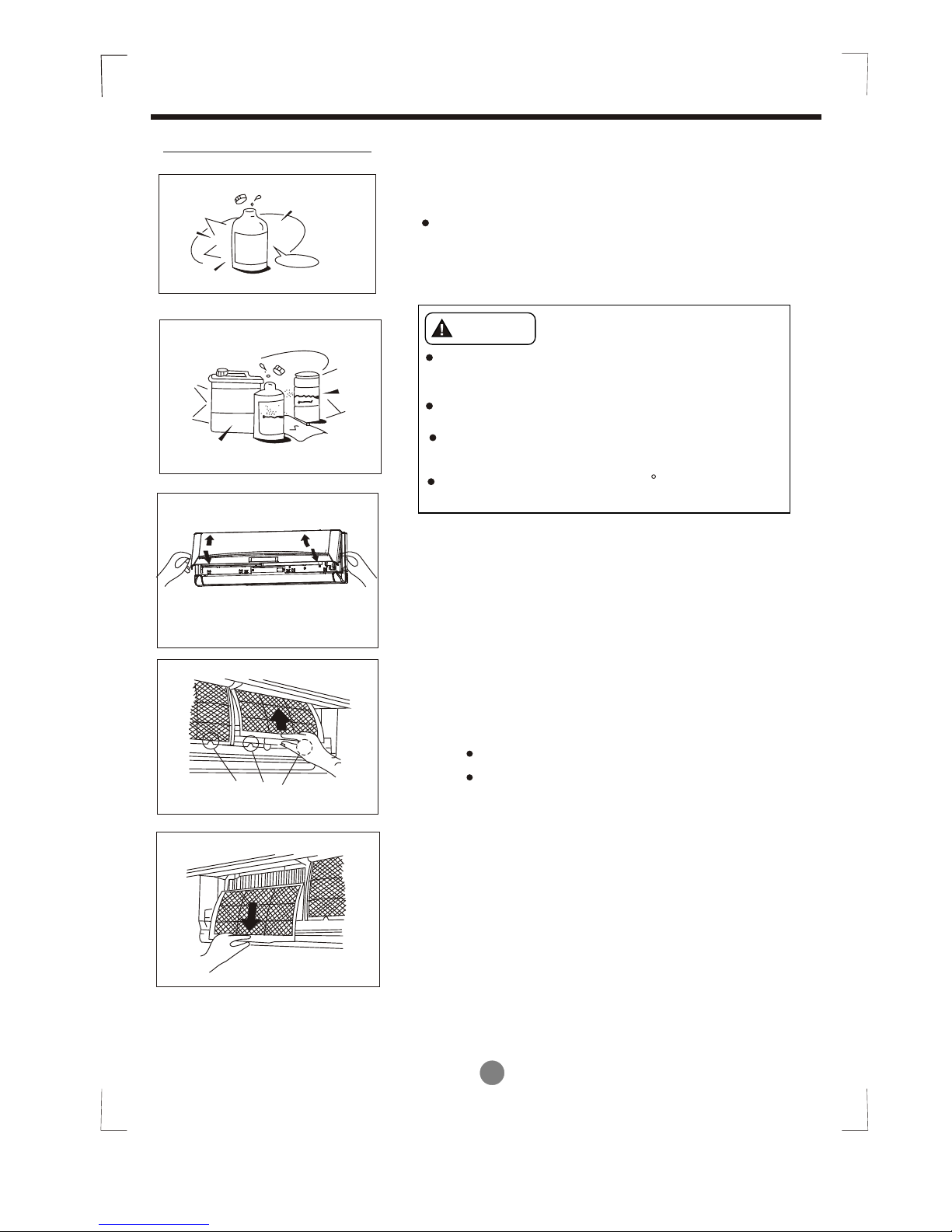

Cleaning the air filter
A clogged air filter reduces the cooling efficiency of this
unit. Please clean the filter once every 2 weeks.
1. Lift the indoor unit panel up to an angle until it stops
with a clicking sound.
2. Take hold of the handle of the air filter and lift it up
slightly to take it out from the filter holder, then
pull it downwards.
3. Remove the AIR FILTER from the indoor unit.
Clean the AIR FILTER once two weeks.
Clean the AIR FILTER with a vacuum cleaner
or water, then dry it up in cool place.

11
CARE AND MAINTENANCE

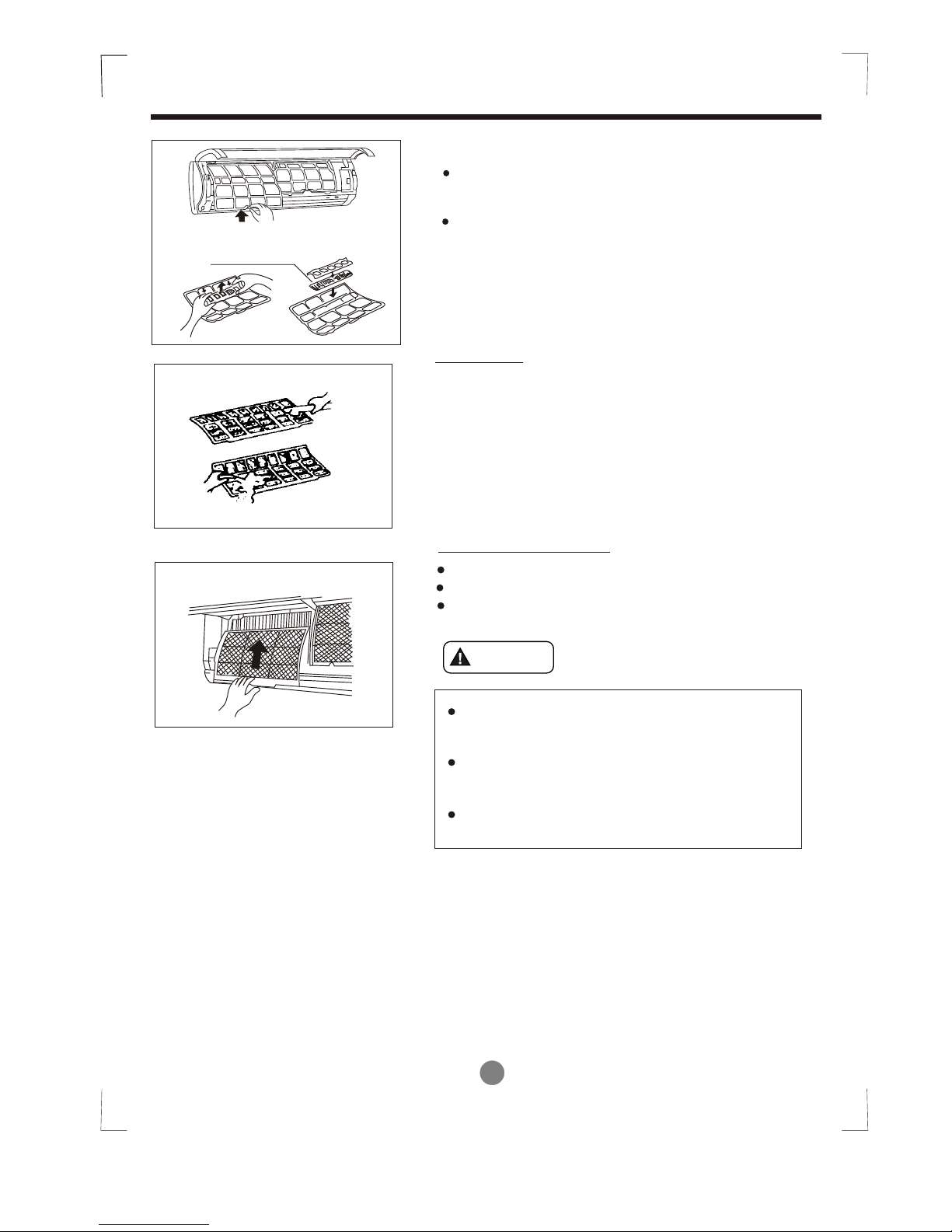

Air freshening filter
Maintenance
Checks before operation
If you plan to idle the unit for a long time, perform the
following:
(1) Operate the fan for about half a day to dry the
inside of the unit.
(2) Stop the air conditioner and disconnect power.
Remove the batteries from the remote controller.
(3) The outdoor unit requires periodic maintenance
and cleaning. Do not attempt to do this yourself.
Contact your dealer or servicer.
Check that the wiring is not broken off or disconnected.
Check that the air filter is installed.
Check if the air outlet or inlet is blocked after the
air conditioner has not been used for a long time.
Do not touch the metal parts of the unit when
removing the filter. Injuries can occur when
handling sharp metal edges.
Do not use water to clean inside the air conditioner.
Exposure to water can destroy the insulation,
leading to possible electric shock.
When cleaning the unit, first make sure that the
power and circuit breaker are turned off.
4. Remove the air freshening filter from its support frame
Clean the air freshening filter at least once a month,
and replace it every 4-5 months.
Clean it with vacuum cleaner, then dry it in cool place.
5. Install the air freshening filter back into position.
6. Insert the upper portion of air filter back into the unit
taking care that the left and right edges line up
correctly and place filter into position.
Caution

12
OPERATION TIPS
The following events may occur during normal operation.
1. Protection of the air conditioner.
Compressor protection
The compressor can't restart for 3 minutes after it stops.
Anti-cold air (Cooling and heating models only)
The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in
one of the following three situations and the set temperature has not been reached.
A) When heating has just starting.
B) Defrosting.
C) Low temperature heating.
The indoor or outdoor fan stop running when defrosting (Cooling and heating models only).
Defrosting (Cooling and heating models only)
Frost may be generated on the outdoor unit during heat cycle when outdoor temperature is low
and humidity is high resulting in lower heating efficiency of the air conditioner.
During this condition air conditioner will stop heating operation and start defrosting automatically.
The time to defrost may vary from 4 to 10 minutes according to the outdoor temperature and
the amount of frost buildup on the outdoor unit.
2. A white mist coming out from the indoor unit
A white mist may generate due to a large temperature difference between air inlet and air outlet
on COOL mode in an indoor environment that has a high relative humidity.
A white mist may generate due to moisture generated from defrosting process when the air
conditioner restarts in HEAT mode operation after defrosting.
3. Low noise of the air conditioner
You may hear a low hissing sound when the compressor is running or has just stopped running.
This sound is the sound of the refrigerant flowing or coming to a stop.
You can also hear a low "squeak" sound when the compressor is running or has just stopped
running. This is caused by heat expansion and cold contraction of the plastic parts in the unit
when the temperature is changing.
A noise may be heard due to louver restoring to its original position when power is first turned on.
4. Dust is blown out from the indoor unit.
This is a normal condition when the air conditioner has not been used for a long time or during first
use of the unit.
5. A peculiar smell comes out from the indoor unit.
This is caused by the indoor unit giving off smells permeated from building material, from furniture,
or smoke.
6. The air conditioner turns to FAN only mode from COOL or HEAT (For cooling and
heating models only) mode.
When indoor temperature reaches the temperature setting on air conditioner, the compressor will
stop automatically, and the air conditioner turns to FAN only mode. The compressor will start again
when the indoor temperature rises on COOL mode or falls on HEAT mode (For cooling and heating
models only) to the set point.

7. Dripping water may generate on the surface of the indoor unit when cooling in a high
relatively humidity (relative humidity higher than 80%). Adjust the horizontal louver to
the maximum air outlet position and select HIGH fan speed.
8. Heating mode (For cooling and heating models only)
The air conditioner draws in heat from the outdoor unit and releases it via the indoor unit
during heating operation. When the outdoor temperature falls, heat drawn in by the air
conditioner decreases accordingly. At the same time, heat loading of the air conditioner
increases due to larger difference between indoor and outdoor temperature. If a
comfortable temperature can't be achieved by the air conditioner, we suggest you use a
supplementary heating device.
9. Auto-restart function
Power failure during operation will stop the unit completely.
For the unit without Auto-restart feature, when the power restores, the OPERATION indicator
on the indoor unit starts flashing. To restart the operation, push the ON/OFF button on the
remote controller. For the unit with Auto-restart feature, when the power restores, the unit
restarts automatically with all the previous settings preserved by the memory function.
10. Lightning or a car wireless telephone operating nearby may cause the unit to malfunction.
Disconnect the unit with power and then re-connect the unit with power again. Push the
ON/OFF button on the remote controller to restart operation.
OPERATION TIPS
13

14
TROUBLESHOOTING TIPS
Troubleshooting Tips
Stop the air conditioner immediately if one of the following faults occur. Disconnect the
power and contact the nearest customer service center.
RUN/OPERATION indicator or other indicators flash rapidly (5 times every second) and
this flash can't be fixed by disconnecting the power, and then connect it in again.
Fuse blows frequently or circuit breaker trips frequently.
Other objects or water penetrate the air conditioner.
The remote controller won't work or works abnormally.
Other abnormal situations.
Trouble
Malfunctions
Unit does not
start
Unit not cooling
or heating
(Cooling/ heating
models only)
room very well
while air flowing
out from the air
conditioner
Cause
Power cut
Unit may have become unplugged.
Fuse may have blown.
Battery in Remote controller may
have been exhausted.
The time you have set with timer
is incorrect.
Wait for power to be restored.
Check that plug is securely in wall
receptacle.
Replace the fuse.
Replace the battery.
Wait or cancel timer setting.
Set temperature correctly. For
detailed method please refer to
"Using remote control" section.
Clean the air filter.
Close the doors or windows.
Clear obstructions away first, then
restart the unit.
Wait.
Inappropriate temperature
setting.
Air filter is blocked.
Doors or Windows are open.
Air inlet or outlet of indoor or
outdoor unit has been blocked.
Compressor 3 minutes
protection has been activated.
If the trouble has not been corrected, please contact a local dealer or the nearest customer
service center. Be sure to inform them of the detailed malfunctions and unit model.
Notes: Do not attempt to repair the unit yourself.
Always consult an authorised service provider.
What should be done?

CS406-U
2200018040
