Midea 7NM30EO User manual

7NM30E0
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement. Consult
with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
BUILT-IN OVEN

THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
functions that your new appliance offers in a safe way.
THANK YOU LETTER
PRODUCT INSTALLATION
CONTENTS
0
02
1
1 3
27
THANK YOU LETTER
SAFETY INSTRUCTIONS
PRODUCT OVERVIEW
OPERATION INSTRUCTIONS
CLEANING AND MAINTENANCE
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT
1
SPECIFICATION 09
1 0
TROUBLE SHOOTING 34
3 8
DISPOSAL AND RECYCLING
DATA PROTECTION NOTICE
39
40
6
EN-01

Danger
This symbol indicates that there are dangers to the life and health of
persons due to extremely flammable gas.
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of
persons due to voltage.
Warning
The signal word indicates a hazard with a medium level of risk which, if
not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which, if
not avoided, may result in minor or moderate injury.
Attention
The signal word indicates important information (e.g. damage to
property), but not danger.
Observe instructions
This symbol indicates that a service technician should only operate and
maintain this appliance in accordance with the operating instructions.
Intended Use
SAFETY INSTRUCTIONS
Read these operating instructions carefully and attentively before using/commissioning the
unit and keep them intheimmediate vicinity of the installationsite or unit for later use!
The following safety guidelines are intended to prevent unforeseen risks or damage from
unsafe or incorrect operation of the appliance. Please check the packaging and appliance
on arrival to make sure everything is intact to ensure safe operation. If you find any
damage, please contact the retailer or dealer. Please note modifications or alterations to
the appliance are not allowed for your safety concern. Unintended use may cause
hazards and loss of warranty claims.
Explanation of Symbols
SAFETY INSTRUCTIONS
EN-02

Safety Information
Intended Use
• Thank you for buying Midea Built-in Oven. Before
unpacking it, please read these instructions carefully.
Only then will you be able to operate your appliance
safely and correctly. Warmly recommend retain the
instruction manual and installation instructions for
future use or for subsequent owners.
• The appliance is only intended to be fitted in a
kitchen. Observe the special installation instructions.
• Check the appliance if there is any damage after
unpacking it. Do not connect the appliance if it
has been damaged. Only a licensed professional
may connect appliances without plugs. Damage
caused by incorrect connection is not covered
under warranty. Only use this appliance indoors. The
appliance must only be used for the preparation of
food and drink.
• The appliance must be supervised during operation.
This appliance may be used by children over the age
of 8 and by persons with reduced physical, sensory
or mental capabilities or by persons with a lack of
experience or knowledge if they are supervised
or are instructed by a person responsible for their
safety how to use the appliance safely and have
understood the associated hazards.
• Children must not play with, on, or around the
appliance.
• Children must not clean the appliance or carry out
general maintenance unless they are at least 8 years
old and are being supervised.
EN-03

• Keep children below the age of 8 years old at a safe
distance from the appliance and power cable.
And please always slide accessories into the cavity
the right way round.
Warning
Risk of electric shock
• Incorrect repairs are dangerous. Repairs may only
becarried out and damaged power cables replaced
by one of our trained after-sales technicians. If the
appliance is defective, unplug the appliance from the
mains or switchff the circuit breaker in the fuse box.
Contact the aftersales service.
• The cable insulation on electrical appliances may
melt when touching hot parts of the appliance. Never
bring electrical appliance cables into contact with
hot parts of the appliance.
• Do not use any highpressure cleaners or steam
cleaners, which can result in an electric shock.
• A defective appliance may cause electric shock.
Never switch on a defective appliance. Unplug the
appliancefrom the mains or switch off the circuit
breaker in the fuse box. Contact the after-sales
service.
Risk of burns
• The appliance becomes very hot. Never touch the
interior surfaces of the appliance or the heating
elements.
• Always allow the appliance to cool down.
• Keep children at a safe distance.
EN-04

• Accessories and ovenware become very hot. Always
use oven gloves to remove acces sories or ovenware
from the cavity.
• Alcoholic vapors may catch fire in the hot cooking
compartment. Never prepare food containing large
quantities of drinks with high alcohol content. Only
use small quanti ties of drinks with high alcohol
content. Open the appliance door with care.
Risk of scalding
• The accessible parts become hot during operation.
Never touch the hot parts. Keep children at a safe
distance.
• When you open the appliance door, hot steam can
escape. Steam may not be visible, depending on its
temperature. When opening, do not stand too close
to the appliance. Open the appliance door carefully.
Keep children away.
• Water in a hot cavity may create hot steam. Never
pour water into the hot cavity.
Risk of injury
• Scratched glass in the appliance door may develop
into a crack. Do not use a glass scraper, sharp or
abrasive cleaning aids or detergents.
• The hinges on the appliance door move when
opening and closing the door, and you may be
trapped. Keep your hands away from the hinges.
EN-05

Risk of fire
• Combustible items stored in the cavity may catch
fire.Never store combustible items inthe cavity. Never
open the appliance door if there is smoke inside.
Switch off the appliance and unplug it from the
circuit breaker in the fuse box.
• A draught is created when the appliance door is
opened. Greaseproof paper may come into contact
with the heating element and catch fire. Do not place
greaseproof paper loosely over accessories during
preheating. Always weight down the greaseproof
paper with a dish or a baking tin. Only cover the
surface required with greaseproof paper. Greaseproof
paper must not protrude over the accessories.
Hazard due to magnetism
• Permanent magnets are used in the control panel or
in the control elements. They may affect electronic
implants, e.g. heart pacemakers or insulin pumps.
Wearers of electronic implants must stay at least 10
cm away from the control panel.
Causes of Damage
• Accessories, foil, greaseproof paper or ovenware
on the cavity floor: do not place accessories on
the cavity floor. Do not cover the cavity floor with
any sort of foil or greaseproof paper. Do not place
ovenware on the cavity floor if a temperature of
over 50 C has been set. This will cause heat to
accumulate. The enamel will be damaged.
• Aluminum foil: Aluminum foil in the cavity must not
come into contact with the door glass. This could
cause permanent discoloration of the door glass.
°
EN-06

mats, covers or accessories that contain silicone. The
oven sensor may be damaged.
• Water in a hot cooking compartment: do not pour
water into the cavity when it is hot. This will cause
steam. The temperature change can cause damage
to the enamel.
• Moisture in the cavity: Over an extended period of
time, moisture in the cavity may lead to corrosion.
Allow the appliance to dry after use. Do not keep
moist food in the closed cavity for extended periods
of time. Do not store food in the cavity.
• Cooling with the appliance door open: Following
operation at high temperatures, only allow the
appliance to cool down with the door closed. Do
not trap anything in the appliance door. Even if the
door is only left open a crack, the front of nearby
furniture may become damaged overtime. Only
leave the appliance to dry with the door open if a
lot of moisture was produced while the oven was
operating.
• Fruit juice: when baking particularly juicy fruit pies,
do not pack the baking tray too generously. Fruit
juice dripping from the baking tray leaves stains
that cannot be removed. If possible, use the deeper
universal pan.
• Extremely dirty seal: If the seal is very dirty, the
appliance door will no longer close properly during
operation. The fronts of adjacent units could be
damaged. Always keep the seal clean.
• Silicone pans: Do not use any silicone pans, or any
EN-07

• Appliance door as a seat, shelf or worktop: Do not sit
on the appliance door or place or hang anything on
it. Do not place any cookware or accessories on the
appliance door.
• Inserting accessories: depending on the appliance
model, accessories can scratch the door panel
when closing the appliance door. Always insert the
accessories into the cavity as far as they will go.
• Carrying the appliance: do not carry or hold the
appliance by the door handle. The door handle
cannot support the weight of the appliance and
could break.
• If you use the residual heat of the switched
keep food warm, a high moisture content inside the
cavity can occur. This may lead to condensation and
can cause corrosion damage of your high quality
appliance as well as harm your kitchen. Avoid
condensation by opening the door or use “Defrost”
mode.
EN-08

SPECIFICATION
Model 7NM30E0
RATED VOLTAGE 220-240V~
RATED FREQUENCY
ELECTRIC POWER 2.9 kW
50Hz-60Hz
EN-09

PRODUCT OVERVIEW

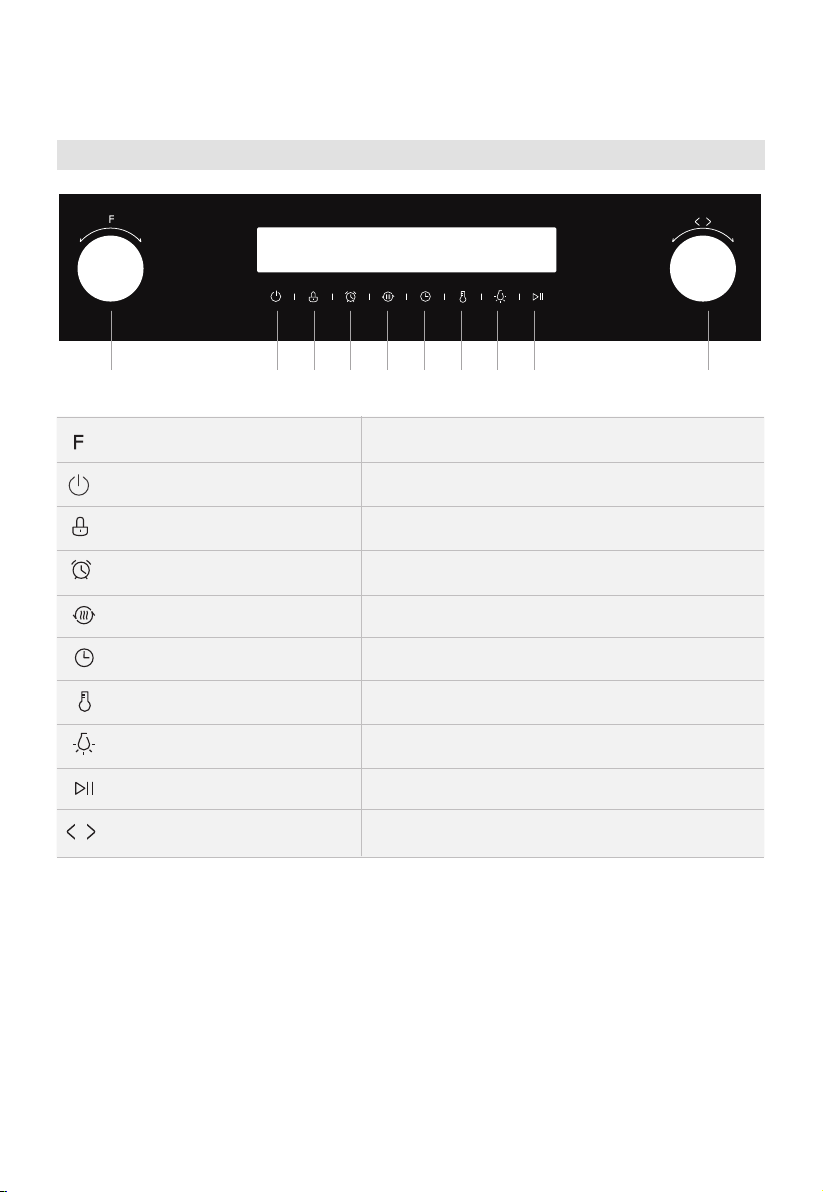

Identifying The Appliance
2 Cancel Cancel the current state and enter standby
mode.
3. Child-Proof Lock use child-proof lock with 3s press.
4. Timer Use timer function.
5. Quick preheat Use this to have a quick preheat.
6. Duration & Clock Setting Set a duration time then select function & set
clock in standby mode.
7. Temperature Setting Press to set temperature.
8. Lamp ON / OFF Switch on and off the lamp.
9. Start / Pause Start and pause the cooking process.
10. Adjust Change the adjustment values shown in the
display.
.
1 2 3 4 5 6 7 8 9 10
Turn this knob to change heating mode.
1. Oven – Function
EN-10

Accessories
Your appliance is accompanied by a range of accessories. Here, you can find an overview
of the accessories included and information on how to use them correctly.

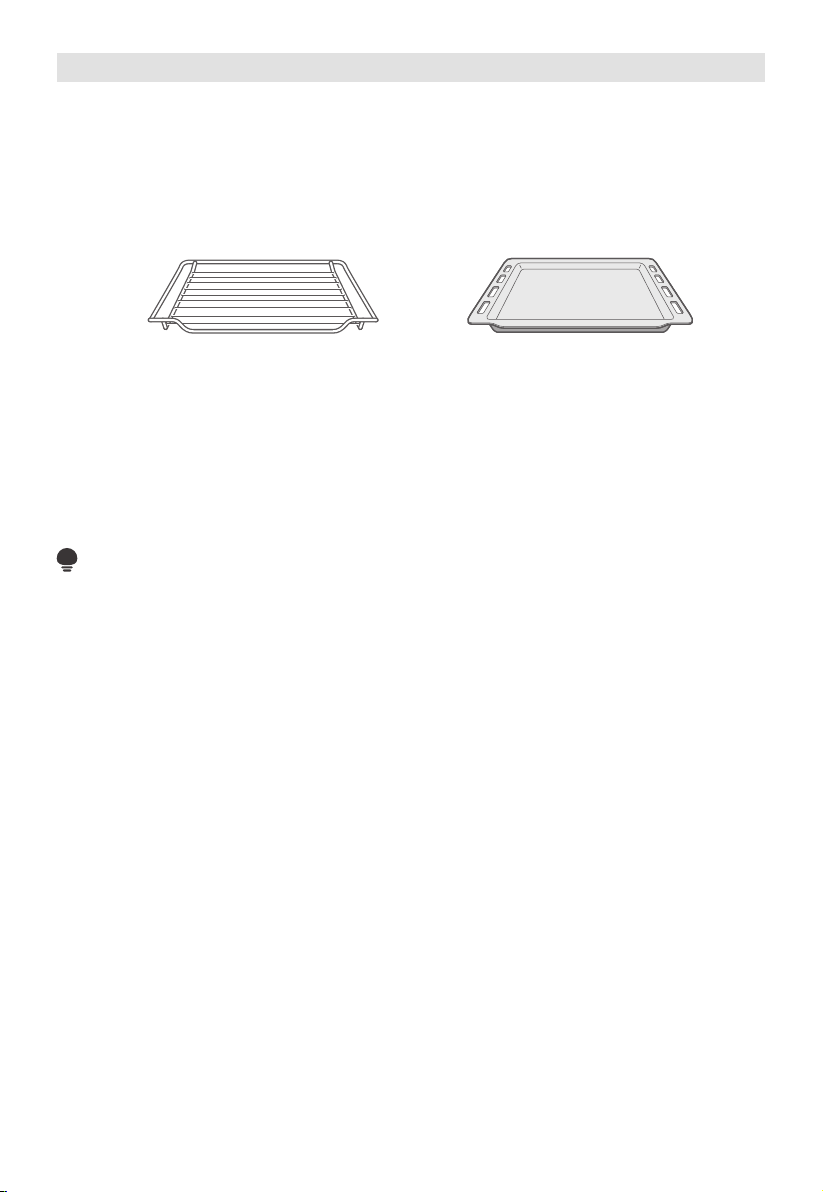

Accessories included
Your appliance is equipped with the following accessories:
Wire Rack
For ovenware, cake tins and ovenproof
dishes. For roasts and grilled food
Baking Tray
For tray bakes and small
baked products.
You can use the tray to place liquid or cooking food with juice.
Only use original accessories. They are specially adapted for your appliance.
You can buy accessories from the after-sales service, from specialist retailers or online.
NOTE
The accessories may deform when they become hot. This does not affect their function.
Once they have cooled down again, they regain their original shape.

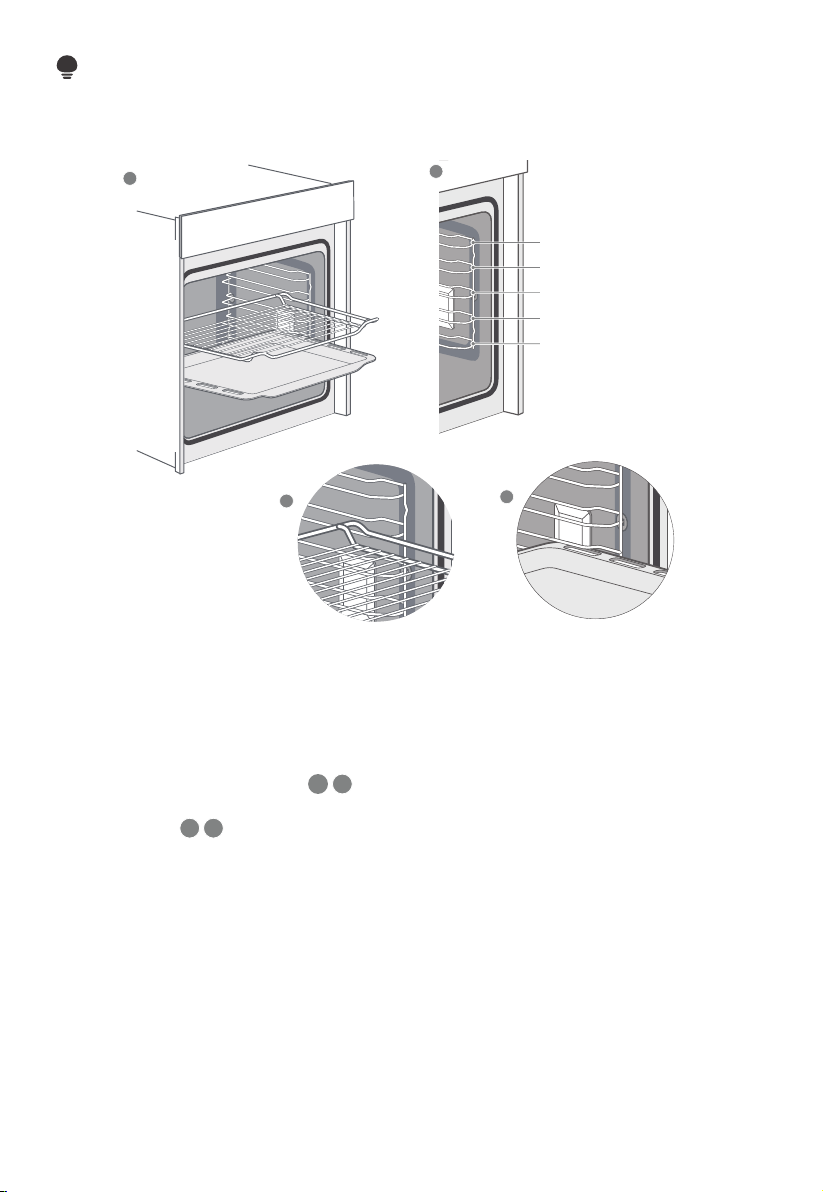

Inserting accessories
The cavity has five shelf positions. The shelf positions are counted from the bottom up.
The accessories can be pulled out approximately halfway without tipping.
EN-11

NOTE
1. Ensure that you always insert the accessories into the cavity the right way round.
2. Always insert the accessories fully into the cavity so that they do not touch
the appliance door.
3
2
5
4
3
2
1
4
1
Tilt protection
Accessories can be approximately pulled halfway out until they lock in place. The locking
function prevents accessories from tilting with the gravity of food and accessories
themselves while they get pulled out. Accessories should be inserted into cavity correctly
for the tilt protection.When inserting the wire rack, ensure the wire rack is onto the right
facing direction like the picture 13.
When inserting the backing tray, ensure the backing tray is onto the right facing direction
like the picture 41 .
EN-12

PRODUCT INSTALLATION
Installation
To operate this appliance safe , please be
sure that it has been installed to a
professional standard respecting the
installation instructions . Damages occur
because of incorrect installation are not
within the warranty.
While doing the installation , please wear
protective gloves to prevent yourself
from getting cut by sharp edges .
Check the appliance if there is any
damage before installation and do not
connect the appliance if there is . Before
turning on the appliance , please clean
up all the packaging materials and adhe-
sive film from the appliance.
The dimensions attached are in mm.
It is necessary to have the plug
accessible or incorporate a switch in the
fixed wiring, in order to disconnect the
appliance from the supply after
installation when necessary.
Warning:The appliance must not be
installed behind a decorative door in
order to avoid overheating.
566
20
5576
559955
559966
546
560
min.35
500
min.35
min.585
max.595 min.
min.
590 550
550 446600
105
min.35
500
560
560+88
mmiinn.. 55
min.
min.
600
600
88 min.35
560
560+
446600
500
105
min.
min.
550
550
mmiinn.. 55
EN-13

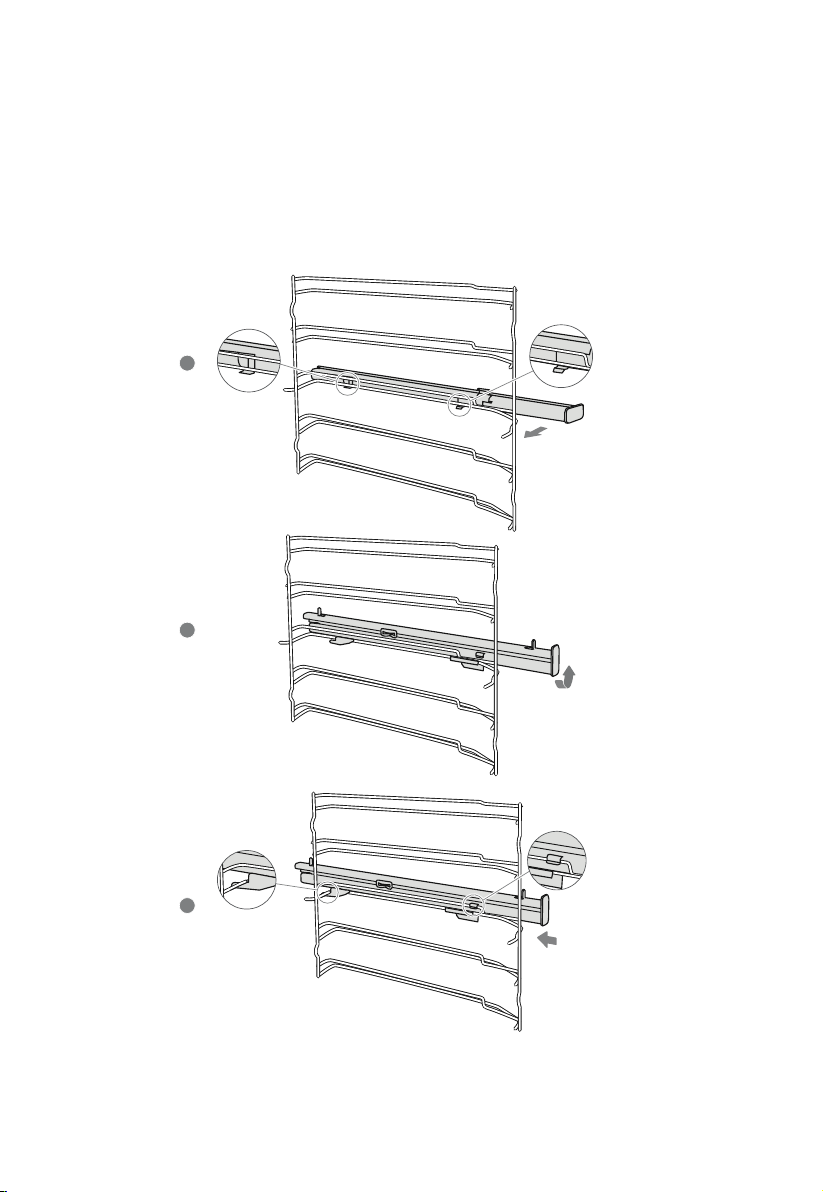

Fix The Telescopic Runners
( take the left side for example, same for right side)
• Put the point A and B of the telescopic runners horizontally on the outer wire.
• Rotate the telescopic runners anti-clockwise（clockwise for right side）by 90
degrees.
• Push forward the telescopic runners, make the point C buckled onto the lower wire
and the point D buckled onto the upper wire.
1
2
3
B
A
C
D
EN-14

Remove The Telescopic Runners
( take the left side for example, same for right side)
• Lift up one end of the telescopic runners hard.
• Lift up the whole telescopic runners and remove backward.
12
Change The Power Cord
Position A show the terminal box position on the back of the back outer case and it’s
closed.
Steps:
• cut off the power, use small flat screwdriver to open two snap 1,
• use Phillips crew driver to take off screws 3, 4, 5 and 6.
• change the new power cord, fix the yellow/green wire on 3, brother wire on 4, blue
wire on 5.
• twist screw 6 closed the terminal box cover finish the changing.
terminal boxback outer case
A
power cord
brown {L}
blue {N}
yellow/green
21
6
3
5
4
2.
EN-15

OPERATION INSTRUCTIONS
Before Using The Appliance
First using for the first time
Before using the appliance to prepare food for the first time, you must clean the cavity
and accessories.
1. Remove all stickers, surface protection foils and transport protection parts.
2. Remove all accessories and the side-racks from the cavity.
3. Clean the accessories and the side-racks thoroughly using soapy water and a dish
cloth or soft brush.
4. Ensure that the cavity does not contain any leftover packaging, such as polystyrene
pellets or wooden piece which may cause risk of fire
5. Wipe the smooth surfaces in the cavity and the door with a soft, wet cloth.
6. To remove the new-appliance smell, heat up the appliance when empty and with the
oven door closed.
7. Keep the kitchen highly ventilated while the appliance is heating up first time. Keep
children and pets out of the kitchen during this time. Close the door to the adjacent
rooms.
8. Adjust the settings indicated. You can find out how to set the heating type and the
temperature in the next section.
→ "Using Your Appliance" on page 19
Settings
Heating Mode
Temperature 250°C
Time 1h
After The Appliance Has Cooled Down
1. Clean the smooth surfaces and the door with soapy water and a dish cloth.
2. Dry all surfaces
3. Install the side-racks
Setting The Time
NOTE
The clock has a 24 hour display.
Before the oven can be used, the time should be set.
1. After the oven has been electrically connected, touch the clock symbol then you
can set time of day in hours by turning right knob.
again then you can set time in minutes by right knob.
2. Touch clock symbol
3. Touch clock symbol to finish the setting.
EN-16

Types Of Heating
Your appliance has various operating modes which make your appliance easier to use.
To enable you to find the correct type of heating for your dish, we have explained the
differences and scopes of application here.
Types of Heating Temperature Use
Conventional 30~250°C
For traditional baking and roasting on one
level. Especially suitable for cakes with
moist toppings.
Convection 50~250°C
For baking and roasting on one or more
levels. Heat comes from the ring heater
surrounding the fan evenly.
ECO 140~240°C For energy-saved cooking.
Conventional + Fan 50~250°C
For baking and roasting on one or more
levels. The fan distributes the heat from the
heating elements evenly around the cavity.
Radiant Heat 150~250°C
For grilling small amounts of food and for
browning food. Please put the food in the
center part under the grill heating element.
Double Grill + Fan 50~250°C
For grilling flat items and for browning
food. The fan distributes the heat evenly
around the cavity.
Double Grill 150~250°C For grilling flat items and for browning
food.
Pizza 50~250°C
For pizza and dishes which need a lot of
heat from underneath. The bottom heater
and ring heater will work.
Bottom Heat 30~220°C
For add extra browning to the bases of
pizzas, pies, and pastries. Heating come
from the bottom heater.
Defrost - For gently defrosting frozen food.
Fermentation 30~45°C For making yeast dough and sourdough to
prove and culturing yogurt.
NOTE
Defrosting, fermentation and "ECO" functions cannot be preheated quickly .
EN-17

NOTE
1. To defrost big portions of food, it is possible to remove the side-racks and place the
container on the cavity floor.
2. To warming tableware, it is beneficial to remove the side-racks and the heating modes
"Hot Air Grilling"and "Fan Heating" with temperature setting of 50°C are useful. "Hot
Air Grilling" should be used, if more than half of the cavity floor is covered by the
tableware.
3. Due to an optimum evenness of heat distribution inside the cavity during "Fan Heat-
ing", the fan will work at certain times of the heating process, to guaranty the best
possible performance.
Cooling Fan
The cooling fan switches on and off as required. The hot air escapes above the door.
Caution
If you open the appliance door during an on-going operation, the operation will not be
paused. Please be especially careful with the risk of burns.
Do not cover the ventilation slots. Otherwise, the appliance may overheat.
To make the appliance cools down more quickly after the operation, the cooling fan
may continue to run for a period afterwards.
Using Your Appliance：Cooking With Oven
1. After the oven has been electrically connected, turn the oven-function knob to select
functions, turn the adjust knob the set cooking temperature.
2. Touch Start / Pause symbol , oven begin to work, if not, oven will back to clock
after 10 minutes.
3. During the cooking process, you can touch to cancel it.
to set the cooking
NOTE
After temperature setting, you can touch clock symbol
duration time, you can set it by turning adjust knob.
Using Your Appliance: Quick Preheat
You can use quick preheat to shorten the preheat time. When you select a function,
touch the quick preheat symbol , the mark of quick preheat in the screen will light up.
If this function can’t quick preheat, then there will be a "beep". Defrosting, fermentation
and "ECO" functions cannot be preheated quickly.
EN-18

Using Your Appliance: Change During Cooking
During the period of appliance operating, you can change the heating type setting and
temperature setting by
oven-function or adjust knob. After the change, if there no other action after 6 seconds
the oven will heat as what you changed.
If you want change cooking duration time in the cooking process, please touch
and change it by adjust knob.
After the change, if there no other action after 6 seconds, the oven will heat as what
you changed.
NOTE
Changing modes/temperature/rest cooking time may have some negative influences
for the result of cooking, we warmly recommend you not to do so unless you are well
experienced on cooking.
Caution
After the appliance switched off, it becomes very hot especially inside the cavity. Never
touch the interior surfaces of the appliance or the heating elements. Use oven gloves to
remove accessories or ovenware from the cavity, and allow the appliance to cool down.
Keep children at a safe distance at the same time to avoid the injury of burns.
Using Your Appliance: Timer
You can use timer function by touching . When the time arrived, oven will give "beep"
for remind. At the first touch of , set timer by hours, then touch again, set timer by
minutes. Touch again and the setting is finished.
You can set the timer before and during cooking process, but when you are selecting
function and temperature, it’s not available.
EN-19
