Midea 7NM30M1 User manual

7NM30M1
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement. Consult
with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
BUILT-IN OVEN

THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
functions that your new appliance offers in a safe way.
THANK YOU LETTER
01
CONTENTS
THANK YOU LETTER
SAFETY INSTRUCTIONS
SPECIFICATION
PRODUCT OVERVIEW
PRODUCT INSTALLATION
OPERATION INSTRUCTIONS
CLEANING AND MAINTENANCE
TROUBLE SHOOTING
APPLIANCES WARRANTY CARD
0 1
02
09
1 0
1 3
1 7
26
32
35
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT 38
DATA PROTECTION NOTICE39

Danger
This symbol indicates that there are dangers to the life and health of
persons due to extremely flammable gas.
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of
persons due to voltage.
Warning
The signal word indicates a hazard with a medium level of risk which, if
not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which, if
not avoided, may result in minor or moderate injury.
Attention
The signal word indicates important information (e.g. damage to
property), but not danger.
Observe instructions
This symbol indicates that a service technician should only operate and
maintain this appliance in accordance with the operating instructions.
Intended Use
SAFETY INSTRUCTIONS
Read these operating instructions carefully and attentively before using/commissioning the
unit and keep them in the immediate vicinity of the installation site or unit for later use!
The following safety guidelines are intended to prevent unforeseen risks or damage from
unsafe or incorrect operation of the appliance. Please check the packaging and appliance
on arrival to make sure everything is intact to ensure safe operation. If you find any
damage, please contact the retailer or dealer. Please note modifications or alterations to
the appliance are not allowed for your safety concern. Unintended use may cause
hazards and loss of warranty claims.
Explanation of Symbols
SAFETY INSTRUCTIONS
02

Safety Information
Intended Use
• Thank you for buying Midea Built-in Oven. Before
unpacking it, please read these instruc-tions
carefully. Only then will you be able to operate your
appliance safely and correctly. Warmly recommend
retain the instruction manual and installation
instructions for future use or for subsequent owners.
The appliance is only intended to be fitted in a
kitchen. Observe the special installation instructions.
Check the appliance if there is any damage after
unpacking it. Do not connect the appli-ance if it has
been damaged. Only a licensed professional may
connect appliances without plugs. Damage caused
by incorrect connection is not covered under
warranty. Only use this appliance indoors. The
appliance must only be used for the preparation of
food and drink. The appliance must be supervised
during operation.
This appliance may be used by children over the age
of 8 and by persons with reduced physical, sensory
or mental capabilities or by persons with a lack of
experience or knowl-edge if they are supervised or
are instructed by a person responsible for their
safety how to use the appliance safely and have
understood the associated hazards.
Children must not play with, on, or around the
appliance. Children must not clean the appliance or
carry out general maintenance unless they are at
least 8 years old and are being supervised.
Keep children below the age of 8 years old at a safe
distance from the appliance and power cable.
And please always slide accessories into the cavity
the right way round.
•
•
•
•
•
03

Warning
Risk of electric shock
• Incorrect repairs are dangerous. Repairs may only
becarried out and damaged power cables replaced
by one of our trained after-sales technicians. If the
appliance is defective, unplug the appliance from the
mains or switchff the circuit breaker in the fuse box.
Contact the aftersales service.
• The cable insulation on electrical appliances may
melt when touching hot parts of the appliance. Never
bring electrical appliance cables into contact with
hot parts of the appliance.
• Do not use any highpressure cleaners or steam
cleaners, which can result in an electric shock.
• A defective appliance may cause electric shock.
Never switch on a defective appliance. Unplug the
appliancefrom the mains or switch off the circuit
breaker in the fuse box. Contact the after-sales
service.
Risk of burns
• The appliance becomes very hot. Never touch the
interior surfaces of the appliance or the heating
elements.
• Always allow the appliance to cool down.
• Keep children at a safe distance.
04

• Accessories and ovenware become very hot. Always
use oven gloves to remove acces sories or ovenware
from the cavity.
• Alcoholic vapors may catch fire in the hot cooking
compartment. Never prepare food containing large
quantities of drinks with high alcohol content. Only
use small quanti ties of drinks with high alcohol
content. Open the appliance door with care.
Risk of scalding
• The accessible parts become hot during operation.
Never touch the hot parts. Keep children at a safe
distance.
• When you open the appliance door, hot steam can
escape. Steam may not be visible, depending on its
temperature. When opening, do not stand too close
to the appliance. Open the appliance door carefully.
Keep children away.
• Water in a hot cavity may create hot steam. Never
pour water into the hot cavity.
Risk of injury
• Scratched glass in the appliance door may develop
into a crack. Do not use a glass scraper, sharp or
abrasive cleaning aids or detergents.
• The hinges on the appliance door move when
opening and closing the door, and you may be
trapped. Keep your hands away from the hinges.
05

Risk of fire
• Combustible items stored in the cavity may catch
fire.Never store combustible items inthe cavity. Never
open the appliance door if there is smoke inside.
Switch off the appliance and unplug it from the
circuit breaker in the fuse box.
• A draught is created when the appliance door is
opened. Greaseproof paper may come into contact
with the heating element and catch fire. Do not place
greaseproof paper loosely over accessories during
preheating. Always weight down the greaseproof
paper with a dish or a baking tin. Only cover the
surface required withgreaseproof paper. Greaseproof
paper must not protrude over the accessories.
Hazard due to magnetism
• Permanent magnets are used in the control panel or
in the control elements. They may affect electronic
implants, e.g. heart pacemakers or insulin pumps.
Wearers of electronic implants must stay at least 10
cm away from the control panel.
Causes of Damage
• Accessories, foil, greaseproof paper or ovenware
on the cavity floor: do not place accessories on
the cavity floor. Do not cover the cavity floor with
any sort of foil or greaseproof paper. Do not place
ovenware on the cavity floor if a temperature of
over 50 C has been set. This will cause heat to
accumulate. The enamel will be damaged.
• Aluminum foil: Aluminum foil in the cavity must not
come into contact with the door glass. This could
cause permanent discoloration of the door glass.
°
06

mats, covers or accessories that contain silicone. The
oven sensor may be damaged.
• Water in a hot cooking compartment: do not pour
water into the cavity when it is hot. This will cause
steam. The temperature change can cause damage
to the enamel.
• Moisture in the cavity: Over an extended period of
time, moisture in the cavity may lead to corrosion.
Allow the appliance to dry after use. Do not keep
moist food in the closed cavity for extended periods
of time. Do not store food in the cavity.
• Cooling with the appliance door open: Following
operation at high temperatures, only allow the
appliance to cool down with the door closed. Do
not trap anything in the appliance door. Even if the
door is only left open a crack, the front of nearby
furniture may become damaged overtime. Only
leave the appliance to dry with the door open if a
lot of moisture was produced while the oven was
operating.
• Fruit juice: when baking particularly juicy fruit pies,
do not pack the baking tray too generously. Fruit
juice dripping from the baking tray leaves stains
that cannot be removed. If possible, use the deeper
universal pan.
• Extremely dirty seal: If the seal is very dirty, the
appliance door will no longer close properly during
operation. The fronts of adjacent units could be
damaged. Always keep the seal clean.
• Silicone pans: Do not use any silicone pans, or any
07

• Appliance door as a seat, shelf or worktop: Do not sit
on the appliance door or place or hang anything on
it. Do not place any cookware or accessories on the
appliance door.
• Inserting accessories: depending on the appliance
model, accessories can scratch the door panel
when closing the appliance door. Always insert the
accessories into the cavity as far as they will go.
• Carrying the appliance: do not carry or hold the
appliance by the door handle. The door handle
cannot support the weight of the appliance and
could break.
• If you use the residual heat of the switched
keep food warm, a high moisture content inside the
cavity can occur. This may lead to condensation and
can cause corrosion damage of your high quality
appliance as well as harm your kitchen. Avoid
condensation by opening the door or use “Defrost”
mode.
08

SPECIFICATION
Model 7NM30M1
Rated Voltage: 220-240V~ 10A
Rated Frequency: 50 -60Hz
Electric Power: 1.9 kW
09
HZz
No of Cavities
Heat Source
Usable Volume
ECelectric, cavity (Conventional)
ECelectric, cavity (Forced Air)
EEICavity
1
Electric
A
/ kWh/cycle
0.75kWh/cycle
87.4
72L
DATASHEET (EU 65/2014 & EU 66/2014)

PRODUCT OVERVIEW
Know Your Appliance
Identifying the appliance
In this chapter, we will explain the control panel andaccessories. At the same
time you will also find out about the various functionsofyour appliance.
Note: Depending on the appliance model, individual details and colors may
different.
Knobs
Turn these knobs to set operating mode, each knob is well fitted with the nearby
silk-screening icons on the control panel glass so that you can easily operate your
appli-ance with your fingers.
Indicator light
Indicator is sort of a light that notice you if heaters inside the appliance are
working or not, while the appliance is switched on, the indicator will be on and off
intermittently.
Controls
The individual controls are adapted for the various functions of your appliance.
You can set your appliance simply and directly. There is no constraint for the
orders of operating the knobs, making your-self fully free while using the
appliance.

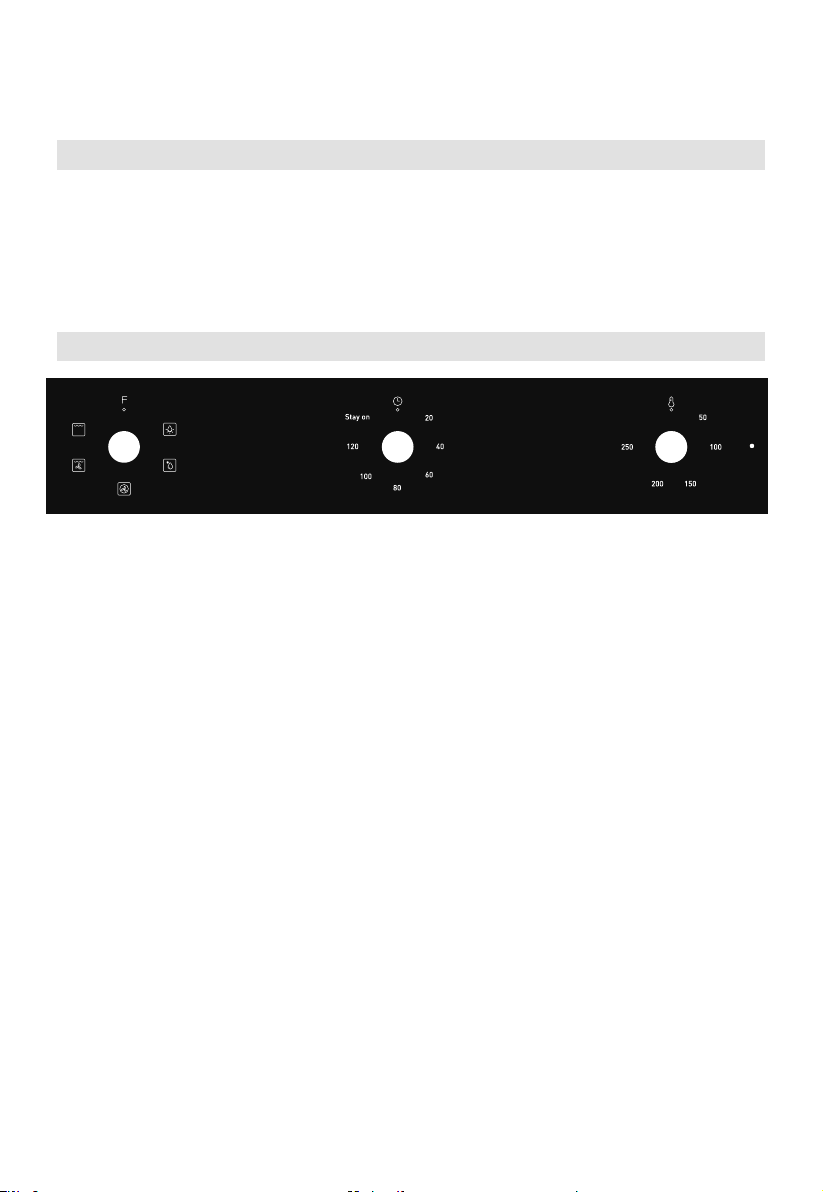

Control Panel
10

Accessories
Your appliance is accompanied by a range of accessories. Here, you can find an overview
of the accessories included and information on how to use them correctly.
Accessories included
Your appliance is equipped with the following accessories:
You can use the tray to place liquid or cooking food with juice.
Only use original accessories. They are specially adapted for your appliance.
You can buy accessories from the after-sales service, from specialist retailers or online.
NOTE
The accessories may deform when they become hot. This does not affect their function.
Once they have cooled down again, they regain their original shape.
Inserting accessories
The cavity has five shelf positions. The shelf positions are counted from the bottom up.
The accessories can be pulled out approximately halfway without tipping.
11
NOTE
1. Ensure that you always insert the accessories into the cavity the right way round.
2. Always insert the accessories fully into the cavity so that they do not touch
the appliance door.
Wire Rack
For ovenware, cake tins
and ovenproof dishes. For
roasts and grilled food
Baking Tray
For tray bakes and
small baked products.
Shallow Tray
For tray bakes and
small baked products.
Wire Rack
For ovenware, cake tins
and ovenproof dishes. For
roasts and grilled food

3
2
5
4
3
2
1
4
1
13
Locking function
Accessories can be approximately pulled halfway out until they lock in place. The locking
function prevents accessories from tilting with the gravity of food and accessories
themselves while they get pulled out. Accessories should be inserted into cavity
correctly for the tilt protection.When inserting the wire rack, ensure the wire rack is onto
the right facing direction like the picture
When inserting the backing tray, ensure the backing tray is onto the right facing
direction like the picture
Optional accessories
You can buy optional accessories from the after-sales service, from specialist retailers or
online. Please see your sales brochures for more details.
When purchasing, please always quote the exact order number of the optional
accessory.
41
12
.
.

PRODUCT INSTALLATION
13

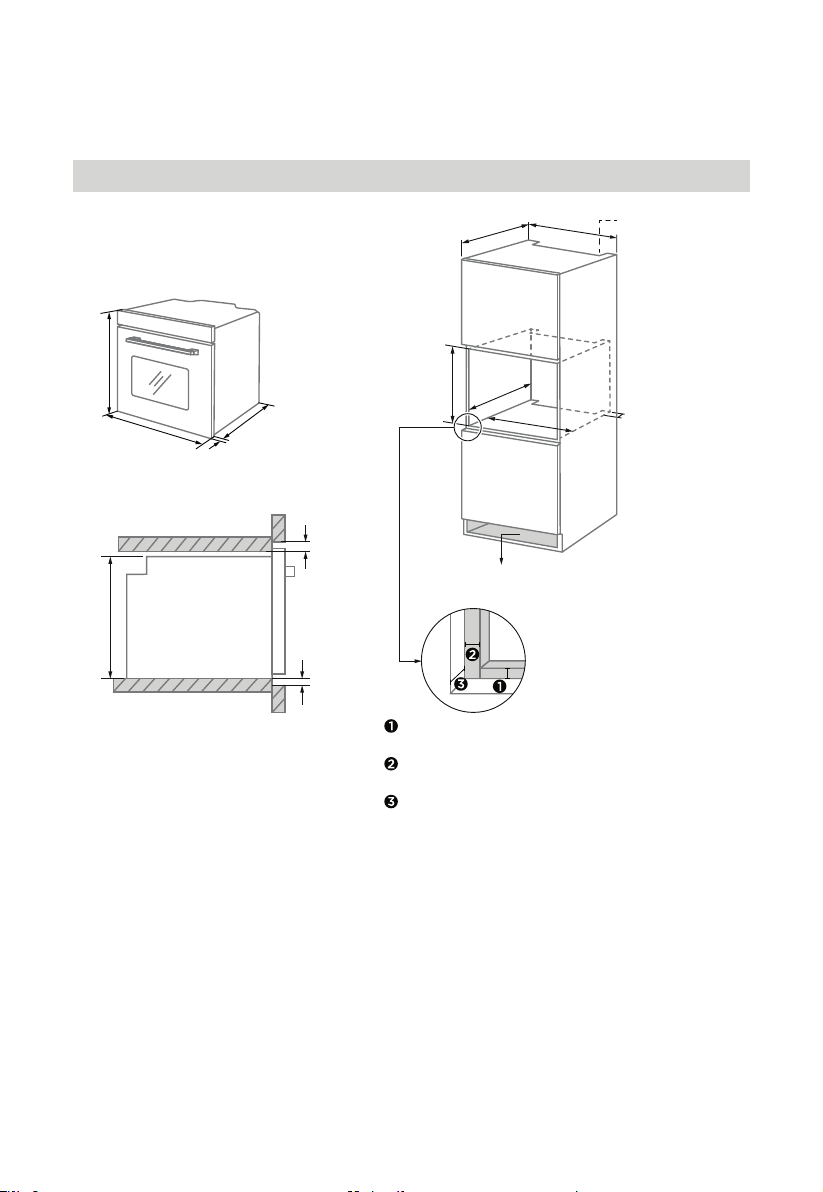

Cupboard Diagram (Standing Cupboard)
600
Min.570
Min.50
Air vents
+8
560
*
590
5
20
20
Min.550
Minimum bottom ventilation area: 250 mm2
≥
10
583
≥5
596
595 20
546
Native appliance
Reserve 5 mm for the door panel at the
top and bottom respectively.
Reserve 20 mm for the door panel on the
left and right respectively.
Reserve 20 mm for the door panel in
thickness.
1.
2.
3.
The thickness of the cupboard board is 20 mm.
If the power socket is installed on the back of the appliance, the depth of the
cupboard opening shall be increased from a minimum of 590 mm to 620 mm.
The dimensions in the figures are in mm.

Cupboard Diagram (Ground Cupboard)
596
595 20
546
If the appliance is installed under the hob, the
minimum thickness of worktop A is shown below:
Without hob
Hob type
Induction hob 37 mm
worktop A
Full-surface induction hob 47 mm
Gas hob
Electric hob
30 mm
27 mm
Reserve 5 mm for the door panel at the top and
bottom respectively.
Reserve 20 mm for the door panel on the left
and right respectively.
Reserve 20 mm for the door panel in thickness.
1.
2.
3.
The thickness of the cupboard board is 20 mm.
If the power socket is installed on the back of the appliance, the depth of the
cupboard opening shall be increased from a minimum of 590 mm to 620 mm.
The dimensions in the figures are in mm.
Minimum bottom ventilation area: 250 mm2
*
Min.550
≥5
Native appliance
583
≥
5
600
Min.50
600+2
Min.570
+8
560
Air vents
5
20
20
Hob
≥5
A
With hob
≥
5
Native appliance
583
14

Fix The Telescopic Runners
( take the left side for example, same for right side)
• Put the point A and B of the telescopic runners horizontally on the outer wire.
• Rotate the telescopic runners anti-clockwise（clockwise for right side）by 90
degrees.
• Push forward the telescopic runners, make the point C buckled onto the lower wire
and the point D buckled onto the upper wire.
1
2
3
B
A
C
D
15

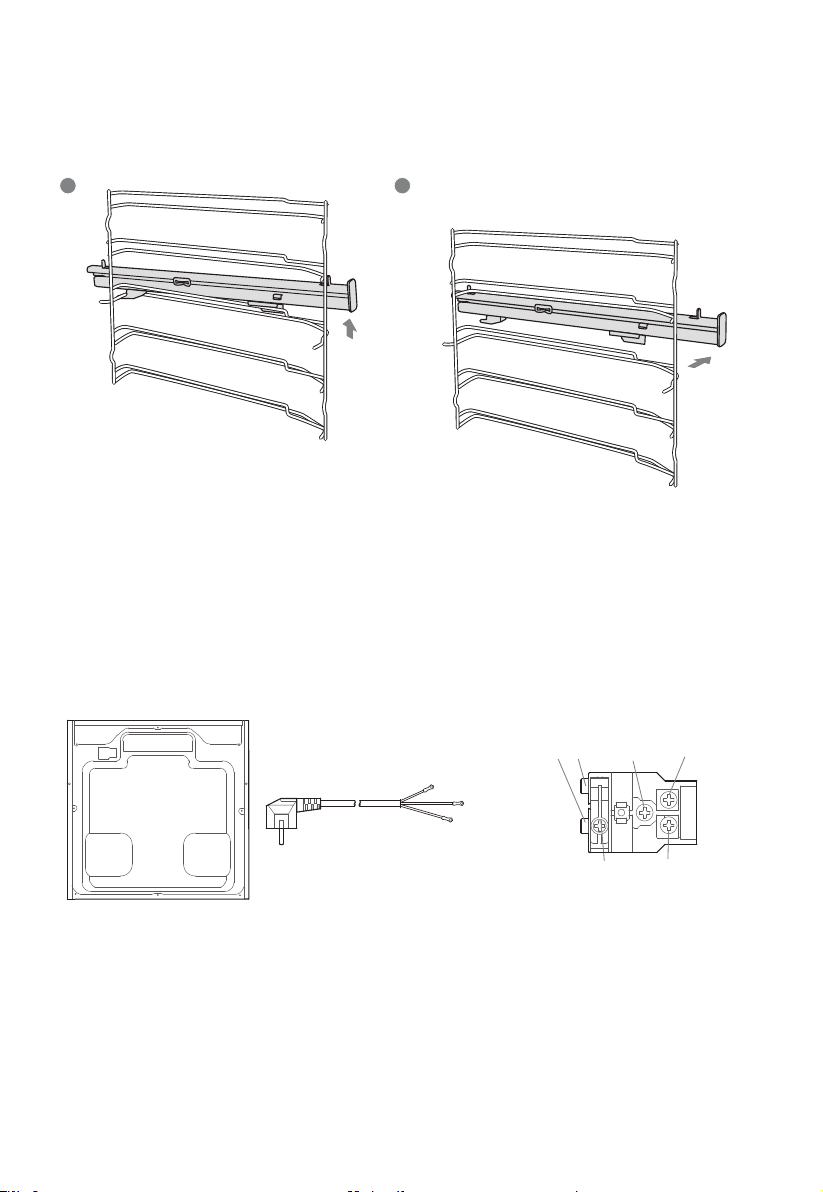

Remove The Telescopic Runners
( take the left side for example, same for right side)
• Lift up one end of the telescopic runners hard.
• Lift up the whole telescopic runners and remove backward.
12
Change The Power Cord
Position A show the terminal box position on the back of the back outer case and it’s
closed.
Steps:
• cut off the power, use small flat screwdriver to open two snap 1,
• use Phillips crew driver to take off screws 3, 4, 5 and 6.
• change the new power cord, fix the yellow/green wire on 3, brother wire on 4, blue
wire on 5.
• twist screw 6 closed the terminal box cover finish the changing.
terminal boxback outer case
A
power cord
brown {L}
blue {N}
yellow/green
21
6
3
5
4
2.
16

OPERATION INSTRUCTIONS
First Use
Before using the appliance to prepare food for the first time, you must clean the
cavity and accessories.
1. Remove all stickers, surface protection foils and transport protection parts.
2. Remove all accessories and the side-racks from the cavity.
3. Clean the accessories and the side-racks thoroughly using soapy water and a dish
cloth or soft brush.
4. Ensure that the cavity does not contain any leftover packaging, such as
polystyrene pellets or wooden piece which may cause risk of fire.
5. Wipe the smooth surfaces in the cavity and the door with a soft, wet cloth.
6. To remove the new-appliance smell, heat up the appliance when empty and with
the oven door closed.
7. Keep the kitchen highly ventilated while the appliance is heating up first time.
Keep children and pets out of the kitchen during this time. Close the door to the
adjacent rooms.
8. Adjust the settings indicated. You can find out how to set the heating type and
the temperature in the next section.
Settings
Heating Mode
Temperature 250°C
Time 1h
After The Appliance Has Cooled Down
1. Clean the smooth surfaces and the door with soapy water and a dish cloth.
2. Dry all surfaces
3. Install the side-racks
17
Your appliance has various operating modes which make your appliance easier
to use. To enable you to find the correct type of heating for your dish, we have
explained the differences and scopes of application here.
The symbols for each type help you to remember them.

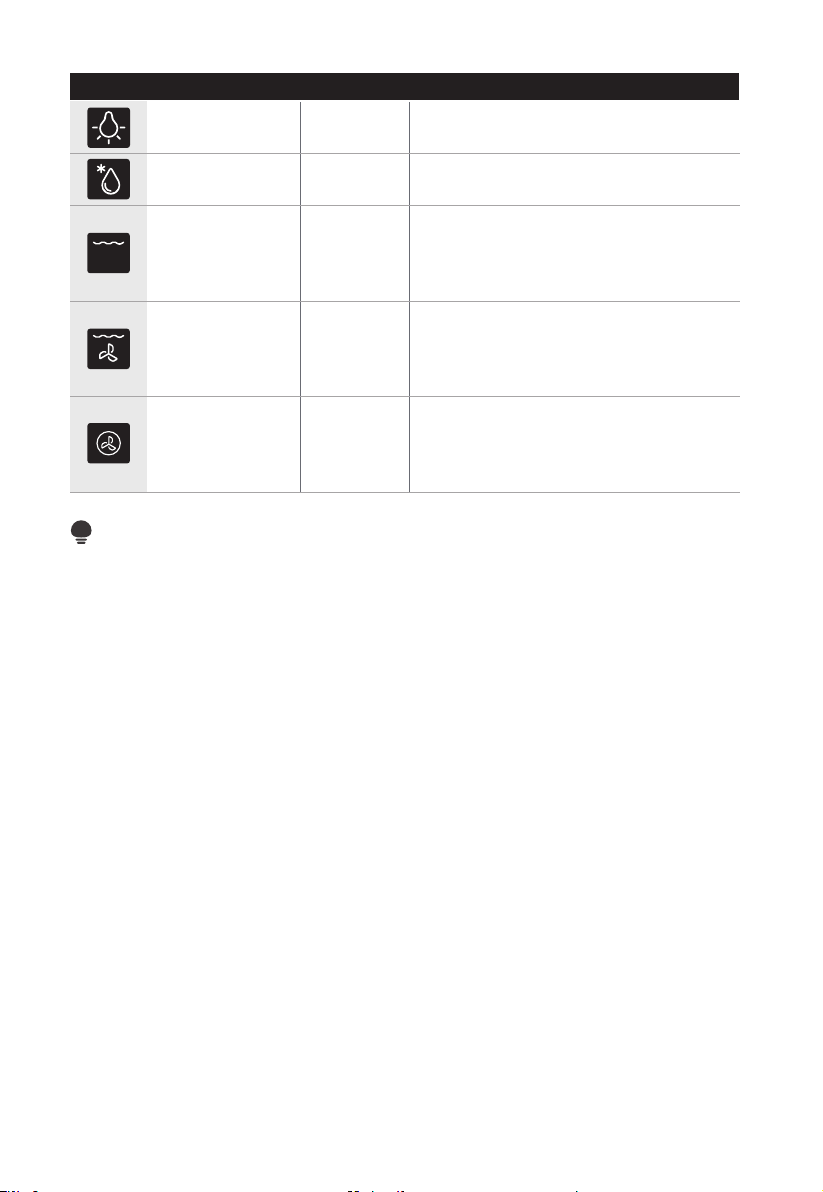

Operating Modes

Types of heating
Lamp /
/
For lightening the cavity without any
heating element switch on.
Defrost For gently defrosting frozen food.
50°C~250°C
50°C~250°C
50°C~250°C
Grill
For grilling small amounts of steaks or
sausages.
The center area under the heating heating
element becomes hot
Grill + Fan
For baking and roasting on one or more
levels.(But no more than 3)
The fan distributes heat from heating
elements evenly around the cavity.
Convection
For baking and roasting on one or more
levels. Heat comes from the ring heater
surrounding the fan evenly.
Heating Mode Temperature Use
Caution
1.
2.
If you open the appliance door during an on-going operation, the operation will
not be paused. Please be especially careful with the risk of burns.
Do not cover the ventilation slots. Otherwise, the appliance may overhea.
To make the appliance cools down more quickly after the operation, the cooling
fan may continue to run for a period afterwards.
1.
2.
3.
To defrost big portions of food, it is possible to remove the side-racks and place
the container on the cavity floor.
To warming tableware, it is beneficial to remove the side-racks and the heating
modes “Hot Air Grilling” and “Fan Heating” with temperature setting of 50°C are
useful. “Hot Air Grilling” should be used, if more than half of the cavity floor is
covered by the tableware.
Due to an optimum evenness of heat distribution inside the cavity during “Fan
Heat-ing”, the fan will work at certain times of the heating process, to guaranty
the best possible performance.
Lighting
When you switch the appliance on to any mode, the lamp will be always on until
the operation has finished. You can use the main mode: “Lamp” during different
operations, i.e. cleaning, preparing the cooking process, pause heating modes
during opening the door.
Cooling fan
The cooling fan switches on and off as required. The hot air escapes above the
door.
NOTE
18

The default operating mode is switching off. If you would like to select a cooking
operat-ing mode, you can do so using left mode-control knob. There is a pointer on the
knob, turn this knob to make the pointer to point to the mode which you would like to
choose.
Selecting Modes
If you would like to select a temperature for cooking, the way to operate is similar with
the way to select the operating mode. You can do so using right temperature-control
knob. There is a pointer on the knob, turn this knob to make the pointer to point to the
temperature which you would like to choose.
Temperature Setting
As now you already finished the setting of the operating mode and temperature. If you
would like to turn the appliance on, you can do so using time-control knob. There is a
pointer on the knob, turn this knob to make the pointer to point to the cooking time which
you would like to choose. The maximum cooking time is 2 hours.
Switching On
19
