Midea 315544 User manual

BUILT-IN COMPACT
OVEN & MICROWAVE
315544
Read these instructions
carefully before using your
oven, and keep it carefully.
If you follow the instructions,
your oven will provide you
with many years of good
service.
EN
INSTRUCTION MANUAL
Oven Capacity: 44 Liter
240V~50Hz, 1650W230-

01
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. It is important not to break or
tamper with the safety interlocks.
(b) Do not place any object between the oven front
face and the door or a l l o w soil or cleaner residue
to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged,
the oven must n o t be operated until it has been
repaired by a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect
the lifespan of the apparatus and lead to a dangerous
situation.
EN-2

01
02
02
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, persons or
exposure to energy when injury to excessive
microwave oven using your appliance, follow basic
precautions, including the following:
1. This appliance can be used by children aged from 8
years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not
be made by children without supervision.
2. Read and follow the specific:"PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
3. Keep the appliance and its cord out of reach of
children less than 8 years.
4. If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified perso ns in order to avoid a hazard.( For
appliance with type Y attachment)
5. WARNING: It is hazardous for anyone other than a
competent person to carry out any service or
repair operation that involves the removal of a
cover which gives protection against exposure to
microwave energy.
EN-3

6. WARNING: Liquids and other foods must not be
heated in sealed containers since they are liable to
explode.
7. This appliance can be used by children aged from 8
years and above and persons with reduced
physical, sensory or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not
be made by children without supervision unless
they are aged from 8 years and above and
supervised.
8. When heating food in plastic or paper containers,
keep an eye on the oven due to the possibility of
ignition.
9. Only use utensils that are suitable for use in
microwave ovens.
10. If smoke is emitted, switch off or unplug the
appliance and keep the door closed in order to
stifle any flames.
11. Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must be
taken when handling the container.
12.The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature
checked before consumption, in order to avoid
burns.
13. Eggs in their shell and whole hard-boiled eggs
should not be heated in microwave ovens since
they may explode, even after microwave heating
has ended.
14. The oven should be cleaned regularly and any food
deposits removed.
EN-4

03
15. Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that
could adversely affect the life of the appliance and
possibly result in a hazardous situation.
16.Only use the temperature probe recommended for
this oven.(for ovens provided with a facility to use
a temperature-sensing probe.)
17.The microwave oven must be operated with the
decorative door open. (for ovens with a decorative
door.)
18.This appliance is intended to be used in household
and similar applications such as:
-staff kitchen areas in shops, offices and other
working environments;
-by clients in hotels, motels and other residential
type environments;
-farm houses;
-bed and breakfast type environments.
19. Care should be taken not to displace the turntable
when removing containers from the appliance. (For
fixed appliances and built-in appliances being used
equal or higher than 900mm above the floor and
having detachable turntables. But this is not
applicable for appliances with horizontal bottom
hinged door.)
20. The appliance shall not be cleaned with a steam
cleaner.
21. WARNING: Ensure that the appliance is switched
off before replacing the lamp to avoid the
possibility of electric shock.
22. WARNING: Accessible parts may become hot
during use. Young children should be kept away.
EN-5

23. Steam cleaner is not to be used.
24.The microwave oven is intended for heating food
and beverages. Drying of food or clothing and
heating of warming pads, slippers, sponges, damp
cloth and similar may lead to risk of injury, ignition
or fire.
25. Surface of a storage drawer can get hot.
26. WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to
avoid touching heating elements. Children less than
8 years of age shall be kept away unless
continuously supervised.
27. During use the appliance becomes hot. Care
should be taken to avoid touching heating
elements inside the oven.
28. Metallic containers for food and beverages are not
allowed during microwave cooking.
29. Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they
can scratch the surface, which may result in
shattering of the glass.
30.The appliance is intended to be used built-in.
31. The applia nce m ust no t be insta lled behind a
decorative door in order to avoid overheating.
(This is not applicable for appliances with
decorative door.)
32. WARNING: When the appliance is operated in the
combination mode, children should only use the
oven under adult supervision due to the
temperatures generated.
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
EN-6

Creation of sparks: Metal e.g. a spoon in a glass
must be kept at least 2 cm from the oven walls and
the inside of the door. Sparks could irreparably
damage the glass on the inside of the door.
Water in the hot cooking compartment: Never pour
water into the hot cooking compartment. This will
cause steam. The temperature change can cause
damage.
Moist food: Do not store moist food in the closed
cooking compartment for long periods.
Do not use the appliance to store food. This can
lead to corrosion.
Cooling with the appliance door open: Only leave
the cooking compartment to cool with the door
closed. Do not trap anything in the appliance door.
Even if the door is only slightly ajar, the fronts of
adjacent units may be damaged over time.
Heavily soiled seal: If the seal is very dirty, the
appliance door will no longer close properly during
operation. The fronts of adjacent units could be
damaged. Always keep the seal clean.
Operating the microwave without food: Operating
the appliance without food in the cooking
compartment may lead to overloading. Never
switch on the appliance unless there is food in the
cooking compartment. An exception to this rule is
a short crockery test (see the section "Microwave,
suitable crockery").
Causes of damage
Caution!
EN-7

Using the appliance door for standing on or placing
objects on: Do not stand or place anything on the
open appliance door. Do not place ovenware or
accessories on the appliance door.
Transporting the appliance: Do not carry or hold
the appliance by the door handle. The door handle
cannot support the weight of the appliance and
could break.
Microwave popcorn: Never set the microwave
power too high. Use a power setting no higher than
600 watts. Always place the popcorn bag on a
glass plate. The disc may jump if overloaded.
Liquid that has boiled over must not be allowed to
run through the turntable drive into the interior of
the appliance. Monitor the cooking process.
Choose a shorter cooking time initially, and
increase the cooking time as required.
The oven should be cleaned regularly and any food
deposits removed since they may explode, even
after microwave heating has ended.
Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that
could adversely affect the life of the appliance and
possibly result in a hazardous situation.
EN-8

03
INSTALLATION
■ This appliance is only intended to be fully fitted in a kitchen.
■This appliance is not designed to be used as a tabletop appliance or
inside a cupboard.
■ The fitted cabinet must not have a back wall behind the appliance.
■A gap of at least 45 mm must be maintained between the wall and
the base or back panel of the unit above.
■ The fitted cabinet must have a ventilation opening of 250 cm on
the front. To achieve this, cut back the base panel or fit a
ventilation grille.
■Ventilation slots and intakes must not be covered.
■The safe operation of this appliance can only be guaranteed if it has
been installed in accordance with these installation instructions.
■ The fitter is liable for any damage resulting from incorrect
installation.
■ The units into which the appliance is fitted must be heatresistant up
90 ℃.
²
min 45
Cupboard feetVentilation grid
Ventilation openings
behind, min. 250 cm2
min.
550
600
Back
panels
open
Ventilation
area in the
base min. 250 cm2
Note: There should be gap above the oven.
min 45
450
+2
560
+8
560
+8
460
+2
50
Ventilation in
the base min.
250 cm
Back
panel
open
min.
550
2
FITTED UNITS
INSTALLATION DIMENSIONS
EN-9

■Fully insert the appliance and centre it.
■Do not kink the connecting cable.
■Screw the appliance into place.
■The gap between the worktop and the appliance must not be
closed by addtional battens.
• Do not hold or carry the appliance by the door handle. The door
handle cannot hold the weight of the appliance and may break off.
1. Carefully push the oven into the box, making sure that it is in the
centre.
2. Open the door and fasten the microwave with the screws that were
supplied.
I
* 20 mm for metal fascias
The appliance is designed to be permanently installed with a three-
pin power cord and may only be connected by a licensed expert in
accordance with the connection diagram.
Only a qualified electrician who takes the relevant regulations into
account may replace the power cord.
Do not use multiple plugs, power strips or extensions. Overloading
causes a risk of fire.
If the connection is no longer accessible following installation, an all-
pin isolating switch with a contact gap of at least 3 mm must be
provided.
MPORTANT INFORMATION
BUILDING IN
EN-10

Connect the wires of the mainspower cord in
with the following colour coding:
Green and yellow Earth wire (E)
Blue Neutral wire (N)
Brown Live (L)
<
accordance
EN-11

04
YOUR NEW APPLIANCE
TOUCH KEYS AND DISPLAY
FUNCTION SELECTOR
Use this section to familiarise yourself with your new appliance. The
control panel and the individual operating controls are explained.
You will find information on the cooking compartment and the
accessories.
The touch keys are used to set the various additional functions. On
the display, you can read the values that you have set.
Use the function selector to set the type of heating.
Symbol Function
Clock
Start/Pause
Power/Weight
Temperature/Auto menu
ON/OFF
3D Hot air
Function Use
For baking sponge cakes in baking tins, flans and cheesecakes
as well as cakes, pizza and small baked items on the baking
tray.50°C can maintain the taste of food after heat
preservation of 1-2 hours.
CONTROL PANEL
pyr.
hr
min
AQUA
Press briefly: Rapid preheating
EN-12

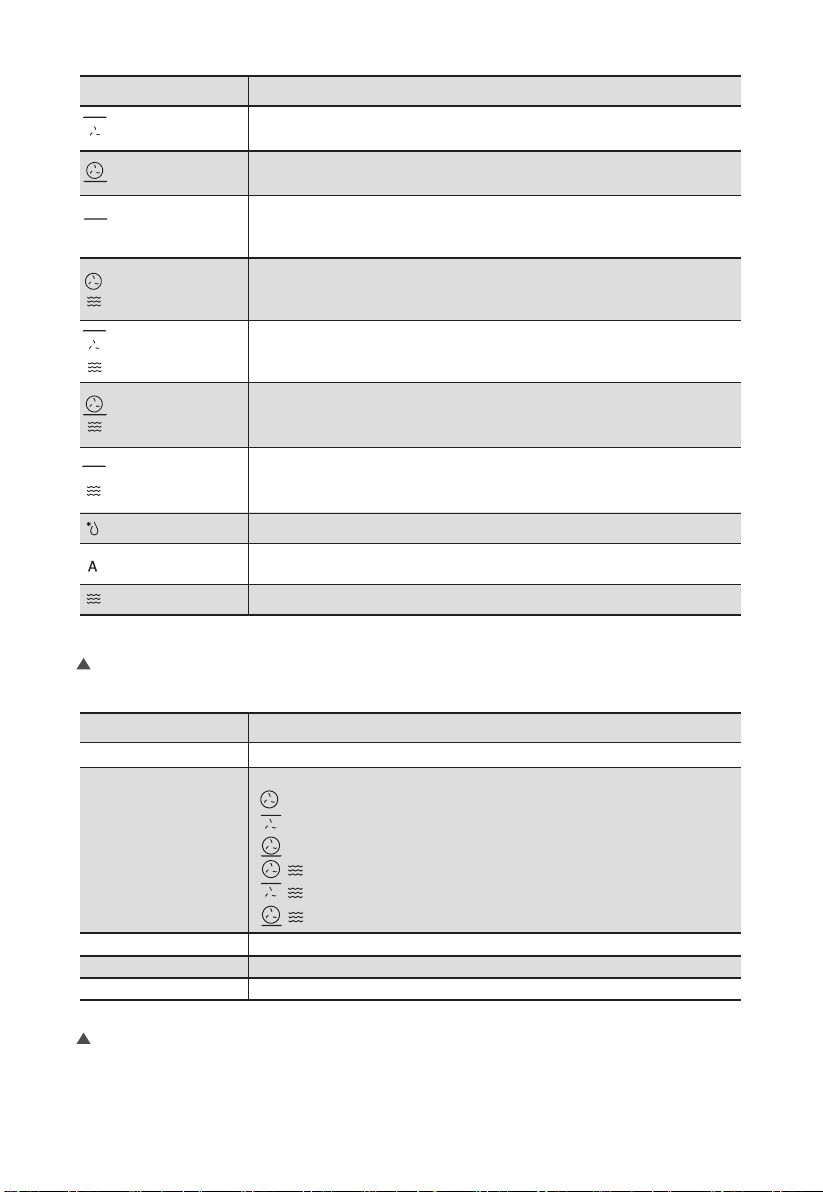

Function Use
Parameter Function
Microwave+
Grill Fan
Grill with fan Poultry goes brown and crispy. Baked casseroles
and grilled dishes work out best using this setting.
For frozen convenience products and dishes which
require a lot of heat from underneath.
Select between the levels high, medium or low.
This is ideal if you wish to grill several steaks,
sausages, pieces of fish or slices of bread.
Use this function to roast meals quickly. And at the
same time use the function of 3D Hot air
Poultry goes brown and crispy. Baked casseroles and grilled
dishes work out best using this setting.And use the function
to roast meals evenly.
Use this function to roast meals quickly. And at the same
time use the function of Pizza setting.
Use this function to cook meals quickly and at the same time
give the meal a brown crust.
2 defrosting programmes
Defrost,reheat and cooking.
13 cooking programmes The type of heating and cooking
time are set by weight.
Grill
Microwave+
Hot air
Pizza setting
Microwave+
Pizza
Auto-programs
Defrost
Microwave+Grill
Microwave
Auto menu Select 13 automatic programmes. From P 01 to P 13.
Weight Set the weight of cooking.
Time Set the time of cooking.
Microwave
Select microwave power.100W,300W 450W,700W and 900W
Temperature
Select the temperature of cooking(°C).
PARAMETER SELECTOR
Use the selector to set the parameters.
COOLING FAN
Your appliance has a cooling fan. The cooling fan switches on during
operation. The hot air escapes above the door.
The cooling fan continues to run for a certain time after operation.
:50,100,105,110...230
:100,105,110...230
:50,100,105,110...230
:100,105,110...
:100,105,110...230
:100,105,110...230
230
+
+
+
+
+
+
+
EN-13

Caution!
Do not cover the ventilation slots. Otherwise, the appliance will
overheat.
Turntable
As a surface for the wire rack.
Food which particularly requires a lot of heat from underneath can be
prepared directly on the turntable.
The turntable can turn clockwise or anti-clockwise.
Place the turntable on the drive in the centre of the cooking
compartment. Ensure that it is properly fitted.
■Never use the microwave without the turntable.
■The turntable can withstand max. 5 kg.
■The turntable must turn when using all types of heating.
Lower wire rack
For the microwave and for baking and roasting in the oven.
Higher wire rack
For grilling, e.g. steaks, sausages and for toasting bread.
As a support for shallow dishes.
Note:
Type and quantity of accessories is suject to actual demand.
Notes:
■The appliance remains cool during microwave operation. The
cooling fan will still switch on. The fan may run on even when
microwave operation has ended.
■Condensation may appear on the door window, interior walls and
floor. This is normal and does not adversely affect microwave
operation. Wipe away the condensation after cooking.
ACCESSORIES
EN-14

05
BEFORE USING THE APPLIANCE FOR
THE FIRST TIME
Here you will find everything you need to do before using your oven
to prepare food for the first time. First read the section on Safety
information .
Once the appliance is connected, "00:00" will blink, buzzer will ring
once. Set the clock.
1.Turn the knob between 00:00 and 23:59.
2.Touch the key. The time is set.
Before you use the accessories for the first time, clean them
thoroughly with hot soapy water and a soft dish cloth.
SETTING THE CLOCK
CLEANING THE ACCESSORIES
To remove the new cooker smell, heat up the oven when it is empty
and closed. One hour with Hot air at 230 °C is ideal. Ensure that
no packaging remnants have been left in the cooking compartment.
1. Use the function selector to set heating mode.
2.Touch the key. Turn the knob to set the temperature to
230 °C.
3.Touch the key. Turn the knob to set the cooking time to 60
minutes.
4.Touch the key. The oven begins to heat up.
HEATING UP THE OVEN
EN-15

06
There are various ways in which you can set your oven. Here we will
explain how you can select the desired type of heating and tempera-
ture or grill setting. You can also select the oven cooking time for
your dish. Please refer to the section on Setting the time-setting
options
Opening the oven door during operation
Operation is suspended. After closing the door, touch the key.
Operation continues.
Pausing operation
Touch the key to pause operation. Then touch the key to
continue operation.
Changing the cooking time
This can be done at any time. Touch the key. Turn the knob
to change the cooking time.
Changing the temperature
This can be done at any time.
Touch the key for the new temperature setting. Turn the knob
to set the temperature.
Cancelling operation
This can be done at any time. Touch the key to enter into the off
state.
USING THE OVEN
Example : Hot air at 200 °C for 25 minutes.
1. Set the function selector to .
2. Touch the key. The default temperature 180 °C will blink.
Turn the knob to set the temperature to 200 °C.
3.Touch the key. Turn the knob to set the cooking time to 25
minutes.
4.Touch the key. The oven begins to heat up.
Setting the type of heating and temperature
SETTING THE OVEN
EN-16

With rapid preheating, your oven reaches the set temperature
particularly quickly.
Rapid Preheating is available for the following types of heating:
■3D Hot air
■Grill with fan
■+ Microwave+Hot air
■+ Microwave+Grill Fan
■Pizza setting
■+ Microwave+Pizza
To ensure an oven cooking result, only put your food in the cooking
compartment when the preheating phase is complete.
1.Setting the type of heating and temperature.
2.Touch the key.
The symbol lights up in the display.
3.Touch the key.
The oven begins to heat up.
The preheating process is complete
A signal sounds. The symbol in the display blinks. Put your dish
in the oven.
Cancelling rapid preheating
During setting the rapid preheating function, touch the key can
cancel the function.
During rapid preheating, touch the or the can cancel the
function. Also you can open the door to cancel the function.
Note: 1. The rapid preheating function only works if you have already
chosen one of the modes above.During preheating,the
microwave function is switched off.
2. Only when you can hear alarm and preheating icon is
blinking you can open the door and put food inside.
RAPID PREHEATING
EN-17

THE MICROWAVE
Microwaves are converted to heat in foodstuffs. The microwave can
be used solo, i.e. on its own, or in combination with a different type
of heating. You will find information about ovenware and how to set
the microwave.
Note:
In the Expert Cooking Guide, you will find examples for defrosting,
heating and cooking with the microwave oven.
Note:
The step quantities for the adjustment time of the coding switch are
as follow:
Suitable ovenware
Suitable dishes are heat-resistant ovenware made of glass, glass
ceramic, porcelain, ceramic or heat-resistant plastic. These materials
allow microwaves to pass through.
You can also use serving dishes. This saves you having to transfer
food from one dish to another. You should only use ovenware with
decorative gold or silver trim if the manufacturer guarantees that
they are suitable for use in microwaves.
Unsuitable ovenware
Metal ovenware is unsuitable. Metal does not allow microwaves to
pass through. Food in covered metal containers will remain cold.
Caution!
Creation of sparks: metal – e.g. a spoon in a glass – must be kept
at least 2 cm from the oven walls and the inside of the door.
Sparks could destroy the glass on the inside of the door.
0-1 min
1-5 min
5-15 min
15-60 min
60 min
: 1 second
: 10 seconds
: 30 seconds
: 1 minute
: 5 minutes
Notes regarding ovenware
EN-18

Microwave power settings
Ovenware test
Do not switch on the microwave unless there is food inside. The
following ovenware test is the only exception to this rule.
Perform the following test if you are unsure whether your ovenware
is suitable for use in the microwave:
1. Heat the empty ovenware at maximum power for ½to 1 minute.
2.Check the temperature occasionally during that time.
The ovenware should still be cold or warm to the touch.
The ovenware is unsuitable if it becomes hot or sparks are generated.
Notes
■When you touch a key, the selected power lights up.
■The microwave power can be set to 900 watts for a maximum of
30 minutes. With all other power settings a maximum cooking
time of 1 hour 30 minutes is possible.
Setting the microwave
Example: Microwave power setting 300 W, cooking time 17 minutes
1.In the off state, touch the key to enter microwave function. The
default microwave power 900W will appear. And the default
cooking time will blink.
2.Touch the key to activate the microwave power. Turn the
knob to adjust the microwave power to 300W.
3.Touch the key . Turn the knob to adjust the cooking time to
17 minutes.
4.Touch the key.
Operation begins. The cooking time starts counting down in the
display.
Use the key to set the desired microwave power.
-Defrosting sensitive/delicate foods
-Defrosting irregularly-shaped foods
-Softening ice cream
-Allowing dough to rise
100 W
-Defrosting
-Melting chocolate and butter
300 W
-Boiling water, reheating
-cooking chicken, fish, vegetables
900 W
-cooking rise , soup450 W
-Reheating
-cooking mushrooms,shell fish
-cooking dishes containing eggs and cheese
700 W
EN-19

The cooking time has elapsed
A signal sounds. Microwave operation has finished.
Changing the cooking time
This can be done at any time. Touch the key. Turn the knob to
change the cooking time.
Changing the microwave power setting
This can be done at any time.
Touch the key for the new microwave power setting.
Turn the knob to set the microwave power.
Pausing operation
Touch the key briefly. The oven is paused. Touch the key again
to continue operation.
Cancelling operation
This can be done at any time. Touch the key to enter the off state.
Notes
■When you set the function selector to , the highest microwave
power setting always lights up as the suggested setting.
■If you open the appliance door during cooking, the fan may
continue to run.
Opening the oven door during operation
Operation is suspended. After closing the door, touch the key .
Operation continues.
MICROWAVE OPERATION
This involves simultaneous operation of the grill and the microwave.
Using the microwave makes your dishes ready more quickly, but
they are still nicely browned.
You can switch on all microwave power settings.
Exception: 900 watts
EN-20
