Midea MO9BL User manual

Midea
Built-in Electric Oven
Instruction
MODEL:
SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your oven, and keep it
carefully. If you follow the instructions, your oven will provide you with many years
of good service.
60cm 9 Function Oven
MO9SS
MO9BL
MO9SS
MO9BL

2
ACKNOWLEDGMENT
Thank you for purchasing our product. We hope you enjoy using the many features and benets it
provides. Before using this product please study this entire Instruction Manual carefully. Keep this
manual in a safe place for future reference. Ensure that other people using the product are familiar
with these instructions as well.
WARNING
● When the oven is rst switched on, it may give off
an unpleasant smell. This is due to the bonding
agent used for the insulating panels within the
oven. Please run up the new empty product with the
conventional cooking function, 250°C, 90 minutes to
clean oil impurities inside the cavity.
●Please use the oven under the open environment.
●The oven and its accessible parts become hot
during use. Care should be taken to avoid touching
heating elements. Children less than 8 years old
shall be kept away unless continuously supervised.
● If the surface is cracked, switch off the oven to
avoid the possibility of electric shock.
●This oven is not intended to used by
persons (including children) with reduced physical,
sensoryor mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by person responsible for their safety.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by
children without supervision.

3
●Do not allow children to go near the oven when it is
operating, especially when the grill function is on.
●Ensure that the appliance is switched off before
replacing the oven lamp to avoid the possibility of
electric shock.
●An all-pole disconnection means must be
incorporated in the xed wiring in accordance with
the wiring rules.
● If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
●Do not use harsh abrasive cleaners or sharp
metal scrapers to clean the oven door glass since
they can scratch the surface, which may result in
shattering of the glass.
●A steam cleaner is not to be used.
●The oven is not intended to be operated by means
of an external timer or separate remote-control
system.
●The oven must not be installed behind a decorative
door in order to avoid overheating.

4
SAFETY HINTS
● Do not use the oven unless you are wearing something on your feet. Do not touch the oven with
wet or damp hands or feet.
● For oven: Oven door should not be opened often during the cooking period.
● The oven must be installed by an authorized technician and put into use. The manufacturer
isnot responsible for any damage that might be caused by defective placement, and installation
by unauthorized personnel.
● When the door of oven is open do not leave anything on it, you may unbalance your oven or
break the door.
● Some parts of oven may keep its heat for a long time; it is required to wait until they are cool
down before touching on them.
● If you will not use the oven for a long time, it is advised to plug it off.

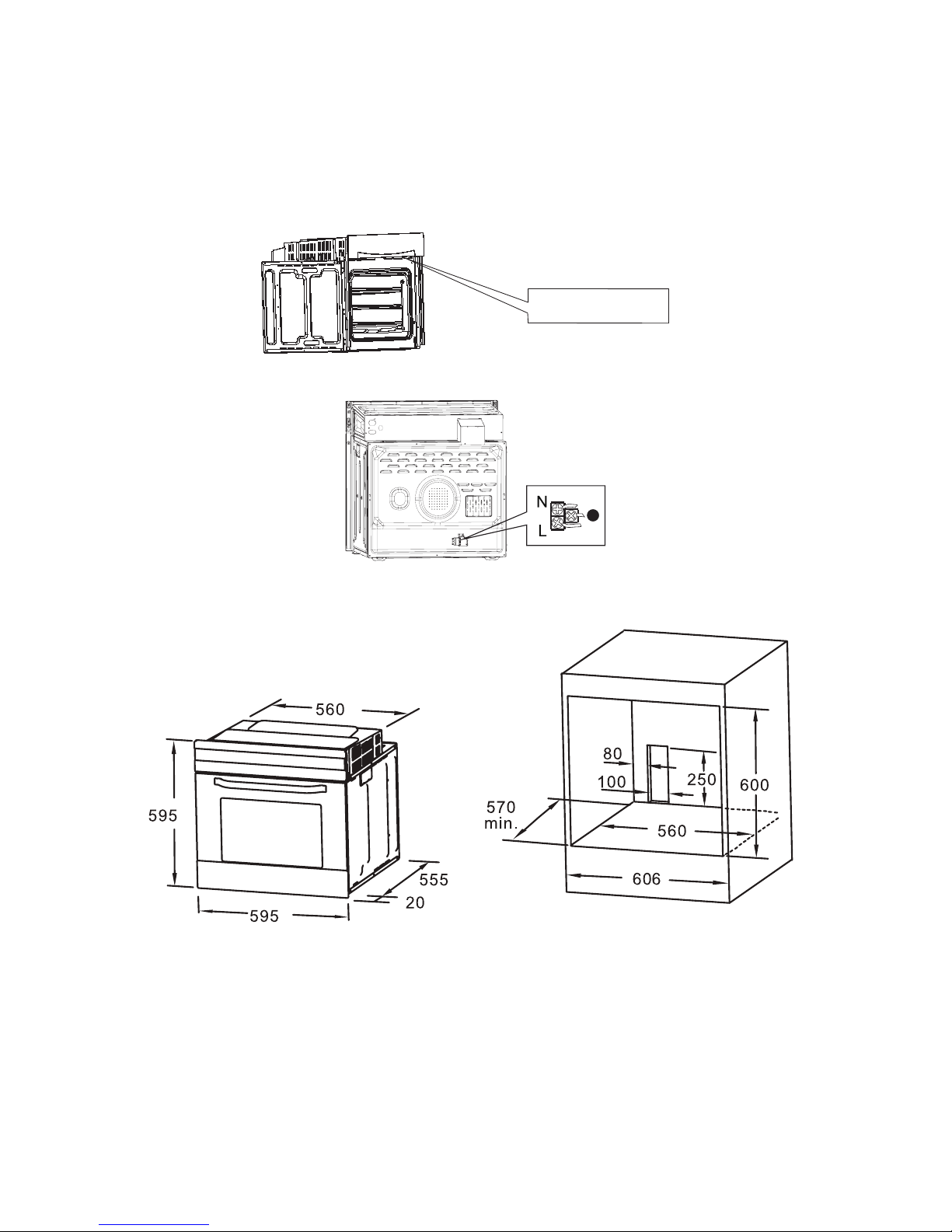

FITTING THE OVEN INTO THE KITCHEN UNIT
Fit the oven into the space provided in the kitchen unit; it may be tted underneath a worktop or
into an upright cupboard. Fix the oven in position by screwing into place, using the two xing holes
in the frame. To locate the xing holes, open the oven door and look inside. To allow adequate
ventilation, the measurements and distances shall be adhered to when xing the oven.
IMPORTANT
Ensure that cabinetry can withstand temperatures of at least 120 degrees. Materials that cannot
withstand such temperatures may melt and deform the unit.
Once the oven has been positioned inside the cabinet electrical wiring must be completely
insulated. This is a legal safety requirement. Ensure sufcient space at the rear of the cabinet to
allow an air ow clearance of at least 45mm.
DECLARATION OF COMPLIANCE
When you have unpacked the oven, make sure that it has not been damaged in any
way. If you have any doubts at all, do not use it: contact a professionally qualied
person. Keep packing materials such as plastic bags, polystyrene, or nails out of the
reach of children because these are dangerous to children.

5

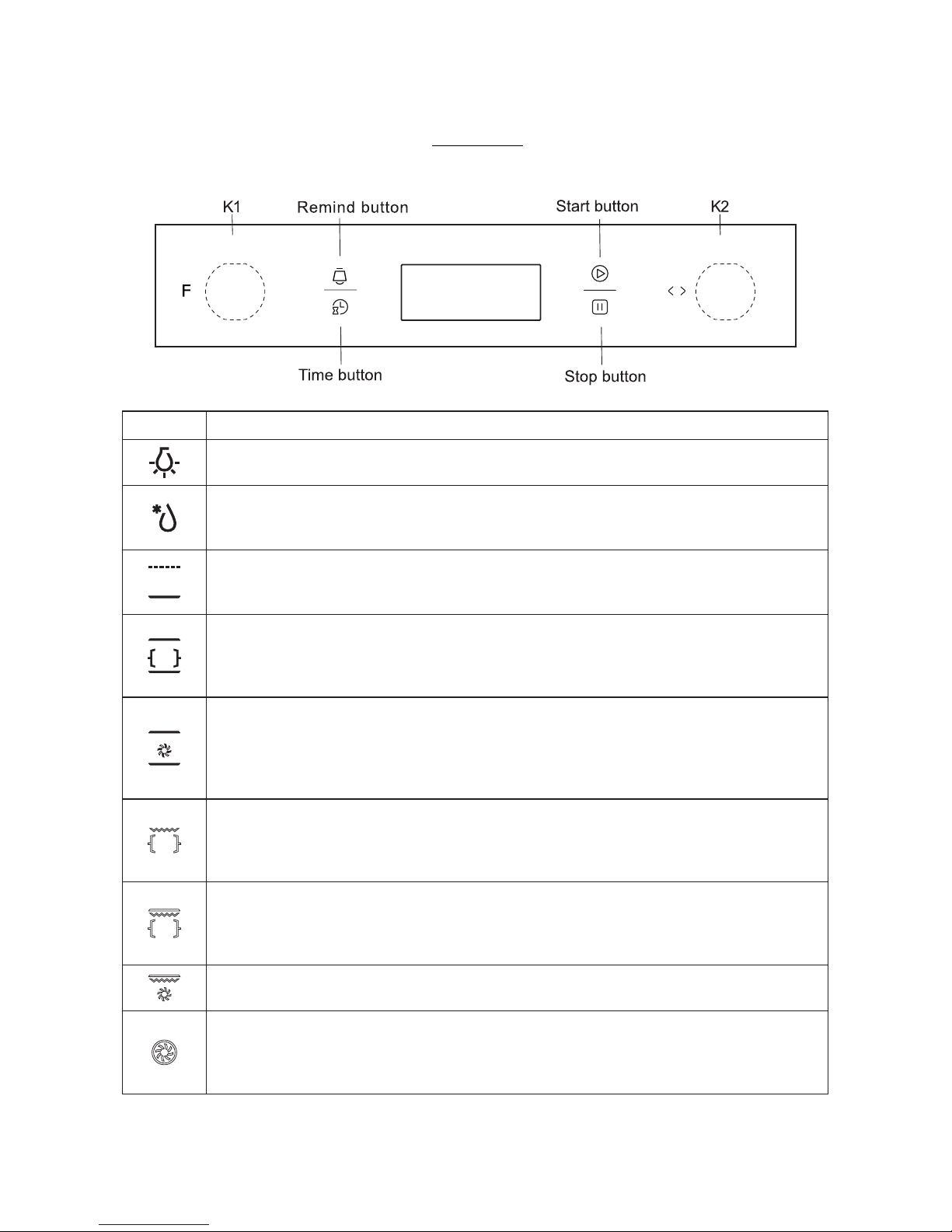

PRODUCT DESCRIPTION - MO9BL
Symbol Function description
Oven Lamp: Which enables the user to observe the progress of cooking without opening the
door. Oven lamp will light for all cooking functions.
Defrost: The circulation of air at room temperature enables quicker thawing of frozen food,
(without the use of any heat). It's a gentle but quick way to speed up the defrosting time and
thawing of ready-made dishes and cream lled produce etc.
Bottom element : A concealed element in the bottom of the oven provides heat. It is
mainly used for keeping food warm.
The temperature can be set within the range of 60-120°C. The default temperature is 60°C.
Conventional cooking: The top and bottom elements work together to provide conventional
cooking.
The temperature can be set within the range of 50-250°C. The default temperature is 220°C
This is optional function that can be work with rotisserie motor.
Convention with fan: Combination of the fan and both heating element provides more even
heat penetration, saving up to 30-40% of energy. Dishes are lightly browned on the outside
and still moist on the inside. Note: This function is suitable for grilling or roasting big pieces of
meat at a higher temperature. The temperature can be set within the range of 50-250°C. The
default temperature is 220°C.
Radiant grilling: The inner grill element switches on and off to maintain temperature.
The temperature can be set within the range of 150-240°C. The default temperature is
210°C.
This is optional function that can be work with rotisserie motor.
Double grilling: The inside radiant element and top element are working together.
The temperature can be set within the range of 150-240°C. The default temperature is
210°C.
This is optional function that can be work with rotisserie motor.
Double grilling with fan: The inside radiant element and top element are working with fan The
temperature can be set within the range of 150-240°C. The default temperature is 210°C.
Convection: An element around the convection fan provides an additional source of heat for
convection style cooking. In convection mode the fan automatically comes on to improve air
circulation within the oven and creates an even heat for cooking.
The temperature can be set within the range of 50-240°C. The default temperature is 180°C.

5
PRODUCT DESCRIPTION - MO9SS
Symbol Function description
Oven Lamp: Which enables the user to observe the progress of cooking without opening the
door. Oven lamp will light for all cooking functions.
Defrost: The circulation of air at room temperature enables quicker thawing of frozen food,
(without the use of any heat). It's a gentle but quick way to speed up the defrosting time and
thawing of ready-made dishes and cream lled produce etc.
Bottom element : A concealed element in the bottom of the oven provides heat. It is
mainly used for keeping food warm.
The temperature can be set within the range of 60-120°C. The default temperature is 60°C.
Conventional cooking: The top and bottom elements work together to provide conventional
cooking.
The temperature can be set within the range of 50-250°C. The default temperature is 220°C
This is optional function that can be work with rotisserie motor.
Convention with fan: Combination of the fan and both heating element provides more even
heat penetration, saving up to 30-40% of energy. Dishes are lightly browned on the outside
and still moist on the inside. Note: This function is suitable for grilling or roasting big pieces of
meat at a higher temperature. The temperature can be set within the range of 50-250°C. The
default temperature is 220°C.
Radiant grilling: The inner grill element switches on and off to maintain temperature.
The temperature can be set within the range of 150-240°C. The default temperature is
210°C.
This is optional function that can be work with rotisserie motor.
Double grilling: The inside radiant element and top element are working together.
The temperature can be set within the range of 150-240°C. The default temperature is
210°C.
This is optional function that can be work with rotisserie motor.
Double grilling with fan: The inside radiant element and top element are working with fan The
temperature can be set within the range of 150-240°C. The default temperature is 210°C.
Convection: An element around the convection fan provides an additional source of heat for
convection style cooking. In convection mode the fan automatically comes on to improve air
circulation within the oven and creates an even heat for cooking.
The temperature can be set within the range of 50-240°C. The default temperature is 180°C.
K1 Remind button Start button K2
Time button Stop button

6
OPERATION INSTRUCTIONS
1. Clock Setting
After connecting the oven to the power, the symbols " 0:00 " will be visible on the display.
1> Press " ", the hour gures will ash.
2> Rotate " K2 " to adjust the hour gures, (time should be within 0--23).
3> Press " ", the minutes will ash.
4> Rotate " K2 " to adjust the minutes setting, (time should be within 0--59).
5> Press " " to nish the clock settings. " : " will ash, and the time will be illuminated.
Note: The clock is 24 hours. After power on, the clock will show " 0:00 " if not setting.
2. Function Setting
1> Rotate " K1 " to choose the cooking function you require. The related symbol will be illuminated .
2> Rotate " K2 " to adjust the temperature.
3> Press " " to start the cooking.
4> Press " " to start the cooking without step 2, and the default time is 9 hours and the default
temperature will display on the LED.
Note:
1> The step quantities for the adjustment time of the knobs are as follow:
0--0:30min: step 1 minute 0:30--9:00hour: step 5 minutes
2> The step quantities for the adjustment of temperature is 5C, this can be adjusted under all
cooking functions except " " "
" " " .
3> Rotate " K1 " to adjust the cooking time when cooking begins. Then press " " to conrm.
If " " not pressed within 3 seconds, the oven will revert back to the previous time to continue
cooking.
4> Rotate" K2 " to adjust the temperature when cooking begins. The related indicator will be
illuminated.
Then press " " to start cooking. If " " not pressed in 3 seconds, the oven will revert back to
the previous temperature to continue cooking.
3. Lamp Setting
1> Rotate " K1 " to select the relevant function, then the corresponding icon will be on.
2> Press " " button to start, " 0:00 " and lamp icon " " will light up, " : " will ash.
4. Inquiring Function
In the following states, you can use inquiring function, after 3 seconds return to the current state.
1> During working state, if the clock was set, press " " button to see the current time; if the
reminder function was set, press " "( ) button to see the time of reminder.
2> In reminding state, if the clock was set, press " " button to see the current time.
3> In clock display state, if the reservation function was set, press " " button to see the time of
reservation.

7
5. Child lock Function
To Lock: press " " and " " simultaneously for 3 seconds, there will be a long " beeping " sound
and the " " will be illuminated.
Lock quitting: press " " and " " simultaneously for 3 seconds, there will be a long " beeping
"sound indicating the child-lock is released.
6. Reminder Function
This function will help to remind you to start cooking in a certain time from 0:01 to 9:59.
Only when oven in standby mode, the reminder can be set. Follow below to set the reminder:
1> Press reminder setting button " ";
2> Rotate " K2 " to set the hour time of reminder. (Time should be within 0--9).
3> Press reminder setting button " " again;
4> Rotate " K2 " to set minute time of reminder. (Time should be within 0--59).
5> Press " " to conrm setting. The time will count down.
Note: The oven buzzer will sound 10 times when set reminder time is reached.
You can cancel the reminder during setting by pressing the stop button; After the reminder has
been set, you can cancel it by pressing stop button twice.
7. Start/Pause/Cancel Function
1> If the cooking time has been set, press " " to start cooking. If the cooking is paused, press
" " to resume cooking.
2> During cooking process, press " " once to pause the cooking. Press " " twice to cancel the
cooking.
8. Energy-Saving Function
1> In waiting state and reminding state, press " " for three seconds, the LED display will go off
and set to energy-saving mode.
2> If no operation in 10 minutes under waiting state, the LED display will go off and go into energy-
saving mode.
3> Under the energy-saving mode, press any key or rotate any knob can quit the energy-saving
mode.
( )
( )
1> To use delay cook function, clock must be set in advance. Then, in the way of setting the clock,
reserved time that oven starts to cook must be set (a> Press delay cook setting button " ", b>
Rotate "K2" to set the hour time of delay cook. Time should be within 0--23. c>Press delay cook
setting button " " again; d> Rotate "K2" to set minute time of delay cook. Time should be
within 0--59.), but don't press clock this time. Next, turn knob "K1" to choose function.
2> Press " " button to set cooking time and temperature. Then turn knob "K1" to adjust time,
and"K2" to adjust temperature.
9. Delay Cook Function

8
3> Press the " " button to nish cooking setting, and the clock will be on the screen with
delay cook sign " " always lighting. But no other function signals are presented. Delay cook
time can be checked by pressing " ", 3 seconds later the screen will show clock again.
4> At the time of delay cook, cooking will start automatically after a buzzing sound. The delay cook
sign " " will put out, and other indicating signs will work normally.
Note:
1> Lamp, defrost, probe can't be delay cooked.
2> During the status of delay cook, press cancel button once, time and temperature of delay cook
menu will be shown with menu icon lighting constantly. Press again, screen returns to clock, or
press start button to return to delay cook status.
3> Reminder function is invalid during delay cook status.
11. Note
1> The oven lamp will be on for all functions.
2> Once the cooking program has been set and the " " button is not pressed within 5 minutes,
the current time will be displayed or turn back to waiting state. The setting program will be
invalid.
3> The buzzer will sound once when buttons are effectively pressed, if they are not effectively
pressed there will be no response.
4> The buzzer will sound ve times to remind you when cooking has nished.

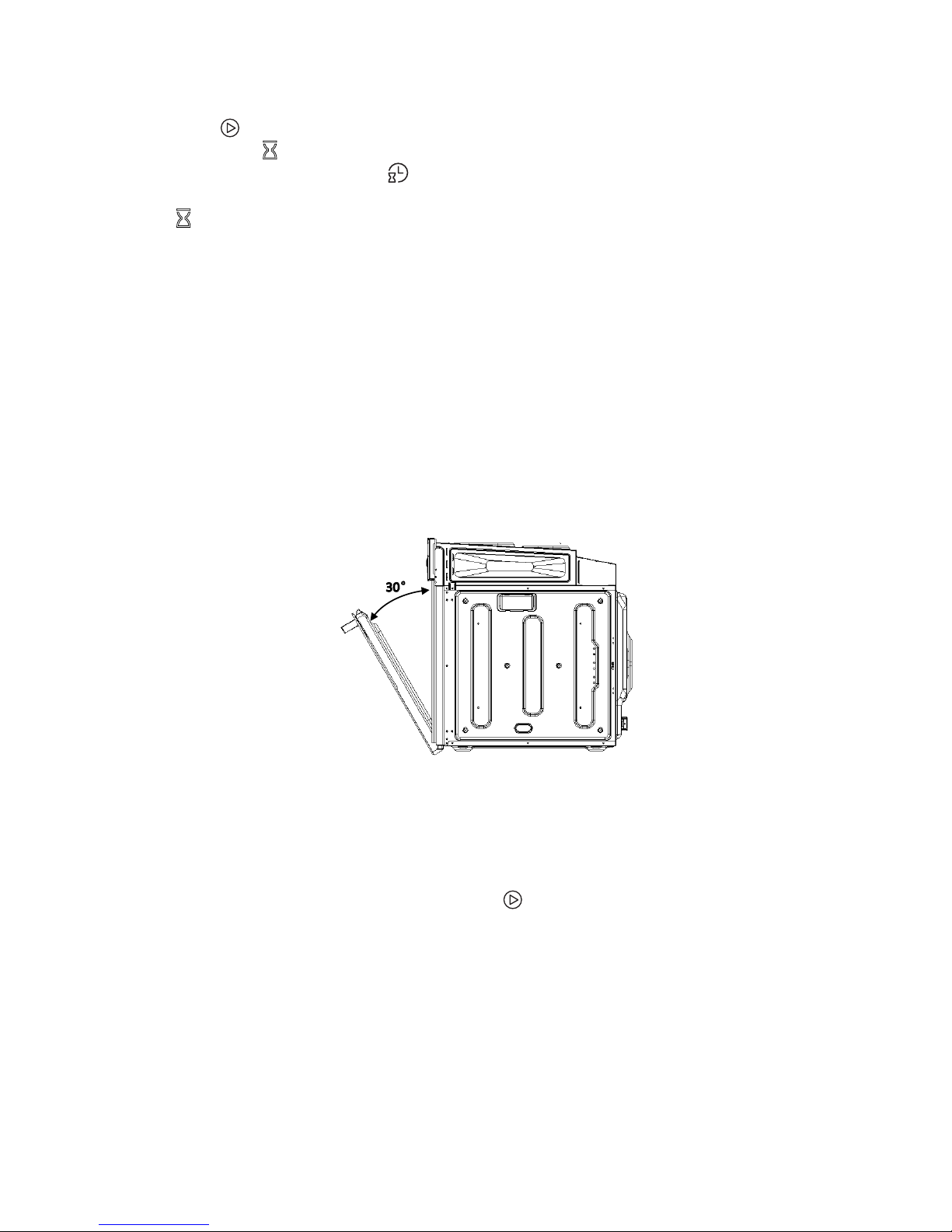

10. Soft Closing Door (Optional)
When open the door angle > 30 °, the door can be paused at any angle.
When open the door angle ≤ 30 °, the door will close slowly under the action of the damper.
Please do not close the door vigorously.

9
ACCESSORIES

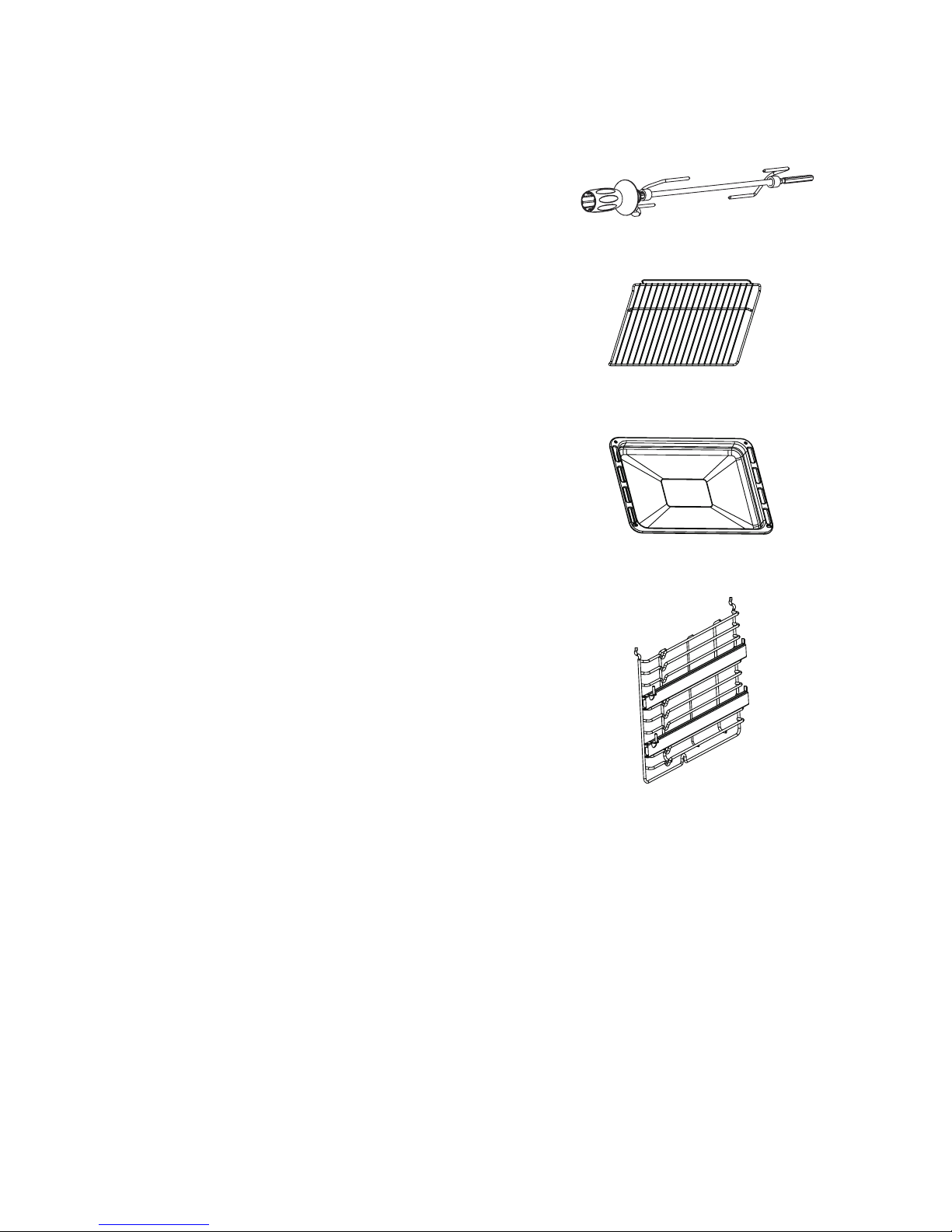

ROTISSERIE SKEWER:
The average speed of the motor heat the food evenly. At
the same time, it can guarantee the nutrition of the food.
Wire shelf: For grill dishes, cake pan with items for
roasting and grilling.
Universal pan: For cooking large quantities of food such
as moist cakes, pastries, frozen food etc, or for collecting
fat/ spillage and meat juices.
Telescopic runner: Some models may be supplied with telescopic
runners . These telescopic runners and slider brackets could
be disassembled by unscrewing the screws used to x it.
After dissassembling,
dishes and tray can be put on the side
racks, using functions as Radiant grilling, Double grilling, Double
grill with fan.
NOTE: When placing dishes on the oven oor, please
DO NOT use functions with bottom heater to prevent heat
gathering at bottom.
(only for specic models)

10
SHELF PLACEMENT WARNING
To ensure the oven shelves operate safely, correct placement of the shelves between the side rails
is imperative. Shelves and the pan only can be used between the rst and fth levels.
The shelves should use fitted correctly to ensure safe access and removal of dishes and hot food
USE OF ROTISSERIE ACCESSORIES
The rotisserie works in combination with the grill element to heat the food equally.
At the same time, it can guarantee the nutrition of the food.

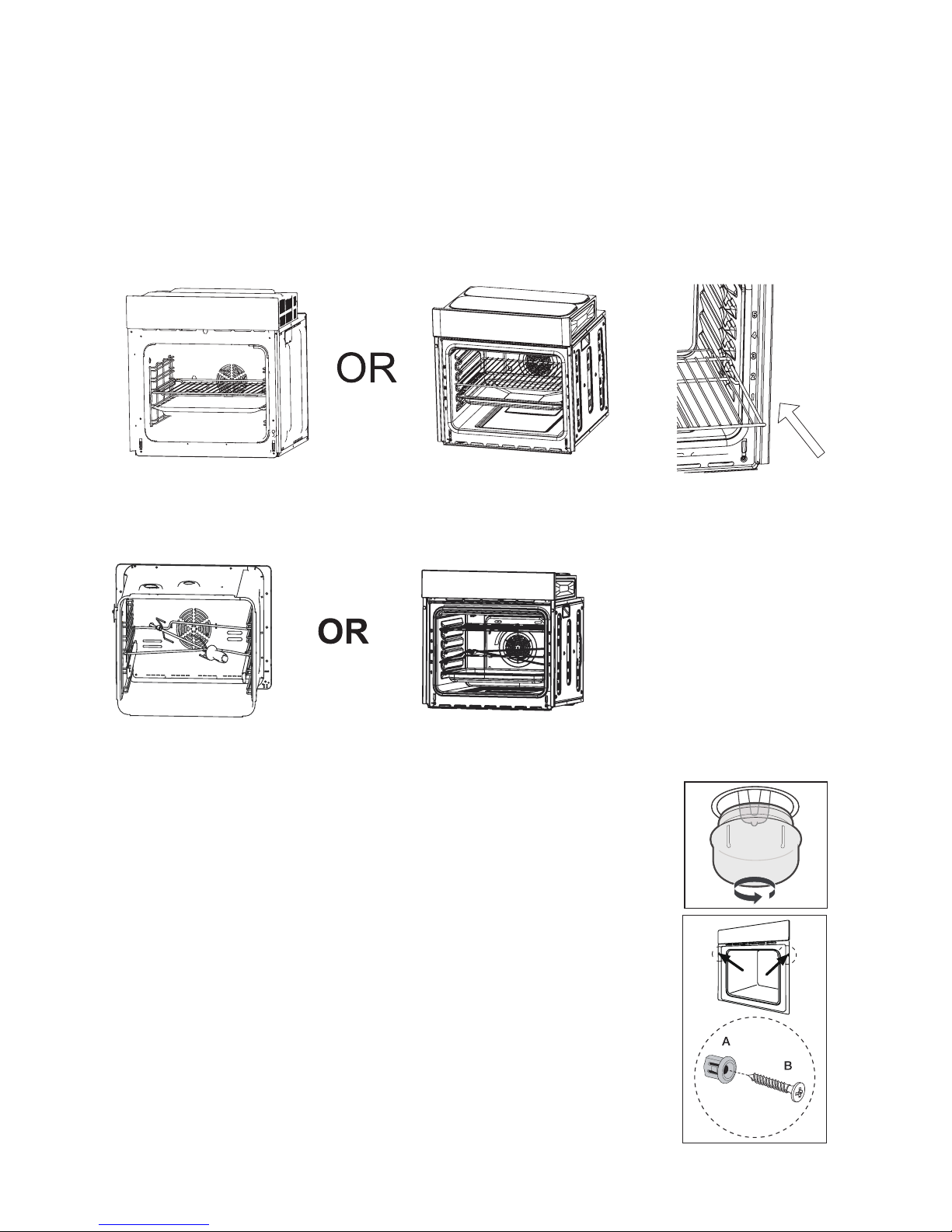

BULB REPLACEMENT
For replacement, process as follows:
1 > Disconnect power from the mains outlet or switch off the circuit
breaker of the unit's mains outlet.
2 > Unscrew the glass lamp cover by turning it counter-clockwise
(Note, it may be stiff) and replace the bulb with a new one of the
same type.
3 > Screw the glass lamp cover back in place.
Note: Only use 25-40W/220V-240V, T300°C halogen lamps.
SECURING THE OVEN TO THE CABINET
1. Fit oven into the cabinet recess.
2. Open the oven door.
3. Secure the oven to the kitchen cabinet with two distance holders " A "
which t the holes in the oven frame and t the two screws " B ".
items.

11
Remark:
Note: The number of accessories included depends on the particular appliance purchased.
VENTILATING OPENINGS
When cooking is nished or in pause state or in waiting state, if the oven's center temperature is
over 75 degrees, the cooling fan will continue working for 15 minutes. Or when the oven's center
temperature becomes lower than 75 degrees, the cooling fan will stop in advance.
Ventilating openings
CONNECTION OF THE OVEN
INSTALLATION
1. The cabinet does not include the power switch or socket dimensions.

12

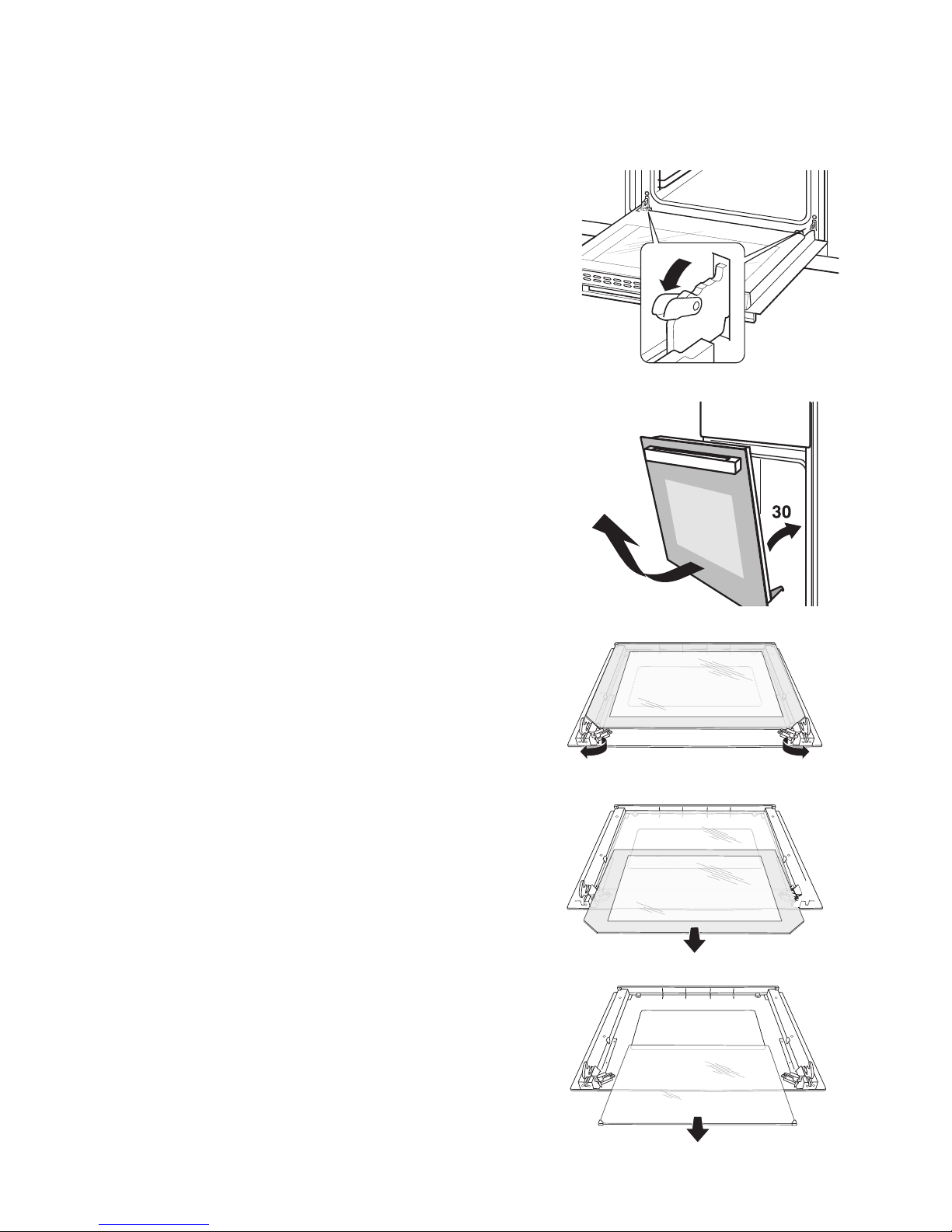

Disassembly of oven door components
1. To remove the door, open the door to the maximum
angle. Then pull the buckle at the door hinge backward.
2. Close the door to an angle approximately 30°. Hold the
door with one hand on each side. Lift up and slowly pull
the door out from the oven.
3. Open the door rotation bracket assembly. Refer the
action in the following picture.
REMOVING THE DOOR FROM OVEN (OPTIONAL)
˚
4. Lift up the inner glass door outer glass and pull it out,
then take the middle glass door out in the same way.
WARNING:
Don't forcibly pull out the door and take care with glass
WARNING:
WARNING:
Do not lift or carry the oven door by the door handle.
door panels during the dismantling process.
Ensure the hinge springs do not become loose,
causing potential injury.

13
CLEANING AND MAINTENANCE
For the sake of a good appearance and reliability, keep the oven clean. The modern design of the
unit facilitates maintenance to a minimum. The parts of the oven which come into contact with food
have tobe cleaned regularly.
Before any maintenance and cleaning, disconnect the power.
Set all controls in the OFF position.
Wait until the oven interior has cooled down to slightly warm before cleaning.
Clean the surface of the oven with a damp cloth, soft brush or ne sponge and then wipe dry.
For cleaning the glass of the oven door, do not use abrasive cleaners or sharp metal
scrapers,these can scratch the surface or lead to the glass being damaged.
Never leave acidic substances (lemon juice, vinegar) on stainless steel parts.
Do not use a high pressure cleaner for cleaning. The baking pans may be washed in mild
detergent.
This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and
Electronic Equipment (WEEE).
By ensuring this product is disposed correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this product
may not be treated as household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. Disposal must be carried out in
accordance with local environmental regulations for waste dispo l. For more detailed information
about treatment, recovery and recycling of this product, please contact your local city ofce, your
household waste disposal service or the shop where you purchased the product.
sa

Maintenance Schedule:
To ensure the appliance continues to operate at peak performance, we recommend a routine
service call every 3 years for the life of the appliance.
FOR SPARE PARTS OR TO FIND THE ADDRESS OF
YOUR NEAREST STATE SPARE PARTS CENTRE IN AUSTRALIA
MIDEA HOME APPLIANCES AUSTRALIA PTY LTD
11/75 Lorimer Street, Docklands, Melbourne, 3008
After-sales service No.: 1800 88 60 10
