Midea 5000 Series User manual

MY-GD20D2W
USER MANUAL
Warning notices: Before using this product,please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Pleasetake the appearance of the actual product as the standard.
5000 SERIES
GARMENT STEAMER

THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
functions that your new appliance offers in a safe way.
CONTENTS
01
0
02
1
07
08
09
11
1 7
1 6
1 5
1 8
THANK YOU LETTER
SAFETY INSTRUCTIONS
SPECIFICATIONS
PRODUCT OVERVIEW
PRODUCT INSTALLATION
OPERATION INSTRUCTIONS
CLEANING AND MAINTENANCE
TROUBLESHOOTING
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT
DATA PROTECTION NOTICE

02
Danger
This symbol indicates that there are dangers to the life and health of
persons due to extremely flammable gas.
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of
persons due to voltage.
Warning
The signal word indicates a hazard with a medium level of risk which, if
not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which, if
not avoided, may result in minor or moderate injury.
Attention
The signal word indicates important information (e.g. damage to
property), but not danger.
Observe instructions
This symbol indicates that a service technician should only operate and
maintain this appliance in accordance with the operating instructions.
The following safety guidelines are intended to prevent unforeseen risks or damage from
unsafe or incorrect operation of the appliance. Please check the packaging and appliance
on arrival to make sure everything is intact to ensure safe operation. If you find any
damage, please contact the retailer or dealer. Please note modifications or alterations to
the appliance are not allowed for your safety concern. Unintended use may cause
hazards and loss of warranty claims.
Read these operating instructions carefully and attentively before using/commissioning the
unit and keep them intheimmediate vicinity of theinstallation site or unit for later use!
Intended Use
Explanation of Symbols
SAFETY INSTRUCTIONS

Caution
●
●
●
●
●
●
To prevent the hose from forming a U-shape,always
place the steamer on the floor to ensure that the hose is
straight. If you hear an excessive croaking sound or if the
steam output is irregular, lift the steamer head from time
to time to straighten the hose. This allows any
condensation to flow back into the water tank.
After use, please turn off the switch, and pull off the
plug.During pouring away water or cleaning, be sure to
switch off, and keep the garment steamer cooling down
for at least 10min to avoid scald by hot wate.
When moving the appliance, hold the appliance body for
movement.
Never drag the appliance by pulling the power cord.
Never immerse the appliance in water or any other
liquid,nor rinse it under the tap.
To store the appliance, make sure that the garment
steamer has cooled down, and water has been
discharged from the machine.
Before use, please read the Safety Cautions completely,
and use the appliance in accordance with the
requirements to avoid any damage to persons or
properties.
03

●
●
●
●
●
●
●
●
●
●
●
●
Never use this appliance for any purpose other than
ironing clothes.
Never use other high-power electric applia nce on the
same socket to avoid overload of circuits.
Never dismantle this appliance on your own. Any person
other than qualified personnel shall not dismantle and
repair the appliance, and otherwise it may cause fire,
electric shock or personal injury.
Before switching on the garment steamer, please check
the plug and power cord carefully, and in case of
damage, never use them. Replacement must be
conducted by the manufacturer or its repair department
or similar professionals to avoid danger.
Please send the product to the after-sale repair agency
authorized by this company for repair.
Before inserting or pulling off the plug, be sure to switch
off the appliance.
When inserting or pulling off the plug, be sure to hold the
plug with a hand, and never pull the power cord or
operate with a wet hand.
Before operation of the garment steamer, make sure that
supporting surface is even and secure to prevent the
garment steamer from overturn or water from overflow.
Never heat the water tank when it has not been placed
properly or water level is not enough.
Before adding water, be sure to switch off first.
Never put perfume, vinegar, detergents or other
chemicals into the water tank. Otherwise they will stain
the clothes and damage the garment steamer.
All appliances in the product must be placed beyond the
reach of babies or the disabled to prevent any danger
such as electric shock and scratch. During operation of
the garment steamer, the user shall not leave.
04
Warning

●
●
●
●
●
●
●
●
●
●
●
●
When the garment steamer is operating, prevent the
danger arising from steam splashing, do not have its
spray nozzle towards people to avoid scald.
When the garment steamer is operating, its spray nozzle,
air duct and air duct joint will become very hot.
Therefore, never touch them to avoid scald.
When the garment steamer is operating, it may produce
steam of high temperature, which may cause
deformation and discoloration of cloths with poor heat
resistance (such as fur clothing). In this case, never use it.
When the garment steamer is operating, never have the
power cord in touch with hot surfaces of the appliance,
such as the air duct and spray nozzle.
When the garment steamer is operating, never bend or
wind the air duct.
When the garment steamer is operating, never carry out
any action by which steam may be in touch, such as
installation of a brush and insertion and pull of an air
duct, to avoid scald.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Care should be taken when using the appliance due to
the emission of steam.
Unplug the appliance during filling and cleaning.
If the supply cord is damaged, it must be replaced by
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge
05

●
if they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
The appliance must not be disposed of with regular
household waste. At the end of its service life, the
appliance must be properly delivered to a collection
point for the recycling of electrical and electronic
equipment. By Collection and recycling of old appliances,
you are making an important contribution to the
conservation of our natural resources and provide for
environmentally sound and healthy disposal.
06

SPECIFICATIONS
Circuit Diagram
07
MY-GD20D2WProduct Model
Voltage
Frequency
Power
220-240V~
50/60Hz
2000W
Water tank capacity
Weight
2.0L
7.0kg
Dimensions 358X293X1600mm
Thermal fuse
Power
board
Heating body
Temperature controller
Display
panel
Wiring
220-240V~ 50/60Hz
Input power

PRODUCT OVERVIEW
Part Name
Part List
08
Warm Tips
It is recommended to use purified water or filtered water, which makes the Garment
Steamer more durable. Avoid contamination of clothing by the impurities in the water
after long use.
(The schematic above is for reference only, and the actual product shall be based.)
Warm Tips
The appliance shall be used in an environment with temperature of 10-40°C and relative
humidity of less than 90%.
Shelf
Ironing head
Cothes hook
Clothes rail
assembly
Hanging ironing
board
Support rod
Windpipe fastener
Water tank
Clamping piece
Windpipe
Locking spanner
Control panel
Discharge plug Seam clamp Brush Ironing board Glove

09
PRODUCT INSTALLATION
Installation Of Support Rod
1 Install each part in sequence according to the figure.
Release the lock button, insert the support rod into the mainframe, and lock each
spanner.
Installation Of Windpipe
1 Align the boss of windpipe fastener with the “ ”and insert to the end.
2
Rotate the fastener clockwise, and lock by aligning the boss with the “ ” .
2
Collapsible adjusting height.
Insert
Insert

10
Installation Of Hanging Ironing Board
1 Schematic diagram of front installation.
Align the fa stener with the first and second support rods and set at positions.
2
Schematic diagram of top installation.
Shorten the supporting rod to suitable height.
Revolve the hok of hanging ironing board to the side position.
Put the hanging ironing board flat on the top of Clothes rail assembly，put the fixed
column in the middle of hanging ironing board into the right hole，and fixed.
Dismantle by pulling in forward direction
Allow for moving up and down.

11
OPERATION INSTRUCTIONS
Preparations
1 Hang up the clothes.
2
Fill the water tank.
3
Put the tank back, and start the machine.

12
Key Control
1 Start
Press the “Power” key to start the machine.
General Application
2 Functions
Press in the “Function” key to select the appropriate gear.
a
Power
Functions
Power Functions
Wear gloves or glove
boards to prevent from
bein scalded.
Hanging ironing board
can be used as an
auxiliary tool for ironing
Corners and lower
hems.
Ironing board can be
used as an auxiliary tool
for ironing Corners
such as collars，cuffs.
A brush can be used for
removing the fluffing.

13

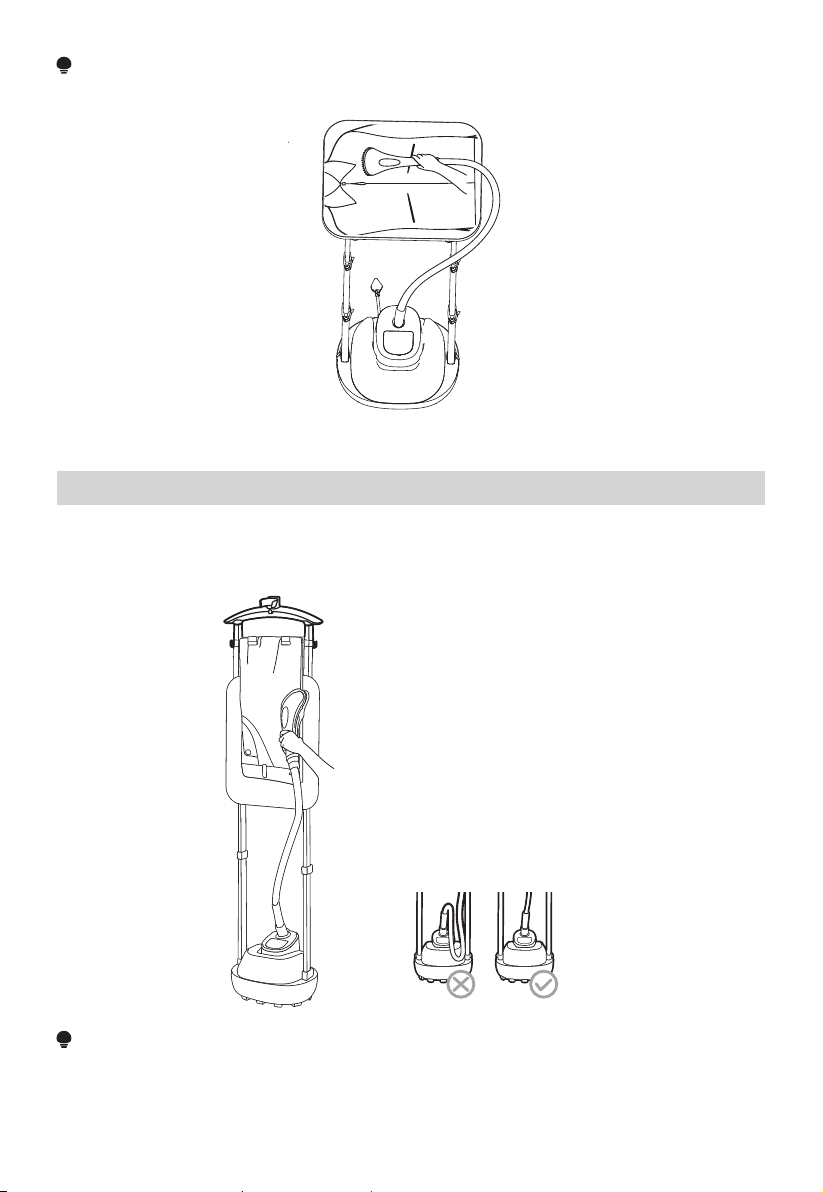

NOTE
Do not iron one place for a long time, so as not to damage the clothes.
NOTE
No overbending or U-shaped windpipe is all owed duringironing.
Ironing Of Trousers
Clothing can be ironing horizontally
In case of requirements from clients for trousers axis, use the seam clamp foraid.
Fix the trousers axis by setting the seam clamp, pres s the spanner, and iron from the
top downwards.

14
Snap the brush top end on the upper edge of iron head, and fasten the brush when the
iron head is aligned with the boss of brush lower edge.
Dismantle in reverse after use.
Installation Of Brush
Safety Protection
1. Temperature detection protection: The Garment Steamer is equipped with a built-in
temperature sensing element. When there is abnormal temperature, the temperature
sensing element will emit signals to control the connection and disconnection of the
heating element, thus keeping the product temperature within a suitable range.
2. Thermal fuse protection: The garment steamer is provided with a thermal fuse. When
a temperature is abnormal and the thermostat fails, it switches off directly to avoid
any accident.
3. Dry Boil protection: Water insufficiency alert and automatically cut power if boil dry.
When the pump is boiling without water, the alarm buzzer will work immediately.
Meanwhile, power will be cut off after the indicator blinks three times to protect the
garment care.
Installed
dismantled
dismantled
Installed
Installation Of Seam Clamp
Snap the clamp top end on the upper edge of iron head, with lower boss snapped
below.
Dismantle in reverse after use.

CLEANING AND MAINTENANCE
15
1. Press the "On/Off" buttom to close the garment steamer.
2. Disconnect the power plug.
3. After cooling the product for 30 minutes, open the water tank cover, lift and tilt the
product, and pour out the water inside the product from the water tank cover.
4. Unscrew the drain plug counter-clockwise, the water in the principal machine will
outflow from the drain plug. (Note: Clear the accessories of the product before unscrew
the drain plug in case the water flows out of the principal machine gets the goods wet.)
5. After using the product for a long time, we suggest cleaning off the water scale regular-
ly to avoid impurities of water stain the clothing: disassemble the airway tube from the
main body and fill the water into the water inlet and shake the machine. Then pour out
the dirty mixture along with water from the water outlet. The performance will be
better when repeating above steps.
6. After winding the power cord and air duct, put the product in a free place.

16
TROUBLESHOOTING
Operation of your appliance can lead to errors and malfunctions. The following tables
contain possible causes and notes for resolving an error message or malfunction. It is
recommended to read the table below carefully in order to save your time and money
that may cost for calling to the service center.
Cause TroubleshootingPhenomenon
The power plug is not inserted. Insert the power plug.
●
The product circuit fails.
●
The domestic circuit fails or the
fuse is burnt.
Please contact the professionals
for inspection and repair.
Please contact the professionals
for inspection and repair.
Please contact the professionals
for inspection and repair.
Please contact the professionals
for inspection and repair.
●
The water tank does not have
any water or too little water. Fill the water tank.
●
The internal steam channel is
bent or disengaged.
●
The heating plate is damaged.
●
Please contact the professionals
for inspection and repair.
Please contact the professionals
for inspection and repair.
After installing the steam
conduit, start, wear gloves, hold
the bends by hand for shaping,
and restore the conduit.
The indicator light illuminates,
but does not produce any
steam.
●
In use, lift the hot head and
vertically straighten the steam
conduit, and shake the hot head.
The steam is condensed, which
is a normal phenomenon.
●
The heating plate is damaged.
●
Shut down, and clean the water
scale in the heating plate.
There is much water scale on
the heating plate.
●
Place the product on the
ground.
Remove the steam return pipe
and straighten the bent section.
Remove water scale in the
heating plate.
The product is placed on a
high table, for example, on a
table or a chair.
●
Water overflows from the
connection between the water
tank and the main machine.
●
The steam conduit is bent.
●
●
●
The product does
not work after
power-on.
The product works
but does not
produce any steam
after power-on.
The Ironing head
drips water.
Water leak.
The steam is
blocked.

17
logo, word marks, trade name, trade dress and all versions there of are
trademarks, copyrights and other intellectual property rights, and all goodwill derived
valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns
from using any part of an Midea trademark. Use of Midea trademark for commercial
purposes without the prior written consent of Midea may constitute trademark
infringement or unfair competition in violation of relevant laws.
This manual is created by Midea and Midea reserves all copyrights thereof. No entity or
individual may use, duplicate, modify, distribute in whole or in part this manual, or
bundle or sell with other products without the prior written consent of Midea.
All the described functions and instructions were up to date at the time of printing this
manual. However, the actual product may vary due to improved functions and designs.
TRADEMARKS, COPYRIGHTS
AND LEGAL STATEMENT

18
DATA PROTECTION NOTICE
For the provision of the services agreed with the customer,
we agree to comply without restriction with all stipulations of applicable data protection
law, in line with agreed countries within which services to the customer will be delivered,
as well as, where applicable, the EU General Data Protection Regulation (GDPR).
Generally, our data processing is to fulfil our obligation under contract with you and for
product safety reasons, to safeguard your rights in connection with warranty and
product registration questions. In some cases, but only if appropriate data protection is
ensured, personal data might be transferred to recipients located outside of the
European Economic Area.
Further information are provided on request. You can contact our Data Protection
Officer via [email protected]. To exercise your rights such as right to object your
personal date being processed for direct marketing purposes, please contact us via
[email protected]. To find further information, please follow the QR Code.
