Chapter 1: Before You Begin
Starting the tester for the rst time
When the tester is rst used the operator is asked to enter a
couple of items such as language, date and time. Changes
can be made afterwards by going in to the Utility Menu and
selecting CONFIG TESTER.
Safety
Because of the possibility of personal injury, always use
extreme caution when working with batteries. Follow
all manufacturers’ instructions and BCI (Battery Council
International) safety recommendations.
General Precautions
Battery acid is highly corrosive. If acid enters your
eyes, immediately ush them thoroughly with run-
ning cold water for at least 15 minutes and seek
medical attention. If battery acid gets on your skin or
clothing, wash immediately with water and baking
soda.
Always wear proper safety glasses or face shield
when working with or around batteries.
Keep hair, hands, and clothing as well as the analyzer
cords and cables away from moving engine parts.
Remove any jewelry or watches before you start
servicing the battery.
Use caution when working with metallic tools to
prevent sparks or short circuits.
Never lean over a battery when testing, charging or
jump starting it.
Risk of explosive gases.
Never smoke or allow a spark or
ame in the vicinity of a battery.
Batteries can produce a highly explosive mix
of hydrogen gas and oxygen, even when the
battery is not in operation. Always work in a
well-ventilated area.
Wash hands after handling.
REQUIRED BY CALIFORNIA PROP. 65: Battery posts, terminals,
and related accessories contain lead and lead compounds,
chemicals known to the state of California to cause cancer and
birth defects or other reproductive harm.
The tester is manufactured in line with the latest state of the
art and according to recognised safety standards. If used
incorrectly or misused, however, it can cause
- injury or death to the user or a third party,
- damage to the tester and other material assets belonging
to the operator,
- inecient operation of the tester.
All persons involved in commissioning, operating, maintaining
and servicing the tester must
- be suitably qualied,
- have knowledge of and experience in dealing with
testers and batteries and
- read and follow these operating instructions carefully.
Chapter 1: Before You Begin
Conventions Used in This Manual
To help you learn how to use your analyzer, the manual uses these symbols and typographical conventions:
Convention Description
!The safety symbol followed by the word WARNING or CAUTION indicates instructions for avoiding
hazardous conditions and personal injury.
CAUTION The word CAUTION indicates instructions for avoiding equipment damage.
The wrench symbol indicates procedural notes and helpful information.
UP ARROW The text for keypad buttons and soft-key functions are in bold capital letters.
CAPITAL LETTERS The text for screen options are in regular capital letters.

EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL
www.midtronics.com 5
Chapter 2: Overview
Chapter 2: Overview
Connections and Data Ports Data transmitter: sends test results to a PC
using an optional hardware and software kit.
Infrared temperature sensor with a range of
-28 °C to +93 °C
6-pin connector for the battery test cable.
Input for accessories (optional).
Spring-loaded data card slot for test data
storage and software upgrades.
DB-9 connector for future expandability.
Removing and Inserting the Data Card
The analyzer ships with a storage card slot to protect it from
dust and debris. To remove the data card, push briey on its
edge to release it and pull it from the slot. When inserting a
card, push it into the slot until it locks. The card is correctly
inserted when it is not protruding from the slot. To protect
the card slot and enable the analyzer to read and write to the
card, leave the card in the slot.
Connecting the Battery Test Cable
CAUTION: To prevent damage to the analyzer’s circuitry,
do not connect the analyzer to a voltage source greater than
30 Vdc.

EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL www.midtronics.com
6
Chapter 1: Before You Begin
Test Leads, Connectors, and Data Ports

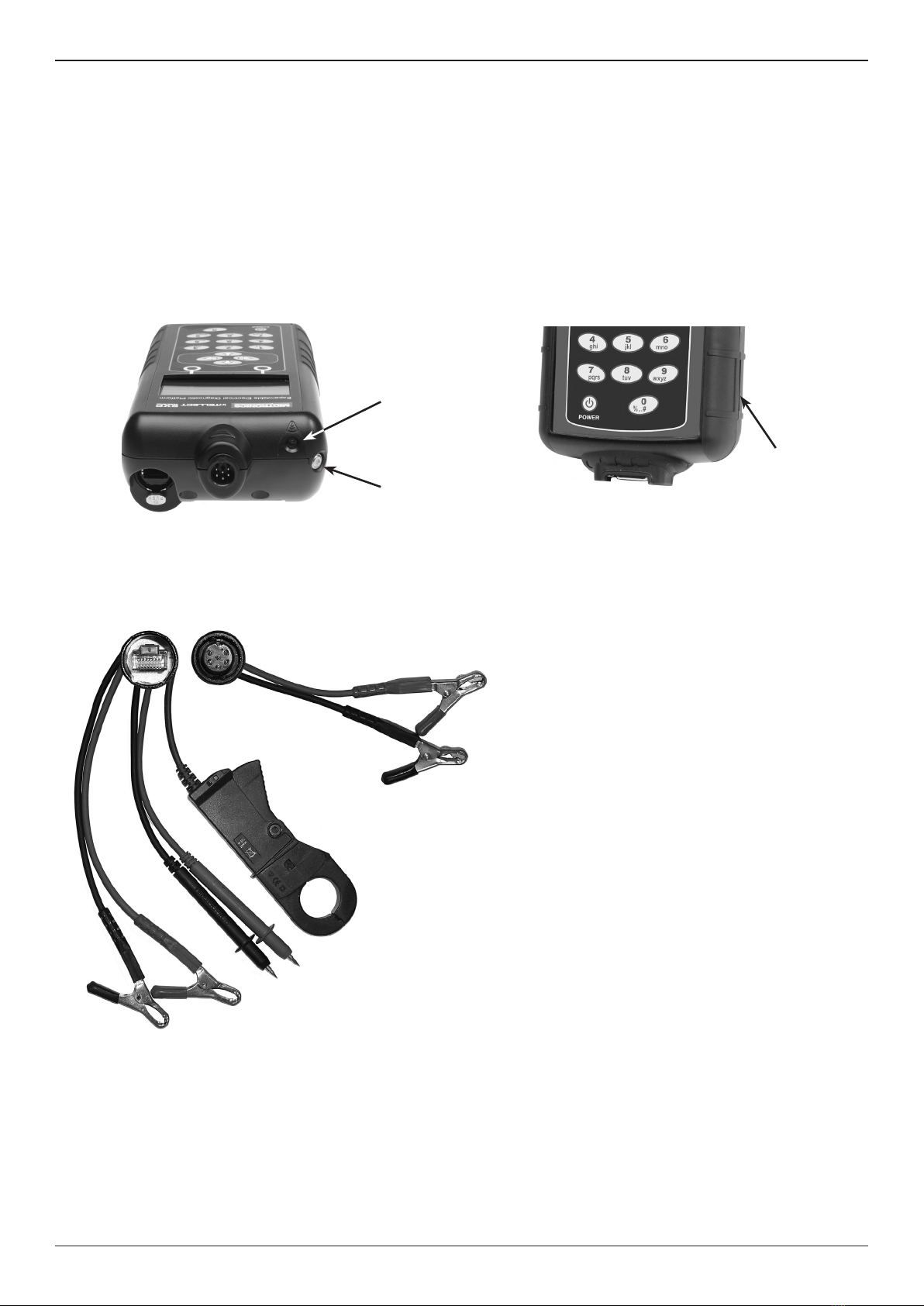

For the cable test leads (lower picture), there are two
connectors on the top of the tester (top left).
•For the battery test cable, there is a 6-pin connector with
a locking ring.
•For the amp clamp and the multimeter test cables, the
Tester has an accessories port, which is a RJ45 connector
with a release lever.
There are two IR data ports on the top of the Tester
(top left).
•An IR data transmitter, which transmits test re-
sults to the optional IR printer.
•An IR temperature measurement sensor.
The tester also has a DB-9 connector for future
expandability and an SD card slot for future
software upgrades or data logging (top right).
Top of EXP
DB-9
connector for fu-
ture expandability
SD card slot
for future up-
grades
Bottom of EXP
Battery
test cable
Amp clamp
DMM cable
with probes
DMM cable with
clamps
Test Leads (optional with EST)
6-pin
connector
IR data
transmitter
IR temperature
sensor
Accessories port

EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL
www.midtronics.com 7
Chapter 1: Before You Begin
The Internal Batteries
Status Indicator, which ap-
pears in the screen’s top
left corner, lets you know
the status and charge
level of the analyzer’s 6 1.5 V
batteries. The X shown in the
gure shows that the tester is
powered by the battery you’re
testing to conserve the internal
batteries.
Press the two Soft Keys linked
to the bottom of the screen to
perform the functions displayed
above them. The functions
change depending on the menu
or test process. So it may be
helpful to think of the words
appearing above them as part
of the keys. Some of the more
common soft-key functions are
SELECT, BACK, and END.
When you connect the tester
to a battery it functions as a
voltmeter. The
voltage read-
ing appears above the left soft
key until you move to other
menus or functions.
In some cases, you can use
the Alphanumeric Keypad to
enter numerical test parameters
instead of scrolling to them with
the ARROW keys.
You’ll also use the Alphanu-
meric Keys to create and edit
customer coupons. The keypad
includes characters for punctua-
tion. To add a space, press the
RIGHT and LEFT ARROW keys
simultaneously.
The Selection Area below the
Title Bar contains items you se-
lect or into which you enter infor-
mation. The area also displays
instructions and warnings.
The Directional Arrows on the
display show you which Arrow
Keys to press to move to other
icons or screens. The Up
and Down Directional
Arrows, for example, let
you know to press the
UP and DOWN ARROW
keys to display the screens that
are above and below the current
screen.
The Left and Right Directional
Arrows let you know to use the
LEFT or RIGHT ARROW keys
to highlight an icon for selection.
Another navigational aid is the
Scroll Bar along the right side
of the screen. The position of its
scroll box tells you which menu
screen you’re viewing.
The Title Bar shows you the
name of the current menu, test
tool, utility, or function.
Press the POWER button to turn
the Tester on and off. The Tes-
ter also turns on automatically
when you connect its test leads
to a battery.
Whichever way you turn on the
Tester, it always highlights the
icon and setting you last used
for your convenience.
Top
or only
screen
Middle
screen
Last
screen
Scroll Bar
Scroll
Box
Display and Keypad
The keypad and display work together to help you quickly
nd and use the right tools at the right time. The display also
keeps you on track with on-screen navigation aids, directions
and messages. Below you can see how the elements on the
screen relate to the keypad.
Main Menu and Keypad

EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL www.midtronics.com
8
Chapter 1: Before You Begin
Data Entry Methods
To perform a particular test or function, the tester will ask for
dierent types of information. This means that the methods
you use to enter information will change depending on
the type of information requested. The four types of entry
methods are described below.
Menu icons
A menu icon is a graphical representation of a function
you can select, such as the Diode Icon in the DMM Menu.
To select an icon, use the LEFT or RIGHT ARROW key to
highlight it. Highlighting changes the icon to a white picture
on a black background. To conrm your selection, press the
appropriate soft key.
Option Buttons
Some lists have option buttons before each item. To select
an item, use the UP/DOWN ARROW keys to move the dot
into the button next to the item you want. You can also use
the alphanumeric keypad to enter the number preceding
the option button. To conrm your selection, press the
appropriate soft key.
Scrolling Lists
Scrolling lists contain items that extend above and below
the screen or the selection box that contains them. To
indicate that there are more items, the symbols appear
to the right of the rst visible or highlighted item on the list.
To select from this type of list, use the UP/DOWN ARROW
keys to scroll to the item, or use the keypad to enter your
choice, and press the appropriate soft key.
Alphanumeric Entry
Some selections require you to use the alphanumeric
keypad. These “user-dened” selections have a blinking
horizontal line (cursor) to the right of the last character.
Use the UP/DOWN ARROW keys to highlight a line for
editing. Display the character, symbol, or number you want
by rapidly pressing its key as many times as needed. If you
pause, the cursor moves to the right. To backspace, press the
LEFT ARROW key. Use the RIGHT ARROW key to add a
space. Use the UP/DOWN ARROW keys to highlight a line
for editing. When nished, press the appropriate soft key to
save your settings.

EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL
www.midtronics.com 9
Chapter 1: Before You Begin
Menu Structure
This section will help you get to your destination while letting
you know what test leads you may need when you arrive.
The test leads are represented by symbols for their connectors.
Main Menu
The Main Menu is the starting point for all tools and utilities,
which are depicted as icons. Some icons lead directly to the
function they represent, while others are menu icons that lead
to two or more functions. Menu icons are marked here with an
asterisk (*) and are mapped on the following pages.
Icon Description
The BATTERY TEST tests a battery using the
battery information you select in a series of
screens.
With SYSTEM TEST you can test the battery,
and the starting and charging systems.
CABLE DROP TEST tests both sides of a
circuit simultaneously for voltage. Three preset
tests and 1 user-dened.
Digital multimeter (DMM) has 8 test meters,
a temperature sensor, and options for clamps
and probes.
QC TEST is used for testing stock or
compound batteries.
INFO contains a test counter, data transfer
utility, and the tester software version and
serial number.
PRINT/VIEW for all statistical info and
software version info.
UTILITY includes functionality to setup the
tester.
1: EST version only
DMM Menu (EST version only)
The DMM Menu has icons for a temperature sensor and 8 test
meters, some of which require dierent test leads.
Icon Description
DC VOLTS METER measures
voltage within a range of 0 to 60 Vdc.
AC VOLTS METER measures
voltage within a range of 0 to 24 Vac.
SCOPE traces voltage with time and
frequency measurements.
DC AMP METER tests the strength
of the direct current ow through a
circuit.
AC AMP METER tests the strength
of the alternating current ow through
a circuit.
TEMPERATURE METER displays
temperature in degrees F or C (units
you can select in the Utilities Menu.)
OHM METER tests a circuit for
continuity and resistance measured
in ohms (Ω).
Probes
only
DIODE tests a diode for forward
voltage drop.
VOLTS AMP METER measures two
signals simultaneously:
DC voltage and amperage.
Info Menu
Icon Description
TOTALS displays the total battery tests
performed since the tester was rst used, the
totals by decision, or allows you to clear the
counters.
TRANSFER DATA is an optional IR software
and hardware package, which enables you to
transfer test data to a PC.
VERSION INFO displays the software version
and serial number.
*
*
*
*
1
1
1

EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL www.midtronics.com
10
Chapter 1: Before You Begin

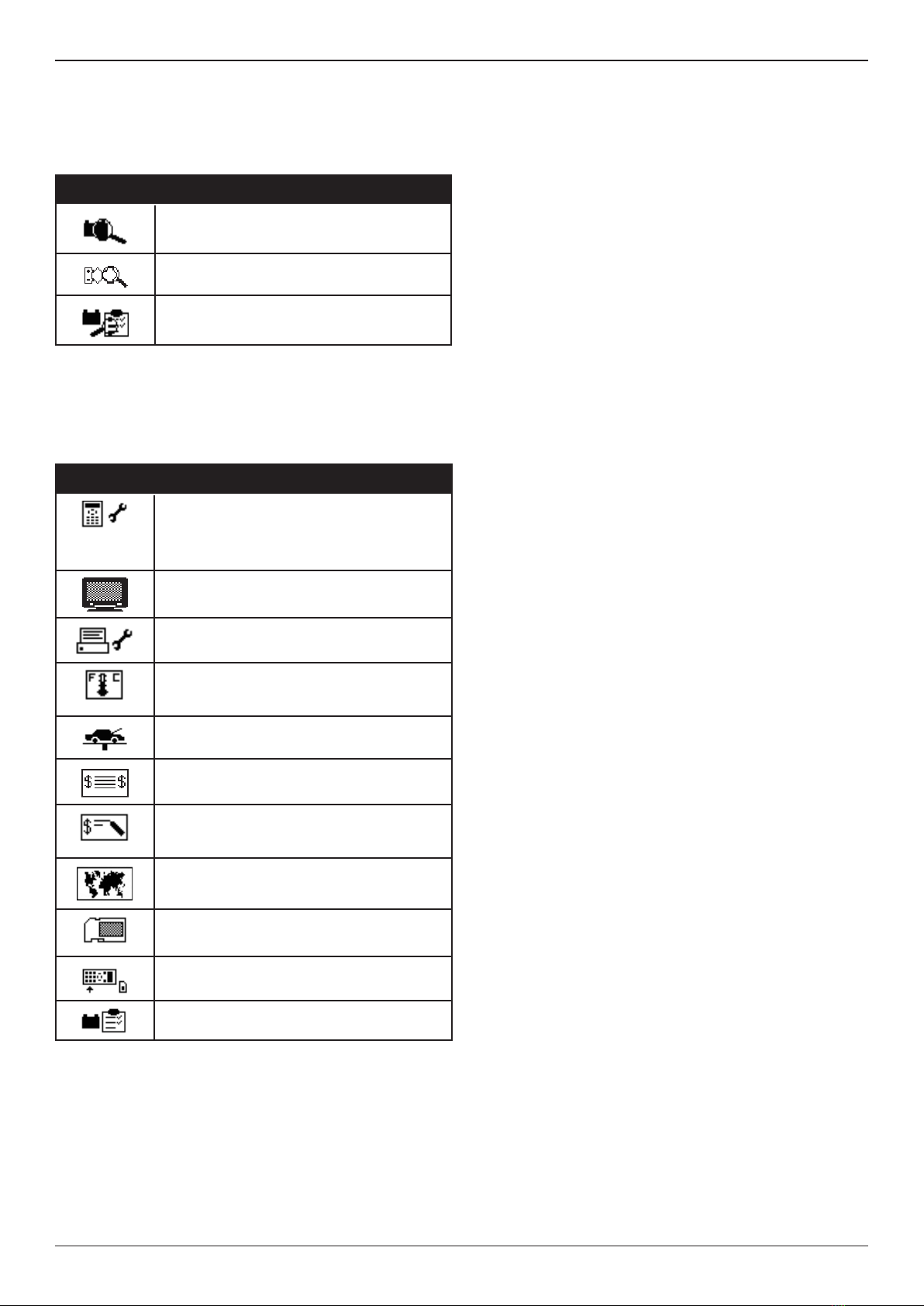

Print/View Menu
The tester stores the last test results in its memory until you
perform another test. To review or print results before you
retest, select a test type in the Print/View Menu.
Icon Description
VIEW TEST displays the last test result.
VIEW CABLE TEST displays the last cable
drop test result.
VIEW QC TEST displays the last QC test
result.
Utility Menu
The Utility Menu lets you customize your analyzer for your
needs.
Icon Description
CONFIG TESTER allows you to set the
following parameters:
MODE, TIME, FORMAT, DATE, USER, and
REGION.
The DISPLAY allows you to set the contrast
of the LCD.
CONFIG PRINTER enables you to congure
the printer to IrDA.
TEMPERATURE enables you to
select degrees C or F for temperature
measurements.
Create your own address details for printouts
with the SHOP INFO icon.
If you have created a coupon in the COUPON
utility, use coupon to enable or disable.
EDIT COUPON allows you to create and store
up to three separate coupons to be printed on
test results.
With the LANGUAGE menu you can select
one of the 24 available languages.
With FORMAT CARD you erase all
information on the data card
With UPDATE you can install new software on
the tester
QC MODE allows you to add and delete
batteries, and import and export battery lists.

EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL
www.midtronics.com 11
Chapter 3: Test Preparation
Inspecting the Battery
Before starting the test visually inspect the battery for:
•Cracked, buckled, or leaking case. If you see any of these
defects, replace the battery.
•Corroded, loose, or damaged cables and connections.
Repair or replace them as needed.
•Corrosion on the battery terminals, and dirt or acid on
the case top. Clean the case and terminals using a wire
brush and a mixture of water and baking soda.
•Low electrolyte level. If the electrolyte level is too low,
add distilled water to ll up to 1/2 above the top of the
plates and fully charge the battery. Do not overll.
•Corroded or loose battery tray and hold-down xture.
Tighten or replace as needed.
Testing Out-of-Vehicle
The preferred battery test location is in the vehicle. However,
if you plan to test out of the vehicle:
•Always disconnect the negative cable from the battery
rst and reconnect it last.
•Always use a carry tool or strap to lift and transport the
battery.
Testing In-Vehicle
The preferred test position is at the battery posts. If you must
test at a remote-post location, it should have both a positive
and negative post.
At the start of the test, make sure all vehicle accessory loads
are o, the key is not in the ignition, and the doors are closed.
Connecting the Battery Test Cable
CAUTION: Do not connect the tester to a voltage source
greater than 30 Vdc.
Connect the battery test cable to the tester by rst aligning
the cable connector’s 6 pins with the holes on top of the
tester. Firmly insert the connector and tighten the locking
ring.
Connect the clamps to the battery: the red clamp to the
positive (+) terminal and the black clamp to the negative (–)
terminal.
If you connect the clamps in the wrong polarity (positive to
negative or negative to positive), the tester displays CLAMPS
REVERSED! Reconnect the clamps correctly.
To make sure both sides of the clamps are gripping the
terminals, rock the each clamp back and forth. A poor
connection will prevent testing, and the tester will display
the message CHECK CONNECTION. If the message reappears
after you have correctly reconnected the clamps, clean the
terminals and reconnect.
Connecting an Accessory Cable
If you are using an accessory cable, plug it as you would a
phone jack into the accessories port on top of the tester. It
locks automatically into the port. To remove it after testing,
press the lever and pull the connector out.
Setting User Preferences
Before starting your test you may want to customize the use
of your analyzer by setting preferences in the Utility Menu.
The menu has settings for the display’s date and time, the
contrast and backlight time, a utility to customize printouts
for the optional IR printer, among others.
To conserve the analyzer’s internal batteries, the tester will
turn o after 30 seconds of inactivity.
Chapter 3: Test Preparation

EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL www.midtronics.com
12
Chapter 4: Battery Test
Chapter 4: Battery Test
The tester guides you through the steps of selecting your
battery test parameters and interpreting the results. Before
you start the test, review the instructions in Chapter 3: Test
Preparation.
1. In the Main Menu select the BATTERY TEST icon.
Press the SELECT soft key to continue.
2. Select the BATTERY LOCATION.
1 UNDER HOOD
2 UNDER SEAT
3 TRUNK
4 FOOT WELL
5 OUT OF VEHICLE
Press the NEXT soft key to continue.
Under hood
3. Select the VEHICLE TYPE.
1 REGULAR
2 START-STOP
Press the NEXT soft key to continue.
4. Select the TEST LOCATION.
1 JUMP START POST
2 BATTERY POST
Press the NEXT soft key to continue.
Regular - Battery Post
5. Select the BATTERY TYPE.
1 REGULAR
2 AGM
3 GEL
4 START-STOP
Press the NEXT soft key to continue.
In case of START-STOP please see the sub-chapter ‘START-
STOP - BATTERY POST’.
6. Select the battery’s capacity rating standard. The stan-
dard, and the rating units required are printed on the bat-
tery label. If the information is unreadable, contact the
battery manufacturer.
1 EN
2 EN2
3 DIN
4 IEC
5 SAE
6 JIS
7 CCA
Battery Standards
Rating
System Description Range
EN (A) European Norm 100 to 3000
EN2 (A) European Norm II 100 to 3000
DIN (A) Deutsche Industrie-Norm 100 to 1000
IEC (A) International Electrotechnical
Commission
100 to 1000
SAE (A) European labeling of CCA 100 to 3000
JIS Japanese Industrial Standard:
(shown on a battery as a
combination of numbers and
letters.
74 numbers
from 26A17
to 245H52
CCA Cold Cranking Amps (specied
by SAE): The amount of
current a battery can provide at
0 ºF (–17.8 ºC).
100 to 3000
If you select JIS, the analyzer asks for the JIS part number.
Scroll to the part number. To increase your scrolling speed,
hold the UP ()or DOWN () ARROW key, or use the
LEFT () or RIGHT ()ARROW key to move up or down
four part numbers at a time.
Press the NEXT soft key to continue.
7. Press an UP ()or DOWN () ARROW key to select the
BATTERY RATING.
500 CCA
Press ENTER and begin the battery test.
8. Select the TEMPERATURE (only asked when relevant for
the battery decision).
Aim the tester 5 cm from the sides or top of the battery
case. As soon as the temperature reading is stable the
operator can press NEXT.
The tester will now start testing the battery.

EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL
www.midtronics.com 13
Chapter 4: Battery Test
Regular - Jump Start Post
5. Select the PLATFORM.
1 PLATFORM 1
2 PLATFORM 2
3 PLATFORM 3
Press the NEXT soft key to continue.
6. Select the CAR MODEL. Depending on the chosen plat-
form you will see dierent models, e.g.:
208 (A9)/ 2008 (A94)
C4 Cactus (E3)
OTHER
Press the NEXT soft key to continue.
7. Select the BATTERY RATING. Again, the options you get
here all depend on what you have chosen before.
480 A(EN)
640 A(EN)
720 A(EN)
800 A(EN)
Press NEXT to begin the battery test.
Start-stop - Battery Post
5. Select the BATTERY RATING.
1 760A EN AGM
2 Q-85
3 T-105
4 OTHER
When OTHER is chosen you will have to put in the parameters
manually.
Press the NEXT soft key to continue.
6. Select the TEMPERATURE (only asked when relevant for
the battery decision).
Aim the tester 5 cm from the sides or top of the battery
case. As soon as the temperature reading is stable the
operator can press NEXT.
The tester will now start testing the battery.
Start-stop - Jump Start Post
5. Select the PLATFORM.
1 PLATFORM 1
2 PLATFORM 2
Press the NEXT soft key to continue.
6. Select the CAR MODEL. Depending on the chosen plat-
form you will see dierent models, e.g.:
208 (A9)/ 2008 (A94)
C4 Cactus (E3)
OTHER
Press the NEXT soft key to continue.
7. Select the START-STOP SYSTEM.
SST ALTERNATOR
SST STARTER
Press the NEXT soft key to continue.
8. Select the BATTERY RATING. Again, the options you get
here all depend on what you have chosen before.
760 A(EN)
Press NEXT to begin the battery test.

EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL www.midtronics.com
14
Chapter 4: Battery Test
Under seat, trunk, or foot well
3. Select the TEST LOCATION.
1 JUMP START POST
2 BATTERY POST
Press the NEXT soft key to continue.
Battery Post
4. Select the BATTERY TYPE.
1 REGULAR
2 AGM
3 GEL
4 START-STOP
Press the NEXT soft key to continue.
In case of START-STOP please see the sub-chapter ‘START-
STOP - BATTERY POST’.
5. Select the battery’s capacity rating standard. The stan-
dard, and the rating units required are printed on the bat-
tery label. If the information is unreadable, contact the
battery manufacturer.
1 EN
2 EN2
3 DIN
4 IEC
5 SAE
6 JIS
7 CCA
Battery Standards
Rating
System Description Range
EN (A) European Norm 100 to 3000
EN2 (A) European Norm II 100 to 3000
DIN (A) Deutsche Industrie-Norm 100 to 1000
IEC (A) International Electrotechnical
Commission
100 to 1000
SAE (A) European labeling of CCA 100 to 3000
JIS Japanese Industrial Standard:
(shown on a battery as a
combination of numbers and
letters.
74 numbers
from 26A17
to 245H52
CCA Cold Cranking Amps (specied
by SAE): The amount of
current a battery can provide at
0 ºF (–17.8 ºC).
100 to 3000
If you select JIS, the analyzer asks for the JIS part number.
Scroll to the part number. To increase your scrolling speed,
hold the UP ()or DOWN () ARROW key, or use the
LEFT () or RIGHT ()ARROW key to move up or down
four part numbers at a time.
Press the NEXT soft key to continue.
6. Press an UP ()or DOWN () ARROW key to select the
BATTERY RATING.
500 CCA
Press ENTER and begin the battery test.
7. Select the TEMPERATURE (only asked when relevant for
the battery decision).
Aim the tester 5 cm from the sides or top of the battery
case. As soon as the temperature reading is stable the
operator can press NEXT.
The tester will now start testing the battery.
Jump start post
4. Select the BATTERY RATING. The battery rating that
you can choose from depends on the battery location.
For example:
1 480 A(EN)
2 640 A(EN)
Press the NEXT soft key to continue.
In case of TRUNK the next step is included:
5. Select the CAR MODEL. The models that you can choose
from depend on the chosen BATTERY RATING.
407
C5
Press the NEXT soft key to continue.
6. Enter the VIN (TRUNK - 950 A(EN) only).
Press NEXT to begin the battery test.
Start-Stop - Battery post
4. Select the BATTERY RATING.
1 760A EN AGM
2 Q-85
3 T-105
4 OTHER
When OTHER is chosen you will have to put in the parameters
manually.
Press the NEXT soft key to continue.
5. Select the TEMPERATURE (only asked when relevant for
the battery decision).
Aim the tester 5 cm from the sides or top of the battery
case. As soon as the temperature reading is stable the
operator can press NEXT.
The tester will now start testing the battery.

EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL
www.midtronics.com 15
Chapter 4: Battery Test
Out of vehicle
3. Select the BATTERY TYPE.
1 REGULAR
2 AGM
3 GEL
4 START-STOP
Press the NEXT soft key to continue.
In case of START-STOP please see the sub-chapter ‘START-
STOP - BATTERY POST’.
4. Select the battery’s capacity rating standard. The stan-
dard, and the rating units required are printed on the bat-
tery label. If the information is unreadable, contact the
battery manufacturer.
1 EN
2 EN2
3 DIN
4 IEC
5 SAE
6 JIS
7 CCA
Battery Standards
Rating
System Description Range
EN (A) European Norm 100 to 3000
EN2 (A) European Norm II 100 to 3000
DIN (A) Deutsche Industrie-Norm 100 to 1000
IEC (A) International Electrotechnical
Commission
100 to 1000
SAE (A) European labeling of CCA 100 to 3000
JIS Japanese Industrial Standard:
(shown on a battery as a
combination of numbers and
letters.
74 numbers
from 26A17
to 245H52
CCA Cold Cranking Amps (specied
by SAE): The amount of
current a battery can provide at
0 ºF (–17.8 ºC).
100 to 3000
If you select JIS, the analyzer asks for the JIS part number.
Scroll to the part number. To increase your scrolling speed,
hold the UP ()or DOWN () ARROW key, or use the LEFT
() or RIGHT ()ARROW key to move up or down four
part numbers at a time. Press the NEXT soft key to continue.
5. Press an UP ()or DOWN () ARROW key to select the
BATTERY RATING.
500 CCA
Press ENTER and begin the battery test.
6. Select the TEMPERATURE (only asked when relevant for
the battery decision).
Aim the tester 5 cm from the sides or top of the battery
case. As soon as the temperature reading is stable the
operator can press NEXT.
The tester will now start testing the battery.
Start-Stop - Battery post
4. Select the BATTERY RATING.
1 760A EN AGM
2 Q-85
3 T-105
4 OTHER
When OTHER is chosen you will have to put in the parameters
manually.
Press the NEXT soft key to continue.
5. Select the TEMPERATURE (only asked when relevant for
the battery decision).
Aim the tester 5 cm from the sides or top of the battery
case. As soon as the temperature reading is stable the
operator can press NEXT.
The tester will now start testing the battery.

EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL www.midtronics.com
16
Chapter 4: Battery Test
Additional Test Requirements
For a more decisive result the tester may ask for additional
information or probe deeper into the battery’s condition. The
following messages and instructions may appear before the
analyzer displays the results of your test.
System Noise
To perform a correct measurement the tester requires the
vehicle to be in rest. After the car has been driven some vehicle
specic systems might still be active in the background.
The tester will detect this and displays the message
SYSTEM NOISE. When this message appears switch o all
consumers(radio, airconditioning) and remove the key from
the ignition. As soon as there is no more activity in the vehicle
the tester will continue testing and display the test result.
Unstable Battery Detected
A battery that is weak or that has just been charged may retain
enough electrical activity to be detected by the analyzer
and will adversely aect the test results. A fully charged
battery should stabilize quickly, after which the analyzer
will automatically retest. Weak batteries should be charged
and retested. If the battery is fully charged, check the clamp
connections.
Surface Charge
The battery can hold a surface charge if the engine has been
running or after the battery has been charged. The tester may
prompt you to remove the surface charge before it displays a
test result.
1. Follow the instructions indicating when to turn the head-
lights on and o (IN-VEHICLE)
2. The tester will resume testing after it detects that the sur-
face charge is removed.
Deep Scan Test
In some cases the tester may need to further analyze the
battery to determine whether the battery should be replaced
or it has a signicant chance to be recovered. It will then
conduct a Deep Scan Test of the battery for a few seconds.
This test will typically be performed on batteries that are in a
low state of charge.

EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL
www.midtronics.com 17
Chapter 4: Battery Test
Battery Test Results
After the test the tester will display the complete results in
a series of screens, see below. Use the UP/DOWN ARROW
keys to scroll through each result. To send the results to the
IR receiver, point the tester towards the IR Receiver, press
the TRANSFER soft key and wait until the hourglass has
disappeared from the screen.
Good Battery Result
Battery Decisions and Recommendations
Decision Recommended Action
GOOD BATTERY Return the battery to service.
CHARGE BATTERY Fully charge the battery and return it to service.
CHARGE & RETEST Fully charge the battery and retest. Failure to fully charge the battery before retesting
may cause false readings. If CHARGE & RETEST appears again after you fully
charge the battery, replace the battery.
REPLACE BATTERY Replace the battery and retest. A REPLACE BATTERY result may also mean a poor
connection between the battery cables and the battery. After disconnecting the battery
cables, retest the battery using the out-of-vehicle test before replacing it.
BAD CELL–REPLACE Replace the battery and retest.
FROZEN BATTERY Thaw the battery and retest.
Battery decision
Measured voltage
Measured capacity
rating units
Rating units you se-
lected for the test
Temperature indication
Battery’s state of charge
General health of the battery and its
ability to deliver its specied perfor-
mance compared with a new battery

EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL www.midtronics.com
18
Chapter 5: System Test
Before starting the test, inspect the alternator drive belt.
A belt that is glazed or worn, or lacks the proper tension, will
prevent the engine from achieving the rpm levels needed
for the test.
The System Test includes 3 tests that provide a complete
diagnosis of the vehicle’s electrical system:
•BATTERY TEST
•STARTER TEST
•ALTERNATOR TEST
Battery Test
The System Test includes a test of the battery to eliminate it
as the cause of starting or charging problems. See Chapter 4
for the Battery Test procedure.
Starter Test
1. Have your amp clamp ready and select the AMP CLAMP
availability.
1 INTEGRATED
2 OTHER
3 NONE
Press the NEXT soft key to continue.
2. Attached the Amp clamp to the tester, do not connect it
around any wire.
Press the NEXT soft key to continue.
3. Tester will zero out the Amp clamp.
4. Place Amp clamp around negative cable.
Press the NEXT soft key to continue.
5. Start the vehicle’s engine when prompted. If after the
vehicle started and the results do not appear after ap-
proximately 25 seconds, press the NO START soft key.
6. The analyzer displays one of the decisions and the re-
sults in a series of screens.
NOTE: In some cases, the tester may not detect the
vehicle’s starting prole. It will display the soft key
options STARTED and NO START. If you select
STARTED, the analyzer skips to the Alternator Test. If
you select NO START, the test process ends.

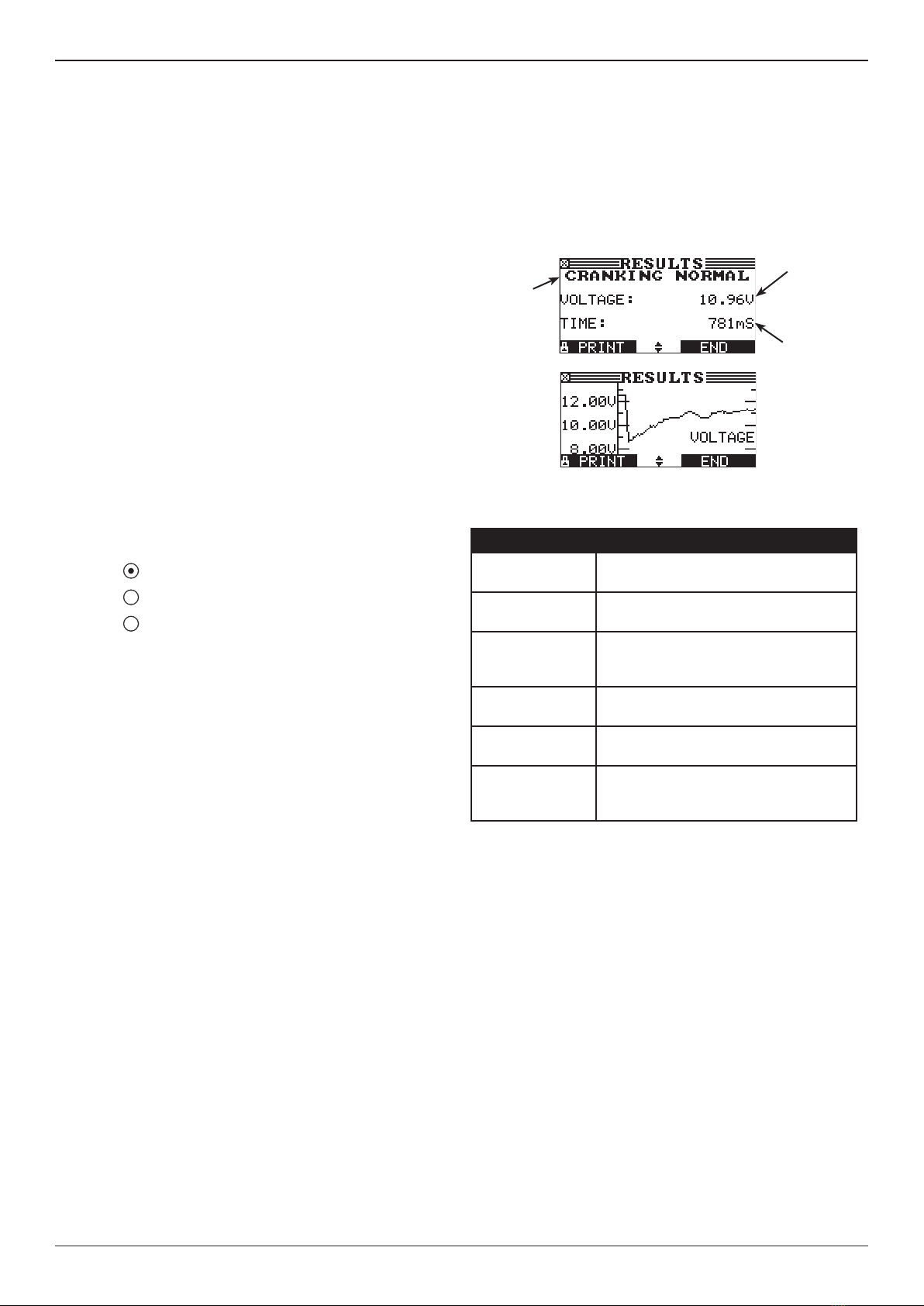

Starter System Test Results
The results include the battery analysis. Use the UP ()or
DOWN () ARROW key to scroll to each screen. See the
Starter System Decision table for an explanation of the starter
system decisions.To continue testing, press the NEXT soft key.
Starter
decision
Average
cranking
voltage
Cranking
time in mil-
liseconds
Starter System Test Decisions
Decision Action
CRANKING
NORMAL
The starter voltage is normal and the
battery is fully charged.
LOW VOLTAGE The starter voltage is low and the
battery is fully charged.
CHARGE
BATTERY
The starter voltage is low and the
battery is discharged. Fully charge the
battery and retest the starter system.
REPLACE
ADVISED
Replace the battery and retest before
testing the alternator test..
NO START The engine did not start and the test
was aborted.
CRANKING
SKIPPED
The tester did not detect the vehicle’s
starting prole and skipped the Starter
Test.
Chapter 5: System Test
(EST version only)
X axis = time

EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL
www.midtronics.com 19
Chapter 5: System Test
Alternator Test
1. The tester starts checking for alternator output.
NOTE: If necessary the analyzer will ask if you are
testing a diesel engine. It will resume testing after
you make your selection.
2. Depending on whether you are working with an inte-
grated Amp clamp, you will be either prompted to TURN
OFF LOADS AND ENGINE or asked to CHECK IF CLAMP
POINTS AWAY FROM THE NEGATIVE BATTERY POST.
In case of the former, turn o vehicle loads (blowers,
interior light, radio, etc.) and the engine. Press the NEXT
soft key to continue.
3. ANALYZING CHARGING SYSTEM DATA
4. TURN OFF LOADS AND ENGINE: Turn o vehicle loads
(blowers, interior light, radio, etc.) and idle the engine.
Press the NEXT soft key to continue.
NOTE: If necessary the analyzer will ask if you are testing
a diesel engine. It will resume testing after you make
your selection.
5. REV ENGINE WITH LOADS OFF FOR 5 SECONDS: Rev the
engine with the loads o. Gradually increase the rpm un-
til the analyzer tells you to HOL D the rev level as the bar
on the display crosses the rpm target line.
6. ACQUIRING DATA....HOLD ENGINE RPM: Continue to hold
the rpm while the Tester takes system measurements.
7. ENGINE REV DETECTED, IDLE ENGINE: The Tester has de-
tected the rev. Press the NEXT soft key to continue.
8. TESTING ALTERNATOR AT IDLE, LOADS OFF: The analyzer
will next test the engine at idle for comparison to other
readings, and then test the diode ripple. Excessive ripple
usually means one or more diodes have failed in the al-
ternator or there is stator damage.
9. TURN HIGH BEAMS AND BLOWER MOTOR ON, IDLE EN-
GINE: After a few seconds, the Tester will ask you to turn
on the accessory loads. It will determine if the charging
system is able to provide enough current for the de-
mands of the electrical system.
IMPORTANT: Turn on the high-beam headlights, the
blower to high and the rear defogger. Don’t use cyclical
loads such as air conditioning or windshield wipers.
10. TESTING ALTERNATOR AT IDLE, LOADS ON: The analyzer
will determine if the charging system is able to provide
sucient current for the demands of the vehicle’s elec-
trical system.
11. REV ENGINE WITH LOADS ON FOR 5 SECONDS: The Tes-
ter will test the charging system with the loads on and
prompt you to rev the engine. Gradually increase the rev
until the analyzer tells you to HOLD the rev level as the
bar on the display crosses the rpm target line.
12. ACQUIRING DATA....HOLD ENGINE RPM: Continue to hold
the rpm while the Tester takes system measurements.
13. ENGINE REV DETECTED, IDLE ENGINE: The Tester has de-
tected the rev. Press the NEXT soft key to continue.
14. ANALYZING CHARGING SYSTEM DATA: The Tester is com-
pleting its nal analysis of the charging system data.
15. TURN OFF LOADS AND ENGINE: Press the NEXT soft key
to display the results.

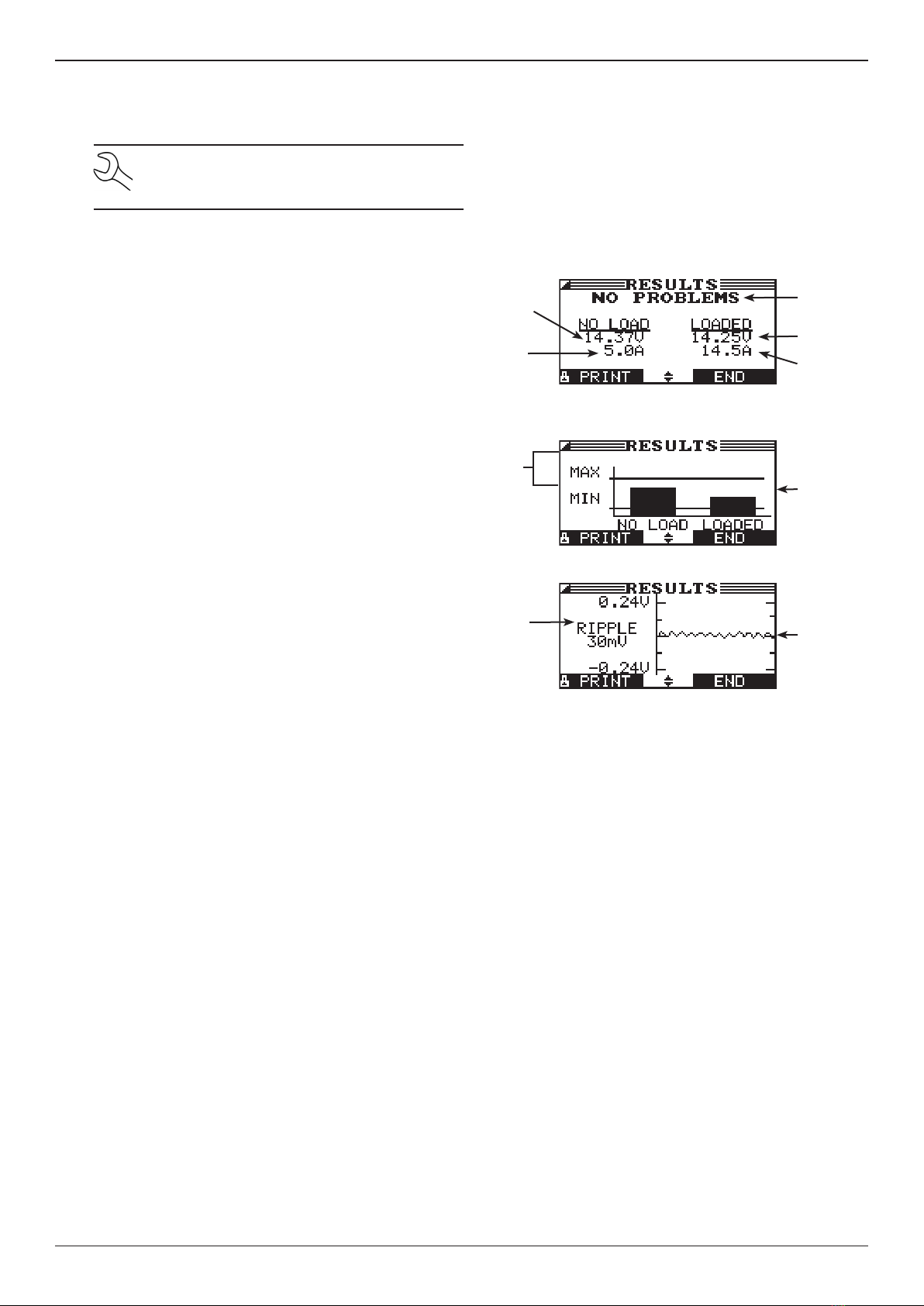

Alternator Test Results
NO PROBLEMS
Alternator Result
Alternator
decision
Loads-off
DC voltage
at rev
Loads-off
current at
rev if amp
clamp is
used
Loads-on DC
voltage at rev
Loads-on cur-
rent at rev if
amp clamp is
used
Normal
DC
voltage
range
Bar graph
showing DC
voltage within
normal range
with loads on
and off
Graph of
diode
waveform
Peak-to-
peak AC
voltage

EXP-925
Midtronics B.V. Hoofdveste 6 - 8 Houten NL www.midtronics.com
20
Chapter 5: System Test
Alternator Decisions and Recommendations
Decision Action
NO PROBLEMS The system is showing normal output from the alternator. No problem detected.
NO OUTPUT The alternator is not providing charging current to the battery.
• Check the belts to ensure the alternator is rotating with the engine running. Replace
broken or slipping belts and retest.
• Check all connections to and from the alternator, especially the connection to the battery.
If the connection is loose or heavily corroded, clean or replace the cable and retest.
• If the belts and connections are in good working condition, replace the alternator. (Older
vehicles use external voltage regulators, which may require only replacement of the
voltage regulator.)
LOW OUTPUT The alternator is not providing enough current to power the system’s electrical loads and
charge the battery.
• Check the belts to ensure the alternator is rotating with the engine running. Replace
broken or slipping belts and retest.
• Check the connections from the alternator to the battery. If the connection is loose or
heavily corroded, clean or replace the cable and retest.
HIGH OUTPUT The voltage output from the alternator to the battery exceeds the normal limits of a
functioning regulator.
• Check to ensure there are no loose connections and that the ground connection is
normal. If there are no connection problems, replace the regulator. (Most alternators
have a built-in regulator requiring you to replace the alternator. In older vehicles that use
external voltage regulators, you may need to replace only the voltage regulator.)
Diode Decisions and Recommendations
Decision Action
EXCESSIVE RIPPLE One or more diodes in the alternator aren’t functioning or there’s stator damage, which is
shown by an excessive amount of AC ripple current supplied to the battery.
• Make sure the alternator mounting is sturdy and that the belts are in good shape and
functioning properly. If the mounting and belts are good, replace the alternator.
OPEN PHASE The Tester has detected an open phase within the alternator. Replace the alternator.
OPEN DIODE The Tester has detected a open diode within the alternator. Replace the alternator.
SHORTED DIODE The Tester has detected an shorted diode within the alternator. Replace the alternator.
