Mighty Mule 500 UL325 SERIES User manual

Installation Manual
1. KEEP CLEAR! Gate may move at any time.
2. Do not allow children to operate gate or
play in gate area.
3. This gate is for vehicles only. Pedestrians
must use a separate entrance.
Moving Gate Can Cause
Injury Or Death
WARNING
!
WARNING
!
MOVING GATE
Can Cause Injury or Death
500
®
E-Z GATE OPENER
1-800-543-GATE (4283) • www.mightymule.com
UL325 SERIES
500
®
E-Z GATE OPENER
SINGLE GATE SYSTEM
5 Easy Installation Steps
1. Watch the Installation DVD and Read the Safety Information,
Technical Specifications, and the Before You Begin sections in
the manual.
2. Install the Gate Opener and Control Box.
3. Power the system using the AC Transformer or optional Solar
Panel Charger Kit.
4. Programming and customizing the system to your individual
settings.
5. Adding additional safety devices and access controls.
L
I
S
T
E
D
USC
REV-11/17/08
Printed in China for GTO, Inc.

Warning!
The Mighty Mule® Gate Opener is intended for use with vehicular swing gates. The opener can be
used in Class I, Class II, Class III and Class IV.
Vehicular Gate Opener Class Categories
This equipment is similar to other gate or door
equipment and meets or exceeds Underwriters
Laboratory Standard 325 (UL 325). However, gate
equipment has hazards associated with its use and
therefore by installing this product the installer
and user accept full responsibility for following
and noting the installation and safety instructions.
Failure to follow installation and safety instructions
can result in hazards developing due to improper
assembly. You agree to properly install this product
and that if you fail to do so GTO, Inc. shall in
no event be liable for direct, indirect, incidental,
special or consequential damages or loss of profits
whether based in contract tort or any other legal
theory during the course of the warranty or at
any time thereafter. The installer and/or user
agree to assume responsibility for all liability and
use of this product releasing GTO, Inc. from any
and all liability. If you are not in agreement with
this disclaimer or do not feel capable of properly
following all installation and safety instructions you
may return this product for full replacement value.
READ ALL INSTRUCTIONS CAREFULLY AND
COMPLETELY before attempting to install and
use this automatic gate opener. This gate opener
produces a high level of force. Stay clear of the
unit while it is operating and exercise caution at all
times.
All automatic gate openers are intended for use on
vehicular gates only.
Residential Vehicular Gate Opener-Class I:
A vehicular gate opener (or system) intended for
use in a home of one-to-four single family dwelling,
or a garage or parking area associated therewith.
Commercial/General Access Vehicular Gate
Opener-Class II: A vehicular gate opener (or
system) intended for use in a commercial location
or building such as a multifamily housing unit (five
or more single family units), hotel, garages, retail
store, or other building servicing the general public.
Industrial/Limited Access Vehicular Gate
Opener–Class III: A vehicular gate opener (or
system) intended for use in an industrial location or
building such as a factory or loading dock area or
other locations not intended to service the general
public.
Restricted Access Vehicular Gate Opener–
Class IV: A vehicular gate opener (or system)
intended for use in a guarded industrial location or
building such as an airport security area or other
restricted access locations not servicing the general
public, in which unauthorized access is prevented
via supervision by security personnel.

Table of Contents
PLEASE READ THIS FIRST_______________________________________________________ 1
IMPORTANT SAFETY INFORMATION____________________________________________ 2
TECHNICAL SPECIFICATIONS ___________________________________________________ 9
BEFORE YOU BEGIN ___________________________________________________________ 10
Check Direction of Gate Swing ___________________________________________________ 10
Check Existing Gate Size and Material _____________________________________________ 10
Check for Proper Gate Installation _________________________________________________ 10
Column Installation Information___________________________________________________ 11
Items Included_________________________________________________________________ 11
Tools Needed__________________________________________________________________ 12
Items Not Included _____________________________________________________________ 12
GATE OPENER INSTALLATION _________________________________________________ 13
Mounting Pull-to-Open Opener to Gate ____________________________________________ 13
Mounting Push-to-Open Opener to Gate____________________________________________ 16
CONTROL BOX INSTALLATION ________________________________________________ 19
Control Box Installation _________________________________________________________ 19
Transformer Wiring Installation ___________________________________________________ 20
Receiver Installation ____________________________________________________________ 22
Gate Stop Installation ___________________________________________________________ 22
SOLAR PANEL INSTALLATION _________________________________________________ 23
CONTROL BOX SETTINGS _____________________________________________________ 25
DIP Switches__________________________________________________________________ 25
Setting Pull-to-Open (Closed) Gate Limit___________________________________________ 26
Resetting Closed Gate Limit______________________________________________________ 26
Setting Push-to-Open (Open) Gate Limit ___________________________________________ 27
Resetting Open Gate Limit _______________________________________________________ 27
Setting Obstruction Stall Force and Auto Close Time __________________________________ 28
Setting Your Personal Code_______________________________________________________ 28
CONNECTING ADDITIONAL DEVICES __________________________________________ 30
Input Connections _______________________________________________________________31
Connecting Accessories _________________________________________________________ 32
Connecting GTO Automatic Lock _________________________________________________ 32
Connecting Other Auxilary Devices _________________________________________________33
MAINTENANCE & TROUBLESHOOTING ________________________________________ 33
Maintenance Tips _______________________________________________________________33
Troubleshooting Guide ___________________________________________________________34

1
Please Read This First!
Thank you for purchasing a Mighty Mule® E-Z
Gate Opener—GTO's "do-it-yourself" automatic
gate opener! When correctly installed and properly
used, your Mighty Mule® E-Z Gate Opener will give
you many years of reliable service. Please read the
following information and watch the enclosed video to
ensure you have the correct system for your particular
needs. Furthermore, this manual and the DVD will
enable you to properly install your Mighty Mule® E-Z
Gate Opener.
The Mighty Mule® E-Z Gate Opener is designed
for installation on a pull-to-open single leaf gate
(gates that open into the property). By purchasing
an accessory bracket, the Mighty Mule® E-Z Gate
Opener can accommodate a push-to-open single leaf
gate (gates that open out from the property). The gate
must not exceed 18 feet in length and weigh more than
350 pounds or exceed 8 feet in length and weigh more
than 850 pounds (please see Technical Specifications
on page 9). The Mighty Mule® E-Z Gate Opener can
be used on vinyl, aluminum, chain link, farm tube,
and wrought iron gates. Use on solid (wood) gates
is not recommended. Solid surface gates have a high
resistance to the wind. If the wind is strong enough,
the opener will obstruct and stop.
The Mighty Mule® E-Z Gate Opener accommodates
extra transmitters, digital keypads, solar panels, push
buttons, automatic gate locks, and other access control
products. These optional accessories (see the enclosed
Mighty Mule® Accessory Catalog) are available
at most stores. Your store should be able to special
order any accessory not in stock. If your store cannot
special order accessories, please call the GTO Sales
Department (800-543-GATE).
The Mighty Mule® E-Z Gate Opener features
adjustable obstruction sensing. This safety feature
makes the gate stop and reverse direction within 2
seconds when it comes in contact with an obstruction.
MIN is the factory setting; meaning the gate will exert
the minimum force on an obstruction before it stops
and reverses direction.
The Mighty Mule® E-Z Gate Opener also has an
adjustable auto-close feature. After the gate reaches the
fully open position, it can be set to remain open up to
120 seconds before automatically closing. Pressing the
transmitter button at any time after the gate opens fully
will cause it to close immediately. OFF is the factory
setting; meaning the gate will stay open until you press
the transmitter (or keypad, etc.) again.
PLEASE NOTE—If your application requires any of
the following:
 •Swinggateslongerthan18feetorweighing
more than 850 pounds
 •Slidegates
 •Heavydutyorcommercialuses
 •Professionalinstallation
Go to gtoinc.com for a dealer or retailer near you or
call GTO at (800) 543-GATE [4283] or (850) 575-
0176 for information about our GTO/PRO professional
line of gate openers and accessories. Our Sales
Department will be glad to give you the name and
phone number of a GTO/PRO dealer near you.
BEFORE YOU BEGIN TO INSTALL YOUR AUTOMATIC GATE OPENER:
watch the enclosed video and read these instructions carefully and completely
to become familiar with all parts and installation steps. The video is only designed as an
overview of the installation procedure. You must read the installation manual for detailed
instructions on gate opener safety and proper use of the gate opener.
®
E-Z GATE OPENERS

Important Safety Information
Clevis Pin
Hairpin Clip
Gate Bracket
Front Mount
Bushing
Because automatic gate openers produce high levels
of force, consumers need to know the potential
hazards associated with improperly designed,
installed, and maintained automated gate opener
systems. Keep in mind that the gate opener is just
one component of the total gate operating system.
Each component must work in unison to provide the
consumer with convenience, security, and safety.
This manual contains various safety precautions
and warnings for the consumer. Because there are
many possible applications of the gate opener, the
safety precautions and warnings contained in this

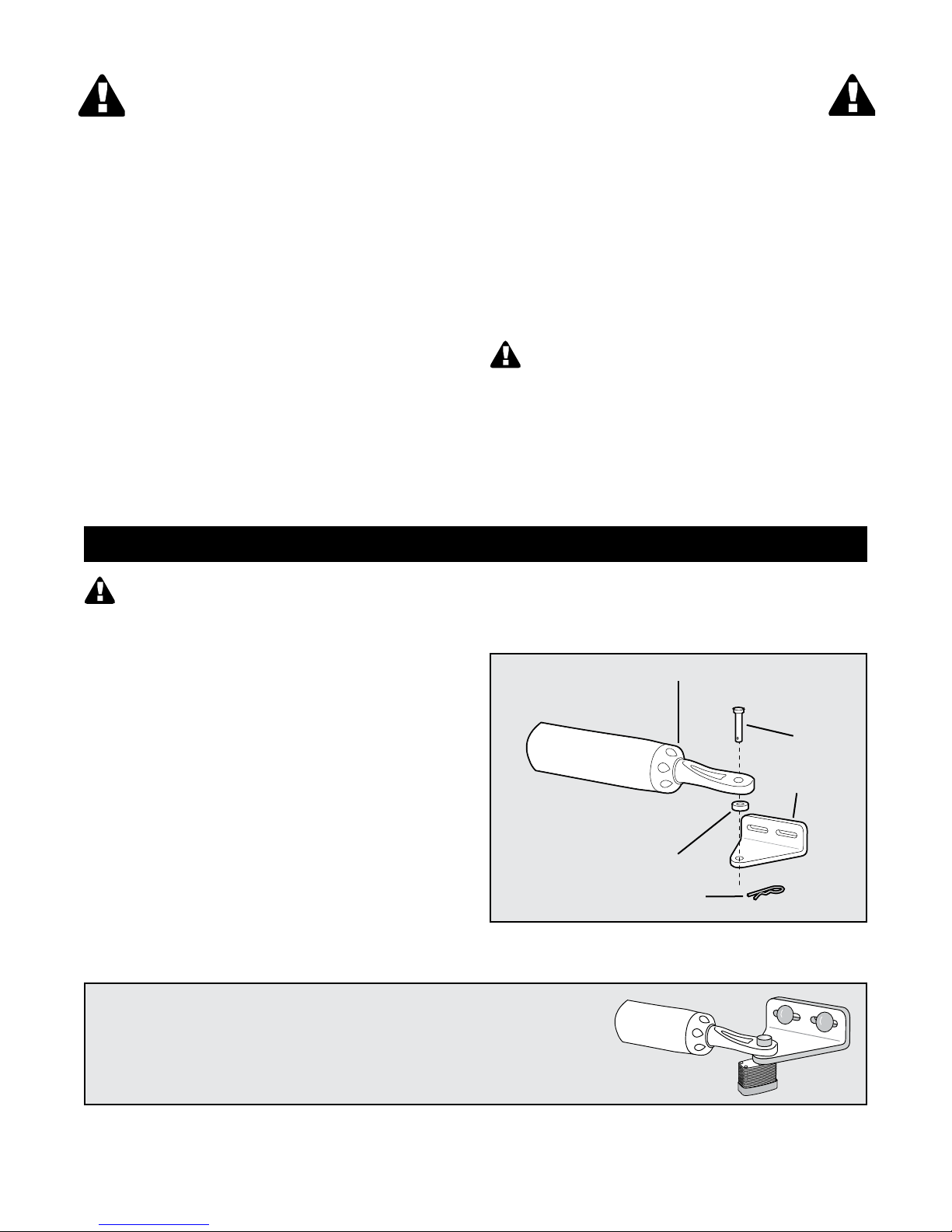

Disconnecting the Opener
1. Turn control box power switch OFF.
2. Remove hairpin clip, clevis pin, and bushing from
either the front or rear mounting point.
3. Remove the opener from the mount.
The gate can be opened and closed manually
when the opener is disconnected.
manual cannot be completely exhaustive in nature.
They do, however, provide an overview of the
safe design, installation, and use of this product.
CAREFULLY READ AND FOLLOW ALL
SAFETY PRECAUTIONS, WARNINGS, AND
INSTALLATION INSTRUCTIONS TO ENSURE
THE SAFE SYSTEM DESIGN, INSTALLATION,
AND USE OF THIS PRODUCT.
Precautions and warnings in this manual are
identified with this warning symbol. The symbol
identifies conditions that can result in damage to the
opener or its components, serious injury, or death.
Manually Opening and Closing Gate
Because GTO automatic gate openers are only part of the total gate operating system, it is the responsibility
of the consumer to ensure that the total system is safe for its intended use.
CAUTION: The gate will move freely and uncontrolled when the gate opener is removed from the
gate. ONLY disconnect the opener when the control box power switch is OFF and the gate is NOT moving.
NOTE: Substitute a Pin Lock for the clevis pin on the front mount of the
gate opener to prevent unauthorized removal of the opener from the gate
(see accessory pages in back of this book).
2

Important Safety Information
3
1. READ AND FOLLOW ALL
INSTRUCTIONS. Failure to meet the
requirements set forth in the instruction manual
could cause severe injury and/or death, for which
the manufacturer cannot be held responsible.
2. When designing a system that will be entered
from a highway or main thoroughfare, make sure
the system is placed far enough from the road to
prevent traffic congestion.
3. The gate must be installed in a location that
provides adequate clearance between it and
adjacent structures when opening and closing to
reduce the risk of entrapment. Swinging gates
must not open into public access areas.
4. The gate and gate opener installation must
comply with any applicable local codes.
I. Before Installation
1. Verify this opener is proper for the type and size
of gate, its frequency of use and proper class
rating.
2. Make sure the gate has been properly installed
and swings freely in both directions. Repair or
replace all worn or damaged gate hardware prior
to installation. A freely moving gate will require
less force to operate and will enhance the
performance of the opener and safety devices
used with the system (see page 10).
3. Review the operation of the system to become
familiar with its safety features. Understand how
to disconnect the opener for manual gate
operations (see page 2).
4. This gate opener is intended for vehicular gates
ONLY. A seperate entrance or gate must be
installed for pedestrian use (see page 7).
5. Always keep people and objects away from the
gate and its area of travel. NO ONE SHOULD
CROSS THE PATH OF A MOVING GATE.
6. Pay close attention to the diagram below and be
aware of these areas at all times.
For the Consumer
WARNING: To reduce the risk of injury or death:
Gate in the
Open Position
ZONE 2
ZONE 3
ZONE 4
ZONE 5
Driveway
ZONE 1
Entrapment
Zones for a
Push-To-Open
Application
Gate in the
Open Position
ZONE 2
ZONE 3
ZONE 4
ZONE 5
Driveway
ZONE 1
Entrapment
Zones for a
Pull-To-Open
Application

Important Safety Information
Moving Gate
Area
Driveway 10'
10'
10'
10'
NEVER install
any control device
within gray area
4
II. During Installation
1. Install the gate opener on the inside of the prop-
erty and fence line. DO NOT install an opener
on the outside of the gate where the public has
access to it.
2. Be careful with moving parts and avoid close
proximity to areas where fingers or hands could
be pinched.
3. Devices such as contact sensors (safety
edges) and non contact sensors (photo beams)
provide additional protection against entrapment.
4. If push buttons or key switches are installed, they
should be within sight of the gate, yet located at
least 10 feet from any moving part of the gate
(see diagram below). Never install any control
device where a user will be tempted to reach
through the gate to activate the gate opener.
5. Do not activate your gate opener unless you can
see it and can determine that its area of travel is
clear of people, pets, or other obstructions. Watch
the gate through its entire movement.
6. Secure outdoor or easily accessed gate opener
controls in order to prohibit unauthorized use of
the gate.
For the Consumer
Entrapment Zones for a proper Pull-To-Open installation:
Zone 1 – leading edge of the gate and the fence post.
Zone 2 – between the gate and the gate post.
Zone 3 – the path of the gate.
Zone 4 – the space between the gate in the open position and any object such as a wall, fence, tree, etc.
Zone 5 – pinch points between the opener and gate.
Moving Gate
Area
Driveway
10'
10'
10'
10'
NEVER install
any control device
within gray area
Pull-To-Open
Application
Push-To-Open
Application

Important Safety Information
5
III. After Installation
1. Attach the warning signs (included) to each side
of the gate to alert the public of automatic gate
operation. It is your responsibility to post warning
signs on both sides of your gate. If any of these
signs or warning decals becomes damaged,
illegible, or missing, replace them immediately.
Contact GTO for free replacements.
2. The gate is automatic and could move at any time,
posing serious risk of entrapment. No one should
be in contact with the gate when it is
moving or stationary.
3. Do not attempt to drive into the gate area while
the gate is moving; wait until the gate comes to a
complete stop.
4. Do not attempt to “beat the gate” while the gate is
closing. This is extremely dangerous.
5. Do not allow children or pets near your gate.
Never let children operate or play with gate
controls. Keep the remote control away from
children and unauthorized users; store controls
where children and unauthorized users do not
have access to them.
6. KEEP GATES PROPERLY MAINTAINED.
Always turn power to operator OFF before
performing any maintenance. Clean the
push-pull tube with a soft, dry cloth and apply
silicone spray to it at least once per month.
7. Service the gate and gate operator regularly.
Grease hinges, spray push pull tube with high
quality silicone spray monthly and replace the
battery every 2-3 years.
8. To operate this equipment safely, YOU must
know how to disconnect the operator for manual
gate operation (see page 2). If you have read the
instructions and still do not understand how to
disconnect the operator, contact the GTO Service
Department.
9. Disconnect the operator ONLY when the power
is TURNED OFF and the gate is NOT moving.
10. Make arrangements with local fire and law
enforcement for emergency access.
11. Distribute and discuss copies of the
IMPORTANT SAFETY INFORMATION
section of this manual with all persons
authorized to use your gate.
12. IMPORTANT: Save these safety instructions.
Make sure everyone who is using or will be
around the gate and gate operator are aware of
the dangers associated with automated gates.
In the event you sell the property with the gate
operator or sell the gate operator, provide a
copy of these safety instructions to the new
owner.
Should you lose or misplace this manual, a
copy can be obtained by downloading one from
the Mighty Mule® web site (www.mighty-
mule.com), by contacting GTO, Inc., at 3121
Hartsfield Road, Tallahassee, Florida 32303
or by calling 1-800-543-4283 and requesting a
duplicate copy. One will be provided to you for
a nominal fee.
For the Consumer

Important Safety Information
6
As specified by Gate Operator Safety Standard, UL
325 (30A.1.1), automatic gate operators shall have an
inherent entrapment sensing system, and shall have
provisions for, or be supplied with, at least one
independent secondary means to protect against
entrapment. The Mighty Mule® 500 utilizes Type A,
an inherent (i.e., built-in) entrapment sensing system
as the primary type of entrapment protection. Also,
the Mighty Mule® 500 has provisions for the connec-
tion of Type B2 protection to be used as the secondary
type of entrapment protection, and is recommended.
1. For gate operators utilizing a contact sensor (e.g.,
safety edge sensor– Type B2) in accordance with
UL 325 (51.8.4 [i]):
A. One or more contact sensors shall be located at
the leading edge, bottom edge, and post edge,
both inside and outside of a vehicular swing gate
system.
B. A hard wired contact sensor shall be located and
its wiring arranged so that the communication
between the sensor and the gate operator is not
subjected to mechanical damage.
C. A wireless contact sensor such as one that
transmits radio frequency (RF) signals to the gate
operator for entrapment protection functions shall
be located where the transmission of the signals
is not obstructed or impeded by building
structures, natural landscaping or similar
obstruction. A wireless contact sensor shall
function under the intended end-use conditions.
Secondary Means of Protection Against Entrapment
ENTRAPMENT ALARM (UL 325; 30A.1.1A)
The Mighty Mule® 500 Automatic Gate Operator is designed to stop and reverse within 2 seconds when the gate
comes in contact with an obstruction. Additionally, these operators are equipped with an audio entrapment alarm which
will activate if the unit obstructs twice while opening or closing. This alarm will sound for a period of 5 minutes, or un-
til the operator receives an intended signal from a hardwired entry/exit source (e.g. push button control or keypad) and
the gate returns to a fully open or fully closed position. Turning the power switch on the control box OFF and back ON
will also deactivate the alarm. Wireless controls such as transmitters and wireless keypads will not deactivate the alarm.
500
Leading Edge Contact Sensor
on both sides of the gate
Bottom Edge Contact Sensor
on both sides of the gate
Post Edge Contact Sensor
on both sides of the gate
Vehicular Gate

Important Safety Information
7

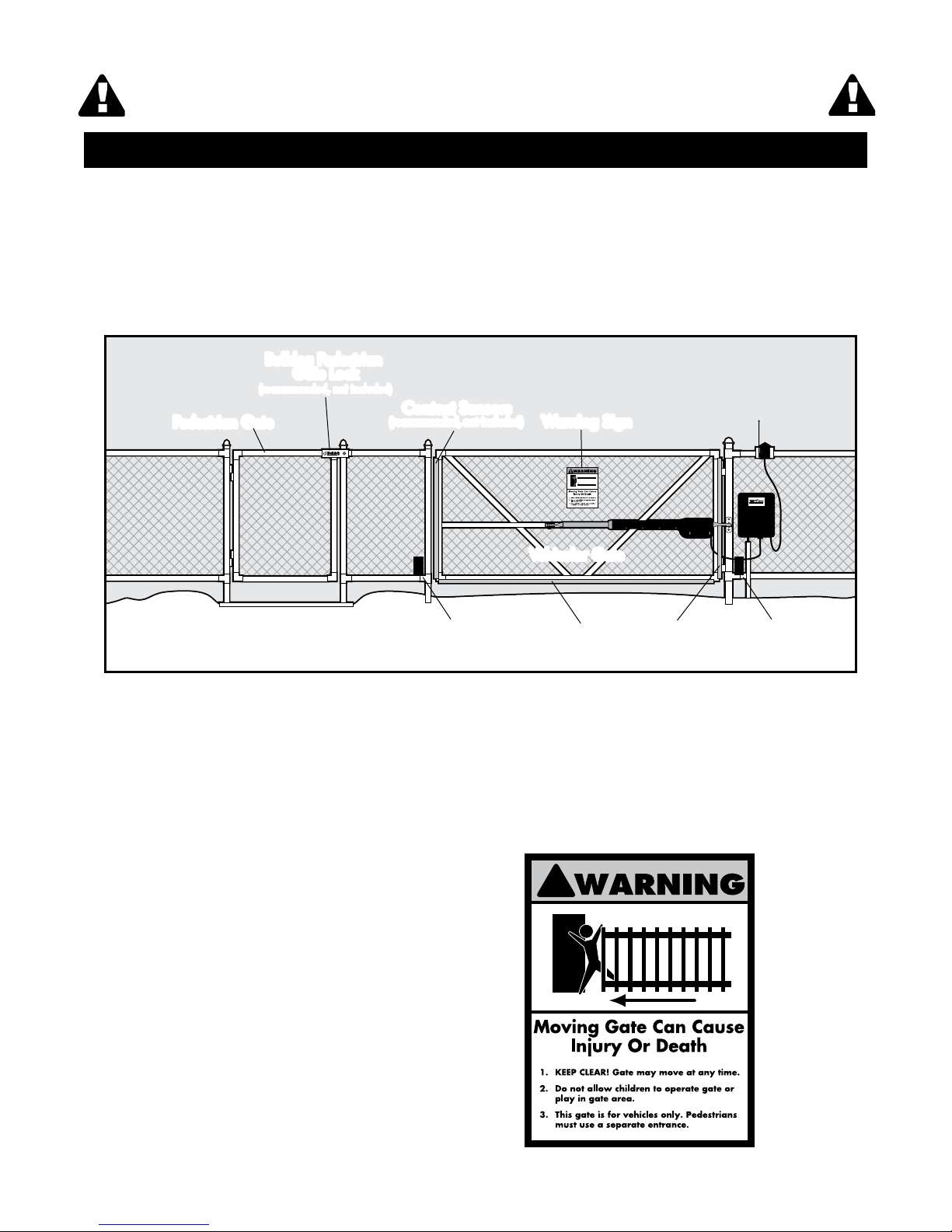

Warning signs alert people of automatic gate operation and are required when installing the Mighty Mule® 500
Automatic Gate Operator. Furthermore, a walk-through gate must be installed if pedestrian traffic is expected near
the vehicular gate. We recommend using the GTO Bulldog Pedestrian Gate Lock (Call the GTO Sales
Department at 800-543-4283) for controlled access.
Required Safety Precautions for Gates
Install Warning Signs
GTO’s inherent obstruction settings, even when properly adjusted, may not be sensitive enough to prevent bodily
injury in some circumstances. For this reason, safety devices such as safety edge sensors (or photoelectric
sensors), which stop and reverse gate direction upon sensing an obstruction, are suggested for enhanced protection
against entrapment.
Entrapment Protection
Warning Signs
The warning signs (at right) must be installed on both
sides of the gate (see next page for details).
!
500
Warning Sign
Pedestrian Gate
Bulldog Pedestrian
Gate Lock
Vehicular Gate
Contact Sensors
(recommended, not included)
Photo Beams
(recommended, not included)
Photo Beams
(recommended, not included)
Contact Sensors
(recommended, not included)
(recommended, not included)

Important Safety Information
8
!
L
I
S
T
E
D
US
500
UL325 SERIES
®
®
E-Z GATE OPENER
C
Product identification and manual operation instruction
label (1) installed on right hand side of control box.
These warning labels should be found at the
locations specified below. If any of them are
missing, immediately contact GTO for
replacements.
Required Safety Precautions for Gates

Technical Specifications
9
Mighty Mule® 500 E-Z Gate Opener
DRIVE
•Lowfrictionscrewdrive(linearactuator)ratedfor-5ºF
to+160ºF(-20ºCto+71ºC).Useofheaterbandsonarm
and control box will enhance performance in extreme cold
temperatures.
•Poweredbya12Vmotorwithintegralcasehardenedsteel
gear reducer. Motor speed reduced to 260 rpm. Generates
680 ft. lb. of torque at 12 V.
•Maximumopeningarcof110º.Approximateopeningtime
(90º):20seconds,dependingonweightofgate.
POWER
•Thesystemispoweredbya12Vdc,7.0Ah,sealed,
rechargeable acid battery.
•Batterychargeismaintainedbya120Vac,18Vacoutput
transformer rectified to 14.5 Vdc (40 VA) through the GTO
control board. Blade-style control board fuse is rated for
15 A.
NOTE: The transformer should not be directly
connected to any battery. Do not replace fuses with
higher ampere rated fuses; doing so will void your
warranty and may damage your control board.
•OPTIONAL:BatterychargeismaintainedbyGTOSolar
Panel Charger: float voltage of 14.5 Vdc output from a
10-7/8” x 10-1/2”solar panel. Generates minimum of 5 W
at 300 mA. A gated diode on the control board prevents
battery discharge.
CONTROL
•GTOmicroprocessor-basedcontrolboardissetforsingle
leaf, pull-to-open gate installations. DIP switches can be
adjusted to accommodate an optional kit for push-to-open
gates (see Accessory Catalog).
•Controlboardhastemperaturecompensatedcircuits.
•Acircuitonthecontrolboardregulatescharging.“Sleep
draw” is 25 mA; “active draw” is 2 to 5 A.
•Auto-memorizationofdigitaltransmittercode.
•GTOremote-mountedRFreceivertunedto318MHz.
•Operatorlengthwithpush-pulltubefullyretractedis
40-1/4” mounting point to mounting point. Max stroke 22”.
•Adjustableauto-closetimer(15to120s),andobstruction
sensitivity.
•Powerterminalblockaccommodatesatransformerorsolar
panels. NOTE: Do not use solar panel and transformer
at the same time.
•DIPswitchessimplifysetupofgateoperator.
•Accessoryterminalblockfullycompatiblewithpush
button controls, digital keypads, safety loops, etc.
•Controlboardallowsconnectionofsafetyedgesensors
and photoelectric sensors.
•Audioentrapmentalarmsoundsifunitencountersan
obstruction twice while opening or closing.
OPERATIONAL CAPACITY
•TheGateCapacityChartshowsapproximatecycles,per
day, you can expect from the Mighty Mule® 500 Automat-
ic Gate Operator when powered with a transformer. Actual
cycles may vary slightly depending upon the type and
condition of gate and installation.
Gate Weight
Gate Length
Number of Cycles* Per Day
Mighty Mule 500 Gate Capacity /Cycle Chart
Estimated number of daily cycles, based on use with a transformer and one(1) 12 Volt battery.
850 lbs.
750 lbs.
650 lbs.
550 lbs.
450 lbs.
350 lbs.
250 lbs.
150 lbs.
100 lbs.
50 lbs.
135
145
155
165
175
185
195
205
215
225
5’ - 6’
125
135
145
155
165
175
185
195
205
215
8’
125
135
145
155
165
175
185
195
205
10’
125
135
145
155
165
175
185
195
12’
125
135
145
155
165
175
185
14’
125
135
145
155
165
175
16’
NR
NR
NR
NR
NR
125
135
145
155
165
18’
NR
NR
NR
NR
NR
NR
NR
NR
NR
NR
NOTE: “NR” indicates this size
and weight combination is not
recommended for the
Mighty Mule® 500.
NOTE: Ball bearing hinges
should be used on all gates
weighing over 250 lb.
To determine the number of cycles the gate operator will perform using solar panels, please see the specifications
listed on page 23 or call [phone] or [phone] for more information.
* An operation cycle is one full opening and closing of the gate.
These specifications are subject to change without notice.

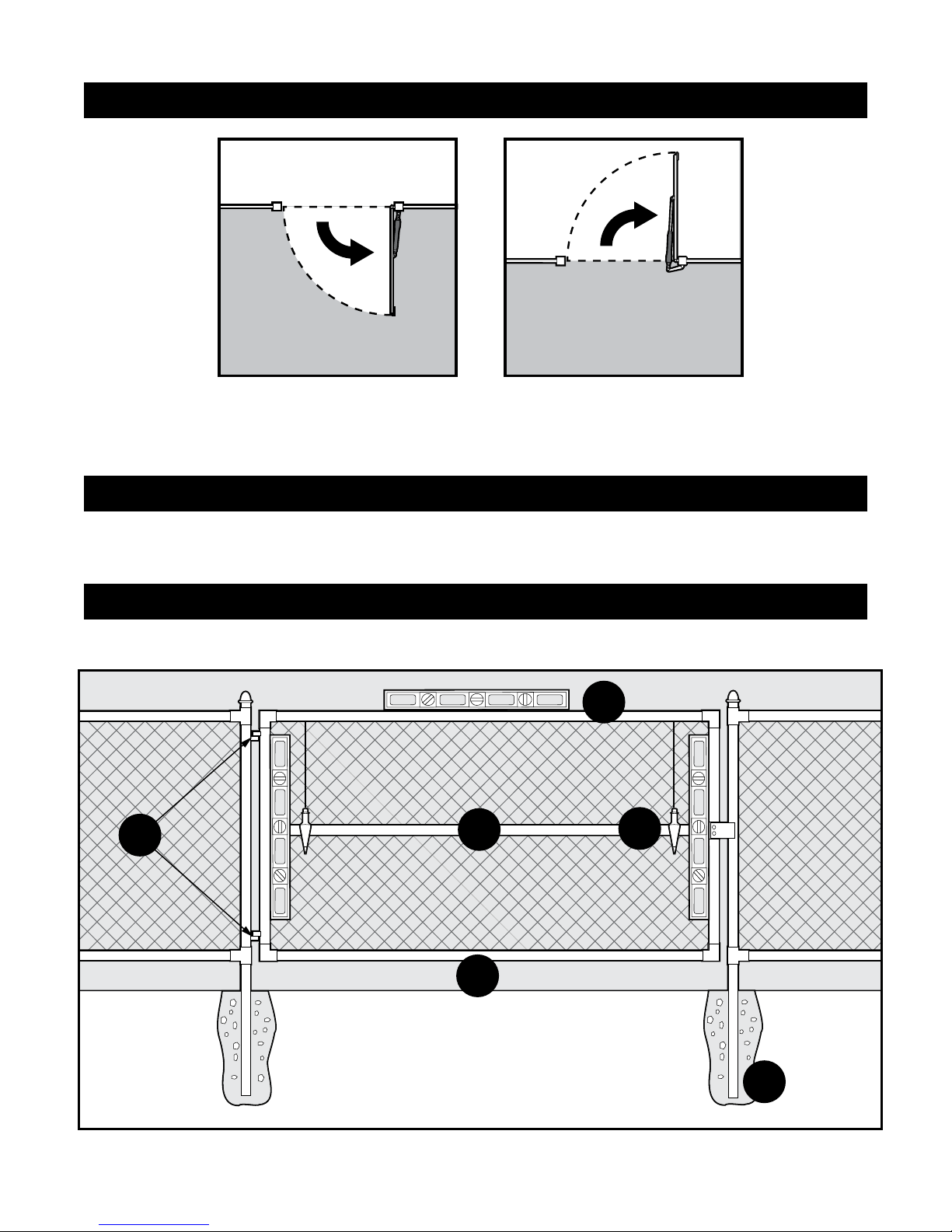

Check Direction of Gate Swing
Before You Begin
Your Property Your Property
IMPORTANT: Check for Proper Gate Installation
E
A
B
C
D
F
Check Existing Gate Size and Material
• Gate size: Up to 18 feet or up to 850 lbs—See chart
on page 9.
• Type of gate material: Vinyl, aluminum, chain link,
farm tube, wrought iron, wood (not recommended for
solid surface gates).
Pull-to-Open Option
Instructions begin on
page 13
Push-to-Open Option
Instructions begin on
page 16
A - Level
B - Plumb
C - Free Swinging
10
For the Mighty Mule® to work properly, gate must be plumb, level, set in concrete, swing freely and not touch the
ground and have good working hinges.
D - Secured Posts in Concrete
E - Centerline Mounting
F - Good Working Hinges (ball
bearing hinges are recommended
on gates over 250 pounds)
(Requires Push-To-Open Bracket
#FM148—NOT INCLUDED)

Column Installation Information
Before You Begin
3/8”x 1-1/4”Clevis Pin (2)
RB500
12 Volt
/
7.0 Amp Mount
Installation Overview for the...
3/8” x 8” Bolt (4)
8” Nylon Cable Tie (14)
Receiver and
Control Box
Operator
Arm
Gate Bracket
Post Pivot Bracket Post Brackets
Transformer Warning
Sign
Closed Position
Bracket
Transmitter
Installation
Video
Battery
3/8” x 2” Bolt (1)
5/16” x 1-3/4” Bolt (1)
3/8”Washer (9)
3/8” Lock Washer (7)
5/16” Lock Washer (1) 5/16”Washer (1)
3/8” Nut (7) 5/16” Nut (1)
Hairpin Clip (2)
2” Mounting Screw (5)
1. KEEP CLEAR! Gate may move at any time.
2. Do not allow children to operate gate or
play in gate area.
3. This gate is for vehicles only. Pedestrians
must use a separate entrance.
Moving Gate Can Cause
Injury Or Death
WARNING
!
1. KEEP CLEAR! Gate may move at any time.
2. Do not allow children to operate gate or
play in gate area.
3. This gate is for vehicles only. Pedestrians
must use a separate entrance.
Moving Gate Can Cause
Injury Or Death
WARNING
!

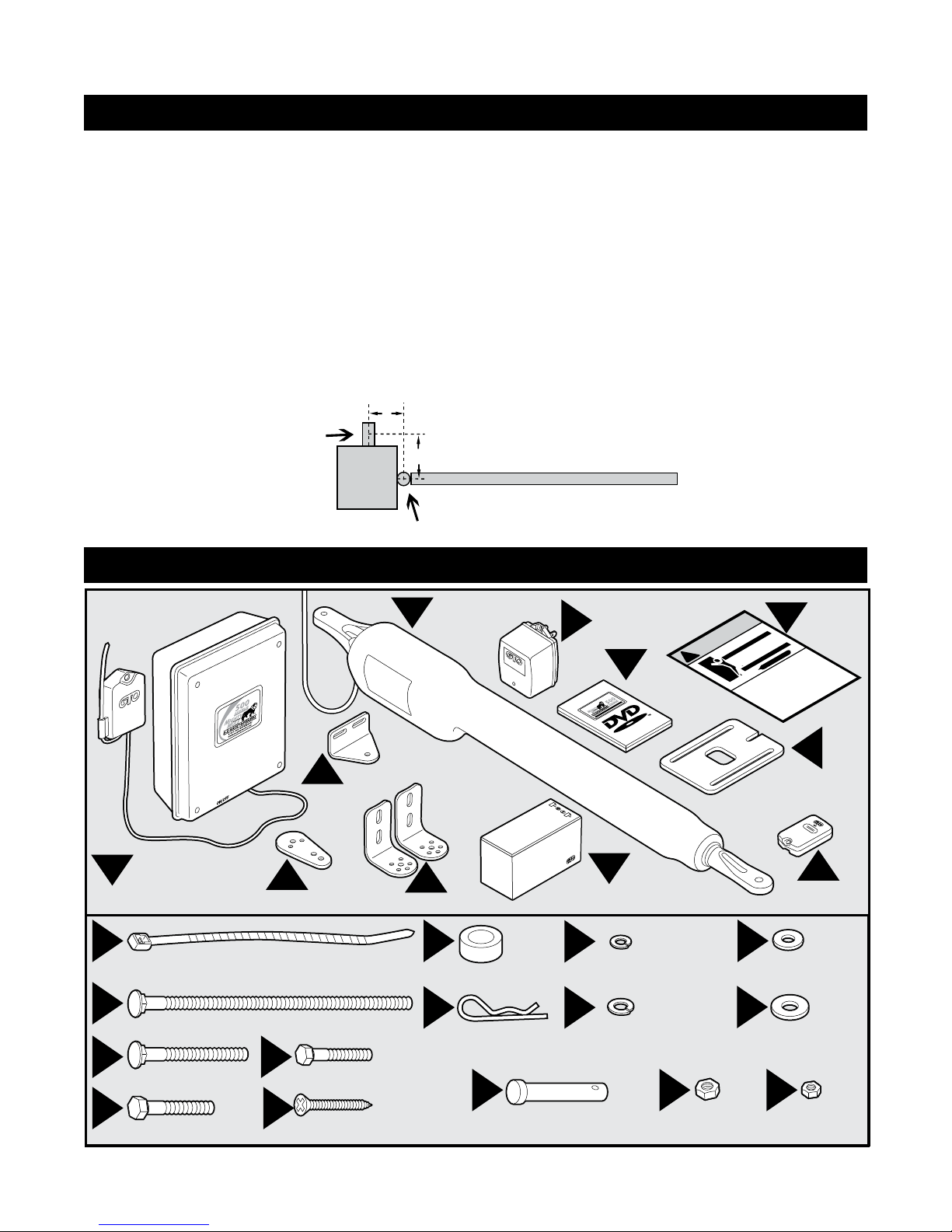

Installation Overview for the...
AHIK
F
B
G
D
C
J
E
L M
Q
W
S
R
O
N
P
T
V
U
X Y Z
3/8” Bushing (2)
3/8” x 3” Bolt (2)
A. The simplest solution is to install the opener in a
push-to-open configuration (requires push-to-open
bracket, see accessory catalog). The minimum
clearance is easier to achieve and clearance is no
longer a problem, since the opener will be pushing
the gate away from the column instead of pull-
ing it toward the column. It is recommended that
you place a steel plate between the opener mount-
ing brackets and masonry surface for additional
strength.
B. If a push-to-open installation is impossible due to
traffic hazards, terrain, etc., another option is to
re-hang the gate. You may hang it on a post, either
in the center of the column or at the back corner, or
move the gate to the back corner of the columns.
C. The most difficult solution is to cut a notch in the
column to accommodate the opener and power
cable. This job is NOT for the inexperienced!
IF THIS OPENER WILL BE USED WITH GATES THAT ARE MOUNTED ON MASONRY, BRICK,
OR ROCK (etc.) COLUMNS, READ THE FOLLOWING CAREFULLY BEFORE PROCEEDING
Column
Pivot Bracket
Gate
A
B
Column Mount Example
(A + B can not exceed 14 inches)
Example: If A is 2" then B can not exceed 12"
Hinge
11
Items Included

x2
3/8” Bit
5/16” Bit
Drill
Pliers
Level
Clamp Adjustable
Wrench
Pen Center
Punch
Hammer
Tape
Measure
Small
Flat Head
Philips Head
Screwdriver
Flat Head
Screwdriver
Wire
Stripper
Hack Saw 1/2”
wrench
9/16”
wrench
• Lowvoltagewirewillbeneededtorunfromthe
transformer to the control box; length depends
upon the distance between the transformer power
supply and the control box. See Transformer Wiring
Installation on page 20, and the accessory catalog.
• PVCconduit.
• Ifyourgateismorethan1000'awayfromanac
power source you will need to use at least one
Mighty Mule® 5 watt solar panel to trickle charge
the battery. See the accessory catalog (Do not use
both transformer and solar).
• Ifyouhavethinwalledtubeorpanelgates,see
Recommended Reinforcement Examples in “Quick
Reference Guide” after Step 3 of “Mounting Opener
to Gate” section.
• Dependingonthetypeofgate,ahorizontalcross
member or mounting plate may be needed to mount
the front of the opener and gate bracket to the gate.
See Gate Bracket Mounting Examples in “Quick
Reference Guide” after Step 3 of “Mounting Opener
to Gate” section.
• Surgeprotectionfortransformer.
• Sometypesofinstallationsrequireu-bolts.
• Ifthegateisapush-to-openrefertopage16 in
Installation Manual.
• Additionalwashersorametalplatemaybeneeded
for wooden post.
•Outletinweatherproofcover.
•Strainreliefnutsforaccessorydevices.
•Ifpostismorethan6”,boltslongerthan8”are
needed.
Items Not Included
Before You Begin
Tools Needed
12

13

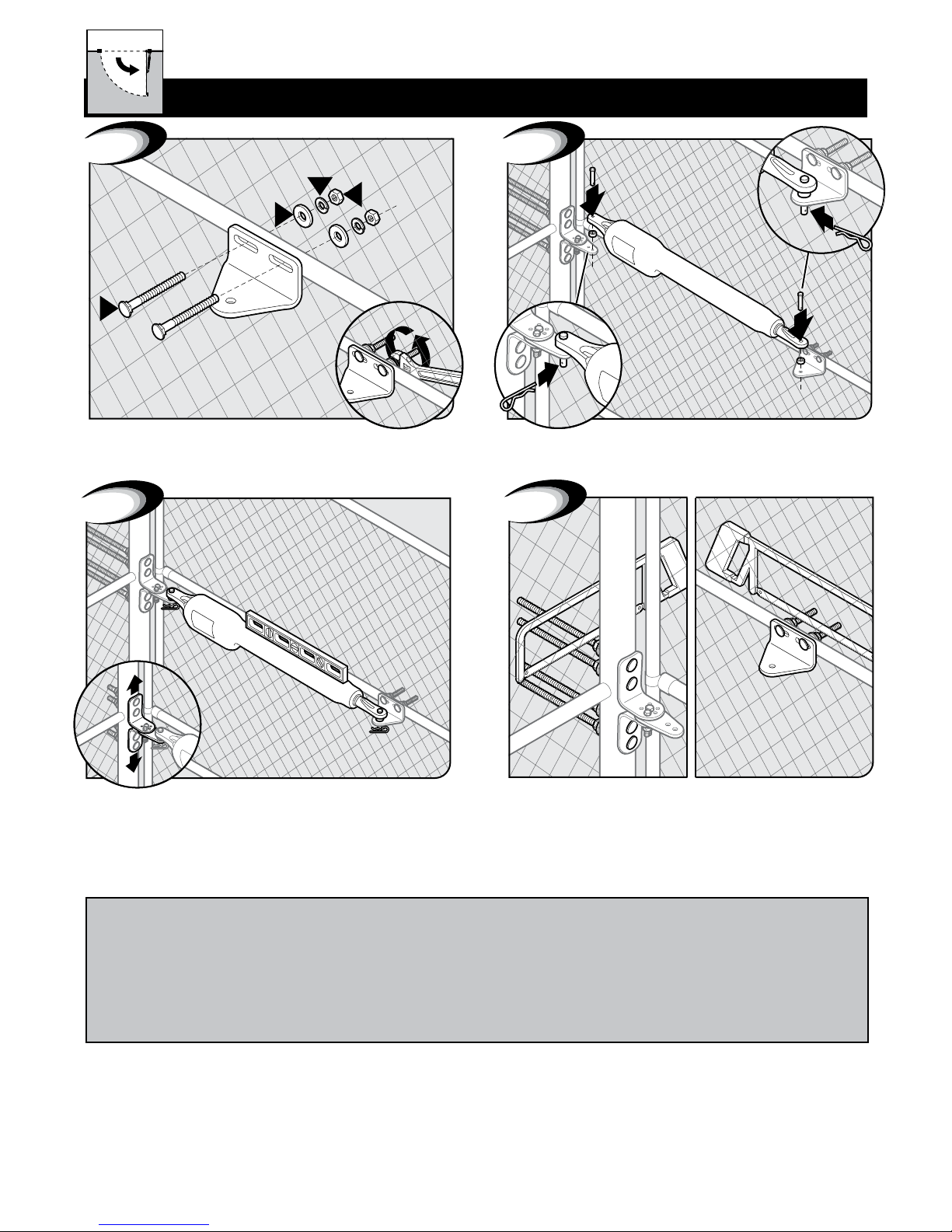

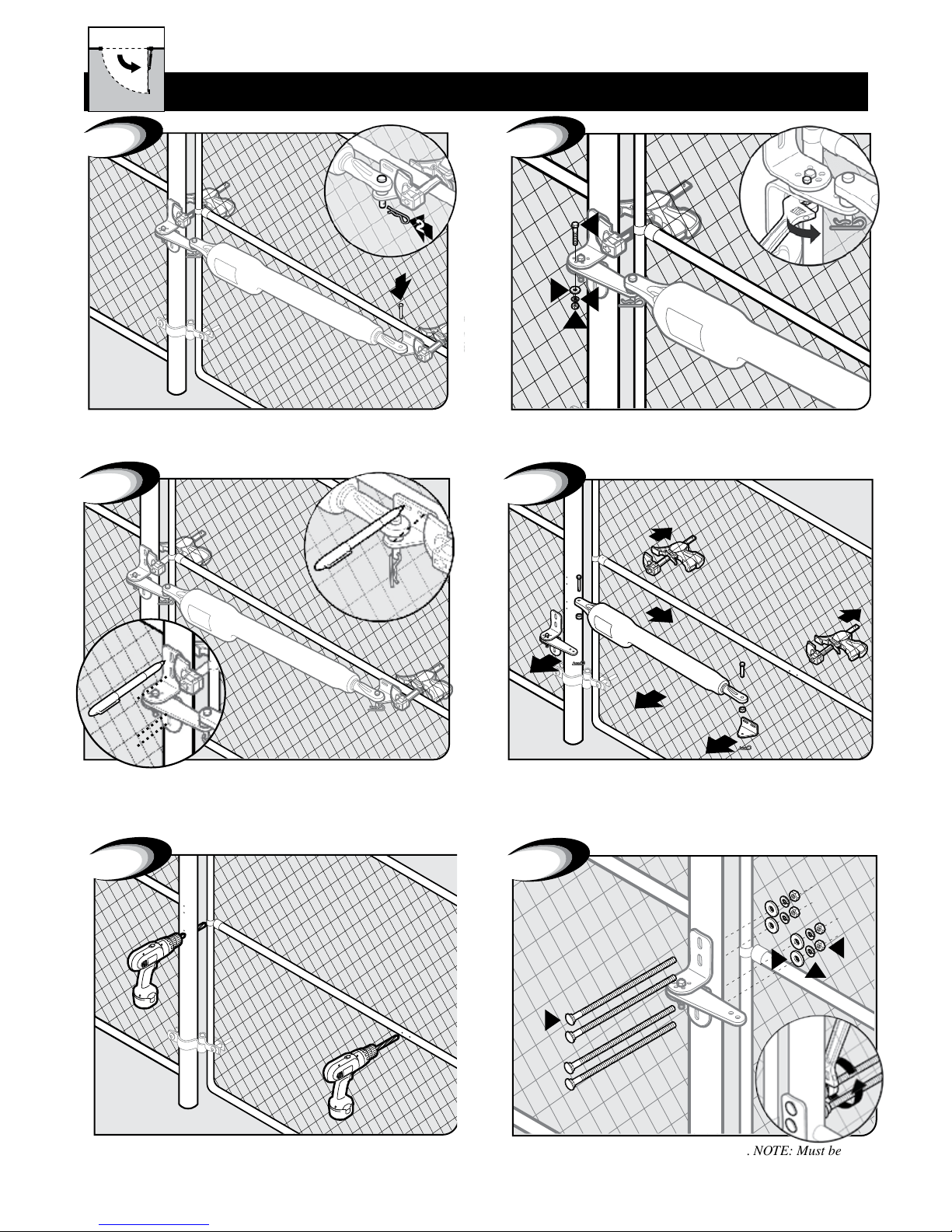

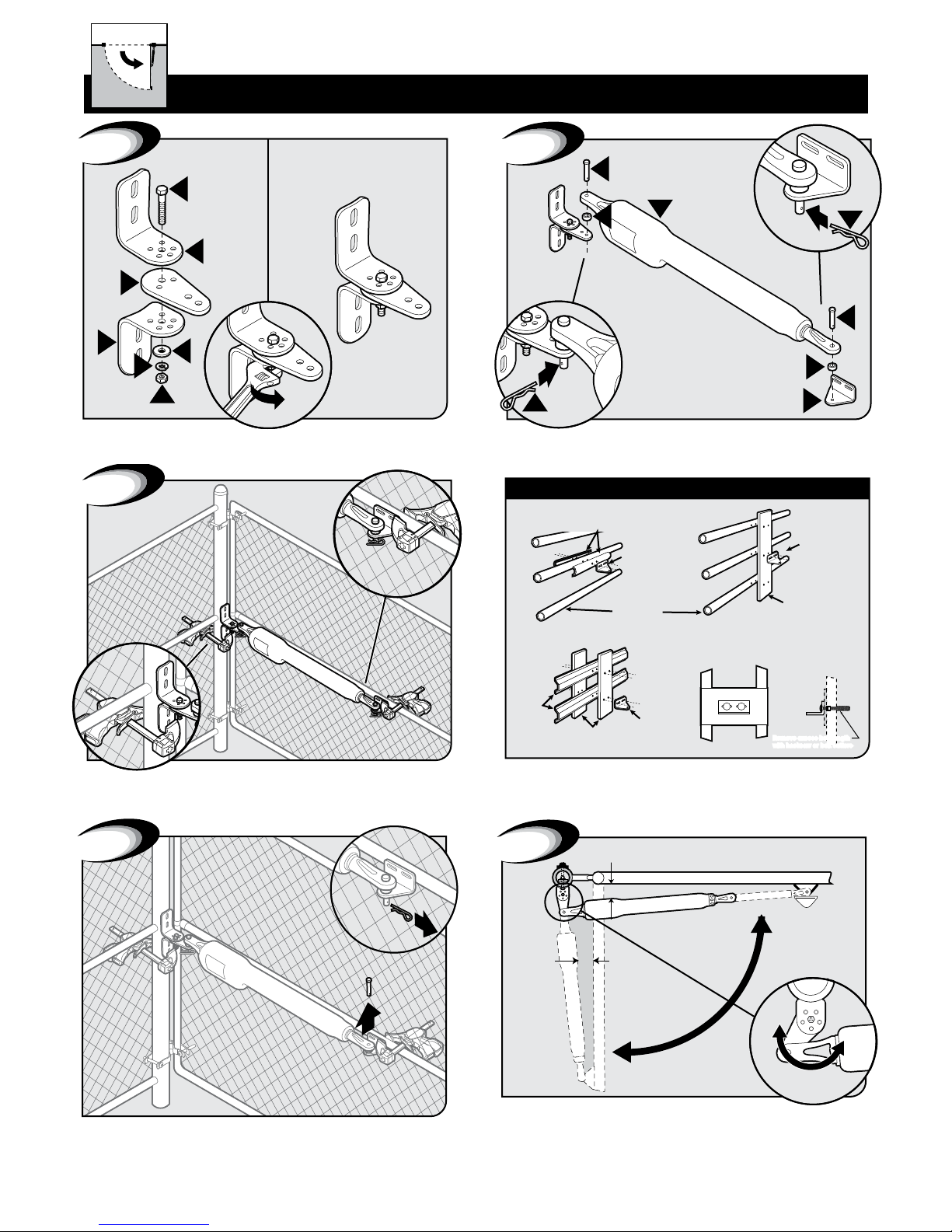

Mounting Pull-to-Open Opener to Gate
Gate Opener Installation
I
S
V
H
I
R
Y
1
X
X
F
M
MQ
B
Q
2
Attach opener to gate bracket and secure with required
hardware.
Assemble post bracket parts.
3
With Gate in OPEN position, using clamps, secure opener to
gate post and center cross member of gate.
Recommended reinforcement and gate bracket mounting
examples.
Steel Pipe Cut in Half
(not supplied)
Gate
Bracket
Thin Walled
Tube Gate
Gate
Bracket
1” x 6” Wood Reinforcement
Panel
Gate
Gate
Bracket
Wood or Metal
Reinforcement
(not supplied)
Mounting Plate
Created for
Decorative Gate
(required but not
supplied)
Remove excess bolt length
with hacksaw or bolt cutters
FRONT VIEW SIDE VIEW
Reinforcement and Gate Bracket Mounting
2" Min. - Pinch-Point Clearance Top View
2" Min.
5
Swing gate to CLOSED position-check clearance/binding by inspecting
alignment. TIP: Turning the pivot bracket over gives more hole
alignment options for the post pivot bracket assembly.
Remove clevis pin from the gate bracket and support loose
opener.
4
1
2
Your Property

14
Mounting Pull-to-Open Opener to Gate
Gate Opener Installation
OPEN gate and re-attach opener with clevis pin. Check for level.
Clamp securely.
U
O
Z
N
7
Secure post pivot bracket to post bracket when clearance is OK
(Step 5) in both open and closed positions.
9
8
Mark middle of post bracket slots on fence post. Mark middle of
gate bracket slots on gate cross support.
Remove clamps, post, gate brackets, and opener. Then use a
hammer and center punch to mark hole positions.
P
S
Y
R
11
10
Drill holes completely through gate post and gate cross support. Attach post bracket assembly to fence post. NOTE: Must be
through bolted.
Your Property
6
2
1

15
Mounting Pull-to-Open Opener to Gate
Gate Opener Installation
12
Y
S
T
R
1
1
2
2
13
Attach and secure opener assembly to brackets.Attach gate bracket assembly to gate cross support.
14
Check for level. Adjust post bracket if necessary. Remove bolt excess length on post and gate bracket with
hacksaw.
15
Your Property
Th i s i s T h e e n d o f T h e Pu l l -To-oP e n ha r d w a r e in s T a l l a T i o n .
sk i P T h e Pu s h -To-oP e n ha r d w a r e in s T a l l a T i o n o n T h e n e x T P a g e a n d g o
T o P a g e 19 T o f i n i s h T h e g a T e o P e n e r i n s T a l l a T i o n .

16

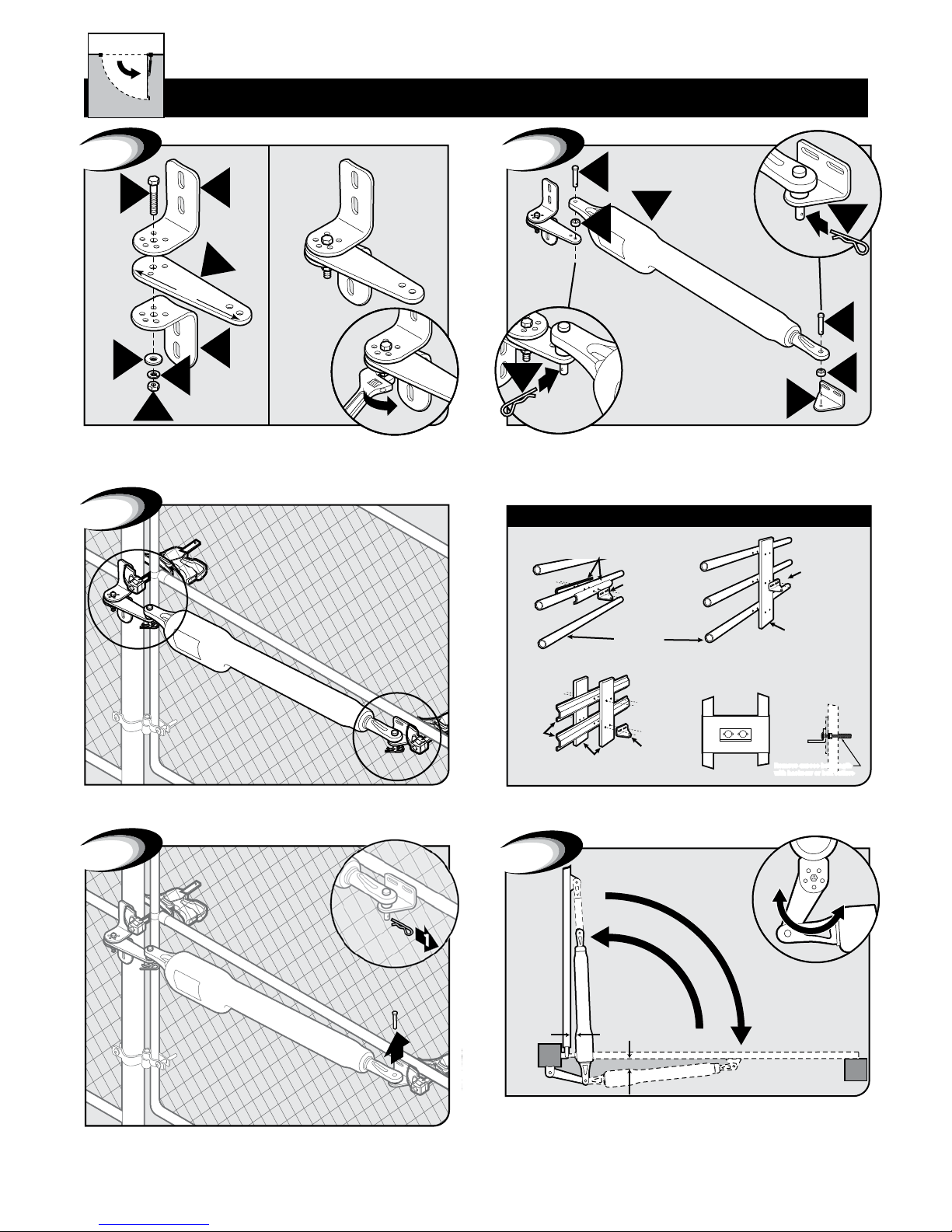

Assemble post bracket parts. NOTE: A Push-to-Open Bracket
FM148 is required for this type of installation (not included).
I
I
R
V
S
Y
PTO
Bracket
FM148
11”
1
X
X
F
M
M
Q
B
Q
2
2" minimum
pinch-point clearance
2
1
33
33
5
Top View
Close
Open
3
Mounting Push-to-Open Opener to Gate
Attach opener to gate bracket and secure with hardware re-
quired.
Swing gate to OPENED position. Check clearance/binding by inspecting
the alignment. Secure post pivot bracket to post bracket when clearance is
OK in both open and closed positions. TIP: Turning the pivot bracket over
gives more hole alignment options for the post pivot bracket assembly.
With gate in CLOSED position, using clamps, secure opener to
gate post and center cross member of gate.
Gate Opener Installation
Your Property
Recommended reinforcement and gate bracket mounting
examples.
Steel Pipe Cut in Half
(not supplied)
Gate
Bracket
Thin Walled
Tube Gate
Gate
Bracket
1” x 6” Wood Reinforcement
Panel
Gate
Gate
Bracket
Wood or Metal
Reinforcement
(not supplied)
Mounting Plate
Created for
Decorative Gate
(required but not
supplied)
Remove excess bolt length
with hacksaw or bolt cutters
FRONT VIEW SIDE VIEW
Reinforcement and Gate Bracket Mounting
2
4
Remove clevis pin from the gate bracket and support loose
opener.

CLOSE gate and re-attach opener with clevis pin. Check
for level. Clamp securely.
1
6
N
U
O
Z
7
Secure post pivot bracket to post bracket when clearance is OK
(Step 5) in both open and closed positions.
Mark middle of post bracket slots on fence post. Mark middle of
gate bracket slots on gate cross support.
10
9
Remove clamps, post, gate brackets, and opener. Then use a
hammer and center punch to mark hole positions.
Drill holes completely through gate post and gate cross support. Attach post bracket assembly to fence post. NOTE: Must be
through bolted.
Mounting Push-to-Open Opener to Gate
Push-to-Open Installation
Your Property
17
11
P
S
Y
R
8
