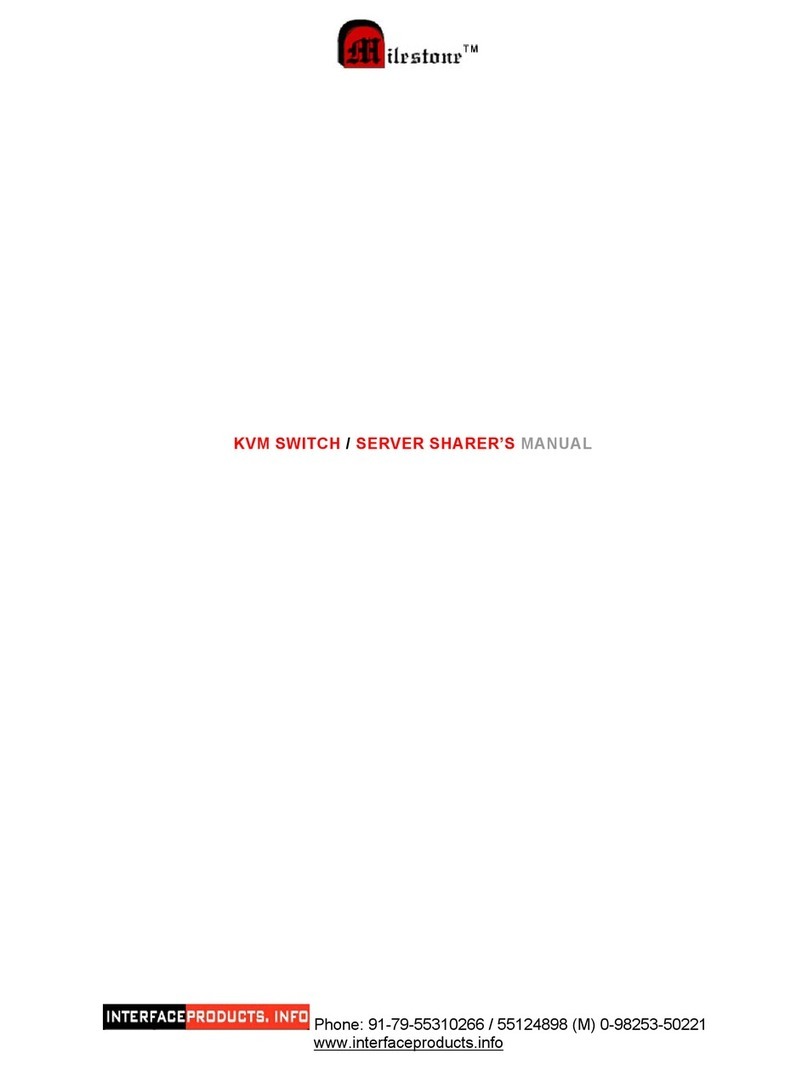

KVM SWITCH / SERVER SHARER’S MANUAL
(POWER LESS)

Phone: [phone] (M) 0-98253-50221
www.interfaceproducts.info
Milestone’s “KVM / SERVER SHARER” Switch is a device that helps person/s to share
multiple Server / PC with a single set of VGA,KBD and Mouse.
Models Available:
ML 201 KVM SS 2 servers with 1 kbd, monitor and mouse
ML 201 KVM SS Rack Mount 19”-1U “
ML 401 KVM SS 4 servers with 1 kbd, monitor and mouse
ML 401 KVM SS Rack Mount 19”-1U “
ML 801 KVM SS 8 servers with 1 kbd, monitor and mouse
ML 801 KVM SS Rack Mount 19”-1U “
ML1601 KVM SS Rack Mount 19”-2U 16 servers with 1 kbd, monitor and mouse
Features :
Installation Easy to Install 100% Plug and Play Unit, HOT Pluggable
Sharing 2/4/8/16 Servers sharing single set of kbd, VGA and mouse
Compatibility 100 % compatible to PS2 Kbd & Mouse ports
Selection
Respective channels are selected only when corresponding
servers are ON.
Channels Selectable from:
Individual front panel feather touch Hot key
Also selectable form key board
Auto Channel selected when server is Powered ON
Indication LED Indication for working channel
Server Booting Simultaneous booting of all servers. Automatically detects PS2
Kbd & PS2 Mouse.
Power No External power required
Distance Server can be operated from a distance of 5 Meter
1

Phone: [phone] (M) 0-98253-50221
www.interfaceproducts.info
Technical Specifications
Models ML201 KVM ML401 KVM ML801 KVM
Input Connecters D25 F x 2 D25 F x 4 D25 F x 8
D15 F x 1 D15 F x 1 D15 F x 1
Din 6 F x 1 Din 6 F x 1 Din 6 F x 1
Output Connecters
Din 6 F x 1 Din 6 F x 1 Din 6 F x 1
LED Indication 1-2 & Power 1-4 & Power 1-8 & Power
Operating Distance 5 Meter 5 Meter 5 Meter
Dimension (Table Top) 183x130x58 183x130x58 288x130x68
Dimension (Rack Mount)#19” 1U 19” 1U 19” 1U
Weight for (Table top) 750g 1500g 1700g
Weight for (Rack Mount) 1750g 2950g 3250g
(# = Optional) All above units are available in 19”-1U or 19”-2U size at extra cost
Note:
♦ Whenever a particular server is booted the respective channel automatically gets
selected and gets booted.
♦ All the servers can be booted simultaneously.
♦ Respective channels are selected only when corresponding servers are on.
2

Phone: [phone] (M) 0-98253-50221
www.interfaceproducts.info
Installation:
There are two modes in this server sharer unit.
1. Off Line Mode
2. On Line Mode
Off Line Mode:
 Keep the Monitors and all servers OFF, before installing the unit. Connect the
Kbd, Mouse and Monitor extension cables from servers to a SEVER
SHARER UNIT. Attach Kbd, Mouse and Monitor at Kbd, Mouse and VGA
Connecter Positions respectively.
 Turn the ON all the servers and monitors.
 System is now ready to operate.
On Line Mode:
 Switch on the unit before starting the installation.
 Attach Kbd, Mouse and Monitor on KVM Switch respectively.
 Connect the Kbd, Mouse and Monitor extension cables from Servers to the
KVM unit On Line
 System is now ready to operate.
3

Phone: [phone] (M) 0-98253-50221
www.interfaceproducts.info
OPERATION:
1. Through Hot Keys on the Front Panel.
 From the Front panel key pad of the unit, Choose No 1 to 2 4 or 8 for
selecting corresponding server. Respective LED will light for your
selection.
2. Through Key Board
 The Server can be selected through keyboard by pressing following keys.
Server Press Key to Select from KBD
Server 1 Ctrl, alt 1 / Scroll Scroll 1
Server 2 Ctrl, alt 1 / Scroll Scroll 2
Server 3 Ctrl, alt 1 / Scroll Scroll 3
: :
: :
Server 8 Ctrl, alt 1 / Scroll Scroll 8
Note: Press scroll 2 times. The monitor becomes blank. Then select the
respective channel. 1 – 16
