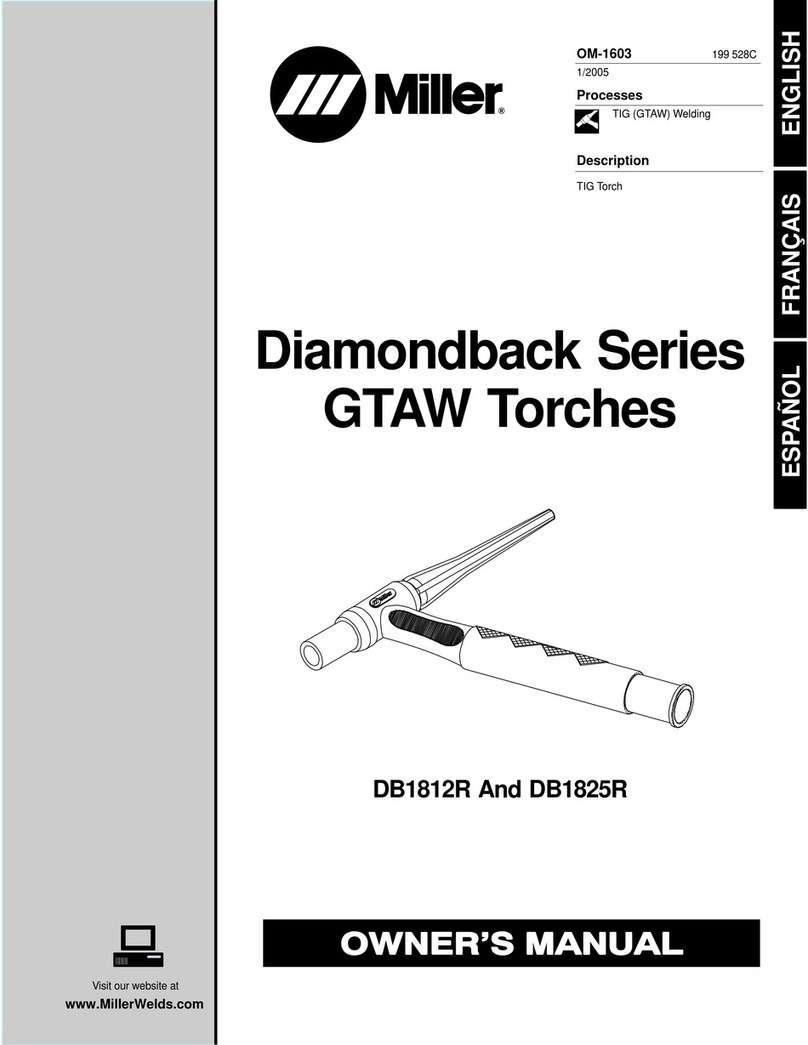

Miller Electric DB1812R User manual

Miller Electric

Miller Electric DB1812R User manual

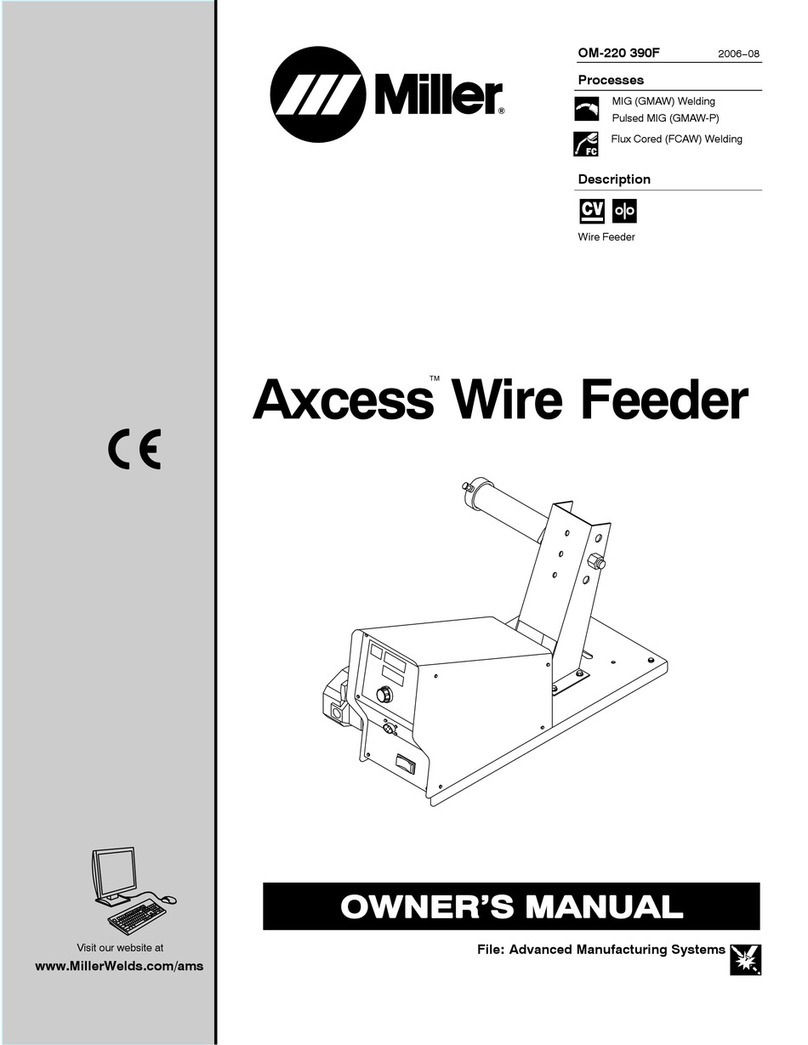

Miller Electric OM-220 390F User manual

Miller Electric

Miller Electric OM-220 390F User manual

Miller Electric 714D User manual

Miller Electric

Miller Electric 714D User manual

Miller Electric WC-24 User manual

Miller Electric

Miller Electric WC-24 User manual

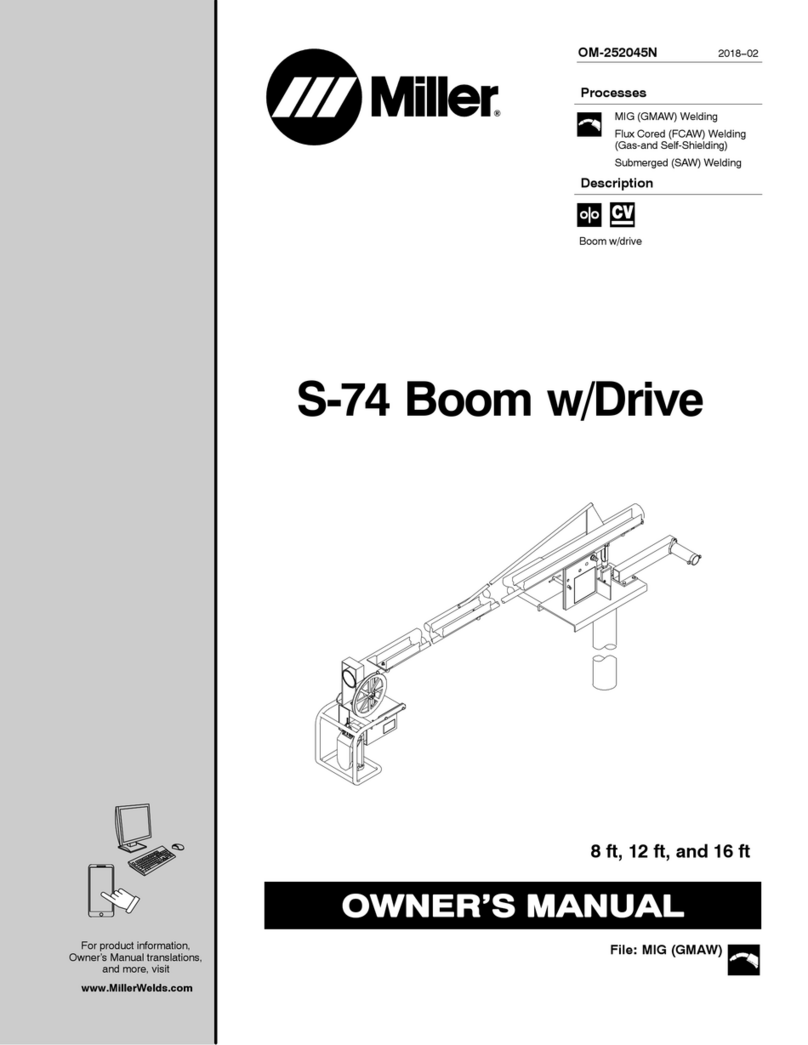

Miller Electric MPa Single Feeder S-74 User manual

Miller Electric

Miller Electric MPa Single Feeder S-74 User manual

Miller Electric OM-842 User manual

Miller Electric

Miller Electric OM-842 User manual

Miller Electric MIGmatic M-10 User manual

Miller Electric

Miller Electric MIGmatic M-10 User manual

Miller Electric DS-2 User manual

Miller Electric

Miller Electric DS-2 User manual

Miller Electric XMT 304 CC/CV User manual

Miller Electric

Miller Electric XMT 304 CC/CV User manual

Popular Welding Accessories manuals by other brands

RelFar FWH20-S10A manual

RelFar

RelFar FWH20-S10A manual

Lincoln Electric LT-7 Tractor Technical specifications

Lincoln Electric

Lincoln Electric LT-7 Tractor Technical specifications

Cornwell Tools MMWC1 Operator's manual

Cornwell Tools

Cornwell Tools MMWC1 Operator's manual

Dohle ExOn2A operating instructions

Dohle

Dohle ExOn2A operating instructions

Nederman Fume Eliminator FE 840/2500/P150 user manual

Nederman

Nederman Fume Eliminator FE 840/2500/P150 user manual

3M Speedglas 9100 Series user manual

3M

3M Speedglas 9100 Series user manual

Miller A-200 Series owner's manual

Miller

Miller A-200 Series owner's manual

Abicor Binzel ABIMIG WT Series operating instructions

Abicor Binzel

Abicor Binzel ABIMIG WT Series operating instructions

Miller MIGmatic M-25 owner's manual

Miller

Miller MIGmatic M-25 owner's manual

Abicor Binzel xFUME PRO Original operating instructions

Abicor Binzel

Abicor Binzel xFUME PRO Original operating instructions

iWeld NORED EYE user manual

iWeld

iWeld NORED EYE user manual

Sthor 74483 manual

Sthor

Sthor 74483 manual

Miller I-22 CE owner's manual

Miller

Miller I-22 CE owner's manual

LAHTI PRO L1540400 instruction manual

LAHTI PRO

LAHTI PRO L1540400 instruction manual

Lincoln Electric K3091-1 Operator's manual

Lincoln Electric

Lincoln Electric K3091-1 Operator's manual

Tregaskiss TOUGH GUN TT3 Reamer owner's manual

Tregaskiss

Tregaskiss TOUGH GUN TT3 Reamer owner's manual

GYS LCD ZEUS 5-9 G INDIAN TRUECOLOR user manual

GYS

GYS LCD ZEUS 5-9 G INDIAN TRUECOLOR user manual

Abicor Binzel ADF735S Original operating instructions

Abicor Binzel

Abicor Binzel ADF735S Original operating instructions

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

OWNER’S MANUAL
ORIGINAL INSTRUCTIONS −PRINTED IN USA 2016 Miller Electric Mfg. Co.
FORM: OM-275756B 2016−08
For Miller)ArcTimert301349
.The Miller ArcTimer records and displays the actual arc−on time of welding equipment.
1. Safety Symbol Definitions
DANGER! −Indicates a hazardous situation which, if not
avoided, will result in death or serious injury. The pos-
sible hazards are shown in the adjoining symbols or
explained in the text.
DANGER ! - Indique une situation dangereuse qui, si
elle n’est pas évitée, entraînera la mort ou des blessures
graves. Les éventuels risques sont représentés par les
symboles joints ou expliqués dans le texte. Fsafe1 2013-10
Beware of electric shock from welding electrode or
wiring. Touching the electrode while in contact with the
work or ground can cause electric shock. Always wear
dry gloves. Keep all panels and covers closed.
Attention au risque d’électrocution due au contact avec
l’électrode de soudage ou les fils. Le fait de toucher
l’électrode tout en étant en contact avec la pièce ou la
terre peut provoquer une électrocution. Toujours porter
des gants secs. Tous les panneaux et couvercles
doivent rester fermés. Fsafe5 2013-10
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury. The possible ha-
zards are shown in the adjoining symbols or explained in
the text.
Indique une situation dangereuse qui, si elle n’est pas
évitée, entraînera la mort ou des blessures graves. Les
éventuels risques sont représentés par les symboles
joints ou expliqués dans le texte. Fsafe2 2013-10
Have only trained and qualified persons install, operate,
or service this unit. Read the safety information at the
beginning of these instructions and in each section. Call
your distributor if you do not understand the directions.
Ne confiez l’installation, l’exploitation ou l’entretien de cet
appareil qu’à des personnes compétentes et qualifiées.
Lire les directives de sécurité au début de ces
instructions et dans chaque section. Appeler votre
distributeur si vous ne comprenez pas les directives.
Lire le(s) manuel(s) d’utilisateur pour des
renseignements sur la SÉCURITÉ DE SOUDAGE et les
champs électromagnétiques. Fsafe15 2013-10
NOTICE
AVIS
Indicates statements not related to personal injury.
Signale des consignes non associées aux dommages
corporels.
Indicates special instructions.
Fournit des instructions spéciales. Fsafe3 2013-10
Wear safety glasses with side shields.
Porter des lunettes de sécurité avec écrans latéraux.
Fsafe8 2013-10
CALIFORNIA PROPOSITION 65 WARNINGS
Welding or cutting equipment produces fumes or gases which contain chemicals known to the State of California to cause birth defects and,
in some cases, cancer. (California Health & Safety Code Section 25249.5 et seq.)
This product contains chemicals, including lead, known to the state of California to cause cancer, birth defects, or other reproductive harm.
Wash hands after use. Fsafe4 2013-10
2. Tools Needed
3. ArcTimer Components
1 ArcTimer Display Unit
2 Sensing Unit And Cord
161-084 / 161-086
12
OM-275756 Page 2
4. Installing The ArcTimer
!Turn off welding power
source before making con-
nections.
1 Sensing Unit
2 Weld Cable
Use supplied bracket to mount dis-
play unit in a clearly visible location
close to the welding power source.
Display cord length is 10 ft ( 3 m).
Connect cord plug to receptacle on
bottom of unit.
Disconnect weld cable from weld-
ing power source Positive (+) or
Negative (−) terminal. Route cable
through sensing unit and reconnect
cable. Orientation of sensing unit
on cable does not matter.
161-087
1
2
5. Display Screens
The ArcTimer displays the running
time of the weld in minutes and sec-
onds (0:00). The arc symbol in the
left corner of the display screen is lit
during the welding process.
When there is no weld activity, the
ArcTimer cycles between three dis-
play screens:
SDuration of last weld.
STotal weld count since last reset.
STotal arc time since last reset.
The arc symbol is lit when unit is
displaying duration of last weld and
total weld count.
To reset the Arc Timer display, turn
Reset key (on bottom of unit).
161-084
H
6. Replacing The Batteries
1 Battery Symbol
2 Battery
Normal battery life is three years.
The ArcTimer displays the bat-
tery symbol when the batteries
need to be replaced.
To replace the batteries, remove
the four screws from the front of
the display unit. Remove front
panel to access batteries.
Install new batteries (four C size
batteries required).
Reinstall front panel.
161-085
2
1
F275756 Page 3
DECLARATION OF CONFORMITY
for European Community (CE marked) products.
MILLER Electric Mfg. Co., 1635 Spencer Street, Appleton, WI 54914 U.S.A. declares that the
product(s) identified in this declaration conform to the essential requirements and provisions of
the stated Council Directive(s) and Standard(s).
Product/Apparatus Identification:
Product Stock Number
Insight ArcAgent ArcTimer 301349
Council Directives:
2014/30/EU Electromagnetic Compatibility
Standards:
IEC 60974-10:2007 Arc Welding Equipment – Part 10: Electromagnetic compatibility (EMC) requirements
Signatory:
_____________________________________ ___________________________________________
David A. Werba Date of Declaration
MANAGER,PRODUCT DESIGN COMPLIANCE
August 12, 2016
277094A
