OWNER’S MANUAL OM-264 612B
2015−01
RCCS-RJ (301 146)
1. Safety Symbol Definitions
DANGER! − Indicates a hazardous situation which, if not
avoided, will result in death or serious injury. The possible
hazards are shown in the adjoining symbols or explained
in the text.
Beware of electric shock from wiring. Shut down welding
power source, and be sure it cannot be accidentally ener-
gized before making remote control connections. Be sure
remote control is turned all the way off before turning on
or off the welding power source.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury. The possible ha-
zards are shown in the adjoining symbols or explained in
the text.
Wear safety glasses with side shields.
NOTICE Indicates statements not related to personal injury.
Indicates special instructions.
Have only trained and qualified persons install, operate,
or service this unit. Call your distributor if you do not un-
derstand the directions. For WELDING SAFETY and
EMF information, read owner’s manual(s).
Proposition 65 Warnings
Welding or cutting equipment produces fumes or gases which contain
chemicals known to the State of California to cause birth defects and,
in some cases, cancer. (California Health & Safety Code Section
25249.5 et seq.)
This product contains chemicals, including lead, known to the state of
California to cause cancer, birth defects, or other reproductive harm.
Wash hands after use.
2. Installation And Operation

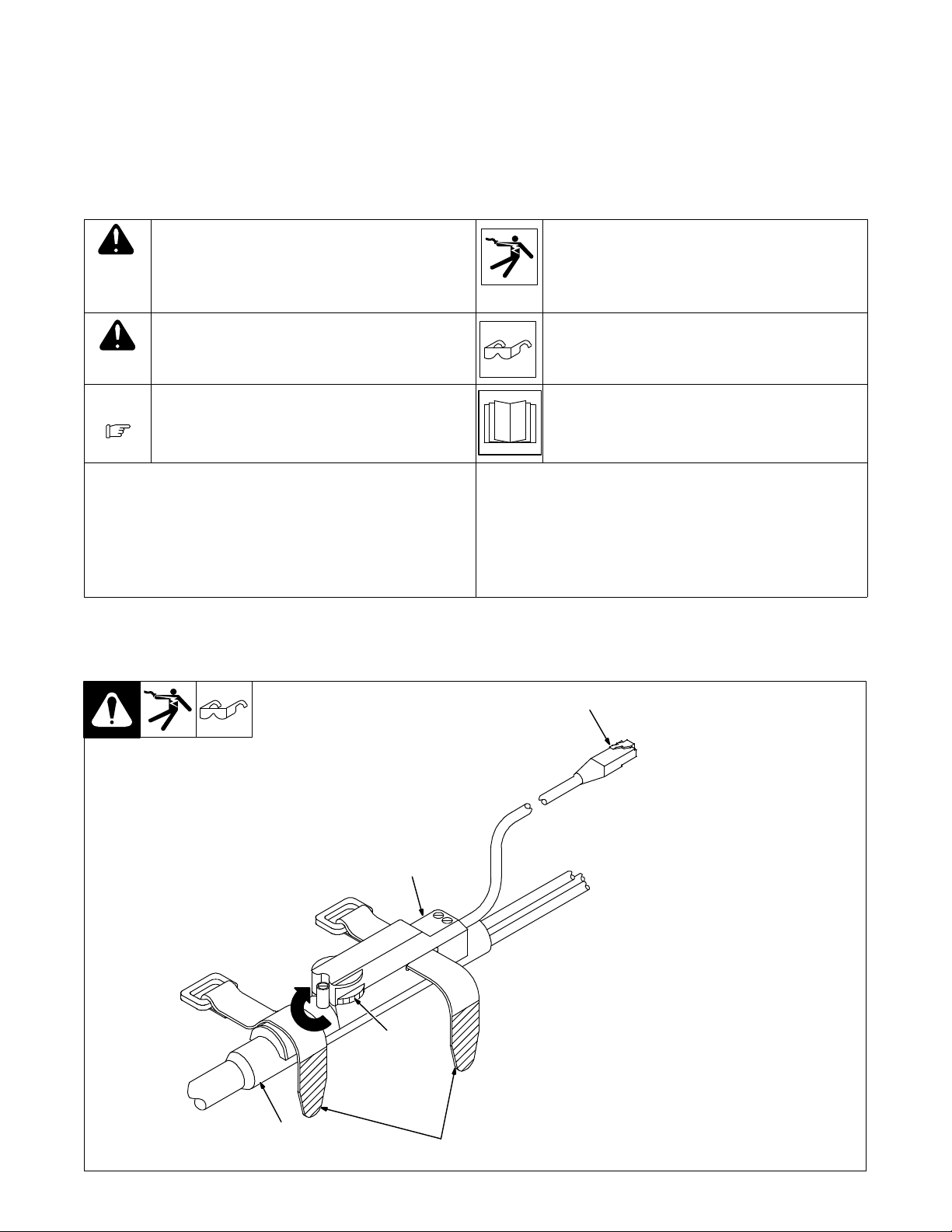

.The RCCS-RJ (Rotary Current And Contactor Control) is equipped with an RJ plug.
1 RCCS-RJ (Rotary Current
And Contactor Control)
2 Velcro Straps
3 Torch
Secure to torch with velcro straps.
4 RJ Plug
Insertplug into matching receptacle
on welding power source.
5 Current And Contactor
Control Thumbwheel
Turn thumbwheel clockwise to en-
ergize the welding power source
and increase current level up to that
set on the welding power source
current control.
Turn thumbwheel in the opposite
direction to reduce current output
to zero, and deenergize the welding
power source.
WC0140
1
3
4
2
5

OM-264 612 Page 2
3. Circuit Diagram
WC0319
4. Parts List
1
WC0138
DescriptionPart No.
Quantity
I
tem
No. Dia Mkgs.
1 301 146 Remote Control, RCCS-RJ 1................. .... ....................................
Use only Manufacturer’s Suggested Replacement Parts. Model number required when ordering parts.
