Minimotors Dualtron Achilleus User manual

PERSONAL MOBILITY
User Manual
Achilleus

Dualtron Achilleus user manual contents
This manual contains importantinformation to help you to useyour product more
safely. For safe use, it is marked as 'Danger', ‘Caution’and 'Warning' depending
on thedegree of danger and the meaning is as below.
Danger: Indicates a hazardous situation that could be a result of serious injury.

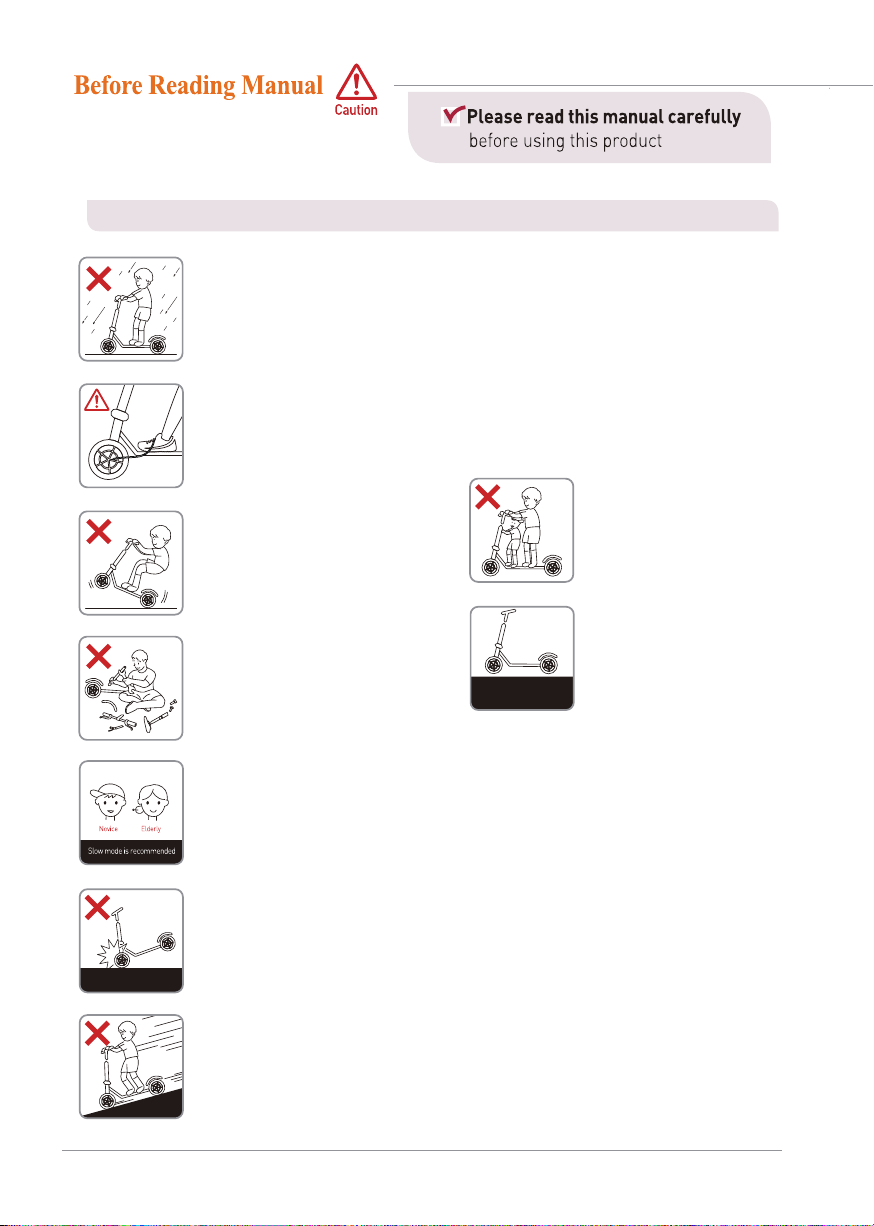

Before Reading Manual
Warning: Indicates a potentially hazardous situation thatcould be a resultin light injury.
Caution: Indicates a potentially hazardous situation that could be a resultin serious injury.
Danger
Warning
Caution
01. Safetyguidelines and restrictions ·······································································
04
02. Product structure··································································································
06
03. Nameof each part ·································································································
07
04. Product components ····························································································
08
05. How to use the product·························································································
09
06. How to use the instrumentpanel ··········································································
12
07. LEDBAR funtions····································································································
15
08. How to use the charger correctly··········································································
16
09. Safetyprecautions for Lithium-ion battery···························································
17
10. Safetyguidelines before driving·············································································
18
11. Maintenance············································································································
19
12. Importantchecklist································································································
20
13. Product specifications ···························································································
22

Dualtron Achilleus User Manual
관계법준수
초보자
NO emergency braking
Emergency brake
04
1) Safety guidelines and restrictions
* Even if theit is within the warrantyperiod,you maybe liableforanyaccidentcaused by anyof thefollowingcauses.
1. Be careful of water!
This product and components are not waterproof. Don’t let the water get into
theproductand components.
*Never useit, if theroad is wet dueto the rain, snow, hailstone.
*If you wash orspread water to electric devices, it can result in malfunction orfire.
2. Beware of folding and spinning parts!
If parts of the body, as a finger or hair, get caught in the spinning or folding
parts of the product, this maylead to severe injuries. Pleasebe careful.
5. Don’t tune by yourself
Do not open or tune the electric
parts (battery, controller or
motor system).
7. Beginnersand seniors are
encouragedto use at low speed
Beginners who are not accustomed to use the product, seniors and others
shouldavoid high speedmode driving and recommend low speed driving.
In addition,please useafter practice how to ride safely in a wide place.
3. No acrobatics
Stunts and jumps such as jumping
and dropping are prohibited as
they can cause a great impact
on the product and can cause of
malfunction and accidents.
4.No companion boarding
This product is intended for
one adult only, so children,
infants, or two people are
prohibited from boarding.
Complywith
the related laws
6. Comply with the relatedlaws
Unlicensed, driving after
drinking, loading cargo on
the scooter is prohibited.
(More than bike or bicycle
license is required)
Please comply with the Road Traffic
Act and related laws and regulations
according to theplaceof use.
8. Do not sudden brake withfront brake
If there is a risk of overturning, sudden deceleration should be done safely.
Do not apply any unusual behaviors or artificial forces, such as stopping with
yourfeet.
9. Do not accelerate downhill
Slow down at downhill. When reducing the speed, to prevent brake
overheat, use the brakes properly to reduce the heat on the disk with
proper brakeuse.
Do notsudden brake

12. Do not ride ordrive when the kick stand is down.
05
Dualtron Achilleus User Manual
11. Safety warning when lifting the product
If the product is lifted by holding only the handle, there is a possibility that
the product may be damaged due to deformation of the folding part due to
load or movement of the product. When lifting the product, be sure to hold
the product's body (footrest) with one hand and hold the handle with the
otherhand so that you do notget hurt in your back or knees.
2) Precaution before driving
1. Night driving should be avoided in any case, besure to wearhelmets andother guards (knees,
elbows,hands, upperbody, etc.) and drivesafely.
2. Select the mode that suits you and drive. In order to cope with the sudden situation, exercise
to slow down to hold the brake atall times.
3. When turning left / right, slow down to avoid danger of overturning or slipping., And then
slowlyturn safely.
4. To go to backward, it is safe if you getting off from the productafter stopping before moving.
5. It is prohibited to use in a slippery place, a crowded place, a steep slope, roads with a risk of
accident,uneven road.
6. When crossing a pedestrian crossing, get off from the product for pedestrian safety.
7. Do not drive in a threat any other means of transport, such as animals, pedestrians, bicycles,
motorcycles, cars, etc.
8. If you pass the speed bumps and obstacles, be
sure to slow down.
9. When decelerating or braking, do not stop with
using foot, but stop with using brake appropriately.
10. Be careful that there is a risk of burns due to heat
from motor and brake (especially disk rotor) after
driving.
11. It is prohibited to drive with all the way by holding
thehandlewith one hand.
10. Do not drive onsteepslopes
Acceptable gradeabilityis different for each product. Excessive hill roads
exceeding the specification may cause damage to the product(parts) due
to temperature cut, overcurrent or low voltage cut, which may cause the
product to malfunction.
12. Be sure to wear safety equipment
For the safety of passengers, be sure to wear a full face helmet and the
other protective gear(knee, elbow, hand, upper body) and do not wear shoes
such as slippers, high hills that interfere with driving.
Achilleus

Electric wiring diagram
Product size
Product structure
1240mm
560mm
1250mm
Footrest width275mm
* Errors may occur depending on the measurement method.
1250mm
Handle width
615mm
Footrest width275mm
UnfoldedFolded
Dualtron Achilleus User Manual
06
1
1
2
2
3
3
4
4
D D
C C
B B
A A
Driving light
ON
OFF
Front drive switch
ECO
2 1
1
2
1
2
2
1
2
1
M
Rear motor
M
Front motor
Blue ground light
Blue ground light
1
2 2
1
DT-ACHILLEUS type DC brushless front motor controller (A)
2 1 2 1
1 2 1 2
— + — +
Yellow LED wa rning light
LED
2 1 1
2
DT-ACHILLEUS type DC brushless rear motor controller (B)
ON
OFF
Warning light switch
1 2 3 4 5 6
2 1 3 4 5 6
12V5A
OUT+
IN+
IN-
OUT-
12V5A
DC-DC
1 22
1 2 1
2
31
3-hole charging port-1
2
31
3-hole charging port-2
3 -2
60V lithium battery pack
Red
*3
ON
OFF
Driving light main switch
Left/right brake switch
2 1 2 1 1
2 1 2
RB
G
RB
G
RB
G
RB
G
side cover left RGB LED
GND
12V
white
white white
Driving Lights
GND 12V
white
white
white
Tail brake light
1 2
1 2
2 11
2
Driving light
1
2 2
1
JSLF+
LR+ GND
LF- LR-
SC
warning
controller
LED
warning LED controller
+
GND
D
+ GND D
RB
G
RB
G
RB
G
RB
G
D
12V
GND
WS2811
WS2811
vertical pole Left RGB LED
RB
G
RB
G
RB
G
RB
G
D
12V
GND
WS2811 WS2811
vertical pole Right RGB LED
V+
V-
DI
1
2
3
RB
G
RB
G
RB
G
RB
G
Front Right Arm RGB LED
RB
G
RB
G
RB
G
RB
G
Font RGB LED
V-
V+
GRB GRB
DI
U-
U+
OUT
GRB G
RB
Connection panel RGB LED
1
2
2
1
3
BUS LED Controller
BUS LED Controller
RB
G
RB
G
RB
G
RB
G
Front_R_baibi_RGB LED
RB
G
RB
G
RB
G
RB
G
Rear left arm lamp
V+
V-
DI
RB
G
RB
G
RB
G
RB
G
side cover right RGB LED
V+ V- DI V+ V- DI
V+
V-
DI
2 1 3 4 5 6
1 2 3 4 5 6
3
88888
88
KM/H
100%
LCD instrument

Nameof each part
Body frame
handle folding fixing part
EYE throttle LCD
instrument panel Index finder
throttle(Accellerator)
Brake lever
(+Electronic brake)
Handlebar fixing
QR lever
Brake lever
(+Electronic brake)
Energy mode system
Warning light
Handlestem
LED light
switch
Bottom
mood lamp
Rear light(Brake light)
Rear fender
Handlefolding locking part
Footrest with tail light
QR lever
Arm light
Charging port
Front lamp
locking slide
Handlepost(Steering tube)
LED bar
LED light switch
Frontsuspension
Front fender
Front&Rear 11” wide
tubeless tire
Front motor
Rear motor
Handle
Light mount bar(Option)
07
Dualtron Achilleus User Manual
Achilleus

Dualtron Achilleus User Manual
08

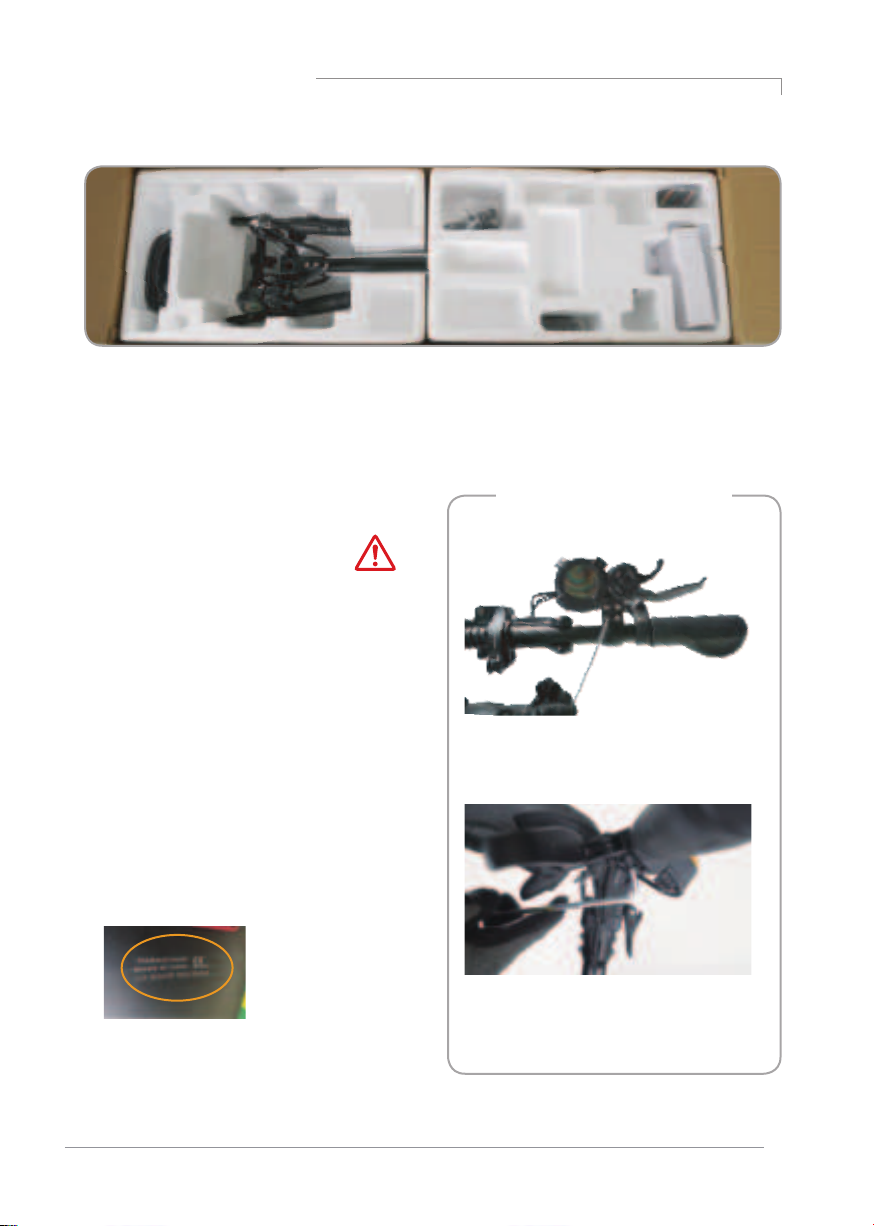

Product components
Checking the components inside of the box
Top: Default battery charger(1.7A),Default tool, User manual,Remote control
Bottom : Body(Lithum battery included)
Charger
Basic tool
Main body
LED Remote
control
Assemblingof the instrument
panel, brake
-Locate the instrument panel and tighten
the fixing bolts.
-Adjust the position of the brake and
tighten the fixing bolts with a 5mm hexagon
wrench.
Make anote of the serial number.
Ejecting the productnumber.
Do nothold the handlebar only when lifting the
product from the box.
Please be careful that the fixing slideof the
folding part may be damaged, and a safety
accident such as a part of the body may be
caught.
Therefore,when lifting the product, itis
necessary to raise the handlebar first, and then
slowly lift thebody (footrest)of theproductwith
both hands and do not damage thefolding part
Caution
The serial number
can be usedto check
information such as date
of purchase, warranty
period, etc., and product
information can be
checked even if the
product is lostor stolen.
(May vary dependingon
branch officesituation.)

09
Dualtron Achilleus User Manual

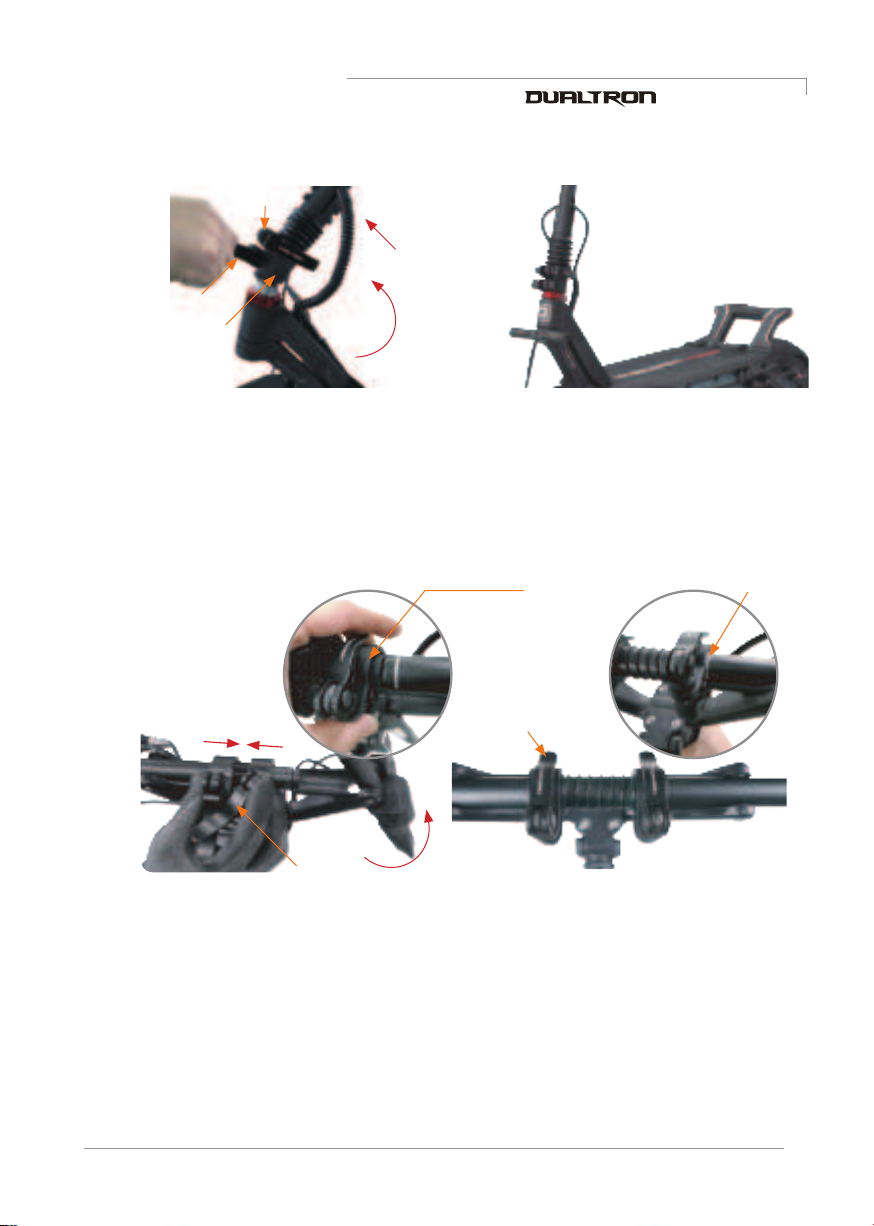

How to usetheproduct
1) Productun folding
3. Handlebar unfolding 4.Lockingthe handle
QR lever
Locking slide
locking slide
QR lever
1. Raise the handle post(Steering tube)2. Locking the folding parts
QR lever
Finishingscrew
Lockingslide
Tighten the finishingscrew properly to
lock the QR lever so that the locking
slideis firmly fixed in any direction, and
check forlooseness duringuse.
Release theQR lever, raise the locking
slide upwards, raise the handle post,
then lower the locking slide downward.
Loosen theQR lever, pull the locking
slide inward and raise thehandlebar,
then close theQR lever and tighten the
set screw.
Place the lockingslide up to thesafety
line and lock it so thatit is firmlyfixed with
the QRlever. Always check forlooseness
duringuse.
*CAUTION : Makesure that the fixingslide
is inserted to the safety wire when fixing.
Achilleus

How to use a product

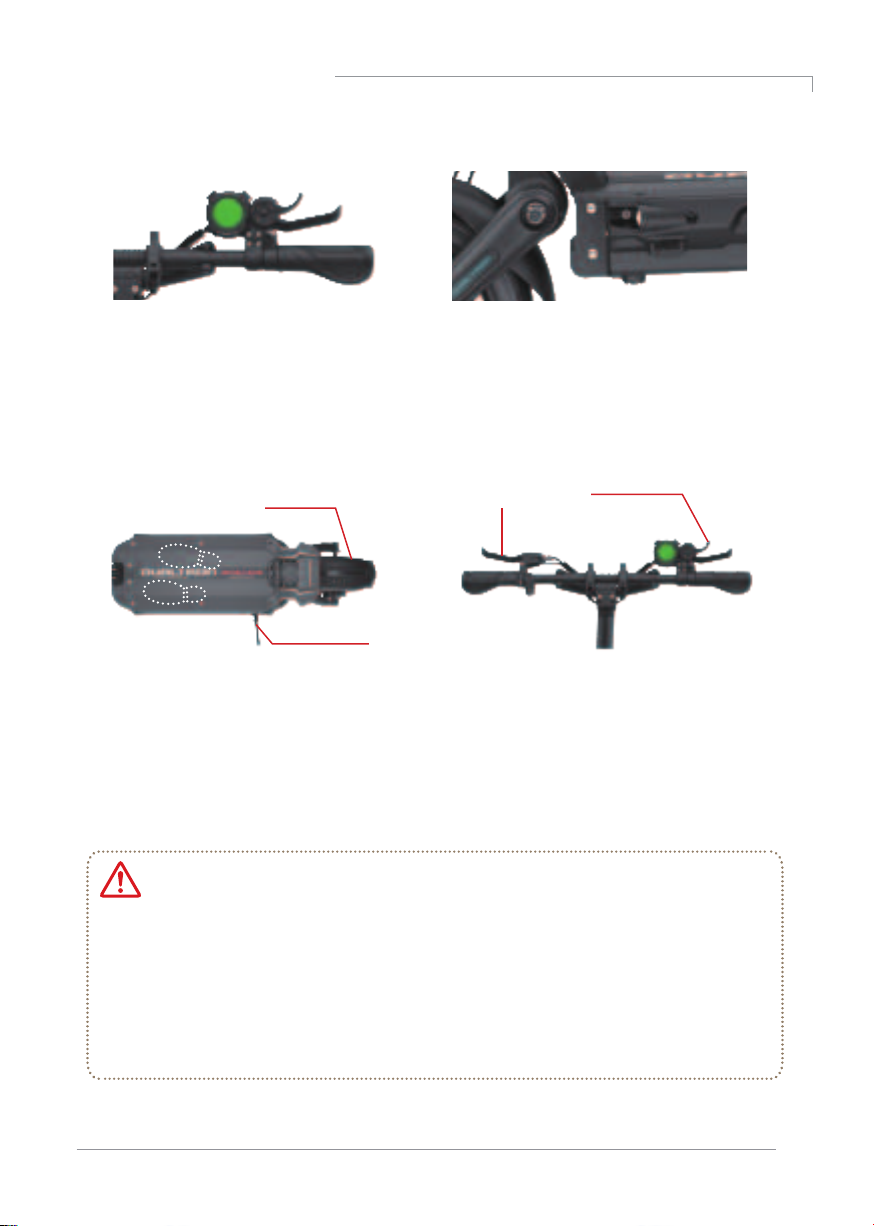

2) How to start
After tilting the kickstand, find a stable
position on the footrest and then hold the
handle grip comfortably. Be careful not to
raise your footon the rearfender.
Step3. Stance for driving
Acceleration can be performed by using
the throttle of the instrument panel while
driving, and the deceleration or stop can
be performed by holding the brakes on the
handle.
Step4. Acceleration and deceleration
Rear fender
Side stand
Step2. Turning on the LED switch
Press the POWER button on the instrument
panel for 2 seconds to turn on the instrument
panel. You can set the start mode, cruise
mode,electronic brake, and ABS function.
Step1. Turningon the instrumentpanel
Before driving, be sure to check the folding part, the handle part, the part where the
main fixing part of the product
is fastened well. And check the position of the fixing slide,
the QR lever locking status and thefolding part fixing status.
Throttle malfunctioncaution
Regardless of whether the throttle is operated or not, the motor sensor may continue to
operate, causing malfunctions such as sudden acceleration. In this case, holding the brake
lever to cancel the operation. This phenomenon may be caused by corrosion of the throttling,
immersion of the throttle, disconnection of the magnet, broken off levers, and breakage of
the spring. Do not bouncethe throttle lever strongly.
Caution
Dualtron Achilleus User Manual
10

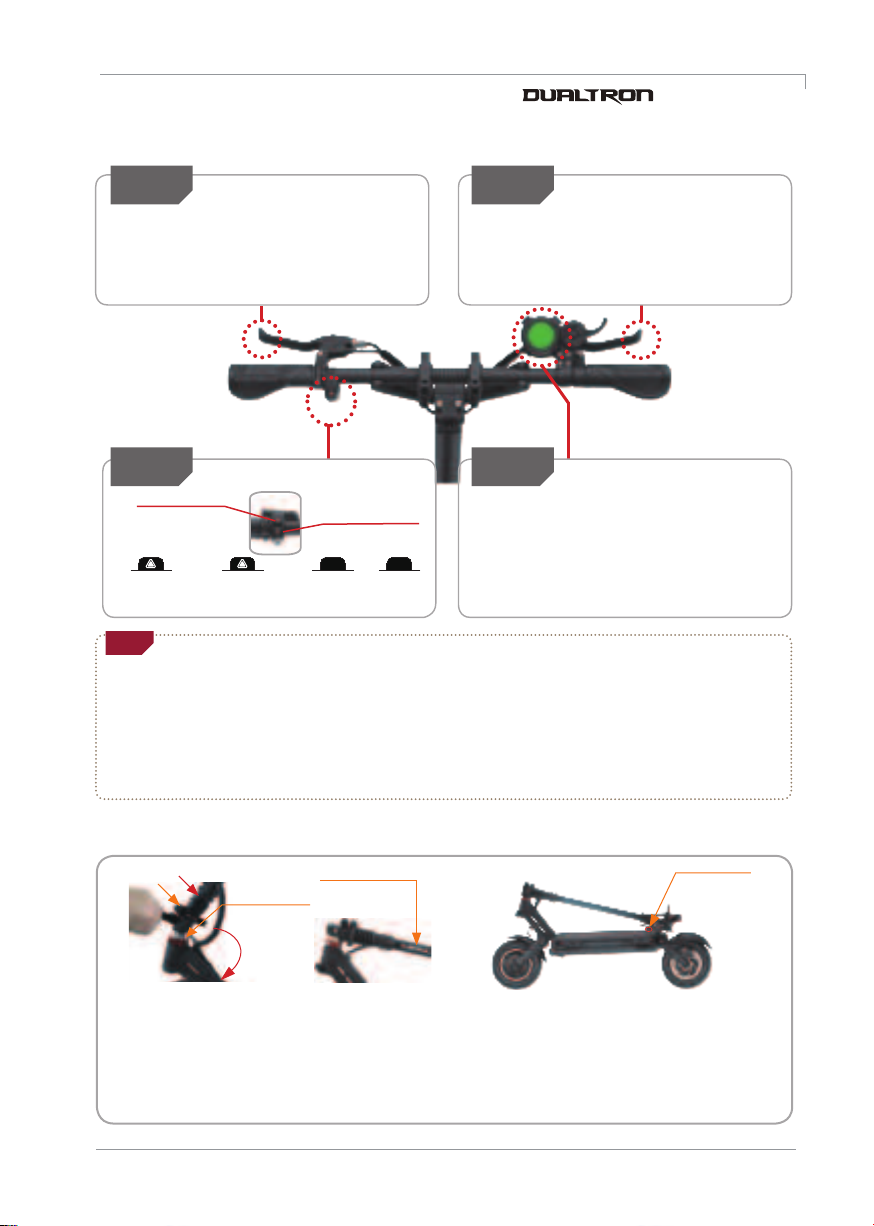

Brake Index finger
throttle
The switch of the whole scooter light has been
moved to the left side cover,which was originally
the position of main switch of other Dualtron models.

11
Dualtron Achilleus User Manual
3) How to stop
Step1 Step2
Be sure to use the rear brake first for
decelerating when stopping while driving.
For safe stop, itis necessary to practice slow
down after deceleration with rear brake.
Always use the front and rear brake
levers together to stop smoothly and
safely after decelerating with the rear
brake.
Rear brake use Front brake use
Step4
Set the use and strength of the electronic
brake among the detailed functions of the
instrument panel before driving. When the
brake lever works, the electronic brake works
together to increase the brakingforce.
Deceleration and braking using
electric brake
Step3
•For safe braking, check whether the brake lever and disc caliper connection (wire damage, external breakage, etc.) are
damaged before and after driving, and check brake wear and looseness of brake inner core(Inner wire). In the case of
hydraulicbrakes,it is alsonecessary tocheckthe oilleakage or deficiencyandalwayscheck thatthe braking forceis sufficient.
•Due to various factors such as road surface condition and speed, it may not be possible to stop when brake is operated as
expected. The electronic brake and ABS functions are auxiliary functions to further increase the braking force and used. The
user should understand the function and expect theoperation timing when use this function.
Check for safe braking
Tip
4) Product folding
1. Fold handlebar and steering tube
Folding lock
After folding thehandle bar, unscrew
the QR lever outward and lay the
steering tubedown whileraising the
fixed slide.
When thesteering tube is folded, it is fixed
by using thelocking slideand QR lever,
then itis easy to moveby attaching the
handle with the folding lock device.
2.Fixing the folding part
QR lever
Locking slide Steeringtube
Drivingmode selection
Achilleus
Warning light switch
Energy mode system
Click
(Low speed)
Click againClick again
(High speed)
ECO TURBO
Click
(Rear lights& tail
lights keep flashing)
(Rear lights& tail
lights stop flashing)

Dualtron Achilleus User Manual
12
* If you change the default setting values P0 (11), P1 (60), P2 (15), P3 (0),
correctinformation will not be displayed.
00
00 : 00
3
98

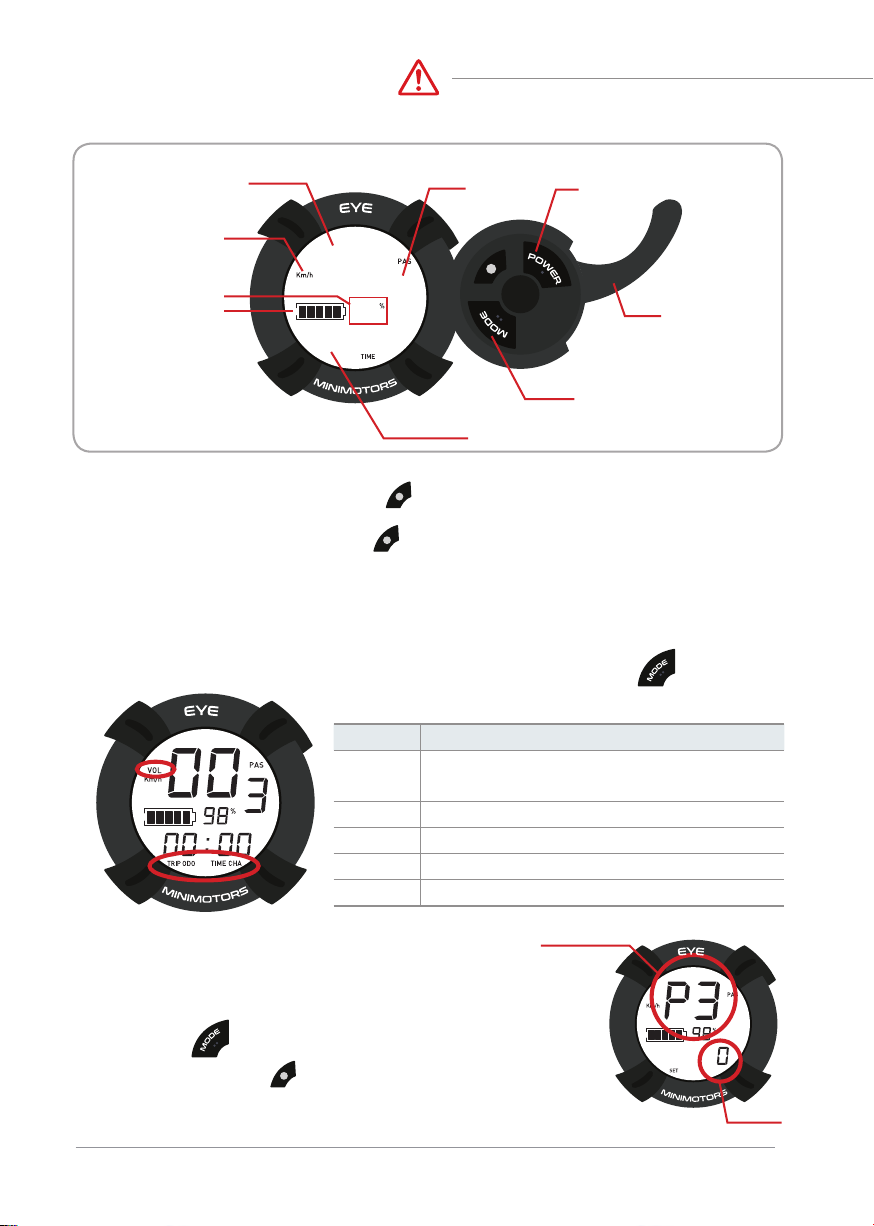

Speed Speed step Power button
Accelerator
index finger
throttle
Speed unit
Battery balance
Driving time
Mode button
While the instrument panel is on, press to set the speed step. The setting is completed when the
selected speed step value is selected.
1) Speed step setting
Can adjust with button.
2) Functions and settings for each main screen
mode Can adjust with button.
* Blinks 3 times per10 seconds when theremainingbatterypoweris 10%.
Itblinks continuouslywhen theremaining battery poweris 0%.
You can change the setting mode by turning on the power of the dashboard and
pressing for 2~3 seconds.
In the setting mode, press once to change the internal setting value
3) Instrument panel detailed function
Mode Discription
TRIP Current mileage(Press andhold mode
button to reset to '0')
ODO Accumulated mileage
CHA Not use
VOL Current voltage
TIME Drived time
Setting mode
Setting value
How to use the instrument panel Caution

13
Dualtron Achilleus User Manual
3
Battery save
1(MAX SAVE)
2(MID SAVE)
3(NO SAVE)
ABSsetting
0(OFF), 1(ON)
0(Fixed) Speed unit
0(Km/h), 1(mp/h)
(1) The start of the cruise function
Select the Cruise function section of the dashboard as 'Settings' and
set the throttle to the same Acceleration.The cruise functionwill start.
(2) End of cruise function
When you hold and releasethebrakewhile cruisemodeis ineffect,thecruisemodeis automaticallyreleased
Precautions when using the cruise function
* In case of cruise function, please ride in a position where brake can be used immediately so that
cruise function is canceled and braking is possible in preparation forsafety situation while driving.
* When switching from dual drive mode to single mode in cruise mode, it is not possible to cancel
cruise mode by using throttle and it is only possible to releaseby braking.
4) Features of cruise mode (automatic driving)
The cruise control function allows you to maintain the driving speed automatically. Take
advantage of cruise features
The advantage of being able to reduce fatigue when traveling long distances and to increase
mileage of driving due to constantspeed driving.
P0 P 1 P2 P3 P4
P9P5 P6 P8
P7
PA PCPb
Pb
P
11(Fixed)
Startmethod
0(Acceleration start),
1(Kick start)
Slow start
0(Off:Power
start~5(Slow start)
Max output
5~100%
(User adjust)
Electronic brake power
0(Off)~5(Powerful)
LCD brightnesscontrol
0(Back light off)~5(Brightest)
Auto off time setting
1~30 minutes
Cruise mode
0(OFF)
1(ON)
60(Fixed) 10(Fixed)
Caution
1. Displayng speed unit selection - P4: 0 (Km/h), 1 (mp/h)
2.Start methodselection - P5: 0( Acceleration start), 1 (Kick start)
3.Cruise mode selection - P6: 0(Off), 1(On)
4. Slow start - P7: 0 (Slow start off: Power start) ~ 5 (Slow start)
5. Battery save mode - P9: 1 (MAX SAVE),2 (MID SAVE), 3 (NO SAVE)
6. Electronicbrake setting mode - PA: 0 (Electronic brakeoff) ~ 5 (Strongest)
7. LCD brigntness adjustment - Pb: 0 (Backlight off)~ 5 (Highest illumination)
8. Auto off time setting - PC: 1 ~ 30 minutes
9. ABS setting - Pd: 0 (OFF), 1 (ON)
Achilleus

Dualtron Achilleus User Manual
14
How to usethe instrument panel Caution
ABS OFF
0 1
98
Pb
ABS ON
0
PA
98
Displayed when the brake
lever is operated
5) Setting of Electronic brake
6) ABS function setting guide
* Precautions when using electronic brake immediately after full battery charge
Theelectronic brakes do not operate when the battery is fully charged, so be sure to
check andoperate this device. When the battery runs out, the electronic brake will operate
normally.
* Precautions when using the ABS function
ABS has the advantage of being able to stop at the shortest braking distance that can be
obtained from the tires and road conditions. However, due to the principle of repeatedly
holding and releasing the brake several times in a second, a lot of vibration occurs in the
motor and the body. Repetitive vibration caused by this may cause frequent loosening of
the motor, rim, fixing part and body fixing bolt.
* ABS brake is an abbreviation of Anti-Lock Brake System. It uses the principle that maximum static
friction force is larger than kinetic friction, so that braking distance (distance from breaking to
stopping) is shorter than that of normal brake. It has the advantage that the vehicle does not slip
well when wheel is rotating.andit is a brake assist system that can stop more safely without wheel
lockand slip.
(1) ABS function ON
Set the ABS function part Pd of the dashboard to 1.
(2) ABS function OFF
Set the ABS function part Pd of the dashboard to 0.
* Pd - When the ABS function is ON, the PA -
electronic brake function is canceled.
All electric motorcycles are subject to sudden braking, causing the wheels to stop spinning. As a result,
the slip of tire causes the driver to fall down, which can cause accidents. This product is equipped with ABS
brake function to hold the tire lock, enabling more secure braking.
Electronic brake off Moderate intensity Maximum intensity
Caution
Caution

15
Dualtron Achilleus User Manual
LED BAR funtions
Achilleus
%
88
98
%
00 : 0088888
Km/h
VOL
TRIP ODO DST TIME CHA
SET RPM OFF
PAS
Mp/h 8
[ M ] ⑥
⑦
⑨
①②③④⑤
⑧
7) Self-diagnosis through dashboard
Fault typeDiagnosis Solution
System error * If the error information
appears, immediately stop
using the product and take
the scooter to the service
center beforeuse. Excessive
use can result in damage
to the product and safety
accidents.
Motor error
Accelerator error
Controller error
None
* Thenumber is displayedwhen the cruisefunction is executedat a
constantspeed.
* Thenumber is displayedwhen the brake lever is operated. (When
theindicatorlights,the accelerator does notoperate.)
⑥⑦⑨①
②④⑤⑧
⑥⑦⑨①②③
④⑤⑧
The LED remote control is infrared. Please aim at the bottom of the right LED bar.
⑥
⑦ ⑨
①
②
③
④
⑤
⑧
⑥
⑦ ⑨
①
②
③
④
⑤
⑧
⑥
⑦ ⑨
①
②
③
④
⑤
⑧
⑥
⑦ ⑨
①
②
③
④
⑤
⑧
⑥
⑦ ⑨
①
②
③
④
⑤
⑧
W/WW
Flash
Jump
Jump
IC Set
CS
C3
C7
Auto
C16
Pow er but ton
Brightness&Light speed Whole white lamp
&Number of lamp beads
control block
Light change mode
slection block
Multicolor light mode
selection block
Brightness&Light speed &Number of lamp beads control block:
Multicolor light mode selection block:
When single color light orwhole white light is on, brighter/ darker; when the multicolor light is on, the ligh
runs faster/ the light runs slower. When you press”IC Set” button, you can choose how many lamp beads wor
Press “IC Set” button again to end the setting.
Tip
“C3”, 3 colors of light shine together;“C7”,7 colors of light shine together;“C16”, 16 colors of light shine together
“CS”, single color lightshines.
Remote receiver
The lights will only be
controlled
when you oprate
the remote
towards this place

Dualtron Achilleus User Manual
16
2) Basic charging method *Failure of the charger and abnormal conditions can cause
electric shockandfire. Learn thecorrect usage and prevent safety accidents in advance.
* Short-circuit Caution:
Becareful notto short-circuit thebatterybecauseshort-circuiting of thebattery is verydangerous.
* Overcurrent Note: The battery of this product is designed to automatically shut off the
power supply to protect the battery when theover current is over100A.
* Low Voltage Caution: The battery of this product is designed to be automatically shutoff when
the voltage drops below 48V. Do not usethe product in thelow voltage state.
5. If the charger lamp does not light,
charger fall, strong external
shock, long time charge, or cable
cover damage, discontinue use
immediately and contact the service
center.
6. Unplug the charger when you are away from
the home for long periods of time.
1.Manufacturers and sellers are not
responsible for any problems
arising from any disassembly,
modification, or mixing with other
chargers.
2. The charger is forbidden to be used
in places subject to high humidity,
heat, flammable materials,
confined spaces, or where there
is no ventilation such as in a car.
3. The charger is not waterproof. It is
thoroughly controlled to prevent
moisture from entering the
charger.
4.Children and pets should not be
allowed to approach the charger
when they come into contact
with them, as they may cause an
electric shock.
7. Use only genuine charger.
8.Do not insert conductors into the charging port.
9. Do not touch the plug for about 10 seconds after unplugging the charger. There is a risk of
electric shock from instantaneous discharge.
10. Do not remove the terminal during charging. Charge the internal circuit of the charger and
cause malfunction.
11. Do not operate the product during charging.
12. Charging terminals should be firmly contacted during charging and should not be used if
terminals are corroded or damaged.
13. When disconnecting the charger from the product, it is safe to hold theterminal without holding the wire.
1) Basic charging method
1. Open the chargingport cap and connect
it to the connector of the charger and
connect it to the household outlet.
3. Be sure to close the chargingport cap when driving or storing except when charging.
4. When connecting the connector to the charging port, metallic sparks due to voltage
difference may be splashed, but this is normal
How to use a charger correctly
2. Charging status indicator
Charging port
(Red) Charging
(Green) Charging complete
Warning
Caution

17
Dualtron Achilleus User Manual
Safety precautions for Lithium battery
Lithium
Battery disassembly prohibited
Battery disassembly, modification andrepair arenotcovered under warranty.
Danger
1. Care
Lithium batteries should be protected from direct exposure to children and pets.
2. Performance
①Lithium battery is affected by external temperature. In winter, when
the temperature is low, the performance of the battery is temporarily deteriorated and
themileage and poweroutput is reduced.
②Lithium battery has a characteristic that discharge performance is reduced by more
than 15% when charging / discharging 300 times or more. If usage time is shortened
dueto long usage, it shouldbe replaced with a genuine onethrough the nearest point.
3. Charging
①Lithium battery should be used only with genuine battery and charger
supplied from the manufacturer. Any problems caused by use of battery made by the manufacturer,
mixed use, or using the chargerarenot covered bythe manufacturer.
②Charging thelithium battery with a non-genuine charger may cause malfunction or fire.
③The lithium battery should be charged in a well-ventilated, dry place and around the charger in a
place where there is no inflammablematerial.
④Lithium battery should be charged at 0 ~ 45 ℃and discharged within -10 ~ 60 ℃. Charging or
discharging at a temperature outside this range may cause malfunction, fire or explosion.
⑤In case of moving from cold outside to warm indoor, please charge it after 1 ~ 2 hours. This is to
prevent condensation from occurring insidethe product dueto temperaturedifference.
4. Storage
①Lithium batteries should be kept away from snow, rain and direct sunlight. Do not store or
charge them in a trunkor hot room. Select a dry placeandstoreat room temperature (10 ~ 20 ℃).
②When storing for more than 3 months, charge the remaining battery level to 70 ~ 80% (do not
storefull charge).
5. Trouble symptom, safety
①Lithium battery should be discontinued immediately if it is damaged
or leakage of battery, sour odor, appearance deformation, etc., and contact the place of purchase to
get technical support and service.
②If overheat, smoke or ignition is detected in a product with lithium battery, immediately stop
charging and use, move the product outdoors as soon as possible, and then use a fire extinguisher
to evolve. Do not spray water or immerse the productin order to evolve, which is more dangerous.
③Lithium battery pack has very high energy density, so if you charge the battery for a long time
in case of short-circuit, leakage, bad battery, etc., there is a possibility of ignition. Therefore, you
should avoid charging for a long time without a person, and charging must be done while the person
is aware that the risk of unexpected fire can be avoided.
6. MisuseIf
the lithium battery is short-circuited or the polarity is changed, or if the battery is
impacted, malfunction or fire may result. If you think that the battery has been impacted, you should
stop charging and using it and visit thenearest point for inspection.
7. Water inflow
It should be controlled to prevent water inflow into the lithium battery. There is a risk
of fire or electric shock if the charger is connected while moistureis present.
8. Caution
Disconnect the battery from the main unit and prohibit recharging, reinstalling, or using
other applications.
9. Disposal
DisposalWhen disposing of the lithium battery, the battery should be separated from the
product at the point of purchase or near the point so that the charge and discharge terminals are not
short-circuited. Disposeof it as industrial waste when disposing of it.
Achilleus

Dualtron Achilleus User Manual
18

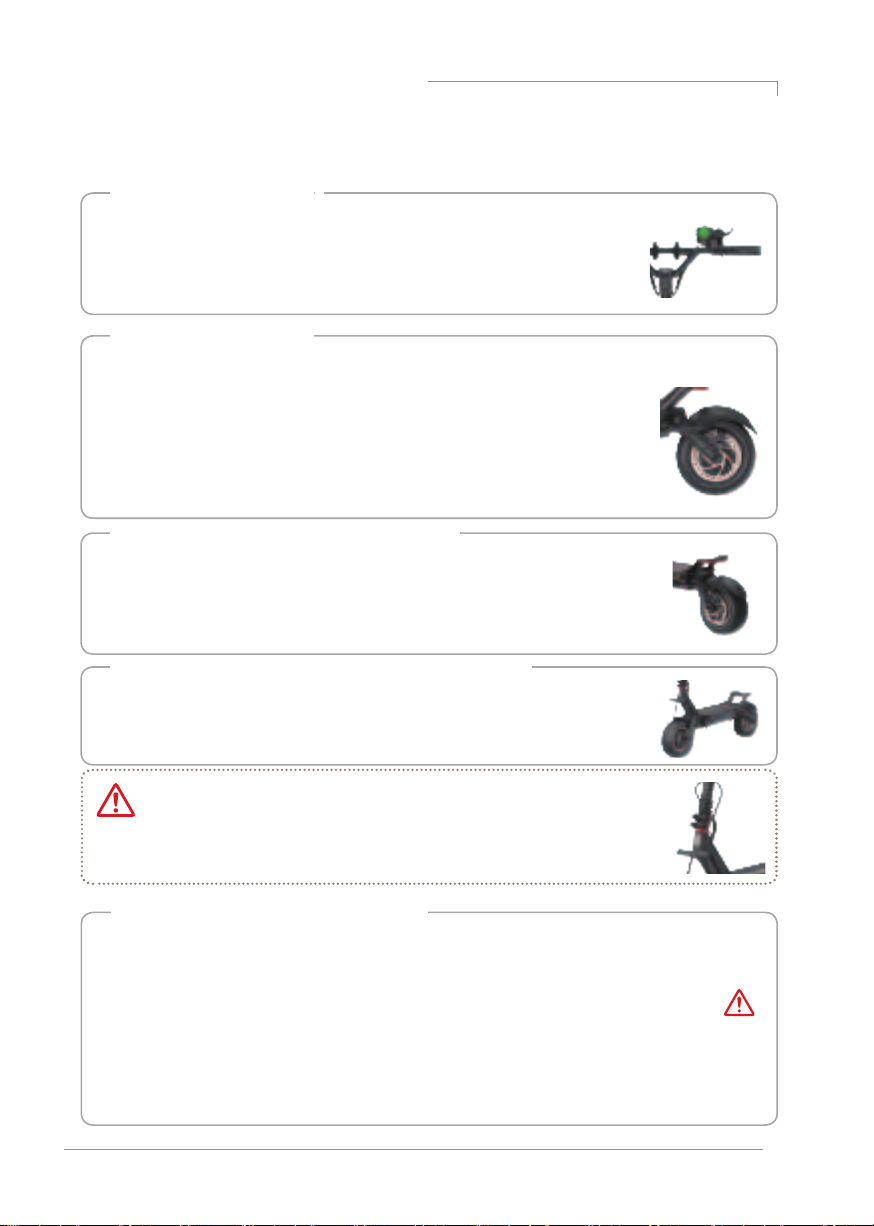

1) Required checking before use
Safety guidelines before driving
Danger
• Check the front and rear tires for wear and punctures and check the proper air pressure
(45 to 50 psi) for the tire. When the shortage of air is shortened, the possibility of
punctureincreases, so check always.
• It is necessary to judge the replacement time by observing the appearance of the tire
such as tire damage, uneven wear.
3. Check tire pressure and uniaxial condition
• The brake braking force is sufficient to check the operating condition. If the braking force is significantly
lowered, useit immediately after inspection andaction.
• Check that the brake pad is not worn, that the cable is not loose, that the cable is not
damaged, or thatthere is no leakage in the caseof hydraulic brakes.
• If there is an unusual feeling or noise during operation, check for breakage, wear and
deformation of the inner wire of the brake cable.
• Check that the bolts and nuts of the brake fixing parts are not loose, and that the disc
is not deformed or damaged.
2. Check brake and cable
1. Check throttle and handle
• Operate the accelerator throttle lever about 2 ~ 3 times to check whether it returns
to thehome position.
• Be careful that excessive throttle leaning and manipulation of the throttle can cause
malfunction due to internal parts damage.
• Check the fastening condition and clearanceof the QRlever on the handle.
• Make sure that the bolts and nuts of all parts of the product are tight and free from
loosening. Check the fastening condition and clearance of the folding and fixing
parts of the handle (QR lever, fixed slide, hinge center bolt, headset nut, swing
arm, etc.).
4.Tightening check such as folding part and handle part
*If there is a folding clearance,
If there is a folding clearance, it can be adjusted with a tongue bolt. However, if
you pull ittoo hard, it will become stiff withouta gap, but it maysound'crackling'.
In this case, if you adjust the tune bolt properly, the noise disappears and the
clearance is also adjusted.
If you encounter any of the following situations while driving, stop driving immediately and
contact your nearest branch or service center for proper measures. If you provide pictures and
videos to get accurate diagnosis, professional counselingis available..
●Unusual heating of the motor
●Brake braking status error
●Errormessages on theinstrument cluster
●When the throttle is returned to its original position
* In this case, stop driving immediately.
Danger
●abnormal noise is generated
●Product smoke, ignition, sourodor
●When rain orwetwith water or in a similarsituation
●When other driving is judged to be unreasonable

19
Dualtron Achilleus User Manual

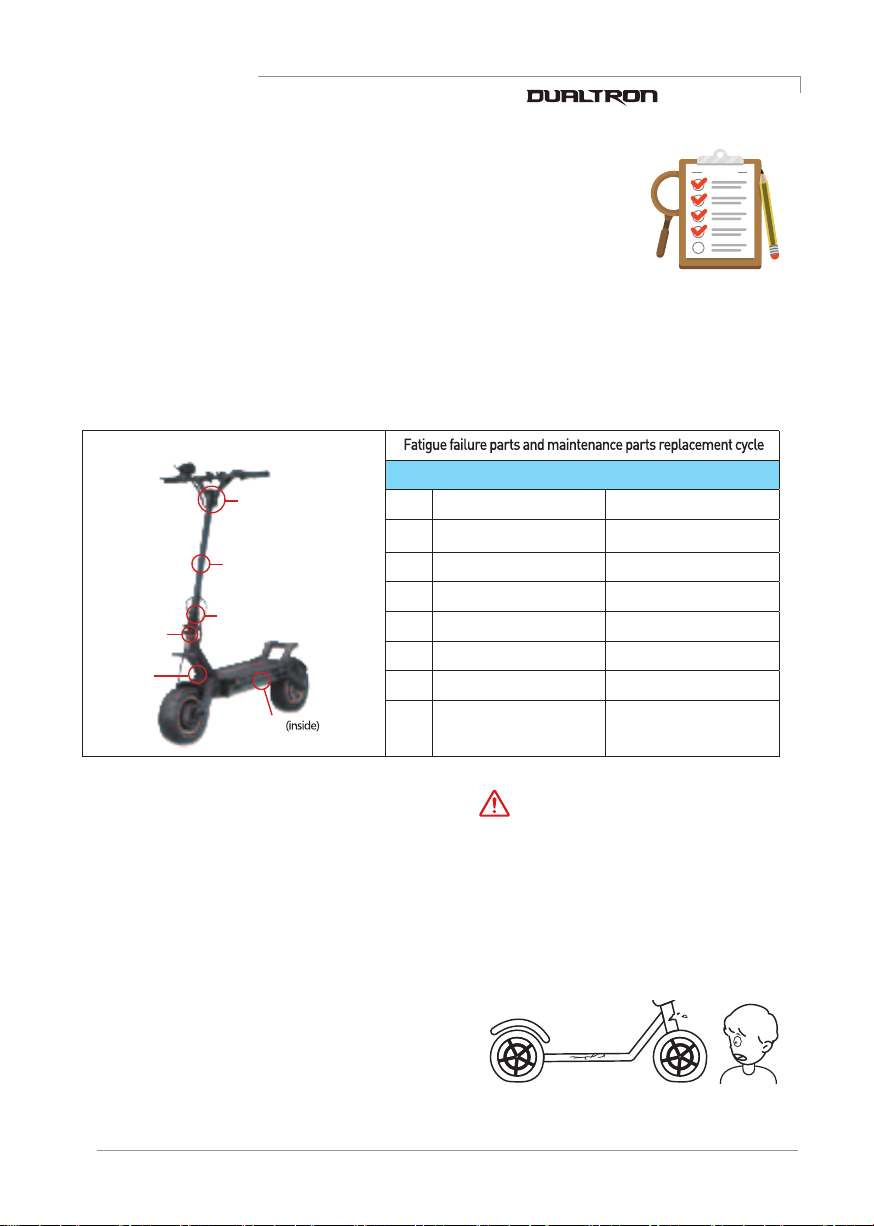

Maintenance
1. Check the replacement timing of consumable parts
CHECK LIST
2) Maintenance and self-maintenance
Electric products can be damaged by various factors. The life span of each part
varies depending on driving habits and driving environment. Parts that exceed the
service life may cause accidents. Let's manage various parts and prevent safety
accidents in advance.
※The rubber inside the rubber suspension is cured as the consumable parts are used, and the
performance of the suspension is slightly reduced because of the reduced elasticity.
2. External damage inspection by driving environment
①Replace parts that may be damaged by external driving environment, such as deformation of
parts, cracks due to compression, and signs of exceeding fine gold or life expectancy.
②If the product is exposed to strong sunlight for a long time, discoloration may occur.
③In case of heavy driving such as normal jumps, slight impacts such as turning, collision, etc.,
when driving frequently or for a long time in a poor road condition or driving for thousands
of kilometers or more, fatigue breakdown phenomena Please check and replace the parts
replacement schedule for each product for safety.
④Fatigue breakdown and maintenance parts may
differ from the example conditions depending
on the driving environment and the operating
conditions. Also check parts other than the
replacement cycle (maintenance parts) at all times to check for any signs of abnormality.
DUALTRON ACHILLEUS
No. Parts name Replacement cycle / km
1
2
3
4
5
6
7Other chassis
components
If the exterior is
damaged or deformed
④
⑤
⑥
①
③
②
Caution
①The components and suspension parts of the car swing arm, tires, tubes, wheels, bearings,
headset bearings, discs, brake pads, cables and folding parts, various brackets and other
consumable parts requiring periodic inspection and always check.
Achilleus
SWING ARM
HIGHER HINGE
3YEARS / 20,000
2YEAR / 10,000
STEERING TUBE 3YEARS / 20,000
HANDLE STEM 3YEARS / 20,000
3YEARS / 20,000LOCKING SLIDE
BATTERY 2YEARS / 20,000

Dualtron Achilleus User Manual
20
1. Brake adjustment method
As you continue to use the brakes, the brake pads become
worn out and the gap between the pads and the brake disc
becomes wider. If the braking force drops, use a 5mm
hexagon wrench to loosen the brake arm wire bolt, then lift
the brake arm upwards to adjust the braking force.
2. Tire replacement method
1. After removing the calipers, remove the motor using 18mm
spanner and disassemble the wheel andmotor fastening bolts.
2. Remove thewind from thetires and press the tires off the wheel.
3. Replace the tires and complete the assembly of the tires in
reverse order. Tighten the assembled tire to fit the body, then
tighten thescrews and bolts.
*caution
●After completing the tire replacement, try a simple test run with
theappropriate air pressure(45 to 50 psi).
●When puncture is occurred, it is possible to use repair by using
patch seal. Please use the tire while checking and checking
continuously.
Important notice
3) Maintenance by self-maintenance
* Metal vibration may occur due to motor vibration, vibration of the brake disc and pad
during the load section that accelerates during driving. (About 15 ~ 30Km, different for
each product)
This is a phenomenon in which all revolutions (fans, automobiles, ships, etc.) are
vibrating at a specific rotational frequency (rpm) rather than the product. However, if
the continuous noise or metal noise is large, there is a possibility that the disk is bent
anddeformed.
* Please note that after running, there is a risk of burns due to the heat on the motor
andbrake (especially disk rotor)side.
* Be careful that the bolts of the motor, rim and motor shaft due to the ABS function
may beloosened.
Important notice
* Completely separable hub motor design By designing the rim and hub
motor to be completely separable it is possible to replace only the rim
without replacing the entire motor when the rim breaks, thus improving the
maintenanceand maintenanceof the product. (Patent pending)
Easy-wheel system
