Minimotors DUALTRON X Series User manual

PERSONAL MOBILITY
※
User Manual
This product is always two-wheel drive.

TM
Minimotors Smart Electric Insurance
From registration electric insurance to managing your own products at once!
If you are a Minimotors user, is a professional insurance app that can be fully guaranteed for all
products at the same time, with only one insurance without limit.
Smart join!, Smart Insurance!
With scan the QR code, you can download the app.
- Real-time service reservation function (service reservation and service
feedback is possible in real time within nationwide branches)
- You can easily manage your vehicle with your own vehicle registration via My
Minimotors.
- You can easily purchase Minimotors Smart Electric Insurance. (Mertiz Fire)
- You can see the information of Minimotors products at a glance. (from electric kick board to other products)
- You can check the location of the branch with the Minimotors national branch information guide. (Nationwide
branch office guidance and search for the nearest branch through linking with my location)
- You can easily view news events as announcements.
- User guide (safety precautions, instrument panel manual, serial number confirmation, product manual)
- Family site (Minimotors webpage, Naver cafe - Electrical vehicle riders)
- Customer Center (FAQ, Terms of Use, Privacy Policy, Location Service Terms)
Android IOS
Please read the user manual carefully.
Do not use the product until you understand its functions.
Do not rent the product to anyone who can’t operate the product.
*For the first time, the user should use it with a slow speed’ for safety
Company Introduction
Minimotors Co. LTD., is a PM(Personal Mobility) specialized company who manufacture and
distribute personal mobility with a professional production system since 1999 and is the
representative company of personal mobility in Korea with the longest history and accumulated
know-how.
Minimotors Co. LTD., launched DUALTRON(2015), the world’s premium luxury electric brand has
developed the most durable, safe and innovative products.
In addition, we are leading the personal mobility industry with smart management such as service
reservation, product management and insurance via exclusive app, and differentiated services that
provide test rides, purchases and maintenance through out 35 locations nationwide.
Brand Introduction
‘DUALTRON’ is a world-wide premium brand that designed and produced by Minimotres Co.LTD.,
ourselves.
DUALTRON’ is a breakthrough product that combines the world’s first dual drive system and the new
rubber suspension technology (patent application). It is a proud Korean luxury brand that has won the
world electric scooter market exported to more than 30 countries

01.
04
02.
06
03.
07
04.
08
05.
09
06.
12
07.
15
08.
16
09.
17
10.
18
11.
19
12.
22
13.
24
14.
25
15.
26
16.
27
Danger
Warning
Caution
Before Reading Manual
This manual contains important information to help you to use your product more safely.
For safe use, it is marked as ‘Danger’, ‘Caution’ and ‘Warning’ depending on the degree of
danger and the meaning is as below.
Danger: Indicates a hazardous situation that could be a result of serious injury.
Caution: Indicates a potentially hazardous situation that could be a result in
serious injury.
Warning: Indicates a potentially hazardous situation that could be a result in
light injury.
Safety guidelines and restrictions . . . . . . . . . . . . . . . . . . .
product structure . . . . . . . . . . . . . . . . . . . . . . . . . . .
Name of each prat . . . . . . . . . . . . . . . . . . . . . . . . . .
Product components . . . . . . . . . . . . . . . . . . . . . . . . .
How to use the product . . . . . . . . . . . . . . . . . . . . . . . .
How to use the instrument panel . . . . . . . . . . . . . . . . . . .
Product feature guide . . . . . . . . . . . . . . . . . . . . . . . . .
How to use the charger correctly . . . . . . . . . . . . . . . . . . .
Safety precautions for Lithium-ion battery . . . . . . . . . . . . . .
Safety guidelines before driving . . . . . . . . . . . . . . . . . . . .
Inspection and maintenance . . . . . . . . . . . . . . . . . . . . .
Important checklist . . . . . . . . . . . . . . . . . . . . . . . . . .
Product specification table . . . . . . . . . . . . . . . . . . . . . .
Essential information for buyer . . . . . . . . . . . . . . . . . . . .
Product warranty . . . . . . . . . . . . . . . . . . . . . . . . . . .
Nationwide service center . . . . . . . . . . . . . . . . . . . . . . .
Dualtron X user manual contents

04

관계법 준수
고속모드(L3) 사용금지
여성/노약자초보자
급제동 금지
관계법 준수
고속모드(L3) 사용금지
여성/노약자초보자
급제동 금지
1.
●
●
2.
관계법 준수
고속모드(L3) 사용금지
여성/노약자초보자
급제동 금지
5.
고속모드(L3) 사용금지
여성/노약자초보자
급제동 금지
6.
관계법 준수
급제동 금지
7.
관계법 준수
고속모드(L3) 사용금지
여성/노약자초보자
급제동 금지
3.
※
관계법 준수
고속모드(L3) 사용금지
여성/노약자초보자
8.
관계법 준수
고속모드(L3) 사용금지
여성/노약자초보자
급제동 금지
9.
관계법 준수
고속모드(L3) 사용금지
여성/노약자초보자
급제동 금지
4.
Comply with the
related laws
Slow mode is
recommended
Do not
sudden brake
Novice Elderly
General safety guideline
Be careful of water!
This product and components are not waterproof. Don’t let the water get into the
product and components.
Never use it, if the road is wet due to the rain, snow, hailstone.
Never wash or spread water to electric devices.
Beware of folding and spinning parts!
If parts of the body, as a finger or hair, or clothe, bag, or shoe laces get caught in the
spinning or folding parts of the product, this may lead to severe injuries. Please be
careful.
Beginners and seniors are encouraged to use at low speed
Beginners who are not accustomed to use the product, seniors and others should
avoid high speed mode driving and recommend low speed driving. In addition,
please use after practice how to ride safely in a wide place.
Do not sudden brake with front brake
If there is a risk of overturning, sudden deceleration should be done safely. Do not
apply any unusual behaviors or artificial forces, such as stopping with your feet.
Do no accelerate downhill
Slow down at downhill. When reducing the speed, to prevent brake overheat, use
the brakes properly to reduce the heat on the disk with proper brake use.
No acrobatics
Stunts and jumps such as jumping
and dropping are prohibited as
they can cause a great impact
on the product and can cause of
malfunction and accidents.
Don’t tune by yourself
Do not open or tune the electric
parts (battery, controller or
motor system).
No companion boarding
This product is intended for one
adult only, so children, infants,
or two people are prohibited
from boarding.
Comply with the related laws
Please comply with the Road Traffic Act and
related laws and regulations according to
the place of use.
Unlicensed, driving after drinking, loading
cargo on the scooter is prohibited. (More
than bike or bicycle license is required)
Even if the it is within the warranty period, you may be liable for any accident caused by any of the following causes.
Dualtron X User Manual
Please read this manual carefully before
using this product

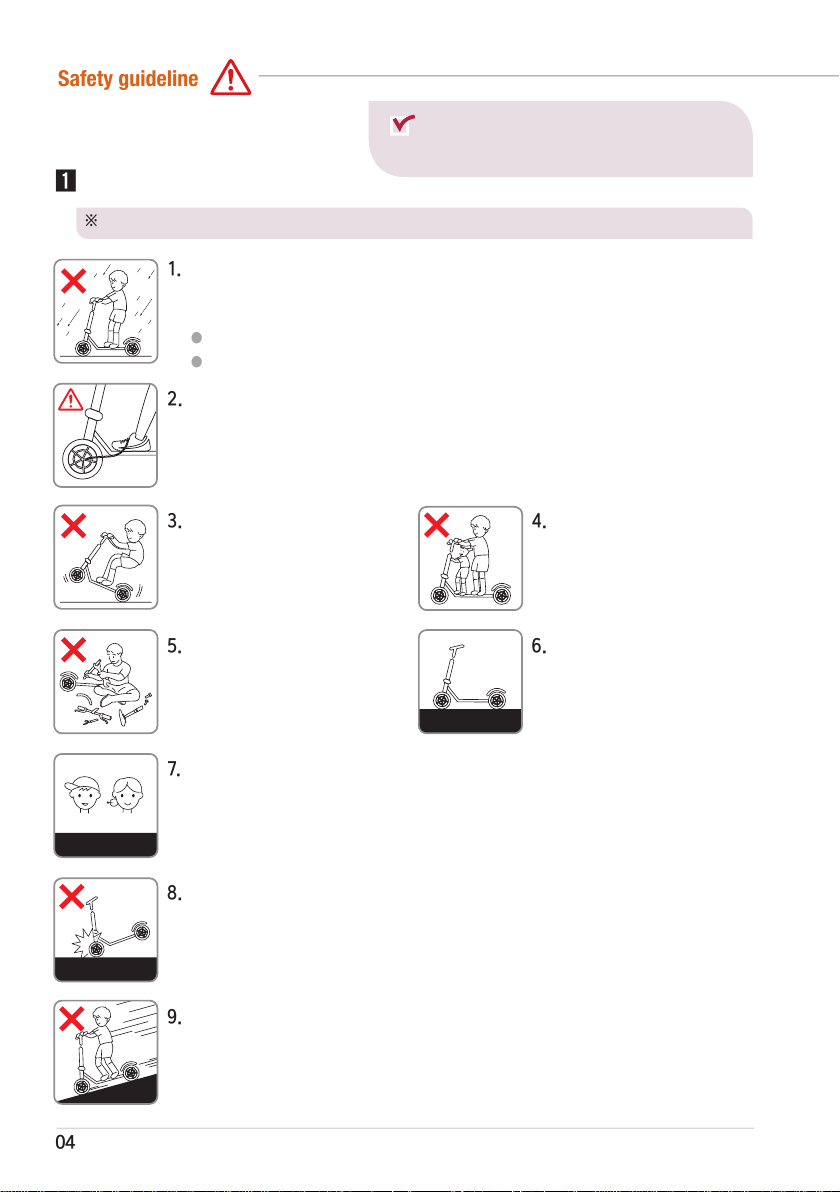

Safety guideline
Caution

05
관계법 준수
고속모드(L3) 사용금지
여성/노약자초보자
급제동 금지
11.

관계법 준수
고속모드(L3) 사용금지
여성/노약자초보자
급제동 금지
10.
관계법 준수
고속모드(L3) 사용금지
여성/노약자초보자
급제동 금지
12.
1. Night driving should be avoided in any case, be sure to wear helmets and other guards
(knees, elbows, hands, upper body, etc.) and drive safely.
2. Select the mode that suits you and drive. In order to cope with the sudden situation,
exercise to slow down to hold the brake at all times.
3. When turning left / right, slow down to avoid danger of overturning or slipping., And then
slowly turn safely.
4. To go to backward, it is safe if you getting off from the product after stopping before moving.
5. It is prohibited to use in a slippery place, a crowded place, a steep slope, roads with a risk of
accident, uneven road.
6. When crossing a pedestrian crossing, get off from the product for pedestrian safety.
7. Do not drive in a threat any other means of transport, such as animals, pedestrians,
bicycles, motorcycles, cars, etc.
8. If you pass the speed bumps and obstacles, be
sure to slow down.
9. When decelerating or braking, do not stop with
using foot, but stop with using brake appropriately.
10. Be careful that there is a risk of burns due to heat
from motor and brake (especially disk rotor) after
driving.
11. It is prohibited to drive with all the way by holding
the handle with one hand.
12. Do not ride or drive when the kick stand is down.
Dualtron X User Manual
Do not drive on steep slopes
Acceptable gradeabilityis different for each product. Excessive hill roads exceeding
the specification may cause damage to the product(parts) due to temperature cut,
overcurrent or low voltage cut, which may cause the product to malfunction.
Be sure to wear safety equipment
For the safety of passengers, be sure to wear a full face helmet and the other
protective gear(knee, elbow, hand, upper body) and do not wear shoes such as
slippers, high hills that interfere with driving.
Safety warning when lifting the product
If the product is lifted by holding only the handle, there is a possibility that the product may
be damaged due to deformation of the folding part due to load or movement of the product.
When lifting the product, be sure to hold the product’s body (footrest) with one hand and hold
the handle with the other hand so that you do not get hurt in your back or knees.

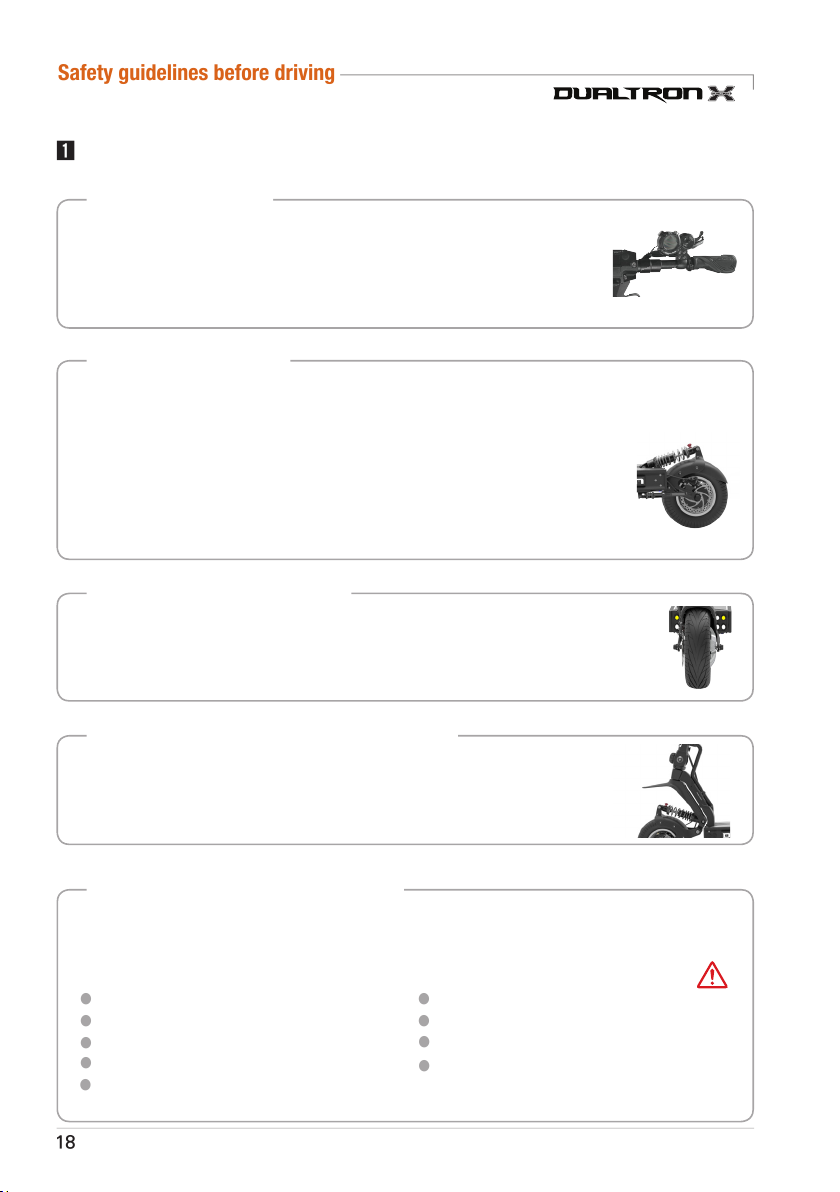

Precaution before driving

06
780mm
1305mm 1305mm
632mm
350mm
1214mm
Unfolded Folded
Handle width
Footrest
width
*Errors may occur depending on the measurement method.
Product structure
Electrical
wiring diagram
Product size
Dualtron X User Manual

07
ON
OFF
ON
OFF
Main battery
volt meter
(GrREEN)
Brake lever
(+Electronic brake)
Handle grip
( Handle) Brake lever
(+Electronic brake)
Brackets
USB port
LED lamp button
Sub battery
power switch
Spare
button
Left side Right side
Handle body
Handle post
(Steering tube)
Steering tube
LED bar(white)
Bottom
mood lamp
Charging port
(Left side 3P 2EA)
(Right side 2P 1EA)
Front high power LED
Handle post (Steering tube) bottom
Charging port
Folding knob
Swing arm fender
Rear suspension
Rear fender
Front motor
Front & Rear 13” wide
tubeless tire Front and Back lamp
(Frong LED 6EA, Brake light 2EA, Turn signal light 4EA)
Front fender
Front suspension
Sub battery
volt meter
(BLUE)
Front high power
LED operation switch
Emergency light
Turn signal light
Crackation
Index finger
throttle
(Accellerator)
Eye throttle LDC
instrument panel
Dualtron X User Manual

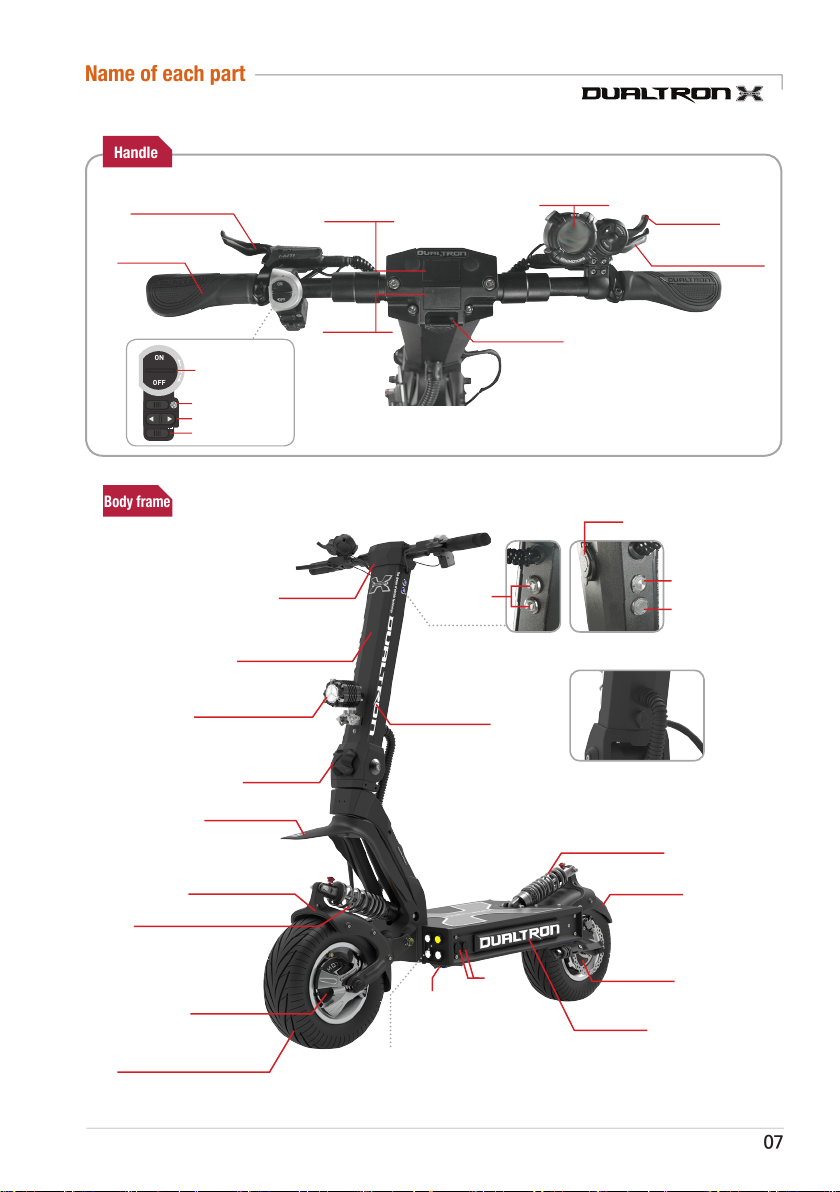

Name of each part
Body frame
Handle

08
※
Ejecting
the product
The chassis of this product is securely fixed on a steel
frame inside the box.
When lifting the product out of the box, two or more
people should open it safely considering the weight of
the product.
Caution
Assembly of instrument panel and brake
Checking the components inside of the box
Main body, Slow battery charger for 60V (1.75A) 1EA, Default tool, Swing arm fender, User manual
Make a note of the serial number.
Please note that there may be safety accidents such
as pinching of the body part of the folding part, cutting
of the cutting edge of the steel frame, or crushing due to
the fall of the product. Position the instrument panel and tighten the fixing
bolt.
Position the brake and tighten the fixing with 4mm
hex wrench.
The serial number can be used
to check information such as
date of purchase, warranty
period, etc., and product
information can be checked
even if the product is lost or
stolen.
Dualtron X User Manual
Product components

09

3.
4.
1. 2.
※
Caution

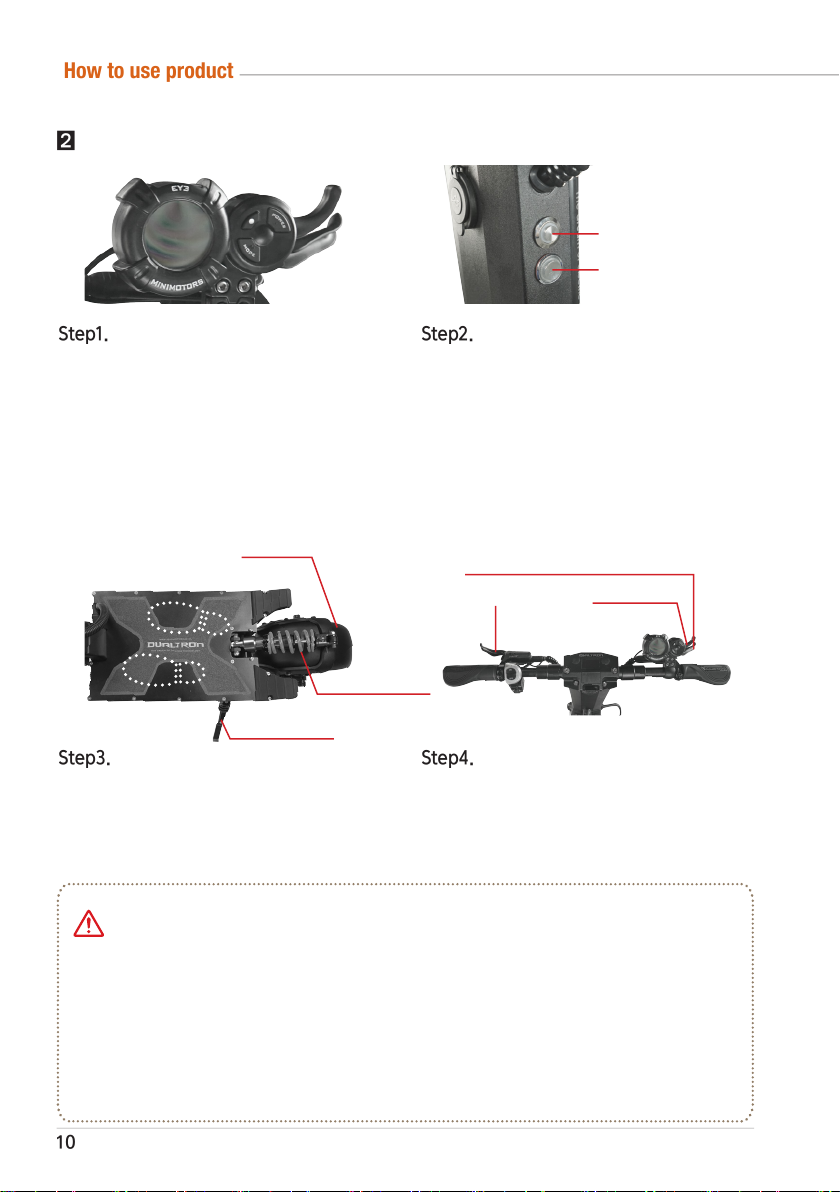

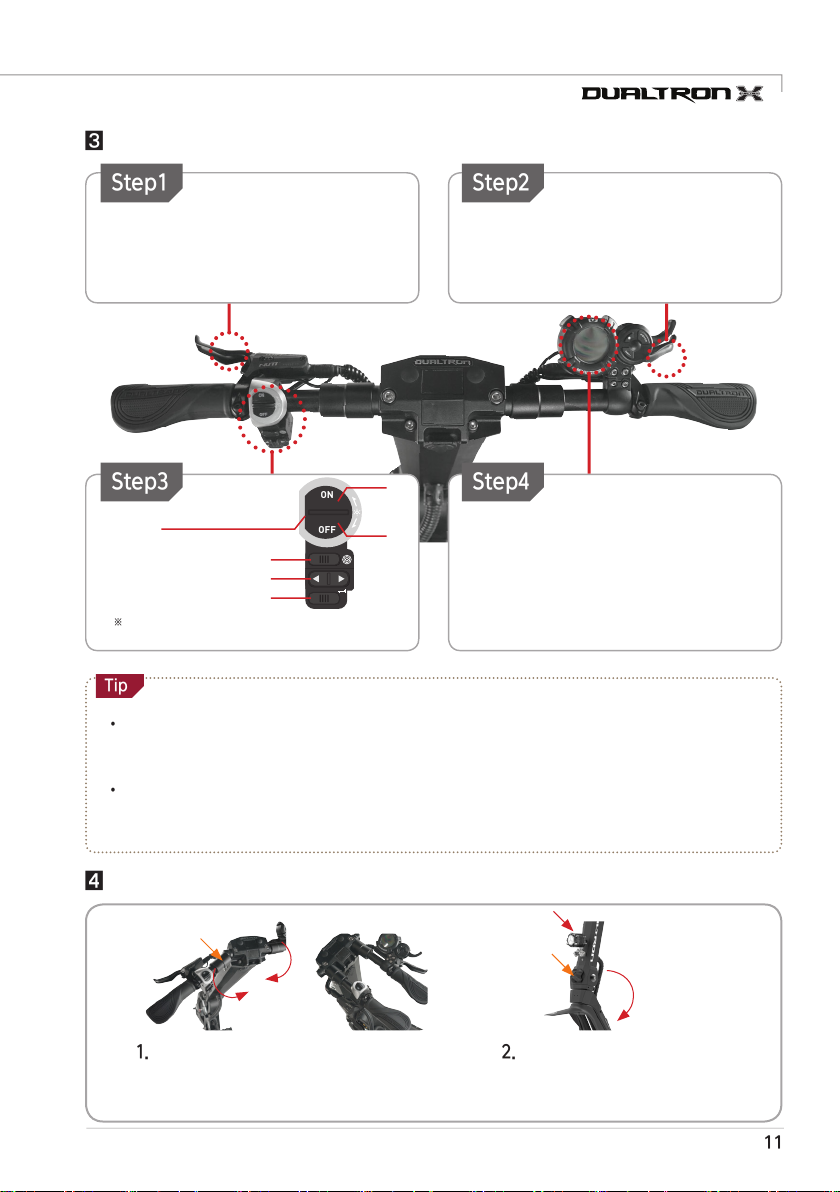

How to use the product
Production folding
Folding knob
Anti-twist screw
Adjustable screw
Locking the folding partsRaise the handle post (Steering tube)
Handlebar unfolding
Adjustable side stand
Lock the folding knob to hold it firmly and
check for the looseness during use.
Release the folding knob and push the.
handle post(steering tube) to the end.
Slide both handlebars all the way out.
For sate mounting of the product, side stand check and length adjustment are required.
Be careful not to loosen or break the anti-twist screw located on the top of the side stand.
According to the height of the product, the length of side stand
can be adjusted.
Loosen the length adjustment screw on the side stand and
remove it to the left or right side. Adjust the length based on the
height of the product and fix the adjustment screw firmly.
Dualtron X User Manual

10

Step3. Step4.
Step1. Step2.
Caution
Dualtron X User Manual
How to start
How to use product
Turning on the main switch
Stance for driving
Turn on the LED lamp
Acceleration and deceleration
When you turn on the product, press the POWER
button on the LCD instrument panel for 2
seconds. You can start driving by setting such as
departure mode, cruise mode, electronic brake
and ABS functions. When you finished, turn off
the LCD instrument panel and light power.
* The power of instrument panel will be turn off
automatically if you don’t use that for a while.
After tilting the kickstand, find a stable position
on the footrest and then hold the handle grip
comfortably. Be careful not to raise your foot
on the rear fender.
Before driving, be sure not to loosen the fastening part of the folding part or the handle
part and the main fixing part of the product.
Make sure that the folding knob is fully locked and the folding section is firmly secured.
Especially, please check the loose or damage in suspension arm fixing bolts, connecting the
suspension arm and swing arm before riding to prevent safety accidents.
Regardless of whether the throttle is operated or not, the motor sensor may continue to
operate, causing malfunctions such as sudden acceleration. In this case, holding the brake
lever to cancel the operation. This phenomenon may be caused by corrosion of the throttling,
immersion of the throttle, disconnection of the magnet, broken off levers, and breakage of the
spring. Do not bounce the throttle lever strongly.
Press the sub-battery power button on the
right side of the steering tube to turn on the
handle power. At this time, press the upper LED
lighting button to turn on the high power LED
and the steering tube bar.
Acceleration can be performed by using the
index finger throttle of the instrument panel
while driving, and the deceleration or stop can
be performed by holding the brakes on the
handle.
Index finger throttle
Rear fender
LED lamp button
Sub-battery power button
Side stand
Rear suspension
Brake B

11
ON
OFF
ON
OFF

Step1 Step2
Step4Step3
•
•
Tip

1. 2.
※
How to stop
Rear brake use
Check for safe braking
Fold handlebar Folding steering tube
Front brake use
Deceleration and braking with
electronic brake
Multi switch
Be sure to use the rear brake first for
decelerating when stopping while driving.
For safe stop, it is necessary to practice slow
down after deceleration with rear brake.
For safe braking, check whether the brake lever and disc caliper connection (wire damage, external breakage,
etc.) are damaged before and after driving, and check brake wear and looseness of brake inner core(Inner wire).
In the case of hydraulic brakes, it is also necessary to check the oil leakage or deficiency and always check that
the braking force is sufficient.
Due to various factors such as road surface condition and speed, it may not be possible to stop when brake
is operated as expected. The electronic brake and ABS functions are auxiliary functions to further increase the
braking force and used. The user should understand the function and expect the operation timing when use this
function.
Handlebar slider Folding knob
Rapid braking using the front wheel brake while
driving may risk overturning. When stopping, use the
rear wheel brake first to reduce the speed, and then
use the front wheel brake together to stop safely.
Please set whether the electronic brake is used
and strength among the detailed functions of the
instrument cluster before driving.
When the brake lever is operated while driving,
the electronic brake works together to increase
braking force.
Pull both handlebar sliders, then fold the
handlebars forward.
Loosen the folding knob, press down
firmly on the knob and lay the steering
tube down.
Front high power LED operation switch
Emergency light (Pressed-Flashing)
Turn signal light (Left, Right flashing)
Crackation(Press to crack the sound)
Additional function High power LED will blinks if you turn off
and turn on the front high power LED switch within 1 second.
On
Off
Product folding
Dualtron X User Manual

12
P
O
W
E
R
E
Y
E
M
O
D
E
00
00 : 00
Km/h 3
TIME
98
%
PAS
E
Y
E
00
00 :00
Km/h
VOL
3
TRIP ODO DST TIME CHA
98
%
PAS
E
Y
E
PA
0
Km/h
SET
98
%
E
Y
E
PA
3
Km/h
SET
98
%
E
Y
E
PA
5
Km/h
SET
98
%
E
Y
E
P3
0
Km/h 3
SET
98
%
PAS
E
Y
E
88
98
%
00 :0088888
Km/h
VOL
TRIP ODO DST TIME CHA
SET RPM OFF
PAS
Mp/h 8
[M]
⑥
⑦
⑨
①②③④ ⑤
⑧
P
O
W
E
R
M
O
D
E

P
O
W
E
R
E
Y
E
M
O
D
E
00
00 :00
Km/h 3
TIME
98
%
PAS
E
Y
E
00
00 :00
Km/h
VOL
3
TRIP ODO DST T IME CHA
98
%
PAS
E
Y
E
PA
0
Km/h
SET
98
%
E
Y
E
PA
3
Km/h
SET
98
%
E
Y
E
PA
5
Km/h
SET
98
%
E
Y
E
P3
0
Km/h 3
SET
98
%
PAS
E
Y
E
88
98
%
00 :0088888
Km/h
VOL
TRIP ODO DST T IME CHA
SET RPM OFF
PAS
Mp/h 8
[M]
⑥
⑦
⑨
①②③④ ⑤
⑧
P
O
W
E
R
M
O
D
E
P
O
W
E
R
E
Y
E
M
O
D
E
00
00 :00
Km/h 3
TIME
98
%
PAS
E
Y
E
00
00 :00
Km/h
VOL
3
TRIP ODO DST T IME CHA
98
%
PAS
E
Y
E
PA
0
Km/h
SET
98
%
E
Y
E
PA
3
Km/h
SET
98
%
E
Y
E
PA
5
Km/h
SET
98
%
E
Y
E
P3
0
Km/h 3
SET
98
%
PAS
E
Y
E
88
98
%
00 :0088888
Km/h
VOL
TRIP ODO DST T IME CHA
SET RPM OFF
PAS
Mp/h 8
[M]
⑥
⑦
⑨
①②③④ ⑤
⑧
P
O
W
E
R
M
O
D
E
P
O
W
E
R
E
Y
E
M
O
D
E
00
00 :00
Km/h 3
TIME
98
%
PAS
E
Y
E
00
00 :00
Km/h
VOL
3
TRIP ODO DST T IME CHA
98
%
PAS
E
Y
E
PA
0
Km/h
SET
98
%
E
Y
E
PA
3
Km/h
SET
98
%
E
Y
E
PA
5
Km/h
SET
98
%
E
Y
E
P3
0
Km/h 3
SET
98
%
PAS
E
Y
E
88
98
%
00 :0088888
Km/h
VOL
TRIP ODO DST T IME CHA
SET RPM OFF
PAS
Mp/h 8
[M]
⑥
⑦
⑨
①②③④ ⑤
⑧
P
O
W
E
R
M
O
D
E
P
O
W
E
R
E
Y
E
M
O
D
E
00
00 :00
Km/h 3
TIME
98
%
PAS
E
Y
E
00
00 :00
Km/h
VOL
3
TRIP ODO DST T IME CHA
98
%
PAS
E
Y
E
PA
0
Km/h
SET
98
%
E
Y
E
PA
3
Km/h
SET
98
%
E
Y
E
PA
5
Km/h
SET
98
%
E
Y
E
P3
0
Km/h 3
SET
98
%
PAS
E
Y
E
88
98
%
00 :0088888
Km/h
VOL
TRIP ODO DST T IME CHA
SET RPM OFF
PAS
Mp/h 8
[M]
⑥
⑦
⑨
①②③④ ⑤
⑧
P
O
W
E
R
M
O
D
E
P
O
W
E
R
E
Y
E
M
O
D
E
00
00 :00
Km/h 3
TIME
98
%
PAS
E
Y
E
00
00 :00
Km/h
VOL
3
TRIP ODO DST T IME CHA
98
%
PAS
E
Y
E
PA
0
Km/h
SET
98
%
E
Y
E
PA
3
Km/h
SET
98
%
E
Y
E
PA
5
Km/h
SET
98
%
E
Y
E
P3
0
Km/h 3
SET
98
%
PAS
E
Y
E
88
98
%
00 :0088888
Km/h
VOL
TRIP ODO DST T IME CHA
SET RPM OFF
PAS
Mp/h 8
[M]
⑥
⑦
⑨
①②③④ ⑤
⑧
P
O
W
E
R
M
O
D
E

TRIP
ODO
CHA
VOL
TIME

P
O
W
E
R
E
Y
E
M
O
D
E
00
00 :00
Km/h 3
TIME
98
%
PAS
E
Y
E
00
00 : 00
Km/h
VOL
3
TRIP ODO DST TIME CHA
98
%
PAS
E
Y
E
PA
0
Km/h
SET
98
%
E
Y
E
PA
3
Km/h
SET
98
%
E
Y
E
PA
5
Km/h
SET
98
%
E
Y
E
P3
0
Km/h 3
SET
98
%
PAS
E
Y
E
88
98
%
00 :0088888
Km/h
VOL
TRIP ODO DST TIME CHA
SET RPM OFF
PAS
Mp/h 8
[M]
⑥
⑦
⑨
①②③④ ⑤
⑧
P
O
W
E
R
M
O
D
E
P
O
W
E
R
E
Y
E
M
O
D
E
00
00 :00
Km/h 3
TIME
98
%
PAS
E
Y
E
00
00 :00
Km/h
VOL
3
TRIP ODO DST T IME CHA
98
%
PAS
E
Y
E
PA
0
Km/h
SET
98
%
E
Y
E
PA
3
Km/h
SET
98
%
E
Y
E
PA
5
Km/h
SET
98
%
E
Y
E
P3
0
Km/h 3
SET
98
%
PAS
E
Y
E
88
98
%
00 :0088888
Km/h
VOL
TRIP ODO DST T IME CHA
SET RPM OFF
PAS
Mp/h 8
[M]
⑥
⑦
⑨
①②③④ ⑤
⑧
P
O
W
E
R
M
O
D
E
Caution
Dualtron X User Manual

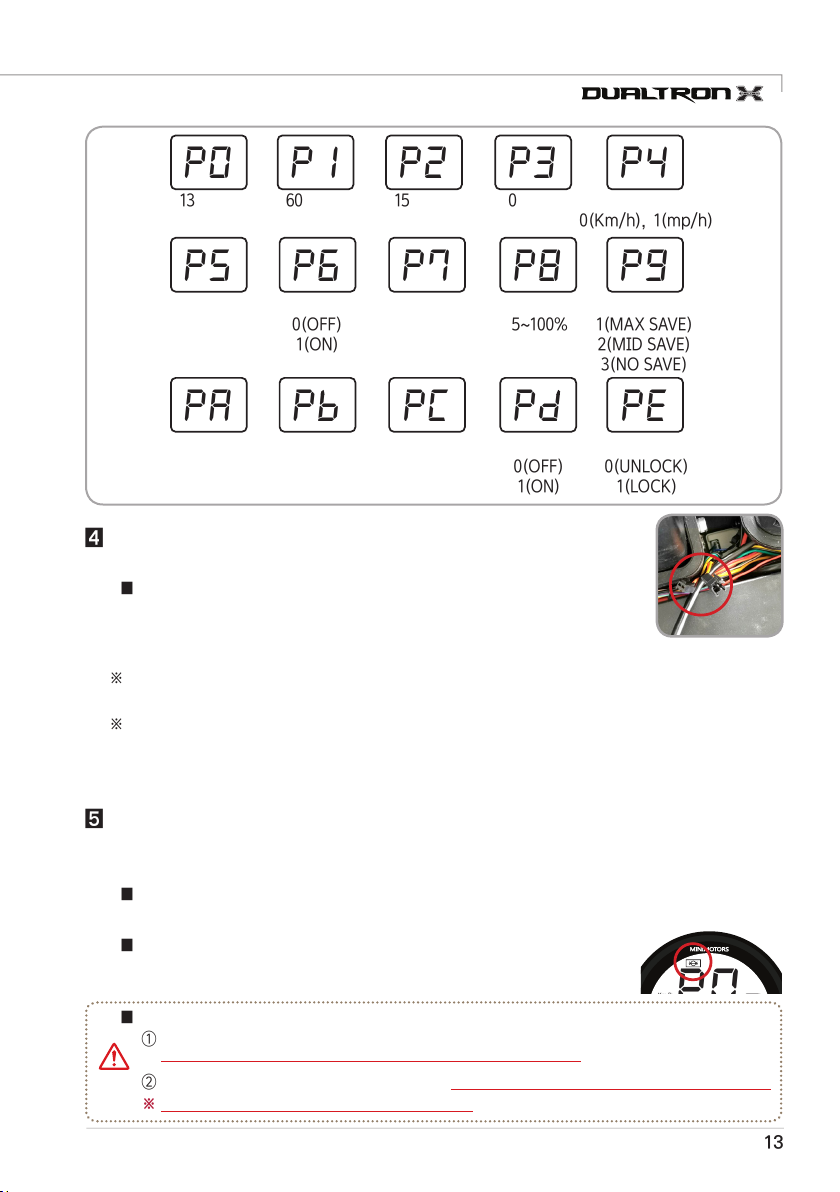

Speed step setting
Functions and settings for each main screen
Instrument panel detailed function
How to use the
instrument panel
While the instrument panel is on, press to set the speed step. The. setting is completed when the
selected speed step value is selected.
You can change the setting mode by turning on the power of the dashboard and pressing for 2~3 seconds.
* If you change the default setting values P0 (13), P1 (60), P2 (15), P3 (0),
correct information will not be displayed.
In the setting mode, press once to change the internal setting value
Can adjust with button.
mode can adjust with buttion.
Mode Discription
Current mileage (Press and hold ●button to reset to “0”)
Accumulated mileage
Not use
Current voltage (Volt)
Drived time
Speed
Speed step Power button
Mode button
Driving time
Setting mode
Setting value
Accelerator
index finger
throttle
Speed unit
Battery balance
* Blinks 3 times per 10
seconds when the remaining
batter power is 10%.
It blinks continuously when
the remaining battery power
is 0%.

13
■
■
■
①
②
※
※
※
■


00
00 : 00
Km/h
VOL
3
TRIP ODO DST T IME CHA
P0
00 : 00
Km/h 3
SINCE 1999
MINIMOTORS
P3
0
Km/h
SINCE 1999
MINIMOTORS
98
%
TRIP ODO DST T IME CHA
SET RPM OFF
SINCE 1999
MINIMOTORS
98
%
P0 P 1 P2 P3 P4
P9P5 P6 P8
P7
PA PCPb
Pb
P0
PE
13
5~100% 1(MAX SAVE)
2(MID SAVE)
3(NO SAVE)
0(OFF)
1(O N)
0(UNLOCK)
1(LOCK)
0(OFF)
1(O N)
60 15 0
0(Km/h), 1(mp/h)
(Fixed)
Caution
Start method
PE function (Rear motor lock setting)
The rear motor lock function (throttle :PD) is not activated at the factory.
Features of cruise mode (automatic driving)
The cruise control function allows you to maintain the driving speed automatically. Take advantage of cruise
features The advantage of being able to reduce fatigue when traveling long distances and to increase mileage of
driving due to constant speed driving.
When the rear PE sensor is connected, the standby current is consumed even if the throw-off phase PE function is turned off.
(For long term storage and uncharged, be sure to disconnect and store the connector of the rear motor sensor to prevent the
discharge of the product in advance)
If you turn off the power after setting the PE function, the PE function works. The PE function is automatically canceled when
the power is turned on again.
* To improve the quality and safety of connector and rear motor locking sensor, the part colors and specifications can be changed
without notification.
How to active PE function (Rear motor lock setting)
1. When you open the pedal of the product, the rear motor sensor (white) is located in the right
space which connects the stem headset and the chassis. To activate the function, connect the
disconnected connector.
2. After connecting the connector, reassemble the pedal and set the throttle PE function to “1(LOCK)”.
The start of the cruise function
Select the Cruise Mode section in the instrument panel and let go of the throttle for approximately 7 seconds.
The cruise function will start.
End of cruise function
When you hold and release the brake while cruise mode is in effect, the cruise mode is
automatically released
Precautions when using the cruise function
In case of cruise function, please ride in a position where brake can be used immediately so that cruise function is
canceled and braking is possible in preparation for safety situation while driving.
This product is always operated in dual drive mode and cancel of cruise mode is possible through throttle and brake.
Cancel of cruise mood through throttle is not recommended.
Electronic brake power Electronic brake power Auto off time setting Rear motor lock setting
ABS setting
Max output setting
Cruise mode Safety start Battery save
0(Acceleration start)
1(Kick start)
0 (Off)
~ 5 (Powerful)
0 (Off)
~ 5 (Brightest)
5-30 minutes
5 (Fixed)
(User adjust)
(Fixed )
Dualtron X User Manual
(Fixed ) (Fixed ) Speed unit

14


ABS OFF
P
O
W
E
R
E
Y
E
M
O
D
E
00
00 : 00
Km/h 3
TIME
98
%
PAS
E
Y
E
00
00 : 00
Km/h
VOL
3
TRIP ODO DST T IME CHA
98
%
PAS
E
Y
E
PA
0
Km/h
SET
98
%
E
Y
E
PA
3
Km/h
SET
98
%
E
Y
E
PA
5
Km/h
SET
98
%
E
Y
E
P3
0
Km/h 3
SET
98
%
PAS
E
Y
E
88
98
%
00 : 0088888
Km/h
VOL
TRIP ODO DST T IME CHA
SET RPM OFF
PAS
Mp/h 8
[ M ]
⑥
⑦
⑨
①②③④ ⑤
⑧
P
O
W
E
R
M
O
D
E
E
Y
E
0
Km/h
SET
98
%
E
Y
E
1
Km/h
SET
98
%
Pb
P0
Pb
P0
E
Y
E
0
Km/h
SET
98
%
E
Y
E
1
Km/h
SET
98
%
Pb
P0
Pb
P0
P
O
W
E
R
E
Y
E
M
O
D
E
00
00 : 00
Km/h 3
TIME
98
%
PAS
E
Y
E
00
00 : 00
Km/h
VOL
3
TRIP ODO DST T IME CHA
98
%
PAS
E
Y
E
PA
0
Km/h
SET
98
%
E
Y
E
PA
3
Km/h
SET
98
%
E
Y
E
PA
5
Km/h
SET
98
%
E
Y
E
P3
0
Km/h 3
SET
98
%
PAS
E
Y
E
88
98
%
00 : 0088888
Km/h
VOL
TRIP ODO DST T IME CHA
SET RPM OFF
PAS
Mp/h 8
[ M ]
⑥
⑦
⑨
①②③④ ⑤
⑧
P
O
W
E
R
M
O
D
E
P
O
W
E
R
E
Y
E
M
O
D
E
00
00 : 00
Km/h 3
TIME
98
%
PAS
E
Y
E
00
00 : 00
Km/h
VOL
3
TRIP ODO DST T IME CHA
98
%
PAS
E
Y
E
PA
0
Km/h
SET
98
%
E
Y
E
PA
3
Km/h
SET
98
%
E
Y
E
PA
5
Km/h
SET
98
%
E
Y
E
P3
0
Km/h 3
SET
98
%
PAS
E
Y
E
88
98
%
00 : 0088888
Km/h
VOL
TRIP ODO DST T IME CHA
SET RPM OFF
PAS
Mp/h 8
[ M ]
⑥
⑦
⑨
①②③④ ⑤
⑧
P
O
W
E
R
M
O
D
E
ABS ON
■
■
■
■
Anti-Lock Brake System : 10-2018-0045825
Caution
Caution
Setting of Electronic brake
How to use the
instrument panel
Displayed when
the brake lever
is operated
Electronic brake off Moderate intensity Maximum intenstiy
ABS function setting guide
All electric motorcycles are subject to sudden braking, causing the wheels to stop spinning (Tire
Lock). As a result, the slip of tire causes the driver to fall down, which can cause accidents. This
product is equipped with ABS brake function to hold the tire lock, enabling more secure braking
* ABS brake is an abbreviation of Anti-Lock Brake System. It uses the principle that maximum static friction force
is larger than kinetic friction, so that braking distance (distance from breaking to stopping) is shorter than that
of normal brake. It has the advantage that the vehicle does not slip well when wheel is rotating.andit is a brake
assist system that can stop more safely without wheel lock and slip
Electronic kick-board Patent application no.
Precautions when using electronic brake immediately after full battery charge
The electronic brakes do not operate when the battery is fully charged, so be sure to
check and operate this device. When the battery runs out, the electronic brake will operate
normally.
Precautions when using the ABS function
ABS has the advantage of being able to stop at the shortest braking distance that can be
obtained from the tires and road conditions. However, due to the principle of repeatedly
holding and releasing the brake several times in a second, a lot of vibration occurs in the
motor and the body. Repetitive vibration caused by this may cause frequent loosening of the
motor, rim, fixing part and body fixing bolt
ABS function ON
Set the ABS function part Pd of the dashboard to 1.
ABS function OFF
Set the ABS function part Pd of the dashboard to 0.
* Pd - When the ABS function is ON, the
PA- electronic brake can be operated at maximum,
and when the ABS function is canceled, the previously
set electromganetic brake operating value is applied.
Dualtron X User Manual

15
P
O
W
E
R
E
Y
E
M
O
D
E
00
00 : 00
Km/h 3
TIME
98
%
PAS
E
Y
E
00
00 : 00
Km/h
VOL
3
TRIP ODO DST TIME CHA
98
%
PAS
E
Y
E
PA
0
Km/h
SET
98
%
E
Y
E
PA
3
Km/h
SET
98
%
E
Y
E
PA
5
Km/h
SET
98
%
E
Y
E
P3
0
Km/h 3
SET
98
%
PAS
E
Y
E
88
98
%
00 : 0088888
Km/h
VOL
TRIP ODO DST TIME CHA
SET RPM OFF
PAS
Mp/h 8
[ M ]
⑥
⑦
⑨
①②③④ ⑤
⑧
P
O
W
E
R
M
O
D
E

②
④
⑤
⑥
⑦⑧⑨
* ①
* ③

■
■


5V 1A
5V 2.1A
■
■
Caution
Caution
Diagnosis
System error
Motor error
Accelerator error
Controller error
None
is displayed when driving at a certain speed while the cruise function is activated.
s displayed when the brake lever is operated. (When the indicator lights, the
accelerator does not operate.)
When turning on the LED, press the sub battery power button on
the right side of the steering to power on the handle. At this time,
you can turn on the LED by pressing the top LED lighting button.
USB charging port operates on sub battery power. You can easily charge your
mobile phone, Action Cam etc within the allowed output range.
The batter volt meter is installed as standard to check the battery voltage in real time.
Fault type Solution
* If the error information
appears, immediately stop
using the product and take the
scooter to the service center
before use. Excessive use
can result in damage to the
product and safety accidents.
Self-diagnosis through Instrument panel
LED function guide
Voltmeter function guide
USB charging port usage guideline
Product Feature Guide
LED light system Cover precautions
Cracks in the LED cover (* solvent cracks) can be caused by direct sunlight or the solutions used for
product maintenance such as polish, oil or wax. When using or servicing the product, always pay
attention not to touch the LED cover with a direct sunlight, solution containing polish, or alcohol.
*Solvent cracks are minute cracks that occur when a solvent touches the surface of the resin molding.
Solvents include not only chemicals such as alcohol, but also oils, waxes, and cosmetics that are
commonly used in daily life.
USB charging port using precaution
Connecting a high-power device that is not allowed to the USB charging port may damage the USB
charging port and the product.
* Always close the USB protective cap after use to prevent moisture and foreign matter from penetrating.
Main battery volt meter
The main battery voltage is turned on when the instrument panel is powered up.
Sub battery volt meter
The sub battery volt meter turned on with pressing the sub battery
power button on the right side of the steering tube.
LED Lamp
button
Main battery
volt meter
(GREEN)
Sub battery
volt meter
(BLUE)
Sub battery
power button
Dualtron X User Manual

16
 : ※
5. 6.
1. 2.
3. 4.
7.
8.
9.
10.
11.
12.
13.
14.

1.
3.
4.
2. ●
●
Caution
Warning
Dualtron X User Manual

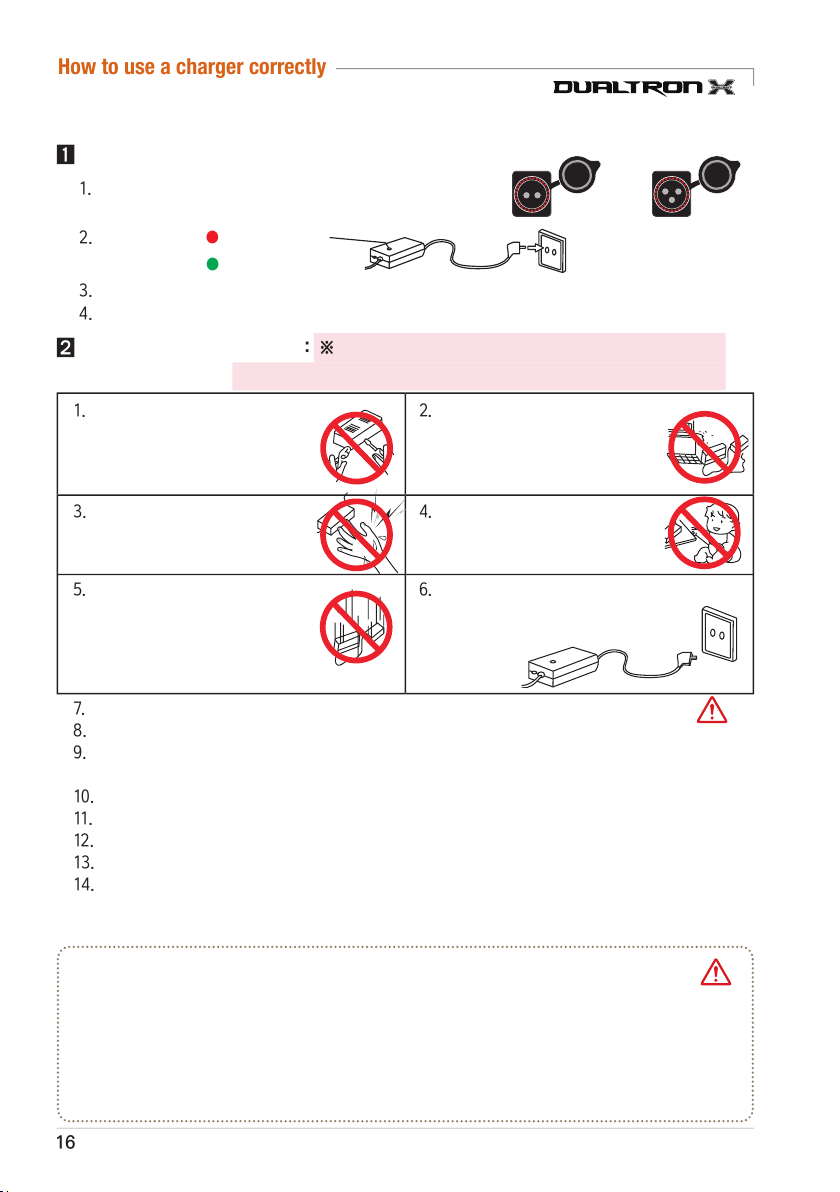

Basic charging method
Basic charging method
How to use a charger correctly
2P charging port (Handle
part 1EA, Right side of
body 1EA)
3P rapid charing port
(Left side of body 2EA)
Open the chargingport cap and connect it to the connector
of the charger and connect it to the household outlet.
Charing status indicator
Be sure to close the chargingport cap when driving or storing except when charging.
Manufacturers and sellers are not
responsible for any problems arising
from any disassembly, modification,
or mixing with other chargers.
The charger is not waterproof. It is
thoroughly controlled to prevent
moisture from entering the charger.
If the charger lamp does not light,
charger fall, strong external shock,
long time charge, or cable cover
damage, discontinue use immediately
and contact the service center
Use only genuine charger.
Do not insert conductors into the charging port.
Do not touch the plug for about 10 seconds after unplugging the charger. There is a risk of electric shock from
instantaneous discharge.
Do not remove the terminal during charging. Charge the internal circuit of the charger and cause malfunction.
Do not operate the product during charging.
Charging terminals should be firmly contacted during charging and should not be used if terminals are corroded or damaged.
When disconnecting the charger from the product, it is safe to hold the terminal without holding the wire.
After charging is completed, be sure to store the charger unplugged from the product. If the charger is
connected for a long time more than a few days, there is a risk of an accident due to overcharging.
*Short-circuit Caution: Be careful not to short-circuit the battery because short-circuiting of
the battery is very dangerous.
* Overcurrent Note: The battery of this product is designed to automatically shut off the power
supply to protect the battery when the over current is over 120A (main battery) / 15A (sub battery).
* Low Voltage Caution: The battery of this product is designed to be automatically shut off when the
voltage drops below 36.8V(main battery) / 40V(sub battery). Do not use the product in the low voltage
state.
The charger is forbidden to be used
in places subject to high humidity,
heat, flammable materials, confined
spaces, or where there is no
ventilation such as in a car.
Children and pets should not be
allowed to approach the charger when
they come into contact with them, as
they may cause an electric shock.
Unplug the charger when you are away from the
home for long periods of time.
When connecting the connector to the charging port, metallic sparks due to voltage difference may be splashed, but this is normal.
Failure of the charger and abnormal conditions can cause electric
shock and fire. Learn the correct usage and prevent safety accidents in advance.
(Red) Charging
(Green) Charging complete

17
Lithium
①
②
①
②
③
④
⑤
①
②
①
②
③
Danger
Battery disassembly prohibited
Battery disassembly, modification and repair are not covered under warranty.
Dualtron X User Manual
Safety precautions for Lithium battery
1. Care Lithium batteries should be protected from direct exposure to children and pets.
2. Performance  Lithiumbatteryisaectedbyexternal temperature.Inwinter,whenthe
temperatureislow,theperformanceofthebatteryistemporarilydeterioratedand
themileageandpoweroutputisreduced.
Lithium battery has a characteristic that discharge performance is reduced by more
than15%whencharging/discharging300timesormore.Ifusagetimeisshortened
duetolongusage,itshouldbereplacedwithagenuineonethroughthenearestpoint.
3. Charging Lithium battery should be used only with genuine battery and charger supplied
fromthemanufacturer.Anyproblemscausedbyuseofbatterymadebythemanufacturer,
mixeduse,orusingthechargerarenotcoveredbythemanufacturer.
 Chargingthelithiumbatterywithanon-genuinechargermaycausemalfunctionorre
 Thelithiumbatteryshouldbe chargedinawell-ventilated,dryplaceandaroundthe
chargerinaplacewherethereisnoinammablematerial.
   Lithiumbatteryshould bechargedat 0 ~45 ℃and dischargedwithin -10~ 60℃
for main battery, charged at 0~50℃ and discharged within -20~75℃  for sub battery.
Chargingordischargingatatemperatureoutsidethisrangemaycausemalfunction,reor
explosion.
 Incaseofmovingfromcoldoutsidetowarmindoor,pleasechargeitafter1~2hours.
This is to prevent condensation from occurring inside the product due to temperature
dierence.
4. StorageLithiumbatteriesshouldbekeptawayfromsnow,rainanddirectsunlight.Do not storeor
chargetheminatrunkorhotroom.Selectadryplaceandstoreatroomtemperature(10~20℃).
 Whenstoringformorethan3months,chargetheremainingbatterylevelto70~80%(donot
store full charge
5. Troulbe symptom, safety Lithium battery should be discontinued immediately if it is damaged
orleakageofbattery,sourodor,appearancedeformation,etc.,andcontacttheplaceof
purchasetogettechnicalsupportandservice.
 Ifoverheat,smokeorignitionisdetectedinaproductwithlithiumbattery,immediately
stopcharginganduse,movetheproductoutdoorsassoonaspossible,andthenuseare
extinguishertoevolve.Donotspraywaterorimmersetheproductinordertoevolve,which
is more dangerous.
 Lithiumbatterypackhasveryhighenergydensity,soifyouchargethebatteryforalong
time in case of short-circuit, leakage, bad battery, etc., there is a possibility of ignition.
Therefore,youshouldavoidchargingforalongtimewithoutaperson,andchargingmust
bedonewhilethepersonisawarethattheriskofunexpectedrecanbeavoided.
6. Misuse If the lithium battery is short-circuited or the polarity is changed, or if the battery is
impacted,malfunctionorremayresult.Ifyouthinkthatthebatteryhasbeenimpacted,
youshouldstopchargingandusingitandvisitthenearestpointforinspection.
7. Water inowItshouldbecontrolledtopreventwaterinowintothelithiumbattery.Thereisarisk
ofreorelectricshockifthechargerisconnectedwhilemoistureispresent.
8 . CautionDisconnectthebatteryfromthemainunitandprohibitrecharging,reinstalling,orusing
other applications.
9. Disposal DisposalWhen disposing of the lithium battery, the battery should be separated from
the product at the point of purchase or near the point so that the charge and discharge
terminalsarenotshort-circuited.Disposeofitasindustrialwastewhendisposingofit.

18

● ●
●
● ●
●
● ●
●
Danger
Dualtron X User Manual
Safety guidelines before driving
Required checking before use
• Operate the accelerator throttle lever about 2 ~ 3 times to check whether it returns to
the home position.
• Be careful that excessive throttle leaning and manipulation of the throttle can cause
malfunction due to internal parts damage.
• Check the fastening condition and clearance of the handle.
• The brake braking force is sufficient to check the operating condition. If the braking force is significantly
lowered, use it immediately after inspection and action.
• Check that the brake pad is not worn, that the cable is not loose, that the cable is not damaged, or that there
is no leakage in the case of hydraulic brakes
• If there is an unusual feeling or noise during operation, check for breakage, wear and
deformation of the inner wire of the brake cable.
• Check that the bolts and nuts of the brake fixing parts are not loose, and that the disc is
not deformed or damaged.
• Check the front and rear tires for wear and punctures and check the proper air pressure for the
tire. When the shortage of air is shortened, the possibility of puncture increases, so check always.
• It is necessary to judge the replacement time by observing the appearance of the tire such as
tire damage, uneven wear
• Make sure that the bolts and nuts of all parts of the product are tight and free from
loosening. Check the fastening condition and clearance of the folding and fixing parts of
the handle (folding knob, swing arm, suspension arm, swing arm bolt, etc.).
Unusual heating of the motor abnormal noise is generated
When other driving is judged to be unreasonable Brake braking status error
Product smoke, ignition, sour odor Error messages on the instrument penal
When the throttle is not returned to its original position When rain or wet with water or in a similar situation
When it is not fully charged or when the mileage drops significantly after fully charged (Battery explusion potential
because of battery cell failure and cell balance destruction)
If you encounter any of the following situations while driving, stop driving immediately and
contact your nearest branch or service center for proper measures. If you provide pictures and
videos to get accurate diagnosis, professional counseling is available.
1. Check throttle and handle
2. Check brake and cable
3. Check tire pressure and uniaxial condition
4. Tightening check such as folding part and handle part
* In this case, stop driving immediately

19

①
CHECK LIST
①
②
③
④
DUALTRON X
1 HANDLE BODY / 20,000
2 STEERING TUBE / 20,000
3 BATTERY / 20,000
4
①
③
②
③
Caution
No. Parts name
Other chassis components
inside
inside
Replacement cycle / km
If the exterior is damaged or
deformed
3 years
3 years
2 years
Dualtron X User Manual

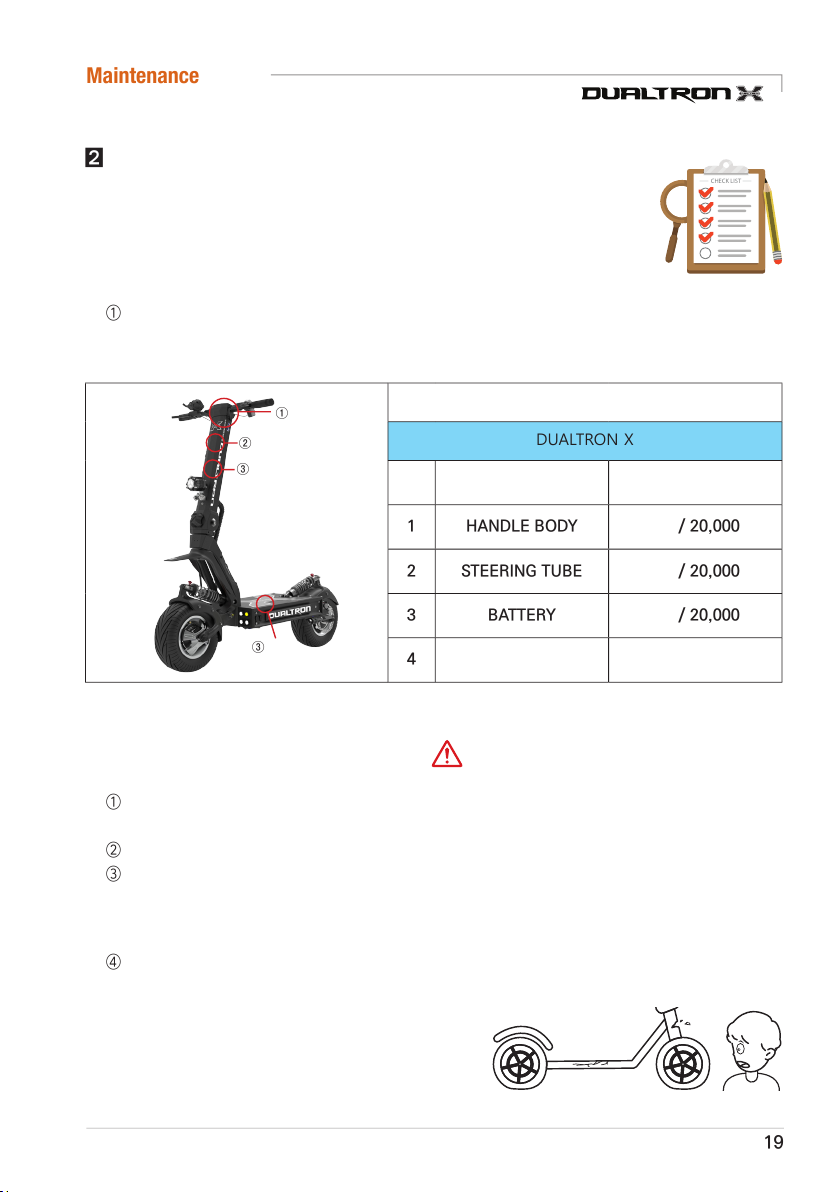

Maintenance
Maintenance and self-maintenance
Electric products can be damaged by various factors. The life span of each part
varies depending on driving habits and driving environment. Parts that exceed the
service life may cause accidents. Let’s manage various parts and prevent safety
accidents in advance.
The components and suspension parts of the car swing arm, tires, tubes, wheels, bearings,
headset bearings, discs, brake pads, cables and folding parts, various brackets and other
consumable parts requiring periodic inspection and always check.
Replace parts that may be damaged by external driving environment, such as deformation of
parts, cracks due to compression, and signs of exceeding fine gold or life expectancy.
If the product is exposed to strong sunlight for a long time, discoloration may occur.
In case of heavy driving such as normal jumps, slight impacts such as turning, collision, etc., when
driving frequently or for a long time in a poor road condition or driving for thousands of kilometers
or more, fatigue breakdown phenomena Please check and replace the parts replacement
schedule for each product for safety.
Fatigue breakdown and maintenance parts may differ from the example conditions depending on
the driving environment and the operating conditions. Also check parts other than the replacement
cycle (maintenance parts) at all times to check for any signs of abnormality.
1. Check the replacement timing of consumable parts
2. External damage inspection by driving environment
Fatigue failure parts and maintenance parts replacement cycle

20

※
※
Dualtron X User Manual

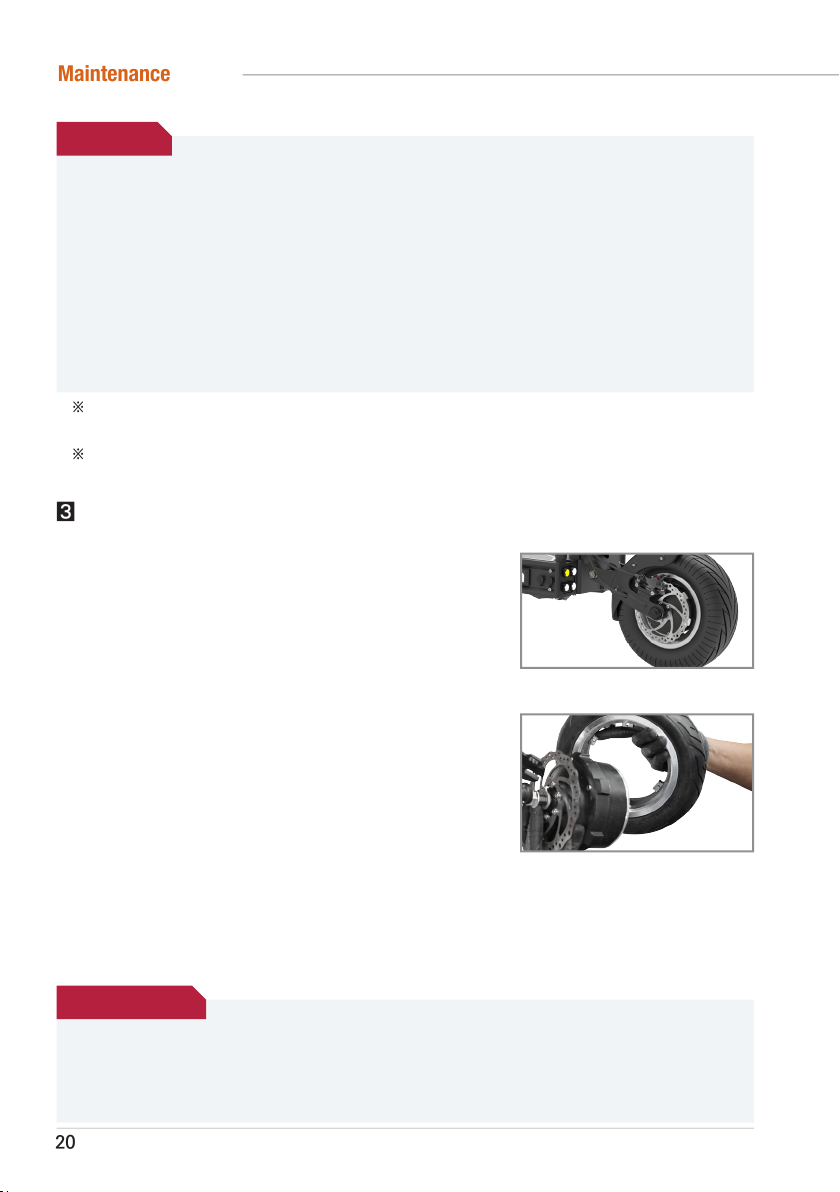

Maintenance
Important
notice
Easy-wheel
system
Maintenance by self-maintenance
1. Brake adjustment method
2. Tire replacement method
• While driving, metal sounds from motor vibrations, tremors from brake discs and pads, etc., may occur
in the accelerating load range (torsional vibration). (About 150~30Km, depends on the product) This is a
phenomenon in which vibrations occur at a certain rpm of all rotating bodies (fans, cars, ships, etc.) that are
not abnormal. However continuous noise or a loud metal sound, there is a possibility of deformation such as
bending of the disk. You need a regular checkup.
• After driving, be careful as there is a risk of burns due to the heat on the motor and brake (especially the disc
rotor) side.
• Please note that the bolts of motor, rim, motor shaft and other fixing parts can be loosened by ABS function.
• When removing and assembling the side cover for checking and repairing for the light, charging port, power
switch, etc. please use standard bolt and tight carefully to avoid the sheathing of wiring. If tightening with a
bolt other than the standard bolt (long bolt), the battery case(battery cell) may be fatally damaged, resulting
in a fire or safety accident.
• Completely separable hub motor design By designing the rim and hub motor to be completely
separable it is possible to replace only the rim without replacing the entire motor when the rim
breaks, thus improving the maintenance and maintenance of the product. (Patent)
• After completing the tire replacement, try a simple test run with the appropriate air pressure.
• When puncture is occurred, it is possible to use repair by using patch seal. Please use the tire while
checking and checking continuously
Due to the nature of the product, the folds and joints where movement occurs can be easily
damaged during use.Especially, this can happen when operating with inaccurate behavior or form.
When checking the product, keep the two wheels off the ground and work on a safe work surface.
If the brake is used for a long time such as downhill or if
the brake braking force decreases due to overheat of oil,
malfunction of oil hose, loosening of the brake lever or oil
leakage, etc. stop using it and
please visit the service center before use.
1. After removing the calipers, remove the motor using 18mm
spanner and disassemble the wheel and motor fastening bolts.
2. Remove the wind from the tires and press the tires off the
wheel.
3. Replace the tires and complete the assembly of the tires in
reverse order. Tighten the assembled tire to fit the body, then
tighten the screws and bolts.
* Caution
