Minimotors DUALTRON X-LIMITED User manual
PRODUCT MANUAL
Personal Mobility
X-limited
The pictures shown are for illustration purposes only. Actual product may vary.
01
Diagram And Functions
Handlebar Functions
Charging ports
(2 pcs)
Side LED
Logo LED
Power switch (sub battery)
Front motor cover with light
Front motor
13inch ultra wide tubeless tire
Front shock
Front arm
Front fender
Front lights
Front turn signal
Headlight
Running headlight
Horn
Rear fender
Heatsink
Rear brake
Disc
Rear motor
Kick stand
Rear shock
Footboard
Damper
Rear turn signal
Brake light
Folding knob
Multi switch
Multi switch
Rear brake lever
voltage Accelerator
Accelerator
Front brake lever
USB port
Side LED
Running headlight switch
Dashboard
Lampholder
Name Function Operation method
ON/OFF
02
Specifications
Product
Rider
Machine
Dispaly
Brake
Model
Length × Width × Height
Folded: Length × Width × Height
Net Weight
Max. load
Recommended Age
Wheelbase
Ground Clearance
Drive System
Max. Speed
Theoretical Range
Typical Range
Max. Slope
Traversable Terrain
Operating Temperature
Storage Temperature
Type
Size Of LCD
Type
Quantity Of Pistons
Electric Brake
DUALTRON X LIMITED
1450x648x1400mm
1450x358x775mm
82.9kg
150kg
14–60 years old
Approx.1100mm
Approx.190mm
Two-wheel drive
Around 110km/h
Around 170km
Around 140km
Around 70% (35°)
Asphalt/flat pavement; obstacles < 5 cm; gaps < 5 cm
-5 to 45°C
-20 to 50°C
EY4 LCD Bluetooth Display(Ability to connect to DUALTRON APP)
95*36mm, about 4.2 inches
Hydraulic brake
4-pistons
ABS&EBS (Indicating the battery temperature exceeds 55°C,BMS start protection program,
ABS/EBS fails.）
Item Parameter
03
Specifications
*Disclaimer: this is not a legal opinion or legal advice. The information provided herein (including in the App) is for your convenience and information purpose only. It is not intended
to cover every piece of law and/or regulation that may be applicable to this product. DUALTRON explicitly hereby disclaims any and all warranty and/or representation, express or
implied, related to completeness, accuracy, up-to-date of such information. DUALTRON reserves the right but not obligation to correct, implement and/or update the information. You
shall use the information at your own risk. It is your sole responsibility to learn and understand any and all the law and/or regulation, requirements, prohibition, restriction and/or
limitation imposed by either law, government authority, court, private party or the others that may apply to your use of this product.
*Theoretical Range: tested while riding with a full battery, 75 kg load, 25°C, at the speed of 25 km/h on average on pavement.
*Typical Range: tested while riding with a full battery, 75 kg load, 25°C, at the speed of 50 km/h on average on pavement. (Some of the factors that affect range include speed,
number of starts and stops, ambient temperature, etc. )
*Max.Speed: tested while riding with a full battery,75kg load,25°C,straight road on flat road with no wind. (Some environmental factors can affect max speed,uneven roads, crooked
roads, temperature, wind, etc.)
Battery
Motor
Charger
Tire
Suspension
Duration of Charging
Battery Capacity
Charging Ambient Temperature
Battery Management System
Motor Type
Nominal Power
Max. Power
Input Voltage
Max. Output Voltage
Type
Tire Pressure
Material
Type
Spring Rate
Approx. 15 h(main battery) Approx. 4 h(sub battery)
84V60Ah 11V20Ah
0 to 40°C (Battery temperature exceeds 55°C,BMS start protection program..)
Over-heating, short circuit, over-current, over-discharge and over-charge protection
BLDC Hub Motor
2000W*2
6000W*2
100-120V/200-240V~ 100–240V~
95.45V 4A(main battery charger) 12.6V 5A(sub battery charger)
13 inch wide tubeless tire
32 psi
Rubber
Hydraulic spring shock
950 ibs/in.
04
Packing List
Accessories
Main battery charger x1
sub battery charger x1
Multitool x 1
Screw Cap x 4 Manual
Directional Damper x 1
M6 Screw x 4
M8 Screw x 2
M6 Elastic Gasket x 4
M8 Elastic Gasket x 2
M6 Flat Gasket x 4
05
Assembly
① Unfold the steering tube and lock the folding knob firmly. ③Install the screws for headlight/damper with the included
multitool or An M6 Allen key.
DO NOT use an electric screwdriver!
② Install the two M8 screws with the multitool. （Folding knob may
break and then fall down.The screws are very necessary.）
06
Damper Adjustment
Adjustment Knob Adjustment Knob
Assembly
Unfold the handlebars,slide the folding handle lock into position to
fix the handle firmly. During use, if the handle is slightly shaken,
please unscrew the adjustment screw a little.
Turn the adjustment knob to the right to increase the shock rebound resistance.
Turn the adjustment knob to the left to decrease the shock rebound resistance.
Note: The shock is set to the default position before leaving the factory. Please
follow the steps above to adjust it according to your riding habits.
07

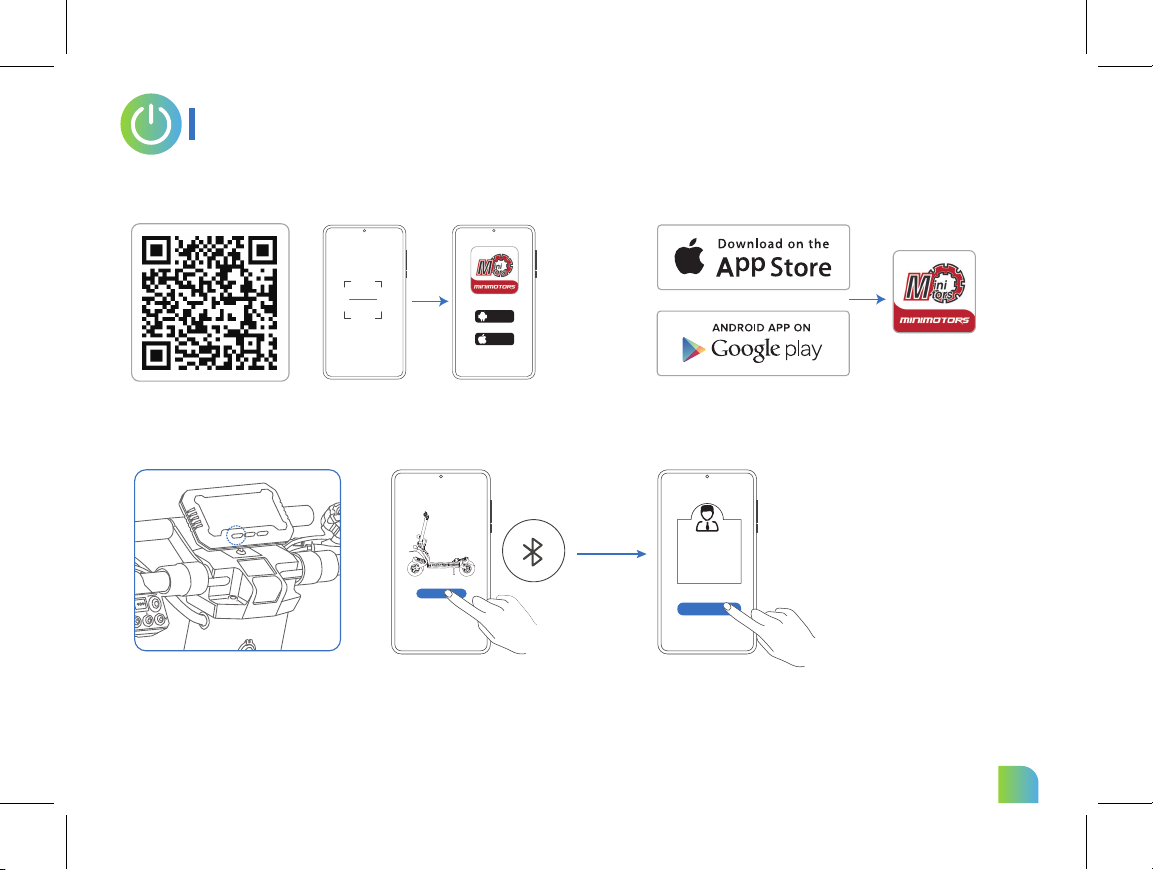

Bluetooth Connection
APP Download Guide
1.Scan the QR code to download the APP.
Power on the scooter.
1.Search "DUALTRON" in the application and download it,
and register / log in.
2.Choose the mobile phone system that suits you to install,and register / log in.
Dualtron
sure
Android
iphone
Click “Search vehicle” and pair with your
scooter. * The scooter is connected to the
Dualtron app when the Bluetooth symbol
lights up.
Search vehicle
Select bind as owner
POWER
MODE
SET
08
How to Ride
POWER MODE
SET
Slow down by releasing the throttle and
squeezing brake levers.
POWER MODE
SET
POWER MODE
SET
Put both feet on the footboard and stand stably. Pull the
throttle to speed up. * This scooter starts at an initial speed
of 0 km/h. Note: Disable the Zero start-up feature via the
Dualtron app. When disabled, the motor will not engage
until the scooter reaches 1.9 mph (3 km/h).
When hard braking, serious danger or
injury may occur. Maintain a moderate
speed and look out for potential hazards.
1.
4. 5.
2. 3.
姣渚
Power on the scooter and choose the
speed mode. * Please choose the speed
mode before riding! Note:Speed mode
can be choose via the Dualtron app.
Stand on the footboard with one foot
and push off with the other foot to start
gliding. *Make sure you have disabled
SAFE mode.(SAFE mode setting via
Dualtron app.Deactivate safe mode by
squeezing brake lever.)
To turn, shift your body and turn the
handlebar slightly.
* Please watch out for road conditions,
sufficient turning space is required.
POWER MODE
SET
09
Folding
Unscrew the folding knob and M8 screws, then fold the
steeing tube. Risk of pinching!
Fold the handlebars,slide the folding handle lock out of
position to release handles.
Install back the folding knob prevent loss.
Note:Please keep these two M8 screws, they must be
installed when unfolding
Lift up the bottom of the front fork and rear foot pedestal to
carry if necessary. Make sure the scooter is carried by two or
more people. Risk of pinching!
