Mitsubishi Electric PAR-30MAAU User manual

English
MENU HOLD ON
OFF
RETURN SELECT
Prior to use, thoroughly read the instructions in this manual to use the product correctly.
Retain for future reference.
Make sure that this manual, Installation Manual, and Initial Setting Manual are passed on to
any future users.
To ensure safety and proper operation of the remote controller, the remote controller should
only be installed by qualified personnel.
CITY MULTI Control System
MA Remote Controller PAR-30MAAU
Instruction Book
Français

Mode Temp.
Setback
MENU HOLD ON
OFF
RETURN SELECT

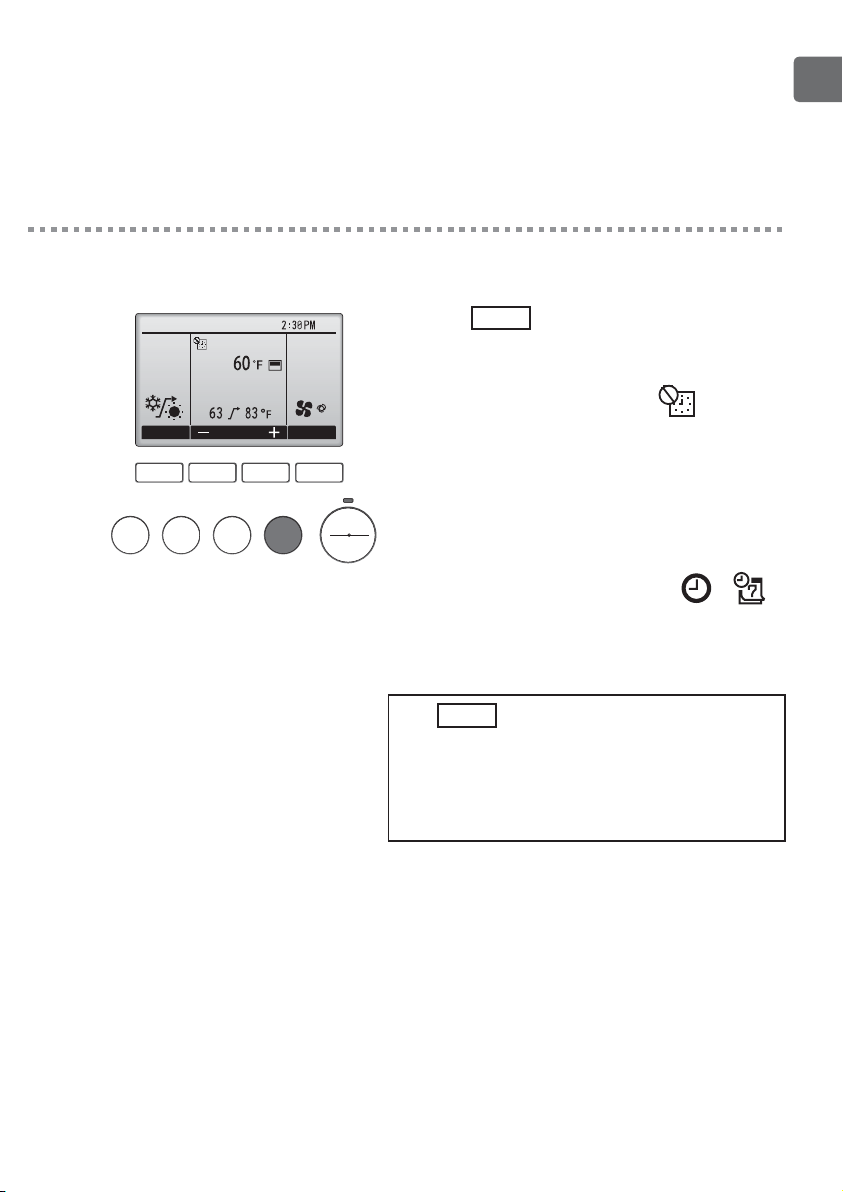

HOLD ON
OFF
RETURN SELECT
Set temp.
Room
Product features
Feature 1
Large, easy-to-see display
Full-dot LCD display with large characters
for easy viewing
Feature 2
Simple button arrangement
Feature 3
Large, easy-to-press buttons
Buttons are arranged according
to usage to allow for intuitive
navigation.
Frequently used buttons are larger
than other buttons to prevent
unintended pressing of other
buttons.

Contents
Safety precautions .................................... 4
Names and functions of controller components ......... 6
Controller interface ....................................................6
Display.......................................................................8
Basic operations .......................................... 12
Power ON/OFF........................................................12
Operation mode, temperature, fan speed,
and HOLD settings ..........14
Maintenance .................................................50
Troubleshooting ............................................52
Specifications ................................................ 54
Filter information......................................................50
Error information......................................................52
Read before operating the controller ......... 10
Menu structure.........................................................10

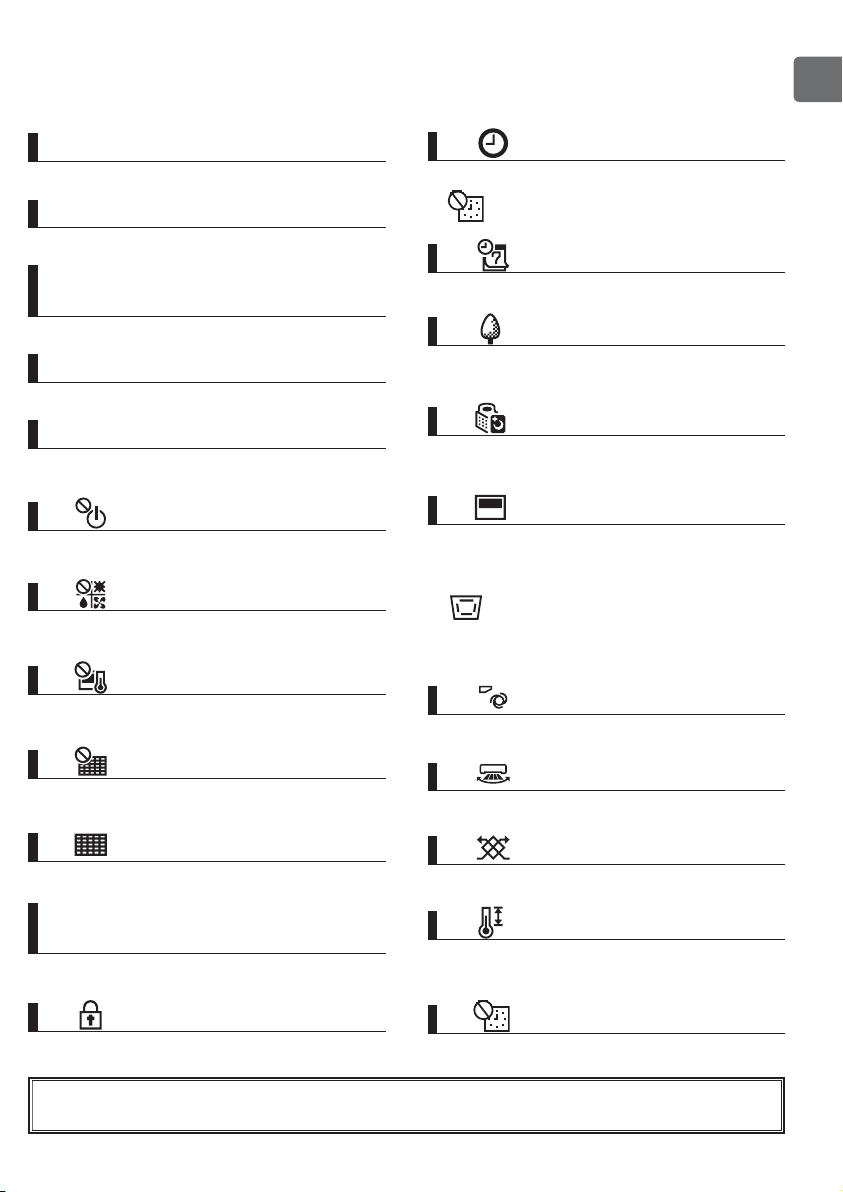

Icon explanations..................................................... 11
Main menu list .........................................................20
Navigating through the Main menu..........................22
Vane•Louver•Vent. (Lossnay)..................................24
High power ..............................................................26
Clock........................................................................27
Timer (On/Off timer).................................................28
(Auto-Off timer)..............................................30
Weekly timer............................................................32
OU silent mode........................................................34
Restriction................................................................36
Energy saving..........................................................40
Manual vane angle ..................................................44
Main display.............................................................46
Contrast...................................................................47
Language selection .................................................48
Navigating through the menu ......................20
Controller operation-Function settings .......24

4
WARNING
• Thoroughly read the following safety precautions before using the unit.
• Observe these precautions carefully to ensure safety.
CAUTION
Indicates a risk of death or serious injury.
Indicates a risk of serious injury or structural damage.
WARNING
Safety precautions
• After reading this manual, pass it on to the end user to retain for future reference.
• Keep this manual for future reference and refer to it as necessary. This manual should be made available
to those who repair or relocate the controller. Make sure that the manual is passed on to any future
users.
General precautions
To reduce the risk of electric shock, malfunctions,
smoke or fire, do not operate the switches/buttons or
touch other electrical parts with wet hands.
To reduce the risk of shorting, current leakage,
electric shock, malfunctions, smoke, or fire, do not
wash the controller with water or any other liquid.
Do not install the unit in a place where large
amounts of oil, steam, organic solvents, or corrosive
gases, such as sulfuric gas, are present or where
acidic/alkaline solutions or sprays are used
frequently. These substances can compromise
the performance of the unit or cause certain
components of the unit to corrode, which can result
in electric shock, malfunctions, smoke, or fire.
When disinfecting the unit using alcohol, ventilate
the room adequately. The fumes of the alcohol
around the unit may cause a fire or explosion when
the unit is turned on.
To reduce the risk of injury or electric shock, before
spraying a chemical around the controller, stop the
operation and cover the controller.
To reduce the risk of injury or electric shock, stop
the operation and switch off the power supply before
cleaning, maintaining, or inspecting the controller.
If any abnormality (e.g., burning smell) is noticed,
stop the operation, turn off the power switch, and
consult your dealer. Continued use of the product
may result in electric shock, malfunctions, or fire.
Properly install all required covers to keep moisture
and dust out of the controller. Dust accumulation and
water can cause electric shock, smoke, or fire.
CAUTION
To reduce the risk of fire or explosion, do not place
flammable materials or use flammable sprays
around the controller.
To reduce the risk of damage to the controller, do not
directly spray insecticide or other flammable sprays
on the controller.
To reduce the risk of environmental pollution, consult
an authorized agency for proper disposal of remote
controller.
To reduce the risk of electric shock or malfunctions,
do not touch the touch panel, switches, or buttons
with a pointy or sharp object.

5
To reduce the risk of injury and electric shock, avoid
contact with sharp edges of certain parts.
To avoid injury from broken glass, do not apply
excessive force on the glass parts.
To reduce the risk of injury, wear protective gear
when working on the controller.
Precautions for moving or repairing the controller
WARNING CAUTION
The controller should be repaired or moved only by
qualified personnel. Do not disassemble or modify
the controller.
Improper installation or repair may cause injury,
electric shock, or fire.
To reduce the risk of shorting, electric shock, fire,
or malfunction, do not touch the circuit board with
tools or with your hands, and do not allow dust to
accumulate on the circuit board.
Additional precautions
To avoid damage to the controller, use appropriate
tools to install, inspect, or repair the controller.
To avoid discoloration, do not use benzene, thinner,
or chemical rag to clean the controller. To clean the
controller, wipe with a soft cloth soaked in water with
mild detergent, wipe off the detergent with a wet
cloth, and wipe off water with a dry cloth.
This controller is designed for exclusive use with the
Building Management System by Mitsubishi Electric.
The use of this controller for with other systems or
for other purposes may cause malfunctions. To avoid damage to the controller, provide protection
against static electricity.

6

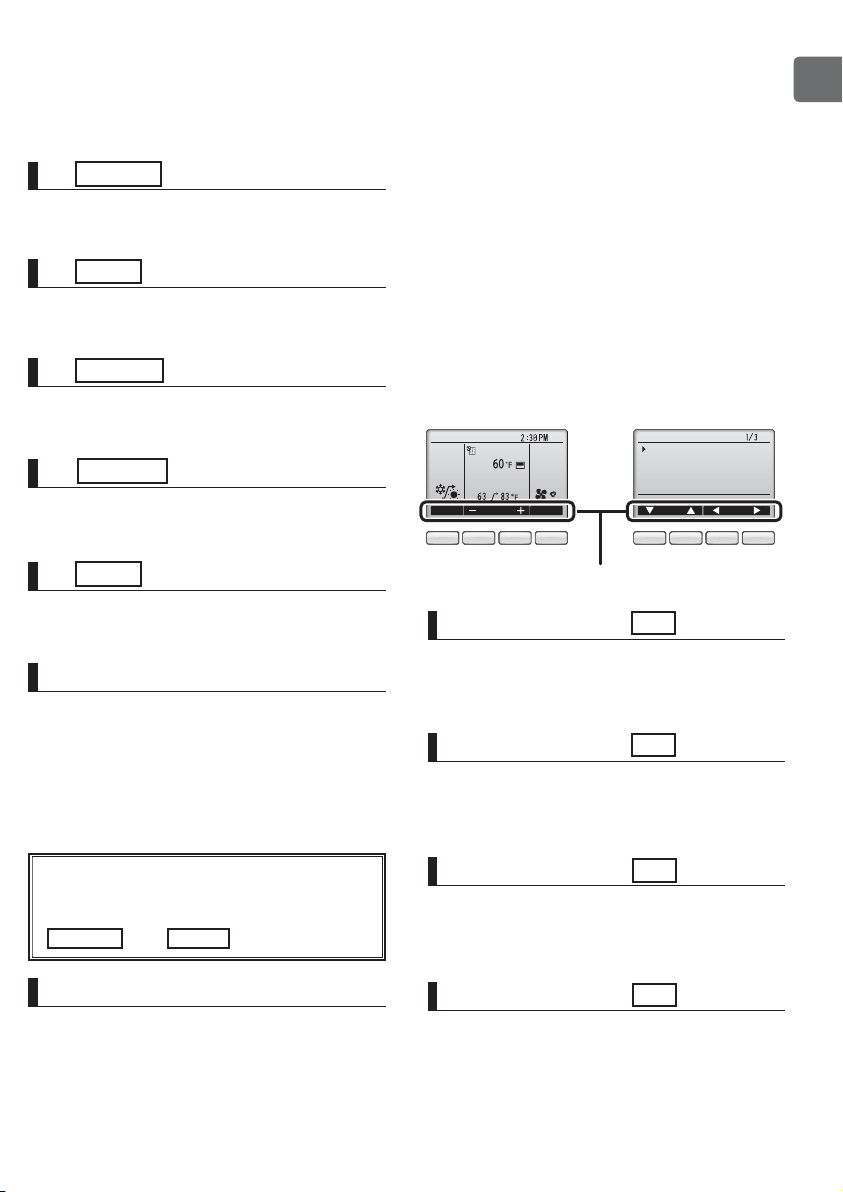

Names and functions of controller components
MENU HOLD ON
OFF
RETURN SELECT

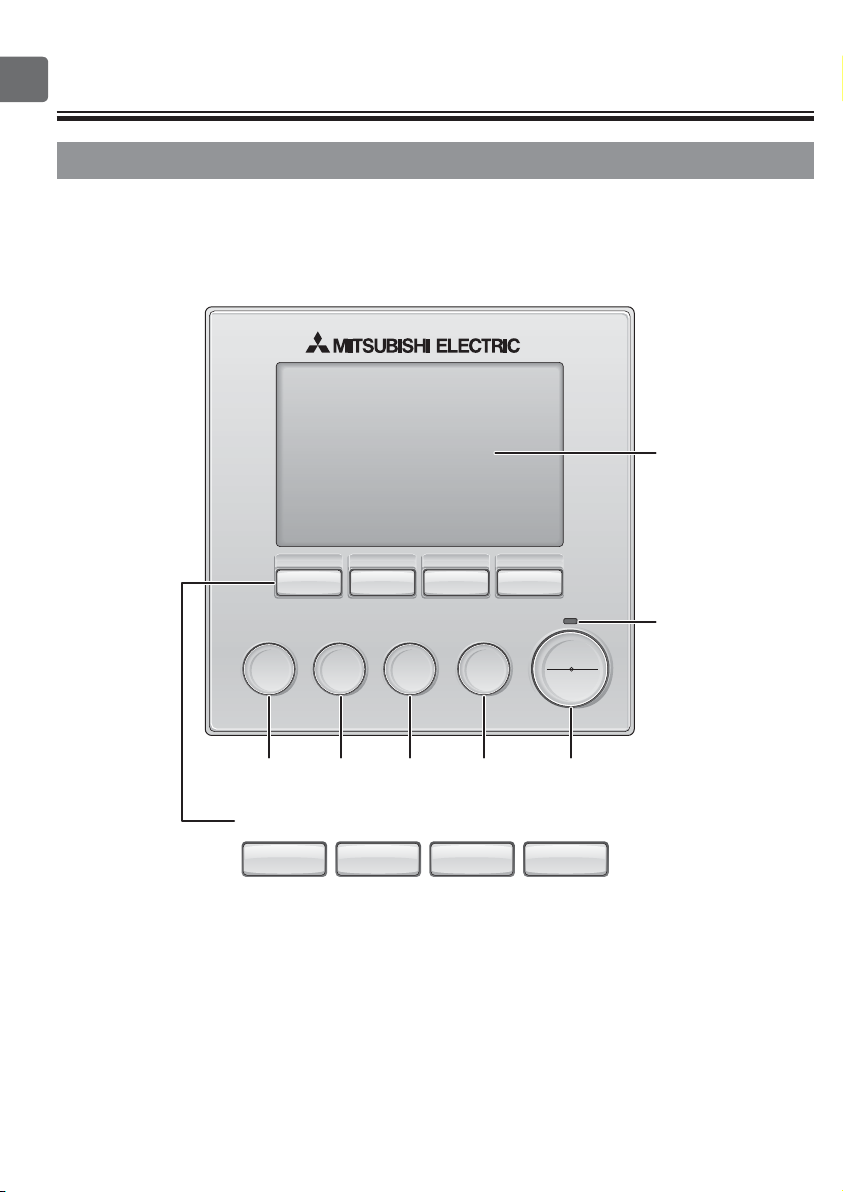

Controller interface
Function buttons
6
7
1345
890a
2

7
Press to turn ON/OFF the indoor unit.
1ON/OFF button
This lamp lights up in green while the unit
is in operation. It blinks while the remote
controller is starting up or when there is
an error.
Press to save the setting.
Main display: Press to change the operation
mode.
Main menu: Press to move the cursor down.
Press to return to the previous screen.
Main display : Press to decrease temperature.
Main menu: Press to move the cursor up.
Press to bring up the Main menu.
Main display : Press to increase temperature.
Main menu: Press to go to the previous page.
Operation settings will appear.
When the backlight is off, pressing any
button turns the backlight on and it
will stay lit for a certain period of time
depending on the screen.

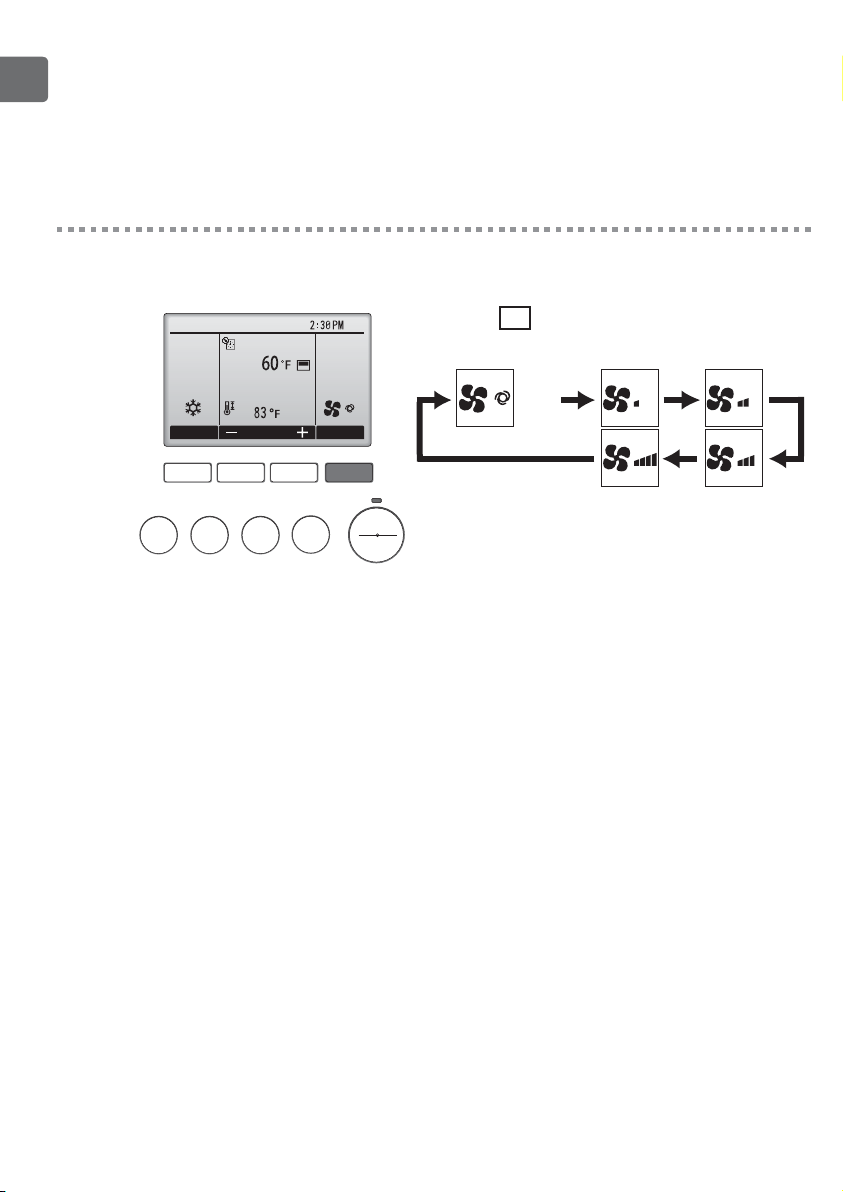

Main display : Press to change the fan speed.
Main menu: Press to go to the next page.
7ON/OFF lamp
3SELECT button
8Function button F1
4RETURN button
9Function button F2
5MENU button Page 22
0Function button F3
6Backlit LCD
aFunction button F4
When the backlight is off, pressing any
button turns the backlight on and does
not perform its function. (except for the
ON/OFF and HOLD buttons)
Set temp.
Fri
Mode Temp. Fan
Auto
Room
Setback
Main
Main display: RETURN
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
The functions of the function buttons
change depending on the screen.
Refer to the button function guide that
appears at the bottom of the LCD for
the functions they serve on a given
screen.
When the system is centrally
controlled, the button function guide
that corresponds to the locked button
will not appear.
Main display Main menu
Function guide
890a 890a
Press to enable/disable the Hold function.
2HOLD button

8
Set temp.
Fri
Mode Temp. Fan
Auto
Fri
Mode Temp. Fan
Auto
Room
Set temp.
Setback
Setback
Room
Names and functions of controller components
Display
The main display can be displayed in two different modes: "Full" and "Basic."
The factory setting is "Full." To switch to the "Basic" mode, change the setting
on the Main display setting. (Refer to page 46.)
Full mode
Basic mode
* All icons are displayed for
explanation.
1
a
3
4
5
j
i
4
3
hgfed
cl
b
6
8
0
1
a
7
9
k
5
2
2
l

9
Fan speed setting appears here.
4Fan speed Page 18
Appears while the units are operated in the
energy-save mode.
Appears while the outdoor units are operated in
the silent mode.
Preset temperature appears here.
Appears when the ON/OFF operation is centrally
controlled.
Current time appears here.
Appears when the buttons are locked.
Indoor unit operation mode appears here.
Appears when the operation mode is centrally
controlled.
ePage 40
fPage 34
2Preset temperature Page 16
6
bPage 38
1Operation mode Page 14
7
Indicates the vane setting.
hPage 24
Indicates the louver setting.
Indicates the ventilation setting.
Appears when the On/Off timer is enabled.
appears when the Hold function is enabled.
iPage 25
jPage 25
cPage 29
Indicates when filter needs maintenance.
Appears when the filter reset function is centrally
controlled.
Appears when the preset temperature is centrally
controlled.
0Page 50
9
8
Appears when the Weekly timer is enabled.
dPage 32
Appears when the preset temperature range is
restricted.
kPage 36
Functions of the corresponding buttons appear
here.
5Button function guide
Appears when the built-in thermistor on the
remote controller is activated to monitor the
room temperature (a).
appears when the thermistor on the
indoor unit is activated to monitor the room
temperature.
g
Most settings (except ON/OFF, mode, fan speed, temperature) can be made from the Menu
screen. (Refer to page 22.)
3Clock
(See the Initial Setting Manual.)
Current room temperature appears here.
aRoom temperature
(See the Initial Setting Manual.)
Appears when the Hold function is enabled.
lPage 19

10
Page 24
Page 26
Page 28
Page 30
Page 32
Page 34
Page 36
Page 38
Page 40
Page 42
Page 50
Page 52
Refer to the Instructions Manual that
came with the automatic elevating panel.
Page 44
Page 27
Page 46
Page 47
Refer to the Installation Manual.
Refer to the Installation Manual.
Refer to the Initial Setting Manual.
Refer to the Installation Manual.
Page 48
Read before operating the controller
Menu structure
Main menu
Press the
MENU button.
Move the cursor
to the desired
item with
the F1 and
F2 buttons,
and press
the SELECT
button.
Vane•Louver•Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Restriction
Energy saving
Filter information
Error information
Maintenance
Initial setting
On/Off timer
Auto-Off timer
Temp. range
Operation lock
Auto return
Schedule
Auto descending panel
Manual vane angle
Clock
Main display
Contrast
Display details
Auto mode
Administrator password
Language selection
Setback mode

11
Icon explanations
F1 F2 F3 F4
Timer
Enter administrator password
Select: SELECT
Cursor
Not all functions are available on all models of indoor units.
Service
Test run
Input maintenance info.
Function setting
Lossnay
Check
Self check
Maintenance password
Remote controller check
Refer to the indoor unit Installation
Manual.
Refer to the indoor unit Installation
Manual.
Refer to the Installation Manual.
Refer to the Installation Manual.
Refer to the indoor unit Installation
Manual.
Refer to the Installation Manual.
Refer to the Installation Manual.
Refer to the Installation Manual.
Controller operation
Timer P
The table below
summarizes the square
icons used in this manual.
The administrator password must be entered on the password input screen to
change settings. There is no settings that can skip this process.
F1 : Press to move the cursor left.
F2 : Press to move the cursor right.
F3 : Press to decrease the value by 1.
F4 : Press to increase the value by 1.
*Changes cannot be made unless the correct password is
entered.
Indicates settings that can be
changed only while the units
are in operation.
Indicates settings that can be changed
only while the units are not in operation.
Indicates settings that can be
changed only while the units
are operated in the Cool,
Heat, or Auto mode.
Indicates functions that are not available
when the buttons are locked or the
system is centrally controlled.
P
ON
OFF

12
Power ON/OFF
Basic operations
ON
OFF
Press the ON/OFF button.
The ON/OFF lamp will light up in green, and the
operation will start.
Button operation
ON
OFF
Press the ON/OFF button again.
The ON/OFF lamp will come off, and the operation will
stop.
ON
OFF

13
Settable preset temperature range
The settable temperature range varies with the model of indoor units.
Operation status memory
Remote controller setting
Operation mode Operation mode before the power was turned off
Preset temperature Preset temperature before the power was turned off
Fan speed Fan speed before the power was turned off
Operation mode Preset temperature range
Cool/Dry 67 ~ 87 ºF (19 ~ 30 ºC)
Heat 63 ~ 83 ºF (17 ~ 28 ºC)
Auto 67 ~ 83 ºF (19 ~ 28 ºC)
Setback [Upper limit] 67 ~ 87 ºF (19 ~ 30 ºC) *
[Lower limit] 53 ~ 79 ºF (12 ~ 26 ºC) *
Fan Not settable
The minimum difference between the upper and lower limits is 8 ºF (4 ºC)
*

14
Operation mode, temperature, fan speed,
and HOLD settings
F1 F2 F3 F4
Auto
Mode Temp. Fan
Fri
Room
Cool
Set temp.
MENU HOLD ON
OFF
RETURN SELECT
Press the F1 button to go through the operation
modes in the order of "Cool, Dry, Fan, Auto,
Setback, and Heat." Select the desired operation
mode.
• Operation modes that are not available to the connected
indoor unit models will not appear on the display.
Cool Dry Fan
Auto Heat Setback
ON
What the blinking mode icon means
The mode icon will blink when other indoor units in the same refrigerant system (connected to the same
outdoor unit) are already operated in a different mode. In this case, the rest of the unit in the same
group can only be operated in the same mode.
Button operation
Operation mode

15
Setback mode

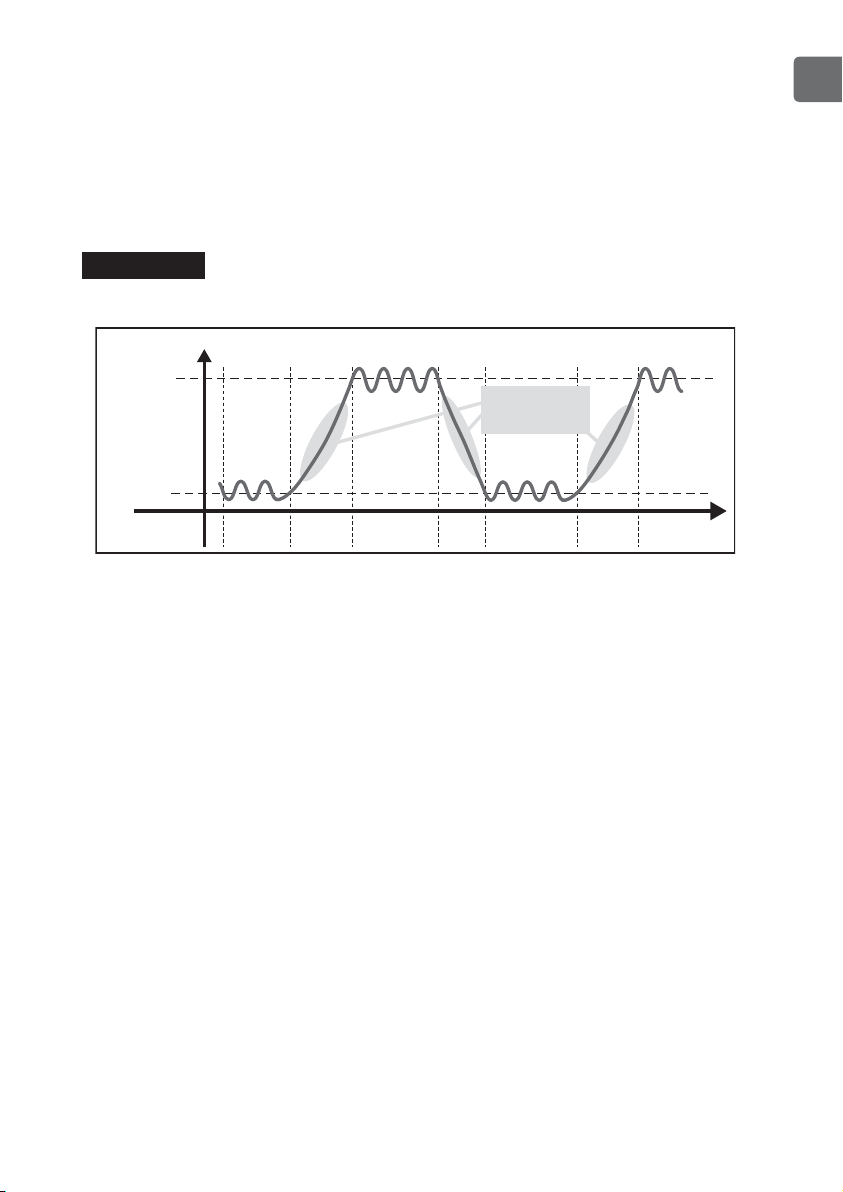

The setback function automatically switches the operation mode between cooling and
heating to maintain the room temperature within the set temperature range.
The following figure shows the operation patterns of the unit that the setback operation is executed.
*The status of the air conditioning units do not reflect the mode.
HEAT FAN* FAN* FAN*COOL HEAT COOL
Lower limit
temperature
Upper limit
temperature
Night Daytime
During setback operation
Night Daytime
Room temperature
The room temperature
changes corresponding
to the change in the
outside temperature.
Notes on setback operation
• The setback mode can be set from this remote controller only in the systems that have the following type of units:
· Unit that features simultaneous cooling and heating functions: PURY/PQRY series
· Unit that features simultaneous cooling and heating functions with the use of external heaters
(Field supply): PUHY series with external heater
Depending on the production month, the simultaneous cooling and heating function is limited on some PUHY units.
For the availability of this function, contact a local sales representative.
Type of units other than the types above cannot be operated in the setback mode. In this case, set “No” in the
Setback mode setting. Refer to the Initial Setting Manual for details about Setback mode setting.
For PUHY series of units which do not have simultaneous cooling and heating function with the use of external
heaters, make sure to use TC-24A for the setback mode.
When using both TC-24A and PAR-30MAAU in a system, make a setting for the setback function only from one of
them. Do not make a setting from both of them.
• When the setback operation is performed on the cooling-only units, the upper/lower limit temperature can be set, but
only the upper limit temperature is controlled in the operation.
• If the Operation mode changeover limit is set from the system controller, the Setback mode will be canceled, and the
Fan mode will be set.
• If the Maintenance or Service function has started, the Setback operation will not switch the operation mode, and the
operation mode will remain the same as the one before the Maintenance or Service function has started.

16
F1 F2 F3 F4
Set temp.
MENU HOLD ON
OFF
RETURN SELECT
Auto
Mode Temp. Fan
Fri
Room
Cool
Press the F2 button to decrease the preset
temperature by 1ºC (1ºF), and press the F3
button to increase.
• Refer to the table on page 13 for the settable
temperature range for different operation modes.
• Preset temperature range cannot be set for Fan/
Ventilation operation.
Preset temperature
When the operation mode is NOT "Setback"

17
When the operation mode is "Setback"
F1 F2 F3 F4
Auto
Mode Temp. Fan
Fri
Room
Setback Set temp.
MENU HOLD ON
OFF
RETURN SELECT
The current setting (the upper/lower limit
temperature) will appear.
Press the F2 or F3 button to go to the setting
screen.
Set temp.
Lower limit
temperature Upper limit temperature
F1 F2 F3 F4
MENU HOLD ON
OFF
RETURN SELECT
Set Temp.
Set Temp.
Changes saved
Select: SELECT
Main display: RETURN
Cursor Temp.
Move the cursor to the upper or lower limit
temperature with the F1 or F2 button.
Increase or decrease the value for the selected
item with the F3 or F4 button, and press the
SELECT button.
• Refer to the table on page 13 for the settable
temperature range for different operation modes.
A confirmation screen will appear.
Navigating through the screens
• To go back to the Main menu .......... MENU button
• To return to the Main display .......... RETURN button

18
F1 F2 F3 F4
Auto
Mode Temp. Fan
Fri
Room
Cool Set temp.
MENU HOLD ON
OFF
RETURN SELECT
Press the F4 button to go through the fan
speeds in the following order.
•The available fan speeds depend on the models of connected
indoor units.
•Fan speed can be changed even when the buttons are locked
or when the system is centrally controlled.
Auto
Fan speed

19
F1 F2 F3 F4
Auto
Mode Temp. Fan
Fri
Room
Setback Set temp.
MENU ON
OFF
RETURN SELECT
HOLD
Press the HOLD button to enable/disable the
Hold function.
If the Hold function is enabled, the following
functions will be prohibited, and will
appear.
• ON/OFF timer
• Auto-Off timer
• Weekly timer
• Automatic return to the preset temperature
When the Hold function is enabled, /
will disappear.
Hold
The HOLD button works ONLY when the
Main display is displayed, and does not work
while the setting for the upper/lower limit
temperature for the Setback operation is being
made.

20
Navigating through the menu
Main menu list
Setting and display
items Setting details Reference page
Vane•Louver•Vent.
(Lossnay) Use to set the vane angle. •Select a desired vane setting from five different settings.
Use to turn ON/OFF the louver.
•Select a desired setting from "ON" and "OFF."
Use to set the amount of ventilation.
•Select a desired setting from "Off," "Low," and "High."
24
High power Use to reach the comfortable room temperature quickly.
•Units can be operated in the High-power mode for up to 30
minutes.
26
Timer On/Off
timer Use to set the operation On/Off times. •Time can be set in 5-minute increments.
* Clock setting is required.
28
Auto-Off
timer Use to set the Auto-Off time. •Time can be set to a value from 30 to 240 in 10-minute increments.
30
Weekly timer Use to set the weekly operation On/Off times.
•Up to eight operation patterns can be set for each day.
* Clock setting is required.
* Not valid when the On/Off timer is enabled.
32
OU silent mode Use to set the time periods in which priority is given to quiet
operation of outdoor units over temperature control. Set the
Start/Stop times for each day of the week.
•Select the desired silent level from "Normal," "Middle," and "Quiet."
* Clock setting is required.
34
Restriction Temp.
range Use to restrict the preset temperature range. •Different temperature ranges can be set for different operation
modes.
36
Operation
lock Use to lock selected functions. •The locked functions cannot be operated.
38
Energy
saving Auto return Use to get the units to operate at the preset temperature after performing energy-save operation for a specified time period.
•Time can be set to a value from 30 and 120 in 10-minute
increments.
* This function will not be valid when the preset temperature ranges
are restricted.
40
Schedule Set the start/stop times to operate the units in the energy-save
mode for each day of the week, and set the energy-saving rate.
•Up to four energy-save operation patterns can be set for each day.
•Time can be set in 5-minute increments.
•Energy-saving rate can be set to a value from 0% and 50 to 90% in
10% increments.
* Clock setting is required.
42
