Mitsubishi Electric Q66DA-G User manual

User’s Manual
(Hardware)
Q66DA-G
Thank you for buying the Mitsubishi general-purpose programmable
controller MELSEC-Q Series.
© 2006 MITSUBISHI ELECTRIC CORPORATION
Channel Isolated
Digital-Analog Converter Module
Prior to use, please read both this manual and detailed manual
thoroughly and familiarize yourself with the product.
MODEL Q-66D/A-G-U-HW
MODEL
CODE 13JY12
IB(NA)-0800362-E(0908)MEE

A-1
SAFETY PRECAUTIONS
(Always read these instructions before using this equipment.)
Before using this product, please read this manual and the relevant manuals
introduced in this manual carefully and pay full attention to safety to handle the
product correctly.
The instructions given in this manual are concerned with this product. For the
safety instructions of the programmable controller system, please read the user's
manual for the CPU module to use
In this manual, the safety instructions are ranked as "DANGER" and "CAUTION".
Note that the " CAUTION" level may lead to a serious consequence according
to the circumstances. Always follow the instructions of both levels because they
are important to personal safety.
Please save this manual to make it accessible when required and always forward
it to the end user.
[Design Precautions]
Indicates that incorrect handling may cause
hazardous conditions, resulting in death or severe
injury.
Indicates that incorrect handling may cause
hazardous conditions, resulting in medium or slight
personal injury or physical damage.
CAUTION
Do not bunch the control wires or communication cables with the main circuit
or power wires, or install them close to each other.
They should be installed 100 mm (3.94 inch) or more from each other.
Not doing so could result in noise that may cause malfunction.
At power ON/OFF, voltage or current may instantaneously be output from the
output terminal of this module.
In such case, wait until the analog output becomes stable to start controlling
the external device.
DANGER
CAUTION

A-2
[Installation Precautions]
CAUTION
Use the programmable controller in an environment that meets the general
specifications given in the User's Manual of the CPU module being used.
Using this programmable controller in an environment outside the range of
the general specifications may cause electric shock, fire, malfunction, and
damage to or deterioration of the product.
While pressing the installation lever located at the bottom of module, insert
the module fixing tab into the fixing hole in the base unit until it stops.
Improper installation may result in malfunction, breakdown or the module
coming loose and dropping. After mounting the module to the base unit
securely hold the module with module fixing bracket.
Tighten the screws within the range of specified torque.
If the screws are loose, it may cause the module to fallout, short circuits, or
malfunction.
If the screws are tightened too much, it may cause damage to the screw and/
or the module, resulting in fallout, short circuits or malfunction.
Be sure to shut off all phases of the external power supply used by the
system before mounting or removing the module.
Not doing so may cause damage to the module.
Do not directly touch the conductive area or electronic components of the
module.
Doing so may cause malfunction or failure in the module.

A-3
[Wiring Precautions]
CAUTION
Always ground the FG terminal for the programmable controller.
There is a risk of electric shock or malfunction.
Tighten the screws within the range of specified torque.
If the screws are loose, it may cause the module to fallout, short circuits, or
malfunction.
If the screws are tightened too much, it may cause damage to the screw and/
or the module,resulting in fallout, short circuits or malfunction.
Be careful not to let foreign matters such as sawdust or wire chips get inside
the module.
These may cause fires, failure or malfunction.
The top surface of the module is covered with protective film to prevent
foreign objects such as cable offcuts from entering the module when wiring.
Do not remove this film until the wiring is complete.
Before operating the system, be sure to remove the film to provide adequate
heat ventilation.

A-4
Revisions
* The manual number is given on the bottom right of the cover.
© 2006 MITSUBISHI ELECTRIC CORPORATION
Print Date *Manual Number Revision
Aug., 2006 IB(NA)-0800362-A First edition
Sep., 2006 IB(NA)-0800362-B Correction
Chapter 2, Section 5.3
Oct., 2006 IB(NA)-0800362-C Correction
Chapter 2, Section 5.3, Chapter 6
Feb., 2009 IB(NA)-0800362-D Correction
SAFETY PRECAUTIONS,
ABOUT MANUAL, Compliance with the
EMC and Low Voltage Directives,
Chapter 1, Chapter 2, Chapter 3,
Chapter 4, Section 4.1, Section 5.1, 5.2,
5.3, Chapter 6
Aug., 2009 IB(NA)-0800362-E Correction
Chapter 2, Chapter 3, Chapter 4,
Section 5.3
This manual confers no industrial property rights or any rights of any other kind,
nor does it confer any patent licenses. Mitsubishi Electric Corporation cannot be
held responsible for any problems involving industrial property rights which may
occur as a result of using the contents noted in this manual.

A-5
CONTENTS
1. Overview ......................................................................................................... 1
2. Performance Specifications ............................................................................ 2
3. Part Names..................................................................................................... 5
4. Handling Precautions...................................................................................... 6

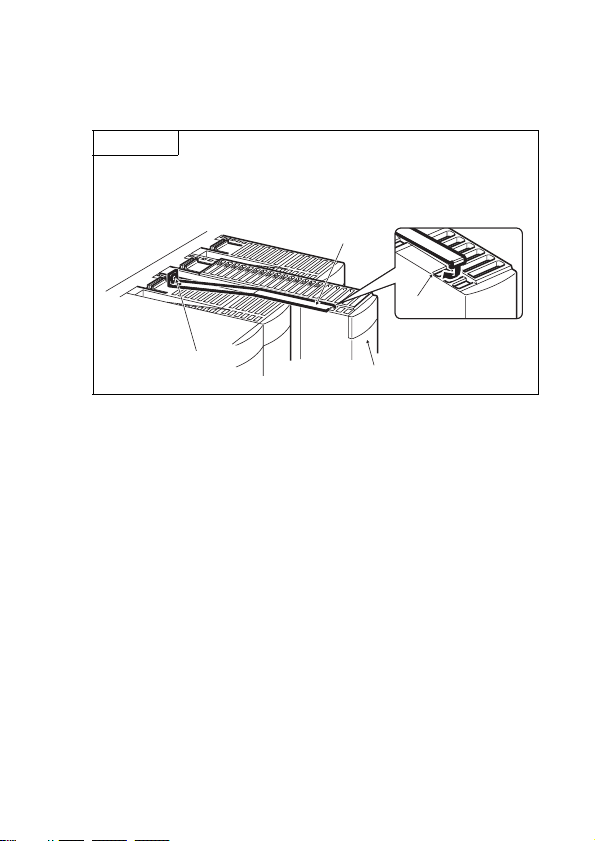

4.1 Mounting module fixing bracket................................................................ 7
5. Wiring.............................................................................................................. 8
5.1 Wiring precautions.................................................................................... 8
5.2 External wiring .......................................................................................... 9
5.3 Intelligent Function Module Switch Setting............................................. 10
6. External Dimensions ..................................................................................... 11

A-6
ABOUT MANUAL
The following manuals is also related to this product.
In necessary, order it by quoting the details in the table below.
Conformance to the EMC Directive/Low Voltage Directive
(1) For programmable controller system
To configure a system meeting the requirements of the EMC and Low
Voltage Directives when incorporating the Mitsubishi programmable
controller (EMC and Low Voltage Directives compliant) into other
machinery or equipment, refer to Chapter 9 "EMC AND LOW VOLTAGE
DIRECTIVES" of the QCPU User's Manual (Hardware Design,
Maintenance and Inspection).
The CE mark, indicating compliance with the EMC and Low Voltage
Directives, is printed on the rating plate of the programmable controller.
(2) For the product
No additional measures are necessary for the compliance of this
product with the EMC and Low Voltage Directives.
Relevant Manual
Manual name Manual number
(Model code)
Channel Isolated Digital-Analog Converter Module User's
ManualQ66DA-G / GX Configurator-DA
SH-080648ENG
(13JR97)

1
1. Overview
This manual describes the specifications and the names of the components
and handling for the Q66DA-G channel isolated digital-analog converter
module (hereafter referred to as Q66DA-G) which are used in combination
with the MELSEC-Q series CPU module.
After unpacking, confirm that the following products are enclosed.
The user should arrange for a connector for external wiring since it is not
provided in the package.
(1) Connector types
(2) Pressure-displacement tool
Table 1.1 Packing list
Model code Quantity
Q66DA-G 1
FG terminal L-Shaped metal fitting 1
Table 1.2 Connector types
Type Model name
Soldering type, straight out A6CON1
Crimping type, straight out A6CON2
Soldering type, usable for straight out and diagonal out A6CON4
Table 1.3 Pressure-displacement tool
Type Model name Applicable
wire size Contact
Crimping tool FCN-363T-T05/H AWG24 to 28 FUJITSU COMPONENT LIMITED

2
2. Performance Specifications
The specifications for the Q66DA-G are shown in the following table. For
general specifications, refer to the operation manual for the CPU module
being used.
Table 2.1 Performance Specifications
Item Specifications
Number of analog outputs 6 points (6 channels)
Digital input 16-bit signed binary (normal resolution mode:-4096 to 4095
high resolution mode: -12288 to 12287, -16384 to 16383)
Using scaling function 16-bit signed binary (-32768 to 32767)
Analog
output
Voltage -12 to 12VDC (External load resistance: 1k to 1M )
Current 0 to 20mADC (External load resistance: 0 to 600 )
0 to 22mADC (External load resistance: refer to *3)
I/O characteristics
maximum resolution
Analog output range
Normal resolution
mode
High resolution
mode
Digital input
value
Maximum
resolution
Digital
input value
Maximum
resolution
Voltage
0 to 5V 0 to 4000 1.25mV 0 to 12000 0.416mV
1 to 5V 1.0mV 0.333mV
1 to 5V
(Extended
mode)
-1000 to
4500 1.0mV -3000 to 13500 0.333mV
-10 to 10V
-4000 to
4000
2.5mV -16000 to
16000 0.625mV
User range
setting 2 0.75mV -12000 to
12000
0.400mV
User range
setting 3 0.375mV 0.210mV
Current
0 to 20mA 0 to 4000 5A 0 to 12000 1.66 A
4 to 20mA 4 A 1.33 A
4 to 20mA
(Extended
mode)
-1000 to
4500 4A -3000 to 13500 1.33 A
User range
setting 1
-4000 to
4000 1.5 A -12000 to 12000 0.95 A
Accuracy
(Accuracy
relative to
maximum
analog
output value)
Reference
accuracy *1 0.1% (Voltage: 10mV, Current: 20 A)
Temperatu
re
coefficient
*2
80ppm/ (0.008%/ )
Conversion speed 6ms/channel

3
Absolute
maximum
output
Voltage 13V
Current 23mA
Maximum number of
writes to flash memory MAX. 50,000 times
Output short-circuit
protection Available
Isolation specifications
Specific isolated area Isolation
method
Dielectric
withstand
voltage
Insulation
resistance
Between the output terminal and
programmable controller power supply
Transformer
isolation
500VAC
rms, 1min.
500VDC
10M or
more
Between analog output channels 1000VAC
rms, 1min.
Between external supply power and
analog output
500VAC
rms, 1min.
Number of I/O occupied
points
16 points
(I/O assignment: Intelligent 16 points)
External wiring
connection system 40-pin connector
Applicable wire size 0.3 mm2or less (for the use of A6CON1,A6CON4),
AWG24 (for the use of A6CON2)
External device
connection connector A6CON1, A6CON2, A6CON4 (Sold separately)
External supply power
24VDC, +20%, -15%
Ripple, spike within 500 mV p-p
Inrush current: 4.8A, within 400 s
0.22A
Internal current
consumption (5 VDC) 0.62A
Weight 0.22kg
Table 2.1 Performance Specifications (Continued)
Item Specifications

4
*1:Accuracy of offset/gain setting at ambient temperature
Q66DA-G needs to be powered on 30 minutes prior to operation for compliance to the
specification (accuracy).
*2:Accuracy per temperature change of 1
Example: Accuracy when temperature changes from 25 to 30
0.1% (Reference accuracy) + 0.008%/ (temperature coefficient)
5 (temperature change difference) = 0.14%
*3:The following indicates the external load resistance when output current is 20mA or
more.
22mA
20mA
External load resistance
Output
current
500 600

5
3. Part Names
This section explains the names of the components for the Q66DA-G.
Table 3.1 Names of Part
No. Name Description
1) RUN LED
Displays the operating status of the
Q66DA-G.
On : Normal operation
Flashing : During offset/gain setting
mode
Off : 5V power switched off,
watchdog timer error
occurred, or online module
change enabled.
2) ERR. LED
Displays the error status of the Q66DA-G.
On : Error
Flashing : Error in switch settings
Switch No. 5 of the
intelligent function module
has been set to a value
other than zero "0".
Off : Normal operation
3) ALM LED
Indicates the warning status of the
Q66DA-G.
On : During warning output
occurrence
Off : Normal operation
4)
Serial
number plate
Indicates the serial number of the
Q66DA-G.
5)
FG terminal
L-Shaped
metal fitting
Metal fitting to wire for FG of the
Q66DA-G
Module fixing screw Module fixing bracket
5)
4)
1)
2)
3)
External
device
connecto
r
Connector
terminal
number
Connector
terminal
number
A1
A20
B1
B20
Table 3.2 Signal layout
Ter-
minal
num-
ber
Signal
name
Ter-
minal
num-
ber
Signal
name
A1 CH1 V+ B1 CH1 COM1
A2 CH1 I+ B2 -
A3 - B3 -
A4 CH2 V+ B4 CH2 COM2
A5 CH2 I+ B5 -
A6 - B6 -
A7 CH3 V+ B7 CH3 COM3
A8 CH3 I+ B8 -
A9 - B9 -
A10 CH4 V+ B10 CH4 COM4
A11 CH4 I+ B11 -
A12 - B12 -
A13 CH5 V+ B13 CH5 COM5
A14 CH5 I+ B14 -
A15 - B15 -
A16 CH6 V+ B16 CH6 COM6
A17 CH6 I+ B17 -
A18 - B18 -
A19 24VDC B19 24VDC
A20 24GDC B20 24GDC

6
4. Handling Precautions
(1) Do not drop the module case or subject it to heavy impact.
(2) Do not remove the PCB of the module from its case.
Doing so may cause the module failure.
(3) Be careful not to let foreign matters such as sawdust or wire chips get
inside the module.
These may cause fires, failure or malfunction.
(4) The top surface of the module is covered with protective film to prevent
foreign objects such as cable offcuts from entering the module when
wiring.
Do not remove this film until the wiring is complete.
Before operating the system, be sure to remove the film to provide
adequate heat ventilation.
(5) Before touching the module, always touch grounded metal, etc. to
discharge static electricity from human body, etc.
Not doing so can cause the module to fail or malfunction.
(6) Tighten the screws such as module fixing screws within the following
ranges. Loose screws may cause short circuits, mechanical failures or
malfunctions.
(7) While pressing the installation lever located at the bottom of module,
insert the module fixing tab into the fixing hole in the base unit until it
stops.
Improper installation may result in malfunction, breakdown or the
module coming loose and dropping.
Screw location Tightening torque range
Module fixing screw (M3 screw) 0.36 to 0.48 N•m
FG terminal screw (M3 screw) 0.42 to 0.58 N•m

7
4.1 Mounting module fixing bracket
Hold the Q66DA-G with module fixing bracket after the Q66DA-G is
mounted to the base unit.
POINT
Make sure that the module fixing bracket is hooked on the 3rd slit
viewed from the front of Q66DA-G.
And tighten the module fixing screw at the specified torque.
Module fixing bracket
Module fixing screw
Q66DA-G
3rd slit

8
5. Wiring
5.1 Wiring precautions
(1) Use separate cables for the alternating-current control circuit and the
external output signals and external supply power of the Q66DA-G in
order to avoid AC surges and induction effects.
(2) Do not mount the cables close to or bundle them with the main circuit
line, a high-voltage cable or a load cable from other than the
programmable controller. This may increase the effects of noise,
surges and induction.
(3) Perform a one-point grounding for shielded lines and the shields of
shielded cables.
(4) When the wiring of the module mounted right to the Q66DA-G is
difficult, perform wiring after removing the Q66DA-G.

9
5.2 External wiring
(1) For voltage output
(2) For current output
*1:Use a twisted two-core shielded wire for the power wire.
*2:If there is noise or ripples in the external wiring, connect a 0.1 to 0.47 F25V
capacitor between the V+/I+ terminal and COM.
IMPORTANT
Q66DA-G needs to be powered on 30 minutes prior to operation for compliance to
the specification (accuracy).Therefore, power on 30 minutes prior to offset/gain
setting or after online module replacement.
D/A
conversion
24V
Filter
+15V
-15V
A.G
24G
24VDC
1k
to
1M
*1 *2 Motor drive module, etc.
GND
DC/DC
converter
V+
COM
I+
FG
D/A
conversion
24V
Filter
+15V
-15V
A.G
24G
24VDC
0
600
*1 *2 Motor drive module, etc.
GND
DC/DC
converter
to
V+
COM
I+
FG

10
5.3 Intelligent Function Module Switch Setting
The settings for the intelligent function module are performed using the
I/O assignment settings of the GX Developer. It can be easy to set by
inputting using hexadecimal-4 digits.
Table 5.1 Switch setting item for intelligent function module
*1 Setting any value within the setting range provide the same operation. When
the setting range is 1Hto FH, set 1Hfor example.
Switch No. Setting item
Switch 1
Analog output range Output range setting
value
4 to 20mA 0H
0 to 20mA 1H
1 to 5V 2H
0 to 5V 3H
-10 to 10V 4H
4 to 20mA(Extended mode) AH
Switch 2
1 to 5V(Extended mode) BH
User range setting 3
(0 to 5V) DH
User range setting 2
(-10 to 10V) EH
User range setting 1
(0 to 20mA) FH
Switch 3
Switch 4
Switch 5 0H: Fixed
CH4 CH3
Output range setting
(CH1 to CH4)
CH2 CH1
H
CH6 CH5
H
Output range setting
(CH5, CH6)
00H: Fixed
CH6 CH5 CH4 CH3 CH2 CH1
b5 b4b15
to
b6 b3 b2 b1 b0
0: Fixed
HOLD/CLEAR function setting
0: CLEAR
1: HOLD
H
00H: Fixed
0H: Normal resolution mode
1Hto FH(numeric value other than 0H)*1: High resolution mode
0H: Normal mode (D/A conversion processing)
1Hto FH(numeric value other than 0H)*1: Offset/gain setting mode

11
6. External Dimensions
Unit: mm (inch)
130 (5.12) 47 (1.85)
177 (6.97)
89 (3.50)
97.5 (3.84)
27.4
(1.08)
23
(0.91)
102 (4.02)
9.3 (0.37)
FG terminal screw
(M3 screw)
FG terminal screw
(M3 screw)
FG terminal L-Shaped
metal fitting
2 (0.08)

12
MEMO

Warranty
Mitsubishi will not be held liable for damage caused by factors found not to be the cause of
Mitsubishi; machine damage or lost profits caused by faults in the Mitsubishi products; damage,
secondary damage, accident compensation caused by special factors unpredictable by
Mitsubishi; damages to products other than Mitsubishi products; and to other duties.
For safe use
• This product has been manufactured as a general-purpose part for general industries, and
has not been designed or manufactured to be incorporated in a device or system used in
purposes related to human life.
• Before using the product for special purposes such as nuclear power, electric power,
aerospace, medicine or passenger movement vehicles, consult with Mitsubishi.
• This product has been manufactured under strict quality control. However, when installing the
product where major accidents or losses could occur if the product fails, install appropriate
backup or failsafe functions in the system.
Printed in Japan on recycled paper.
Country/Region Sales office/Tel
Specifications subject to change without notice.
Country/Region Sales office/Tel
U.S.A Mitsubishi Electric Automation Inc.
500 Corporate Woods Parkway Vernon
Hills, IL 60061, U.S.A.
Tel : [phone]
Brazil MELCO-TEC Rep. Com.e Assessoria
Tecnica Ltda.
Rua Correia Dias, 184,
Edificio Paraiso Trade Center-8 andar
Paraiso, Sao Paulo, SP Brazil
Tel : [phone]
Germany Mitsubishi Electric Europe B.V. German
Branch
Gothaer Strasse 8 D-40880 Ratingen,
GERMANY
Tel : [phone]
U.K Mitsubishi Electric Europe B.V. UK
Branch
Travellers Lane, Hatfield, Hertfordshire.,
AL10 8XB, U.K.
Tel : [phone]
Italy Mitsubishi Electric Europe B.V. Italian
Branch
Centro Dir. Colleoni, Pal. Perseo-Ingr.2
Via Paracelso 12, I-20041 Agrate Brianza.,
Milano, Italy
Tel : [phone]
Spain Mitsubishi Electric Europe B.V. Spanish
Branch
Carretera de Rubi 76-80,
E-08190 Sant Cugat del Valles,
Barcelona, Spain
Tel : [phone]
France Mitsubishi Electric Europe B.V. French
Branch
25, Boulevard des Bouvets, F-92741
Nanterre Cedex, France
TEL: [phone]
South Africa Circuit Breaker Industries Ltd.
Private Bag 2016, ZA-1600 Isando,
South Africa
Tel : [phone]
Hong Kong Mitsubishi Electric Automation
(Hong Kong) Ltd.
10th Floor, Manulife Tower, 169 Electric
Road, North Point, Hong Kong
Tel : [phone]
China Mitsubishi Electric Automation
(Shanghai) Ltd.
4/F Zhi Fu Plazz, No.80 Xin Chang Road,
Shanghai 200003, China
Tel : [phone]
Taiwan Setsuyo Enterprise Co., Ltd.
6F No.105 Wu-Kung 3rd.Rd, Wu-Ku
Hsiang, Taipei Hsine, Taiwan
Tel : [phone]
Korea
Mitsubishi Electric Automation Korea Co., Ltd.
1480-6, Gayang-dong, Gangseo-ku
Seoul 157-200, Korea
Tel : [phone]
Singapore Mitsubishi Electric Asia Pte, Ltd.
307 Alexandra Road #05-01/02, Mitsubishi
Electric Building, Singapore 159943
Tel : [phone]
Thailand Mitsubishi Electric Automation (Thailand)
Co., Ltd.
Bang-Chan Industrial Estate No.111
Moo 4, Serithai Rd, T.Kannayao,
A.Kannayao, Bangkok 10230 Thailand
Tel : [phone]
Indonesia P.T. Autoteknindo Sumber Makmur
Muara Karang Selatan, Block A/Utara
No.1 Kav. No.11 Kawasan Industri
Pergudangan Jakarta - Utara 14440,
P.O.Box 5045 Jakarta, 11050 Indonesia
Tel : [phone]
India Messung Systems Pvt, Ltd.
Electronic Sadan NO:III Unit No15,
M.I.D.C Bhosari, Pune-411026, India
Tel : [phone]
Australia Mitsubishi Electric Australia Pty. Ltd.
348 Victoria Road, Rydalmere,
N.S.W 2116, Australia
Tel : [phone]
HEAD OFFICE : TOKYO BUILDING, 2-7-3 MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
NAGOYA WORKS : 1-14, YADA-MINAMI 5-CHOME, HIGASHI-KU, NAGOYA, JAPAN
When exported from Japan, this manual does not require application to the Ministry
of Economy, Trade and Industry for service transaction permission.
