INSTRUCTION MANUAL
1
2
3
4
5
INVERTER
Plug-in option
FR-A7AY E kit-SC
Analog output function
Digital output function INSTALLATION AND WIRING
PARAMETER LIST
EXTENSION ANALOG OUTPUT
PRE-OPERATION INSTRUCTIONS
DIGITAL OUTPUT

A-1
Thank you for choosing this Mitsubishi Inverter plug-in option.
This Instruction Manual gives handling information and
precautions for use of this equipment. Incorrect handling might
cause an unexpected fault. Before using the equipment, please
read this manual carefully to use the equipment to its optimum.
Please forward this manual to the end user.
1. Electric Shock Prevention
This section is specifically about
safety matters
Do not attempt to install, operate, maintain or inspect this
product until you have read through this Instruction Manual and
appended documents carefully and can use the equipment
correctly. Do not use this product until you have a full
knowledge of the equipment, safety information and
instructions.
In this Instruction Manual, the safety instruction levels are
classified into "WARNING" and "CAUTION".
Incorrect handling may cause
hazardous conditions, resulting in
death or severe injury.
Incorrect handling may cause
hazardous conditions, resulting in
medium or slight injury, or may cause
only material damage.
The level may even lead to a serious
consequence according to conditions. Both instruction levels
must be followed because these are important to personal
safety.
WARNING
CAUTION
CAUTION
SAFETY INSTRUCTIONS
WARNING
•While power is ON or when the inverter is running, do not
open the front cover. You may get an electric shock.
•Do not run the inverter with the front cover or wiring cover
removed. Otherwise, you may access the exposed high-
voltage terminals and charging part and get an electric shock.
•Even if power is OFF, do not remove the front cover except for
wiring or periodic inspection. You may accidentally touch the
charged inverter circuits and get an electric shock.
•Before wiring or inspection, power must be switched OFF. To
confirm that, LED indication of the operation panel must be
checked. (It must be OFF.) Any person who is involved in
wiring or inspection shall wait for at least 10 minutes after the
power supply has been switched OFF and check that there
are no residual voltage using a tester or the like. The
capacitor is charged with high voltage for some time after
power OFF, and it is dangerous.
•Any person who is involved in wiring or inspection of this
equipment shall be fully competent to do the work.
•The plug-in option must be installed before wiring. Otherwise,
you may get an electric shock or be injured.
•Do not touch the plug-in option or handle the cables with wet
hands. Otherwise you may get an electric shock.
•Do not subject the cables to scratches, excessive stress,
heavy loads or pinching. Otherwise you may get an electric
shock.

A-2
2. Injury Prevention
3. Additional Instructions
Also the following points must be noted to prevent an accidental
failure, injury, electric shock, etc.
1) Transportation and mounting
2) Trial run
3) Usage
4) Maintenance, inspection and parts replacement
5) Disposal
6) General instruction
CAUTION
•The voltage applied to each terminal must be the ones
specified in the Instruction Manual. Otherwise burst, damage,
etc. may occur.
•The cables must be connected to the correct terminals.
Otherwise burst, damage, etc. may occur.
•Polarity must be correct. Otherwise burst, damage, etc. may
occur.
•While power is ON or for some time after power-OFF, do not
touch the inverter as they will be extremely hot. Doing so can
cause burns.
CAUTION
•Do not install or operate the plug-in option if it is damaged or
has parts missing.
•Do not stand or rest heavy objects on the product.
•The mounting orientation must be correct.
•Foreign conductive objects must be prevented from entering
the inverter. That includes screws and metal fragments or
other flammable substances such as oil.
CAUTION
•Before starting operation, each parameter must be confirmed
and adjusted. A failure to do so may cause some machines to
make unexpected motions.
WARNING
•Do not modify the equipment.
•Do not perform parts removal which is not instructed in this
manual. Doing so may lead to fault or damage of the inverter.
CAUTION
• When parameter clear or all parameter clear is performed, the
required parameters must be set again before starting operations
because all parameters return to the initial value.
•For prevention of damage due to static electricity, nearby
metal must be touched before touching this product to
eliminate static electricity from your body.
CAUTION
•Do not test the equipment with a megger (measure insulation
resistance).
CAUTION
•This inverter plug-in option must be treated as industrial
waste.
Many of the diagrams and drawings in this Instruction Manual
show the inverter without a cover or partially open for
explanation. Never operate the inverter in this manner. The
cover must be reinstalled and the instructions in the inverter
manual must be followed when operating the inverter.

I
— CONTENTS —
1 PRE-OPERATION INSTRUCTIONS 1
1.1 Unpacking and Product Confirmation .............................................................................................1
1.1.1 Product confirmation.......................................................................................................................................1
1.2 Parts....................................................................................................................................................2
1.3 Specifications.....................................................................................................................................3
2 INSTALLATION AND WIRING 4
2.1 Pre-Installation Instructions .............................................................................................................4
2.2 Installation Procedure .......................................................................................................................4
2.3 Wiring..................................................................................................................................................9
3 PARAMETER LIST 12
4 EXTENSION ANALOG OUTPUT 14
4.1 Wiring Example ................................................................................................................................14

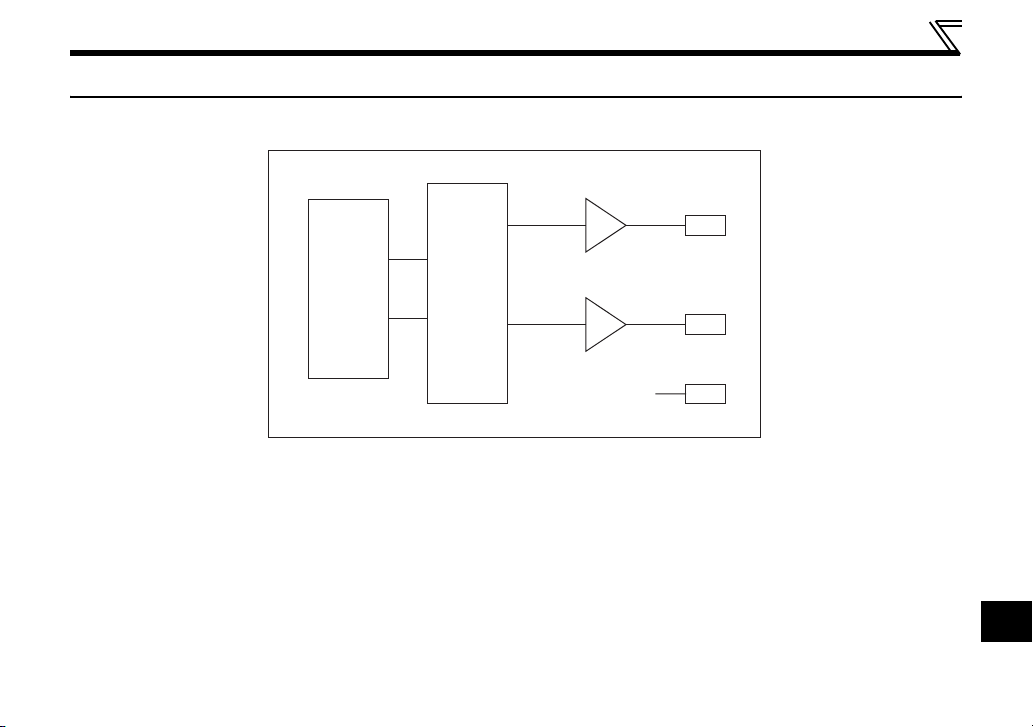

4.2 Internal Block Diagram....................................................................................................................15
4.3 Terminals ..........................................................................................................................................16
4.4 Extension Analog Output Function Parameter List......................................................................17
4.5 Adjustment Procedure ....................................................................................................................18
4.5.1 Setting of analog output signal voltage/current switchover (Pr. 309) ...........................................................18
4.5.2 Calibration of meter ......................................................................................................................................19
4.5.3 Output signal setting.....................................................................................................................................21
4.5.4 Analog signal adjustment [Pr. 307, Pr. 308, Pr. 311, Pr. 312] ......................................................................22
4.6 Instructions ......................................................................................................................................23

II
5 DIGITAL OUTPUT 24
5.1 Internal Block Diagram....................................................................................................................24
5.2 Terminals ..........................................................................................................................................25
5.3 Digital Output Function Parameter List .........................................................................................26
5.4 Output Signal List ............................................................................................................................27

1
1
1PRE-OPERATION INSTRUCTIONS
1.1 Unpacking and Product Confirmation
Take the plug-in option out of the package, check the product name, and confirm that the product is as you
ordered and intact.
This product is a plug-in option dedicated for the FR-E700-SC series (safety stop function model).

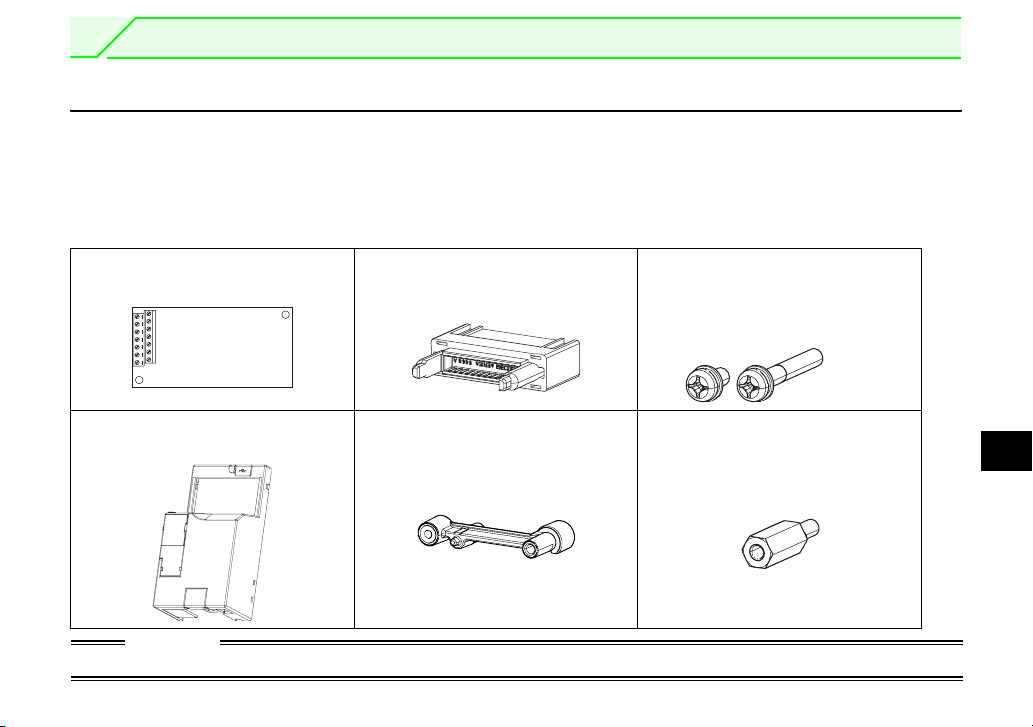

1.1.1 Product confirmation
Check the enclosed items.
Plug-in option
.......................................................1
Junction connector .........................1
(Refer to page 5, 7.)
M3 mounting screw
(Long) (M3 ×20mm)......................1
(Short) (M3 ×6mm) .......................1
(Refer to page 5, 7.)
Front cover for plug-in option.........1
(Refer to page 5, 7)
Spacer for plug-in option mounting ...1
(Refer to page 5, 7.)
Hexagon spacer .............................1
(Refer to page 5, 7.)
CAUTION
Install a provided front cover for plug-in option, in place of the inverter front cover.

2
PRE-OPERATION INSTRUCTIONS
1.2 Parts
AMC
NC
SE
Y3
Y4
Y5
Y6
AM0
AM1
NC
SE
Y0
Y1
Y2
Front view
Terminal layout
Rear view
Mounting
hole
Mounting hole
Mounting
hole
Terminal
block
Connector
Connect to the inverter
option slot
(Refer to page 5, 7.)

3
PRE-OPERATION INSTRUCTIONS
1
1.3 Specifications
(1) Output signals
Voltage output (across terminals AM0-AMC) 0 to 10VDCMAX
Current output (across terminals AM1-AMC) 0 to 20mADC
(2) Output resolution
Voltage output 3mV
Current output 10
μ A
(3) Output accuracy (reference value)
±10% of the full-scale output value
Depends on the output signal type.
(4) Meters used
•Voltmeter
DC voltmeter Full-scale 10V (internal impedance 10kΩor more)
•Ammeter
DC ammeter Full-scale 20mA (internal impedance 300Ωor less)
•Wiring length
Maximum 10m

4
2 INSTALLATION AND WIRING
2.1 Pre-Installation Instructions
Make sure that the input power of the inverter is off.
2.2 Installation Procedure
CAUTION
With input power on, do not install or remove the plug-in option. Otherwise, the inverter and
plug-in option may be damaged.
For prevention of damage due to static electricity, touch nearby metal before touching this
product to eliminate static electricity from your body.
CAUTION
•Always perform wiring to the main circuit terminals and control circuit terminals before installing the
option. Wiring cannot be performed after installing the option.
•When mounting the plug-in option, do not let wires get caught in the plug-in option or the spacer for option
mounting. If a wire gets caught, the inverter and the plug-in option may be damaged.
•When the inverter cannot recognize that the option is mounted due to improper installation, etc., " "
(option fault) is displayed.
•Take care not to drop a mounting screws during mounting and removal.
•Pull out the option straight to remove. Otherwise, the connector may be damaged.
REMARKS
•Bcause the voltage class, model name and serial number (only voltage class is labeled for FR-E720-5.5KSC (FR-
E720-240SC), FR-E740-5.5KSC (FR-E740-120SC) or higher) are written on the PU cover, replace the PU cover of
the plug-in option with the removed PU cover of the inverter.

5
INSTALLATION AND WIRING
2

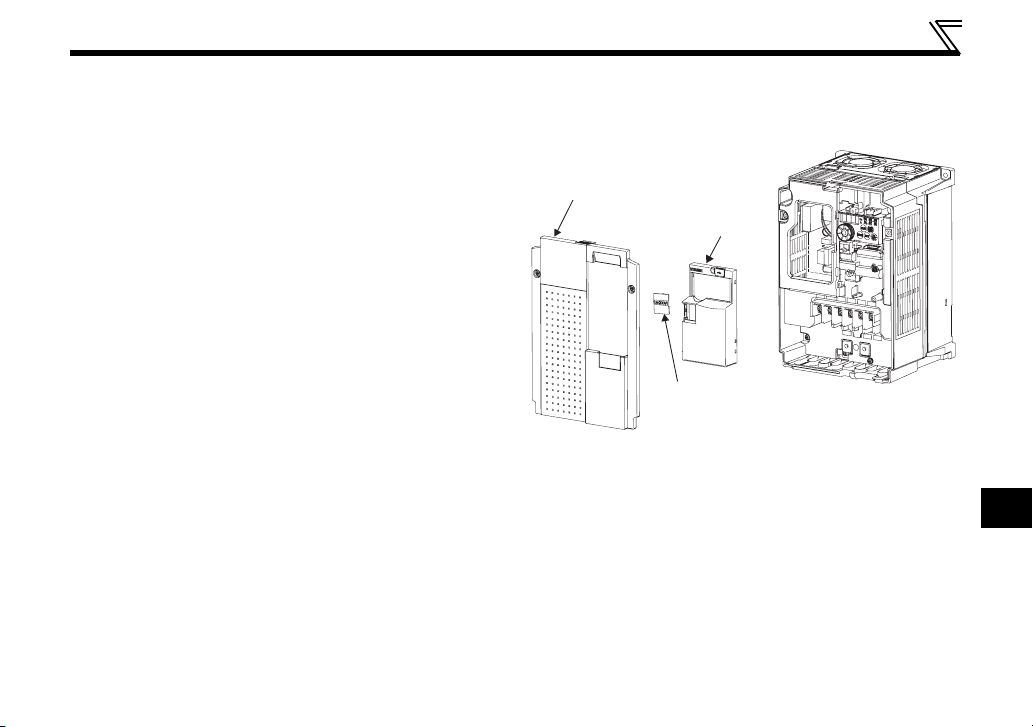

zInverter with one front cover
(1) Remove the front cover from the inverter. (For removing the front cover, refer to the FR-E700 series
instruction manual.)

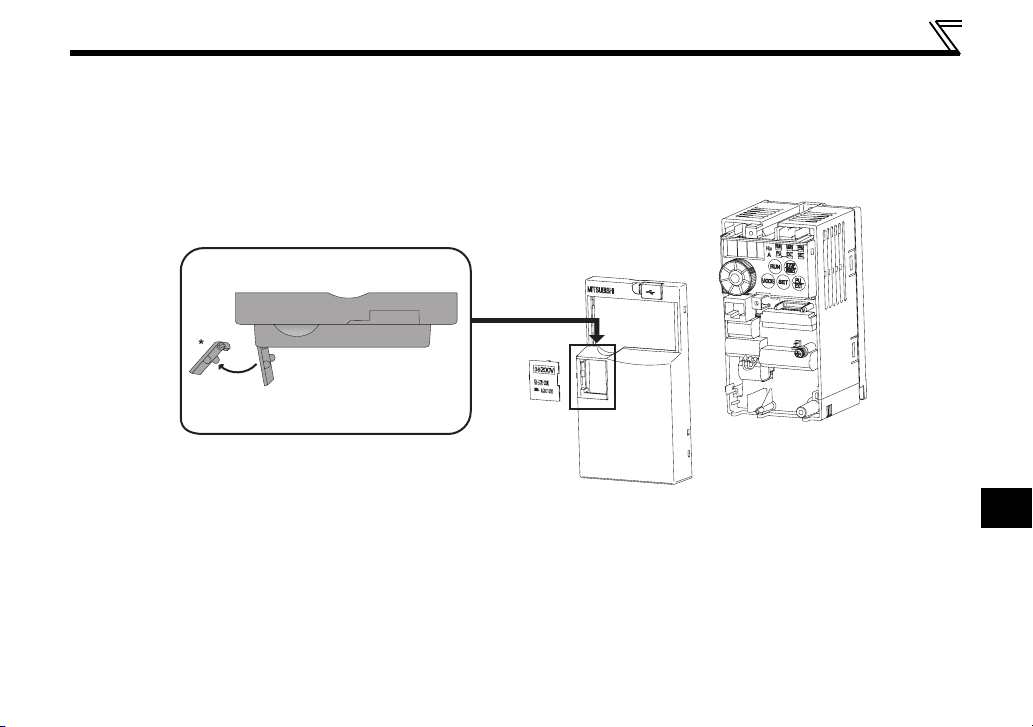

(2) Remove the PU cover from the front cover. Open the PU cover with a driver, etc. and remove it in the
direction of arrow as shown below.
(3) Fit the spacer for plug-in option mounting, the hexagon spacer, and the junction connector into their
designated positions shown in the diagram on the next page. Fit the junction connector along the guide
of the connector of the inverter and insert it as far as it goes.
(4) Fit the connector of the plug-in option along the guide of the junction connector and insert it as far as it
goes.
(5) Fix the plug-in option securely by using the supplied mounting screw (short) to the upper screw hole
and the other supplied mounting screw (long) to the lower screw hole of the plug-in option. If the screw
holes do not line up, the connector may not have been plugged properly. Check for loose plugging.
Tightening torque: 0.33 to 0.4N⋅m
(1) Front cover
(2) PU cover
* Open the PU cover, then open it toward the arrow
direction to remove.

6
INSTALLATION AND WIRING

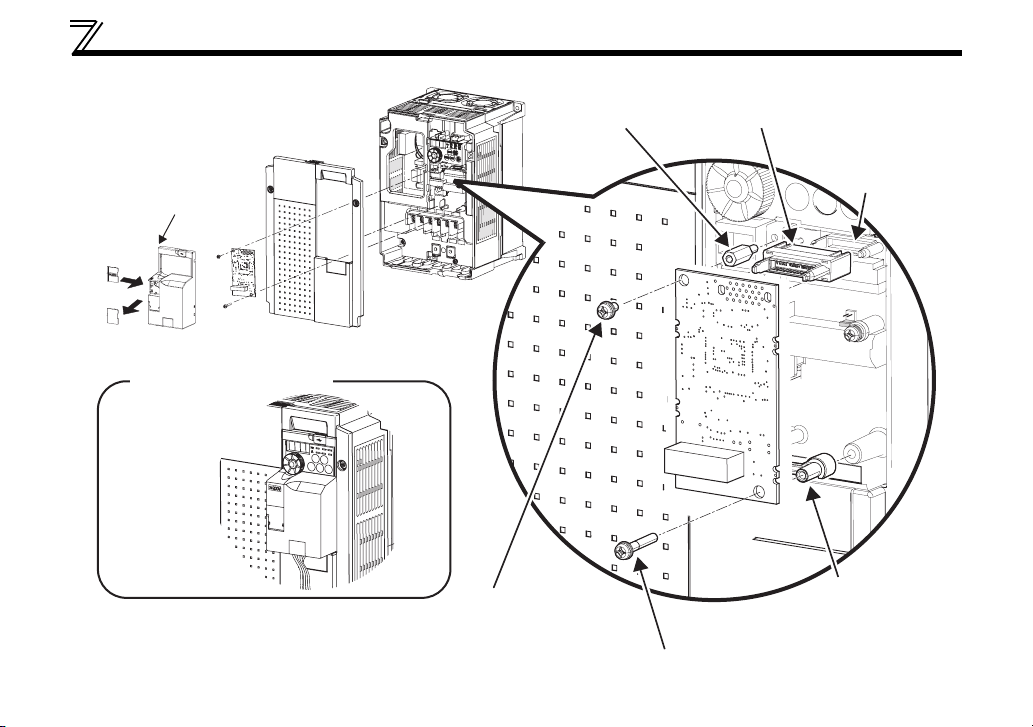

(6) Remove the PU cover provided on the front cover for plug-in option and mount the other PU cover,
which was removed in (2).
(7) Loosen the terminal screws and insert the wires into the terminals. After that, fasten the terminal screws
to the recommended tightening torque. (Refer to page 9)
(8) After wiring of the plug-in option has been completed, mount the front cover for the plug-in option to the
inverter.
(3) Hexagon
spacer
(3) Junction connector
(5) Mounting screws
(short)
(5) Mounting screw (long)
(8)
(4) (3) Plug-in option connector
of inverter
(3) Spacer for plug-in option mounting
(6) Replace
Front cover
for plug-in option
(7)

7
INSTALLATION AND WIRING
2
zInverter with front covers 1 and 2
(1) Remove the front cover 1 and 2 from the inverter. (For removing the front cover, refer to the FR-E700
series instruction manual.)
(2) Remove the PU cover from the front cover 2.
For removing the PU cover, refer to page 5.
(3) Mount the front cover 1 to the inverter.
(4) Fit the spacer for plug-in option mounting, the
hexagon spacer, and the junction connector
into their designated positions shown in the
diagram on the next page. Fit the junction
connector along the guide of the connector of
the inverter and insert it as far as it goes.
(5) Fit the connector of the plug-in option along the
guide of the junction connector and insert it as
far as it goes.
(6) Fix the plug-in option securely by using the
supplied mounting screw (short) to the upper screw hole and the other supplied mounting screw (long)
to the lower screw hole of the plug-in option. If the screw holes do not line up, the connector may not
have been plugged properly. Check for loose plugging.
Tightening torque: 0.33 to 0.4N⋅m
(7) Remove the PU cover provided on the front cover for plug-in option and mount the other PU cover,
which was removed in (2).
(8) Loosen the terminal screws and insert the wires into the terminals. After that, fasten the terminal screws
to the recommended tightening torque. (Refer to page 9)
(9) Mount the front cover for plug-in option to the inverter.
Front cover 1
Front cover 2
(1)
(2)
PU cover
(1)

8
INSTALLATION AND WIRING
(9)
(3)
(5)
Installation completed
(7)
Replace
Front cover for
plug-in option
(4) Plug-in option
connector
of inverter
(4) Hexagon
spacer
(4) Junction
connector
(6) Mounting screws
(short)
(4) Spacer for
plug-in option
mounting
(6) Mounting screw (long)
(8)

9
INSTALLATION AND WIRING
2
2.3 Wiring
(1) Untwist the twisted pair shielded cables after stripping its sheath.
Also, perform protective treatment of the shield to ensure that it will not
make contact with the conductive area.
Strip off the sheath about the size as in the right figure. If the length of the
sheath peeled is too long, a short circuit may occur among neighboring
wires. If the length is too short, wires might come off.
Wire the stripped cable after twisting it to prevent it from becoming loose.
(Do not solder it.)
Use a blade type terminal as required.
Sheath
Shield
(perform protective treatment)
Twisted pair
shielded cable
Cable stripping length
5mm

10
INSTALLATION AND WIRING
(2) Loosen the terminal screw and insert the cable into the terminal.
REMARKS
• Information on blade terminals
Commercially available product examples (as of Jan. 2010)
Insert wires to a blade terminal, and check that the wires come out for about 0 to 0.5 mm from a sleeve.
Check the condition of the blade terminal after crimping. Do not use a blade terminal of which the crimping is
inappropriate, or the face is damaged.
Screw Size Tightening Torque Cable Size Screwdriver
M2 0.22N⋅m to 0.25N⋅m0.3mm2to 0.75mm2Small flat-blade screwdriver
(Tip thickness: 0.4mm/tip width: 2.5mm )
CAUTION
• Undertightening can cause cable disconnection or malfunction. Overtightening can cause a short circuit or
malfunction due to damage to the screw or unit.
Blade terminal crimping tool: CRIMPFOX 6T-F/6 (Phoenix Contact Co., Ltd.)
Terminal
Screw Size
Wire Size
(mm2)
Blade Terminal Model Maker
With insulation sleeve Without insulation sleeve
M2 0.3, 0.5 AI 0,5-6WH A 0,5-6 Phoenix Contact
Co.,Ltd.
Unstranded
wires
Damaged Wires are not inserted
into the shell
Crumpled tip
Sleeve
Shell
Wire
0 to 0.5mm

11
INSTALLATION AND WIRING
2
POINT
If a hook of the front cover for plug-in option impedes wiring, cut the hooks off and perform wiring.
REMARKS
•The protective structure (JEM1030) is the open type (IP00).
CAUTION
Do not use empty terminals as junction terminals because they are used in the option unit. If
they are used as the junction terminals, the option unit may be damaged.
When wiring, take care not to subject the cable to stress.
After wiring, wire offcuts must not be left in the inverter. They may cause a fault, failure or
malfunction.
Cut off hooks at the bottom of the
option cover.
(Cut off so that no portion is left.)
Cut off with a
nipper, etc.

12
3PARAMETER LIST
When the FR-A7AY is mounted on the inverter, the following parameters are extended.
Parameter
Number Name Setting Range
Minimum
Setting
Increments
Initial
Value
Refer to
Page
EXTENSION ANALOG OUTPUT
306 Analog output signal selection
1 to 3, 5, 7 to 12, 14, 21,
24, 52, 53, 61, 62
12
14 and later
307 Setting for zero analog output 0 to100% 0.1 0%
308 Setting for maximum analog output 0 to100% 0.1 100%
309 Analog output signal voltage/current
switchover 0, 1, 10, 11 1 0
310 Analog meter voltage output
selection
1 to 3, 5, 7 to 12, 14, 21,
24, 52, 53, 61, 62
12
311 Setting for zero analog meter
voltage output 0 to100% 0.1 0%
312 Setting for maximum analog meter
voltage output 0 to100% 0.1 100%
323 AM0 0V adjustment 900 to1100% 1 1000%
324 AM1 0mA adjustment 900 to 1100% 1 1000%
C0(900) FM terminal calibration ⎯⎯⎯
C1(901) AM terminal calibration ⎯⎯⎯

13
PARAMETER LIST
3
DIGITAL OUTPUT
313 DO0 output selection 0, 1, 3, 4, 7, 8, 11 to 16,
20, 25, 26, 46, 47, 64,
80, 81, 90, 91, 93,
95, 96, 98, 99, 100, 101,
103, 104, 107, 108,
111 to 116, 120, 125,
126, 146, 147, 164,
180, 181, 190, 191,
193, 195, 196, 198, 199,
9999
1 9999 24 and later
314 DO1 output selection
315 DO2 output selection
316 DO3 output selection
317 DO4 output selection
318 DO5 output selection
319 DO6 output selection
Parameter
Number Name Setting Range
Minimum
Setting
Increments
Initial
Value
Refer to
Page

14
4EXTENSION ANALOG OUTPUT
4.1 Wiring Example
By setting the Pr. 306 to Pr. 312 values, analog signals such as the output frequency and output current can
be output from the voltage output terminal (AM0) and current output terminal (AM1).
Connect the voltmeter or ammeter as shown below:
CAUTION
• The wiring length between the FR-A7AY and the voltmeter/ammeter should be 10m maximum.
Power
supply
+
-
+
-
(Voltmeter)
(Ammeter)
FR-A7AY
0 to 10VDC
0 to 20 mADC
AM0
AM1
AMC
Inverter
IM
Motor
MCCB

15
EXTENSION ANALOG OUTPUT
4
4.2 Internal Block Diagram
The following is the internal block diagram about the FR-A7AY analog output function.
Controller
Connector
AM0
AM1
AMC
Current amplifier
Voltage amplifier
Common to
AM0/AM1
