SAFETY PRECAUTIONS
(Be sure to read these instructions before using this product.)
When designing the system, always read the relevant manuals, pay full attention to safety, and handle the
product correctly.
[Precautions for Training with this Manual]
WARNING
●Do not touch the terminals when the power is ON. There is a risk of electric shock.
●Before opening the safety cover, always turn the power OFF or confirm that safety is sufficiently
ensured.
●If GOT Mobile functions are used to perform remote control of control equipment, the field operator may
not notice the remote control, possibly leading to an accident.
In addition, a communication delay or interruption may occur depending on the network environment,
and remote control of control equipment cannot be performed normally in some cases.
Before using GOT Mobile functions to perform remote control, fully grasp the circumstances of the field
site and ensure safety.
CAUTION
●Always turn the power OFF before mounting or removing the unit.
Failure to do so can cause the unit to fail or malfunction.
●Stop use immediately if an abnormality occurs.
* GT Designer3 (GOT2000) Version 1.144A is used for the explanations in this manual.
The displayed menus and screens may vary depending on the version being used.

INDEX 3
1
2
3
4
5
6
7
8
9
10
11
12
INDEX
HOW TO READ MARKS
Refers to information required for operation and precautions.
Refers to useful information.
Introduces reference manuals and pages that describe details.
INDEX
Features 4
Features of GOT Mobile function and examples of use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Screens used with the GOT Mobile function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Preparing the Devices 7
System configuration for GOT Mobile function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Preparing the devices required for the GOT Mobile function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using the GOT Mobile Function 9
STEP1 Creating a new project. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
STEP2 Setting the GOT Mobile function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
STEP3 Creating a mobile screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

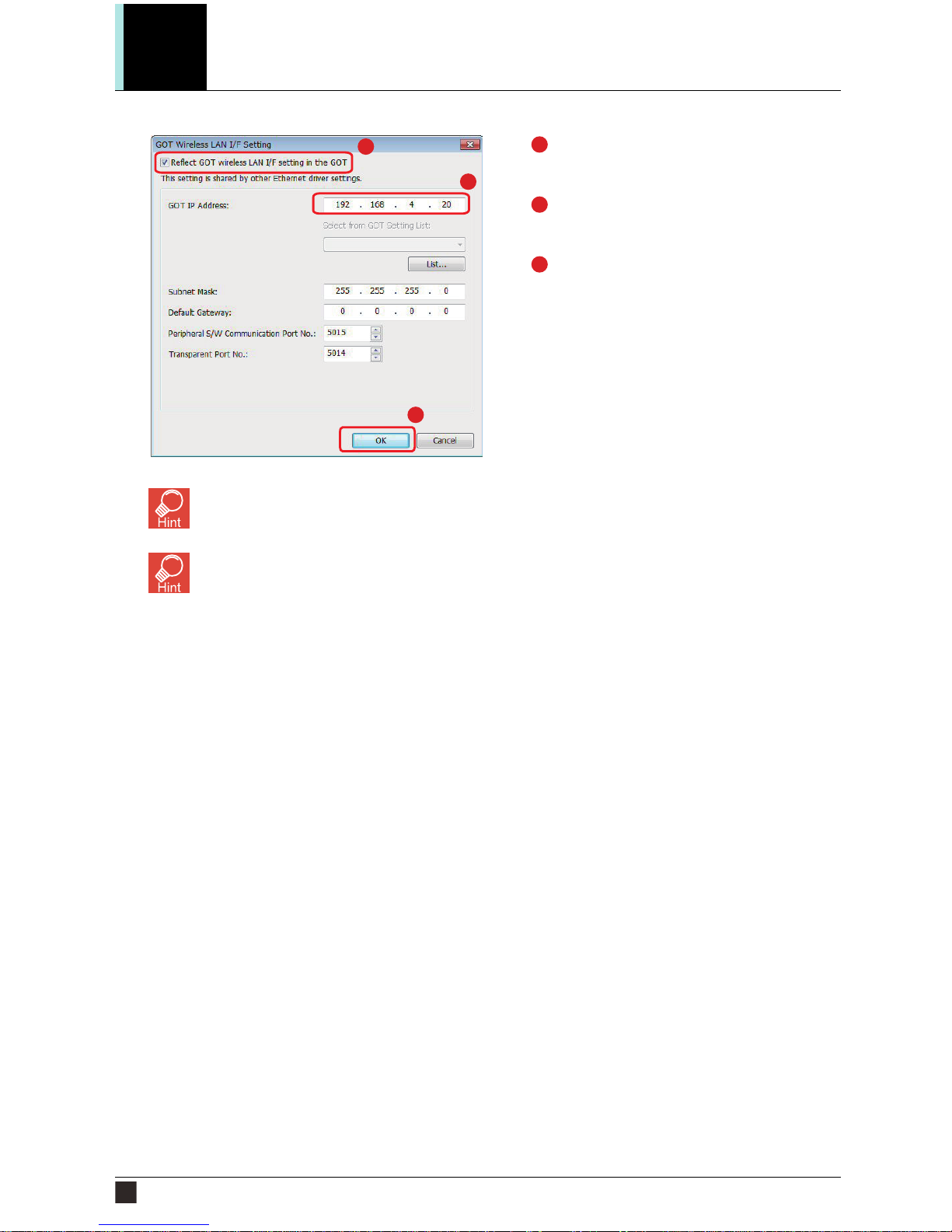

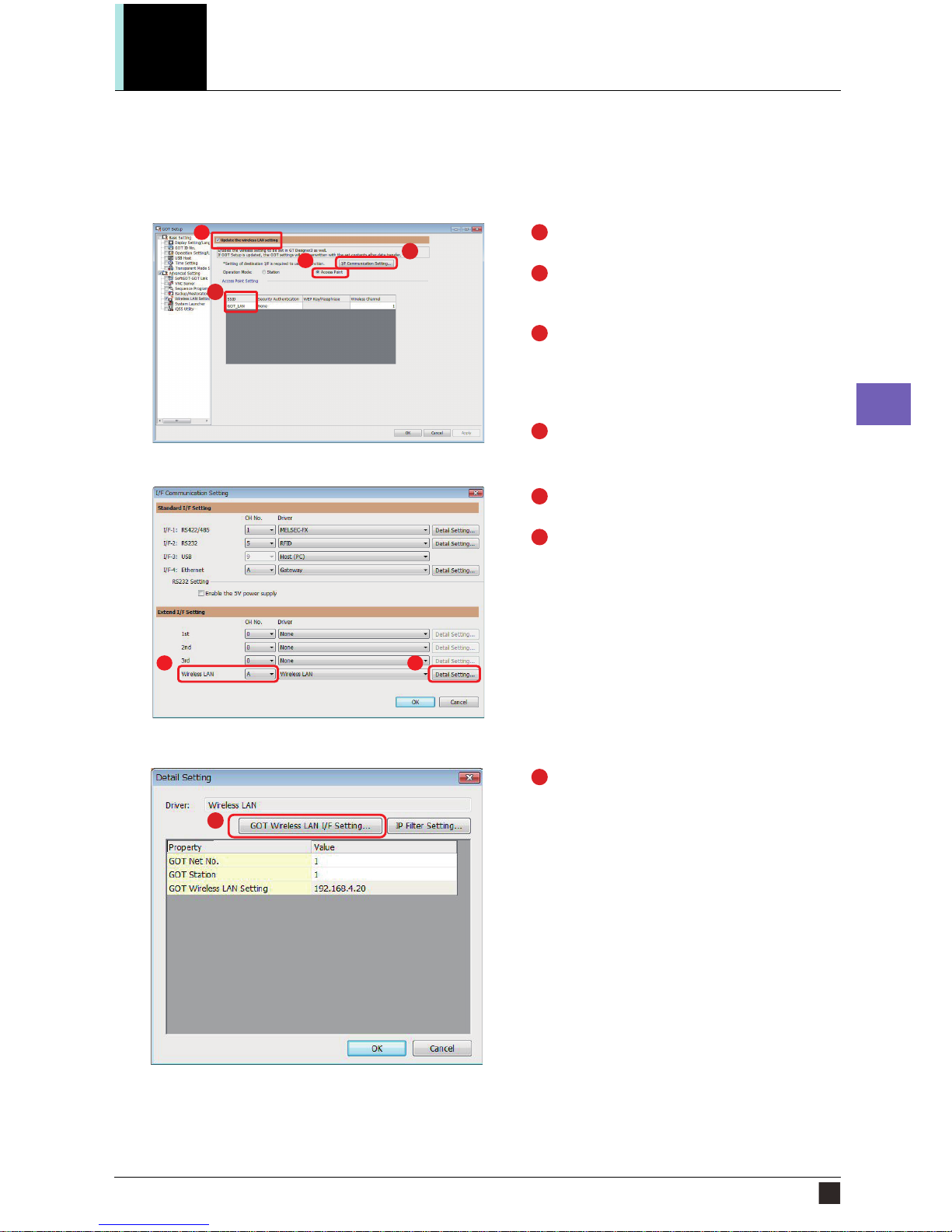

STEP4 Setting the GOT wireless LAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
STEP5 Mounting the wireless LAN communication unit into the GOT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

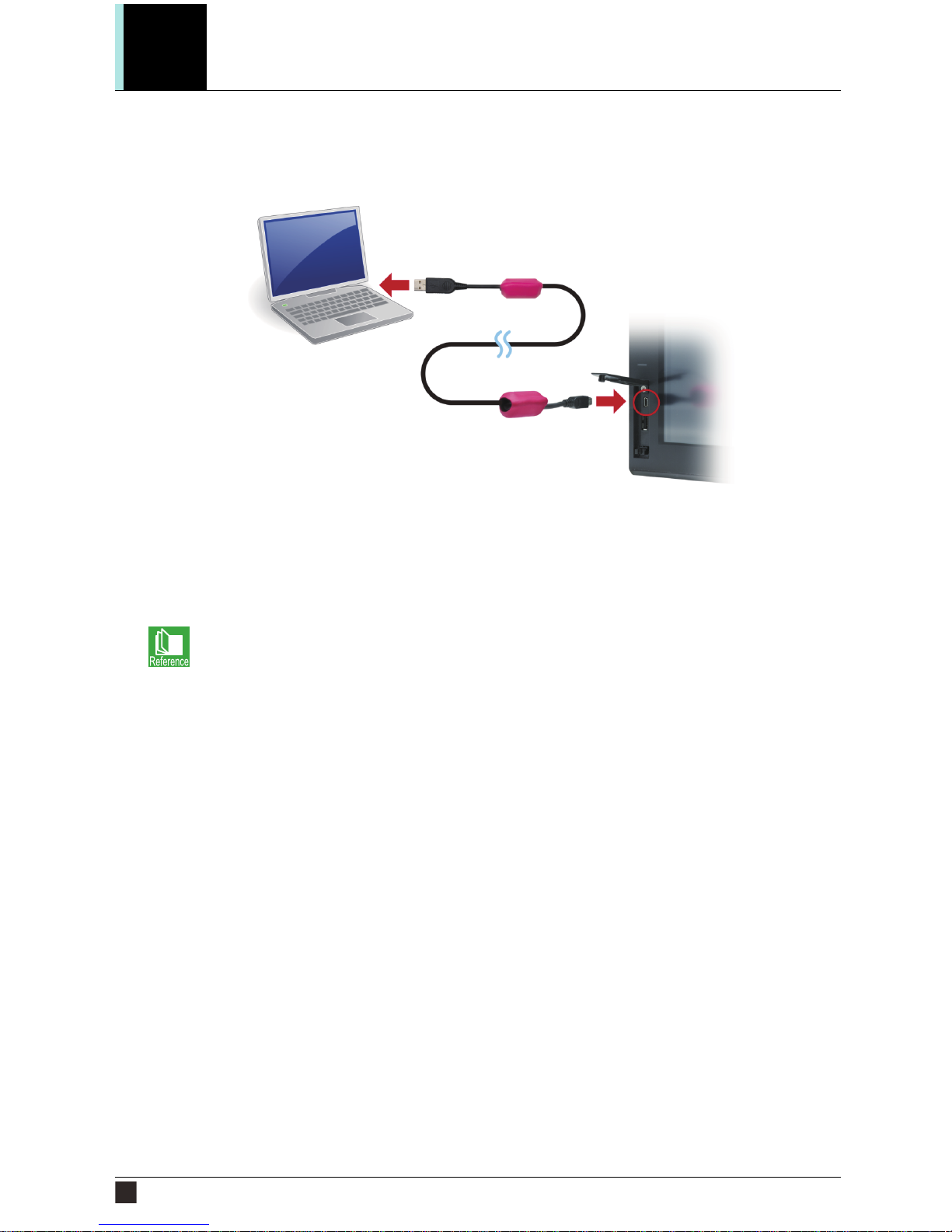

STEP6 Transferring project data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

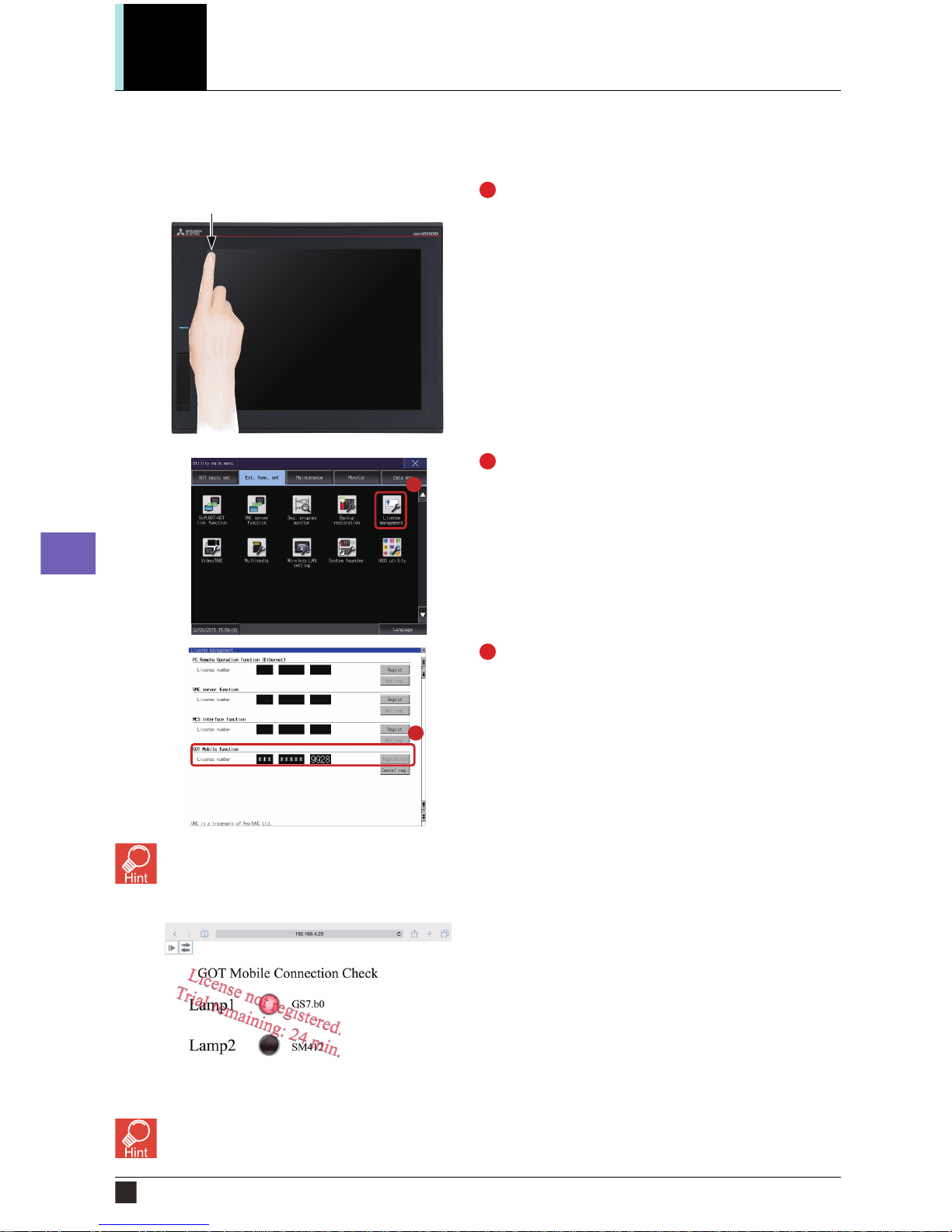

STEP7 Register the GOT Mobile function license number in the GOT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
STEP8 Displaying the mobile screen with the tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Precautions 25
Appendices 26
Appendix1 Operation environment of information device, such as tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Appendix2 Functions, images and objects usable with mobile screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Appendix3 Mobile screen object sizes and layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Appendix4 Differences between GOT Mobile function and VNC server function . . . . . . . . . . . . . . . . . . . . . . . 33
Appendix5 List of related manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Features
Features of GOT Mobile function and examples of use
4Features of GOT Mobile function and examples of use
Monitor production remotely
The status of equipment can be monitored
remotely with your smartphone. In addition,
you can view maintenance manuals to quickly
check error details and find solutions.
Monitor production from
outside of the clean room
The status of equipment can be monitored
using tablets from outside of the clean
room.
Monitor production by multiple
operators
When the equipment is large, up to five
operators can efficiently work at the same
time to check and make settings.
Alarm monitoring
screen
Monitoring connected
devices on a tablet
via GOT
Monitoring connected
devices on a tablet
via GOT
The GOT Mobile function improves visualization accessibility and reduces total cost of ownership.
Process 1 Process 2
Production site Production site Production site
An error is occurring in
process 2 .
How do I deal with it?
Improve productivity Reduce downtime Improve setup procedure
Each operator can efficiently
check a different screen.
Each operator can efficiently
check a different screen.
Process 3
Process 4
Process 5
Process 2
Check the equipment status
using a web browser.
Monitor your worksite anytime, anywhere.
Features
Features of GOT Mobile function and examples of use

1
Features
Features
Features of GOT Mobile function and examples of use
Features of GOT Mobile function and examples of use 5

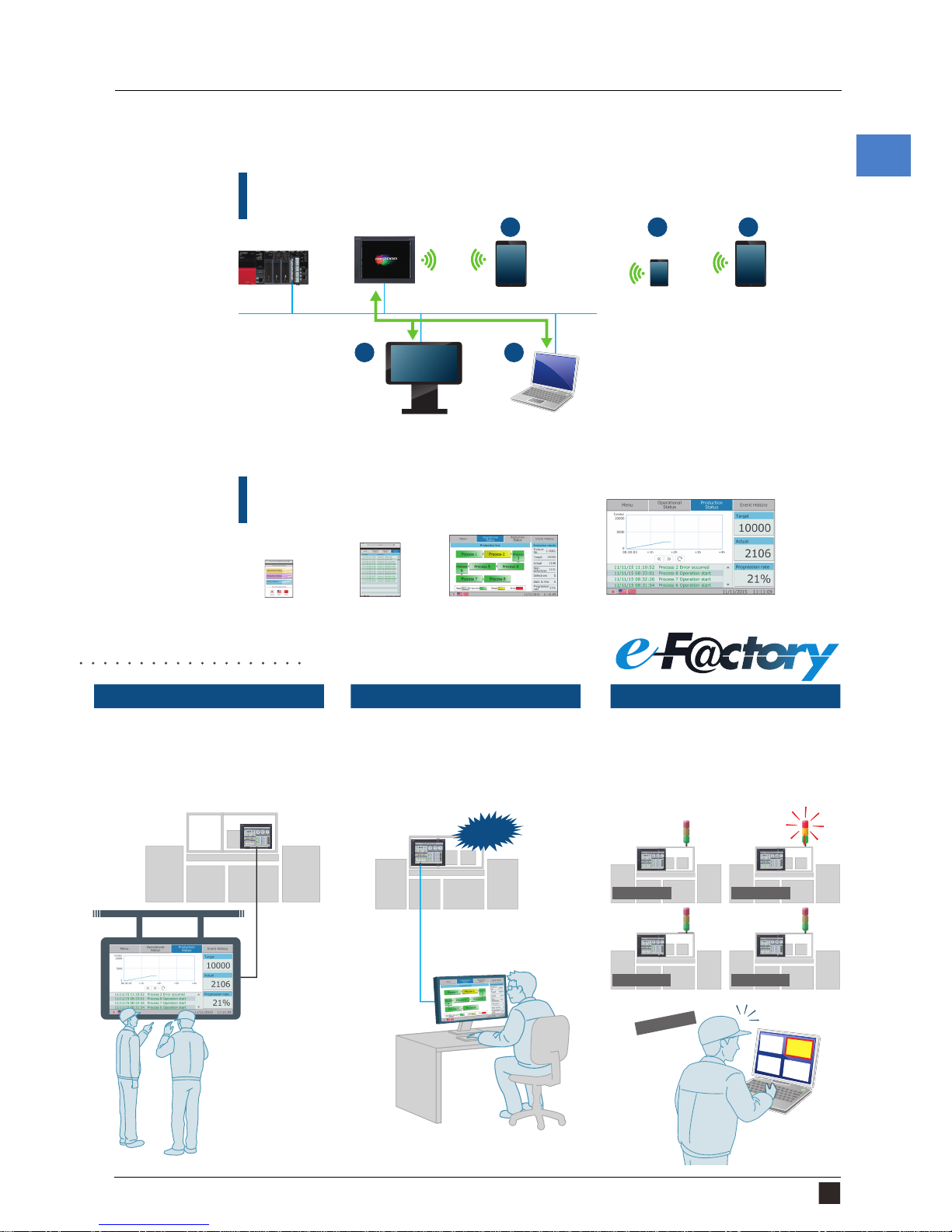

Monitor production on a large
screen
Monitor production from your
office
Monitor production with one
PC
The status of equipment can be monitored
on your PC via GOT on the production site.
One PC can be connected to several
GOTs to check the condition of
equipment. Even large-scale systems can
be easily monitored.
The function visualizes your production
site by showing the production targets and
results on a large Andon screen.
What is the
problem cause?
What’s the progress?
Mitsubishi FA Integrated Solution
Equipment A Equipment B
Equipment C Equipment D
Production
site
Production
site Production
site
Office Office
Equipment B
has an error
AB
CD
Increase production rate Improve maintenance Improve maintenance
Do you see any problems?
Five information devices can access a GOT at the same time.
*
1
Easily change screen sizes depending on used devise.
GOT Mobile Features
2 3
415
Smartphone
Each information device can display and operate a different screen.
*2
You can design screens easily using the GOT screen design software,
GT Works3.
Tablet
TabletGOT
PCPC and large screen monitor
Tablet size PC size
Smartphone size
Full HD size
Production
site
Office
*1: Up to five devices can be connected simultaneously.
(Screens displayed with different browsers or tabs are
included in the connection count.)
*2: You can prevent simultaneous operation on the same
network. For details, please see appropriate manual.
Remote location or office
Error!

6Screens used with the GOT Mobile function
Features
Screens used with the GOT Mobile function
Screens used with the GOT Mobile function
The screen displayed on the information devices with the GOT Mobile function is called the "Mobile
Screen". To use the GOT Mobile function, the screen to be displayed (mobile screen) must be created with
the HMI/GOT screen design software GT Designer3. Created mobile screens are displayed on the browser
of the information device, such as a tablet and smartphone.
Superimpose window
Key window
Dialog window
Overlap window
Screens created with GT Designer3
Screen displayed on the GOT
348B
A1254
Production status screen 1
Base screen
348B
A1254
Production status screen 1
Base screen
Window screen
This screen is displayed on the browser
of the information device, such as a tablet.
Mobile screen
Mobile screen
Production quantity screen 1
C1100 D1200
192.168.4.20
Production quantity screen 1
C1100 D1200

System configuration for GOT Mobile function 7
1
2
Preparing the Devices
Preparing the Devices
System configuration for GOT Mobile function
Preparingthe Devices
System configuration for GOT Mobile function
Explanations in this manual use the following system configuration with a wireless LAN communication unit.
*1 In this system, the wireless LAN communication unit is used as an access point.
*2 The wireless LAN communication unit can also be used as a station to configure a system that uses a wireless
LAN access point separate from the GOT.
Equipment IP Address Subnet Mask
Wireless LAN communication unit 192.168.4.20 255.255.255.0
Tablet 192.168.4.21 255.255.255.0
Information device
such as a tablet
GOT
(GT27/GT25)
GOT Mobile
function license
GT25-WEBSKEY
Wireless LAN
communication unit *1*2

8Preparing the devices required for the GOT Mobile function
Preparing the Devices
Preparing the devices required for the GOT Mobile function
Preparing the devices required for the GOT Mobile function
The following devices are required to use the GOT Mobile function with the GOT wireless LAN.
The information device, such as a tablet, must have a browser installed.
The browser must satisfy the following conditions.
• Google Chrome for Android (version 43 or later)
• Google Chrome for Windows (version 43 or later)
• Safari 8.0 or later
Refer to the following section for details on the operation environment of the information device, such as
tablet.
➠ Appendix1 Operation environment of information device, such as tablet
Refer to the following section for details on installing GT Designer3 (GOT2000) and GT Designer3
(GOT2000) Help.
• GT Works3 Version1 Installation Procedure Manual (BCN-P5999-0065)
Refer to the following section for details on connecting the GOT and controllers.
• GOT2000 Series Connection Manual (Mitsubishi Products) For GT Works3 Version1 (SH081197ENG)
GOT2000
(GT27/GT25)
Wireless LAN
communication unit
(GT25-WLAN)
Personal computer
GT Designer3 (GOT2000) Ver. 1.144A or higher
GT Designer3 (GOT2000) Help
GOT Mobile
function license
GT25-WEBSKEY
Information device such as a tablet
ControllerEthernet cable
USB cable
(GT09-C30USB-5P)

Creating a new project 9
3
Using the GOT Mobile Function STEP1
STEP1
Using the GOT Mobile Function
Creating a new project
Using the GOT Mo bile Function
STEP1 Creating a new project
This manual explains how to access the GOT from a tablet using the GOT Mobile function and display the
mobile screen.
Only the basic operations are covered in this manual. Refer to the following manuals for details on other
functions and settings.
GT Designer3 (GOT2000) Help
1. Creating a new project
Start up GT Designer3 (GOT2000), and follow the wizard to complete the settings.
The setting details and setting values are listed below.
Check the details set with the wizard, and then click the [Finish] button.
The GT Designer3 (GOT2000) edit screen will open, and the base screen 1 will be created.
Setting screen or setting item Setting contents Setting value Remarks
Selecting project [New], [Open] [New] -
System settings
[Series] GOT2000 -
[Type] GT27**-V(640×480) Select GT27 or GT25.
[Use the gesture function] Selected GT27 only
[Standard Language] [English] -
[Outline Font]
[Alphanumeric/Kana]: Selected -
[Kanji]: Selected -
[Hangul]: Not selected -
Controller settings
[Manufacturer] [MITSUBISHI] Set according to the connected
device.
[Controller Type] [MELSEC iQ-R, RnMT]
[I/F] [Standard I/F (Ethernet): Multi] -
[Driver] [Ethernet (MELSEC), Q17nNC,
CRnD-700, Gateway] -
[Detail Setting] Set according to the GOT and PLC
connection configuration. -
Screen switching [Base Screen] [GD100] (default value) -

STEP2
Using the GOT Mobile Function
Setting the GOT Mobile function
10 Setting the GOT Mobile function
STEP2 Setting the GOT Mobile function
With the GOT Mobile function, the GOT acts as the server and the information device such as a tablet acts
as a client.
The connected device can be monitored from the client via the server (GOT).
1. Enable the GOT Mobile function
2. Items to check before setting the authentication setting
(1) Check the GOT unit's CoreOS version.
Check that the GOT unit's CoreOS version is Version L or later.
For the procedure to check the version, refer to the following manual.
GOT2000 Series User's Manual (Utility) (SH-081195ENG)
(2) If the GOT unit's CoreOS version is not Version L or later
The CoreOS Version L or later must be written to the GOT using GT Designer3 Ver. 1.144A or later.
For the CoreOS writing methods, refer to the following manual.
GT Designer3 (GOT2000) Help
(To display a Help page corresponding to the operation status of GT Designer3, press [F1] key while
operating GT Designer3.)

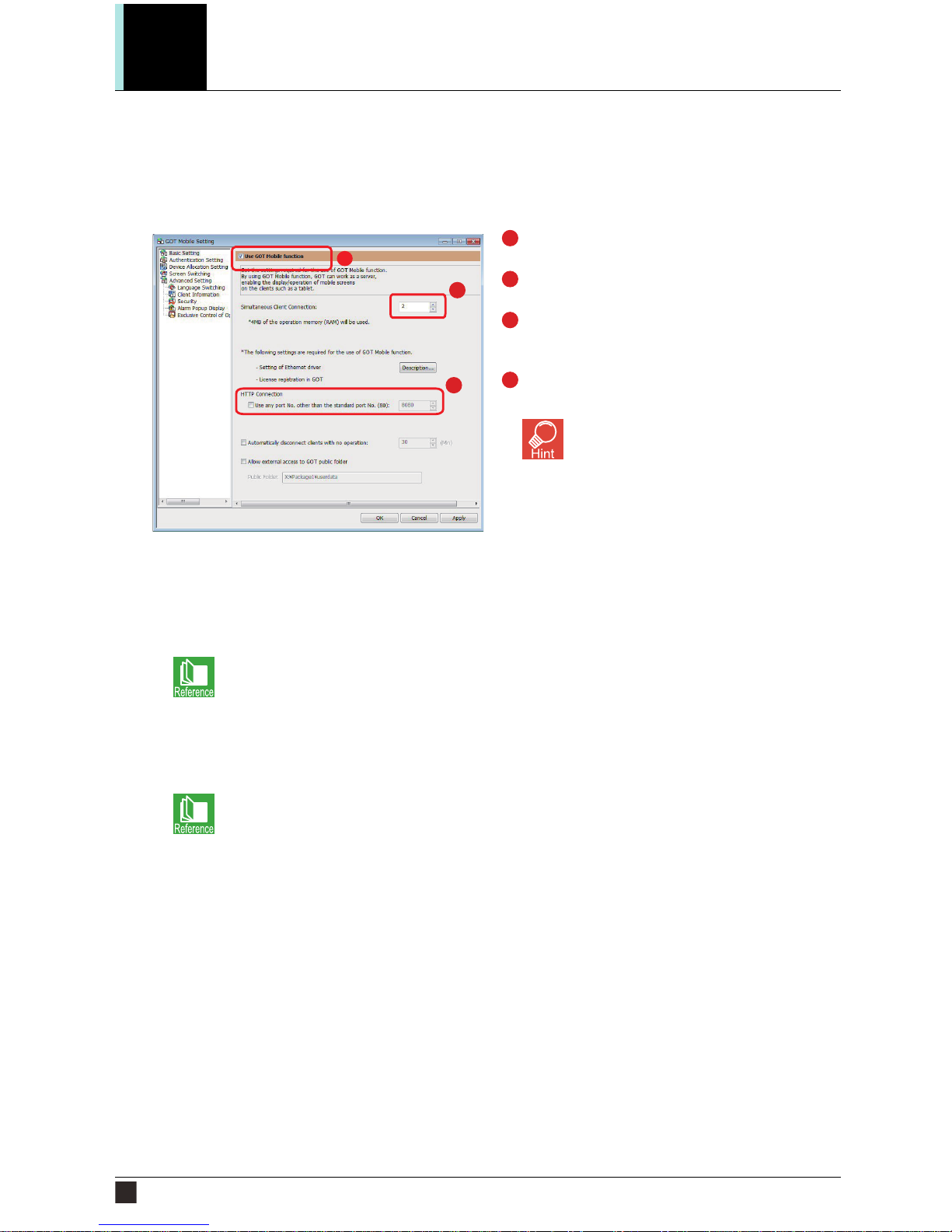

Click [Common] →[GOT Mobile Setting].
Select [Use GOT Mobile function].
Set [Simultaneous Client Connection] to the default
value [2].
Do not check [Use any port No. other than the
standard port No. (80)]. Use the port No. [80].
Simultaneous client connection
Set the number of information devices
(clients) such as tablets to connect.
Up to five units can be set for one GOT.
2
3
4
1
2
3
4

Using the GOT Mobile Function
Setting the GOT Mobile function
Setting the GOT Mobile function 11
1
2
3
4
Using the GOT Mobile Function STEP2
3. Set the authentication setting
Set the [Operator] and [Password] required when accessing the GOT from an information device, such as a
tablet.
4. Set the device allocation setting
Assign GOT Mobile devices (VGD, VGB) that are used with mobile screens to GOT internal devices.
The GOT Mobile devices (VGB and VGD) are virtual devices usable for clients.
Multiple clients can be controlled individually since different GOT internal devices are assigned for each
client.
■Relation of GOT Mobile devices and GOT internal devices (for word device)
Click [Authentication Setting].
Confirm that [GOT Mobile exclusive] is selected.
Select [Use an administrative operator].
Input any characters for [Operator] and [Password]. In
this example, input the following name and password.
[Operator] : Admin
[Password] : 1234
Administrative operator and guest operator
Operation rights must be acquired before
operating a mobile screen for which [Target
for exclusive control of operational authority]
is valid. An administrative operator can
acquire the operation rights, but a guest
operator cannot.
Click [Device Allocation Setting].
Set the [Device (VGD, VGB) Allocation].
Setting the [Word Device (GD)]
Points: 1000
First Device: GD10000
Setting the [Bit Device (GB)]
Points: 1024
First Device: GB10000
With this setting, the following relation is established
between the devices (VGD, VGB) used with mobile
screens and the GOT internal devices.
GOT Mobile device (VGD) Client 1 Client 2
VGD0 GD10000 GD11000
VGD1 GD10001 GD11001
VGD2 GD10002 GD11002
VGD3 GD10003 GD11003
• • •
• • •
• • •
VGD999 GD10999 GD11999
1
2
34
1
2
3
4
1
2
1
2

STEP2
Using the GOT Mobile Function
Setting the GOT Mobile function
12 Setting the GOT Mobile function

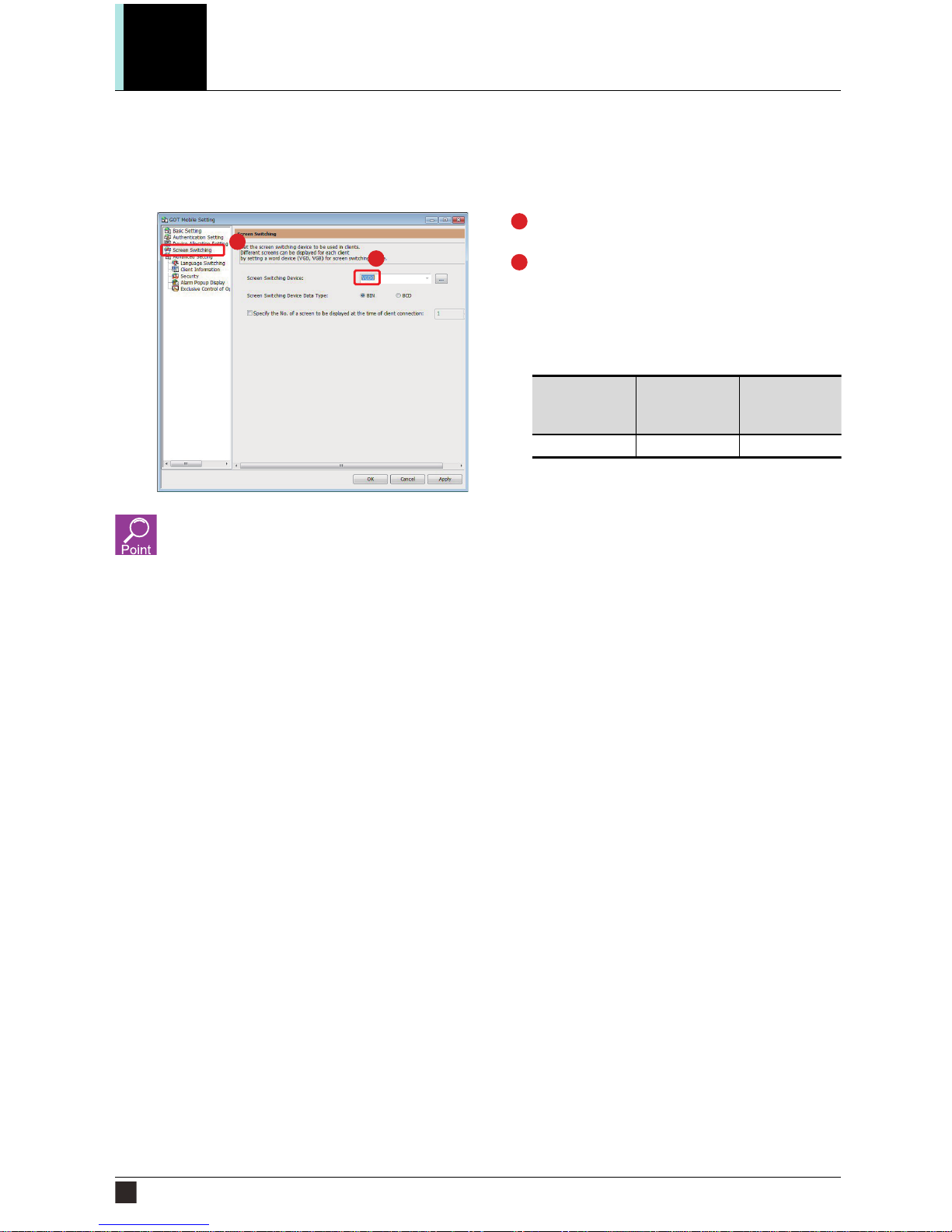

5. Setting a screen switching device
Set the screen switching device of mobile screens that are displayed on an information device such as a
tablet.
Precautions for using GOT Mobile function
Refer to the Technical Bulletin No. GOT-A-0090.
Click [Screen Switching].
Set [Screen Switching Device].
Use the default value [VGD0] in this example.
With these settings, an individual screen can be
displayed for each client as shown below.
1
2
1
2
Screen switching
GOT Mobile
device (VGD)
Client 1 Client 2
VGD0 GD10000 GD11000

Creating a mobile screen 13
1
2
3
4
5
Using the GOT Mobile Function STEP3
STEP3
Using the GOT Mobile Function
Creating a mobile screen
STEP3 Creating a mobile screen
1. Creating a mobile screen
Create a mobile screen displayed on a browser of an information device such as a tablet.
Click [Screen] →[New] →[Mobile Screen].
The [Screen Property] of the mobile screen will
open.
Set [Screen Size] according to the size of the
screen of the information device, such as tablet.
Set the screen size by inputting the screen size,
or by selecting the following screen size.
• [VGA (640x480) [4:3]]
• [SVGA (800x600) [4:3]]
• [XGA (1024x768) [4:3]]
• [QXGA (2048x1536) [4:3]]
• [WXGA (1280x800) [16:10]]
• [HD (1280x720) [16:9]]
• [FWXGA (1366x768) [16:9]]
• [Full HD (1920x1080) [16:9]]
• [iPhone4 (960x640) [ - ]]
• [iPhone5 (1136x640) [ - ]]
• [iPhone6 (1334x750) [ - ]]
In this example, select [Full HD (1920x1080)
[16:9]].
The screen number [M-1] mobile screen has
been prepared.
The mobile screens are created in the same
manner as the base screen.
For details on creating the screen, refer to the
following manual.
Mitsubishi Graphic Operation Terminal
GOT2000 Series Quick Start Guide
(L(NA) 08311ENG)
GT Designer3 (GOT2000) Help
1
2
3
3
Screen No. [M-1]
4

STEP3
Using the GOT Mobile Function
Creating a mobile screen
14 Creating a mobile screen
In this example, create the mobile screen shown
on the left.
There are restrictions to the objects and
functions created on the mobile screen. For
details, refer to the following.
➠ Appendix2 Functions, images and objects
usable with mobile screen
Appendix3 Mobile screen object sizes and
layout
The mobile screen has a higher
resolution than the base screen, so it
may be difficult to see the entire mobile
screen. It is recommended to select a
screen scale of 50% using the [Zoom
out] button.
5
Lamp name Device No. Device operation
Lamp1 GS7.b0 This is the GOT's binary counter.
Turns ON/OFF at a 1-second cycle.
Lamp2 SM412 This is the PLC's system clock.
Turns ON/OFF at a 1-second cycle.

Setting the GOT wireless LAN 15
1
2
3
4
5
6
Using the GOT Mobile Function STEP4
STEP4
Using the GOT Mobile Function
Setting the GOT wireless LAN
STEP4 Setting the GOT wireless LAN
1. Set the IP address of the wireless LAN communication unit
Mount a wireless LAN communication unit on the GOT to connect the GOT to an information device, such
as a tablet. Set the IP address of the connected wireless LAN communication unit.
Click [Common] →[GOT Setup] →[Advanced Setting] →[Wireless LAN Setting].
Select [Update the wireless LAN setting].
Select [Access Point] to use the wireless LAN
communication unit as an access point.
Input an arbitrary name in [SSID].
This name will be the name of the wireless LAN
network controlled by GOT.
Input [GOT_LAN] in this example.
Click [I/F Communication Setting].
Set the [Wireless LAN] [CHNo.] to [A].
Click [Detail Setting].
Set the IP address of the wireless LAN
communication unit. Click [GOT Wireless LAN
I/F Setting].
2
1
3
4
1
2
3
4
5 6
5
6
7
7

STEP4
Using the GOT Mobile Function
Setting the GOT wireless LAN
16 Setting the GOT wireless LAN
Number of connected information devices, such as tablets
If the wireless LAN communication unit is set as an access point, up to five information devices, such as tablets,
can be connected simultaneously to one GOT.
Wireless LAN security authentication
This manual explains only the basic usage methods, so the security authentication method is not set.
When the security authentication method is not used, anyone can access the GOT. Setting the security
authentication method is recommended when using the wireless LAN function.
Use the default value [192.168.4.20] for the
[GOT IP Address].
Select [Reflect GOT wireless LAN I/F setting in
the GOT].
Click the [OK].
8
9
10
8
9
10

Mounting the wireless LAN communication unit into the GOT 17
1
2
3
4
5
6
7
Using the GOT Mobile Function STEP5
STEP5
Using the GOT Mobile Function
Mounting the wireless LAN communication unit into the GOT
STEP5 Mounting the wireless LAN communication unit into the GOT
Mount the wireless LAN communication unit into the GOT unit.
For details on the wireless LAN communication unit, refer to the following manual.
GOT2000 Series Wireless LAN Communication Unit User's Manual (IB-0800522)
Turn OFF the GOT power.
Remove the side interface cover from the GOT.
Align the positioning projection on the wireless
LAN communication unit with the positioning
groove on the GOT, and mount into the
connector.
Tighten the two mounting screws provided on the
wireless LAN communication unit with a No.1
Phillips screwdriver to a torque of 0.10 N•m to
0.14 N•m.
Mount the side interface cover onto the GOT.
1
2
3

STEP6
Using the GOT Mobile Function
Transferring project data
18 Transferring project data
STEP6 Transferring project data
1. Connecting the personal computer to the GOT
Connect the personal computer to the GOT with a USB cable.
* The USB driver must be installed to enable USB communication with the GOT.
The USB driver is automatically installed in the personal computer at the first connection.
Data can also be transferred with connection methods other than a USB cable or by using an SD memory card.
Refer to the GT Designer3 (GOT2000) Help for details on connection methods other than a USB
cable and for transferring data by using an SD memory card.
Connect to a
USB interface
Personal computer
GOT
Open the front cover and
connect the cable to the
USB interface.
USB cable
(GT09-C30USB-5P)

Using the GOT Mobile Function
Transferring project data
Transferring project data 19
1
2
3
4
5
6
7
8
Using the GOT Mobile Function STEP6
2. Communication setting
Set the personal computer and GOT for communication. Turn on the GOT power before starting the
settings.
Click [Communication] →[Write to GOT].
[Test] button
Click the [Test] button, and confirm that the personal computer and GOT communicate correctly.
3. Transferring project data
Transfer the project data from the personal computer to the GOT.
Confirm that the settings are as shown below.
Connection to GOT : Direct
PC side I/F : USB
Click the [OK] button.
Confirm that the settings are as shown below.
Write data : Package Data
Destination Drive : C: Built-in Flash
Memory
Click the [GOT Write] button.
A dialog will appear when the writing is
completed.
Click the [OK] button.
1
2
1
2
3
4
3
4
5
5

STEP7
Using the GOT Mobile Function
Register the GOT Mobile function license number in the GOT
20 Register the GOT Mobile function license number in the GOT.
1
2
3
4
5
6
7
8
9
Using the GOT Mobile Function STEP7
STEP7 Register the GOT Mobile function license number in the GOT.
Register the GOT Mobile function license number required for using the GOT Mobile function in the GOT
unit.
Trial period
If the license number is not registered, the following message will appear on the tablet's mobile screen and display of
the mobile screen in this state will be limited to 30 minutes. When the GOT is restarted, the screen can be displayed
in the trial state again.
When [GOT Mobile Function] does not appear
Check the settings in STEP 2.
Hold down the point at the upper left corner of the GOT
screen for 2 seconds or more.
(The touch position and touch length can be changed from
the GOT Setup screen.)
Touch [Ext. func. set] →[License management].
At [GOT Mobile function] →[License number], input the
number given on the license certificate for the GOT Mobile
function and touch the [Regist] button.
Utility call key
Touch point at upper left corner
1
2
2
3
3
