Mitsubishi PKFY-P63VKM-E.TH User manual

TECHNICAL & SERVICE MANUAL
CONTENTS
1. TECHNICAL CHANGES ......................... 2
2. SAFETY PRECAUTION .......................... 2
3. PART NAMES AND FUNCTIONS .......... 6
4. SPECIFICATION ................................... 14

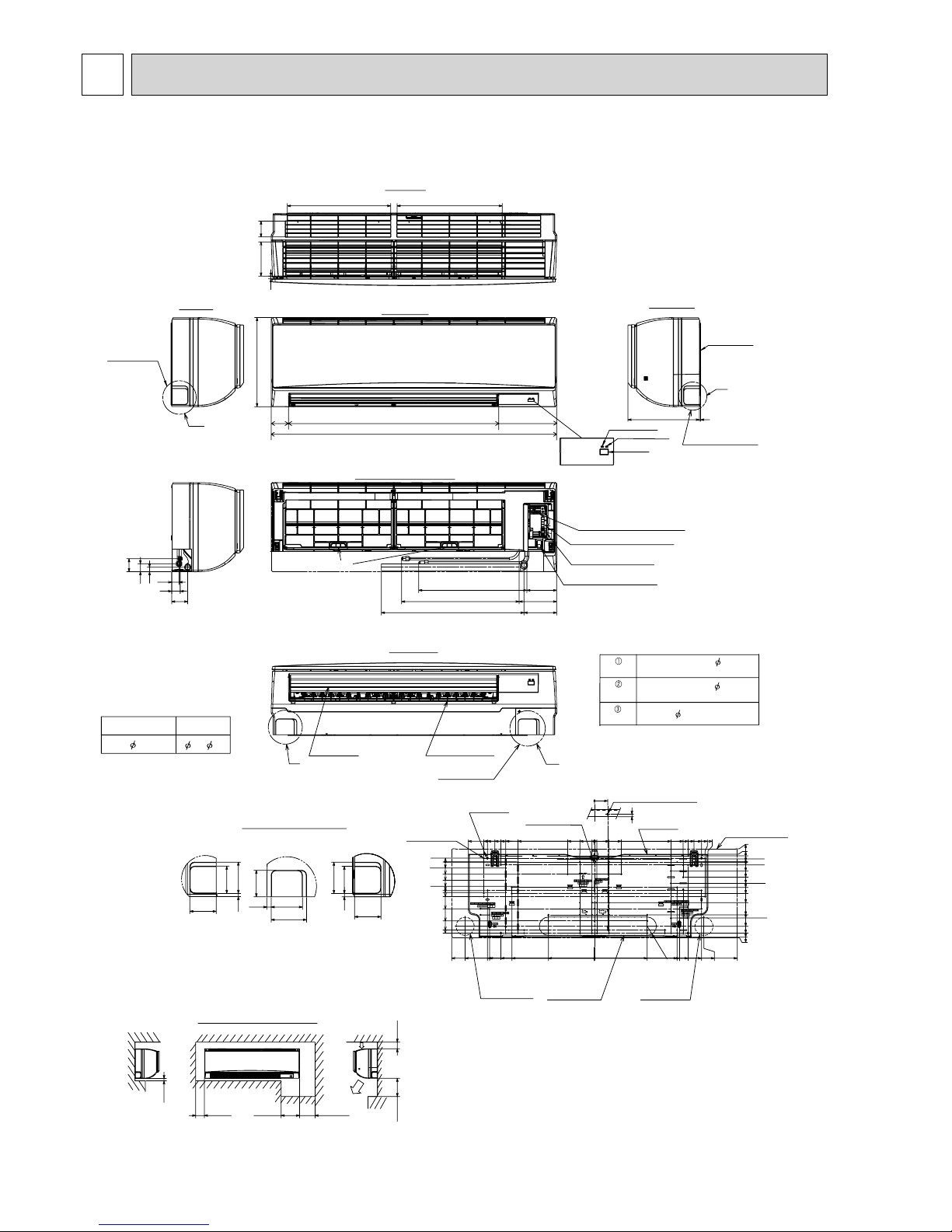

5. OUTLINES AND DIMENSIONS ............ 16

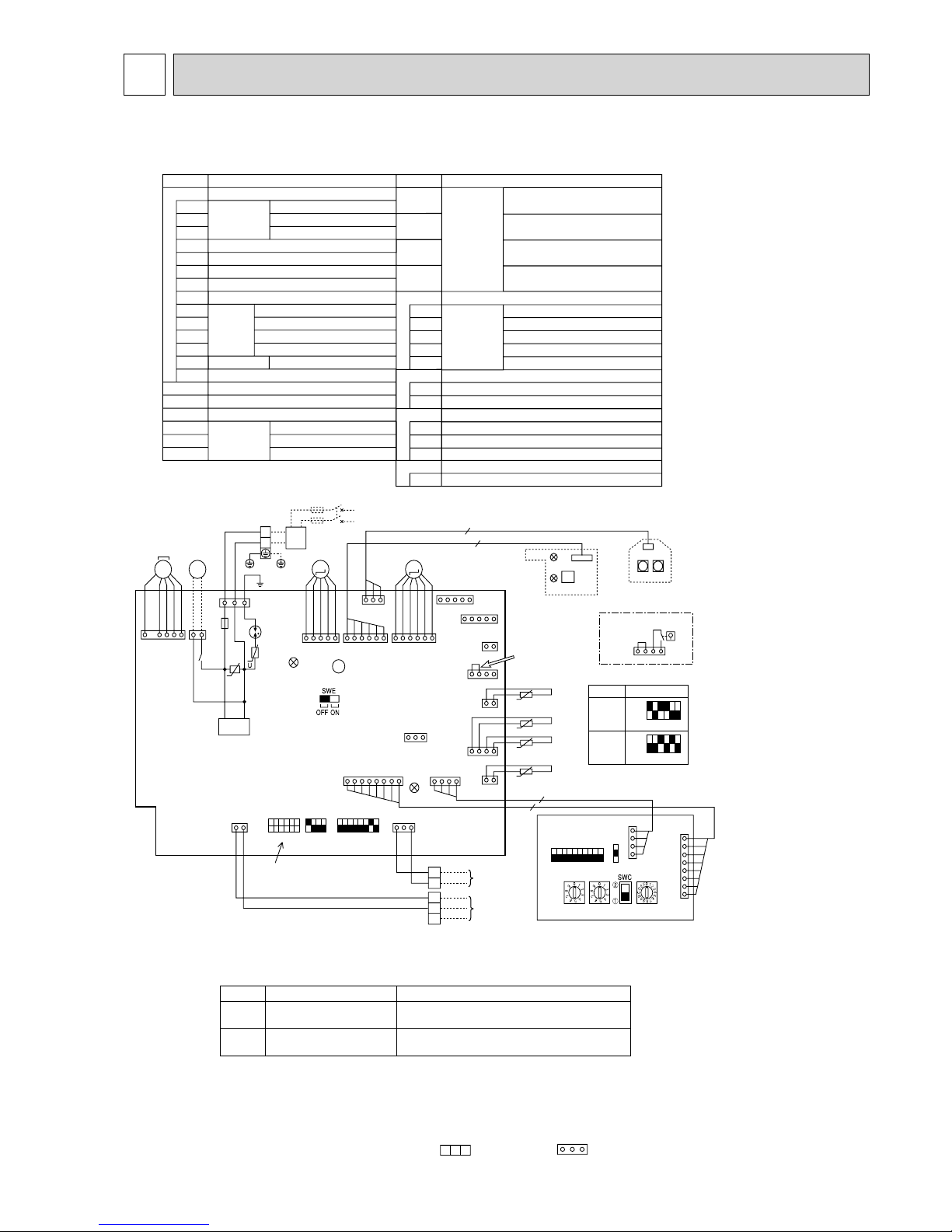

6. WIRING DIAGRAM ............................... 17
7. REFRIGERANT SYSTEM DIAGRAM ........ 19
8. TROUBLESHOOTING .......................... 19
9. DISASSEMBLY PROCEDURE ............. 27
Indoor unit
[Model names] [Service Ref.]
PKFY-P63VKM-E.TH
PKFY-P63VKM-ER1.TH
PKFY-P100VKM-E.TH
PKFY-P100VKM-ER1.TH
No. OCH447
REVISED EDITION-B
INDOOR UNIT
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
Note:
• This manual describes only
service data of the indoor
units.
• RoHS compliant products
have <G> mark on the spec
name plate.
December 2012
PARTS CATALOG (OCB447)
Revision:
• PKFY-P63/100VKM-ER1.TH
have been added in
REVISED EDITION-B.
• Some descriptions have
been modified.
• Please void OCH447
REVISED EDITION-A.
PKFY-P63VKM-E
PKFY-P100VKM-E
R407C R22R410A

2
2SAFETY PRECAUTION
CAUTIONS RELATED TO NEW REFRIGERANT
1TECHNICAL CHANGES
PKFY-P63VKM-E.TH PKFY-P63VKM-ER1.TH
PKFY-P100VKM-E.TH PKFY-P100VKM-ER1.TH
• INDOOR CONTROLLER BOARD (I.B.) has been changed. (S/W version up)
Cautions for units utilizing refrigerant R407C
Do not use the existing refrigerant piping.
The old refrigerant and lubricant in the existing piping
contain a large amount of chlorine which may cause the
lubricant deterioration of the new unit.
Use “low residual oil piping”
If there is a large amount of residual oil (hydraulic oil, etc.)
inside the piping and joints, deterioration of the lubricant
will result.
Use ESTR , ETHER or HAB as the lubricant to
coat flares and flange connection parts.
If large amount of mineral oil enters, that can cause
deterioration of refrigerant oil etc.
Use liquid refrigerant to charge the system.
If gas refrigerant is used to seal the system, the composition
of the refrigerant in the cylinder will change and performance
may drop.
Do not use a refrigerant other than R407C.
If another refrigerant (R22, etc.) is used, the chlorine in the
refrigerant may cause the lubricant deterioration.
Use a vacuum pump with a reverse flow check valve.
The vacuum pump oil may flow back into the refrigerant
cycle and cause the lubricant deterioration.
If dust, dirt, or water enters the refrigerant cycle,
deterioration of the oil and compressor trouble may result.
Store the piping indoors, and both ends of the
piping sealed until just before brazing.
(Leave elbow joints, etc. in their packaging.)
Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
Never use any refrigerant other than that specified.
Doing so may cause a burst, an explosion, or fire when the
unit is being used, serviced, or disposed of.
Correct refrigerant is specified in the manuals and on the
spec labels provided with our products.
We will not be held responsible for mechanical failure,
system malfunction, unit breakdown or accidents caused
by failure to follow the instructions.
Use the specified refrigerant only.
OCH447B

33
[3] Service tools
Use the below service tools as exclusive tools for R407C refrigerant.
[2] Refrigerant recharging
(1) Refrigerant recharging process
1Direct charging from the cylinder.
· R407C cylinder available on the market has a syphon pipe.
· Leave the syphon pipe cylinder standing and recharge it.
(By liquid refrigerant)
(2) Recharge in refrigerant leakage case
· After recovering the all refrigerant in the unit, proceed to working.
· Do not release the refrigerant in the air.
· After completing the repair service, recharge the cycle with the specified amount of liquid refrigerant.
Gravimeter
Unit
[1] Cautions for service
· After recovering the all refrigerant in the unit, proceed to working.
· Do not release refrigerant in the air.
· After completing the repair service, recharge the cycle with the specified amount of liquid refrigerant.
No. Tool name Specifications
1Gauge manifold · Only for R407C
· Use the existing fitting SPECIFICATIONS. (UNF7/16)
· Use high-tension side pressure of 3.43MPa·G or over.
2Charge hose · Only for R407C
· Use pressure performance of 5.10MPa·G or over.
3Electronic scale —
4Gas leak detector · Use the detector for R134a or R407C.
5Adaptor for reverse flow check · Attach on vacuum pump.
6Refrigerant charge base —
7Refrigerant cylinder · For R407C · Top of cylinder (Brown)
· Cylinder with syphon
8Refrigerant recovery equipment —
OCH447B

4
Cautions for units utilizing refrigerant R410A
Charge refrigerant from liquid phase of gas
cylinder.
If the refrigerant is charged from gas phase, composition
change may occur in refrigerant and the efficiency will be
lowered.
Do not use refrigerant other than R410A.
If other refrigerant (R22 etc.) is used, chlorine in refrige-
rant can cause deterioration of refrigerant oil etc.
Use a vacuum pump with a reverse flow check
valve.
Vacuum pump oil may flow back into refrigerant cycle and
that can cause deterioration of refrigerant oil etc.
Use the following tools specifically designed for
use with R410A refrigerant.
The following tools are necessary to use R410A refrigerant.
Handle tools with care.
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
Do not use a charging cylinder.
If a charging cylinder is used, the composition of refrigera-
nt will change and the efficiency will be lowered.
Flare tool
Electronic refrigerant
charging scale
Vacuum pump adaptor
Size adjustment gauge
Gauge manifold
Torque wrench
Gas leak detector
Charge hose
Tools for R410A
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
If large amount of mineral oil enters, that can cause deterio-
ration of refrigerant oil etc.
Do not use the existing refrigerant piping.
The old refrigerant and lubricant in the existing piping
contains a large amount of chlorine which may cause the
lubricant deterioration of the new unit.
Use “low residual oil piping”
If there is a large amount of residual oil (hydraulic oil, etc.)
inside the piping and joints, deterioration of the lubricant
will result.
Store the piping indoors, and both ends of the
piping sealed until just before brazing.
(Leave elbow joints, etc. in their packaging.)
The refrigerant oil applied to flare and flange
connections must be ester oil, ether oil or
alkylbenzene oil in a small amount.
Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
Use the specified refrigerant only.
Never use any refrigerant other than that specified.
Doing so may cause a burst, an explosion, or fire when the
unit is being used, serviced, or disposed of.
Correct refrigerant is specified in the manuals and on the
spec labels provided with our products.
We will not be held responsible for mechanical failure,
system malfunction, unit breakdown or accidents caused
by failure to follow the instructions.
OCH447B

5
[1] Cautions for service
(1) Perform service after recovering the refrigerant left in unit completely.
(2) Do not release refrigerant in the air.
(3) After completing service, charge the cycle with specified amount of refrigerant.
(4) When performing service, install a filter drier simultaneously.
Be sure to use a filter drier for new refrigerant.
[2] Additional refrigerant charge
When charging directly from cylinder
· Check that cylinder for R410A on the market is syphon type.
· Charging should be performed with the cylinder of syphon stood vertically. (Refrigerant is charged from liquid phase.)
Gravimeter
Unit
[3] Service tools
Use the below service tools as exclusive tools for R410A refrigerant.
No. Tool name Specifications
1Gauge manifold · Only for R410A
· Use the existing fitting specifications. (UNF1/2)
· Use high-tension side pressure of 5.3MPa·G or over.
2Charge hose · Only for R410A
· Use pressure performance of 5.09MPa·G or over.
3Electronic scale —
4Gas leak detector · Use the detector for R134a, R407C or R410A.
5Adaptor for reverse flow check · Attach on vacuum pump.
6Refrigerant charge base —
7Refrigerant cylinder · Only for R410A · Top of cylinder (Pink)
· Cylinder with syphon
8Refrigerant recovery equipment —
OCH447B

6

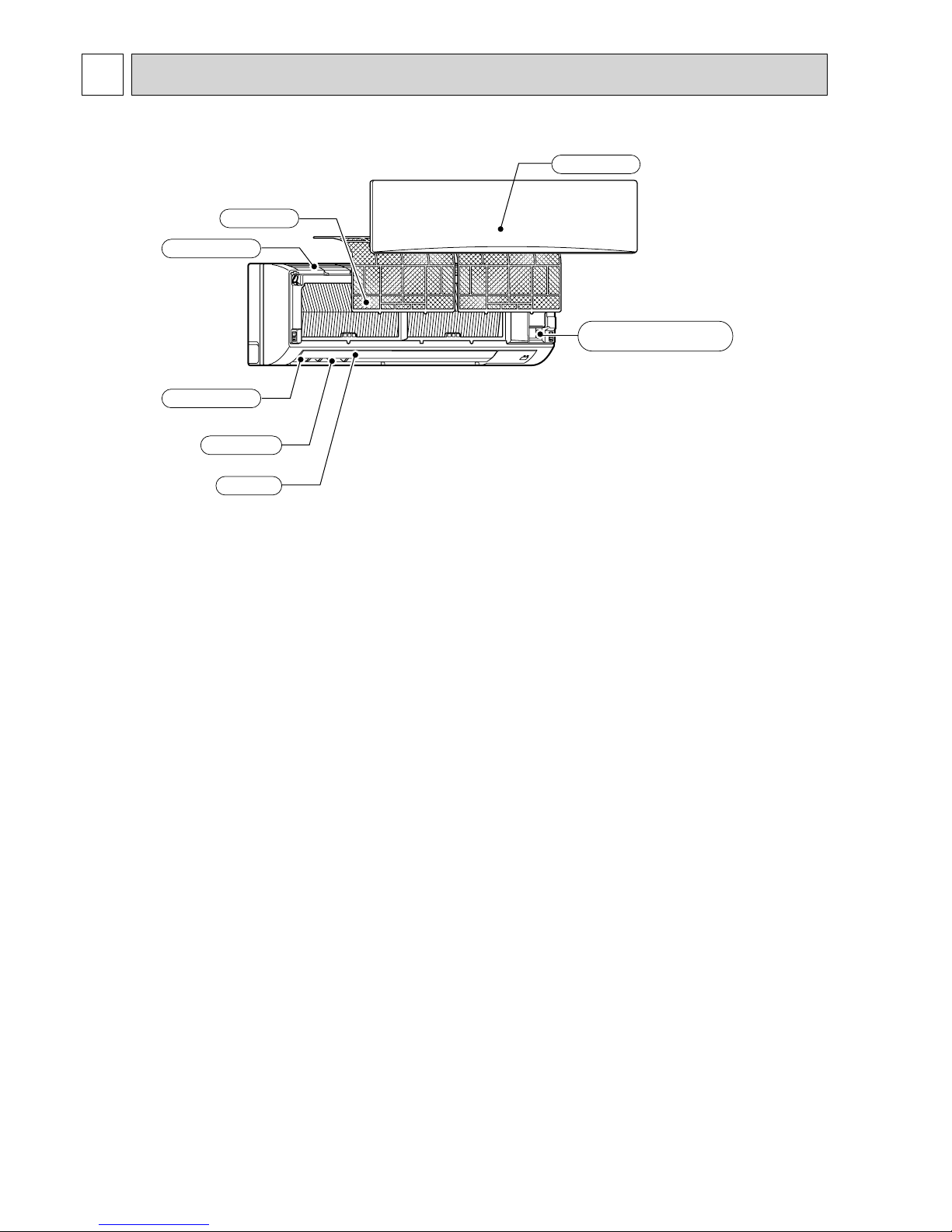

3-1. Indoor unit
3PART NAMES AND FUNCTIONS
Emergency operation
switch
Front grille
Air inlet
Filter
Air outlet
Louver
Vane
OCH447B

77
Function buttons
F1 F2 F3 F4
Press to turn ON/OFF the indoor unit.
ON / OFF button
When the backlight is off, pressing any button turns
the backlight on and does not perform its function.
(except for the (ON / OFF) button)
The functions of the function buttons change depending on
the screen. Refer to the button function guide that appears
at the bottom of the LCD for the functions they serve on a
given screen.
When the system is centrally controlled, the button function
guide that corresponds to the locked button will not appear.
Press to save the setting.
SELECT button
Press to return to the previous screen.
RETURN button
Press to bring up the Main menu.
MENU button
Operation settings will appear.
When the backlight is off, pressing any button turns the
backlight on and it will stay lit for a certain period of time
depending on the screen.
Backlit LCD
This lamp lights up in green while the unit is in operation.
It blinks while the remote controller is starting up or when
there is an error.
ON / OFF lamp
Main display : Press to change the operation mode.
Main menu : Press to move the cursor down.
Function button F1
Main display : Press to decrease temperature.
Main menu : Press to move the cursor up.
Function button F2
Main display : Press to increase temperature.
Main menu : Press to go to the previous page.
Function button F3
Main display : Press to change the fan speed.
Main menu : Press to go to the next page.
Function button F4
Fri
Room
Set temp.
Mode Temp. Fan
Cool Auto
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
<Main display> <Main menu>
Function guide

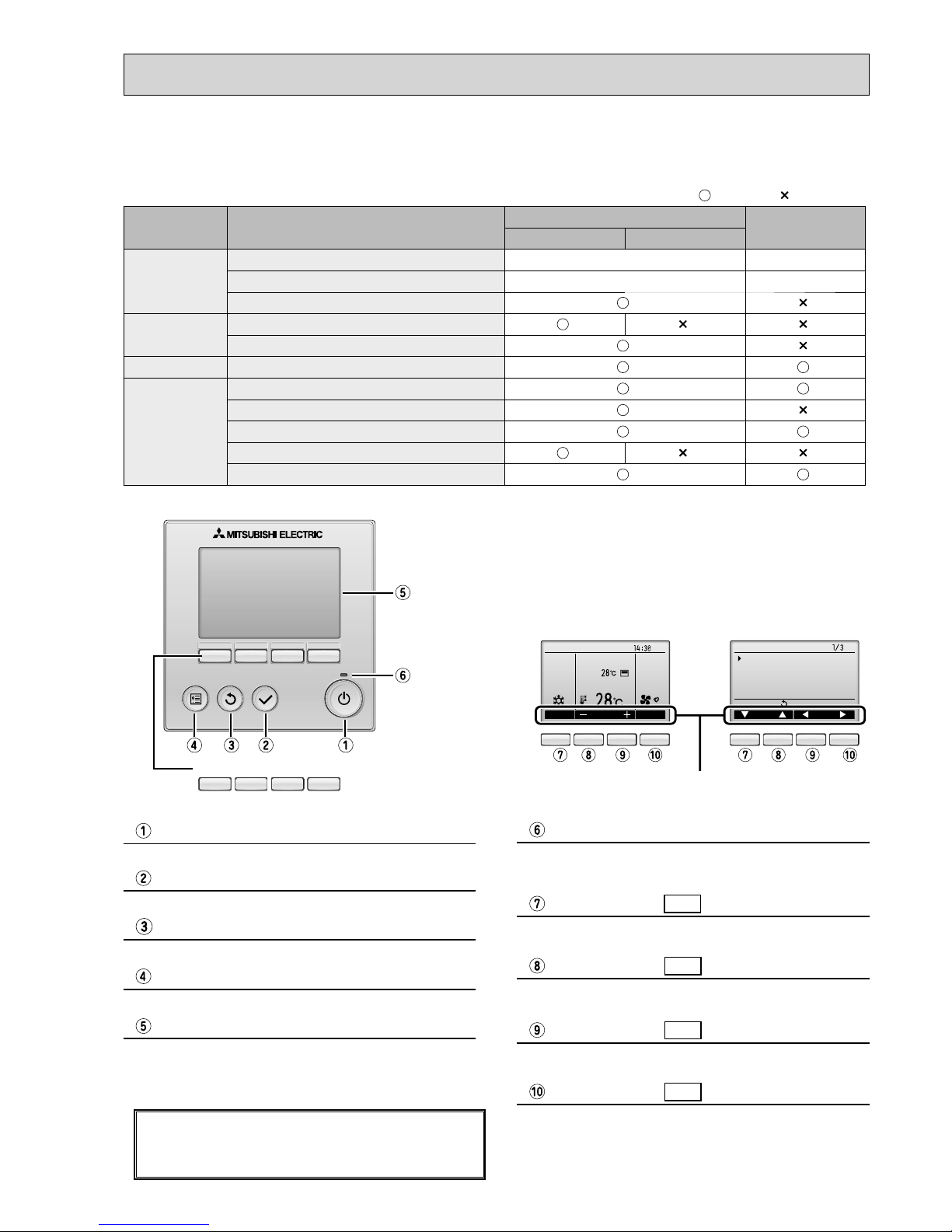

3-2. WIRED REMOTE CONTROLLER <PAR-30MAA/PAR-31MAA>
* The functions which can be used are restricted according to the model.
: Supported : Unsupported
Function PAR-30MAA/PAR-31MAA PAR-21MAA
Slim City multi
Body Product size H × W × D (mm) 120 × 120 × 19 120 × 130 × 19
LCD Full Dot LCD Partial Dot LCD
Backlight
Energy-saving Energy-saving operation schedule
Automatic return to the preset temperature
Restriction Setting the temperature range restriction
Function Operation lock function
Weekly timer
On / Off timer
High Power
Manual vane angle
Wired remote controller function
OCH447B

8
Fri
Mode Temp. Fan
Room
Cool Auto
Set temp.
Fri
Cool
Mode Temp. Fan
AutoSet temp.
The main display can be displayed in two different modes: "Full" and "Basic".
T
he factory setting is "Full". To switch to the "Basic" mode, change the setting on the Main display setting.
<Full mode> <Basic mode>
* All icons are displayed for explanation.
Most settings (except ON / OFF, mode, fan speed, temperature) can be made from the Menu screen.
Indoor unit operation mode appears here.
Operation mode
Preset temperature appears here.
Preset temperature
Current time appears here.
Clock (See the Installation Manual.)
Fan speed
Fan speed setting appears here.
Functions of the corresponding buttons appear here.
Button function guide
Appears when the ON/OFF operation is centrally controlled.
Appears when the operation mode is centrally controlled.
Appears when the preset temperature is centrally controlled.
Appears when the f lter reset function is centrally controlled.
Indicates when f lter needs maintenance.
Current room temperature appears here.
Room temperature
(See the Installation Manual.)
Appears when the buttons are locked.
Appears when the On/Off timer or Night setback function is
enabled.
Appears when the Weekly timer is enabled.
Appears while the units are operated in the energy-save
mode.
Appears when the built-in thermistor on the remote control-
ler is activated to monitor the room temperature (a).
appears when the thermistor on the indoor unit is acti-
vated to monitor the room temperature.
Indicates the vane setting.
Indicates the louver setting.
Indicates the ventilation setting.
Appears when the preset temperature range is restricted.
OCH447B

9
Not all functions are available on all models of indoor units.
Filter information
Error information
Energy saving
Auto return
Schedule
Night setback
Main menu Press the MENU button.
Move the cursor to the desired item with the F1 and F2 buttons, and press the SELECT button.
Vane · Louver · Vent. (Lossnay)
High power
Weekly timer
Restriction
Maintenance
Initial setting
On / Off timer
Auto-Off timer
Temp. range
Operation lock
Manual vane angle
Main / Sub
Timer
Main display
Contrast
Display details
Auto mode
Administrator password
Language selection
Service
Service menu
Input maintenance info.
Function setting
Lossnay (City Multi only)
Check
Self check
Maintenance password
Remote controller check
Test run
Clock
Drain pump test run
Auto descending panel
Menu structure
OCH447B

10
Setting and display items Setting details
Vane · Louver · Vent.
(Lossnay)
Use to set the vane angle.
• Select a desired vane setting from f ve different settings.
Use to turn ON / OFF the louver.
• Select a desired setting from "ON" and "OFF."
Use to set the amount of ventilation.
• Select a desired setting from "Off," "Low," and "High."
High power Use to reach the comfortable room temperature quickly.
• Units can be operated in the High-power mode for up to 30 minutes.
Timer On/Off timer Use to set the operation On/Off times.
• Time can be set in 5-minute increments.
* Clock setting is required.
Auto-Off
timer
Use to set the Auto-Off time.
• Time can be set to a value from 30 to 240 in 10-minute increments.
Filter information Use to check the f lter status.
• The f lter sign can be reset.
Error information Use to check error information when an error occurs.
• Error code, error source, refrigerant address, unit model, manufacturing number, contact
information (dealer's phone number) can be displayed.
* The unit model, manufacturing number, and contact information need to be registered in
advance to be displayed.
Weekly timer Use to set the weekly operation On / Off times.
• Up to eight operation patterns can be set for each day.
* Clock setting is required.
* Not valid when the On/Off timer is enabled.
Energy
saving
Auto return Use to get the units to operate at the preset temperature after performing energy-save
operation for a specif ed time period.
• Time can be set to a value from 30 and 120 in 10-minute increments.
* This function will not be valid when the preset temperature ranges are restricted.
Schedule Set the start/stop times to operate the units in the energy-save mode for each day of the
week, and set the energy-saving rate.
• Up to four energy-save operation patterns can be set for each day.
• Time can be set in 5-minute increments.
• Energy-saving rate can be set to a value from 0% or 50 to 90% in 10% increments.
* Clock setting is required.
Night setback Use to make Night setback settings.
• Select "Yes" to enable the setting, and "No" to disable the setting. The temperature range and
the start/stop times can be set.
* Clock setting is required.
Restriction Temp. range Use to restrict the preset temperature range.
• Different temperature ranges can be set for different operation modes.
Operation
lock
Use to lock selected functions.
• The locked functions cannot be operated.
Maintenance Auto
descending
panel
Auto descending panel (Optional parts) Up / Down you can do.
Manual
vane angle
Use to set the vane angle for each vane to a f xed position.
Initial setting Main/Sub When connecting two remote controllers, one of them needs to be designated as a sub
controller.
Clock Use to set the current time.
Main display Use to switch between "Full" and "Basic" modes for the Main display.
• The default setting is "Full."
Contrast Use to adjust screen contrast.
Main menu list
OCH447B

11
Setting and display items Setting details
Initial setting Display
details
Make the settings for the remote controller related items as necessary.
Clock: The factory settings are "Yes" and "24h" format.
Temperature: Set either Celsius (°C) or Fahrenheit (°F).
Room temp. : Set Show or Hide.
Auto mode: Set the Auto mode display or Only Auto display.
Auto mode Whether or not to use the AUTO mode can be selected by using the button.
This setting is valid only when indoor units with the AUTO mode function are connected.
Administrator
password
The administrator password is required to make the settings for the following items.
• Timer setting • Energy-save setting • Weekly timer setting
• Restriction setting • Outdoor unit silent mode setting • Night set back
Language
selection
Use to select the desired language.
Service Test run Select "Test run" from the Service menu to bring up the Test run menu.
• Test run • Drain pump test run
Input
maintenance
Select "Input maintenance Info." from the Service menu to bring up the Maintenance
information screen.
The following settings can be made from the Maintenance Information screen.
• Model name input • Serial No. input • Dealer information input
Function
setting
Make the settings for the indoor unit functions via the remote controller as necessary.
LOSSNAY
setting
(City Multi only)
This setting is required only when the operation of City Multi units is interlocked with
LOSSNAY units.
Check Error history: Display the error history and execute delete error history.
Refrigerant leak check: Refrigerant leaks can be judged.
Smooth maintenance: The indoor and outdoor maintenance data can be displayed.
Request cord: Details of the operation data including each thermistor temperature and error
history can be checked.
Self check Error history of each unit can be checked via the remote controller.
Maintenance
password
Take the following steps to change the maintenance password.
Remote
controller
check
When the remote controller does not work properly, use the remote controller checking
function to troublushoot the problem.
OCH447B

12
°F°C
°F°C
ERROR CODE
AFTER
TIMER
TIME SUN MON TUE WED THU FRI SAT
ON
OFF
Hr
AFTER
FILTER
FUNCTION
ONLY1Hr.
WEEKLY
SIMPLE
AUTO OFF
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
●
●
Display Section
For purposes of this explanation,
all parts of the display are shown.
During actual operation, only
the relevant items will be lit.
Identifies the current operation
Shows the operating mode, etc.
*Multilanguage display is available.
“Centrally Controlled” indicator
Indicates that operation from the
remote controller has been prohib-
ited by a master controller.
“Timer is Off” indicator
Indicates that the timer is off.
Temperature Setting
Shows the target temperature.
Day-of-Week
Shows the current day of the week.
Time/Timer Display
Shows the current time, unless the simple or Auto Off
timer is set.
If the simple or Auto Off timer is set, the time to be
switched off is shown.
“Sensor” indication
Displays when the remote controller
sensor is used.
“Locked” indicator
Indicates that remote controller but-
tons have been locked.
“Clean The Filter” indicator
To be displayed on when it is time to
clean the filter.
Timer indicators
The indicator comes on if the corre-
sponding timer is set.
Up/Down Air Direction indica-
tor
The indicator shows the direc-
tion of the outcoming airflow.
“One Hour Only” indicator
Room Temperature display
Shows the room temperature. The room
temperature display range is 8 - 39.
The display blinks if the temperature
is less than 8 or 39 or more.
Louver display
Indicates the action of the swing louver.
Does not appear if the louver is not
running.
(Power On indicator)
Indicates that the power is on.
Fan Speed indicator
Shows the selected fan speed.
Ventilation indicator
Appears when the unit is running in
Ventilation mode.
Operation Section
Temperature setting buttons
Down
Up
Timer Menu button
(Monitor/Set button)
Mode button (Return button)
Set Time buttons
Back
Ahead
Timer On/Off button
(Set Day button)
Opening the
cover
ON/OFF button
Fan Speed button
Filter button
(<Enter> button)
Test Run button
Check button (Clear button)
Airflow Up/Down button
Louver button
( Operation button)
To return operation
number
Ventilation button
( Operation button)
To go to next operation
number
Note:
“PLEASE WAIT” message
This message is displayed for approximately 3 minutes when power is supplied to the indoor unit or when the unit is recovering from a power failure.
“NOT AVAILABLE” message
This message is displayed if an invalid button is pressed (to operate a function that the indoor unit does not have).
If a single remote controller is used to operate multiple indoor units simultaneously that are different types, this message will not be displayed as
far as any of the indoor units is equipped with the function.
Built-in temperature sensor
Displays if the airflow is set to
Low or downward during COOL
or DRY mode. (Operation varies
according to model.)
The indicator goes off in one hour,
at which time the airflow direction
also changes.

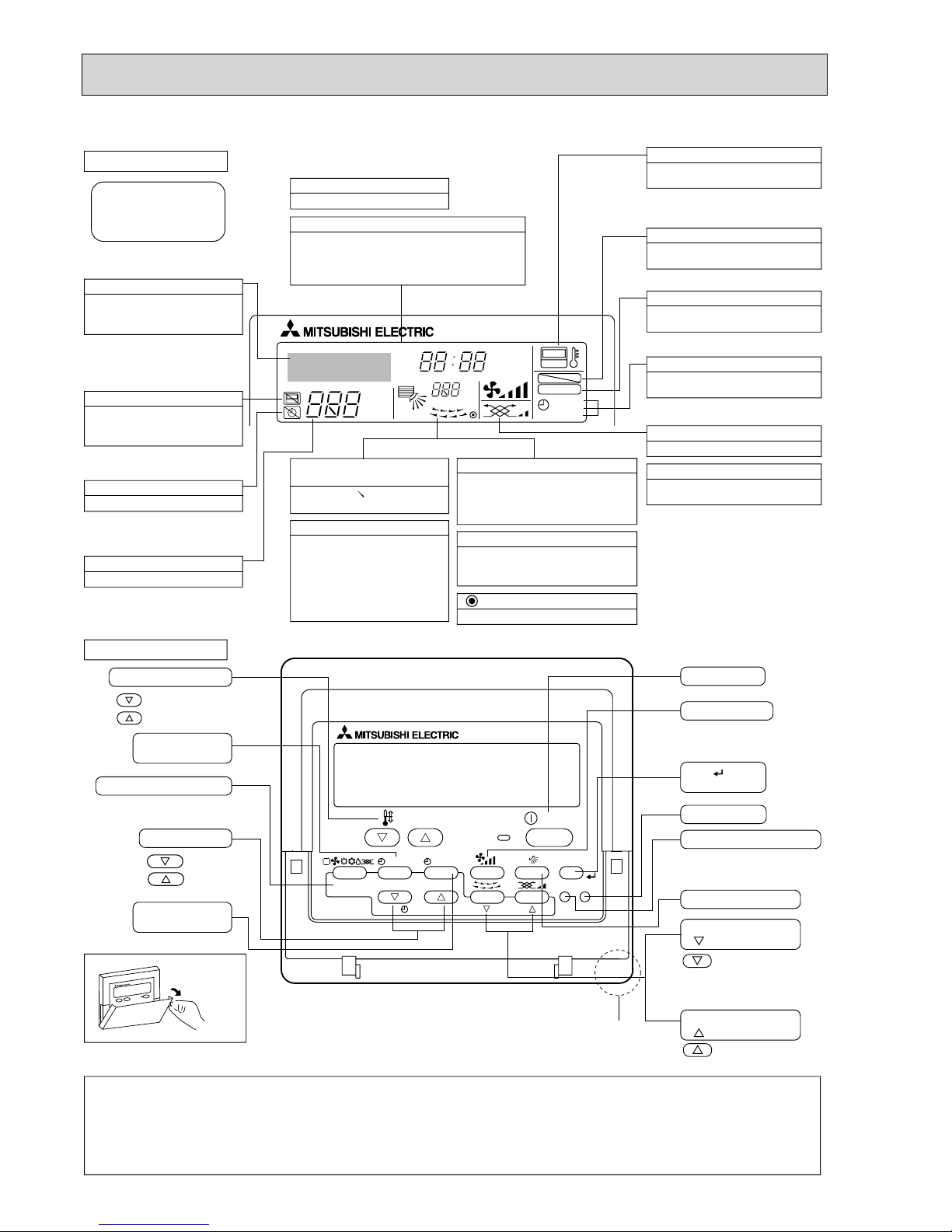

3-3. WIRED REMOTE CONTROLLER <PAR-21MAA>
OCH447B

13

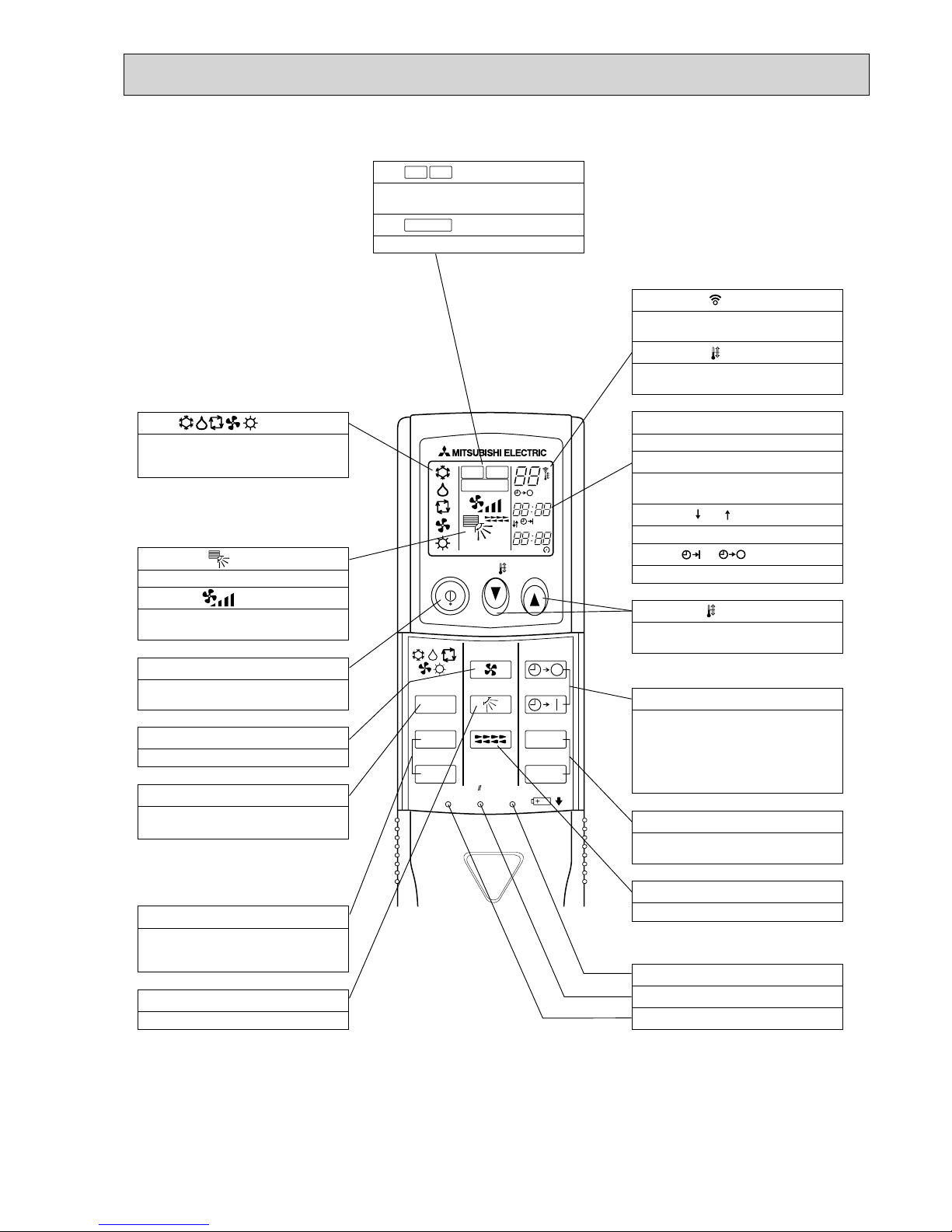

3-4. Wireless remote controller
ON/OFF TEMP
FAN
VANE
TEST RUN
AUTO STOP
AUTO START
h
min
LOUVER
MODE
CHECK
RESETSET CLOCK
MODEL SELECT
NOT AVAILABLE
CHECK TEST RUN
°C
AMPM
AMPM
VANE CONTROL button
Used to change the air flow direction.
CLOCK button
RESET button
SET button
ON/OFF button
The unit is turned ON and OFF alternately
each time the button is pressed.
LOUVER button
Changes left/right airflow direction.
(Not available for this model.)
MODE SELECT button
Used to switch the operation mode between
cooling, drying, fan, heating and auto mode.
CHECK-TEST RUN buttons
Only press this button to perform an
inspection check or test operation.
Do not use it for normal operation.
FAN SPEED SELECT button
Used to change the fan speed.
TIMER display
Displays when in timer operation or when
setting timer.
buttons
SET TEMPERATURE button sets any desired
room temperature.
CLOCK display
Displays the current time.
“ ” “ ” display
Displays the order of timer operation.
“ ” “ ” display
Displays whether timer is on or off.
* If the outdoor unit is cool only type, the
heating and auto mode are not available.
Buttons used to set the “hour and minute” of
the current time and timer settings.
h and min buttons
display
display
FAN SPEED display indicates which fan
speed has been selected.
display
The vertical direction of air flow is indicated.
display
Blinks when model is selected.
display
display
CHECK and TEST RUN display indicate that
the unit is being checked or test-run.
display
OPERATION MODE display
Operation mode display indicates which
operation mode is in effect.
TIMER CONTROL buttons
AUTO STOP (OFF timer): when this switch is
set, the air conditioner will be automatically
stopped at the preset time.
AUTO START (ON timer): when this switch is
set, the air conditioner will be automatically
started at the preset time.
MODEL SELECT
CHECK TEST RUN
SET TEMP. display indicates the set desired
temperature.
Lights up while the signal is transmitted to
the indoor unit when the button is pressed.
OCH447B

14
11.2
9,600
38,200
10,000
0.08
0.58
12.5
10,800
42,600
0.07
0.51
*1 Nominal cooling conditions
Note :
Indoor :
Outdoor :
Pipe length :
Level difference :
27°CDB/19°CWB (81°FDB/66°FWB)
35°CDB (95°FDB)
7.5 m (24-9/16 ft)
0m (0 ft)
*2 Nominal cooling conditions
27°CDB/19.5°CWB (81°FDB/67°FWB)
35°CDB (95°FDB)
5m (16-3/8 ft)
0m (0 ft)
*3 Nominal heating conditions Unit converter
20°CDB (68°FDB)
7°CDB/6°CWB (45°FDB/43°FWB)
7.5 m (24-9/16 ft)
0 m (0 ft)
*4 Electrical characteristic of cooling are included optional drain - pump.
* Nominal conditions *1, *3 are subject to JIS B8615-1.
* Due to continuing improvement, above specification may be subject to change without notice.
kcal/h = kW × 860
Btu/h = kW × 3,412
cfm = m3/min × 35.31
lb = kg/0.4536
*Above specification data is
subject to rounding variation.
Model
Power source
Cooling capacity
(Nominal)
Heating capacity
(Nominal)
External finish
External dimension H × W × D
Net weight
Heat exchanger
Fan
Noise level (Low-High)
(measured in anechoic room)
Insulation material
Air filter
Protection device
Refrigerant control device
Connectable outdoor unit
Diameter of
refrigerant pipe
Field drain pipe size
Standard
attachment
Optional parts
Remark
Power input
Current input
Power input
Current input
Type x Quantity
External
static press.
Motor type
Motor output
Driving mechanism
Airflow rate
(Low-High)
Liquid
Gas
Document
Accessory
Drain pump kit
Installation
kW
kcal/h
Btu/h
kcal/h
kW
A
kW
kcal/h
Btu/h
kW
A
mm
in.
kg (lb)
Pa
mmH2O
kW
m3/min
L/s
cfm
dB <A>
mm (in.)
mm (in.)
mm (in.)
*1
*1
*1
*2
*4
*4
*3
*3
*3
(R410A)
(R410A)
Installation Manual, Instruction Book
PAC-SH94DM-E
1-phase 220-240V 50Hz, 1-phase 220V 60Hz
Cross fin (Aluminum fin and copper tube)
DC motor
Direct-drive
Polyethylene sheet
PP honeycomb
Fuse
LEV
R410A, R407C, R22 CITY MULTI
PKFY-P63VKM-E
Plastic, MUNSELL (1.0Y 9.2/0.2)
7.1
6,100
24,200
6,300
0.05
0.37
8.0
6,900
27,300
0.04
0.30
365 × 1170 × 295
14-3/8" × 46-1/16" × 11-5/8"
21 (46)
Line flow fan × 1
0
0
0.056
PKFY-P100VKM-E
I.D. 16mm (5/8")
ø9.52 (ø3/8")
ø9.52 (ø3/8")
ø15.88 (ø5/8")
ø15.88 (ø5/8")
Flare
Flare
Flare
Flare
ø9.52 (ø3/8")
ø9.52 (ø3/8")
ø15.88 (ø5/8")
ø19.05 (ø5/8")
Flare
Flare
Flare
Flare
16 - 20
267 - 333
565 - 706
39 - 45
20 - 26
333 - 433
706 - 918
41 - 49
Details on foundation work, insulation work, electrical wiring, power source switch, and other items shall be referred to the
Installation Manual.
4SPECIFICATION
4-1. Specif cations
OCH447B

1515
Parts name
Service Ref.
Symbol
TH21
TH22
TH23
TH24
FUSE
MF
MV
LEV
TB2
TB5
TB15
Resistance 0/15k, 10/9.6k, 20/6.3k, 25/5.4k, 30/4.3k, 40/3.0k
Resistance 0/15k, 10/9.6k, 20/6.3k, 25/5.4k, 30/4.3k, 40/3.0k
Resistance 0/15k, 10/9.6k, 20/6.3k, 25/5.4k, 30/4.3k, 40/3.0k
250V 3.15A
8-Pole Output 56W / RCOJ56-AC
MSBPC20 DC12V
(L, N, ) 250V 20A
(M1, M2, S) 250V 20A
(1, 2) 250V 10A
Liquid pipe thermistor
Gas pipe thermistor
Linear expansion valve
PKFY-P63VKM-E.TH
PKFY-P63VKM-ER1.TH
PKFY-P100VKM-E.TH
PKFY-P100VKM-ER1.TH
Room temperature
thermistor
Fuse
(Indoor controller board)
Fan motor
Vane motor
Power supply terminal
block
Transmission terminal
block
EFM-80YGME
DC 12 V
EFM-40YGME
DC 12 V
MA remote controller
terminal block
PKFY-P63VKM-E.TH
PKFY-P63VKM-ER1.TH
External static pressure : 0Pa
Power source :
220, 230, 240V, 50Hz/220V, 60Hz
PKFY-P100VKM-E.TH
PKFY-P100VKM-ER1.TH
External static pressure : 0Pa
Power source :
220, 230, 240V, 50Hz/220V, 60Hz
* Measured in anechoic room.
PKFY-P100VKM-E.TH
PKFY-P100VKM-ER1.TH
41 - 49
PKFY-P63VKM-E.TH
PKFY-P63VKM-ER1.TH
39 - 45
Sound level dB (A)
Sound level at anechoic room : Low-High
1.0m
1.0m
Measurement location
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
Approximate minimum
audible limit on
continuous noise
NC-40
Octave band center frequencies (Hz)
NC-20
NC-30
High
Low
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC-60
NC-50
Octave band pressure level (dB) 0dB=20μPa
NC-40
Octave band center frequencies (Hz)
NC-20
NC-30
High
Low
Approximate minimum
audible limit on
continuous noise
4-2. Electrical parts specif cations
4-3. Sound levels
4-4. NC curves
OCH447B

16
OUTLINES AND DIMENSIONS
5
Refrigerant pipe : 9.52
Flared connection : 3/8F
16 O.D
Liquid pipe
Gas pipe
Drain hose
Sleeve
(purchased locally)
75 75~ 80
Through hole
53
32
18
30
66
35
65.2
423.7
1170
123
154
BB
134
431.7
11
140.3
365
A
5
C
295
75-Φ5.1
Tapping screw hole
4-Φ9 Bolt hole
Center measurement hole Φ2.5
0
314 364 384 408.5 439 454 517.4
585 439 384 339 189
0
216.5
R37.5
339 384 585 439
349.2 449.2
430.5
530.5
110 110 314
54
15.5 0
50
75
117
125
142
292
279.5
242
192
25
100
32
25
37.5
62.5
104.5
129.5
167
217
264
292
308.5
311
0
12.5
12.5
87.5
229.5
364 384.5 408.5 439 454 465.5 60 60 0 10 10
54
3
C
65
67
65
67
77
77
7.8
7.8
10.7
87
77
65
BA
Top side
Front side
Front side (Grille open)
Terminal block for power supply
Terminal block for transmission
Terminal block for
MA-remote controller
Emergency operation switch
(cooling / heating)
Operation lamp
DEFROST/STAND BY lamp
Receiver
Knockout hole for
right piping
Mount board
Right side
444 (Gas pipe)
482 (Liquid pipe)
585 (Drain hose)
Filter hook
Under side
Vane (auto)
Knockout hole
for lower piping
Louver (manual)
Piping connection department
Indoor unit outline
Wall hole for
right rear piping
Knockout hole for
left rear piping
(75×480)
Wall hole for
left rear piping
Mount board
Temporarily fixing hole
108 mm or greater with left or
rear left piping or drain pump installation
Min. 48
Min. 250
Air outlet
Air inlet
Min. 100.5
Min. 220Min. 52.3
550 mm or greater with optional
drain pump installation
265 mm or greater with optional drain pump installation
Min. 7
Required space (Indoor unit)
Knockout hole for piping
Knockout hole
for left piping
Left side
Refrigerant pipe : 15.88
Flared connection : 5/8F
74 (855) 241
PKFY-P63VKM-E.TH PKYF-P100VKM-E.TH
PKFY-P63VKM-ER1.TH PKFY-P100VKM-ER1.TH
Unit : mm
OCH447B

17
WIRING DIAGRAM6

SYMBOL NAME
I.B INDOOR CONTROLLER BOARD
BZ
CN32
CN51
CN52
CONNECTOR
BUZZER
DSA SURGE ABSORBER
REMOTE SWITCH
A.B ADDRESS BOARD
S.B SWITCH BOARD
W.B PCB FOR WIRELESS REMOTE CONTROLLER
SW1
SWA
SW11
SW12
MODE SELECTION
FAN SPEED SELECTOR
ADDRESS SETTING 1s DIGIT
SWE1
SWE2
EMERGENCY OPERATION (HEAT)
EMERGENCY OPERATION (COOL)
LED (OPERATION INDICATOR: GREEN)
LED (OPERATION FOR HEATING: ORANGE )
RECEIVING UNIT
ADDRESS SETTING 10ths DIGIT
SW14 BRANCH No.
CENTRALLY CONTROL
REMOTE INDICATION
SWITCH
X1 AUX.RELAY
FUSE FUSE (T3.15AL 250V)
LED1 POWER SUPPLY (I.B)
LED2
LED1
DP DRAIN PUMP (OPTION)
DRAIN FLOAT SWITCH (OPTION)
FS
LED2
RU
POWER SUPPLY (I.B)
SYMBOL NAME
TH21
MF
MV
THERMISTOR ROOM TEMP. DETECTION
(0°C/15kΩ, 25°C/5.4kΩ)
PIPE TEMP. DETECTION/LIQUID
(0°C/15kΩ, 25°C/5.4kΩ)
PIPE TEMP. DETECTION/GAS1
(0°C/15kΩ, 25°C/5.4kΩ)
LEV LINEAR EXPANSION VALVE
TH22
TH23
PIPE TEMP. DETECTION/GAS2
(0°C/15kΩ, 25°C/5.4kΩ)
TH24
FAN MOTOR
VANE MOTOR
MOV 01.02 VARISTOR
DRAIN PUMP (
OPTION )
TB2
TB5
TB15
TRANSMISSION
MA-REMOTE CONTROLLER
TERMINAL
BLOCK
POWER SUPPLY
SW2
SW3
SW4
SWE
CAPACITY CODE
MODE SELECTION
MODEL SELECTOR
DRAIN PUMP (TEST MODE)
SWITCH
NOTES:
1. At servicing for outdoor unit, always follow the wiring diagram of outdoor unit.
2. In case of using MA-Remote controller, please connect to TB15.
(Remote controller wire is non-polar.)
3. In case of using M-NET, please connect to TB5. (Transmission line is non-polar.)
4. Symbol [S] of TB5 is the shield wire connection.
5. Symbols used in wiring diagram above are, : terminal block, :connecter.
6. The setting of the SW2 dip switches differs in the capacity. For the detail, refer to fig.1.
Mark Meaning Function
Power supply for
MA-Remote controller
Main power supply (Indoor unit:220-240V)
Power on → Iamp is lit
LED on indoor board for service
LED1 Main power supply
Power supply for MA-Remote controller
on → Iamp is lit
LED2
MS
3
~
M
1
~
MF DP
RED
BLU
BLK
BLU
RED
GRN/YLW
L
N
TB2
PULL
BOX
TO NEXT
INDOOR
UNIT
FUSE
( 16A )
BREAKER
( 16A )
POWER SUPPLY
~/N220-240V 50Hz
220V 60Hz
FAN
CNMF
(WHT)
16313
FUSE
CNP
( BLU )
RED BLU YLW BLK WHT
X1 MOV1
U
DC311 ~ 339V
RECTIFICATION
DSA
MOV2
5
1
CND
(BLK)
LED1
BZ
VANE
CN151
(WHT)
51
CNRU
(WHT)
61
RED
ORN
YLW
BRN
GRN
LEV
CN60
(YLW)
61
LDSWE ( A )
(
BLU )
31
RED
YLW
WHT
ORN BLU BRN
MM
MV LEV
6
3
I.B W.B
51
51
41
21
CN52
(GRN)
CN51
(WHT)
CN24
(YLW)
FLOAT SW
CN4F
(WHT)
LD101(B)
LED1
LED2
RU
When attaching drain
pump(option), remove
the jumper connector
CN4F and fit the drain
float switch (FS).
S.B
LD SWE(B)
SWE1 SWE2
FLOAT SW
CN4F
(WHT)
FS
1
4
When attaching drain pump
(option)
Models SW2
P63
P100
123456
ON
OFF
123456
ON
OFF
<fig:  1>
TH24
TH23
TH22
TH21
t○
t○
t○
t○
4
8
41
31
41
81
21
LED2
LIQUID/GAS1
CN44
(WHT)
INTAKE
CN20
(RED)
ADDRESS
CN81
(RED)
ADDRESS
CN42
(RED)
GAS2
CN2G
(BLK)
CN32
(WHT)
21
13
ORN ORN
MA-REMOCON
CN3A
(BLU)
12
12345678
SW3
123456
SW2
ON
OFF
1234
SW4
BLU
BLU
M-NET
CN2M(BLU)
See fig. + 1
ON
OFF
11 2
2
3
3
45678910
SW1
SWA
ADDRESS
CN43
(RED)
ADDRESS
CN82
(RED)
SW14SW11SW12
10ths
DIGIT
1s
DIGIT
BRANCH
No.
A.B
TB5
(SHIELD)
M1
M2
TB15
1
S
2
TO MA- REMOTE
CONTROLLER
DC8.7-13V
TO OUTDOOR UNIT
BC CONTROLLER
REMOTE CONTROLLER
DC24-30V
The black square (■) indicates
a switch position.
PKFY-P63VKM-E.TH PKYF-P100VKM-E.TH
OCH447B

18
SYMBOL NAME
I.B INDOOR CONTROLLER BOARD
CN100
CN32
CN51
CN52
CONNECTOR
IT TERMINAL
BZ1 BUZZER
REMOTE SWITCH
A.B ADDRESS BOARD
S.B SWITCH BOARD
W.B PCB FOR WIRELESS REMOTE CONTROLLER
SW1
SWA
SW11
SW12
MODE SELECTION
FAN SPEED SELECTOR
ADDRESS SETTING 1s DIGIT
SWE1
SWE2
EMERGENCY OPERATION(HEAT)
EMERGENCY OPERATION(COOL)
LED(OPERATION INDICATOR:GREEN)
RECEIVING UNIT
ADDRESS SETTING 10ths DIGIT
SW14 BRANCH No.
CENTRALLY CONTROL
REMOTE INDICATION
SWITCH
X1 AUX.RELAY
FUSE FUSE (T3.15AL 250V)
LED1 POWER SUPPLY(I.B)
LED2
LED1
DP DRAIN PUMP (OPTION)
DRAIN FLOAT SWITCH (OPTION)
FS
LED2
RU
POWER SUPPLY(I.B)
SYMBOL NAME
TH21
MF
MV
THERMISTOR ROOM TEMP. DETECTION
(0ºC/15kΩ, 25ºC/5.4kΩ)
PIPE TEMP. DETECTION / LIQUID
(0ºC/15kΩ, 25ºC/5.4kΩ)
PIPE TEMP. DETECTION / GAS1
(0ºC/15kΩ,25ºC/5.4kΩ)
LEV LINEAR EXPANSION VALVE
TH22
TH23
PIPE TEMP. DETECTION / GAS2
(0ºC/15kΩ, 25ºC/5.4kΩ)
TH24
FAN MOTOR
VANE MOTOR
DRAIN PUMP
(OPTION)
TB2
TB5
TB15
TRANSMISSION
MA-REMOTE CONTROLLER
TERMINAL
BLOCK
POWER SUPPLY
SW2
SW3
SW4
SWE
CAPACITY CODE
MODE SELECTION
MODEL SELECTOR
DRAIN PUMP(TEST MODE)
SWITCH
Models
P63
SW2
123456
ON
OFF
P100
123456
ON
OFF
LED(PREPARATION FOR HEATING : ORANGE)
NOTES:
1. At servicing for outdoor unit,always follow the wiring diagram
of outdoor unit.
2. In case of using MA-Remote controller, please connect
to TB15. (Remote controller wire is non-polar.)
3. In case of using M-NET, please connect to TB5.
(Transmission line is non-polar.)
4. Symbol [S]of TB5 is the shield wire connection.
5. Symbols used in wiring diagram above are,
: terminal block, :connecter.
6.The setting of the SW2 dip switches differs in the capacity.
For the detail, refer to the fig:+1.
Mark Meaning Function
Power supply for
MA-Remote controller
Main power supply (Indoor unit:220-240V)
Power on → Iamp is lit
LED on indoor board for service
LED1 Main power supply
Power supply for MA-Remote controller
on → Iamp is lit
LED2
FAN
CNMF
(WHT)
163
MS
3~
M
1~ M
VANE
CN151
(WHT)
51 LEV
CN60
(YLW)
6
6
1
CNRU
(WHT)
LDSWE(A)
(BLU)
61
3
3
151
51
41
41
21
21
31
41
81
13
51
13
12
12345678
SW3
123456
SW2
ON
OFF
ON
OFF
1234
SW4
21
11 2
2
3
3
45678910
SW1
SWA
L
N
LED1
X1
LED2
M
FUSE
CNP
(BLU
)
CND
(BLK)
RED BLU YLW BLK WHT
MF DP MV LEV
SWE
OFF
BZ1
ON
BLU
TB2
RED
RED
BLU
BLU
YLW
WHT
ORN ORN
ORN
ORN
YLW
BLU
BRN
BRN
RED
GRN/YLW
RED
BLU
BLK
I.B S.B
W.B
A.B
PULL
BOX
FUSE
(16A) BREAKER (16A)
TO NEXT
INDOOR
UNIT
POWER SUPPLY
~/N220-240V 50Hz
220V 60Hz
GRN
CN52 + 2
(GRN)
LD SWE(B)
LD101(B)
SWE1
LED1
TH24
TH23
TH22
TH21
LED2
SWE2
CN51
+ 2
(WHT)
CN24
(YLW)
FLOAT SW
CN4F
(WHT)
FLOAT SW
CN4F
(WHT)
LIQUID/GAS1
CN44
(WHT)
INTAKE
CN20
(RED)
ADDRESS
CN81
(RED)
ADDRESS
CN42
(RED)
GAS2
CN2G
(BLK)
ADDRESS
CN43
(RED)
ADDRESS
CN82
(RED)
MA-REMOCON
CN3A(BLU)
M-NET
CN2M(BLU)
CN32
(WHT)
RU
4
8
tº
tº
tº
tº
See fig:+1
TB5
(SHIELD)
M1
M2
TB15
1
S
2
TO MA- REMOTE
CONTROLLER
DC8.7-13V
TO OUTDOOR UNIT
BC CONTROLLER
REMOTE CONTROLLER
DC24-30V
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
SW14SWCSW11SW12
10ths
DIGIT 1s DIGIT BRANCH No.
FS
1
4
When attaching drain
pump(option), remove
the jumper connector
CN4F and fit the drain
float switch (FS).
When attaching drain pump
(option)
J41
J42
Pair
No.
81
CN100 + 2
(WHT) CN51(WHT)
CN100(WHT)
1
3
458
15
51
IT terminal
PAC-IT51AD-E
+2
CN52(GRN)
CN100(WHT)
1458
15
51
IT terminal
PAC-IT52AD-E
In connecting optional IT terminal, use
either CN51 or CN52 which is not connected.
Be careful for connector colors.
+
The black square( ■ ) indicates a
switch position.<+1>
PKYF-P63VKM-ER1.TH PKFY-P100VKM-ER1.TH
OCH447B

1919

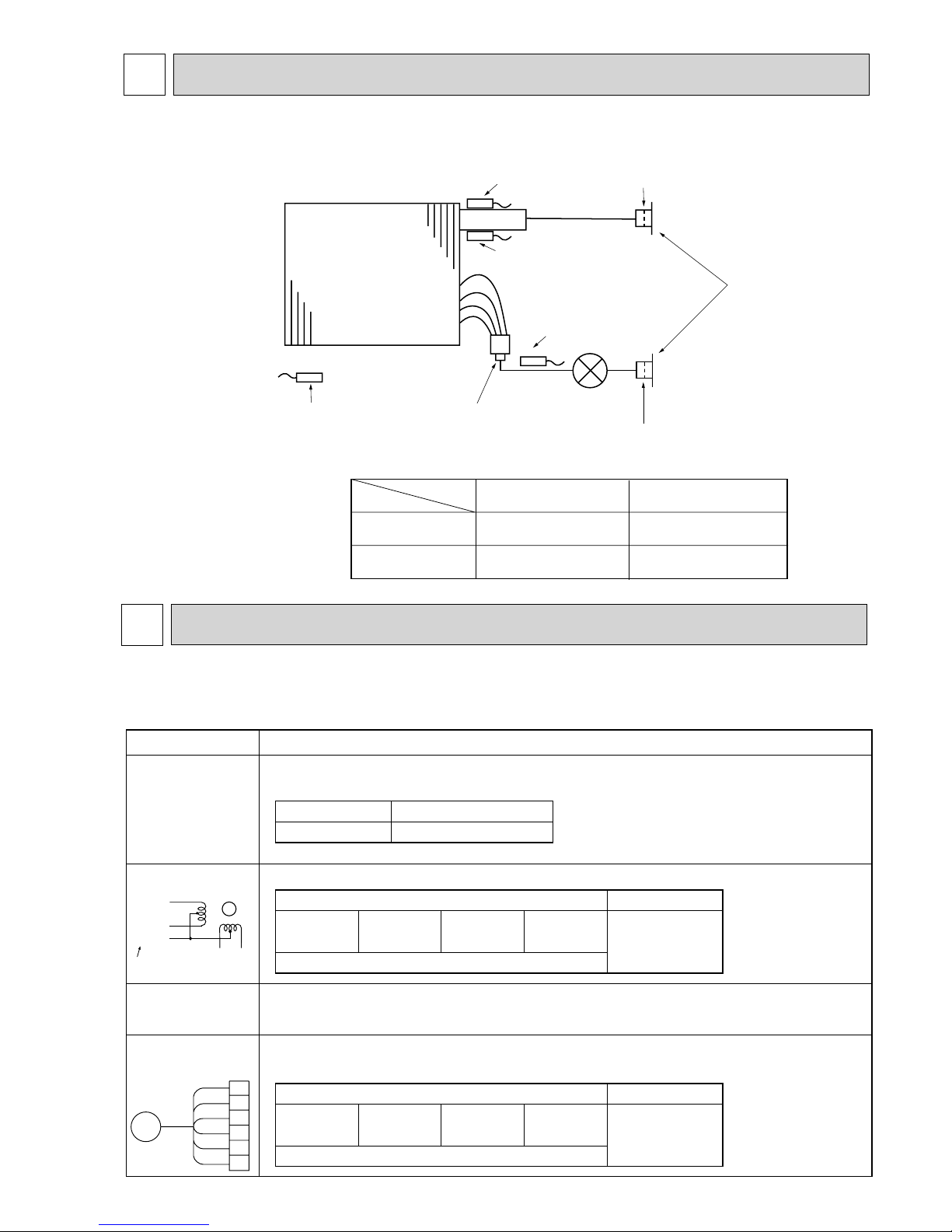

TROUBLESHOOTING
8
7REFRIGERANT SYSTEM DIAGRAM
8-1. HOW TO CHECK THE PARTS
PKFY-P63VKM-E.TH PKYF-P100VKM-E.TH
PKFY-P63VKM-ER1.TH PKFY-P100VKM-ER1.TH
Parts name Check points
Disconnect the connector then measure the resistance with a tester.
(At the ambient temperature 10 - 30)
Disconnect the connector then measure the resistance valve with a tester.
(Coil temperature 20)
Vane motor (MV)
Linear expansion
valve (LEV)
Refer to the next page for the details.
Room temperature
thermistor (TH21)
Liquid pipe temperature
thermistor (TH22)
Gas pipe temperature
thermistor (TH23 ,24)
Normal
4.3k~9.6k
Abnormal
Open or short
Normal
200 ± 10%
Abnormal
(1)-(5)
White-Red
(2)-(6)
Yellow-Brown
(3)-(5)
Orange-Red
(4)-(6)
Blue-Brown Open or short
Measure the resistance between the terminals with a tester. (Coil temperature 20)
Normal
250 ± 7%
Abnormal
-
Brown-Red
-
Brown-Orange
-
Brown-Yellow
-
Brown-Green
Open or short
Fan motor (MF)
 Red
 Yellow
 Brown
Orange

Green
Connect pin No.
M
1
2
3
4
5
6
LEV
White
Yellow
Orange
Blue
Red
Brown
CN60
Refer to 8-1-3.
Strainer (#50mesh)
Strainer (#100mesh)
Strainer1 (#50mesh)
Strainer2 (#100mesh)
Heat exchanger
Room temparature thermistor TH21
Gas pipe thermistor (1) TH23
Liquid pipe thermistor TH22
Linear expansion valve
Gas pipe
Liquid pipe
Flare connection
Gas pipe
Liquid pipe
PKFY-P63VKM-E PKFY-P100VKM-E
:15.88 (5/8)
:9.52 (3/8)
:15.88 (5/8)
:9.52 (3/8)
Item
Model
Unit : mm (inch)
Gas pipe thermistor (2) TH24
PKFY-P63VKM-E.TH PKYF-P100VKM-E.TH
PKFY-P63VKM-ER1.TH PKFY-P100VKM-ER1.TH
OCH447B

20
0
10
20
30
40
50
-20-100 1020304050
< Thermistor for lower temperature >
Temperature ()
Resistance (K)
4:4
3
6
5
:3
2:2
1:1
:4
:3
:2
:1
Controller board
Drive circuit
Connector(CN60)
DC12V
Brown
Red
Blue
Orange
Yellow
White
M
4
6
2
3
5
1
Blue
Brown
Yellow
Orange
Red
White
Linear expansion valve

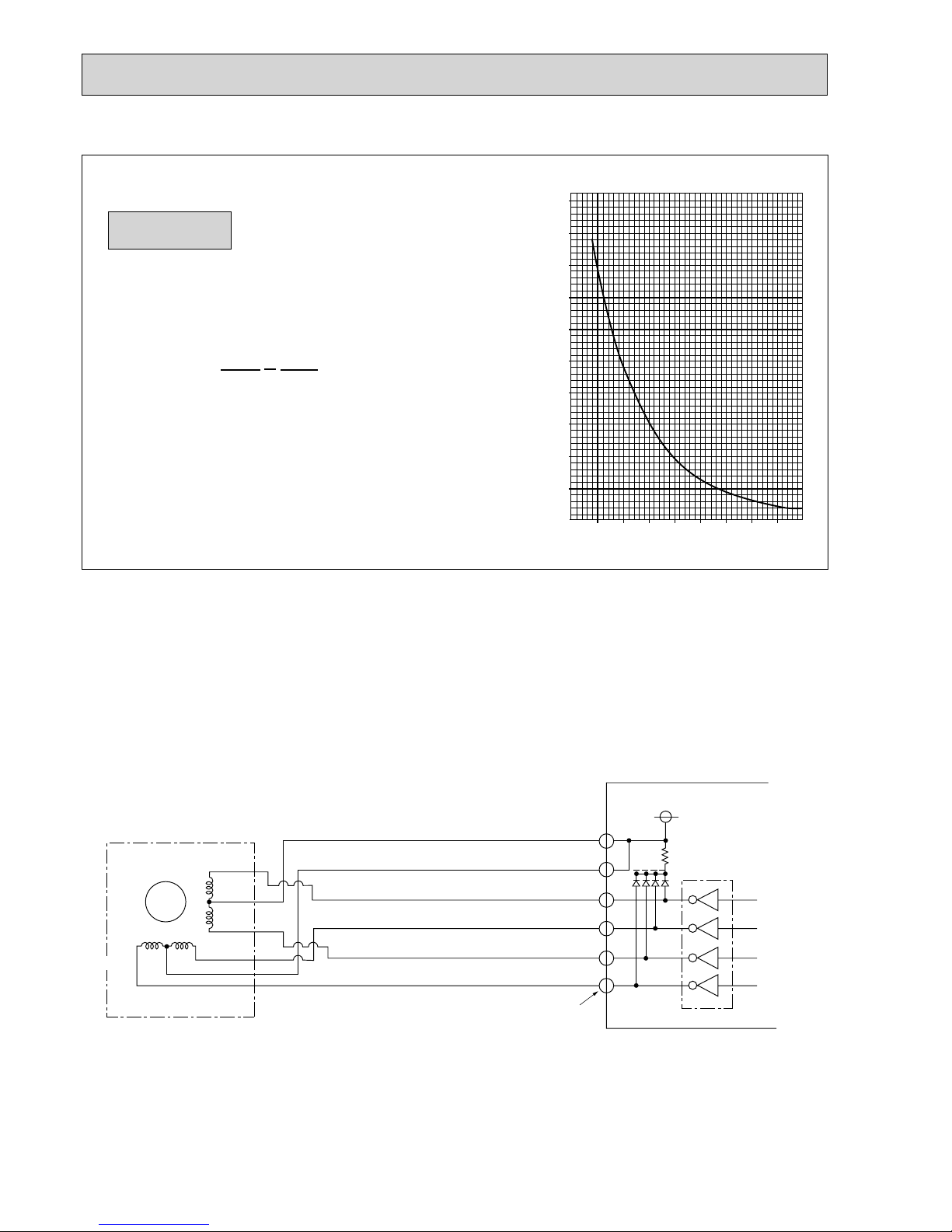

<Thermistor Characteristic graph>
Room temperature thermistor (TH21)
Liquid pipe temperature thermistor (TH22)
Gas pipe temperature thermistor (TH23)
(TH24)
Thermistor R0=15k" ± 3%
Fixed number of B=3480 ± 2%
Rt=15exp { 3480( ) }
0: 15k"
10: 9.6k"
20: 6.3k"
25: 5.4k"
30: 4.3k"
40: 3.0k"
Thermistor for
lower temperature
1 Operation summary of the linear expansion valve
• Linear expansion valve opens/closes through stepping motor after receiving the pulse signal from the indoor controller board.
• Valve position can be changed in proportion to the number of pulse signal.
<Connection between the indoor controller board and the linear expansion valve>
1
273+t
1
273
Note : Since the number of the connector at the controller board side and the relay connector are different, follow the color of
the lead wire.
8-1-2. Liner expansion valve
8-1-1. Thermistor
OCH447B
