MobileHelp IGP-01 User manual

MobileHelp | Complete User Guide
MHP8003-359B
Help at the touch of a button
Mobile Medical Alert Systems
Cellular Base Station Gen 5.0

MobileHelp Customer Service 1-877-827-62072
MHP8003-359B
MobileHelp Complete User Guide
This MobileHelp User Guide includes information covering the
following MobileHelp System:

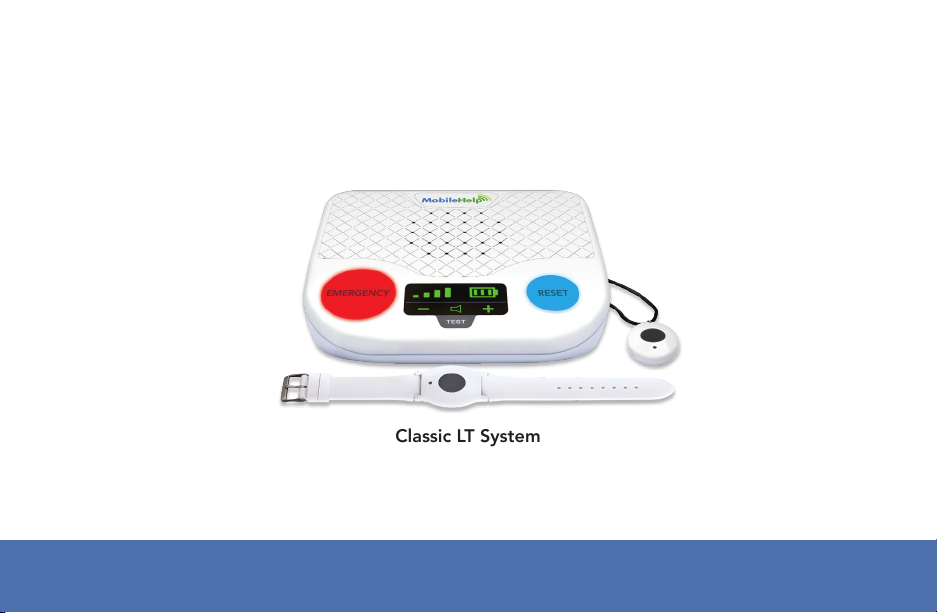

Classic LT System

MobileHelp Complete User Guide 3
MHP8003-359B
Classic LT System
What’s In the Box
Optional Accessories
The Fall Button™and Wall button are optional and at an additional cost. The Fall Button™
has a separate user guide.
Neck Pendant OR Wrist Button
+
Fall ButtonWall Button
PRESS
for
HELP
7
Cellular Base Station Features
(Front)
Emergency
Button
Speaker/Microphone
Test
Icon
ON/OFF
Switch (Back)
Volume
Signal Strength
Indicator
Battery Charge
Indicator
Reset Button
Cellular Base Station

MobileHelp Customer Service 1-877-827-62074
MHP8003-359B
Setup Guide for the MobileHelp Medical Alert System
We thank you for choosing a MobileHelp Medical Alert System and welcome you to the
MobileHelp family. Congratulations on making a smart choice!
If you have any questions during the setup process, please call our support team at
1-877-827-6207 and select the Technical Support option. See last page for hours of operation.
7
Cellular Base Station Features
(Front)
Emergency
Button
Speaker/Microphone
Test
Icon
ON/OFF
Switch (Back)
Volume
Signal Strength
Indicator
Battery Charge
Indicator
Reset Button
Figure 1

MobileHelp Complete User Guide 5
MHP8003-359B
Cellular Base Station Features
Figure 2
7
Cellular Base Station Features
(Front)
Emergency
Button
Speaker/Microphone
Test
Icon
ON/OFF
Switch (Back)
Volume
Signal Strength
Indicator
Battery Charge
Indicator
Reset Button

MobileHelp Customer Service 1-877-827-62076
MHP8003-359B
Waterproof Help Buttons
LED Light
LED Light
Technical Support
Use Only
Emergency
Help Button
Pendant
Wristband
Fall Button*
(optional accessory)
*Fall Button does not detect 100% of falls. If able, users should always push their help button when they need
assistance. Fall Button is not intended to replace a caregiver for users dealing with serious health issues. Users
should wear the Fall Button on the outside of their clothing to improve accuracy in detecting falls.

MobileHelp Complete User Guide 7
MHP8003-359B
Please follow these simple steps to get your system set up and tested.
Connecting your Base Station
Step 1. Select a Location
 We recommend you place the Base Station near the center of your home, such as your
living room, family room or kitchen area.
 Place it near an electrical outlet.
 Do not place any object in front of the Base Station.
 Do not place near any appliances that make noise.
Step 2. Plug in the Power Cord
(Please refer to gure 4)
Plug the power cord that is attached to the back
of the Base Station into an electrical outlet.
To avoid accidentally turning off the Base Station, DO NOT plug it into an electrical
outlet that is controlled by a light switch.
Figure 4

MobileHelp Customer Service 1-877-827-62078
MHP8003-359B

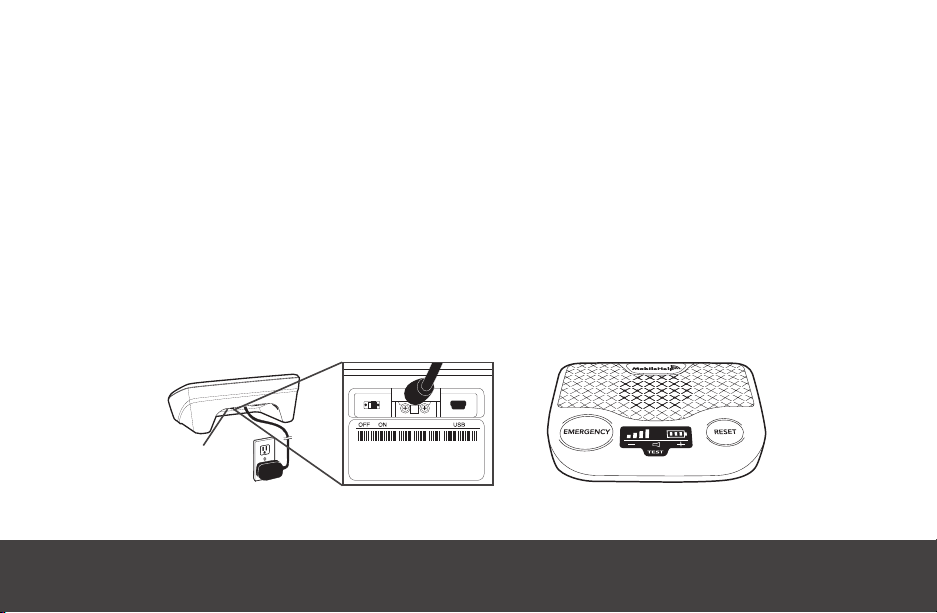

Step 3. Turning ON your Base Station
 Turn on your Base Station using the ON/OFF switch located on the back.
(Please refer to gure 5)
 The emergency and reset buttons will illuminate within 10 seconds. (Please refer to gure 6)
 If the Base is setup correctly, the Base Station will say “system ready”, within 60 seconds.
 Make sure your Base Station is connected to the cellular network by checking for the
signal strength bars on the display screen.
 You can use the volume control icons on the front of the unit at the bottom of the display
screen, by tapping the “–” or the “+” sign, to adjust if the voice is too loud or too soft.
Figure 6Figure 5
ON/OFF
Switch
Model Number: CBS5-01
Manufactured For MobileHelp 33431
Made in Malaysia
FCC ID: PXTCBS5-01
IC : 10876A-CBS501
CAN ICES-3(B)/NMB-3(B)
Contains FCC ID: XPY1EHQ24NN
Contains IC : 8595A-1EHQ24NN
(01)00862262000453(11)170623(21)1234
7
Cellular Base Station Features
(Front)
Emergency
Button
Speaker/Microphone
Test
Icon
ON/OFF
Switch (Back)
Volume
Signal Strength
Indicator
Battery Charge
Indicator
Reset Button

MobileHelp Complete User Guide 9
MHP8003-359B
Testing your Classic LT System
Please test your system on a weekly basis using the TEST icon.
 In order to test your system on battery backup, please unplug the power from the AC outlet.
 You can use the TEST icon on your Cellular Base Station to conduct a test without speaking
to an Emergency Response Operator by following these steps:
- Touch and hold the TEST icon until you hear “user auto test”, this will take approximately
6 seconds.
- You will hear an announcement over the Base Station that will instruct you to press the
Emergency button or Pendant.
- Press the Neck Pendant or Wrist Button.
- The Base Station will announce “test call sent to Emergency Response Center.”
- If your test was successful, you will hear “thank your for testing your device” from the
Base Station speaker.
- If your test was not successful, the Base Station will announce “user auto-test failed,
please contact Technical Support.”
 If you unplugged your Base Station for the test, once you have nished testing,
please remember to plug the power back into the AC outlet.

MobileHelp Customer Service 1-877-827-620710
MHP8003-359B
Cellular Base Station Voice Guidance
If your system includes the Cellular Base Station, your Base Station will have voice
announcements. Select announcements are listed below:
Event Voice Prompt Notes
The Cellular Base
Station is powered on System Ready Base Station ON/OFF switch has been turned on, be sure to connect to electric outlet or it will run on battery backup.
Both red emergency
and blue reset buttons
are ashing
Power not detected
or Power detected
(when electricity is
reconnected)
Check that the Base Station is correctly plugged
into an electrical outlet.
The battery needs
charging Low Battery Check that the Base Station is correctly plugged into an electrical outlet or it will run on battery backup.
The emergency call is
initiated Call in progress Alarm is being sent to the Emergency Response Center.
Call connected Please stand by for
operator Respond to the Emergency Operator’s call over the device speaker.
Cellular Base Station
receives a fall signal Fall Detected - Press and hold Button to Cancel
This will occur for about 20 seconds and will allow you time to
cancel the alarm. During this time, you may press and hold the
button on the Fall Button for 5 seconds to cancel the signal.
Fall alarm is canceled Alarm Canceled Alarm has been canceled.

MobileHelp Complete User Guide 11
MHP8003-359B
Important Safety Information
 Keep electrical cords away from heat sources and sharp edges.
 Keep electrical cords away from areas where someone could trip over them.
 Use caution when handling electrical cords.
 Never install electrical cords during a lightning storm.
 Do not use any attachment or accessory that is not intended for use with this system.
 Test your Classic LT System weekly.
 Do not block the Base Station’s microphone. This will affect your ability to communicate
with the Emergency Response Center.
 During a power outage, the Base Station’s battery backup will last up to 24 hours, after it
has been charged for 3 hours.
 The Wrist Button and/or Neck Pendant are designed to work at an approximate range of
600 feet from the Base Station, depending on the size and construction of your home.
 If the LED on your pendant ashes amber, the battery is low. Please contact MobileHelp
immediately to provide you with a replacement pendant.

MobileHelp Customer Service 1-877-827-620712
MHP8003-359B
 Wear your waterproof help button at all times.
 The help buttons (Neck Pendant, Wrist Button and Fall Detection Button) are waterproof
and can be taken with you in the shower.
 Do not put the Neck Pendant or Wrist Button through the clothes washer or dryer. Do
not attempt to dry your button out in the microwave or oven.
WARNING
Strangulation and choking hazard. The Neck Pendant button lanyard has been
designed to break away when tugged. However, the user can still suffer serious
personal injury or death if the cord becomes entangled or stuck on objects.
Avertissement
Risque de suffocation ou d’étranglement. La lanière pour bouton pendentif est
conçue pour se détacher lorsqu’elle est tirée, cependant, l’utilisateur peut subir une
blessure ou la mort si la lanière se mêle ou s’accroche à d’autres objets.

MobileHelp Complete User Guide 13
MHP8003-359B
Frequently Asked Questions
How do I call for help?
Press your Neck Pendant, Wrist Button, or red emergency button on your Base Station.
What happens if I push the button but I can’t speak?
If you are unable to speak or be heard, we will assume it is an emergency and notify
Emergency Response on your behalf. We will also notify the personal contacts listed on
your prole.
If I accidentally set off the alarm, what do I do?
If you accidentally set off the alarm, simply notify the Emergency Operator when they
respond that this is a “false alarm.” The operator will disconnect and no further action
will be taken.
How will an Emergency Response team get into my home?
Rescue personnel follow different procedures. In most cases, emergency personnel are
authorized to break into your home to help you and cannot be held responsible for any
damages caused as a result of gaining entry.

MobileHelp Customer Service 1-877-827-620714
MHP8003-359B
We recommend that you purchase a MobileHelp “lock box” to safely store your
house key. Your lock box code will be stored on your account and given to emergency
personnel in order to gain entry to your home without causing damage. If you have
your own lock box (not purchased from MobileHelp), please call MobileHelp Customer
Service at 1-877-827-6207 to ensure your code is noted on your account.
How far away from the Base Station will my help buttons work?
Your help buttons are designed to work at an approximate range of 600 feet from the
Base Station, depending on the size and construction of your home.
What happens if I push my help button but cannot get to the Base Station?
What happens if I push my help button but cannot get to the Base Station? If you push your
help button, stay where you are. An Emergency Operator will attempt to communicate with
you through your Base Station. If you are not heard, we will assume it is an emergency and
notify Emergency Response on your behalf.
Why is the emergency operator having trouble understanding me?
The microphone on the Base Station is very sensitive and will pick up surrounding noises
from your television, radio, wind from ceiling fans, and the like. To increase the quality of
the call, look for a quieter area to set up your Base Station.

MobileHelp Complete User Guide 15
MHP8003-359B
Why is my help button not activating my Base Station?
Be sure to press the emergency button once rmly in the center to activate your Base
Station. A small red light below the pendant or wrist button will ash. If the Base Station
does not respond, check to ensure that the help button is in range of the Base Station. If you
still have issues with your system, please call 1-877-827-6207 and select Technical Support.
What if I move to a different home, or my personal information has changed?
Please contact Customer Service at 1-877-827-6207 any time there are any changes
to your personal information, including changes to your address and phone number.
Just give us a call one week before you move to determine whether the service will be
available in your area.
What if I spend part of the year in another home?
We can transfer your service to your new location. Just give us a call at 1-877-827-6207
and speak with Customer Service one week before you go to determine whether the
service will be available at your other home.

MobileHelp Customer Service 1-877-827-620716
MHP8003-359B
Is the lanyard adjustable?
There are xed length magnetic lanyards and adjustable length lanyards.
Adjustable lanyard: There are two connectors on the lanyard. One that is cone shaped
and one that is pear shaped. There are 2 parts of the lanyard coming out the left side
of the cones. Use one hand to hold the cone shaped part, use the other to pull the top
string to shorten the lanyard. Do the reverse to tighten the lanyard.
Magnetic lanyard: These lanyards are not adjustable and are only available upon request.

MobileHelp Complete User Guide 17
MHP8003-359B
Can a magnetic lanyard cause interference with a pacemaker or other
medical device?
If you have a pacemaker or any medical device, consult your manufacturer for information
on any possible risk of magnetic interference with the device. Our help buttons do not
interfere with pacemakers.
Can I replace the neck pendant cord?
Yes, it will work with just about any chain or cord, so feel free to use any one of your
personal chains or necklaces. However, the risk of choking may increase if you do not use
the lanyard provided by MobileHelp.
Can I replace the wrist button band?
Yes, you may replace the Wrist Button band with a standard watch band of your choice.
Can I speak into my help button?
No, you can communicate with the monitoring center through your Base Station. Your
help buttons do not have a speaker or microphone.
Does the Wrist Button strap contain any latex?
No, the strap MobileHelp uses is silicon based with no latex content.

MobileHelp Customer Service 1-877-827-620718
MHP8003-359B
FDA Statement
MobileHelp is an FDA Registered Company. MobileHelp quality system complies with
regulation 21CFR 820 of the FDA Current Good Manufacturing Practice. The FDA is the
ofcial regulatory agency of all food, dietary supplements, medical devices, cosmetics
and veterinary products in the United States.
FCC Statement
Product Base Pendant Wrist Button
FCC ID PXTCBS2-01 VDQIGP-01 VDQIGP-02
FCC ID PXTCBS4-01 VDQIGP-01 VDQIGP-02
FCC ID PXTCBS5-01 VDQIGP-01 VDQIGP-02
FCC ID PXTCBS5-02 VDQIGP-01 VDQIGP-02
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired operation.

MobileHelp Complete User Guide 19
MHP8003-359B
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
15.21
You are cautioned that changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
RF Exposure Information
This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured
not to exceed the emission limits for exposure to radio frequency (RF) Energy set by the Federal Communication Commission
of the U.S. Government. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This device should be installed and operated with minimum distance 20cm between the radiator & your body.

MobileHelp Customer Service 1-877-827-620720
MHP8003-359B
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
1. Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions:
1) This device may not cause interference, and
2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes :
1) l’appareil ne doit pas produire de brouillage;
2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le brouillage est susceptible d’en
compromettre le fonctionnement.
2. This product meets the applicable Innovation, Science and Economic Development Canada technical specications.
Ce produit répond aux spécications techniques applicables à l’innovation, Science et Développement économique
Canada.
