Modern Flames SPM-2426V2 User manual

Read and understand this entire owner’s manual, including all safety
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
Keep this owner’s manual for future reference. If you sell or give this
product away, make sure this manual accompanies this product.
WARNING
CAUTION
AFFIX SERIAL NUMBER LABEL
HERE FOR FUTURE REFERENCE
07-00013 Rev A

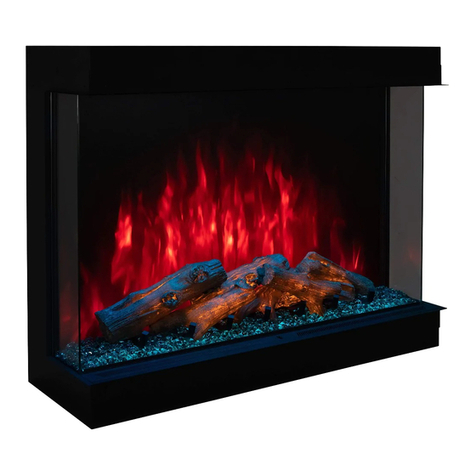

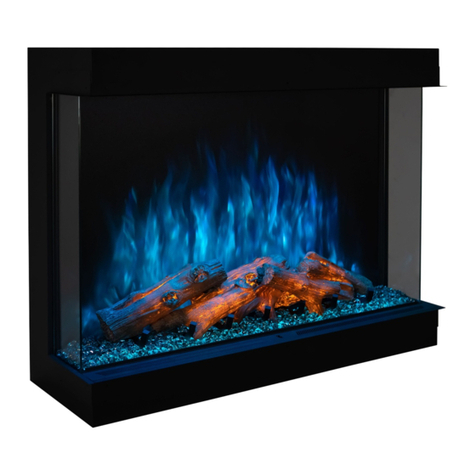

Sedona Pro Multi Electric Fireplace
Model# SPM-2426V2 SPM-3026V2 SPM-3626V2 SPM-4226V2
Installation Manual
Rated: 120VAC 60Hz 5,000 BTUs

IMPORTANT SAFETY INFORMATION!
WARNING
When using electrical appliances, basic precautions should always be followed to reduce the risk
of fire, electric shock, and injury to persons, including the following:
1. Read all Instructions before installing or using the heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. and
curtains at l east 3 feet (0.9 m) from the front of the heater and keep them away from the
sides and rear (sides and rear restrictions apply to location dedicated heaters only).
3. Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
4. Do not operate heater after it malfunctions. Disconnect power at service panel and have the
heater inspected by a reputable electrician before reusing.
5. Do not use outdoors. (Omitted if the heater is intended for outdoor use).
6. To disconnect heater, turn controls to off, and turn power to heater circuit at main disconnect
panel (or operate internal disconnect switch if provided).
7. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may
cause an electric shock or fire, or damage the heater.
8. To prevent a possible fire, do not block air intakes or exhaust in any manner.
9. A heater has hot and arcing or sparking parts inside. Do not use if in areas where gasoline,
paint, or flammable vapors or liquids are used or stored.
10. Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to persons.
11. This heater may include an audible or visual alarm to warn that parts of the heater are getting
excessively hot. If the alarm sounds (or illuminates), immediately turn the heater off and
inspect for any objects on or adjacent to the heater that may have blocked the airflow or
otherwise caused high temperature to have occurred. DO NOT OPERATE THE HEATER
WITH THE ALARM SOUNDING (OR ILLUMINATING).
12. “SAVE THESE INSTRUCTIONS”
Additional Important Instructions
• Use a dedicated 20 Amp (or higher) breaker.
• Never use with an extension cord or relocatable power tap (outlet/power strip).
• Never use a wall mount bracket from another manufacturer.
• Always disconnect this unit from the power supply before performing any assembly or
cleaning, or before relocating the electric fireplace.
• Always store this heater in a dry location. Never use the fireplace if it has become wet.
• This product is not intended to be a primary heat source. It is for supplemental heat only.
1

CONSIGNES IMPORTANTES
ATTENTION
Lors de l'utilisation d'appareils électriques, des précautions de base doivent toujours être suivies pour
réduire les risques d'incendie, d'électrocution et de blessures, notamment les suivantes :
1. Lisez toutes les instructions avant d'installer ou d'utiliser le radiateur.
2. Ce radiateur est chaud lorsqu'il est utilisé. Pour éviter les brûlures, ne laissez pas la peau nue
toucher les surfaces chaudes. Gardez les matériaux combustibles, tels que les meubles, les
oreillers, la literie, les papiers, les vêtements, etc. et les rideaux à au moins 3 pieds (0,9 m) de
l'avant de l'appareil de chauffage et éloignez-les des côtés et de l'arrière (des restrictions sur
les côtés et l'arrière s'appliquent à radiateurs dédiés à l'emplacement uniquement).
3. Une extrême prudence est nécessaire lorsqu'un appareil de chauffage est utilisé par ou à
proximité d'enfants ou de personnes invalides et chaque fois que l'appareil de chauffage est
laissé en marche et sans surveillance.
4. Ne faites pas fonctionner le radiateur après un dysfonctionnement. Débranchez l'alimentation
au panneau de service et faites inspecter le radiateur par un électricien réputé avant de le réutiliser.
5. Ne pas utiliser à l'extérieur. (Omis si le radiateur est destiné à être utilisé à l'extérieur).
6. Pour déconnecter le réchauffeur, éteignez les commandes et mettez le circuit du réchauffeur
sous tension au niveau du panneau de déconnexion principal (ou actionnez l'interrupteur de
déconnexion interne, le cas échéant).
7. N'insérez pas ou ne laissez pas d'objets étrangers pénétrer dans les ouvertures de ventilation
ou d'évacuation, car cela pourrait provoquer une électrocution ou un incendie, ou endommager le
radiateur.
8. Pour éviter un éventuel incendie, ne bloquez en aucune manière les prises d'air ou les sorties d'air.
9. Un appareil de chauffage contient des pièces chaudes et produisant des arcs ou des étincelles à
l'intérieur. Ne pas utiliser si dans des zones où de l'essence, de la peinture ou des vapeurs ou
liquides inflammables sont utilisés ou stockés.
10. Utilisez cet appareil de chauffage uniquement comme décrit dans ce manuel. Toute autre utilisation
non recommandée par le fabricant peut provoquer un incendie, un choc électrique ou des
blessures.
11. Cet appareil de chauffage peut inclure une alarme sonore ou visuelle pour avertir que des pièces
de l'appareil de chauffage deviennent excessivement chaudes. Si l'alarme retentit (ou s'allume),
éteignez immédiatement l'appareil de chauffage et recherchez tout objet sur ou à proximité de
l'appareil de chauffage qui aurait pu bloquer le flux d'air ou autrement provoqué une température
élevée. NE PAS FAIRE FONCTIONNER LE CHAUFFAGE LORSQUE L'ALARME SONNE (OU
S'ALLUME).
12. "CONSERVEZ CES INSTRUCTIONS"
Instructions importantes supplémentaires
• Utilisez un disjoncteur dédié de 20 A (ou plus).
• Ne jamais utiliser avec une rallonge ou une prise d'alimentation amovible (prise/multiprise).
• N'utilisez jamais un support de montage mural d'un autre fabricant.
• Débranchez toujours cet appareil de l'alimentation électrique avant d'effectuer tout assemblage ou
nettoyage, ou avant de déplacer le foyer électrique.
• Rangez toujours cet appareil de chauffage dans un endroit sec. N'utilisez jamais le foyer s'il est
devenu humide.
• Ce produit n'est pas destiné à être une source de chaleur primaire. C'est uniquement pour le
chauffage d'appoint.
2

USER INSTRUCTIONS
POWER DATA
SPM-2426V2 SPM-3026V2 SPM-3626V2 SPM-4226V2
Volts/HZ Amps AC 120V AC 120V AC 120V AC 120V
60Hz 13 Amps 60Hz 13 Amps 60Hz 13 Amps 60Hz 13 Amps
Heater AC 120V AC 120V AC 120V AC 120V
1465W 1465W 1465W 1465W
BTUs 5,000 BTUs 5,000 BTUs 5,000 BTUs 5,000 BTUs
Lamps LED 12V LED 12V LED 12V LED 12V
Motor 12 VDC 12 VDC 12 VDC 12 VDC
Stepper Motor Stepper Motor Stepper Motor Stepper Motor
Shipping Size 27.16" x 38.18" 33" x 38.18" 38.97" x 38.18" 45" x 38.18"
x 15.75" x 15.75" x 15.75" x 15.75"
690mm 840mm 990mm 1145mm
x 970mm x 970mm x 970mm x 970mm
x 400mm x 400mm x 400mm x 400mm
3

PRODUCT GUIDE
12.5"
(all models)
318mm
35"
(all models)
889mm
DRYWALL STOPS DRYWALL
STOPS
Width varies (see chart below)
Model Viewing Area Firebox Dimensions Framing Dimensions
SPM-2426V2 23 3/4" W x 26" H x 5 8/16" D 24" W x 35" H x 12 1/2" D 24 3/8" W x 35 1/2" H x 13" D
604mm W x 658mm H 135mm D 612mm W x 889mm H x 318mm D 618mm W x 900mm H x 330mm D
SPM-3026V2 29 3/4" W x 26" H x 5 5/16" D 30" W x 35" H x 12 1/2" D 30 1/4" W x 35 3/8" H x 13" D
759mm W x 660mm H 762mm W x 889mm H x 318mm D 768mm W x 889mm H x 330mm D
SPM-3626V2 35 3/4" W x 26" H x 5 5/16" D 36" W x 35" H x 12 1/2" D 36 1/4" W x 35 1/2" H x 13" D
911mm W x 660mm H 914mm W x 889mm H x 318mm D 920mm W x 899mm H x 330mm D
SPM-4226V2 41 3/4" W x 20" H x 5 5/16" D 42" W x 35" H x 12 1/2" D 42 1/4" W x 35 1/2" H x 13" D
1064mm W x 660mm H 1067mm W x 889mm H x 318mm D 1073mm W x 899mm H x 330mm D
4

Bracket (1) Canyon
(1) Fireplace (1) Owners Manual (6) Screws (1) Remote Driftwood Logs Set
(2-4) L-Metal
(1) Front Glass (2) Metal Side Panels (2) Side Glass (2) Suction Cups Mounting Brackets
(1) Wall mount
Smoke (1) Wall Mount Bracket (1) 5-piece Trim Kit Touch Control
Acrylic Crystals Pkg
(Kit Sold Separately) (Sold Separately) (Sold Separately) (1) 1 Piece Trim Kit
PARTS and HARDWARE
Battery Tool (1) CR2025 Battery
5

INSTALLATION
Select a suitable location that is not susceptible to moisture and is away from drapes,
furniture, and high traffic areas.
NOTE: Follow all National and local electrical codes.
This product includes a GLASS panel. Always use extreme caution when handling
glass. Failure to do so could result in personal injury or property damage.
Due to the many different materials used on different walls, it is highly recommended that you
consult your local builder before you install this fireplace.
Remove all parts and hardware from the carton and place them on a clean, soft, dry surface.
Parts and assembly steps are grouped for use. Check the parts list to make sure nothing is
missing. Dispose of packaging materials properly. Please recycle whenever possible.
You will need the following tools (not included): Phillips screwdriver, stud finder, level,
tape measure, electric drill, 1/4" wood drill bit, and a hammer.
6

BUILT-IN INSTALLATION
3 Sided Installation (Bay)
1. Prepare the framed opening according
to the chart on page 4.
*Provide appropriate dedicated circuit for hardwire
install at the top right of framed opening.
2. Install L Metal mounting brackets to the top and bottom
of the fireplace with supplied screws.
3. Hardwire fireplace (see page 13).
4. Install the fireplace in the framed opening with a minimum
1 ¼" (32mm) drywall screws to secure the unit.
5. Mask the exposed fireplace during the drywall process. Install
drywall to the drywall stops on the perimeter of the fire box.
For more information on the drywall stops see the Product
Guide on page 4.
6. Decorate according to media installation guide on page 11.
7. Install the side and front glass pieces according to installation
diagram on Page 12.
8. Install optional 5-pc. trim kit (sold separately).
7

BUILT-IN INSTALLATION
Fully Recessed Installation (Left/Right Corner)
1. Follow steps from the 3-sided installation instructions.
2. Remove the corresponding drywall stops according
to your installation (in the example, the drywall stops
on the left end would be removed).
3. Install the side glass then the corresponding side
cover according to your installation (the side glass
must be installed before the metal side cover. See
installation diagram on Page 12).
4. Hardwire fireplace (see page 13).
5. Install the fireplace in the framed opening with a minimum
1 ¼" (32mm) drywall screws to secure the unit.
6. Mask the exposed fireplace during the drywall process.
Install drywall to the drywall stops on the perimeter of the
fireplace. For more information on the drywall stops see
the Product Guide on page 4.
7. Decorate according to media installation guide on page 11.
8. Install the remaining side glass and front glass according
to installation diagram on Page 12.
9. Install optional 5-pc. trim kit (sold separately).
8

BUILT-IN INSTALLATION
Fully Recessed Installation (Single Sided)
1. Follow steps from the 3-sided installation instructions.
2. Remove the drywall stops on both sides of the fire unit.
3. Install the side glass then side covers on both sides of the
fire unit (the side glass must be installed before the
metal side cover). See installation diagram on
Page 12.
4. Install the fire unit in the framed opening with a minimum
1 ¼" (32mm) drywall screws to secure the unit.
5. Mask the exposed fireplace during the drywall process.
Install drywall to the drywall stops on the perimeter of the
fireplace. For more information on the drywall stops see
the Product Guide on page 4.
6. Decorate according to media installation guide on page 11.
7. Install the front glass according to installation diagram on
Page 12.
8. Installation optional: 1-pc trim kit (included).
9

BUILT-IN INSTALLATION
Half Recessed Installation
2. Install L Metal Nailing Flanges to the top and bottom
of the fireplace.
3. Hardwire fireplace (see page 13).
4. Install the fire unit in the framed opening with a minimum
1 ¼" (32mm) drywall screws to secure the unit.
5. Mask the exposed viewing area of fireplace during this
process. Install drywall, tile, or material of your choice to the
drywall stops on the perimeter of the fireplace. For more
information on the drywall stops see the Product Guide on
page 4.
6. Decorate according to media installation guide on page 11.
7. Install the side and front glass pieces according to
installation diagram on Page 12.
8. Depending on finishing material, install optional
5-pc. trim kit (sold separately).
1. This installation is optimized for a 2x6 framed wall.
Prepare the framed opening according to the
height and width of the chart on page 4.
*Provide appropriate dedicated circuit for hardwire
install at the top right of framed opening.
10

INSTALLING MEDIA
2. Before installing the front glass, evenly spread out
the acrylic crystals along the ember bed.
1. The fireplace comes standard with a Canyon Driftwood lit log set. It can be plugged in for a
glowing log look or left unplugged. To plug the logs in remove the ember bed strip. Locate the
zip tie securing the 12V connection for the logs. Next route connection towards center rear of
the ember bed and through ember bed strip. Replace strip on to fireplace and pull any slack
from connection. Connection is ready for Canyon Driftwood log set.
3. Place the logs on top of the acrylic crystals and plug
them in using the connection on rear of logs.
4. The front glass can now be installed.
11

GLASS INSTALLATION
Installing Side Glass
4. Slide the glass down in to the bottom channel.
5. Push the glass back as far as it will go to make
installation of the front glass easier. See Figure 1.2.
Figure 1.1
1. The unit has 2 channels, one on the top and one on the
bottom to hold the side glass.
2. Insert the glass at an angle in to the top channel.
3. Swing the bottom edge of the side glass in
to the unit. See Figure 1.1.
Figure 1.2
Installing Front Glass
1. The unit has 2 channels, one on the top and one on
bottom to hold the front glass.
2. Using the included suction cups, insert the glass at
an angle in to the top channel.
3. Swing the bottom edge of the front glass in to the
unit. See Figure 2.1.
4. Slide the glass down in to the bottom channel.
See Figure 2.2.
Figure 2.1 Figure 2.2
12

!
!"""""""#$"
(Fig 3-1)
(Fig 3-2)
BLACK (L1) LINE/HOT
GREEN ( ) GROUND
WHITE (N) NEUTRAL
FUSE
BOX
FIREPLACE
JUNCTION/TERMINAL
!
HARD WIRING
• Ensure power from the circuit breaker is off.
• Remove the 2 securing screws from the junction box cover plate, located on the top
left-hand, backside of the appliance (Fig 3-1).
• From the power supply wire, connect the green/bare copper wire to the ground (G),
the white wire to neutral (N), and the black wire to Line 1 (L1) (Fig 3-2).
A qualified electrician must wire this fireplace to a dedicated 110~120 volt, 20 Amp, circuit.
NOTE: A dedicated 20 Amp (or higher) and breaker is required.
The appliance must be electrically connected and grounded in accordance with local codes.
In the absence of local codes, use the current CSA C22.1 Canadian Electrical Code
in Canada or the current ANSI/NFPA 70 National Electrical Code in the USA.
TURN OFF POWER FROM CIRCUIT BREAKER FIRST
120 Volt Power (5,000 BTU’s):
Note:
There are 3 wires from the appliance junction box: white (neutral), black (power L1), and green/bare
(ground) that are connected to 120V power source (circuit breaker panel).
13

REMOTE CONTROL OPERATION
The unit has a main power switch just in front of the glass on the top right hand side.
A hand-held remote is included.
Power
Home
Heat
Mode
Speed
Flame
Ember Bed
Downlight
Color Wheel
Brightness
Slider
This will cycle the fireplace on and off. Upon
cycling power on, the fireplace will return to
the settings it had when it was cycled off.
If the fireplace is on, this button will act as a
reset and bring all colors back to the default
Modern Flames' signature color.
This will cycle the heater between high,
low and off.
All zones of the fireplace will cycle through
various demo modes - 7 & 3 color
gradient/fade, 7 & 3 color jump,
red/green/blue gradient.
This is the speed button. Pressing will cycle
the flame & ember bed speeds.
Speeds: Low, Medium, Default & High.
This is a zone setting. Touching this button
will allow you to change the color and
brightness of the flame by using the
color wheel and brightness slider.
This is the Ember Bed light adjustment button.
After pressing this button, the color ring and
brightness bar will be adjusted, and only the
color of the ember bed lamp will be adjusted.
Long press this button for 3 seconds to adjust
the optional accessory on or off.
This will cycle the selected zone through the
colors of the color spectrum.
This is a zone setting that controls the
color and brightness of the downlight.
This will adjust the brightness of the
selected zone.
Pairing remote or wall mounted touch control:
Before beginning, read pairing instructions in its entirety. Locate
and familiarize yourself with the manual touch controls on the
fireplace and your hand held remote. Ensure remote has a
battery installed.
1. On the fireplace touch controls, long press the on/off button
for 3 seconds until a fast double beeping tone is heard from the
fireplace. The power indicator will also flash 3 times in 1
second. This places the fireplace in RF pairing mode.
2. Within 5 seconds of hearing the double beeping tone, either
on the handheld remote or wall touch control, press the power
button repeatedly until another beeping tone is heard along
with the indicator lights flashing. This is the fireplace
acknowledging that it has paired. An additional tone may also
be heard; this is simply the fireplace completing the pair mode.
NOTE:
• Pairing must be done within 5 seconds or the fireplace
will time out of pairing mode.
• After the initial double beep is heard, do not long press
the power button on the remote/pairing device to pair as
this may not be successful. Pressing the power button
repeatedly is required to ensure the signal is sent from
the remote/pairing device to the fireplace.
• To clear any paired remotes/devices from the fireplace,
locate the reset button on the fireplace, then long press
the reset button for 3 seconds. A beeping tone will
indicate that the codes have been cleared. Once cleared,
a new remote or wall touch control can now be paired.
This will also un-pair any APP that was paired to the
fireplace.
Manual Controls
The fireplace has manual controls located next to the
toggle switch, in front of the glass on the top right
side of the viewing area.
Power On/Off button: Press once, indicator light turns
off and fireplace power turns on. All functions
enabled. Press again, flame turns off and fireplace
goes to standby. NOTE: Long pressing this button
for 3 seconds places fireplace in RF pairing mode.
Heat Button: Pressing heat button cycles the heater
and blower on/off. Settings: Heater and blower
OFF, Low Heat, and High Heat. Indicator light will
match according to status. NOTE: On US LPM, low
and high heat have the same heat output when
wired for 120 V. Long Press the heater button for
5 seconds to lock/unlock the heater.
Preset Color Button: Press preset color button to
cycle through the 8 preset color options. This
changes color of all three zones: the flame, ember
bed and down light. Colors in order of appearance:
MF orange-red-orange-golden
orange-green-aqua-blue-magenta
Resetting button: Clears any paired remotes/devices
from the fireplace. Once cleared you can pair a
new remote or wall touch control. This will also
un-pair any APP that was paired to the fireplace.
After long pressing the reset button for 3 seconds,
a beeping tone will be heard indicating that the
pairing codes have been cleared.
Buzzer Tone Change: Long press the on/off and
preset color button at the same time to enter the
beeping tone cycle mode. Continue to long press
both buttons to cycle through the 4 tone options.
The tone will change every 2 seconds while
releasing the buttons will act as the selection
of the tone. The tones in order of appearance;
tone-1,tone-2, tone-3, and silent mode.
NOTE: When silent mode is selected, a tone will still
be present for performing system functions such
as remote pairing or Wi-Fi pairing.
Placing in Wi-Fi Paring Mode:
-EZ Mode: While the fireplace is ON, long press
the Preset Color button for 3 seconds. An audible
beeping tone will sound and the flame light, ember
bed light, and down light will turn to white and
begin flashing rapidly. Fireplace is now in EZ
pairing mode, which lasts for 2 minutes.
14

Toggle Switch: The fireplace has a main toggle
switch located next to the manual controls.
The toggle switch is in front of the glass on
the top right side of the viewing area.
When the “-” side of the toggle switch
is depressed, the “O” pops up.
This is the power-on state of the fireplace.
Power Indicator lights: The fireplace is equipped
with Power indicator lights which are located
on the upper right corner of the fireplace
viewing area.
First light: When the fireplace is in the power-on
state, an amber light turns on. The light shows
the fireplace is energized and on stand-by for
any commands. The amber light turns OFF
when the fireplace is turned on and operating.
Second light: When the fireplace is powered on
and the heater is set to low, the second light
turns on. Light will fade away after 6 seconds.
Third light: When the fireplace is powered on and
the heater is set to high, the third light turns
on. Light will fade away after 6 seconds.
Manual Controls
The fireplace has manual controls located next to the
toggle switch, in front of the glass on the top right
side of the viewing area.
Power On/Off button: Press once, indicator light turns
off and fireplace power turns on. All functions
enabled. Press again, flame turns off and fireplace
goes to standby. NOTE: Long pressing this button
for 3 seconds places fireplace in RF pairing mode.
Heat Button: Pressing heat button cycles the heater
and blower on/off. Settings: Heater and blower
OFF, Low Heat, and High Heat. Indicator light will
match according to status. NOTE: On US LPM, low
and high heat have the same heat output when
wired for 120 V. Long Press the heater button for
5 seconds to lock/unlock the heater.
Preset Color Button: Press preset color button to
cycle through the 8 preset color options. This
changes color of all three zones: the flame, ember
bed and down light. Colors in order of appearance:
MF orange-red-orange-golden
orange-green-aqua-blue-magenta
Resetting button: Clears any paired remotes/devices
from the fireplace. Once cleared you can pair a
new remote or wall touch control. This will also
un-pair any APP that was paired to the fireplace.
After long pressing the reset button for 3 seconds,
a beeping tone will be heard indicating that the
pairing codes have been cleared.
Buzzer Tone Change: Long press the on/off and
preset color button at the same time to enter the
beeping tone cycle mode. Continue to long press
both buttons to cycle through the 4 tone options.
The tone will change every 2 seconds while
releasing the buttons will act as the selection
of the tone. The tones in order of appearance;
tone-1,tone-2, tone-3, and silent mode.
Power
Turns unit
on/off
Heat
Cycles
heat low/
high/off
Color
Changes all
fireplace
colors
together
Reset
Resets
unit
SETTING CONTROLS
NOTE: When silent mode is selected, a tone will still
be present for performing system functions such
as remote pairing or Wi-Fi pairing.
Placing in Wi-Fi Paring Mode:
-EZ Mode: While the fireplace is ON, long press
the Preset Color button for 3 seconds. An audible
beeping tone will sound and the flame light, ember
bed light, and down light will turn to white and
begin flashing rapidly. Fireplace is now in EZ
pairing mode, which lasts for 2 minutes.
15

Manual Controls
The fireplace has manual controls located next to the
toggle switch, in front of the glass on the top right
side of the viewing area.
Power On/Off button: Press once, indicator light turns
off and fireplace power turns on. All functions
enabled. Press again, flame turns off and fireplace
goes to standby. NOTE: Long pressing this button
for 3 seconds places fireplace in RF pairing mode.
Heat Button: Pressing heat button cycles the heater
and blower on/off. Settings: Heater and blower
OFF, Low Heat, and High Heat. Indicator light will
match according to status. NOTE: On US LPM, low
and high heat have the same heat output when
wired for 120 V. Long Press the heater button for
5 seconds to lock/unlock the heater.
Preset Color Button: Press preset color button to
cycle through the 8 preset color options. This
changes color of all three zones: the flame, ember
bed and down light. Colors in order of appearance:
MF orange-red-orange-golden
orange-green-aqua-blue-magenta
Resetting button: Clears any paired remotes/devices
from the fireplace. Once cleared you can pair a
new remote or wall touch control. This will also
un-pair any APP that was paired to the fireplace.
After long pressing the reset button for 3 seconds,
a beeping tone will be heard indicating that the
pairing codes have been cleared.
Buzzer Tone Change: Long press the on/off and
preset color button at the same time to enter the
beeping tone cycle mode. Continue to long press
both buttons to cycle through the 4 tone options.
The tone will change every 2 seconds while
releasing the buttons will act as the selection
of the tone. The tones in order of appearance;
tone-1,tone-2, tone-3, and silent mode.
SETTING CONTROLS
NOTE: When silent mode is selected, a tone will still
be present for performing system functions such
as remote pairing or Wi-Fi pairing.
Placing in Wi-Fi Paring Mode:
-EZ Mode: While the fireplace is ON, long press
the Preset Color button for 3 seconds. An audible
beeping tone will sound and the flame light, ember
bed light, and down light will turn to white and
begin flashing rapidly. Fireplace is now in EZ
pairing mode, which lasts for 2 minutes.
-AP Mode: While the fireplace is ON, long press
the Preset Color button for 6 seconds. Two audible
beeping tones will sound and then only the FLAME
LIGHTS and nothing else will turn to white and
begin flashing slowly. Fireplace is now in AP
pairing mode, which lasts for 2 minutes.
NOTE: Fireplace is also equipped with Bluetooth
pairing. There is no mode setting for the Bluetooth
as the APP will automatically detect the Bluetooth
signal for pairing when attempting to pair fireplace
to Bluetooth.
Link to video on how to change
battery in Pro Series remote
CR2025 battery
HOW TO CHANGE REMOTE BATTERY
LINK TO DOWNLOAD MOBILE APP
Link to Mobile App for tablets & phones
16

Manual Controls
The fireplace has manual controls located next to the
toggle switch, in front of the glass on the top right
side of the viewing area.
Power On/Off button: Press once, indicator light turns
off and fireplace power turns on. All functions
enabled. Press again, flame turns off and fireplace
goes to standby. NOTE: Long pressing this button
for 3 seconds places fireplace in RF pairing mode.
Heat Button: Pressing heat button cycles the heater
and blower on/off. Settings: Heater and blower
OFF, Low Heat, and High Heat. Indicator light will
match according to status. NOTE: On US LPM, low
and high heat have the same heat output when
wired for 120 V. Long Press the heater button for
5 seconds to lock/unlock the heater.
Preset Color Button: Press preset color button to
cycle through the 8 preset color options. This
changes color of all three zones: the flame, ember
bed and down light. Colors in order of appearance:
MF orange-red-orange-golden
orange-green-aqua-blue-magenta
Resetting button: Clears any paired remotes/devices
from the fireplace. Once cleared you can pair a
new remote or wall touch control. This will also
un-pair any APP that was paired to the fireplace.
After long pressing the reset button for 3 seconds,
a beeping tone will be heard indicating that the
pairing codes have been cleared.
Buzzer Tone Change: Long press the on/off and
preset color button at the same time to enter the
beeping tone cycle mode. Continue to long press
both buttons to cycle through the 4 tone options.
The tone will change every 2 seconds while
releasing the buttons will act as the selection
of the tone. The tones in order of appearance;
tone-1,tone-2, tone-3, and silent mode.
NOTE: When silent mode is selected, a tone will still
be present for performing system functions such
as remote pairing or Wi-Fi pairing.
Placing in Wi-Fi Paring Mode:
-EZ Mode: While the fireplace is ON, long press
the Preset Color button for 3 seconds. An audible
beeping tone will sound and the flame light, ember
bed light, and down light will turn to white and
begin flashing rapidly. Fireplace is now in EZ
pairing mode, which lasts for 2 minutes.
WIFI REMOTE
Power
Powers unit On & Off.
Flame
This is the flame zone adjustment tab.
After pressing this tab, the color ring and
brightness bar can be adjusted.
Ember Bed
This is the ember bed zone adjustment
tab. After pressing this tab, the color ring
and brightness bar can be adjusted.
Downlight
This is the downlight zone adjustment tab.
After pressing this tab, the color ring and
brightness bar can be adjusted.
Sync
This is a synchronization selector, used to
synchronize the current color on the color
wheel to all of the zones (Flame/Ember
Bed/Downlight). Grayed out SYNC is
when synchronization is “OFF”. Green
SYNC is when synchronization is “ON”.
Color Wheel
This is the color adjustment wheel for all
zones. Keeping contact on the color circle,
the color of the selected zone will change
continuously base on where you have your
finger.
Temperature Read Out
The number in the color circle is the
built-in thermostat temperature reading
of the fireplace.
Brightness Control
Brightness adjustment, for all zones
depending on tab selected or if sync is on.
The brightness of the fireplace changes
in real time as the slider is moved.
Heat Control
Heat controls open a drop-down menu.
The menu displays off, low, and high.
Can be used without thermostat.
Thermostat Slider
Normally inactive while heater is “ON.”
To use the thermostat while the heater is
“ON,” activate the thermostat by setting
the slider to the desired temperature.
Note: Does not save when turned “OFF.”
17

WIFI REMOTE
Mode Button
Opens a sub menu for selecting presets.
PRESET MENU
> Modern Flames Original
Modern Flames Orange (Static).
> Horizon
Same as remote control, 7 color gradient
cycle R->G->B->RG->RB->GB->RGB.
> Trifecta
Same as remote control，R-G-B
three color gradient cycle.
> Crimson
Same as remote control,
3 color gradient cycle R->G->B.
> Hillside
Same as remote control，
green monochrome fade cycle.
> Island Time
Same as remote control blue
monochrome fade cycle.
> Seven Color Demo
Same as remote control, 7 color jump
cycles: R->G->B->RG->RB->GB->RGB.
> Three Color Demo
Same as remote control, 3 color jump
cycles: R->G->B.
> Custom 1
Custom mode can be modified from
“My Ambience” setting. The default
color is Red.
> Custom 2
Custom mode can be modified from
“My Ambience” setting. The default
color is White.
> Custom 3
Custom mode can be modified from
“My Ambience” setting. The default
color is Blue.
Mode Sub Menu Preset Menu
18

(default)
WIFI REMOTE
> Temperature Scale
Set the temperature unit according to
needs. “°C” for Celsius and “°F” for
Fahrenheit. The main temperature
read out will change accordingly.
> Heat Program
Setup a custom weekly schedule. This
includes the state of the fireplace, the
heater level and thermostat for the
heat if desired. (See Heat Program
Sub menu continued for more info).
> Customize Mode
Configure the custom modes via
4 options: mode name, mode color, Color
flash mode, Color flash speed. Includes a
preview function. (See Customize Mode
Sub menu continued for more info).
Timer
Pressing the timer button will pop up a
sub-menu with 10 options to choose from:
0.5-1-2-3-4-5-6-7-8 hours-cancel. Once
the selected time has elapsed, the
fireplace will turn off.
Ambience Setting
The Ambience Setting button will open up
a second window where customizations
can be performed, including temperature
scale setting (C/F), Weekly/Heat
programming, Custom mode
configuration, and changing speed
of the flame and ember bed.
> Flame Speed
Change between 4 speeds:
Low, Medium, Default and High.
19
