Mopec DC Series User manual

Rev 6-15-14 ©
DC SERIES
AUTOPSY CARTS/TABLE -
ELEVATING
REFERENCE
MANUAL

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 2
IMPORTANT INFORMATION
MODEL NO.:
SERIAL NO.:
DATE OF PURCHASE:
DATE OF INSTALLATION:
INSTALLATION NOTES:
SERVICE AND SUPPORT:

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 3
TABLE OF CONTENTS
INTRODUCTION 4
CUSTOMER AND TECHNICAL SUPPORT 5
UNPACKING 6
OPERATION 7
CLEANING AND MAINTENANCE 8
STANDARD FEATURES 9
OPTIONAL FEATURES 10
WARRANTY 11
ISO CERTIFICATE 12

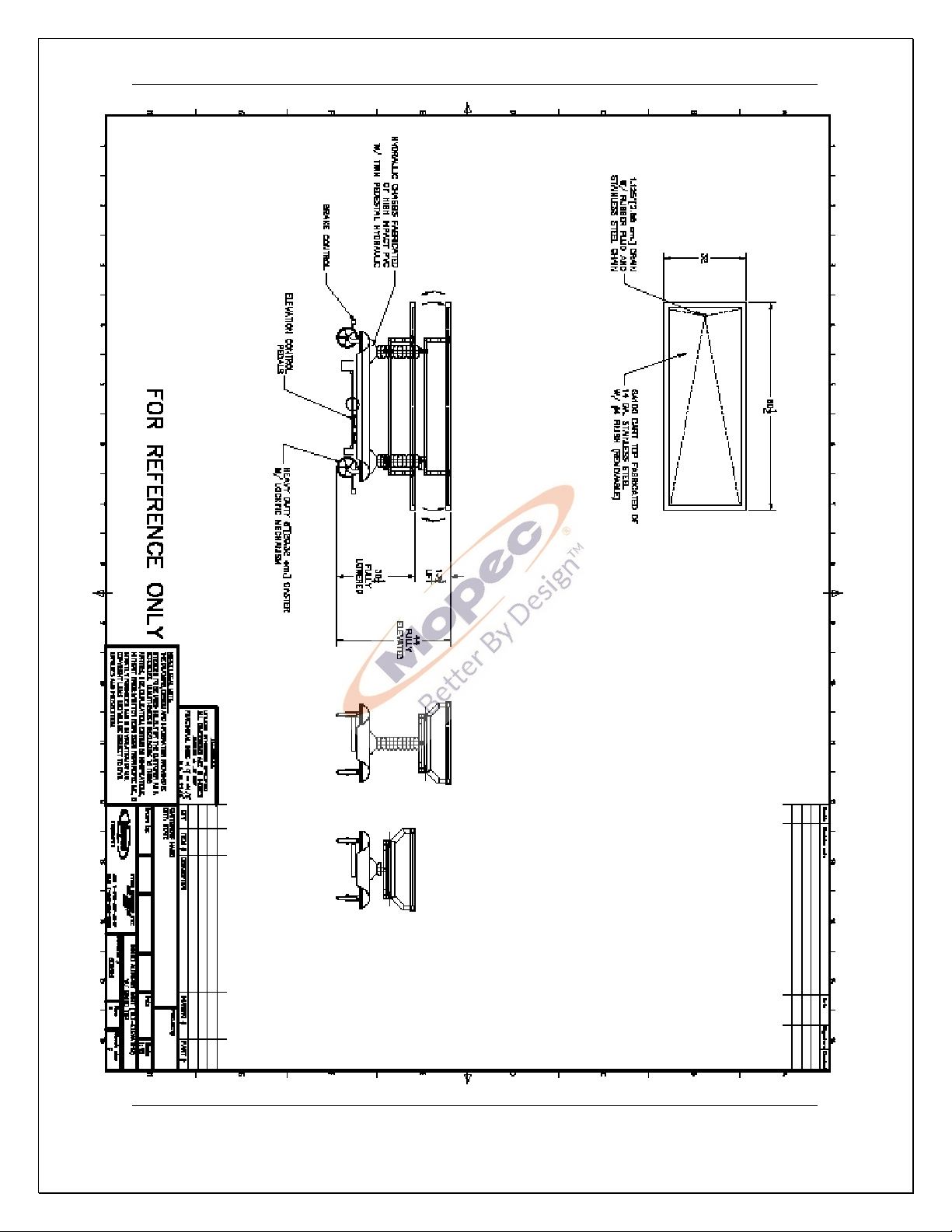

UNIT DRAWINGS
DC000 13
DC100 14
DC300 15
DC600 16
DC800 17
DC850 18

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 4
INTRODUCTION
This autopsy cart/table is used in conjunction with the wall mounted autopsy sink
or as a simple viewing stretcher. The cart elevates and / or tilts at both ends and
is capable of a variety of positions. Dual side mounted foot controls allow for an
effortless elevating on either end. Dual locking levers lock all wheels
simultaneously from either end. The tops are removable so high volume storage
racks can be utilized. Removal can be accomplished with either a motorized or a
manual fork type lift.
•DC000 Autopsy Cart Frame
•DC100 Autopsy Cart W/Top (Stainless Steel) – Heavy- duty stainless
construction. (DC000 + GA100 = DC100)
•DC200 Autopsy Cart W/Top (Poly Inner Liner) – Mopec’s X-Ray autopsy
cart top is constructed with a solid structural stainless steel frame and a
unique polyethylene insert that can be x-rayed through with virtually no
shadowing.
(DC000 + GA200 = DC200)
•DC300 Autopsy Cart W/Top (Inner Trough) – Heavy-Duty stainless steel
construction with inner drain trough.
(DC000 + GA300 = DC300)
•DC600 Autopsy Cart W/Top (Inner Trough) – Fiberglass x-ray top with
cassette slide. Dimensions: 81" L x 32" W, Heavy duty construction with drain
hole, Contoured top and trough design produce an excellent fluid drainage,
Solid gray color and a stainless steel frame
(DC000 + GA600 = DC600)
•DC800 Autopsy Cart W/Top (Inner Trough) – Heavy-Duty stainless steel
construction with inner drain trough.
(DC000 + GA300 = DC300)
•DC850 Autopsy Cart W/Top (Inner Trough) – Heavy-Duty stainless steel
construction with inner drain trough.
(DC000 + GA300 = DC300)

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 5

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 6
CUSTOMER AND TECHNICAL SUPPORT
All Mopec staff members are Customer Service experts. We believe in providing
nothing but the best possible service for all our customers. Our Technical
Support group includes everyone from our design engineers to members of our
production group. All are dedicated to providing comprehensive and courteous
support to all Mopec customers.
The following information is included to help our customers communicate with
Customer and Technical Support at Mopec.
Mopec
21750 COOLIDGE HWY.
OAK PARK, MICHIGAN 48237
TOLL FREE 800.362.8491
248.291.2040 PH. 248.291.2050 FX

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 7
UNPACKING
1.) Carefully inspect the exterior of the shipping container before
opening. If the crate is damaged and the product has sustained
damage then immediately contact Mopec and the freight carrier.
Never discard the shipping container even if it is damaged
beyond recognition.
2.) The receiver must note any suspected damage on the bill of lading
and sign it. Mopec will help assist in filing a claim for product
repair and/or replacement.
3.) Carefully open the containers and inspect the goods for concealed
damage. If concealed damage is noticed (i.e. Broken welds,
dented stainless, scratches, etc.) Follow through as noted above,
and again do not discard the shipping material, they are important
in settling claims.

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 8
OPERATION
1. MOVING THE CADAVER FROM THE HOSPITAL BED TO THE
TRANSPORT CART HAS NEVER BEEN EASIER:
•Dual side-mounted foot controls allow the technician to effortlessly elevate
the transfer tray to the height of the bed without stooping or bending.
•Specially designed contoured edging makes transferring the body from the
hospital bed to the JA600 more efficient.
2. TRANSPORTING WITH CONFIDENCE, SAFETY, AND DISCRETION:
•Total-Lock wheel locking and aligning mechanisms along with heavy-duty
8-inch diameter casters makes pushing and steering the JA600 easy and
constantly in control.
•The JA600’s form-fitting, opaque cover over a sturdy stainless steel frame
ensures the utmost in discretion and consideration for the staff, family, and
hospital visitors. Special rugged bumpers provide heavy-duty impact
resistance.
3. LOADED WITH PRACTICAL FEATURES:
•Wider body platform makes dealing with heavier bodies easier, yet the
cart easily passes through doors and hallways.
•Contoured perimeter edges ensure retention and control of fluids.
NOTE: The hydraulics should not be used until the cart is at room
temperature if stored in a cooler or location that is not consistent with the
operating temperature of the environment.

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 9
CLEANING AND MAINTENANCE
DISINFECTING AND MAINTAINING STAINLESS STEEL SURFACES
All stainless steel surfaces can be cleaned with soap and water, which will
remove debris.
The stainless steel surfaces can be disinfected with a non caustic disinfectant.
We suggest using BE045 Path Cloud or BE047 Bench Wipe for cleaning
purposes.
We recommend you DO NOT USE a bleach solution to clean your unit, bleach
will eventually erode stainless steel if not thoroughly rinsed. The use of chlorine
bleach will VOID THE STAINLESS STEEL WARRANTY
During the cleaning we suggest wiping the surface in the same direction as the
satin finish which will help elevate dirt from the grain finish.
Scratches can be removed simply by utilizing a "non-metallic" abrasive pad and
rubbing in the same direction as the satin finish.
Since most abrasive pads vary from one supply to another, we suggest rubbing
the entire surface to blend the scratch and blend the balance of the surface.
.

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 10
STANDARD FEATURES
Removable Cart Top: The cart top is fabricated of 14 Ga.type stainless steel
with a #4 satin finish. The top is 32” wide x 80 ½” long with a 1 ½” profile and a
return flange along a 2” ledge around the full perimeter. The top is recessed and
dimpled towards the drain hole. A drain plug is provided with a chain to prevent
loss. All exposed welds are ground smooth and grained to match a # 4 satin
finish.
All Stainless Steel Construction.
Foot Controls: Dual side-mounted
The chassis is constructed of high impact PVC with twin pedestal hydraulics.
Casters: Heavy-duty 8” diameter with locking mechanism. Dual end wheel brake
activator built-in.
Welding: TIG type welding utilizing only stainless steel as a filler media. All
welds fillets are approximately ¼” diameter. All welds are brushed clean
removing any welds burns and burrs for a clean sanitary application.
The Autopsy Cart/ Table fully lowered measures 32”.
The Autopsy Cart/ Table fully elevated measures 45 ¾”
DOWN UP
UNLOCKED

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 11
OPTIONAL FEATURES
•GA100 Autopsy Cart Top (Stainless Steel) – Heavy- duty stainless
construction. (DC000 + GA100 = DC100)
•GA200 Autopsy Cart Top (Poly Inner Liner) – Mopec’s X-Ray autopsy cart
top is constructed with a solid structural stainless steel frame and a unique
polyethylene insert that can be x-rayed through with virtually no shadowing.
(DC000 + GA200 = DC200)
•GA300 Autopsy Cart Top (Inner Trough) – Heavy-Duty stainless steel
construction with inner drain trough.
(DC000 + GA300 = DC300)
•GA600 Autopsy X-Ray Cart Top (Blue) – Fiberglass x-ray top with cassette
slide. Dimensions: 81" L x 32" W, Heavy duty construction with drain hole,
Contoured top and trough design produce an excellent fluid drainage, Solid
gray color and a stainless steel frame. Includes Plug and Chain
(DC000 + GA600 = DC600)
•GA800 Autopsy X-Ray Cart Top (Blue) – Heavy-Duty Vacuum Formed
construction with inner drain trough. Includes Plug and Chain and Chain and
cassette slide
(DC000 + GA800 = DC800)
•GA850 Autopsy X-Ray Cart Top (Beige) – Heavy-Duty Vacuum Formed
construction with inner drain trough. Includes Plug and Chain and cassette
slide
(DC000 + GA800 = DC850)
•Head Rest

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 12
WARRANTY
MOPEC DC SERIES AUTOPSY CART
THE DC SERIES CART AND ALL PARTS THEREOF, MANUFACTURED BY
MOPEC IS WARRANTED TO OUR CUSTOMERS TO BE FREE FROM
DEFECTS IN MATERIAL AND CONSTRUCTION WHEN SUBJECTED TO
NORMAL USE AND SERVICE. THIS WARRANTY SHALL NOT APPLY TO
ANY EQUIPMENT OR PART THEREOF, WHICH HAS BEEN SUBJECT TO
ALTERATIONS, ACCIDENT, MISUSE, OR WHICH HAS BEEN USED MORE
THAN ITS PUBLISHED CAPACITY.
MOPEC’S OBLIGATION UNDER THIS WARRANTY IS LIMITED TO
REPAIRING OR REPLACING, WITHOUT CHARGE ANY PART OR PARTS OF
SAID EQUIPMENT WHICH PROVE DEFECTIVE AND WHICH OUR
EXAMINATION SHALL DISCLOSE TO OUR SATISFACTION TO BE THUS
DEFECTIVE. WE DO NOT ACCEPT RESPONSIBILITY FOR
CONSEQUENTIAL DAMAGE RESULTING FROM SUCH DEFECTIVE PARTS.
THE PERIOD OF WARRANTY ON MOPEC EQUIPMENT IS AS FOLLOWS:
ALL EQUIPMENT: EQUIPMENT IS WARRANTED IN ITS ENTIRETY
FOR A PERIOD OF ONE (1) YEAR FROM THE DATE OF SALE. THIS
WARRANTY INCLUDES PARTS AND LABOR FOR COVERED
REPAIRS.
MOPEC WILL ACCEPT INCOMING DEFECTIVE PARTS, ONLY WHEN
SHIPMENT IS PREPAID. THIS WARRANTY CONTRACT IS IN LIEU OF ALL
OTHER WARRANTIES, AND RELEASES MOPEC OF ALL OTHER
OBLIGATIONS OR LIABILITIES. IT NEITHER ASSUMES NOR AUTHORIZES
ANY PERSON OR PERSONS TO ASSUME ANY OBLIGATION OTHER THAN
THAT COVERED IN THIS WARRANTY.
MOPEC
21750 COOLIDGE HWY.
OAK PARK, MICHIGAN 48237
TOLL FREE 800.362.8491
248.291.2040 PH. 248.291.2050 FX

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 13

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 14

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 15

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 16

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 17

MOPEC DC SERIES AUTOPSY CART/TABLE
MOPEC DC SERIES AUTOPSY CART/TABLE PAGE 18
