morse 4560BM-P User manual

Copyright 2022 - Morse Mfg. Co., Inc. Form PL4560BM-P (0322-____) (Updated 1 Mar, 2022) 1
INSTALLATION INSTRUCTIONS
1. Position Rim Clamp Assembly
on INSIDE of drum holder bracket
(item 1) with holes aligned
2. Bolt in place with
2 bolts (item 2) and
2 washers (item 3)
using 9/16” wrench
The Specialist In Drum Handling Equipment
Kit # 4560BM-P
Kit: Adjustable Rim Clamp
CONTENTS
Page
Installation Instructions. . . . . . . . . . . . . . 1 - 2
Dimensions. . . . . . . . . . . . . . . . . . . . . 2
Operating Instructions. . . . . . . . . . . . . . . . . . . . 2 - 3
Parts Diagram. . . . . . . . . . . . . . . . . . . . . . . . . 4
Operator’s Manual
for Morse Adjustable Rim Clamp Kit
Kit # 4560BM-P
Serial number 0322 to ____ (MMYY)
[email protected] 103 Kuhn Rd.
Syracuse, NY, 13208 U.S.A.
morsedrum.com (315) 437-8475
WARNING:
This product can expose you to
chemicals including barium sulfate,
cobalt, titanium dioxide, and
2-methylimidazole, which are known
to the State of California to cause
cancer, and bisphenol-A, which is
known to the State of California
to cause birth defects or other
reproductive harm.
For more information go to
www.P65Warnings.ca.gov
The Specialist In Drum Handling Equipment
Kit # 4560BM-P
Kit: Adjustable Rim Clamp
Operator’s Manual for Morse Rim Clamp Assembly Kit # 4560BM-P
Serial Number 0322 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form PL4560BM-P (0322-____) (Updated 1 Mar, 2022) 2
BEFORE OPERATING RIM CLAMP
Set Correct Rim Clamp Position for
55-Gallon OR for 30-Gallon Drum
(210 Liter OR 114 Liter Drum)
Insert pin through correct holes to set
Top Rim Clamp to position for ONE
of the following drum sizes:
1. 55-gallon (210 liter) size drum
2. 30-gallon (114 liter) size drum
DIMENSIONS
The Specialist In Drum Handling Equipment
Kit # 4560BM-P
Kit: Adjustable Rim Clamp
Operator’s Manual for Morse Rim Clamp Assembly Kit # 4560BM-P
Serial Number 0322 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form PL4560BM-P (0322-____) (Updated 1 Mar, 2022) 3
OPERATING INSTRUCTIONS
Steps to Secure Drum
STEP 1.
Tighten cinch chain or web strap around drum
just enough to hold drum with bottom jaw of
Top Rim Clamp positioned under top rim of drum.
Swing bottom jaw into position against drum sidewall
to engage directly beneath drum top rim.
STEP 2.
Swing top hook over top rim of drum and
turn hand wheel clockwise until SECURELY
clamped over drum top rim.
STEP 3.
Securely tighten cinch chain or web strap around drum.
STEP 4.
IMPORTANT: Lift Drum SLIGHTLY... Then ensure:
1. Bottom jaw is engaged under drum top rim
2. TIGHTEN Top jaw to ensure it grips drum top rim
Steps to Release Drum
1. Lower drum to oor in upright position
2. Release cinch chain or web strap from around drum
3. Open Top Rim Clamp by turning knob counter clockwise
4. Disengage hook from drum top rim
Bottom
Jaw
Hand
Wheel
The Specialist In Drum Handling Equipment
Kit # 4560BM-P
Kit: Adjustable Rim Clamp
Operator’s Manual for Morse Rim Clamp Assembly Kit # 4560BM-P
Serial Number 0322 to ____ (MMYY)
morsedrum.com
Copyright 2022 - Morse Mfg. Co., Inc. Form PL4560BM-P (0322-____) (Updated 1 Mar, 2022) 4

Other morse Industrial Equipment manuals

morse PailPro Series User manual

morse

morse PailPro Series User manual

morse GRIP+GO 290F User manual

morse

morse GRIP+GO 290F User manual

morse PailPro Series User manual

morse

morse PailPro Series User manual

morse 2-15 User manual

morse

morse 2-15 User manual

morse 185G-HD User manual

morse

morse 185G-HD User manual

morse 15-SS User manual

morse

morse 15-SS User manual

morse 15 User manual

morse

morse 15 User manual

morse 195AM-A User manual

morse

morse 195AM-A User manual

morse 185 Series User manual

morse

morse 185 Series User manual

morse 520M-114 User manual

morse

morse 520M-114 User manual

morse 201 Series User manual

morse

morse 201 Series User manual

morse CP-305-1-220-50 User manual

morse

morse CP-305-1-220-50 User manual

morse M Series User manual

morse

morse M Series User manual

morse BW-5154S User manual

morse

morse BW-5154S User manual

morse 285AM-HD User manual

morse

morse 285AM-HD User manual

morse 1-5154SS Series User manual

morse

morse 1-5154SS Series User manual

morse 400A-72-110 User manual

morse

morse 400A-72-110 User manual

morse 405M-114 User manual

morse

morse 405M-114 User manual

morse 285XBP User manual

morse

morse 285XBP User manual

morse 456 Series User manual

morse

morse 456 Series User manual

morse 4560B-P User manual

morse

morse 4560B-P User manual

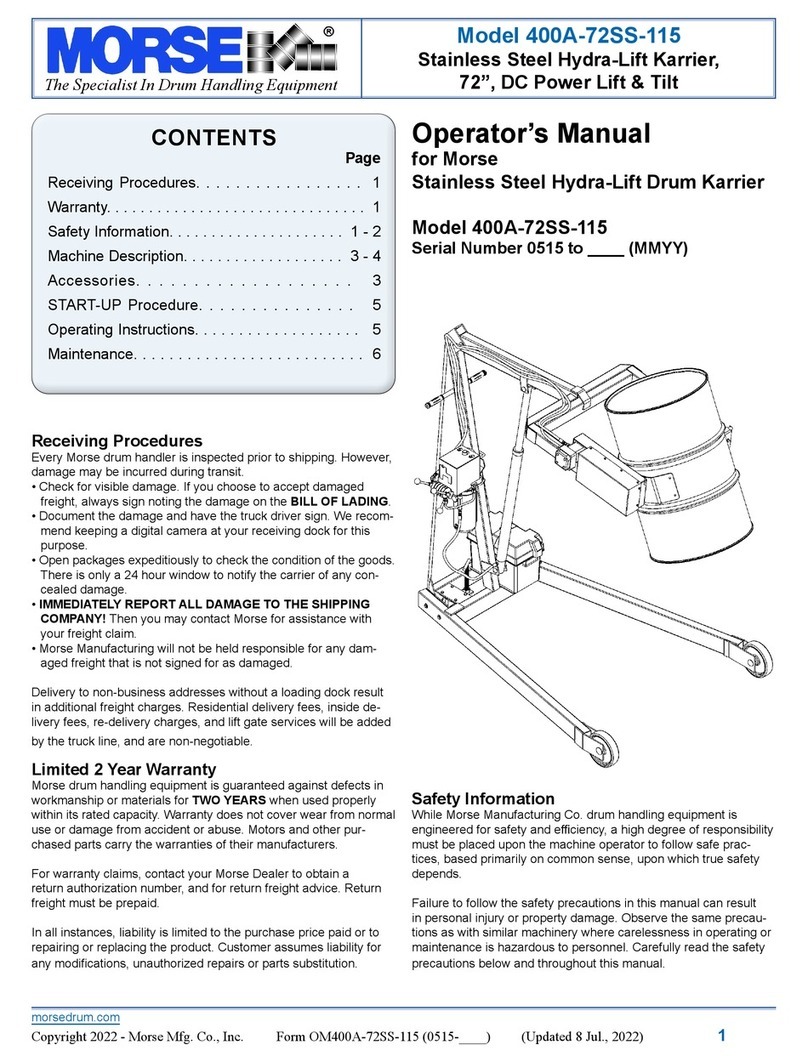

morse 400A-72SS-115 User manual
