morse 82H User manual

MORSE MFG. CO., INC. • 727 West Manlius Street • P.O. Box 518 • East Syracuse, NY 13057-0518
Phone: [phone] • Fax: [phone] • Email: [e-mail] • Webpage: MorseDrum.com
Copyright 2011 - Morse Mfg. Co., Inc. Form PL82H (0509-1110) (Updated January 27, 2011 2:07 PM) 1
The Specialist In Drum Handling Equipment
MODEL 82H
Mobile Lifter / Palletizer
Contents
Page
Receiving Procedures. . . . . . . . . . . . . . . . . . . . 1
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2
Machine Description. . . . . . . . . . . . . . . . . . . 3
Operating Instructions. . . . . . . . . . . . . . . . . . . . 4
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . 4
Parts Lists and Diagrams. . . . . . . . . . . . . . . . . . 5 - 6
Operator’s Manual
for Morse Mobile Lifter / Palletizer
Model 82H
Serial Number 0509 to 1110 (MMYY)
Receiving Procedures
Every Morse drum handler is inspected prior to shipping. However,
damage may be incurred during transit.
Check for visible damage. If you choose to accept damaged•
freight, always sign noting the damage on the Bill of
Lading.
Document the damage and have the truck driver sign. We•
recommend keeping a digital camera at your receiving dock
for this purpose.
Open packages expeditiously to check the condition of the•
goods. There is only a 24 hour window to notify the carrier
of any concealed damage.
Immediately• report all damage to the shipping company!
Then you may contact Morse for assistance with your
freight claim.
Morse Manufacturing will not be held responsible for any•
damaged freight that is not signed for as damaged.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects in
workmanship or materials for two years when used properly within
its rated capacity. Warranty does not cover wear from normal use or
damage from accident or abuse. Motors and other purchased parts
carry the warranties of their manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice. Return
freight must be prepaid.
In all instances, liability is limited to the purchase price paid or to
repairing or replacing the product. Customer assumes liability for
anymodications,unauthorizedrepairsorpartssubstitution.
Safety Information
While Morse Manufacturing Co. drum handling equipment is
engineeredforsafetyandefciency,ahighdegreeofresponsibility
must be placed upon the machine operator to follow safe practices,
based primarily on common sense, upon which true safety
depends.
Failure to follow the safety precautions in this manual can result in
personal injury or property damage. Observe the same precautions
as with similar machinery where carelessness in operating or
maintenance is hazardous to personnel. Carefully read the safety
precautions below and throughout this manual.
Review the Material Safety Data Sheet(s) for the material(s) in
the drum(s) and take all necessary precautions. Safety shoes,
work gloves, hard hat and other personal protective devices are
recommended.
Prior to initial use, inspect all moving parts. Inspect moving parts for
proper operation. Perform necessary load test, inspections, operator
training, etc.

The Specialist In Drum Handling Equipment
MODEL 82H
Mobile Lifter / Palletizer
Operator’s Manual for Model 82H Morse Mobile Lifter / Palletizer
Serial Number 0509 to 1110 (MMYY)
MorseDrum.com
Copyright 2011 - Morse Mfg. Co., Inc. Form PL82H (0509-1110) (Updated January 27, 2011 2:07 PM) 2
Safety Information (continued)
DANGER - Indicates a situation which, if not avoided, will result in serious injury or death.
This signal word is limited to the most extreme situations.
WARNING - Indicates a situation which, if not avoided, could result in serious injury or
death.
CAUTION - Indicates a situation which, if not avoided, can result in damage to the machine.
CAUTION – Do Not Transport with Drum Raised. Always lower the drum holder to lowest position
before transporting.
WARNING - The Mobile Lifter / Palletizer is designed to handle one drum of the types listed at the top
of page 3. Machine Description. DO NOT attempt to handle any other type of drum or object. DO NOT
exceed the weight capacity of 1000 Lb.
WARNING - Level Floors Only
Foroperationonlyonclean,leveloorsofsuitablebearingcapacity.Donotuseonslopedsurfaces,
ramps,irregularordebrisstrewnoors.
WARNING -DoNotModifytheUnit.Undernocircumstancesshouldanymodicationsbemadeto
theMorsemachinerywithoutfactoryauthorization. Anymodicationsmayvoid the warranty.This
machine was designed to perform a specic job and alterations may result in injury to operator or
machine.
WARNING -NoLooseFittingClothing.Wearclose-ttingclothingandsafetyequipmentappropriate
tothejob.Loosettingclothingmaybecomecaughtonthemachineryandcauseseverepersonal
injury.
WARNING - Hydraulic Fluid Under Pressure Can Be Hazardous
Escaping hydraulic uid under pressure can penetrate the skin, causing serious injury. Avoid the
hazard by relieving pressure before disconnecting hydraulic lines. Keep hands and body away from
pinholesandnozzles,whichejectuidunderhighpressure.Useapieceofcardboardtosearchfor
leaks. If an accident occurs, see a doctor immediately and inform them of the nature of the accident.
CAUTION - Wear safety shoes with non-slip soles and hard toe protection.
CAUTION -DONOTallowdrumtoimpactonoor,ground,ordumpingstation,etc.

The Specialist In Drum Handling Equipment
MODEL 82H
Mobile Lifter / Palletizer
Operator’s Manual for Model 82H Morse Mobile Lifter / Palletizer
Serial Number 0509 to 1110 (MMYY)
MorseDrum.com
Copyright 2011 - Morse Mfg. Co., Inc. Form PL82H (0509-1110) (Updated January 27, 2011 2:07 PM) 3
Machine Description

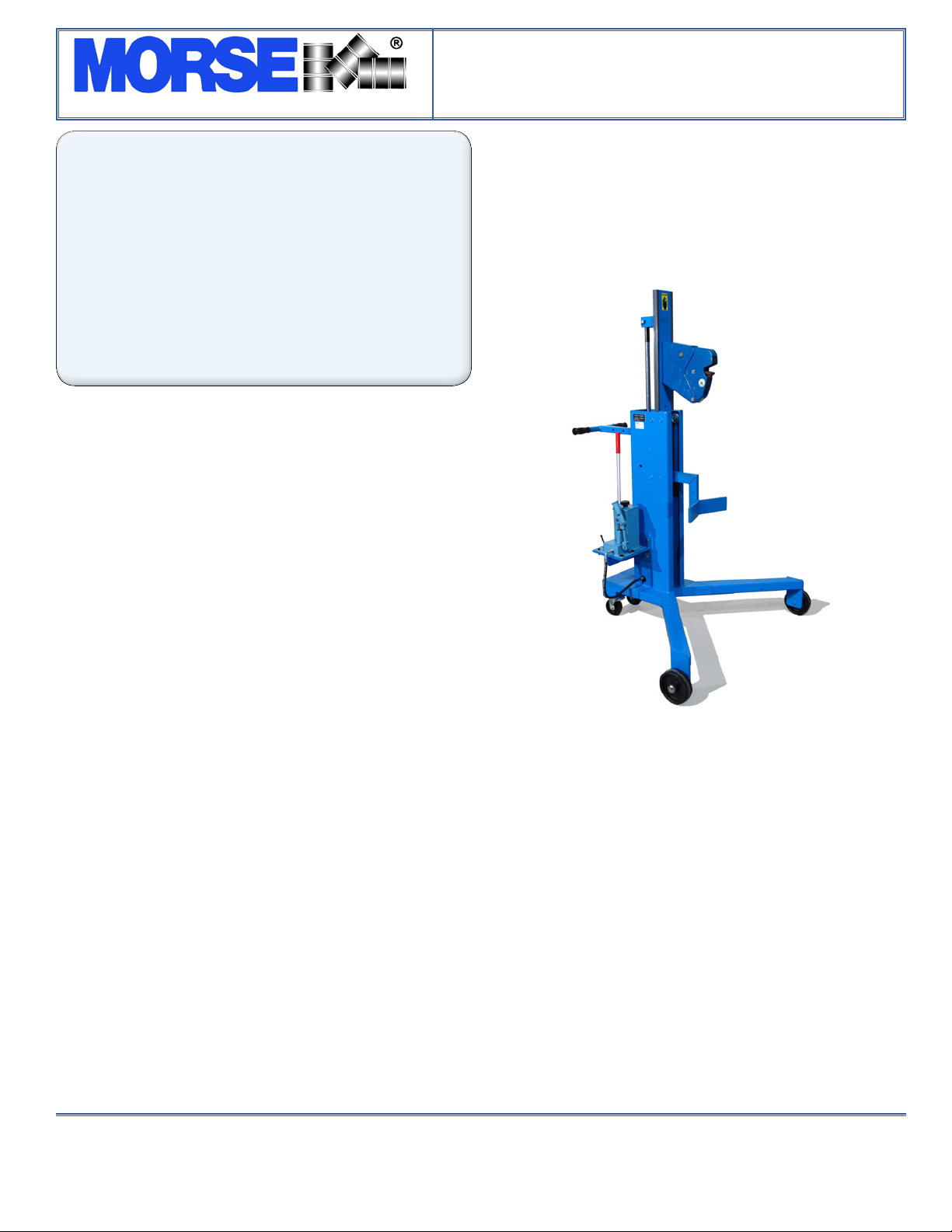

The Mobile Lifter / Palletizer is designed to lift and transport rimmed drums of
various diameters with a minimum drum height of 28”. Drums should weigh at least
75 Lb. to complete clamping action. The maximum capacity is 1000 Lb.
Controls
The Morse Mobile Lifter / Palletizer is manually propelled and steered.
LIFT and Lower
Function (Figure 2.3)
To raise the drum
Insert pump lever handle into pump socket.1.
With the release valve closed, begin to pump the lever handle.2.
The drum will lift.
To lower the drum
Open the release valve slowly, a part of a turn. Allow the drum to descend at a
controlled rate. The valve may be reclosed to hold the drum at any height.
WARNING: Keep hands and other objects away from top opening of lifting
frame
WARNING: Keep hands and other objects away from drum-gripping jaws.
Figure 2.3

The Specialist In Drum Handling Equipment
MODEL 82H
Mobile Lifter / Palletizer
Operator’s Manual for Model 82H Morse Mobile Lifter / Palletizer
Serial Number 0509 to 1110 (MMYY)
MorseDrum.com
Copyright 2011 - Morse Mfg. Co., Inc. Form PL82H (0509-1110) (Updated January 27, 2011 2:07 PM) 4
Operating Instructions
Roll drum lifter to drum. Steer unit so head and bottom support meet1.
centerline of drum. Head should push into side of drum near drum top.
Exact height is not critical. Jaws should arrive below drum rim. This
usually corresponds to having top of head about as high as top of drum.
WARNING: Keep hands and other objects away from top opening of
lifting frame.

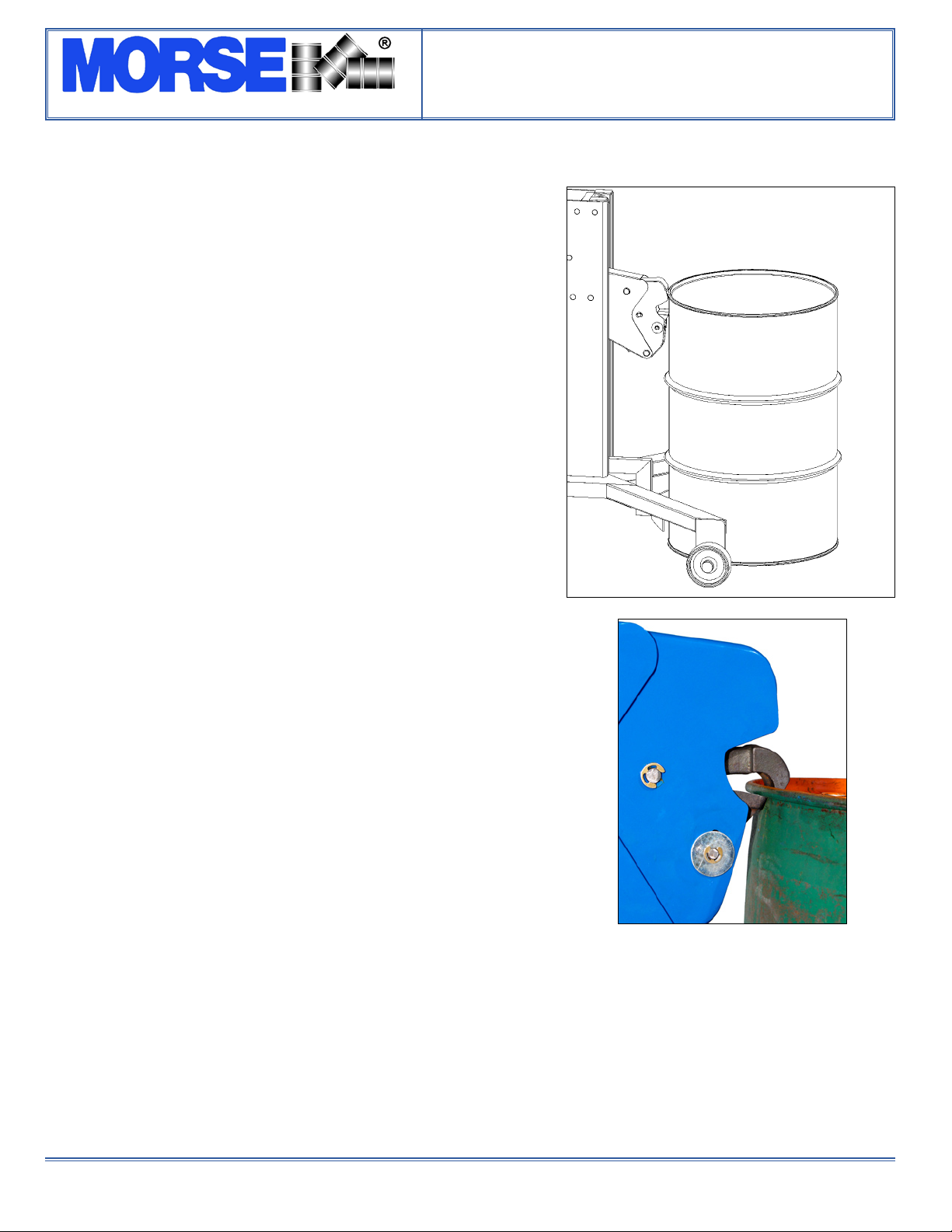

To clamp drum: Operate lift function to raise head while it is held against2.
the drum. Drum-gripping action is automatic as the head rises. This is
how it works: As the head rises, the lower jaw will come up under the lip
of the drum rim, “catch” under it, and be held down. As the head rises with
the lower jaw thus held by the drum rim, internal linkage will pull the upper
jaw downward to meet the top of the drum rim. The drum’s weight on the
lower jaw creates the force that pulls the upper jaw down to tightly grip the
drum rim. No manual contact is required.
WARNING: Keep hands and other objects away from drum-gripping
jaws.
Withdrumheldofftheoor,pushdrumliftertodeliverdrum.Avoid3.
unreasonably rough or non-level surfaces. Move at moderate speed.
Carrydrumonlyhighenoughtoavoidcontactwiththeoororobstacles.
Push loaded unit when possible for transporting. Pulling unit should be
limited to maneuvering at short distance.
WARNING: Excessive pitching or bouncing caused by rushing over
rough or non-level oors can make drum momentarily weightless,
jaws can disengage.
To release drum at intended destination: operate control to lower drum4.
ontoleveloororpallet.Whendrumcomestorestandheadcontinues
to lower, weight will no longer be on the lower jaw and jaws will open
automatically. No manual contact is required. Do not stop lowering as
soon as drum touches down, keep going down for a few more inches. Pull
unit away once upper jaw has retracted clear of drum rim. Park unit on
leveloor,outoftrafclaneswhennotinuse.
Adjustment for Shorter Drums: The head is factory set in upper position5.
for handling drums at least 34” tall, including typical 55 gallon drums. For
handling drums as short as 28” such as typical 30 gallon drums, relocate
head downward as follows: Detach head by removing nuts that hold head
to lifting assembly. Reattach head at alternate location 6” lower.
Maintenance
Periodicinspectionforthegeneralconditionofstructuralandmechanicalcomponentsisimperativeforsafeandefcientoperation.•
Periodically inspect all moving parts, framework, and contact areas for signs of wear, fatigue, or loosening. Tighten, adjust, or•
replace parts as necessary to prevent failure and maintain proper function.
Inspectthehydraulicsystemforoildrips,hosedamage,orothersignsofwear.Inspectthelevelandconditionofthehydraulicuid.•
Replace any parts that show signs of wear.
Grease wheel bearings periodically. Clean and lubricate all moving parts including: Cylinder pin and linkages.•
Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.•
HydraulicpumpisshippedlledwithNocoPremiumplusautomatictransmissionuidd/m.Materialsafetydatasheet(msds)is•
available online. Change oil yearly, sooner depending on dirty conditions or outdoor use. Replace oil with Mobil dte 24 or equivalent
for indoor use (Mobil dte 13 for outdoor use).

The Specialist In Drum Handling Equipment
MODEL 82H
Mobile Lifter / Palletizer
Operator’s Manual for Model 82H Morse Mobile Lifter / Palletizer
Serial Number 0509 to 1110 (MMYY)
MorseDrum.com
Copyright 2011 - Morse Mfg. Co., Inc. Form PL82H (0509-1110) (Updated January 27, 2011 2:07 PM) 5
ITEM QTY. PART # DESCRIPTION
1* 2 8160-P WHEEL, 6”, 3/4” BRG, 81, 82
2* 2 705-P CAP, HUB, PUSH-ON, 3/4”
3 2 83-P GRIP, HANDLE, 1-1/4 X 4-1/2
4* 2 3308-P CASTER, 4” SWIVEL, DBL RACE
5 12 35-P HHCS, 5/16-18 X 1 GR2
6 16 1570-P WASHER, 5/16 USS 7/8 OD
7 8 1650-P WASHER, 5/16 SPLIT LOCK
8* 4 3194-P BEARING, 3/4 ID, 82, 500, 600
9 4 166-P SNAP RING, EXTERNAL, 82
10 1 3343-P RISER WELD, 82 SERIES
11 1 3360-P LIGHT DUTY HEAD ASM, LDH 82H
12 2 64-P ROLL PIN, 3/16 X 1-1/4
13 4 17-P WASHER, 5/8 SAE FL 1-5/16 OD
14 2 91-P NUT, 1/2-13 FIN HEX
15 4 1644-P WASHER, 1/2 SPLIT LOCK
16 1 3611-P CYLINDER, 1 X 24, SAE 82
ITEM QTY. PART # DESCRIPTION
17 1 8260-P PIN, CLEVIS, CYL, 5/8, 82
18 1 3612-P HYD FIT, SAE ADAPTER
19 1 8281-P PUMP PLATE WELD, STAR, 82
20 1 96MK1939-P PUMP, HYD, HAND STAR
21 1 96CP13-23 HANDLE, LEVER W/ GRIP, STAR
22 1 1035-P COLLAR, 1/2”
23 1 1040-P SHCS, 1/4-20 X 2-1/2
24 1 345-P HYD FIT, MALE FLARE, 456, 82
25 4 491-P NUT, 5/16-18 REV HEX LOCK
26 1 3613-P HYD HOSE ASM, 20”
27 4 1572-P HHCS, 3/8-16 X 1 GR2
28 8 1166-P WASHER, 3/8 USS 1” OD
29 4 1169-P NUT, 3/8-16 REV HEX LOCK
30 2 2172-P HHCS, 1/2-13 X 1-1/2 GR5
31 1 3363-P BOTTOM DRUM SUPPORT, 82H
* Recommended spare parts.

The Specialist In Drum Handling Equipment
MODEL 82H
Mobile Lifter / Palletizer
Operator’s Manual for Model 82H Morse Mobile Lifter / Palletizer
Serial Number 0509 to 1110 (MMYY)
MorseDrum.com
Copyright 2011 - Morse Mfg. Co., Inc. Form PL82H (0509-1110) (Updated January 27, 2011 2:07 PM) 6
Head Assembly Part # 3360-P
ITEM QTY. PART # DESCRIPTION
51 1 1110-P SPRING, COMPRESSION, 155
52 2 62-P WASHER, 3/4 SPRING
53 1 3352-P PIN HOOK PIVOT 1/2 X 2.052 LDH
54 2 3860-P PIVOT PIN 3/4 GROOVED, LDH
55 4 166-P SNAP RING, EXTERNAL, 82
56 2 3461-P E CLIP, 1/2”, 82
57 1 3460-P PIN INNER LINK 3/8 X 1.437 LDH
58 1 3354-P PIN, JAW LINK, 3/8 X 2.264 LDH
59 1 2166-P LOWER JAW, MORSPEED, 929-P
60 2 3355-P LINK, JAW, LDH
61 1 2165-P UPPER JAW, MORSPEED, 929-P
62 2 3362-P WASHER, 3/8” FENDER
63 2 3361-P E CLIP, 3/8”, 82
64 1 3879-P SPRING, LDH, RED
