morse 525-N User manual

The Specialist In Drum Handling Equipment
Models 525-N, 525-T and 525M-T
Vertical-Lift Drum Pourer, Scale-Equipped,
106”, Manual Lift and Tilt
CONTENTS
Page
Receiving Procedures. . . . . . . . . . . . . . . . . . . . 1
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2
Machine Description. . . . . . . . . . . . . . . . . . . 3 - 4
Operating Instructions. . . . . . . . . . . . . . . . . . . . 5
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . 5
Receiving Procedures
Every Morse drum handler is inspected prior to shipping. However,
damage may be incurred during transit.
Check for visible damage. If you choose to accept damaged•
freight, always sign noting the damage on the Bill of
Lading.
Document the damage and have the truck driver sign. We•
recommend keeping a digital camera at your receiving dock
for this purpose.
Open packages expeditiously to check the condition of the•
goods. There is only a 24 hour window to notify the carrier
of any concealed damage.
Immediately• report all damage to the shipping company!
Then you may contact Morse for assistance with your
freight claim.
Morse Manufacturing will not be held responsible for any•
damaged freight that is not signed for as damaged.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects in
workmanship or materials for two years when used properly within
its rated capacity. Warranty does not cover wear from normal use
or damage from accident or abuse. Motors and other purchased
parts carry the warranties of their manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice. Return
freight must be prepaid.
In all instances, liability is limited to the purchase price paid or to
repairing or replacing the product. Customer assumes liability for
anymodications,unauthorizedrepairsorpartssubstitution.
Operator’s Manual
for Morse Vertical-Lift Drum Pourers
Models 525-N, 525-T and 525M-T
Serial Number 249855 to ______
Safety Information
While Morse Manufacturing Co. drum handling equipment is
engineeredforsafetyande󰀩ciency,ahighdegreeofresponsibility
must be placed upon the machine operator to follow safe practices,
based primarily on common sense, upon which true safety
depends.
Failure to follow the safety precautions in this manual can result in
personal injury or property damage. Observe the same precautions
as with similar machinery where carelessness in operating or
maintenance is hazardous to personnel. Carefully read the safety
precautions below and throughout this manual.
Review the Material Safety Data Sheet(s) for the material(s) in
the drum(s) and take all necessary precautions. Safety shoes,
work gloves, hard hat and other personal protective devices are
recommended.
Prior to initial use, inspect all moving parts and test rotation of
drum holder. Perform necessary load test, inspections, operator
training, etc.
Copyright 2019 - Morse Mfg. Co., Inc. Form OM525 (249855-______) (Updated 12 Jun, 2019 3:06 PM) 1
[email protected] 103 Kuhn Rd.
Syracuse, NY, 13208 U.S.A.
morsedrum.com [phone]

The Specialist In Drum Handling Equipment
Models 525-N, 525-T and 525M-T
Vertical-Lift Drum Pourer, Scale-Equipped,
106”, Manual Lift and Tilt
Operator’s Manual for Morse Models 525-N and 525-T
with Serial Number 249855 to ______
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form OM525 (249855-______) (Updated 12 Jun, 2019 3:06 PM) 2
Safety Information (continued)
DANGER - Indicates a situation which, if not avoided, will result in serious injury or death.
This signal word is limited to the most extreme situations.
WARNING - Indicates a situation which, if not avoided, could result in serious injury or
death.
CAUTION - Indicates a situation which, if not avoided, can result in damage to the machine.
CAUTION -Do NOT transport with drum raised.
Always lower the drum holder to lowest position before transporting.
DANGER - Stay well clear of power lines.
Never approach a power line. Current in a high voltage line may arc some distance from the wire to the steel framed,
grounded machine.
WARNING - The Vertical-Lift Drum Pourer is designed to handle one drum of the types listed at the top of page
3 - Machine Description. DO NOT attempt to handle any other type of drum or object. DO NOT exceed the weight
capacity of 800 Lb. (363 kg).
WARNING - Level oors only.
Foroperationonlyonclean,leveloorsofsuitablebearingcapacity.Donotuseonslopedsurfaces,ramps,irregularor
debrisstrewnoors.
WARNING - Do NOT modify the unit.
UndernocircumstancesshouldanymodicationsbemadetotheMorsemachinerywithoutfactoryauthorization.Any
modicationsmayvoidthewarranty.Thismachinewasdesignedtoperformaspecicjobandalterationsmayresultin
injury to operator or machine.
WARNING - No loose tting clothing.
Wearclose-ttingclothingandsafetyequipmentappropriatetothejob.Loosettingclothingmaybecomecaughton
the machinery and cause severe personal injury.
WARNING - Hydraulic uid under pressure can be hazardous.
Escapinghydraulicuidunderpressurecanpenetratetheskin,causingseriousinjury.Avoidthehazardbyrelieving
pressurebeforedisconnectinghydrauliclines.Keephandsandbodyawayfrompinholesandnozzles,whichejectuid
under high pressure. Use a piece of cardboard to search for leaks. If an accident occurs, see a doctor immediately and
inform them of the nature of the accident.
CAUTION - Wear safety shoes.
Wear safety shoes with non-slip soles and hard toe protection.
WARNING: This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and
2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to the
State of California to cause birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov

morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form OM525 (249855-______) (Updated 12 Jun, 2019 3:06 PM) 3
The Specialist In Drum Handling Equipment
Models 525-N, 525-T and 525M-T
Vertical-Lift Drum Pourer, Scale-Equipped,
106”, Manual Lift and Tilt
Operator’s Manual for Morse Models 525-N and 525-T
with Serial Number 249855 to ______
Machine Description
The 525 Series Scale-Equipped Vertical-Lift Drum Pourer will pour a drum
atupto106”(269cm)high,measuredfromtheoortothelowestpointof
a horizontal drum. It is designed to lift, transport, and dispense a ribbed 55-
gallon(210liter)steeldrum22.5”(56cm)indiameter,aswellasaberdrum
between 22” and 23.5” (56 to 59.7 cm) in diameter. The maximum full-drum
capacity is 800 Lb. (363 kg). The capacity is derated to 500 Lb. (227 kg) for
a half-full drum. The half-full rating is based on the tilt mechanism’s capacity
for handling an unbalanced bottom-heavy drum.
Options
A smaller diameter drum can be handled with the correct size 55/30•
Series Diameter Adaptor installed (see Diameter Adaptor literature).
The• Bracket Assembly (Part # 4556-P) is required to handle a plastic
drumwithoutatoprim(seegure2.1).Itisalsorecommendedto
moresecurelyhandleaberdrum.YoucanusetheBracketAssembly
witha55-gallon(210liter)plastic,steelorberdrum.Thebraceattop
and bottom of the drum prevent it from slipping lengthways through the
drum holder. It adjusts for a drum 31” to 39” (79 to 99 cm) tall.
The• Top Rim Clamp (Part # 4560-P) grips the upper rim of your drum
topreventitfromslippingthroughthedrumholder(seegure2.2).
To handle a 55-gallon (210 liter) plastic drum with top rim, you must
installeithertheBracketAssemblyortheTopRimClamp.Youcanuse
theTopRimClampwitha55-gallonplastic,steelorberdrumwith
suitable top rim.
Machine Unpacking
Inspect the machine for visible damage. If damage is noted, follow
receiving procedure on page 1.
Remove machine from pallet by lifting from the square tubing at the top of
the unit. Insert a strap or chain through the tubing and make a loop to lift
by. Attach loop to an overhead crane and raise slowly.
Installation Instructions
Machineisshippedwithhydraulicuid.
BEFOREoperation,replacetheRED shipping plug from the hydraulic
reservoir with the BLACK breather, and insert lever handle into pump
socket.
Figure 2.2
Plastic drum being lifted
with part number 4560-P
Top Rim Clamp Assembly
installed.
Figure 2.1
Plastic drum being lifted with
partnumber4556-PBracket
Assembly installed.

The Specialist In Drum Handling Equipment
Models 525-N, 525-T and 525M-T
Vertical-Lift Drum Pourer, Scale-Equipped,
106”, Manual Lift and Tilt
Operator’s Manual for Morse Models 525-N and 525-T
with Serial Number 249855 to ______
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form OM525 (249855-______) (Updated 12 Jun, 2019 3:06 PM) 4
Controls
The Morse Vertical-Lift Drum Pourer is manually propelled and steered.
There are two functions for the operator to control:
“LIFT” and lower function for vertical positioning of the drum1.
“TILT” function to control the degree of rotation of the drum2.
1. LIFT and Lower Function (Figure 3.1)
To raise the drum
a. Insert pump lever handle into pump socket.
b. With the release valve closed, begin to pump the lever handle. The drum will lift.
To lower the drum
a. Open the release valve slowly, a part of a turn. Allow the drum to descend at a controlled
rate. The valve may be reclosed to hold the drum at any height.
2. TILT Function
To tilt the drum
a. Turn the hand crank to turn the drum.
b.Beforereleasingyourgriponthehandcrank,pulloutthecrankstoppintoblockthe
hand crank from spinning freely.
c.IfthedrumhandlerisequippedwiththeMORStopTilt-Brake,thereisnoneedtouse
the stop pin. Braking is immediate and self-actuating, without additional steps by the
operator.
Note:ToaddtheMORStopTilt-Braketoanexistingdrumhandler,orderpart#3900-Pfor
aeldinstallationkit.
WARNING - Watch out for pinch points
Stay clear of moving parts. Operator should remain behind the push handle during the lift operation.
Floor Lock
Theoorlockhandleislocatedontheleftsideofthepushhandle.Pullingtheoorlockhandletowardtheoperatoruntilitlocksinthedown
positionactivatestheoorlock.Whentheoorlockisactivateditpreventsunwantedfreewheelingoftheunit.Floorconditionsdetermine
thee󰀨ectivenessoftheoorlock.Theoperatorshouldverifyitsholdingactionbeforedependingonittohold.
Two Types of Scales
The scales are simple to use and to read enabling accurate batching by weight. The touch pads include numbers for tare
entry.Fourloadcellsaccuratelysensetheweightregardlessofthetiltangleofthedrum.Batterysaving“sleep”mode
turnsindicatoro󰀨whenscaleisnotinuse.
Display weight to 0.1 Lb. with accuracy of +/-0.2 %
Scale components will be installed and calibrated before leaving the Morse factory. However, the rigors of transportation
may change scale calibration. To assure proper accuracy, the user should employ local scale service personnel to check
the function and calibration of the scale. Cost of on-site calibration is not included in the selling price.
T-Type Scale
Features an intrinsically safe, ultra low power intensity (ULPI) indicator for use in many hazardous areas, approved for
allclasses,groupsanddivisionsofN.E.C.hazardousenvironmentclassications.ThehandpumpedorManualeddrum
handler with this intrinsically safe weighing system may be used in many hazard areas where ordinary electric powered
equipment would be prohibited.
N-Type Scale
Economical general purpose instrument for use in a variety of weighing applications. NOT for use in hazardous areas.
Powered by six ordinary alkaline D-cell batteries.
“T” Type
Intrinsically safe
scale indicator for
use in hazardous
areas.
“N” Type scale
indicator NOT
for hazardous
environments.
Figure 3.1

morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form OM525 (249855-______) (Updated 12 Jun, 2019 3:06 PM) 5
The Specialist In Drum Handling Equipment
Models 525-N, 525-T and 525M-T
Vertical-Lift Drum Pourer, Scale-Equipped,
106”, Manual Lift and Tilt
Operator’s Manual for Morse Models 525-N and 525-T
with Serial Number 249855 to ______
Operating Instructions
Push the Vertical-Lift Drum Pourer to the drum.1.
Using the “LIFT” control as described in “Machine Description2.
- Controls” (page 4), position the drum holder assembly with
the back band at the middle of the drum. With the ratchet plate
swung open and the cinch chain hanging from the chain hook,
pushtheunituntilthebackbandrestsrmlyagainstthedrum.
Some adjustment to the tilt angle of the saddle may be necessary
toensure bandtsushonthedrum.Engage theoorlock.
Attaching the drum:3. Drape the cinch chain across the front
of the drum and engage a chain link into the slot in the ratchet
(Figure 3.2). Turn the ratchet clockwise to tighten cinch chain. If
ratchet turns until the pawl is beyond the last ratchet tooth, turn
the ratchet back and slide the next link into the ratchet slot and
try tightening again. The cinch chain must be held tightly against
the drum with the pawl engaged securely in the ratchet teeth.
Operatetheliftfunctiontoliftdrumclearofoor.Disengageoorlock.Rolltodispensinglocation.NOTE:Donotallowthedrumto4.
impactonoor,pouringstation,etc.oraspillordamagecouldoccur.
CAUTION – Do NOT transport with drum raised.
   ALWAYSLOWERTHEDRUMHOLDERTOLOWESTPOSITIONBEFORETRANSPORTING.
The unit can become unstable when transporting with a raised load.
Lift drum to desired pouring height. Operate the tilt control as described in “Machine Description - Controls” (page 4) to adjust the5.
drumattitude.Theoorlockshouldbeengagedwhiledispensing/draining.
Whendispensingiscomplete,tiltdrumbacktouprightposition.Disengagetheoorlockandlowerthedrumtotransportingheight;6.
about6”(15cm)o󰀨theoor.
WARNING - Stay clear of raised drum
NEVER allow anyone to be below any part of a raised drum handler or drum. Remain behind the push handle
while handling a drum.
WARNING – Do NOT disengage the cinch chain when drum is o󰀨 the ground.
   Whenthedrumisintheuprightposition,lowerthedrumtotheoorbeforereleasingthecinchchain.
Pushtheunittothedrumstorageareaandlowertotheoorinanuprightposition.Releasethecinchchainfromtheratchetby7.
applying pressure to the ratchet handle in a clockwise direction with one hand and opening the pawl to free the ratchet with the other
hand. Remove the cinch chain link from the ratchet.
Maintenance
Periodicinspectionforthegeneralconditionofstructuralandmechanicalcomponentsisimperativeforsafeande󰀩cientoperation.1.
Periodically inspect all moving parts, framework, drum holder and contact areas for signs of wear, fatigue, or loosening. Tighten,2.
adjust, or replace parts as necessary to prevent failure and maintain proper function.
Inspectthehydraulicsystemforoildrips,hosedamage,orothersignsofwear.Inspectthelevelofthehydraulicuid.Replaceany3.
parts that show signs of wear.
Greasewheelbearingsperiodically.Oilorgreaseallmovingparts,including:thegearsandsprocketsinthetiltdrive,andtheratchet4.
and pawl.
Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.5.
HydraulicpumpisshippedlledwithNocoPremiumplusautomatictransmissionuidd/m.Materialsafetydatasheet(msds)is6.
available online. Change oil yearly, sooner depending on dirty conditions or outdoor use. Replace oil with Mobil dte 24 or equivalent
for indoor use (Mobil dte 13 for outdoor use).

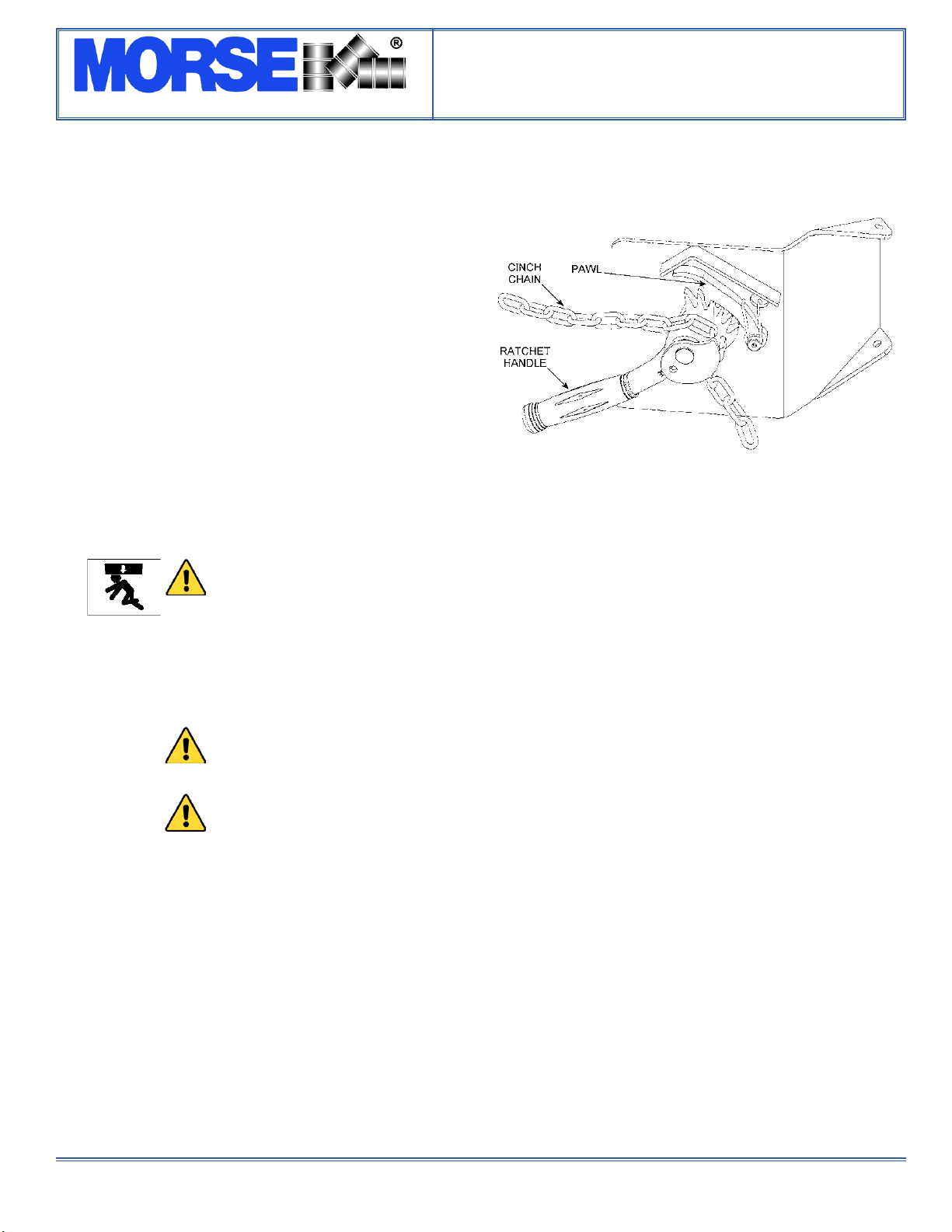

Figure 3.2
