morse 82H-SS-125 User manual

CONTENTS
Page
Receiving Procedures. . . . . . . . . . . . . . . . . . . . 1
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2
Machine Description. . . . . . . . . . . . . . . . . . . 3
Installation Instructions. . . . . . . . . . . . . . . . . . . 3
Controls. . . . . . . . . . . . . . . . . . . . . . . 3
Operating Instructions. . . . . . . . . . . . . . . . . . . . 4
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . 4
Parts Lists and Diagrams. . . . . . . . . . . . . . . . . . 5

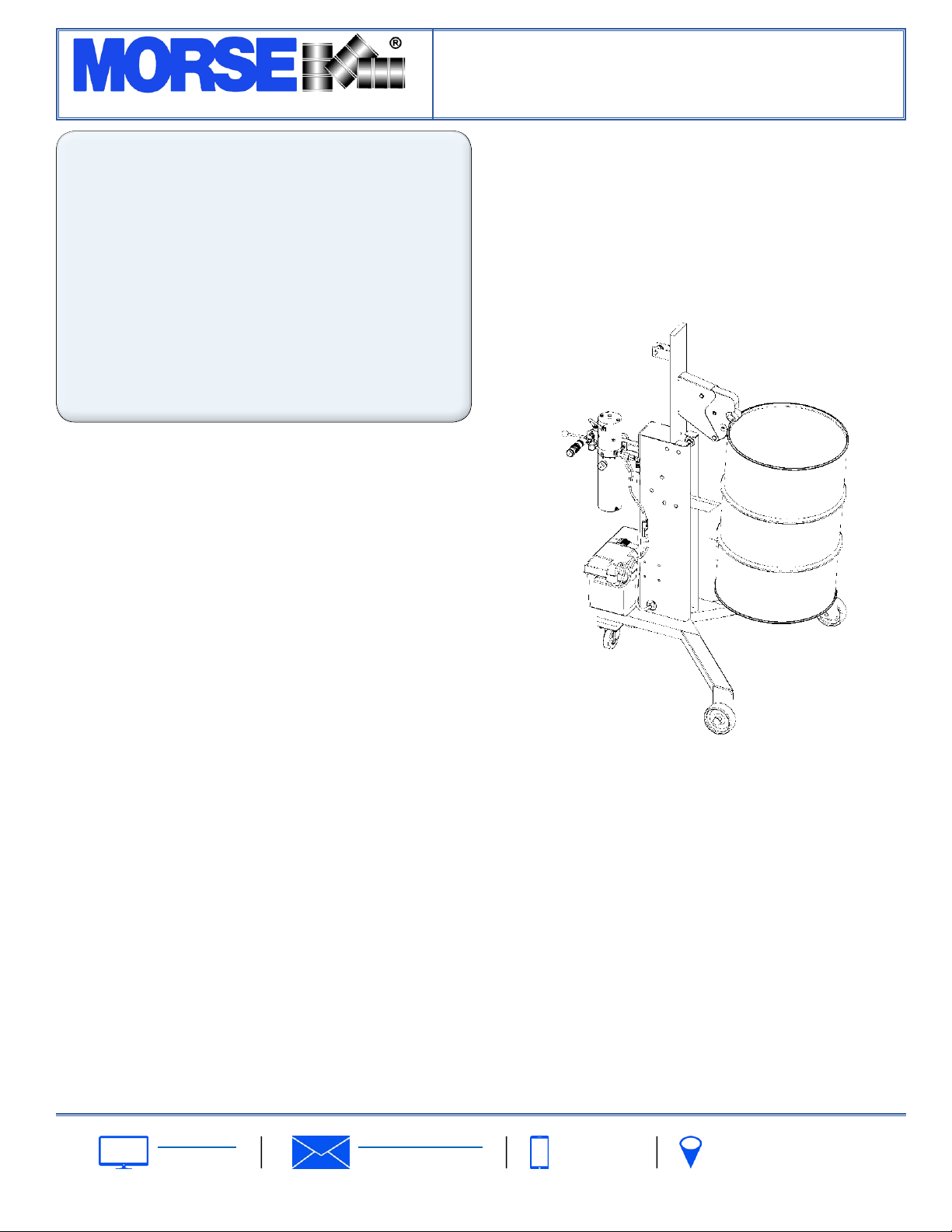

Operator’s Manual
for Morse
Stainless Steel Mobile Lifter / Palletizer
Model 82H-SS-125
Serial Number 0313 to ____ (MMYY)
Receiving Procedures
Every Morse drum handler is inspected prior to shipping. However,
damage may be incurred during transit.
Check for visible damage. If you choose to accept damaged•
freight, always sign noting the damage on the Bill of
Lading.
Document the damage and have the truck driver sign. We•
recommend keeping a digital camera at your receiving dock
for this purpose.
Open packages expeditiously to check the condition of the•
goods. There is only a 24 hour window to notify the carrier
of any concealed damage.
Immediately• report all damage to the shipping company!
Then you may contact Morse for assistance with your
freight claim.
Morse Manufacturing will not be held responsible for any•
damaged freight that is not signed for as damaged.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects in
workmanship or materials for two years when used properly within
its rated capacity. Warranty does not cover wear from normal use
or damage from accident or abuse. Motors and other purchased
parts carry the warranties of their manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice. Return
freight must be prepaid.
In all instances, liability is limited to the purchase price paid or to
repairing or replacing the product. Customer assumes liability for
anymodications,unauthorizedrepairsorpartssubstitution.
Safety Information
While Morse Manufacturing Co. drum handling equipment is
engineeredforsafetyande󰀩ciency,ahighdegreeofresponsibility
must be placed upon the machine operator to follow safe practices,
based primarily on common sense, upon which true safety
depends.
Failure to follow the safety precautions in this manual can result in
personal injury or property damage. Observe the same precautions
as with similar machinery where carelessness in operating or
maintenance is hazardous to personnel. Carefully read the safety
precautions below and throughout this manual.
Review the Material Safety Data Sheet(s) for the material(s) in
the drum(s) and take all necessary precautions. Safety shoes,
work gloves, hard hat and other personal protective devices are
recommended.
Prior to initial use, inspect all moving parts. Inspect moving parts
for proper operation. Perform necessary load test, inspections,
operator training, etc.
Copyright 2019 - Morse Mfg. Co., Inc. Form PL82H-SS-125 (0313-____) (Updated 12 Jun, 2019 3:19 PM) 1
The Specialist In Drum Handling Equipment
Model 82H-SS-125
Stainless Steel Mobile Lifter / Palletizer
with DC Power Lift
[email protected] 103 Kuhn Rd.
Syracuse, NY, 13208 U.S.A.
morsedrum.com [phone]

The Specialist In Drum Handling Equipment
Model 82H-SS-125
Stainless Steel Mobile Lifter / Palletizer
with DC Power Lift
Operator’s Manual for Morse Model 82H-SS-125 Stainless Steel Mobile Lifter / Palletizer
Serial Number 0313 to ____ (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL82H-SS-125 (0313-____) (Updated 12 Jun, 2019 3:19 PM) 2
Safety Information (continued)
DANGER - Indicates a situation which, if not avoided, will result in serious injury or death.
This signal word is limited to the most extreme situations.
WARNING - Indicates a situation which, if not avoided, could result in serious injury or
death.
CAUTION - Indicates a situation which, if not avoided, can result in damage to the machine.
CAUTION – Do Not Transport with Drum Raised. Always lower the drum holder to lowest position
before transporting.
WARNING - The Mobile Lifter / Palletizer is designed to handle one drum of the types listed at the
top of page 3. Machine Description. DO NOT attempt to handle any other type of drum or object.
DO NOT exceed the weight capacity of 1000 Lb.
WARNING - Level Floors Only
Foroperationonlyonclean,leveloorsofsuitablebearingcapacity.Donotuseonslopedsurfaces,
ramps,irregularordebrisstrewnoors.
WARNING -DoNotModifytheUnit.Undernocircumstancesshouldanymodicationsbemadeto
theMorsemachinerywithoutfactoryauthorization.Anymodicationsmayvoidthewarranty.This
machinewasdesignedtoperformaspecicjobandalterationsmayresultininjurytooperatoror
machine.
WARNING -NoLooseFittingClothing.Wearclose-ttingclothingandsafetyequipmentappropriate
tothejob.Loosettingclothingmaybecomecaughtonthemachineryandcauseseverepersonal
injury.
WARNING - Hydraulic Fluid Under Pressure Can Be Hazardous
Escapinghydraulicuidunderpressurecanpenetratetheskin,causingseriousinjury.Avoidthe
hazard by relieving pressure before disconnecting hydraulic lines. Keep hands and body away from
pinholesandnozzles,whichejectuidunderhighpressure.Useapieceofcardboardtosearchfor
leaks. If an accident occurs, see a doctor immediately and inform them of the nature of the accident.
CAUTION - Wear safety shoes with non-slip soles and hard toe protection.
CAUTION -DONOTallowdrumtoimpactonoor,ground,ordumpingstation,etc.
WARNING: This product can expose you to chemicals including barium sulfate, cobalt, titanium dioxide, and
2-methylimidazole, which are known to the State of California to cause cancer, and bisphenol-A, which is known to
the State of California to cause birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
WARNING: This product can expose you to chemicals including lead and arsenic, which are known to the
State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov

The Specialist In Drum Handling Equipment
Model 82H-SS-125
Stainless Steel Mobile Lifter / Palletizer
with DC Power Lift
Operator’s Manual for Morse Model 82H-SS-125 Stainless Steel Mobile Lifter / Palletizer
Serial Number 0313 to ____ (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL82H-SS-125 (0313-____) (Updated 12 Jun, 2019 3:19 PM) 3
Machine Description
The Mobile Lifter / Palletizer is designed to lift and transport rimmed drums of various
diameters with a minimum drum height of 22”. Drums should weigh at least 75 Lb. to
complete clamping action. The maximum capacity is 1000 Lb.
Controls
The Morse Mobile Lifter / Palletizer is manually propelled and steered.
LIFT and Lower Function (Figure 2.3)
To raise the drum
Push and hold the valve handle in against the start switch.•
Release the handle when the drum is at the desired height.•
To lower the drum: Pull and hold the valve handle out away from the start switch.
WARNING: Keep hands and other objects away from top opening of lifting
frame
WARNING: Keep hands and other objects away from drum-gripping jaws.
Figure 2.3

The Specialist In Drum Handling Equipment
Model 82H-SS-125
Stainless Steel Mobile Lifter / Palletizer
with DC Power Lift
Operator’s Manual for Morse Model 82H-SS-125 Stainless Steel Mobile Lifter / Palletizer
Serial Number 0313 to ____ (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL82H-SS-125 (0313-____) (Updated 12 Jun, 2019 3:19 PM) 4
Operating Instructions
Roll drum lifter to drum. Steer unit so head and bottom support meet1.
centerline of drum. Head should push into side of drum near drum top.
Exact height is not critical. Jaws should arrive below drum rim. This
usually corresponds to having top of head about as high as top of drum.
WARNING: Keep hands and other objects away from top opening of
lifting frame.
To clamp drum: Operate lift function to raise head while it is held against2.
the drum. Drum-gripping action is automatic as the head rises. This is
how it works: As the head rises, the lower jaw will come up under the lip
of the drum rim, “catch” under it, and be held down. As the head rises with
the lower jaw thus held by the drum rim, internal linkage will pull the upper
jaw downward to meet the top of the drum rim. The drum’s weight on the
lower jaw creates the force that pulls the upper jaw down to tightly grip the
drum rim. No manual contact is required.
WARNING: Keep hands and other objects away from drum-gripping
jaws.
Withdrumheldo󰀨theoor,pushdrumliftertodeliverdrum.Avoid3.
unreasonably rough or non-level surfaces. Move at moderate speed.
Carrydrumonlyhighenoughtoavoidcontactwiththeoororobstacles.
Push loaded unit when possible for transporting. Pulling unit should be
limited to maneuvering at short distance.
WARNING: Excessive pitching or bouncing caused by rushing over
rough or non-level oors can make drum momentarily weightless,
jaws can disengage.
To release drum at intended destination: operate control to lower drum4.
ontoleveloororpallet.Whendrumcomestorestandheadcontinues
to lower, weight will no longer be on the lower jaw and jaws will open
automatically. No manual contact is required. Do not stop lowering as
soon as drum touches down, keep going down for a few more inches. Pull
unit away once upper jaw has retracted clear of drum rim. Park unit on
leveloor,outoftra󰀩claneswhennotinuse.
Adjustment for Shorter Drums: The head is factory set in upper position5.
for handling drums at least 34” tall, including typical 55 gallon drums.
For handling drums as short as 22”, relocate head downward as follows:
Detach head by removing nuts that hold head to lifting assembly.
Reattach head at alternate location 12” lower.
Maintenance
Periodicinspectionforthegeneralconditionofstructuralandmechanicalcomponentsisimperativeforsafeande󰀩cientoperation.•
Periodically inspect all moving parts, framework, and contact areas for signs of wear, fatigue, or loosening. Tighten, adjust, or•
replace parts as necessary to prevent failure and maintain proper function.
Inspectthehydraulicsystemforoildrips,hosedamage,orothersignsofwear.Inspectthelevelandconditionofthehydraulicuid.•
Replace any parts that show signs of wear.
Grease wheel bearings periodically. Clean and lubricate all moving parts including: Cylinder pin and linkages.•
Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.•
HydraulicpumpisshippedlledwithNocoPremiumplusautomatictransmissionuidd/m.Materialsafetydatasheet(msds)is•
available online. Change oil yearly, sooner depending on dirty conditions or outdoor use. Replace oil with Mobil dte 24 or equivalent
for indoor use (Mobil dte 13 for outdoor use).

The Specialist In Drum Handling Equipment
Model 82H-SS-125
Stainless Steel Mobile Lifter / Palletizer
with DC Power Lift
Operator’s Manual for Morse Model 82H-SS-125 Stainless Steel Mobile Lifter / Palletizer
Serial Number 0313 to ____ (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL82H-SS-125 (0313-____) (Updated 12 Jun, 2019 3:19 PM) 5

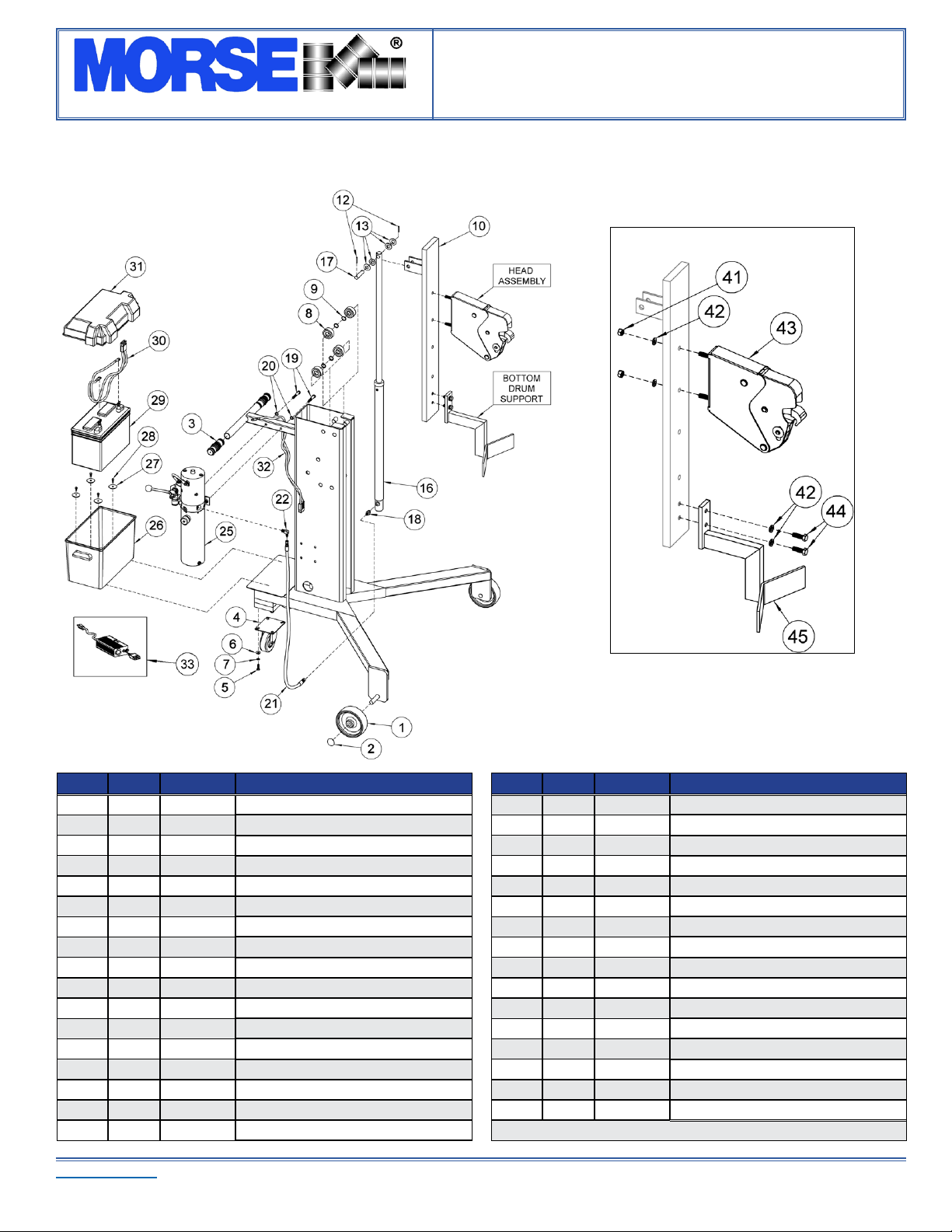

ITEM QTY. PART # DESCRIPTION
1* 2 8160-P WHEEL, 6”, 3/4” BRG, 81, 82
2* 2 705-P CAP, HUB, PUSH-ON, 3/4”
3 2 83-P GRIP, HANDLE, 1-1/4 X 4-1/2
4* 2 3308-P CASTER, 4” SWIVEL, DBL RACE
5 8 35SS-P HHCS, 5/16-18 X 1, SS
6 8 1570SS-P WASHER, 5/16 SAE 3/4 OD, SS
7 8 1650-P WASHER, 5/16 SPLIT LOCK
8* 4 5208-P BEARING, 3/4 ID, SEALED
9 4 166SS-P SNAP RING, EXTERNAL, SS, 82
10 1 5177SS-P RISER WELD, SS, 82
12 2 64SS-P ROLL PIN, 3/16 X 1-1/4, SS
13 4 17SS-P WASHER, 5/8 SAE 1-5/16 OD, SS
16 1 3611-P CYLINDER, 1 X 24, SAE 82
17 1 8260SS-P PIN, CLEVIS, CYL, 5/8, 82 SS
18 1 3612-P HYD FIT, SAE ADAPTER
19 2 82SS-P HHCS, 3/8-16 X 2-1/4, SS
20 2 1474SS-P WASHER, 3/8 SPLIT LOCK, SS
ITEM QTY. PART # DESCRIPTION
21 1 5253-P HYD HOSE ASM, 40”, 82 SERIES
22 1 345-P HYD FIT, MALE FLARE, 456, 82
25 1 M301-P HYD POWER PACK, -125
26 1 1729-P BOTTOM, BATTERY BOX, 400
27 4 4168-P WASHER, 7/32, 1-1/2 OD, FENDER
28 4 193-P SCREW, 12-14 X 3/4 3 PT TEK
29 1 388-P BATTERY, 12V DC
30 1 403-P HARNESS, BATTERY CABLE, 20/30
31 1 1728-P TOP, BATTERY BOX, 400, 285A-BP
32 1 404-P HARNESS, PUMP CABLE, 20/20
33 1 391-P CHARGER 12V 50HZ 60HZ 100-240V
41 2 91SS-P NUT, 1/2-13 FIN HEX, SS
42 4 1644SS-P WASHER, 1/2 SPLIT LOCK, SS
43 1 3360SS-P HEAD ASM, SS, 82HSS
44 2 2172SS-P HHCS, 1/2-13 X 1-1/2, SS
45 1 3363SS-P BOTTOM DRUM SUPPORT, SS, 82S
* Recommended spare parts.
