Morso 7800 Series User manual

Morsø 7800/7900
DK Montering af skue
DE Montage der Schublade
UK Installation of drawer
NO Montere skue
SV Montering av låda
FR Installation du tiroir dans
NL Plaatsing van lade
SP Instalación del cajón
IT Installazione del cassetto
MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS
E-Mail: sto[email protected]om · Website: www.morsoe.com

2
Montering af skue i Morsø 7800/7970
De 4 sorte plastik brikker ernes i bunden af sokkelsektionen.

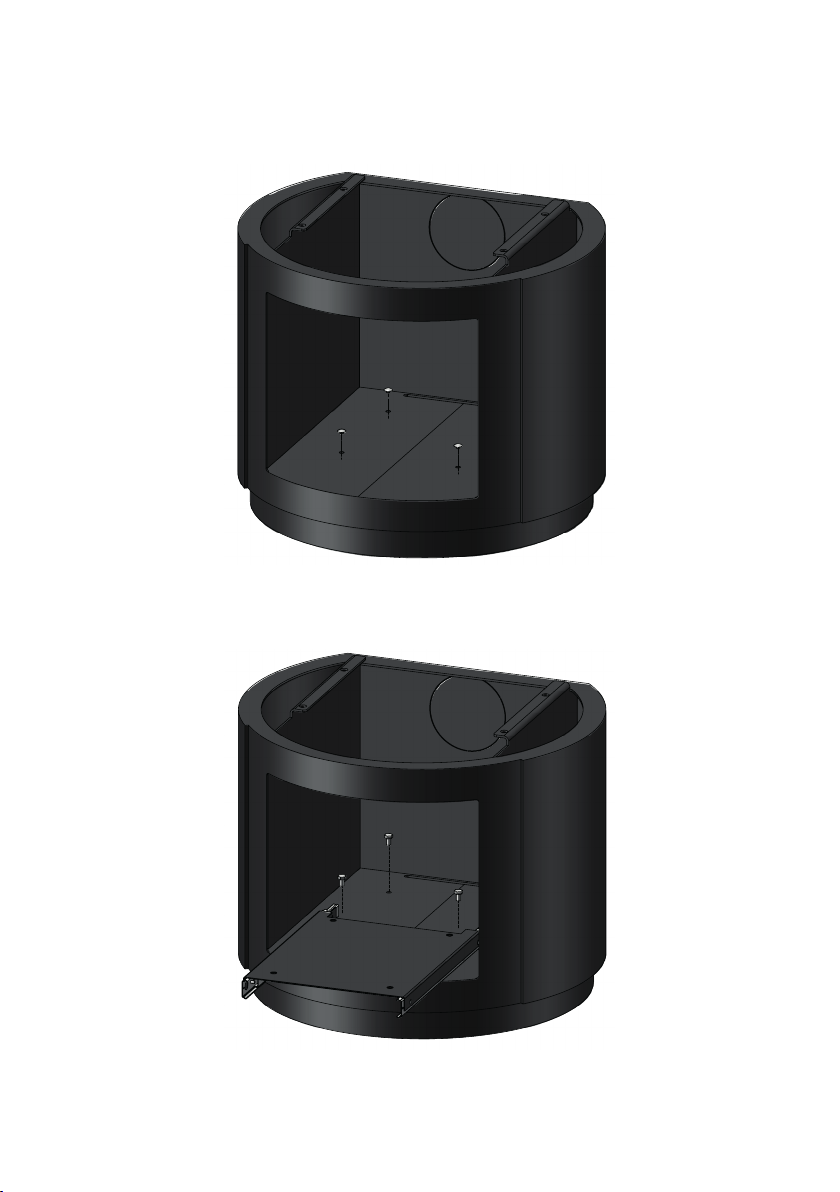

Her monteres først det samlede skinnesystem som vist på skitsen med de medfølgende 4
stk. M6X10 sekskantede skruer.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

32

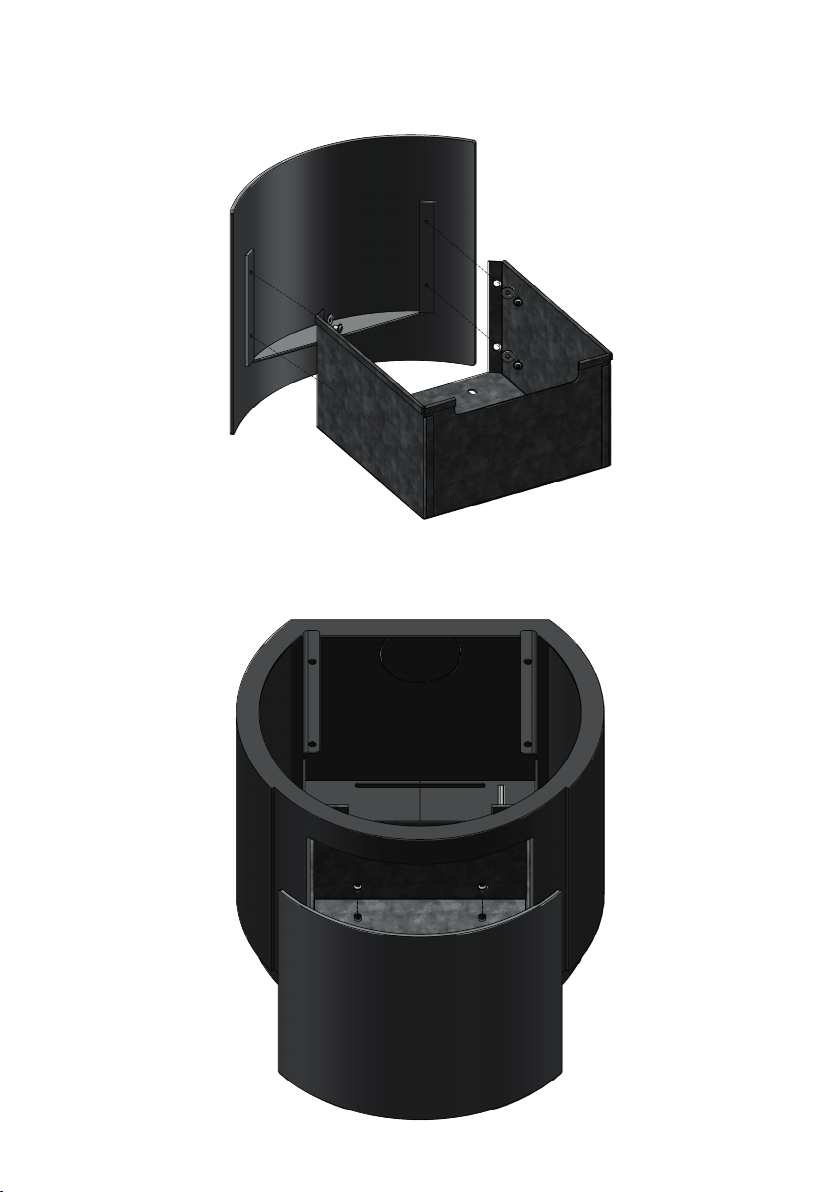

Skuen samles løseligt med skuefronten med 4 stk. skiver og M6x8 Buttonhead skruer.
Skuen fastskrues på oversiden af skinnesystemet med de medfølgende 4 stk. M6X8 But-
tonhead skruer med ange. Til sidst centreres skuefronten også højdemæssigt i forhold til
placering i sokkelsektionen og fastskrues skuen.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

4
Montage der Schublade im Morsø 7800/7970
Die vier schwarzen Plastikplättchen im Boden der Sockelsektion entfernen.
Hier zuerst das zusammengebaute Schienensystem, wie in der Abbildung gezeigt, mit den
mitgelieferten vier M6X10-Sechskantschrauben montieren.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

54
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

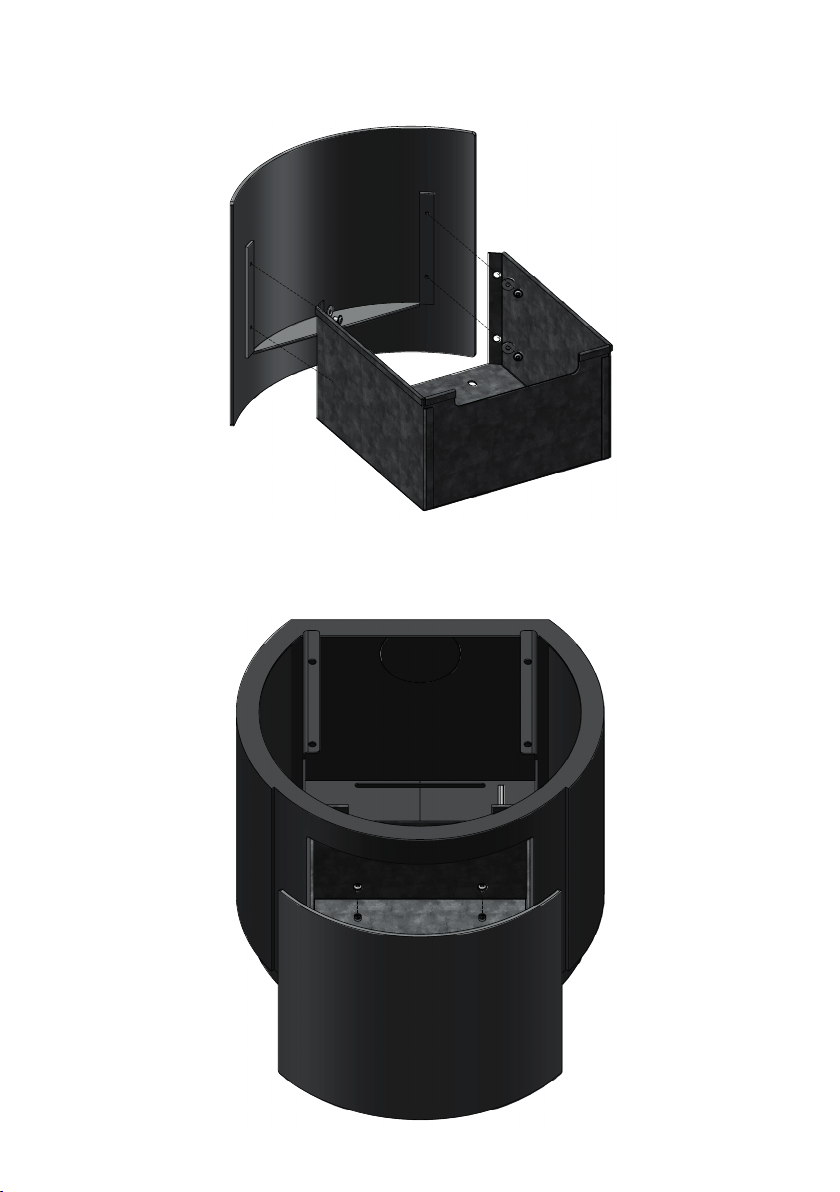

Die Schublade lose mit der Schubladenvorderseite mit vier Scheiben und M6x8-Halbrund-
kopfschrauben lose zusammenbauen.
Die Schublade an der Oberseite des Schienensystems mit den mitgelieferten vier M6X8-
Halbrundkopfschrauben mit Flansch festschrauben. Zuletzt die Schubladenvorderseite
auch in der Höhe im Verhältnis zur Platzierung in der Sockelsektion zentrieren und die Schu-
blade festschrauben.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

6
Installation of drawer in Morsø 7800/7970
The 4 black plastic blocks in the base of the plinth section must be removed.
The assembled rail system is then tted in their place as shown on the sketch using the 4 no.
M6X10 hexagonal screws supplied.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

76

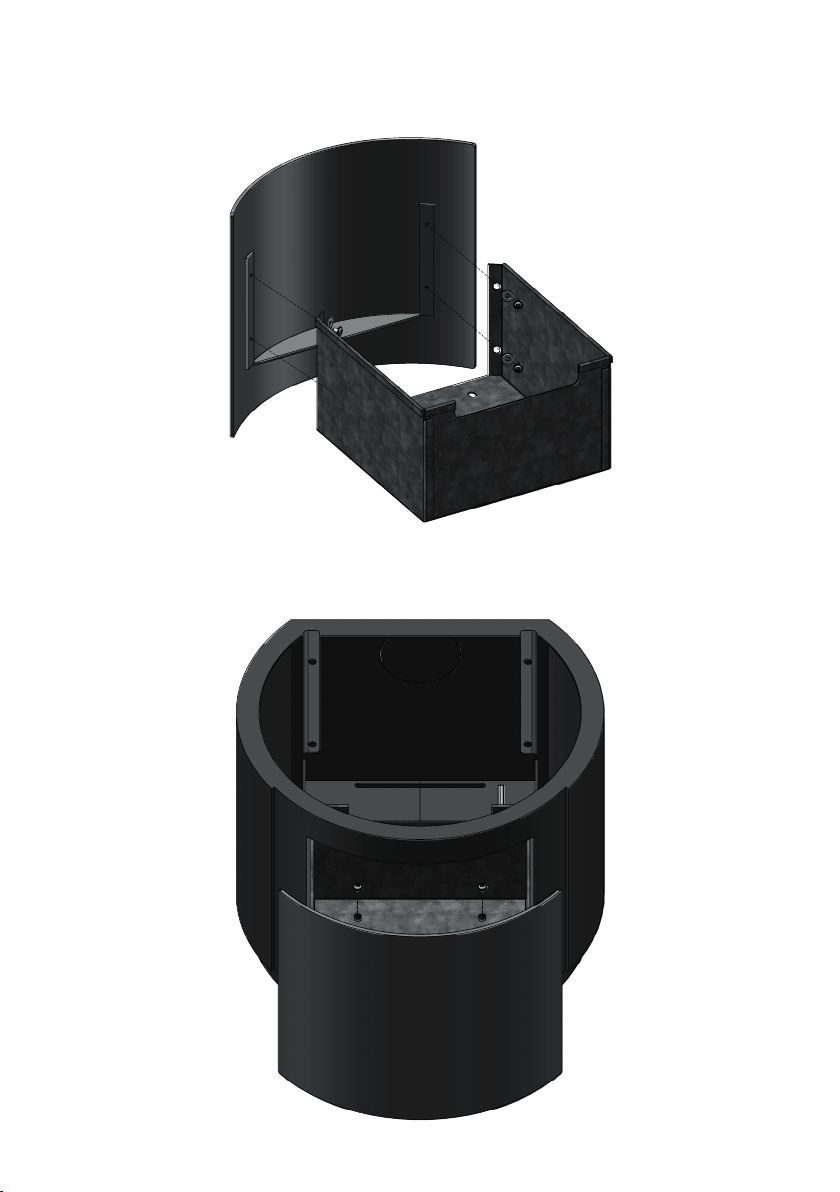

The drawer is loosely tted to the drawer front using with 4 no. washers and M6x8 But-
tonhead screws.
The drawer is screwed to the upper face of the rail system with the 4 no. M6X8 anged But-
tonhead screws supplied. Finally, the height of the drawer front is centred in relation to the
position of the plinth section and screwed onto the drawer.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

8
Montere skue i Morsø 7800/7970
Fjern de 4 sorte plaststykkene i bunnen av sokkeldelen.
Her monteres først hele skinnesystemet som vist på tegningen, med de medfølgende 4
M6×10-sekskantskruene.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

98
Monter skuen løst med skuefronten med 4 skiver og M6×8-rundhodeskruer.
Skru skuen fast på oversiden av skinnesystemet med de medfølgende 4 M6×8-
rundhodeskruene med ens. Midtstill til slutt skuefronten i høyden i forhold til plasserin-
gen i sokkeldelen, og skru fast skuen.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

10
Montering av låda i Morsø 7800/7970
Avlägsna de fyra svarta plastdelarna i botten av sockelsektionen.
Sätt först ihop skensystemet med de fyra medföljande M6x10 sexkantiga skruvarna i en-
lighet med skissen.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

1110
Montera lådan löst med lådfronten med fyra brickor och M6x8 skruvar med rundat huvud.
Skruva fast lådan på den övre sidan av skensystemet med de fyra medföljande M6x8 skru-
varna med rundat huvud och äns. Centrera slutligen lådfronten på höjden i förhållande till
placeringen av sockelsektionen och skruva fast lådan.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

12
Installation du tiroir dans le Morsø 7800/7970
Retirez les quatre blocs en plastique noir dans le soubassement.
Le système de rail est ensuite mis en place comme indiqué dans le schéma et xé avec les
quatre vis hexagonales M6X10 fournies.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

1312
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
Le tiroir est inséré dans son compartiment et les quatre rondelles et les quatre vis à tête
ronde M6x8 sont mises en place sans serrer.
Vissez le tiroir sur la face supérieure du système de rail avec les quatre vis M6X8 à tête.
Pour terminer, centrez verticalement l’avant du tiroir par rapport aux bords et vissez le tiroir.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

14
Plaatsing van lade in Morsø 7800/7970
De 4 zwarte plastieken blokken aan de basis van het plintgedeelte moeten worden verwijderd.
Het gemonteerde railsysteem wordt dan bevestigd zoals wordt weergegeven op de te-
kening met behulp van de 4 bijgeleverde nr. M6X10 binnenzeskantschroeven.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

1514
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
De lade wordt losjes bevestigd aan de voorkant van de lade met 4 nr. sluitringen en M6x8
binnenzeskantschroeven.
De lade wordt vastgeschroefd aan de bovenkant van het railsysteem met de 4 bijgeleverde nr.
M6x8 ensbinnenzeskantschroeven. Ten slotte wordt de hoogte van de voorkant van de lade
gecentreerd in verhouding tot de positie van het plintgedeelte en vastgeschroefd op de lade.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

16
Instalación del cajón en la estufa Morsø 7800/7970
Se deben retirar los 4 bloques negros de plástico de la base de la sección de pedestal.
El sistema de carril ya ensamblado se instala después en su lugar como se muestra en el
esquema utilizando los 4 tornillos hexagonales M6x10 suministrados.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

1716
El cajón se instala sin apretar en el frontal del cajón con las 4 arandelas y tornillos M6x8 de
cabeza esférica.
El cajón se atornilla a la cara superior del sistema de carril con los 4 tornillos de cabeza es-
férica con pestaña M6x8 suministrados. Para nalizar, la altura del frontal del cajón se centra
en relación con la posición de la sección de pedestal y se atornilla al propio cajón.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

18
Installazione del cassetto sulla stufa Morsø 7800/7970
I 4 tappi in plastica presenti sulla base del plinto devono essere rimossi.
Successivamente, è necessario installare le guide scorrevoli, come illustrato nello schema;
il ssaggio deve essere eettuato mediante le 4 viti esagonali M6X10 fornite in dotazione.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

1918
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:
Procedere a montare il cassetto sul lato anteriore dell’alloggiamento, mediante le 4 viti a
testa tonda con le relative rondelle, senza serrare a fondo.
Avvitare il cassetto sul lato superiore delle guide scorrevoli, mediante le 4 viti M6X8 a testa
tonda angiata fornite in dotazione. Inne, procedere a centrare il lato anteriore del cassetto
allineandolo alla posizione del plinto; inne, completare il serraggio.
Revisions
Rev.
Sign.:
Title:
Drawing no.:
1:3
Monteringsvejledning
Skuffe
Morsø 7900
RSV
13.06.2012
A1
Date of print: 27-08-2012
7900-109 a
Itemno.:
This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
Material:
Weight kg.:
Model no.
Drawingtype:
Location of file:
Scale:
Format:
Released:
Construction:
Date:

MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS
E-Mail: sto[email protected]om · Website: www.morsoe.com
Morsø Jernstøberi A/S - 08.06.2016 - 72793800
