Motorline professional FLAMA Use and care manual

v2.1
REV. 10/2018
EN
USER’S AND INSTALLER’S MANUAL
FLAMA

1B
3
4A
4B
5
4B
6A
6B
6B
1A 1B
STANDARDS TO FOLLOW
RECOMMENDATION
DIMENSIONS
INFORMATIVE LEDS
COMPONENTS
TECHNICAL CHARACTERISTICS
. SAFETY INSTRUCTIONS
. OPERATOR
. PRE-INSTALLATION
FIXING THE LATERAL GUIDES
CONTROL BOARD DIAGRAM

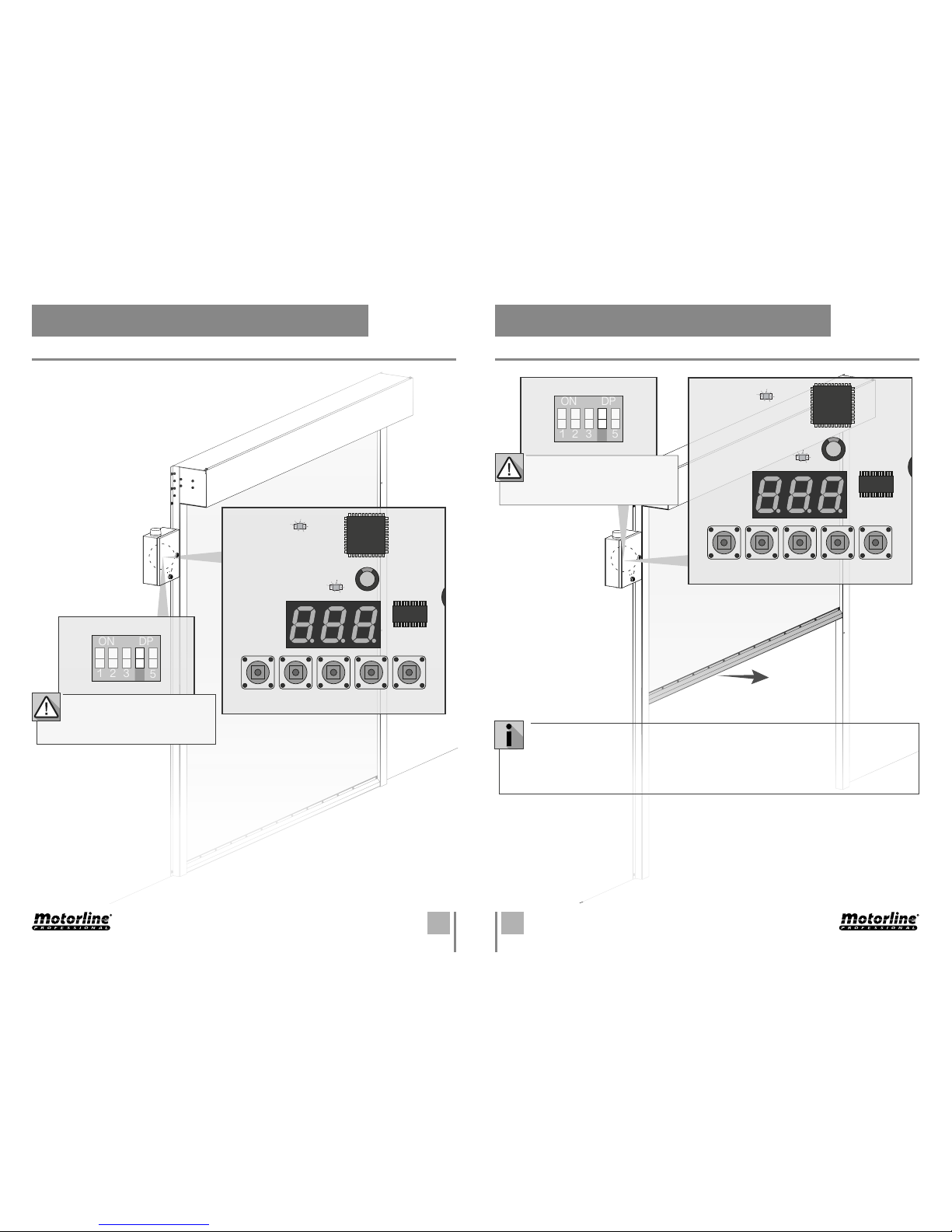

MANUAL OPERATING MODE
FIXING THE SAFE PROFILE
LIMIT SWITCHES PROGRAMMING
ENERGY FAILURE
. INSTALLATION
. SETTINGS
. AUXILIARY INFORMATION
00. CONTENT 01. SAFETY INSTRUCTIONS
INDEX STANDARDS TO FOLLOW
FIXAÇÃO THE MANEUVERS BOARD
LIMIT SWITCHES PROGRAMMING WITH INTERMEDIATE STOP
VISUAL AND SOUND ALARM
TEST FUNCTIONS
7A
9B
8A
9B
8B
9B
9B
ENEN
This product is certified in accordance with European Community
(EC) safety standards.
This product complies with Directive 2011/65/EU of the European
Parliament and of the Council, of 8 June 2011, on the restriction of
the use of certain hazardous substances in electrical and electronic
equipment.
(Applicable in countries with recycling systems).
This marking on the product or literature indicates that the product
andelectronicaccessories(eg.Charger,USBcable,electronicmaterial,
controls, etc.) should not be disposed of as other household waste at
the end of its useful life. To avoid possible harm to the environment
or human health resulting from the uncontrolled disposal of waste,
separate these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material resources.
Home users should contact the dealer where they purchased this
product or the National Environment Agency for details on where and
how they can take these items for environmentally safe recycling.
Business users should contact their vendor and check the terms and
conditions of the purchase agreement. This product and its electronic
accessories should not be mixed with other commercial waste.
This marking indicates that the product and electronic accessories
(eg. charger, USB cable, electronic material, controls, etc.) are
susceptible to electric shock by direct or indirect contact with
electricity. Be cautious when handling the product and observe all
safety procedures in this manual.

2A 2B
01. SAFETY INSTRUCTIONS 01. SAFETY INSTRUCTIONS
STANDARDS TO FOLLOW STANDARDS TO FOLLOW
ENEN
level or other level of access, , should be followed the minimum safety and
health requirements for the use of work equipment workers at work in Directive
2009/104/EC of the European Parliament and of the Council of 16th September
of 2009.
• After installation, make sure that the mechanism is properly adjusted and that
the protection system and any manual unlocker works correctly.
• In order to protect the electrical cables against mechanical stress, you should
use conduit for the electrical wires, essentially on the power cable.
• When programming the control unit, pay particular attention to touching only
the location intended for that purpose. Failure to do so may result in electric
shock.
• It is important for your safety that these instructions are followed.
• Keep these instructions in a safe place for future reference.
• The ELECTROCELOS S.A. is not responsible for the improper use of the product,
or other use than that for which it was designed.
• The ELECTROCELOS S.A. is not responsible if safety standards were not taken
into account when installing the equipment, or for any deformation that may
occur.
• The ELECTROCELOS S.A. is not responsible for insecurity and malfunction of the
product when used with components that were not sold by the them.
• This product was designed and manufactured strictly for the use indicated in
this manual.
• Any other use not expressly indicated may damage the product and/or can
cause physical and property damages, and will void the warranty.
• Do not make any changes to the automation components and/or their
accessories.
• Keep remote controls away from children, to prevent the automated system
from being activated involuntarily.
• The customer shall not, under any circumstances, attempt to repair or tune the
automatism. Must call qualified technician only.
• The installer must have certified professional knowledge at the level of
mechanical assemblies in doors and gates and control board programmation.
He should also be able to perform electrical connections in compliance with all
applicable regulations.
• The installer should inform the customer how to handle the product in an
emergency and provide him the manual.
• This device can be used by children 8 year old or older and persons whose
physical, sensory or mental capacities are reduced, or by persons without
experience or knowledge if they have received supervision or instructions on
the use of the device in a safe manner and understood the hazards involved.
Children should not play with the device. Cleaning and maintenance by the user
must not be carried out by unsupervised children.
• Before installing, the installer must verify that the temperature range indicated
on the automatism is appropriate to the location of the installation.
• Before installing, the installer must verify that the equipment to be automated
is in good mechanical condition, correctly balanced and opens and closes
properly.
• If the automation is to be installed at a level higher than 2,5 m above ground

3A
1
2
3
5
7
4
8
10
9
6
EN

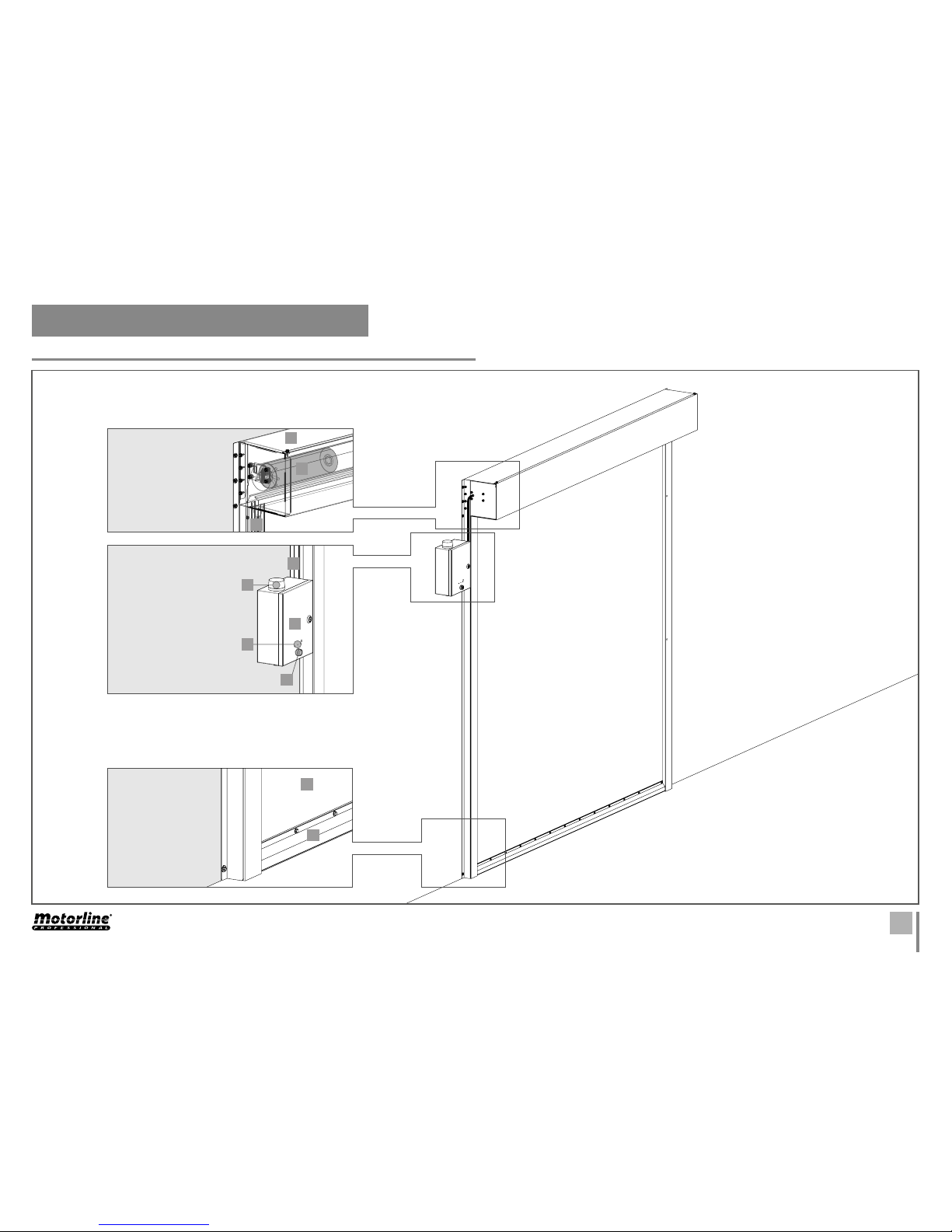

02. OPERATOR
COMPONENTS
1 • Safe profile
2 • Motor
3 • Guide
4 • Maneuvers board
5 • Flashing light
6 • Pressure button
7 • Informative LEDS
8 • Runner profile (not
included in kit)
9 • Tarpaulin
10 • Crossbar
3

CBA
4A 4B
STRUCTURE
• Galvanized steel DXD Z
TARPAULIN
• Wire  dtex PES HT
• Weight  g/m
• Tensile strength   N/ cm
• Tear resistance   N/ cm
• Adherence  -  
• Finishing  cN
The FLAMA is a fire curtain constructed in galvanized steel, with white lacquered profiles
(standard production).
In order to the FLAMA work correctly, before the installation it is important to
take into account the following parameters:
• Read all the steps at least once, in order to learn about the installation and configuration
process.
• Check the horizontal ground alignment, so that the door can be installed properly.
• Make sure there is adequate electrical protection against short circuits / power surges and
grounding in Electrical Board.
• Be careful in the event of handling directly the control board. Improper handling can damage
some electrical components.
• Make sure you have prepared all the necessary materials for the installation.
• Evaluate the security devices to be installed. This will ensure that unexpected accidents do
not happen.
• Use appropriate screws to the place where the components of the FLAMA will be fixed.
A • Red LED - this LED turns on when the
alarm is triggered;
B • Green LED - this LED indicates that the
door is operational;
C • Green LED - this LED turns on
simultaneously with the led B to indicate
that it is in programming mode.
MOTOR
• Power Supply  Vac  Hz
• Power  W
• RPM  RPM
• Noise LpA   dB (A)
• Force  Nm
• Working temperature -C to C
• Protection grade IP 
• Working frequency  
02. OPERATOR 03. PRE-INSTALLATION
TECHNICAL CHARACTERISTICS RECOMMENDATION
INFORMATIVE LEDS
It is very important that all precautions are respected!
Only in this way it can be assured the proper functioning and durability of the
FLAMA!
ENEN

5A
320mm
260mm 130mm
40mm
254mm
250mm
120mm 120mm
30mm 30mm
300 mm
85mm 85mm
300 mm
EN

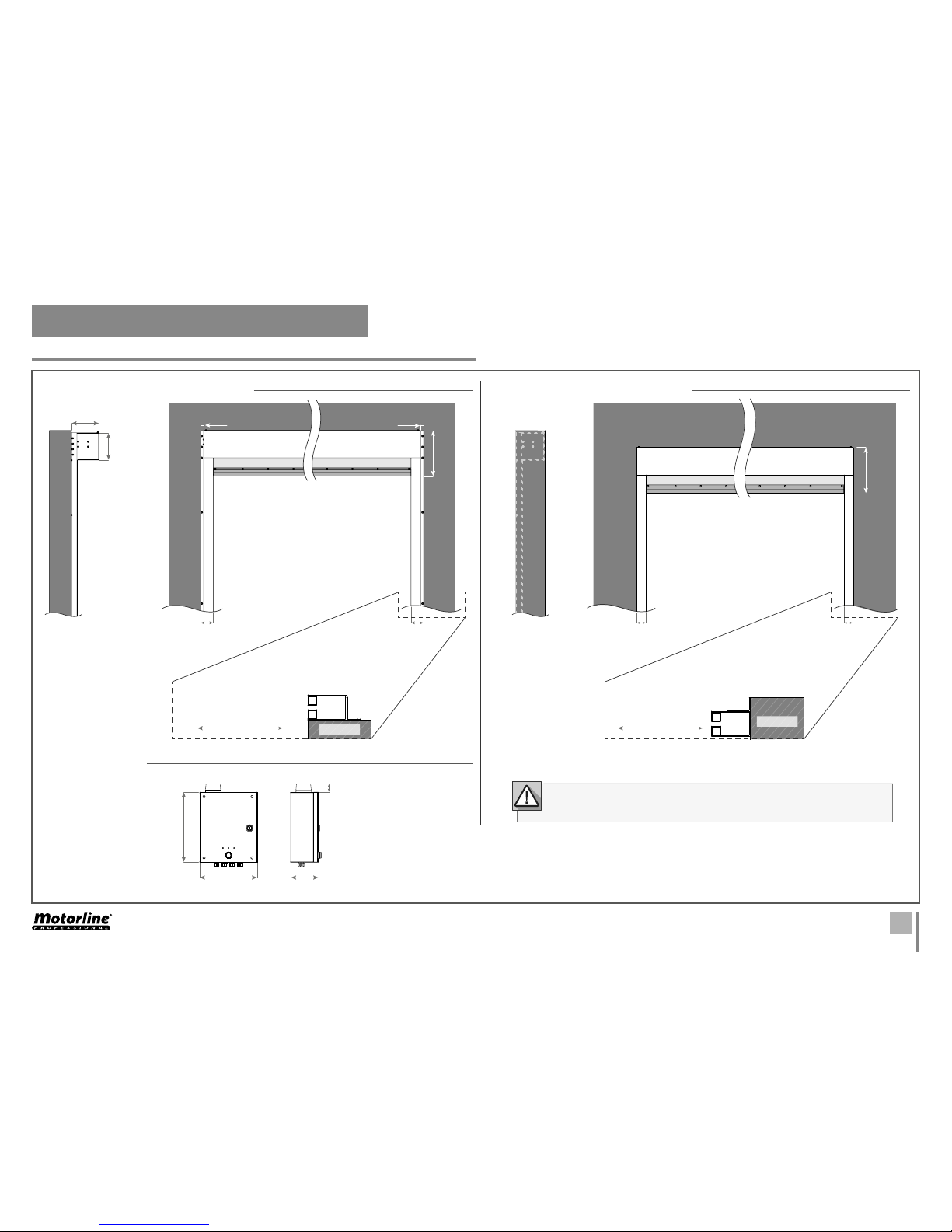

03. PRE-INSTALLATION
DIMENSIONS
5
GUIDE
GUIDE
WALL WALL
PASSAGE SPAN PASSAGE SPAN
∫INSTALLATION OUTSIDE THE PASSAGE SPAN
∫MANEUVER BOARD
∫INSTALLATION INSIDE THE PASSAGE SPAN
If the installation is made inside the vain, the passing area reduces
300mm in height and 170mm in width.

6A 6B

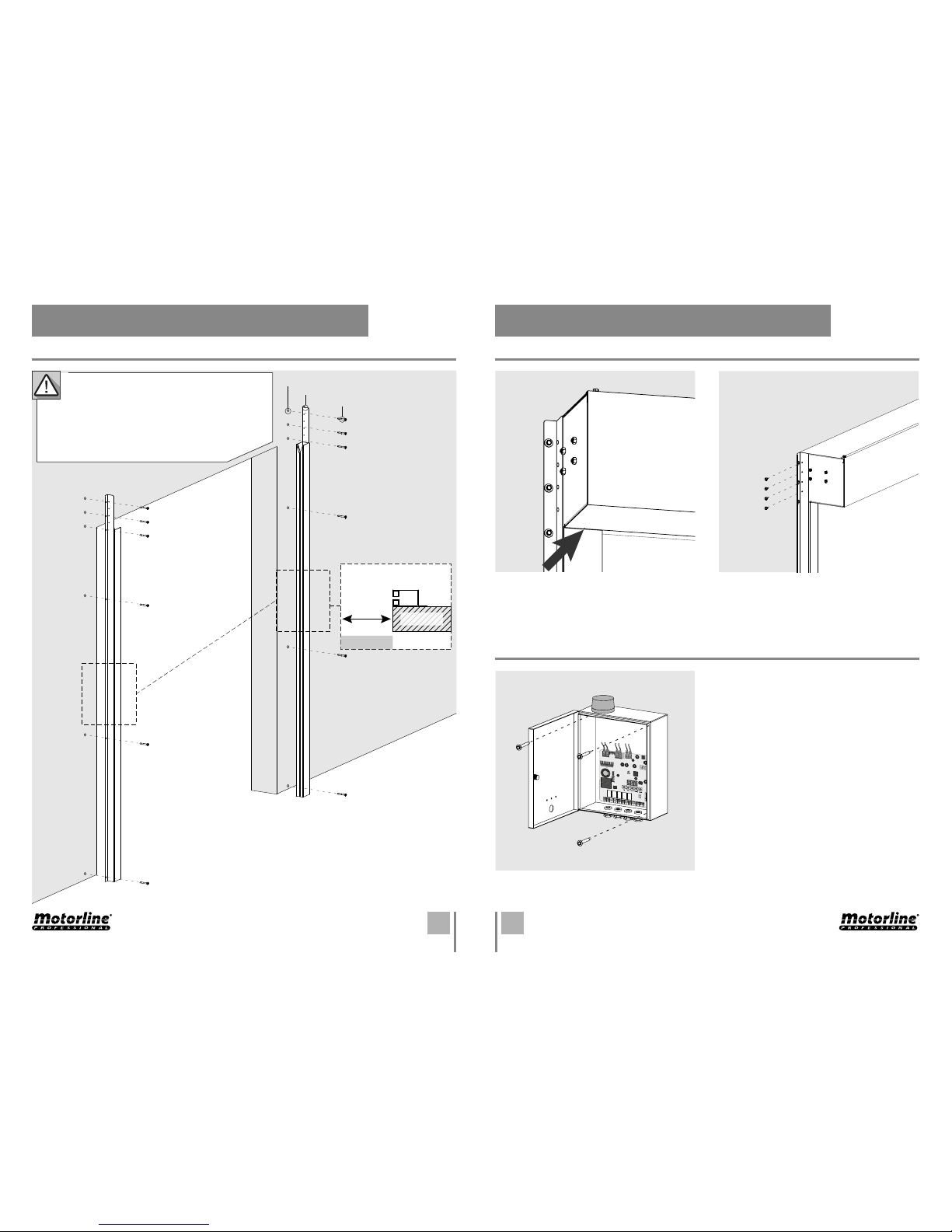

04. INSTALLATION 04. INSTALLATION
FIXING THE LATERAL GUIDES FIXING THE SAFE PROFILE
FIXING THE MANEUVERS BOARD
Before proceeding with installation, should
check that if all the measurements are correct,
taking into account the installation location.
It is also important that the installation site
is properly leveled, since only then will it be
possible to ensure the correct operation of the
FLAMA.
 • Place the lateral guides on the wall, totally aligned with the
passage span (see detail a).

GUIDE
GUIDE
PASSAGE
SPAN
SCREWS
PASSAGE SPAN
PASSAGE SPAN
PASSAGE SPAN
 • Apply the safe profile. It should be completely against the wall and the guides.
 • Temporarily place the maneuvers board in
the location you want. Adjust the positioning
until it is possible to connect the motor with
the control board.
 • Tighten the lateral guides to the safe profile, taking into account the 3 holes in the guides.
 • Make markings and proceed to the drillings.
 • Apply the maneuvers board to the wall and
fix it completely by tightening the 3 screws.
 • To conclude, add a gutter to line the cable
from the motor to the maneuvers board.
NOTE • Gutter not included in kit.
 • Confirm the leveling.
 • Mark the 5 existent holes on the fixing plate.
 • Make the drill on the wall.
 • Direct the guides, apply and tighten completely.
WALL
DETAIL A
ENEN

7A
Up Stop
Status
S7
S6
Down Setting Reset
2 3 4 5
1
25 26 27 28
24
15 16 17 18
14 20 21 19
9 10 11 12 13
8
7
623 22
ON
1 2
ON
1 2
DP
3 4 5
LED-6
LED1
EN
05. SETTINGS
CONTROL BOARD DIAGRAM
MOTOR WIRES
01 • red wire
02 • black wire
03 • yellow wire
04 • green wire
05 • white wire
FLASHING LIGHT
06 • red wire (V )
07 • black wire (V -)
CONTACTS
/ • Opening contact
/ • Intermediate position contact
/ • Closing contact
 • (24V +)
 • (24V -)
FIRE ALARM
 • No voltage (-)
 • No voltage (+)
22/23 • entry for connection block to control
group
EXTERNAL SWITCH
 • Open
 • Stop
 • Close
 • Reset
 • Common
DIP SWITCH 
DOOR OPERATING MODE
ON • the door operates in automatic to open
and operates manually to close.
OFF • the door operates in automatic to open
and close.
DIP SWITCH 
POLARITY OF FIRE ALARM
ON • normally closed (NC).
OFF • normally open (NO).
DIP SWITCH 
DOOR OPERATING IN CASE OF FIRE
ON • the door will close/open without an
intermediate stop.
OFF • if the fire alarm is activated, the tarpaulin
will be placed in an intermediate position and
will remain until the programmed time (p.8B)
is reached. After the time, the door will close.
DIP SWITCH 
CHANGE MOTOR ROTATION STEERING
ON/OFF • allows you to select the direction of
the motor rotation.
DIP SWITCH 
AUTOMATIC RESET
ON/OFF • resetting, the door opens
automatically.
DIP SWITCH 
without operation
DIP SWITCH 
FIRE TEST
ON/OFF • After completing the door
programming, you can perform a simulation
of the alarm operation. To do this, turn ON.

Up Stop Down Setting Reset
2 3 4 5
1
2 3 4 5
1
15 16 17 18
14 20 21 19
9 10 11 12 13
8
7
623 22
ON
1 2
ON
1 2
DP
3 4 5
Status
LED1
LED-6
S7
ON
1 2
DP
3 4 5
S7
S6
Setting Reset
2 3 4 5
1
18 20 21
19 23 22
ON
1 2
ON
1 2
DP
3 4 5
Up Stop Down Setting Reset
2 3 4 5
1
2 3 4 5
1
15 16 17 18
14 20 21 19
9 10 11 12 13
8
7
623 22
ON
1 2
12345
Status
LED1
LED-6
8A 8B
05. SETTINGS 05. SETTINGS
LIMIT SWITCHES PROGRAMMING LIMIT SWITCHES PROGRAMMING WITH INTERMEDIATE STOP
 • Connect the V power and turn on the battery.
 • Press the Setting button until LED lights up (blue light).
 • Press the Up button until the door reaches the desired point for the aperture.
04 • Press the Setting button. The LED1 will blink once, confirming the success of the opening
limit switch programming.
05 • Press the Down button until the door reaches the desired point for closing.
06 • Press the Setting button. The LED1 will blink once, confirming the success of the closing limit
switch programming.
NOTE • Even if you do not consider it necessary, we advise you to set an intermediate limit switch.
 • Connect the 230V power and turn on the battery.
 • Press the Setting button until LED1 lights up (blue light).
 • Press the Stop button to start programming.
 • Press Up/Down to add/remove seconds. Pressing the Setting button confirms and
advances on the numeric panel.
NOTE • To remove the delay time of the fire curtain in closing, set values to zero.
If the door is operating in the
wrong direction, change on
dip .
If the door is operating in the
wrong direction, change on
dip .
INTERMEDIATE
POSITION
This function allows you to set the delay time for the door closing. In case of a
fire alarm, the door does not close at the moment the alarm is triggered, allowing
people to leave the local safely. The time is set by the user, being that, we advise
that the time should be based on the self-protection measures of the building.
ENEN

9A 9B
Up Stop Down Setting Reset
2 3 4 5
1
2 3 4 5
1
15 16 17 18
14 20 21 19
9 10 11 12 13
8
7
623 22
ON
1 2
ON
1 2
DP
3 4 5
Status
LED1
LED-6
05. SETTINGS
LIMIT SWITCHES PROGRAMMING WITH INTERMEDIATE STOP
Follow the delay time
setting on the numeric
panel.
06. AUXILIARY INFORMATION
MANUAL OPERATING MODE
ENERGY FAILURE
VISUAL AND SOUND ALARM
TEST FUNCTIONS
It is possible to use the fire door in manual mode. To do this, access the inside of the
maneuvers board and slide the door operation switch (page A). From that moment, it will
be possible to open and close the door using the up and down buttons.
The fire door is equipped with two batteries. This means that in the event of a power failure
it is possible to open and close the door by  maneuvers.
When there is a power failure, the door closes automatically. To open the door, press the
outer button.
The manuevers board has a siren and a flashing light. These  components act to signal the
existence of a power failure or the operation of the fire alarm. They work simultaneously with
existing alarm/protection systems in the building.
Test limit switches
After programming the limit switches (p A), open and close the door completely. Check if the
stop occurs in the locations you have programmed.
After the alarm is activated, press the outer button to reset the control board and the door
returns to normal operation.
Test fire alarm
Set the switch to On and the alarm will has to fire.
Test fire alarm
• If enabled, the door will delay when the closing is activated.
Test two-stroke closing
• If enabled, the door will close halfway, delay a few seconds, and close completely.
 • Press setting button. The LED-6 will turn on (green light), confirming the success of
intermediate position programming.
 • Press the Setting button until you see the value you set.
ENEN
