HELLOMOTO
Go from talk to music at the touch of a button, with your MOTO ROKR™ E8 phone!
• Touch a button and your phone keypad instantly transforms into a dedicated
music player,
through the magic of Motorola
ModeShift™ technology (page 13).
• Transfer your favorite
music quickly over a USB 2.0 high-speed cable connection, and easily
with Microsoft® Windows® Media Player 11 (page 15).
• Stream
music to your Bluetooth® wireless stereo headphones (page 17). Adjust audio
settings to optimize sound quality on your stereo headphones or stereo headset (page 17).
• Store up to
1,500 songs in phone memory, and 3,000 songs on an optional 4 GB microSD
memory card (eAAC+ format at 128 kbps, actual capacity varies by content) (page 6).
• Use the
FastScroll™ touch wheel to find any song, contact, calendar event, or multimedia file
at the speed you want (page 9).
• Listen to your favorite
FM radio stations with the 3.5 mm stereo headset (page 23).
• Personalize your
phone ! Customize home screen shortcuts, change main menu layout and
appearance to match your style (page 11).
• Capture key moments in a
video recording, then upload to your blog (page 26).
• Snap pictures automatically with your 2-megapixel multi-shot
camera (page 30).
For more information: To read feature instructions on your phone, press
s > ~Office Tools > Help .
To learn more about your phone and accessories, see the Web tutorial at
www.hellomoto.com .
Note: Before using the phone for the first time, review the Important Safety
and Legal Information guide included in the box. Periodically review this
information so you remember how to safely use your phone.

2
Tip:
Press the center key s to open the main menu and select menu options. Press the

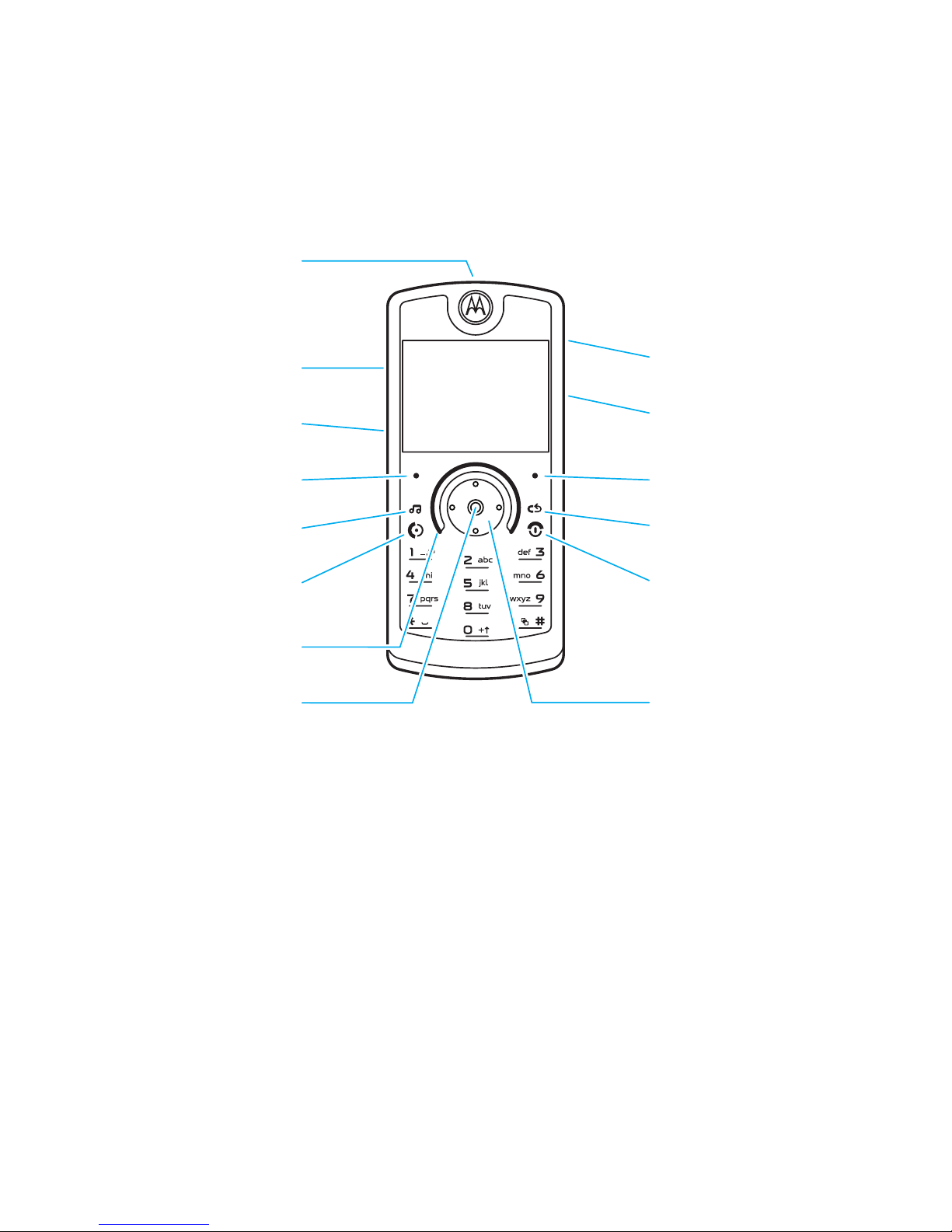

clear/back key
D to delete letters or numbers, or to go back one menu.
Side Select Key
FastScroll™ Touch Wheel
Left Soft Key
Music Key
Open menu, select menu items.
Headset Jack
Make & answer calls. Hang up, exit menus.
Right Soft Key
Volume Keys Micro-USB Port
Power Key & Lock Key
Clear/Back Key
Scroll up/down/ left/right.

3
contents
menu map . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
get started. . . . . . . . . . . . . . . . . . . . . . . . . . . 6
insert your SIM card. . . . . . . . . . . . . . . . . . 6
insert a memory card . . . . . . . . . . . . . . . . . 6
insert the battery . . . . . . . . . . . . . . . . . . . . 7
charge the battery . . . . . . . . . . . . . . . . . . . 7
turn the phone on & off . . . . . . . . . . . . . . . 8
make a call . . . . . . . . . . . . . . . . . . . . . . . . . 8
answer a call . . . . . . . . . . . . . . . . . . . . . . . 8
end a call . . . . . . . . . . . . . . . . . . . . . . . . . . 8
FastScroll™ touch wheel . . . . . . . . . . . . . . 9
store a phone number . . . . . . . . . . . . . . . . 9
call a stored phone number . . . . . . . . . . . 10
your phone number . . . . . . . . . . . . . . . . . 10
personalize . . . . . . . . . . . . . . . . . . . . . . . . . 11
main menu appearance . . . . . . . . . . . . . . 11
rearrange main menu. . . . . . . . . . . . . . . . 11
home screen shortcuts . . . . . . . . . . . . . . 11
wallpaper . . . . . . . . . . . . . . . . . . . . . . . . . 11
screensaver . . . . . . . . . . . . . . . . . . . . . . . 12
music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
introduction . . . . . . . . . . . . . . . . . . . . . . . 13
1. load music on your computer . . . . . . . 13
2. transfer music to your phone. . . . . . . . 15
3. play music . . . . . . . . . . . . . . . . . . . . . . 16
use Bluetooth® stereo headphones . . . . 17
adjust audio settings . . . . . . . . . . . . . . . . 17
lock phone keys . . . . . . . . . . . . . . . . . . . . 18
perform other tasks while
playing music . . . . . . . . . . . . . . . . . . . . . . 18
manually transfer music to your
phone or memory card . . . . . . . . . . . . . . . 19
create a playlist. . . . . . . . . . . . . . . . . . . . . 21
play a playlist . . . . . . . . . . . . . . . . . . . . . . 21
customize the music player . . . . . . . . . . . 22
close the music player . . . . . . . . . . . . . . . 22
radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
use the radio. . . . . . . . . . . . . . . . . . . . . . . 23
radio options. . . . . . . . . . . . . . . . . . . . . . . 24
close the radio . . . . . . . . . . . . . . . . . . . . . 24
song ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
use song ID . . . . . . . . . . . . . . . . . . . . . . . 25
videos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
record a video. . . . . . . . . . . . . . . . . . . . . . 26
upload video to a blog . . . . . . . . . . . . . . . 27
play a video. . . . . . . . . . . . . . . . . . . . . . . . 27
camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
take a photo . . . . . . . . . . . . . . . . . . . . . . . 30
view a photo. . . . . . . . . . . . . . . . . . . . . . . 30
camera settings . . . . . . . . . . . . . . . . . . . . 31
accessories . . . . . . . . . . . . . . . . . . . . . . . . . 32

4
menu map
main menu
= Music
_ Shuffle
? Radio
{ Song ID
< Multimedia
• Media Finder
•Games
•Camera
• Video Camera
• Voice Recorder
) Contacts
: Messaging
• Messages
• Create Message
• Inbox
• My Folders
• Templates
• Drafts
•Outbox
• Create Postcard *
•Email
• Call Voicemail
•Email
•Voicemail
; Mobile Internet
•Browser
•MyBookmarks
• My Web Pages
•History
• Go to Page
•BrowserSetup
~ Office Tools
•RecentCalls
• Calendar
• Download Manager
• File Manager
• Memory Card
•MyBlog*
• Music and Sounds
• Pictures
• Videos
•VoiceNote
• Application
Downloads
• Unrecognizable Files
• My Documents
•AlarmClock
• World Clock
• Calculator
• Dialing Services
•TaskList
• Notes
•Help
@ Settings
• (see next page)
This is the standard main menu layout.
Your phone’s menu may be
different.
To change your home screen
shortcuts and your main menu
appearance, see page 11.
Tip:
Press D to exit the current
menu, or press
O
to exit all menus.
* optional features

5
settings menu
• Profiles
• Themes
• Home Screen
• Navigation Keys
• Change Wallpaper
• Connections
• Bluetooth®
• USB Settings
• Media
Synchronization
• Memory Card
• Modem
• USB Printing
•Tools
• Modem & Tools
• Voice Networks
• Data Connections
• Add New
Connection
• Edit a Connection
• Remove a
Connection
• Call Settings
• Speed Dial
• Call Forward
•In-CallSetup
•In-CallTimer
• Answer Options
• In-Call Message
Alert
• Roam Alert
• Call Waiting
• Auto-Redial
• Call Drop Tone
• Dialing Setup
• My Caller ID
•DTMF
• Dialing Prefix
• Call Barring *
• Fixed Dialing
•MySIMNumber
• Active Line *
• Phone Settings
• Display Settings
• Display Timeout
• Screensaver
• Brightness
• Airplane Mode
• Battery Meter
• Time & Date
•
(continued next column)
• Phone Settings (continued)
• Language
• Talking Phone
• Text Entry
•Reset
• Reset All Settings
• Delete All Data
• Delete Memory
Cards
•ViewMemory
• Properties
• Java™ System
• OTA Updates
• Headset Settings
• Auto-Answer
•VoiceDial
• TTY Settings
• Security
• Phone Lock
• Application Lock
• SIM PIN Lock
• Change Passwords
• Certificates
• Network
• Current Network
• Scan Available Networks
• Search for New Network
• My Network List
• Search Setup
• Service Tone
* optional features

get started
6
get started
insert your SIM card
Your Subscriber Identity Module (SIM)
card stores your phone number and other
information.
Caution: Don’t bend or scratch your SIM card.
Keep it away from static electricity, water, and
dirt.

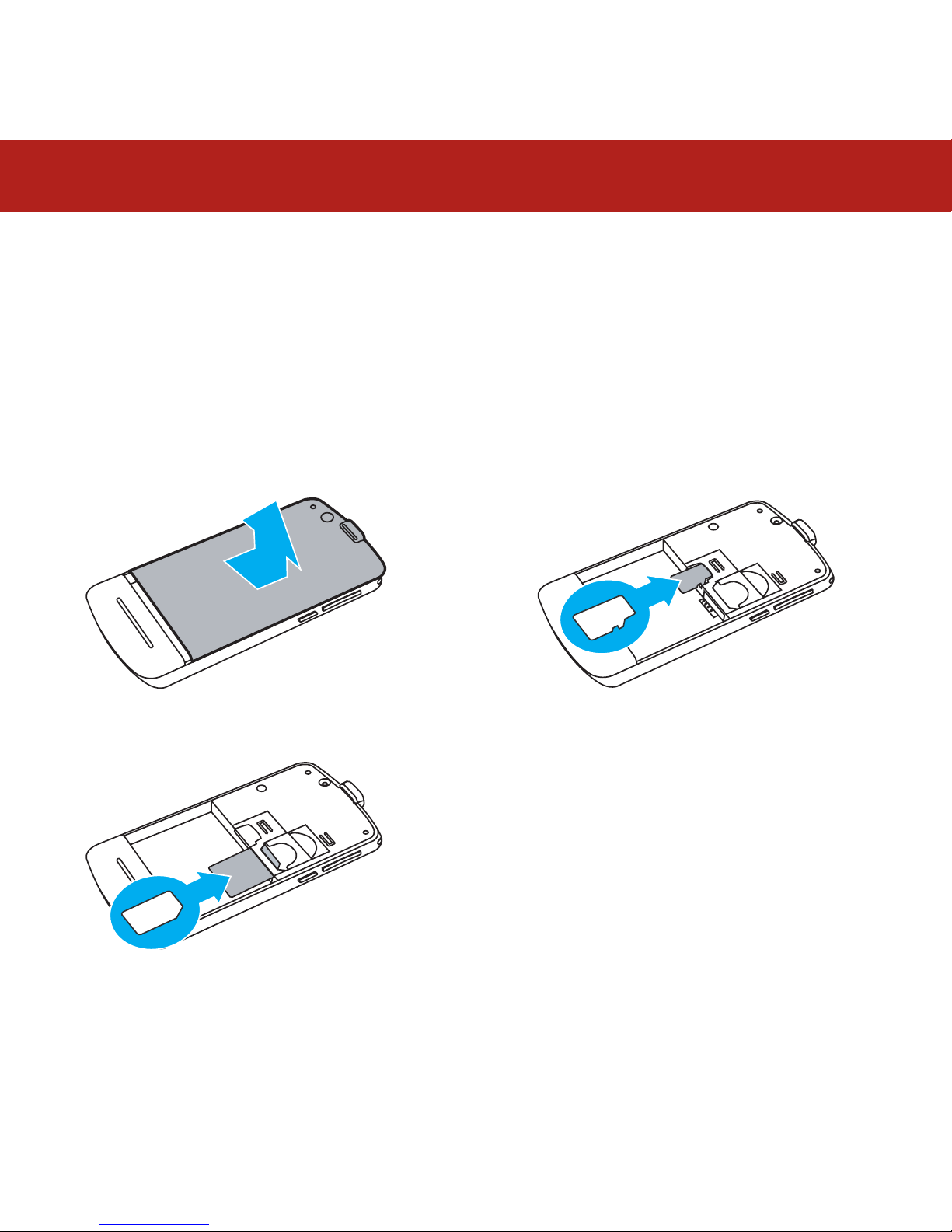

insert a memory card
You can store music, photos, and other
multimedia files on an optional removable
microSD memory card.
Caution: Don’t bend or scratch your memory
card. Keep it away from static electricity, water,
and dirt. Turn off your phone before you install
or remove the memory card.
Note: Your phone can use a memory card with
up to 4 GB capacity (greater than 1 GB storage
guaranteed only for Motorola-approved microSD
cards).
1
2

7
get started

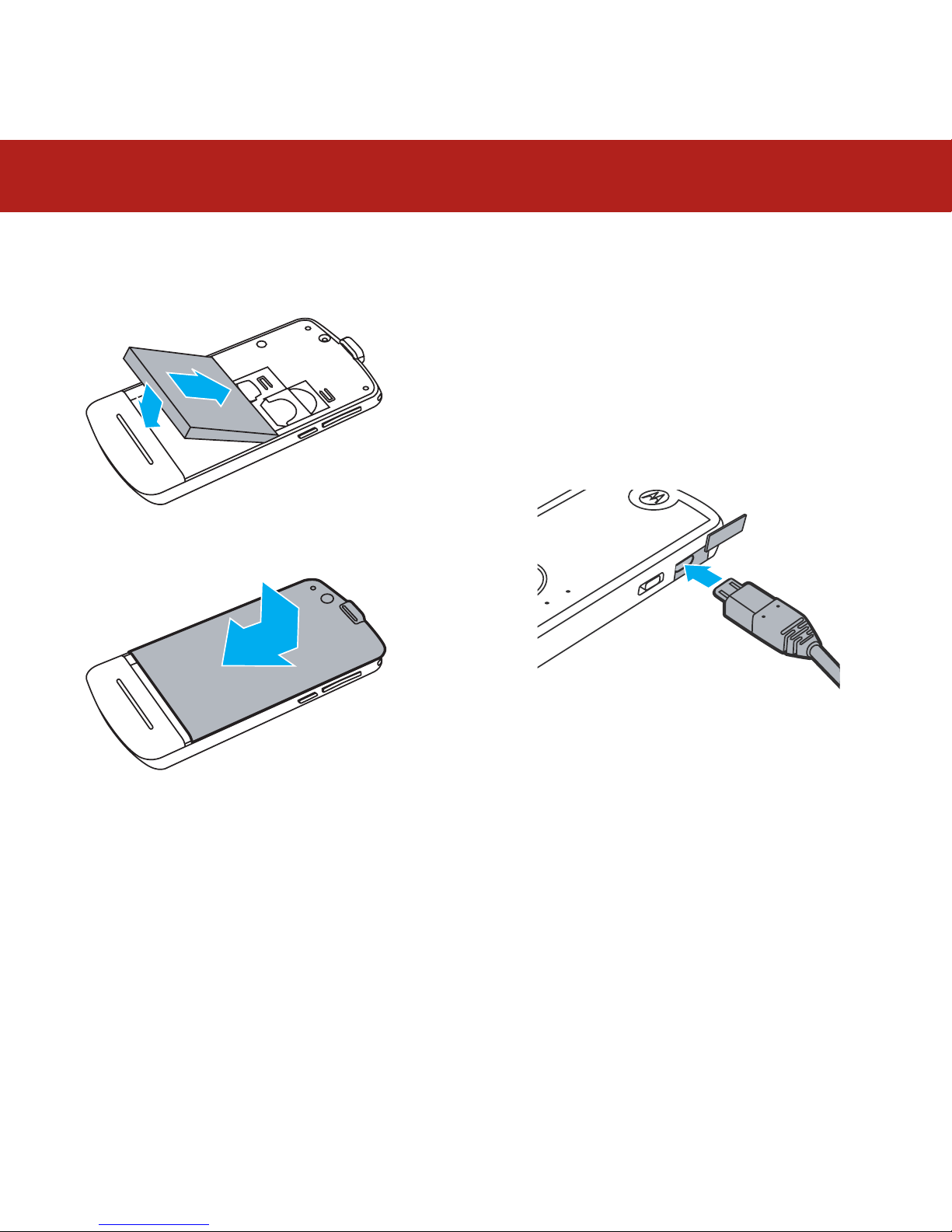

insert the battery charge the battery
New batteries are not fully charged. Open the
protective cover on your phone’s micro-USB
port, and plug the battery charger into your
phone and an electrical outlet. A battery charge
indicator light next to the micro-USB port shows
when the battery is charging. The display shows
Charge Complete when finished.
Note: For battery use and battery safety
information, see your User’s Guide.
extend battery life
• To make your backlight turn off sooner,
press
s > uSettings > Phone Settings >
Display Settings > Backlight Timeout > 20 Seconds .
• To make your
display turn off sooner,
press
s > uSettings > Phone Settings >
Display Settings > Display Timeout > 30 Seconds .
1
2

get started
8
• To turn off your screensaver ,
press
s > uSettings > Phone Settings >
Display Settings > Screensaver Timeout > Off .
• To turn off
Bluetooth® power
when you’re not using it, press
s >
uSettings > Connections > Bluetooth ,
press
Options > Manage > Setup Bluetooth >
Bluetooth Power > Off .
turn the phone on &
off
To turn your phone on ,
slide down and hold the
power key until the display
turns on (see illustration at
right).
To turn your phone
off ,
slide down and hold the
power key for a few
seconds.
make a call
Enter a phone number, then press the
send key
N .
Tip: To voice dial a call, see your User’s Guide.
answer a call
When your phone rings and/or vibrates, press
N to answer.
end a call
To “hang up” , press O .

9
get started
FastScroll™ touch
wheel
Use the FastScroll touch wheel to scroll quickly
and efficiently through menus and lists.
Just move your thumb or finger clockwise or
counter-clockwise over the FastScroll touch
wheel to scroll forward or back through the list.
Move your thumb slowly for controlled scrolling
through the main menu or option lists. Move it
faster to scroll quickly through your contact list
or song lists.
Move and hold your thumb at the lower-left or
lower-right corner of the FastScroll touch wheel
to continue scrolling at the set speed. Move
your thumb in the opposite direction to slow
or reverse the direction of travel. Remove your
thumb to stop scrolling.
Note: When you press hard on the FastScroll
touch wheel, you may notice a moving shadow
in the illuminated area beneath your finger. This
behavior is normal, and is a natural effect of the
touch wheel mechanism.
store a phone number
You can store a phone number in your list of
Contacts .
Note: You can store a new contact in
phone memory , on your SIM card , or in both
locations. Contacts on the SIM card only have a
name and phone number. Use this procedure to
store a new contact in both locations:
1 From the home screen, press Shortcuts >
Create Contact .
2 Enter the contact’s first name and last
name in the appropriate fields.
3 Scroll to Save to SIM Card and make sure the
option is selected.
Move thumb
counter-clockwise
to scroll backward.
Move and hold
here to continue
scrolling backward
at set speed.
Remove thumb to
stop scrolling.
Move thumb
clockwise to
scroll forward.
Move and hold
here to continue
scrolling forward
at set speed.
Remove thumb to
stop scrolling.

get started
10
4 Scroll to Number and press s to select it.
5 Enter the contact’s phone number in the
Number field.
6 Scroll to Number Type and press s to
select it.
7 Select the phone number type (for
example,
Home or Work ), then press Done .
8 Press Save to store the contact.
Tip: To learn more about storing phone numbers
and email addresses on your phone, see your
User’s Guide.
call a stored phone
number
To call a number stored in your contact list:
Find it: s > )Contacts
1 Scroll to the contact.
Shortcut: In the contact list, press keypad
keys to enter the first letters of the contact
you want. Press
s to go to the contact.
Note: If a contact has multiple phone
numbers, press
S left/right to select the
number you want.
2 Press N to call the contact.
Note: If you’ve got contacts stored on your SIM
card, but the contacts aren’t visible when you
open the contact list, you need to copy the
contacts into phone memory. Press
Options >
Import Contacts > SIM Card , press Options > Select All ,
press
Import .
your phone number
To see your phone number:
Find it: s > @Settings > Call Settings >
My SIM Number
To see your phone number while you’re on a
call, press
Options > My Telephone Number .
To store or edit your name and phone number
on your SIM card, select the field you want to
edit. If you don’t know your phone number,
contact your service provider.

11
personalize
personalize
main menu
appearance
You can personalize the main menu to appear
as a grid of graphic menu icons, a text-based
list, or spinning menu icons that you can scroll
through using the FastScroll™ touch wheel
or left/right touch keys:
Find it: From the main menu, press Options >
View By > Grid or List or Spinner
rearrange main menu
You can change the order of the main menu
features.
From the main menu, press
Options > Reorder , scroll
to the feature you want to move, press
Grab ,
scroll to the destination location, press
Insert .
home screen shortcuts
From the home screen, you can press
the navigation key
S up, down, left,
or right as shortcuts to your favorite
features. You can change the shortcuts
to suit your needs.
To
change navigation key shortcut icons in the
home screen:
Find it: s > @Settings > Home Screen >
Navigation Keys > Up , Down , Left , or Right
Select a direction, then choose the feature
you want to open when you press
S in that
direction.
To
show or hide navigation key shortcut icons
in the home screen:
Find it: s > @Settings > Home Screen >
Navigation Keys > Icon Display > Show or Hide
Note: You can press S to select the features
in the home screen even when the icons are
hidden.

personalize
12
wallpaper
Change the background wallpaper image in the
home screen:
Find it: s > @Settings > Home Screen >
Change Wallpaper , scroll to an image, press Select
The new wallpaper is applied to the current
theme.
screensaver
Change the screensaver image that appears in
your phone’s display after a period of inactivity:
Find it: s > <Multimedia > Media Finder >
Wallpapers and Graphics , scroll to an image, press
Options > Apply to > Screensaver
The new screensaver is applied to the current
theme.

13
music
mus ic
introduction
Copying and syncing music between your
phone and computer has never been easier,
with Microsoft® Windows® Media Player 11.
To listen to music on your phone, you need to:
1 Load music on your computer.
2 Transfer music from the computer to your
phone.
3 Use the music player to play and manage
music files on your phone.
Note: The unauthorized copying of copyrighted
materials is contrary to the provisions of the
Copyright Laws of the United States and other
countries. This device is intended solely for
copying non-copyrighted materials, materials
in which you own the copyright, or materials
which you are authorized or legally permitted
to copy. If you are uncertain about your right
to copy any material, please contact your legal
advisor.
1. load music on your
computer
To create a music library on your computer, you
can purchase Windows Media DRM-protected
music files from supported on-line music stores
(such as Urge, Yahoo, and Napster).
You can also
load song files from a music CD
onto your computer:
1 Insert the music CD in your computer’s CD
drive.
2 Launch Windows Media Player 11.
3 Copy the music CD to the media player
library (also called ripping the CD).
If your computer is connected to the Internet,
the media player may retrieve CD information,
such as song titles, album name, artist name,
and album artwork. This information will display
in your phone’s music player.

14
music
set default format and bit rate for
Windows® Media Player 11
Windows Media Player 11 lets you adjust
format and bit rate settings, to optimize sound
quality, or to increase the number of song files
you can store on your phone.
Windows Media Audio format offers the
optimal balance between file size and sound
quality. Song files in this format tend to require
more storage space than files that use
Windows Media Audio Pro format.
Windows Media Audio Pro format is designed
for use in portable devices with limited storage
capacity. The format provides improved sound
quality at lower bit rates.
MP3 format is the most popular format for
distributing music on the Web. This format
offers high sound quality at a reasonable file
size.
To set the default file format and bit rate:
1 Insert the music CD in your computer’s
CD drive.
2 Launch Windows Media Player 11.
3 Select the Rip tab in Windows Media
Player 11.
4 Click the Rip tab down arrow, then choose
Format > Windows Media Audio, Windows
Media Audio Pro, or mp3.
5 Click the Rip tab down arrow again, then
choose Bit Rate > bit rate.
convert iTunes AAC files to MP3
files on your computer
Use the iTunes desktop application to convert
standard iTunes AAC files to MP3 files that are
compatible with Windows Media Player 11.
Note: The iTunes desktop application can only
convert AAC files ripped from a music CD. It
can’t convert music files purchased from the
iTunes store.
1 Open the iTunes desktop application on
your computer.
2 Select Edit > Preferences, then click the
Advanced tab and click Importing.
3 Open the Import Using pop-up menu, then
select the MP3 Encoder option. Click OK to
save your settings.
4 Select one or more songs in your iTunes
music library, then choose Advanced >
Convert Selection to MP3.
The converted MP3 file copies appear in your
computer’s music library alongside the original
AAC files.

15
music
2. transfer music to
your phone
Use Windows Media Player 11 to transfer
music from the computer to your phone over
a high-speed USB 2.0 cable connection. (If
necessary, you can download Windows Media
Player 11 at
www.microsoft.com/windowsmedia .)
Note: Windows Media Player 11 requires
Windows XP™ or later to run. If you are using
an earlier version of Windows OS, see the
section “manually transfer music to your phone
or memory card” on page 19.
Note: Windows Media Player 11 can only be
used to copy music files to your phone. You
can’t use Windows Media Player 11 to copy
pictures or videos to the phone.
When your phone is connected to the computer
in media synchronization mode, Windows
Media Player 11 treats the phone as a single
memory device, and will copy and sync music
files to both phone memory and a microSD
memory card installed in the phone. (For
example, a phone with 2 GB of internal memory
and a 4 GB microSD memory card would appear
to have around 6 GB of available memory in
Windows Media Player 11.)
on your phone
If desired, insert a memory card in your phone
(see page 6), then press
s > @Settings >
Connections > USB Settings > Media Synchronization
Attach the Motorola Original USB
cable to the micro-USB port on
your phone and to an available
USB port on your computer. A
Motorola Original USB cable and
supporting software may be included with your
phone. These tools are also sold separately.
Note: Some phone functions are temporarily
unavailable when a USB connection is active.
on your computer
Open Windows Media Player 11. Your phone
appears in the upper right corner of the
Windows Media Player 11 screen. The phone’s
music files are listed on the left side of the
screen.
1 Select the Sync tab in Windows Media
Player 11.
2 Drag and drop songs or playlists onto the
Sync List on the right side of the Windows
Media Player 11 screen.
3 Click Start Sync to copy the songs onto the
phone.
4 When you finish, disconnect your phone
from the computer.

16
music
3. play music
To play music on your phone:
Find it: [ > category > song name
Select a song or playlist from the following
categories:
Recently Played , Shuffle Songs (play all songs
in random order),
All Songs , Playlists , Artists , Albums ,
Genres , or Composers .
When a song or playlist starts to play, use the
following keys to control song playback:
During a song, the music player shows the song
title, artist, album, and artwork, if available.
Note: If you receive a call during a song ,
the song pauses until the call is over.
When a song is playing, press
Options to select
music player options:
album
artwork
10/10/2008--910 Kb
SongTitle
Artist
Album
01:40 02:45
Options Back
songname
Auto-repeat on/off.
Shuffle
on/off.
Pause/play
the song.
Press to skip
to next
song. Press
and hold to
fast-
forward.
Use
FastScroll™
touch wheel
to fast-
forward or
rewind.
Press to skip
to previous
song. Press
and hold to
rewind.
Press volume keys to
change volume.
Timer shows %
played.
options
Hide Hide the music player while
music plays. To see the music
player again, go to the home
screen, then press
S up.
Manage Show song Properties , such as file
name, type, and size.
Delete Delete the song file.
Send to Send the song in a message
or email, or send it to another
device over a Bluetooth®
connection. If the song is
stored in phone memory,
you can send it to the memory
card installed in your phone.
Apply to Add the song to a playlist or
make it a ringtone.

17
music
use Bluetooth® stereo
headphones
Connect your phone with optional
Bluetooth stereo headphones to listen
to music stored on your phone.
To connect your phone to a set of Bluetooth
stereo headphones for the first time
, make
sure the headphones are
on and ready in
pairing or bonding mode (see the device user’s
guide).
Find it: s > @Settings > Connections > Bluetooth ,
press
Options > Search For Device > Headset
Your phone lists the Bluetooth audio devices it
finds within range.
1 Scroll to the stereo headphones in the list.
2 Press s to connect with the stereo
headphones.
adjust audio settings
You can adjust audio settings to optimize
the sound quality when listening to music
through the phone speaker, stereo headphones,
or stereo headset.
Use Bluetooth /
Use Handset
To send the audio to a
Bluetooth® headset, turn on
Bluetooth power, then select
Use Bluetooth to connect to a
recognized Bluetooth headset
or search for a new headset.
When a Bluetooth audio
connection is active, select
Use Handset to drop the Bluetooth
connection and switch the
audio back to the phone.
Note: This option appears only
when Bluetooth power is
turned on.
Setup Customize settings.
options

18
music
To change playback volume , press the volume
keys on the side of your phone.
To change the
equalizer setting , press Options >
Setup > Equalizer > equalizer effect.
To set
stereo separation , press Options > Setup >
3D Stereo > separation level.
To set
bass boost , press Options > Setup > Bass Boost
>bass level.
Note: The equalizer and stereo effect settings
are best experienced using a 3.5 mm wired
headset or stereo headphones. Your phone
cannot produce stereo effects through the
built-in monoural speaker.
lock phone keys
You can lock the phone keys to prevent
accidental keypresses while playing a song or
playlist.
To
lock the phone keys ,
slide the lock key up (as
shown in the illustration at
right).
To
unlock the phone
keys
, slide the lock key
back down to the center
position.
Note: Do not
slide the lock key all the
way down to the bottom power on/off
position.
perform other tasks
while playing music
To take pictures or record videos while playing
music:
1 Press Back until you return to the home
screen.
2 Press the side select key to activate the
camera.
3 Press s to take a photo.
or
Press ! to switch to video camera mode,
then press
s to record a video.

19
music
To use the browser while playing music:
1 Press Back until you return to the home
screen.
2 Press Main Menu > ;Mobile Internet > Browser .
To return to the
music player from another
application:
1 Press [ to return to the music library.
2 Press s to return to the music player.
manually transfer
music to your phone
or memory card
Without using Windows Media Player 11, you
can manually copy or sync music files from the
computer to phone memory, or to an optional
microSD memory card in the phone. (To insert a
memory card, see page 6.)
supported audio formats
Before you copy audio files to your phone,
make sure the files are in a format the phone
recognizes:
AMR-NB: 4.75 kbps to 12.2 kbps (supports all 3GPP
specified rates), 8 kHz, mono - .amr, .3gp, .3ga, .mp4
file extensions - MIME Audio/amr, Audio/mp4, Audio/
3gpp, Video/mp4, Video/3gpp.
AMR-WB: 6.6 kbps to 23.85 kbps (supports all 3GPP
specified rates), 16 kHz, mono - .awb, .3ga, .3gp file
extensions - MIME Audio/amr-wb, Audio/3gpp, Video/
3gpp.
AAC (MPEG4 AAC-LC): Up to 192 kbps CBR, 48 kHz
max sampling rate, mono/stereo - .mp4, .3gp, .m4a,
.3ga, .aac file extensions - MIME Audio/m4a, Audio/
mp4, Audio/3gpp, Video.mp4, Video/3gpp, Audio/aac.
AAC+: 16 to 128 kbps, up to 48 kHz, mono/stereo -
.mp4, .3ga, .m4a, .aac file extensions - MIME Audio/
mp4, Audio/3gpp, Audio/m4a, Audio/aac.
Enhanced AAC+: 16 to 128 kbps, up to 48 kHz,
parametric stereo - .mp4, .3ga, .m4a, .aac file
extensions - MIME Audio/mp4, Audio/3gpp, Audio/
m4a, Audio/aac.
MP3: Up to 320 kbps, up to 48 kHz, mono/stereo -
.mp3, .mpga file extensions - MIME Audio/mp3, Audio/
x-mp3, Audio/mpeg3, Audio/x-mpeg3, Audio/mpeg,
Audio/mpg, Audio/x-mpeg, Audio/x-mpg.
8-bit Linear PCM: Up to 320 kbps, 8/11.05/12/16 kHz,
stereo/mono - .wav file extension - MIME Audio/L8,
Audio/wav.
