Motorola DCS 1800 Clam RAE Technical specifications

PRODUCT DESCRIPTION
Full Document
MOTOROLA CONFIDENTIAL PROPRIETARY
This document and the information contained in it is CONFIDENTIAL INFORMATION
of Motorola and shall not be used, published, disclosed, or disseminated outside of Motorola
in whole or in part without Motorola’s consent. This document contains trade secrets of Motorola.
Reverse engineering of any or all of the information in this document is prohibited.
______________________________________________
DCS 1800 Clam RAE
Project No.: A29-01
Version 1.2
Ruchi Mangalik
Jan 6, 1997

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2 PRODUCT DESCRIPTION
______________________________________________
______________________________________________
Jan 6, 1997
Motorola Confidential Proprietary
MANAGEMENT SIGNATURES
Name Signature Date
Roger Kung
Corporate V.P. & GCCSD G.M.
Ken Leonhardt
Operations
Chris Colonna
Product Marketing Manager
Allen White
GCCSD Product Engineering
Doug Wick
Manufacturing
Ray Menzel
Materials
Vincent Cheung
Quality
Phil Tutor
Finance
Bernie McGill
Distribution

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2 PRODUCT DESCRIPTION
______________________________________________
______________________________________________
Jan 6, 1997
Motorola Confidential Proprietary
REVISION HISTORY
Version Date Name Reason
1.0 09-Oct-96 Mary Jo Schavitz Initial release.
1.1 27-Nov-96 Mary Jo Schavitz Deletion of SIM lock requirement for Malaysia.
1.2 1-6-97 Ruchi Mangalik Add GC requirements
................................................................................................................................................................

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2 PRODUCT DESCRIPTION
______________________________________________
______________________________________________
June 1, 1998 1
Motorola Confidential Proprietary
1. INTRODUCTION
This product description describes the DCS1800 Clam RAE product for the Greater China South Asia
region. This product description makes reference to the latest Asia/Pacific GSM Clam RAE product
description, version 1.1, issued by Ruchi Mangalik. Features that are different for DCS 1800 are
documented here.
1.1 Product Strategy
As GSM Clam RAE PD. The DCS StarTAC is part of the Signature Series and thus it must follow the
Signature guidelines. There no cosmetic differences between the DCS StarTAC and GSM StarTAC
because our strategy is to be indifferent and support all technologies. We do not want to make the
statement that one technology is more important than the other.
1.2 Target Markets
The countries of Malaysia, Singapore, Thailand, and Hong Kong.
1.3 Distribution Strategy
In keeping with the Global Distribution Strategy, distribution of DCS Clam RAE will be limited to
channels that enhance the premium positioning that this product reflects. A distribution strategy for
each country must be developed before the DCS Clam RAE can be introduced into that country.
Precise distribution plans will be released closer to the launch date (expected to be January 1997).
2. PRODUCT DESCRIPTION
2.1 Physical Characteristics
• Housing
The GCSA DCS1800 Clam RAE will use the same housing as the Motorola branded Europe
DCS1800 19 key Clam RAE. The model number for the Motorola branded Europe DCS1800 19
key Clam RAE is S5993ABB.
• Batteries
The Auxiliary battery feature must be implemented for the GCSA DCS Clam RAE model.
• Colour
Initially, all models will use black plastics. However, options for colour will also be investigated.
This is dependant on the core group.

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2 PRODUCT DESCRIPTION
______________________________________________
______________________________________________
June 1, 1998 2
Motorola Confidential Proprietary
• SIM Card
As GSM Clam RAE PD.
• Display & Indicators
As GSM Clam RAE PD.
• Antenna
The DCS1800 Clam RAE will incorporate a retractable DCS1800 antenna which stands vertical
when the product is in the holster. The antenna must not interfere with the opening or closing of the
Clam, either when extended or retracted.
•Lens
Identical to the Motorola branded Europe DCS1800 19 key Clam RAE.
• Escutcheons
Identical to the Motorola branded Europe DCS1800 19 key Clam RAE.
• Keypad
Identical to the Motorola branded Europe DCS1800 19 key Clam RAE. The alpha numeric keys
will conforn to ITU-T standard E.161.

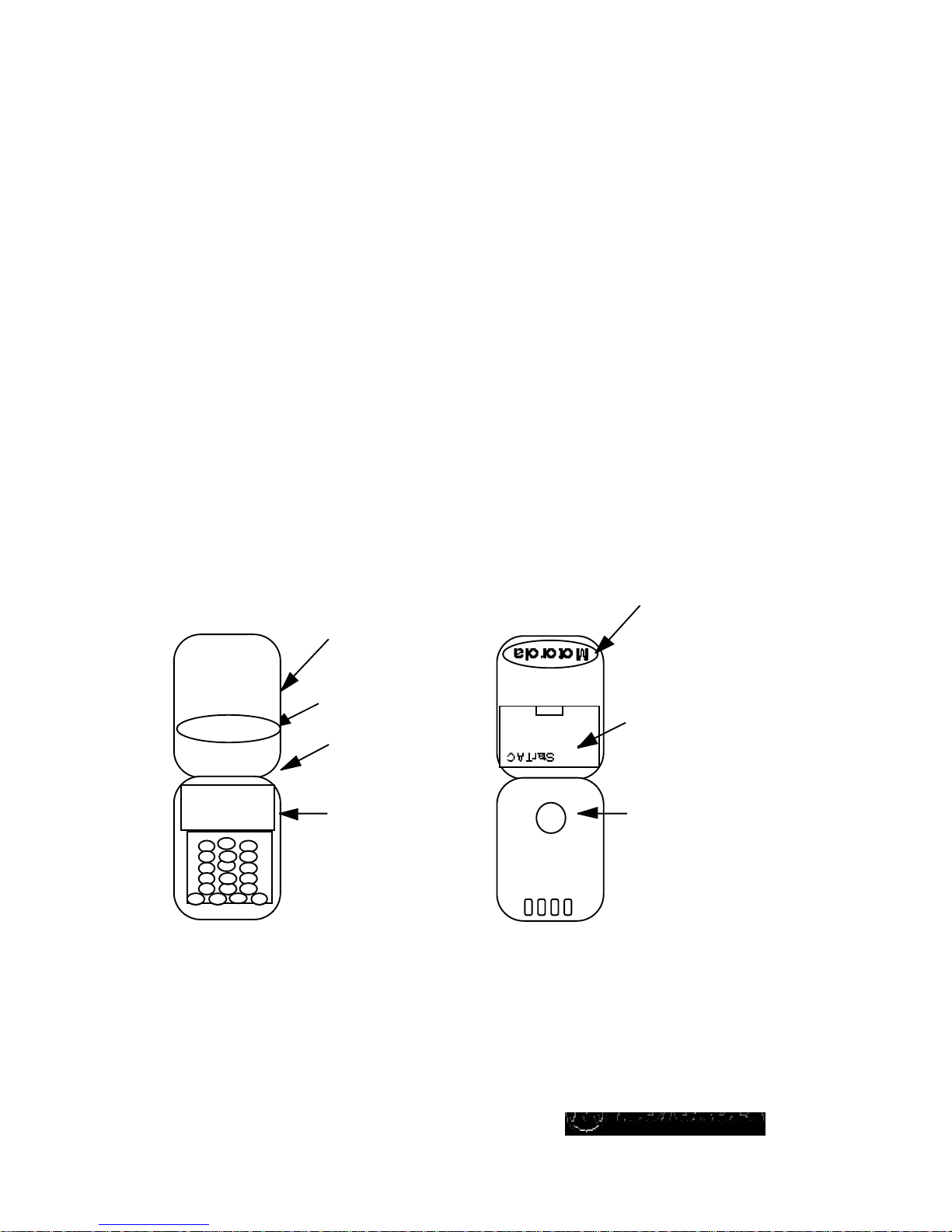

Operator
printed in
gold above
escutcheon.
StarTAC
Motorola
Inside View
“StarTac” in
Gold on a
Black Label
“Motorola”
in Gold on
Black M
StarTAC
Motorola
O
utside View
“StarTAC”in
on Black label
battery
“Motorola”in
Gold on
label
housing
Motorola
“batwings”
hard-tooled
back
Country printed
below escutheon
As shown above, for South Asia, the country name will be tampoed below the inside escutheon for
trans-shipment purposes. For Hong Kong, the operator name will be tampoed above the escutheon
and no country name.

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2 PRODUCT DESCRIPTION
______________________________________________
______________________________________________
June 1, 1998 3
Motorola Confidential Proprietary
2.2 Key/Unique Features
The DCS1800 Clam RAE will be the first DCS ’wearable’Motorola product in the GCSA region. It
will lead the range in features, size and weight. Initially, it will be positioned as an aspirational
product, rather that a mainstream volume product.

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2 PRODUCT DESCRIPTION
______________________________________________
______________________________________________
June 1, 1998 4
Motorola Confidential Proprietary
Features that will differentiate this product from those of our competitors are:
• Smallest, lightest phone on the market
• Aspirational values
• Auxiliary battery concept, giving unlimited talk and standby time
• Easy to use Personality™ MMI, enhanced for large display
• Full feature set
• VibraCall™, built in, not bolted on
• Full size, retractable SIM card
• Wide range of accessories included in package
2.3 Performance Characteristics
2.3.1 Transceiver Performance
Initial estimates of DCS1800 Clam RAE performance with standard batteries are shown below:
Volume
(cc) Weight (gm) Talk Time (Mins) Standby Time (hours) with Battery
80 81 - - Standard Transceiver only
<100 <100 70-90 20-25 LiIon 350 mAh (SNN4875
w/Noryl transceiver
100 105 70-90 20-25 LiIon 350 mAh (SNN4875)
w/standard transceiver
100 110 120-140 30-38 LiIon 500 mAh (SNN4667)
109 126 210-280 60-70 LiIon 900 mAh (SNN4668)
109 125 110-140 30-35 NiMH 500 mAh (SNN4669)
Initial estimates of DCS1800 Clam RAE performance with auxiliary battery are shown below;
weights and volumes are additional to the core unit (i.e. w/LiIon 500 mAh battery)
Volume
(cc) Weight (gm) Talk Time (Mins) Standby Time (hours) with Battery
40 54 200-260 55-65 LiIon 900 mAh (SNN4867)
2.3.2 Charge Times
Maximum acceptable charge times are shown below.

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2 PRODUCT DESCRIPTION
______________________________________________
______________________________________________
June 1, 1998 5
Motorola Confidential Proprietary
Battery Charge time with E.P.+
Standard Travel Charger
to 95% charge
NiMH batteries 70 minutes
LiIon batteries 2 1/2 hours
The unit must feautre seamless power transitions with travel charger and cigarette lighter
adapter.
2.3.3 Compatible Battery Technology
As GSM Clam RAE PD.
2.3.4 Data Compatibility
As GSM Clam RAE PD.
3. EXPECTED LIFETIME
RAE is a new product platform which will evolve over time into various different product platforms.
It is anticipated the DCS 1800 RAE family will last beyond the year 2000. During this time model
variations will be introduced.
4. SOFTWARE AND MMI DESCRIPTION
Functional descriptions for each software and MMI feature are defined in the Europe DCS 6700 and
StarTAC Software Requirements Document, version 0.2. The StarTAC will be compatible with CPHS
version 3.1.
5. MODELS/VERSIONS
5.1 New Sales Models
Only the GCSA and the Motorola branded Europe models are listed below: Malaysia will not require
any SIM lock mechanism.
Model
Number Brand Description
S6373ABB Motorola (for
Malaysia) Poly Black housing; Non-SIM-locked.

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2 PRODUCT DESCRIPTION
______________________________________________
______________________________________________
June 1, 1998 6
Motorola Confidential Proprietary
S6374ABB Motorola (for
Singapore) Poly Black housing; Non-SIM-locked.
S6375ABB Motorola (for
Thailand) Poly Black housing; Non-SIM-locked.
S6691ABB Motorola (for Hong
Kong) Poly Black housing; Non-SIM-locked.
S6691ABB Motorola (for HK
Peoples Telephone) Poly Black housing; Non-SIM-locked.
S6692ABB Motorola (for HK New
World PCS) Poly Black housing; Non-SIM-locked.
S6693ABB Motorola (for HK
Manderin Comm) Poly Black housing; Non-SIM-locked.
S6694ABB Motorola (for HK
Hutchison) Poly Black housing; Non-SIM-locked.
S6695ABB Motorola (for HK
Pacific Link) Poly Black housing; Non-SIM-locked.
S6696ABB Motorola (for HK P
Plus) Poly Black housing; Non-SIM-locked.
S5993 ABB Motorola (standard
Europe) Black housing; Non-SIM-locked; fully featured. (std. package)
5.1.1 Package Contents
The package contents for all packages contain the following
•SWF transceiver
•500 mAh Li Ion Main battery SNN4667
•900 mAh Li Ion Aux Battery SNN4867
•EP power supply (SPN4278)
•Holster (SYN5378)
•Country plug (US/UK/Euro)
•User Manual (68P09395A63)
5.1.2 Flexing Information
FEATURE DEFAULT SETTING
SIM Lock None

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2 PRODUCT DESCRIPTION
______________________________________________
______________________________________________
June 1, 1998 7
Motorola Confidential Proprietary
Home Zone None
Data 9600 Baud
Earpiece volume Maximum
Ringer Standard Tone
Ringer Volume High
Extended Menus Off except for Hong Kong
Language Automatic (English)
Keypad Tone Normal Tones
Phone Lock Off
Phone Lock Number 1234
Security Code 000000
Battery Saving Mode On
Wakeup graphic Motorola DCS StarTAC
Network Selection Automatic
Meter During Call Off (Hong Kong will have
InComing call timer ON)
User Definable Quick
Access Yes
Key Answer Only Off
5.2 Service Requirements
The following items are required for service:
• a Service Transceiver with IMEI, packed without any accessories/manual/etc.
• a Service Printed Circuit Board (PCB), fully phased and tested, with an IMEI.
5.3 Manual Requirements
Manual will be identical to the Motorola branded Europe DCS1800 19 key Clam RAE.
6. PACKAGING/LABELLING REQUIREMENTS
Transceiver labels
The following standard layout should be used for all models:
Note: All models should have the MC29600 baud logo.

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2 PRODUCT DESCRIPTION
______________________________________________
______________________________________________
June 1, 1998 8
Motorola Confidential Proprietary
Type: MP1-1C11 S1234ABCD
Made in USA by Motorola BABT
Logo
MSN: Human Readable
CEPT DCS IMEI: Human Readable
IMEI: Bar Code
CE
Logo MC
Logo
2
DCS 1800 Encrypted IMEI
Transceiver Label
40mm x 20 mm

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2 PRODUCT DESCRIPTION
______________________________________________
______________________________________________
June 1, 1998 9
Motorola Confidential Proprietary
Box labels
The following standard layout should be used for all models:
Box Label
101.6mm x 63.5mm
Made in the USA
MOTOROLA DCS StarTAC
Sequence Number: Human Readable
Sequence Number: Bar Code
Model Number: Human Readable
Model Number: Bar Code
MSN: Human Readable
MSN: Bar Code
IMEI: Human Readable
IMEI: Bar Code
CE
Logo
EAN
Bar Code
T-Option:
Bar Code
Human Readable
Recycle
Logo
7. PRODUCT NAME/MARKET NAME
The market name for this product is the DCS StarTAC™.

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2 PRODUCT DESCRIPTION
______________________________________________
______________________________________________
June 1, 1998 10
Motorola Confidential Proprietary
8. TYPE APPROVAL
Full Type Approval must be obtained for the DCS 1800 StarTAC before final ship authorisation. Both
internal and field operator testing must be conducted in the locations where this phone is to be sold before
final ship authorisation, also.
9. ACCESSORIES & COMPATIBILITY
9.1 Current
Part Number
Name
Compatibility Notes
SNN4875
Slim Main 350 mAh LiIon Battery
SNN4667 Slim Main 500 mAh LiIon Batter
y
SNN4668 Standard Main LiIon
9
00 mAh Batter
y
SNN4867 Slim AUX LiIon
9
00 mAh Batter
y
SPN4278 Power Ada
p
ter
SYN4656 UK Ada
p
ter Plu
g
SYN4655 Euro
p
ean Ada
p
ter Plu
g
SPN4435 Ra
p
id Deskto
p
Char
g
er
SYN4241 Ci
g
arette Li
g
hter Ada
p
ter
SYN5378 Standard Belt Holster
SYN4653 Slimline Belt Holster
SYN5621 Holster
(
Aux
)
Nor
y
l
SYN5622 Slimline Holster
(
Non-Aux
)
Nor
y
l
S5338A Hands Free Car Kit
SYN48
9
8 Leather Pouch-Black
SYN48
99
Leather Purse PAK-Black
S631
9
Cellect™ 1+
S6320 Cellect™ 2 for Australia
S5702A PC Card
9
600 Baud Data Interface
9.2 Planned
Part Number Name Compatibility Notes
SNN4577 Auxiliary: Extra Capacity 1000mAh NiMH
SNN4669 Standard 500 mAh NiMH
TBD Double Stacked 1800 Lithium Ion battery
SNN4609 LiIon 1400 mAh

DCS 1800 Clam RAE for GCSA, Project N°: A29-01, Version 1.2 PRODUCT DESCRIPTION
______________________________________________
______________________________________________
June 1, 1998 11
Motorola Confidential Proprietary
