Universal Bluetooth®
Headset H690
H690 MOTOMANUAL
MOTOROLA and the Stylized M Logo are registered in the US Patent &
Trademark Office. All other product or service names are the property of
their respective owners. The Bluetooth trademark and logos are owned by
the Bluetooth SIG, Inc. and any use of such marks by Motorola, Inc. is under
license. © 2007 Motorola, Inc. All rights reserved.
6803578F32 - Printed in the EU.

1
Figure 1
23
45
1
6
8
9
7

2
Figure 3
Figure 2
Figure 4

English
3
European Union Directives Conformance Statement
Hereby, Motorola Inc., declares that this H690 is in compliance
with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
You can view your product’s Declaration of Conformity (DoC) to Directive
1999/5/EC (the R&TTE Directive) at www.motorola.com/rtte.
Caring for the Environment by Recycling
When you see this symbol on a Motorola product, do not dispose
the product with household waste.
Recycling Mobile Phones and Accessories
Do not dispose of mobile phones or electrical accessories, such as chargers
or headsets, with your household waste. In some countries or regions,
collection systems are set up to handle electrical and electronic waste items.
Contact your regional authorities for more details. If collection systems aren’t
available, return unwanted mobile phones or electrical accessories to any
Motorola Approved Service Centre in your region.
FCC Notice to Users
Users are not permitted to make changes or modify the device in any way.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment. See-
47-CFR-Sec.-15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation. See-47-CFR-Sec.-15.19(3).

English
4

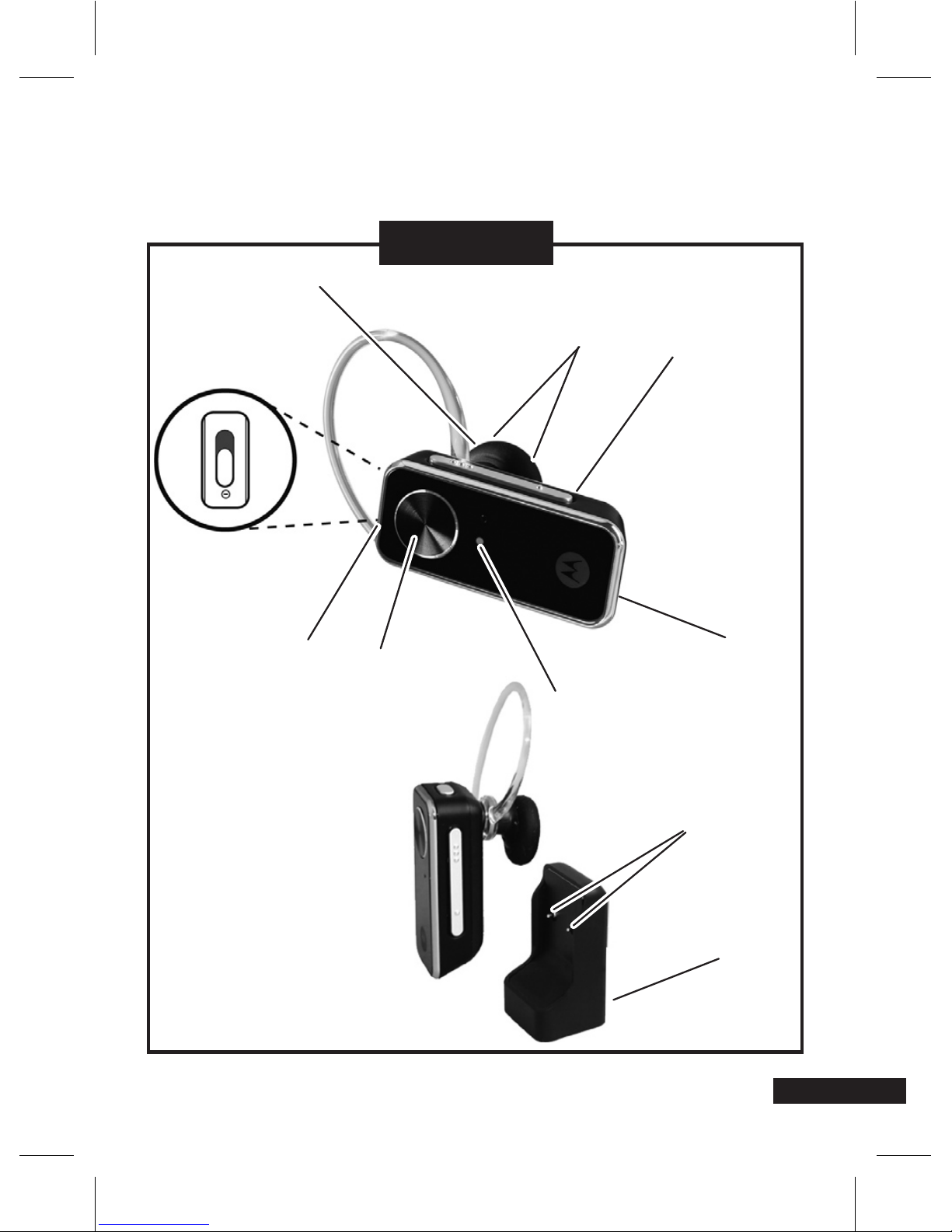

Before you begin
See figure 1 on page 1.
Take a moment before you get started to familiarize yourself with your new
H690 Bluetooth®Hands-free Headset. Along with your headset, a desktop
charger is provided for both charging and storage
Bluetooth headset Desktop charger
1. Speaker 8. Charging Contacts
2. Volume Buttons 9. Charger Port
3. Charging Contacts (on reverse side)
4. Power Switch
5. Call Button
6. Indicator Light
7. Microphone

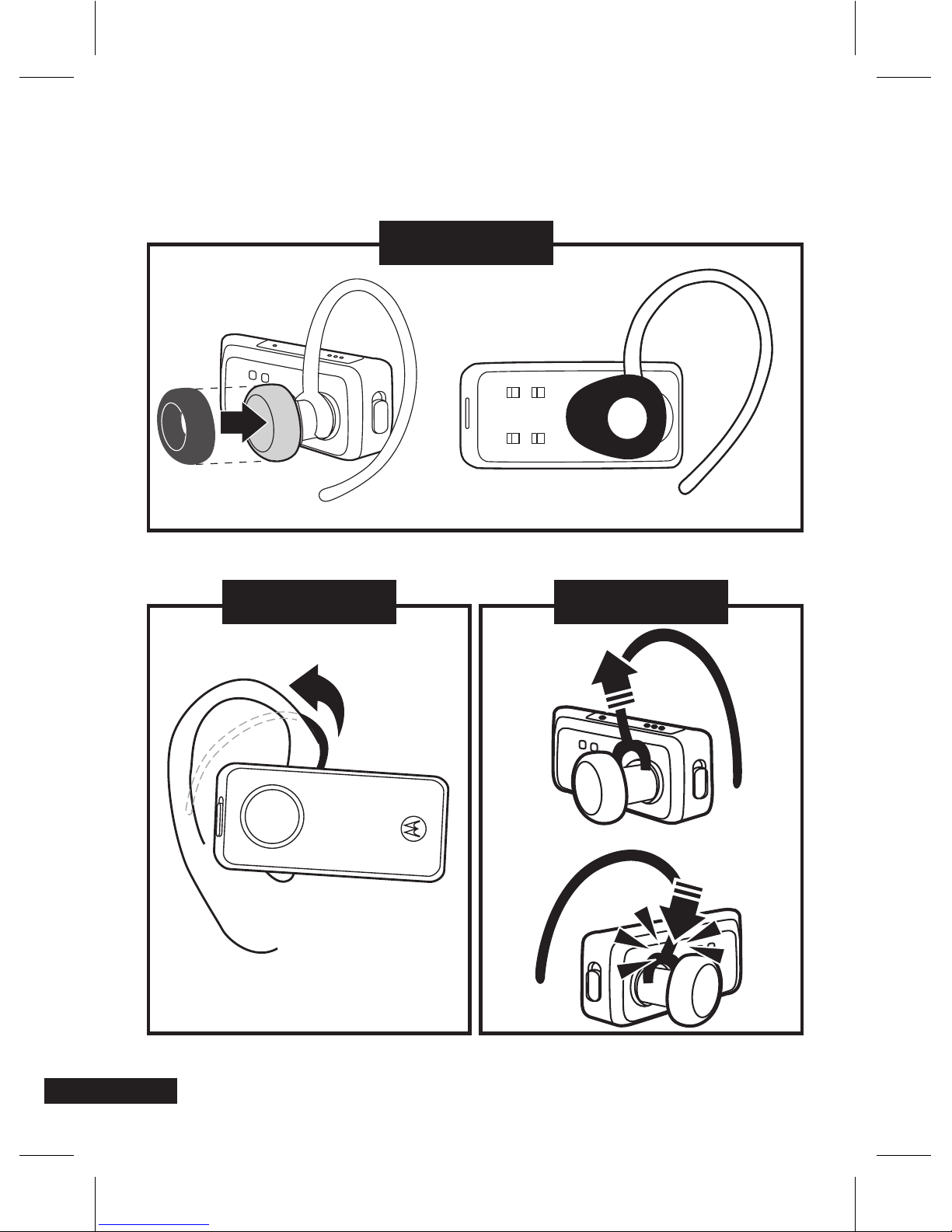

Wearing your headset
See figure 2 on page 2
The ear cushion is fitted onto the end of your headset’s earpiece speaker and
placed onto your ear when using your headset.
Your H690 headset is supplied with multiple ear cushions. Your headset’s
performance is greatly dependent upon achieving a good fit on your ear.
Therefore, we recommend trying all the supplied ear cushions with your
headset.
You can wear your H690 headset on your left or right ear. The headset comes
ready for the right ear.
Placing the headset on your ear: see figure 3 on page 2
Placing the headset on the left ear: see figure 4 on page 2

English
5
Charging your headset
See figure 1 on page 1
Important: you can only charge the headset from the desktop charger. You
cannot plug a Motorola charger directly into the headset.
1. Plug the Motorola charger into the port on the desktop charger.
2. Place headset onto desktop charger. Make sure charging contacts on the
headset and desktop charger connect.
Note: Earhook must be rotated to the orientation shown as on figure 1 on
page 1 to ensure charging contacts connect.
When placing headset on the desktop charger, the indicator light turns red
when the battery is charging. It may take up to 1 minute for the indicator light
to turn on. When the headset’s battery is fully charged (about 2.5 hours), the
indicator light turns green.
Note: Headset is NOT functional while charging.
Turning headset on and off
See figure 1 on page 1
To turn ON your headset, slide the Power switch towards the power symbol,
as shown below. The indicator light first flashes blue for several seconds,
then:
• ashes blue (if paired and connected with another device).
• becomes steadily blue (if ready to be paired).
To turn OFF your headset, slide the Power switch off. The indicator light will
turn off.

English
6
Pairing your headset
Your phone’s Bluetooth feature is off by default. To use your headset, turn
on the Bluetooth feature in your phone. Please check your phone’s user’s
guide.
Note : The Bluetooth feature remains on until you turn the feature off.
Before you can use your headset, you must pair it with your phone.
1 Ensure headset is in pairing mode
Remove headset from desktop charger and power on by sliding Power
switch to the ON position (towards Power symbol on headset).
The indicator light first flashes during power up, then initiates easy pairing.
After a few moments, the indicator light will be steadily lit in blue to indicate
headset is in pairing mode.
If the headset does not enter into pairing mode, see “Troubleshooting”
section.
2 Set your phone to look for your headset
• Perform a device discovery from the phone. For details about device
discovery, consult your phone’s user’s guide. The phone lists Bluetooth
devices it finds.
• Select Motorola H690 in the list of discovered devices and confirm by
following the on-screen prompts.
• When prompted by the phone, enter the passkey 0000 and confirm.
Pairing is successful when the headset indicator light changes from steadily
lit to flashing blue and purple.

English
7
Test and use
Your phone and headset are now paired and ready to make and receive calls.
To confirm they are successfully paired and operating properly, place the
headset over your ear and make a call from your phone. You will hear ringing
from the headset.
After you have successfully paired your phone and headset, you do not need
to repeat these steps each time you use the headset.
Using your headset: making & receiving calls
Your headset supports both Hands-free and Headset Profiles. Accessing
call functions depends upon which profile your phone supports. See your
phone’s user’s guide for more information.
Note: Some features are phone/network dependent.
Function Action
Receive a call Tap the Call button
Mute or unmute a call Tap both Volume buttons
Reject a call Press and hold a Volume button until you
hear 2 descending tones
End a call Tap the Call button
Redial last call Press and hold the Call button until you
hear 2 ascending tones
Make a voice dial call Tap the Call button and speak the name
after the tone
Answer a second incoming call Press and hold Call button
End an active call and Tap the Call button
resume a call on hold
Reject a second incoming call Press and hold either Volume button until
you hear an audio tone
