PRO 22X Series

All-in-One (AIO) PC

MS-ACD3 System

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per MSI Pro 22XT 10M

i5-10400 / 8GB / 256GB / Windows 11 Pro o cerca il tuo prodotto tra le migliori offerte di PC

Desktop e Workstation

ii

Contents

Copyright and Trademarks Notice ��iii

Revision ��iii

Upgrade and Warranty��iv

Acquisition of Replaceable Parts ��iv

Technical Support ��iv

Chemical Substances Information ��iv

Battery Information�� v

Safety Instructions��vi

CE Conformity�� viii

FCC-B Radio Frequency Interference Statement �� viii

WEEE Statement ��ix

RoHS Statement ��ix

Overview.........................................................................................1-1

Packing Contents�� 1-2

System Overview �� 1-3

Component Replacement & Upgrade �� 1-8

Getting Started...............................................................................2-1

Safety & Comfort Tips�� 2-2

Hardware Setup �� 2-3

System Operations........................................................................3-1

Power Management�� 3-2

Network Connection (Windows 10)�� 3-3

System Recovery (Windows 10)�� 3-6

System Recovery (F3 Hotkey Recovery) (Optional) �� 3-10

OSD Setup......................................................................................4-1

Navi Key�� 4-2

OSD Setup via Navi Key�� 4-5

Troubleshooting ...........................................................................A-1

Preface

iii

Copyright and Trademarks Notice

trademark of Micro-Star Int’l Co�, Ltd� All other marks and names mentioned may be

trademarks of their respective owners� No warranty as to accuracy or completeness is

expressed or implied� MSI reserves the right to make changes to this document without

prior notice�

Revision

Revision Date

V1�0 2020/07

iv

Upgrade and Warranty

Please note that certain components preinstalled in the product may be upgradable

or replaceable by user’s request� For any further information about the product users

purchased, please contact the local dealer� Do not attempt to upgrade or replace

any component of the product if you are not an authorized dealer or service center,

since it may cause the warranty void� It is strongly recommended that you contact the

authorized dealer or service center for any upgrade or replace service�

Acquisition of Replaceable Parts

Please be noticed that the acquisition of replaceable parts (or compatible ones) of

the product users purchased in certain countries or territories may be ful󰘰lled by the

manufacturer within 5 years at most since the product has been discontinued, depending

on the o󰘲cial regulations declared at the time. Please contact the manufacturer via

https://www�msi�com/support/ for the detailed information about the acquisition of spare

parts�

Technical Support

If a problem arises with your system and no solution can be obtained from the user’s

manual, please contact your place of purchase or local distributor� Alternatively, please

try the following help resources for further guidance� Visit the MSI website for technical

guide, BIOS updates, driver updates and other information via https://www�msi�com/

support/

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation

(Regulation EC No� 1907/2006 of the European Parliament and the Council), MSI

provides the information of chemical substances in products at:

https://www�msi�com/html/popup/csr/evmtprtt_pcm�html

Preface

v

Battery Information

European Union:

Batteries, battery packs, and accumulators should not be

disposed of as unsorted household waste� Please use the public

collection system to return, recycle, or treat them in compliance

with the local regulations�

Taiwan:

For better environmental protection, waste batteries should be

collected separately for recycling or special disposal�

California, USA:

The button cell battery may contain perchlorate material and requires special handling

when recycled or disposed of in California�

For further information please visit: https://dtsc�ca�gov/perchlorate/

vi

Safety Instructions

◙Read the safety instructions carefully and thoroughly�

◙All cautions and warnings on the computer or user’s manual should be

noted�

◙Make sure that the power voltage is within its safety range and has been

adjusted properly to the value of 100~240V before connecting the computer

to the power outlet�

◙If the power cord comes with a 3-pin plug, do not disable the protective

earth pin from the plug� The computer must be connected to an earthed

mains socket-outlet�

◙Always unplug the AC power cord before installing any add-on card or

module to the computer�

◙Always disconnect the AC power cord or switch the wall socket o󰘯 if the

computer would be left unused for a certain time to achieve zero energy

consumption�

◙Place the power cord in a way that people are unlikely to step on it� Do not

place anything on the power cord�

◙If this computer comes with an adapter, use only the MSI provided AC

adapter approved for use with this computer�

◙Power Rating: 120W: 19�5V 6�15A

Please take special precautions if this computer comes with a battery�

◙Danger of explosion if battery is incorrectly replaced� Replace only with the

same or equivalent type recommended by the manufacturer�

◙Avoid disposal of a battery into 󰘰re or a hot oven, or mechanically crushing

or cutting of a battery, which can result in an explosion�

◙Avoid leaving a battery in an extremely high temperature or extremely low

air pressure environment that can result in an explosion or the leakage of

󰘱ammable liquid or gas.

◙Do not ingest battery� If the coin/button cell battery is swallowed, it can

cause severe internal burns and can lead to death� Keep new and used

batteries away from children�

◙To reduce the possibility of heat-related injuries or of overheating the

computer, do not place the computer on a soft, unsteady surface or obstruct

the computer air ventilators�

◙Use this computer only on a hard, 󰘱at and steady surface.

◙Keep this computer away from humidity and high temperature�

◙Do not leave the computer in an unconditioned environment with a storage

temperature above 60℃ or below 0℃, which may damage the computer.

◙The maximum operating temperature is around 35℃.

Preface

vii

Never pour any liquid into the opening that could damage or cause electrical

shock�

Always keep the strong magnetic or electrical objects away from the computer�

If any of the following situations arises, get the computer checked by service

personnel:

◙The power cord or plug is damaged�

◙Liquid has penetrated into the computer�

◙The computer has been exposed to moisture�

◙The computer does not work well or you can not get it work according to

user’s manual�

◙The computer has dropped and damaged�

◙The computer has obvious sign of breakage�

Green Product Features

◙Reduced energy consumption during use and stand-by

◙Limited use of substances harmful to the environment and health

◙Easily dismantled and recycled

◙Reduced use of natural resources by encouraging recycling

◙Extended product lifetime through easy upgrades

◙Reduced solid waste production through take-back policy

Environmental Policy

◙The product has been designed to enable proper reuse of parts and

recycling and should not be thrown away at its end of life�

◙Users should contact the local authorized point of collection for recycling

and disposing of their end-of-life products�

◙Visit the MSI website and locate a nearby distributor for further recycling

information�

◙Users may also reach us at gpcontdev@msi�com for information regarding

proper disposal, take-back, recycling, and disassembly of MSI products�

★ Warning! Overuse of screens is likely to a󰘯ect eyesight.

★ Recommendations:

1� Take a 10-minute break for every 30 minutes of screen time�

2� Children under 2 years of age should have no screen time� For children aged

2 years and over, screen time should be limited to less than one hour per day�

viii

CE Conformity

Hereby, Micro-Star International CO�, LTD declares that this device is

in compliance with the essential safety requirements and other relevant

provisions set out in the European Directive�

FCC-B Radio Frequency

Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules� These limits are designed to provide

reasonable protection against harmful interference in a residential installation� This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful interference to

radio communications� However, there is no guarantee that interference will not occur

in a particular installation� If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o󰘯 and on, the

user is encouraged to try to correct the interference by one or more of the measures

listed below:

￭Reorient or relocate the receiving antenna�

￭Increase the separation between the equipment and receiver�

￭Connect the equipment into an outlet on a circuit di󰘯erent from that to which

the receiver is connected�

￭Consult the dealer or an experienced radio/television technician for help�

Notice 1

The changes or modi󰘰cations not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment�

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply

with the emission limits�

This device complies with Part 15 of the FCC Rules� Operation is subject to the following

two conditions:

1� this device may not cause harmful interference, and

2� this device must accept any interference received, including interference that may

cause undesired operation�

MSI Computer Corp.

901 Canada Court, City of Industry, CA 91748, USA

(626)913-0828

www�msi�com

Preface

ix

WEEE Statement

Under the European Union (“EU”) Directive on Waste Electrical and

Electronic Equipment, Directive 2002/96/EC, which takes e󰘯ect on August

13, 2005, products of “electrical and electronic equipment” cannot be

discarded as municipal waste anymore and manufacturers of covered

electronic equipment will be obligated to take back such products at the end

of their useful life.

RoHS Statement

Japan JIS C 0950 Material Declaration

A Japanese regulatory requirement, de󰘰ned by speci󰘰cation JIS C 0950, mandates

that manufacturers provide material declarations for certain categories of electronic

products o󰘯ered for sale after July 1, 2006.

https://storage-asset.msi.com/html/popup/csr/cemm_jp.html

India RoHS

This product complies with the “India E-waste (Management and Handling) Rule 2011”

and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls

or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01

weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Turkey EEE regulation

Conforms to the EEE Regulations of the Republic Of Turkey.

Ukraine restriction of hazardous substances

The equipment complies with requirements of the Technical Regulation, approved by

the Resolution of Cabinet of Ministry of Ukraine as of December 3, 2008 № 1057,

in terms of restrictions for the use of certain dangerous substances in electrical and

electronic equipment.

Vietnam RoHS

As from December 1, 2012, all products manufactured by MSI comply with Circular

30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous

substances in electronic and electric products.

1

Overview

This system is integrated in design, selecting a stylish appearance with a

mirror screen, which displays the simplicity of modern individualism and the

comfort of home. With a touchscreen display, 󰘱awless audio/video capabilities

and intuitive user interface, it blends technology with life, making computers

easier and more fun to use — suitable for the whole family�

1-3

Overview

1-2

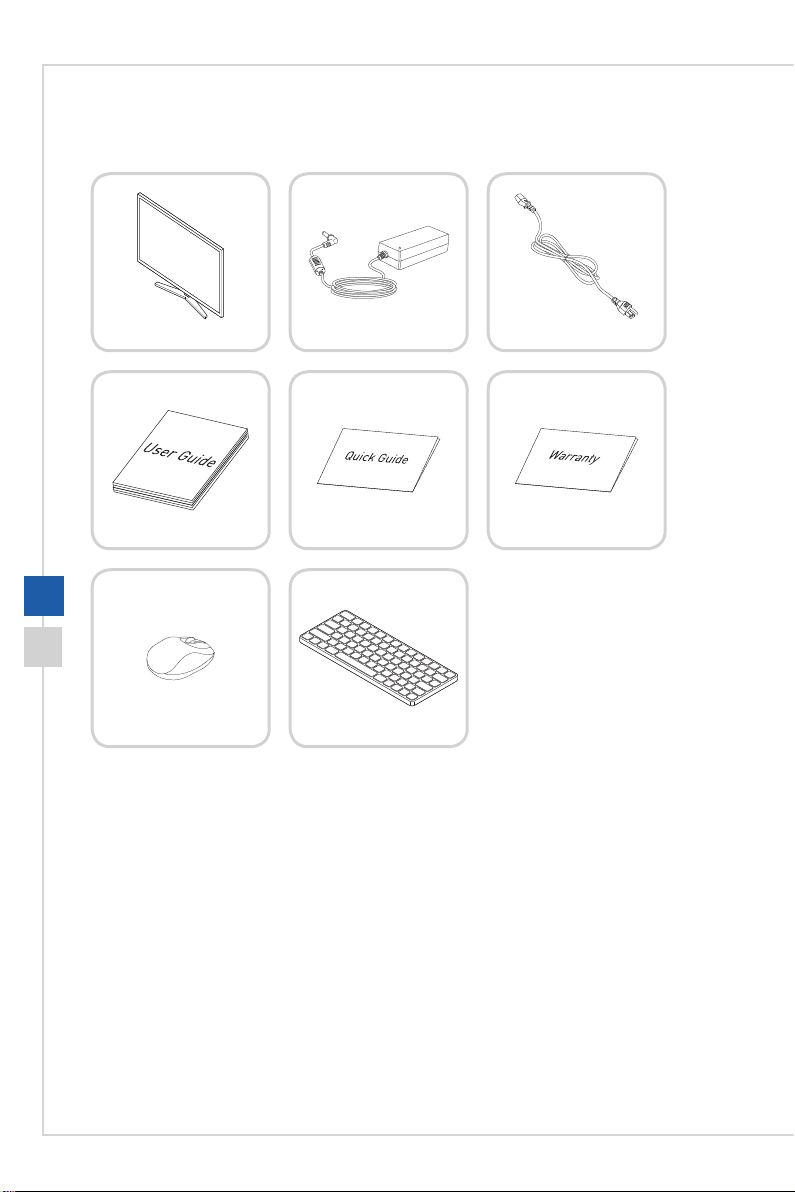

Packing Contents

PRO 22X/ 22XT AC/DC Adapter AC Power Cord

User Manual (Optional) Quick Guide Warranty Card/ Book

Mouse (Optional) Keyboard (Optional)

* Please contact us immediately if any of the items is damaged or missing�

* The illustrations are for reference only and your packing contents may slightly vary

depending on the model you purchased�

1-3

Overview

1-2

System Overview

hFront View

1

2

1Display

The 21�5-inch LED-backlit display provides 1920 x 1080 FHD resolution in a

16:9 widescreen format�

2Stand

Use this stand to position your system on a 󰘱at and stable surface.

1-5

Overview

1-4

hSide View

1

2

4

3

1Card Reader Drive

The built-in card reader may support various types of memory cards�

2USB 3�2 Gen 1 Port

USB 3�2 Gen 1, the SuperSpeed USB, delivers up to 5Gbps high-speed

data transfer for various devices, such as storage devices, hard drives, video

cameras, etc�

3USB 3�2 Gen 1 Port (Type-C)

USB 3�2 Gen 1, the SuperSpeed USB, delivers up to 5Gbps high-speed

data transfer for various devices, such as storage devices, hard drives, video

cameras, etc� The slim and sleek USB Type-C connector features reversible

plug orientation and up to 5V/3A power supply for external devices�

4Power Button

Press the power button to turn the system on and o󰘯.

1-5

Overview

1-4

hRear View

3

1

2

8

7

12

5

6

4

11

10

9

Important

We suggest that you connect the AC/DC adapter to your AIO PC 󰘰rst and then connect

the AC power cord to the socket-outlet for safety concerns�

1-7

Overview

1-6

1Ventilator

The ventilator on the enclosure is used for air convection and to prevent the

equipment from overheating� Do not cover the ventilator�

2Navi Key

The AIO PC comes with a Navi Key, a multi-directional control that helps

navigate the On-Screen Display (OSD) menu�

3Kensington Lock Port

This AIO PC provides a Kensington lock port, which allows users to secure

the AIO PC in place with a key or some mechanical PIN device and attached

through a rubberised metal cable� The end of the cable has a small loop

which allows the whole cable to be looped around a permanent object, such

as a heavy table or other similar equipment, thus securing the AIO PC in

place�

4HDMI-Out Port

The High-De󰘰nition Multimedia Interface (HDMI) is an all-digital audio/video

interface capable of transmitting uncompressed streams� HDMI supports all

TV format, including standard, enhanced, or high-de󰘰nition video, plus multi-

channel digital audio on a single cable�

5HDMI-In Port (with MSI Instant Display Technology)

The High-De󰘰nition Multimedia Interface (HDMI) is an all-digital audio/video

interface capable of transmitting uncompressed streams� HDMI supports all

TV format, including standard, enhanced, or high-de󰘰nition video, plus multi-

channel digital audio on a single cable�

With MSI Instant Display Technology, when you connect power to the AIO

PC successfully, the monitor will automatically enter “standby” mode without

pressing the power button� When devices are connected to the HDMI-in port,

the monitor will be turned on immediately� You can also switch the modes

through the Monitor Power/ Mode Button on the side panel if you have

already turned on your AIO PC� This technology helps to save more energy

for your system�

6Serial Port

The serial port supports barcode scanners, barcode printers, bill printers,

credit card machine, etc�

7USB 3�2 Gen 1 Port

USB 3�2 Gen 1, the SuperSpeed USB, delivers up to 5Gbps high-speed

data transfer for various devices, such as storage devices, hard drives, video

cameras, etc�

1-7

Overview

1-6

8RJ-45 LAN Jack

The standard RJ-45 LAN jack is provided for connection to the Local Area

Network (LAN)� You can connect a network cable to it�

Green/ OrangeYellow

LED Color LED State Condition

Left Yellow O󰘯 LAN link is not established�

On (steady state) LAN link is established�

On (blinking) The computer is communicating with

another computer on the LAN�

Right Green O󰘯 10 Mbit/sec data rate is selected�

On 100 Mbit/sec data rate is selected�

Orange On 1000 Mbit/sec data rate is selected�

9USB 2�0 Port

The USB (Universal Serial Bus) port is for attaching USB devices such

as keyboard, mouse, or other USB-compatible devices� It supports up to

480Mbit/s (Hi-Speed) data transfer rate�

10 Headphone Jack

This connector is provided for headphones or speakers�

11 Microphone Jack

This connector is provided for microphones�

12 Power Jack

The AC/DC adapter converts AC power to DC power for this jack� Power

supplied through this jack supplies power to the PC� To prevent damage to

the PC, always use the supplied power adapter�

Important

High-speed devices are recommended for USB 3�2 ports whereas low-speed devices,

such as mouse or keyboard, are suggested to be plugged into the USB 2�0 ports�

PB

Overview

1-8

Component Replacement & Upgrade

Please note that certain components preinstalled in the product may be upgradable or

replaceable by user’s request depending on the models users purchased�

For any further information on the product users purchased, please contact the local

dealer� Do not attempt to upgrade or replace any component of the product if you are

not an authorized dealer or service center, since it may cause the warranty void� It is

strongly recommended that you contact the authorized dealer or service center for any

upgrade or replace service�

2

Getting Started

This chapter provides you with the information on hardware setup procedures�

While connecting peripheral devices, be careful in holding the devices and

use a grounded wrist strap to avoid static electricity�

Getting Started

2-32-2

Safety & Comfort Tips

The AIO PC is a portable platform that allows you to work anywhere� However, choosing

a good workspace is important if you have to work with your PC for a long period of time�

1� Your work area should have enough illumination�

2� Choose the proper desk and chair and adjust their height to 󰘰t your posture when

operating�

3� When sitting on the chair, sit straight and keep a good posture� Adjust the chair’s

back (if available) to support your back comfortably�

4� Place you feet 󰘱at and naturally on the 󰘱oor, so that your knees and elbows have

the proper position (about 90-degree) when operating�

5� Put your hands on the desk naturally to support your wrists�

6� Adjust the angle/ position of the AIO PC to have an optimal view�

7� Avoid using your PC in a place where discomfort may occur (such as on the bed)�

8� The AIO PC is an electrical device� Please treat it with great care to avoid personal

injury�

MSI Pro 22XT 10M i5-10400 User manual

Popular Desktop manuals by other brands
