MSI Wind Top AE2240 User manual
Wind Top AE2240 Series
All-in-One (AIO) PC
G52-AC221X8
ii
iii
MS-AC22
iv
v
MS-AC22
vi
廢電池請回收
vii
MS-AC22
廢電池請回收
viii
ix
MS-AC22
x
xi
MS-AC22
xii
Chapter 1
Overview
The Wind Top AE2240 Series is integrated in design, selecting a
stylish appearance with a glassy frame, which displays the sim-
plicity of modern individualism and the comfort of home. Further-
more, it is accompanied with the best computer features, such as
instant message, low acoustics, energy saving and 802.11 b/g/n
wireless internet capability so you may roam freely in the realm
of cyberspace.
1-2
Overview
▍
SyStem Overview
1Microphone
- The built-in microphone can be used for video chatting online.
2Webcam
- The built-in webcam with the microphone can be used for picture tak-
ing, video recoding, online conferencing and any other interactive ap-
plications.
3IR Receiver (Optional)
- This infrared receiver is provided for remote control.
4LCD Display
- The 21.5-inch TFT LCD display is with an optimal resolution of 1920 X
1080 and standard proportion of 16:9 widescreen.
5Stereo Speakers
- The built-in stereo speakers deliver high quality sound blaster with ste-
reo system and Hi-Fi function supported.
Front View
1
2
3
4
5
Packing cOntentS
* Please contact us immediately if any of the items is
damaged or missing.
* The illustrations are for reference only and your
packing contents may slightly vary depending on
the model you purchased.
Wind Top Series
User Manual &
Quick Guide
Driver/ Utility Disk
Stylus (Optional)
Mouse (Optional)
Keyboard (Optional)
LCD Display Wiper
AC/DC Adapter
AC Power Cord
1-3
MS-AC22
SyStem Overview
1Microphone
- The built-in microphone can be used for video chatting online.
2Webcam
- The built-in webcam with the microphone can be used for picture tak-
ing, video recoding, online conferencing and any other interactive ap-
plications.
3IR Receiver (Optional)
- This infrared receiver is provided for remote control.
4LCD Display
- The 21.5-inch TFT LCD display is with an optimal resolution of 1920 X
1080 and standard proportion of 16:9 widescreen.
5Stereo Speakers
- The built-in stereo speakers deliver high quality sound blaster with ste-
reo system and Hi-Fi function supported.
Front View
1
2
3
4
5
Packing cOntentS
* Please contact us immediately if any of the items is
damaged or missing.
* The illustrations are for reference only and your
packing contents may slightly vary depending on
the model you purchased.
Wind Top Series
User Manual &
Quick Guide
Driver/ Utility Disk
Stylus (Optional)
Mouse (Optional)
Keyboard (Optional)
LCD Display Wiper
AC/DC Adapter
AC Power Cord
1-4
Overview
▍
Important
We suggest that you connect the AC/DC adapter to your AIO PC rst and then con-
nect the AC power cord to the socket-outlet for safety concerns.

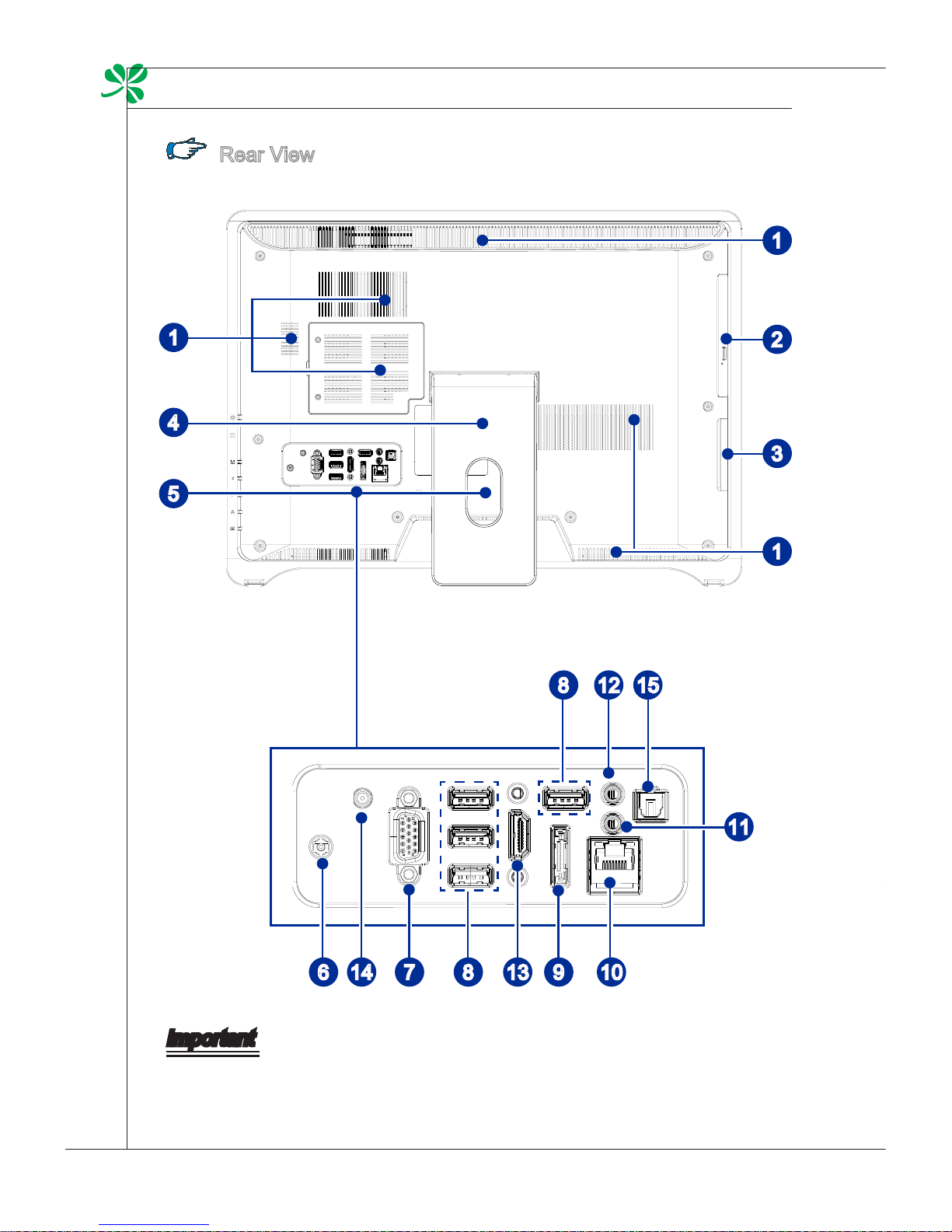

Rear View 1Ventilator
- The ventilator on the enclosure is used for air convection and to pre-
vent the equipment from overheating. Do not cover the ventilator.
2Optical Disk Drive
- A DVD Super-Multi drive is integrated for your home entertainment
(Blu-ray is optional).
3Card Reader Drive
- The built-in card reader may support various types of memory card,
such as XD (eXtreme Digital), SD (Secure Digital), SDHC (SD High
Capacity), MS (Memory Stick), MS Pro (Memory Stick Pro) or MMC
(Multi-Media Card) cards that usually used in devices like digital cam-
eras, MP3 players, mobile phones and PDAs. Contact the local dealer
for further information and please be noted that the supported memory
cards may vary without notice.
4Stand
- Use this stand to position your system on a at and stable surface.
5Cable Routing Hole
- Route the cables through the cable routing hole to avoid cable spa-
ghetti when connecting devices.
6Power Jack
- The AC/DC adapter converts AC power to DC power for this jack.
Power supplied through this jack supplies power to the PC. To prevent
damage to the PC, always use the supplied AC/DC adapter.
7VGA Port (Optional)
- The DB15-pin female connector is provided for monitor.
8USB Port
- The USB (Universal Serial Bus) port is provided for attaching USB
devices such as mouse, keyboard, printer, scanner, camera, PDA or
other USB-compatible devices.
9eSATA Port (Optional)
- The eSATA (external SATA) port is provided for eSATA hard disk
drives.
1
12
3
1
4
5
6 7 8 9 10
11
12
1314
158
1-5
MS-AC22
Important
We suggest that you connect the AC/DC adapter to your AIO PC rst and then con-
nect the AC power cord to the socket-outlet for safety concerns.
Rear View 1Ventilator
- The ventilator on the enclosure is used for air convection and to pre-
vent the equipment from overheating. Do not cover the ventilator.
2Optical Disk Drive
- A DVD Super-Multi drive is integrated for your home entertainment
(Blu-ray is optional).
3Card Reader Drive
- The built-in card reader may support various types of memory card,
such as XD (eXtreme Digital), SD (Secure Digital), SDHC (SD High
Capacity), MS (Memory Stick), MS Pro (Memory Stick Pro) or MMC
(Multi-Media Card) cards that usually used in devices like digital cam-
eras, MP3 players, mobile phones and PDAs. Contact the local dealer
for further information and please be noted that the supported memory
cards may vary without notice.
4Stand
- Use this stand to position your system on a at and stable surface.
5Cable Routing Hole
- Route the cables through the cable routing hole to avoid cable spa-
ghetti when connecting devices.
6Power Jack
- The AC/DC adapter converts AC power to DC power for this jack.
Power supplied through this jack supplies power to the PC. To prevent
damage to the PC, always use the supplied AC/DC adapter.
7VGA Port (Optional)
- The DB15-pin female connector is provided for monitor.
8USB Port
- The USB (Universal Serial Bus) port is provided for attaching USB
devices such as mouse, keyboard, printer, scanner, camera, PDA or
other USB-compatible devices.
9eSATA Port (Optional)
- The eSATA (external SATA) port is provided for eSATA hard disk
drives.
1
12
3
1
4
5
6 7 8 9 10
11
12
1314
158
1-6
Overview
▍
10 RJ-45 LAN Jack
- The standard RJ-45 LAN jack is provided for connection to the Local
Area Network (LAN). You can connect a network cable to it.
Green/ OrangeYellow
LED Color LED State Condition
Left Yellow O LAN link is not established.
On (steady state) LAN link is established.
On (brighter & pulsing) The computer is communicating with
another computer on the LAN.
Right Green O 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
11 Microphone Jack
- This connector is provided for microphones.
12 Headphone Jack
- This connector is provided for headphones or speakers.
13 HDMI Port (Optional)
- The High-Denition Multimedia Interface (HDMI) is an all-digital audio/
video interface capable of transmitting uncompressed streams. HDMI
supports all TV format, including standard, enhanced or high-denition
video, plus multi-channel digital audio on a single cable.
14 TV Tuner Antenna Connector (Optional)
- This connector is for TV antenna.
15 Optical S/PDIF-Out Jack (Optional)
- This S/PDIF (Sony & Philips Digital Interconnect Format) jack is pro-
vided for digital audio transmission to external speakers through an
optical ber cable.
Side View
1Optical Disk Drive
- A DVD Super-Multi drive is integrated for your home entertainment
(Blu-ray is optional).
2Eject Button
- Press the eject button to open the optical disk drive.
3Eject Hole
- Insert a thin, straight object (such as a paper clip) into the eject hole to
open the optical disk drive manually if the eject button does not work.
4Card Reader Drive
- The built-in card reader may support various types of memory card,
such as XD (eXtreme Digital), SD (Secure Digital), SDHC (SD High
Capacity), MS (Memory Stick), MS Pro (Memory Stick Pro) or MMC
(Multi-Media Card) cards that usually used in devices like digital cam-
eras, MP3 players, mobile phones and PDAs. Contact the local dealer
for further information and please be noted that the supported memory
cards may vary without notice.
1
2
3
4
5
6
7
89
10
11
1-7
MS-AC22
10 RJ-45 LAN Jack
- The standard RJ-45 LAN jack is provided for connection to the Local
Area Network (LAN). You can connect a network cable to it.
Green/ OrangeYellow
LED Color LED State Condition
Left Yellow O LAN link is not established.
On (steady state) LAN link is established.
On (brighter & pulsing) The computer is communicating with
another computer on the LAN.
Right Green O 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
11 Microphone Jack
- This connector is provided for microphones.
12 Headphone Jack
- This connector is provided for headphones or speakers.
13 HDMI Port (Optional)
- The High-Denition Multimedia Interface (HDMI) is an all-digital audio/
video interface capable of transmitting uncompressed streams. HDMI
supports all TV format, including standard, enhanced or high-denition
video, plus multi-channel digital audio on a single cable.
14 TV Tuner Antenna Connector (Optional)
- This connector is for TV antenna.
15 Optical S/PDIF-Out Jack (Optional)
- This S/PDIF (Sony & Philips Digital Interconnect Format) jack is pro-
vided for digital audio transmission to external speakers through an
optical ber cable.
Side View
1Optical Disk Drive
- A DVD Super-Multi drive is integrated for your home entertainment
(Blu-ray is optional).
2Eject Button
- Press the eject button to open the optical disk drive.
3Eject Hole
- Insert a thin, straight object (such as a paper clip) into the eject hole to
open the optical disk drive manually if the eject button does not work.
4Card Reader Drive
- The built-in card reader may support various types of memory card,
such as XD (eXtreme Digital), SD (Secure Digital), SDHC (SD High
Capacity), MS (Memory Stick), MS Pro (Memory Stick Pro) or MMC
(Multi-Media Card) cards that usually used in devices like digital cam-
eras, MP3 players, mobile phones and PDAs. Contact the local dealer
for further information and please be noted that the supported memory
cards may vary without notice.
1
2
3
4
5
6
7
89
10
11
1-8
Overview
▍
5USB Ports
- The USB (Universal Serial Bus) port is provided for attaching USB
devices such as mouse, keyboard, printer, scanner, camera, PDA or
other USB-compatible devices.
6System Power Button/ LED
- Press the system power button to turn the system on or o.
The power LED glows when the system is turned on and goes o when
the system is shut down.
In terms of power saving, the LED blinks in S3 (Suspend to RAM)
mode and goes o in S4 (Suspend to Disk) mode. Pressing the system
power button will wake the system up from power saving mode.
7MENU Button
- Press this button to view the OSD menu or enter into the sub menu.
8Right Button
- This button indicates the cursor movement or OSD manual selection
in incremental values.
9Left Button
- This button indicates the cursor movement or OSD manual selection
in decremental values.
10 AUTO Button
- Press this button to view the video mode menu or exit the submenu.
11 LCD Power Button
- Press this button to power ON/ OFF the monitor.
SyStem SPecificatiOnS
Processor
Intel Pentium and Core™ i series processor
Chipset
Intel HM55 chipset
Memory
2 DDR3 SO-DIMM slots
Supports the maximum of 4GB
LAN
Wired LAN: supported by Realtek RTL8111DL Gigabit Ethernet controller
Wireless LAN: optionally supported through Mini PCI-E WLAN module
Audio
HDA Codec by Realtek ALC662
Compliant with Azalia 1.0 specs
Display
21.5-inch TFT LCD display with an optimal resolution of 1920 X 1080 and
standard proportion of 16:9 widescreen
Rear Panel I/O
1 DC power jack
1 VGA-In port (Optional)
4 USB ports
1 HDMI-Out port (Optional)
1 eSATA port (Optional)
1 RJ-45 LAN jack
1 microphone jack
1 headphone/ speaker jack
1 optical S/PDIF-Out jack (Optional)
Storage
Hard Disk Drive: 3.5”, SATAII
Optical Disk Drive: Slim DVD Super Multi (Blu-ray is optional)
Card Reader: 4 in 1 (XD, SD, MMC, MS)
Stereo Speaker
2 Hi-Fi stereo speakers with THX TruStudio PRO (3W)
WebCam
1.3M WebCam with microphone
Power Supply
90~120 watt AC/DC adapter with active PFC
Input: 100-240V~, 50-60Hz, 1.5A
Output: 19V 4.74A
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
This manual suits for next models
1
Table of contents
Other MSI Desktop manuals
MSI
MSI PRO DP21 11MA-217US User manual
MSI
MSI MEG Aegis Ti5 10TD-066EU User manual
MSI
MSI 092EU User manual
MSI
MSI Wind Top AP1622 User manual
MSI
MSI Infinite S B928 User manual
MSI
MSI Claw User manual
MSI
MSI MS-6638 User manual
MSI
MSI MS6243 User manual
MSI
MSI Pro 24X 7M User manual
MSI
MSI Wind Top AE2420 3D User manual
MSI
MSI PRO AP241 User manual
MSI
MSI Wind Nettop 100 - Wind Nettop 100 Desktop PC User manual
MSI
MSI MAG Codex Series User manual
MSI
MSI MAG Codex X5 User manual
MSI
MSI 007EU User manual
MSI
MSI MPG GUNGNIR 110R User manual
MSI
MSI Creator Series User manual
MSI
MSI PRO 20EX Series User manual
MSI
MSI MS-9A07 User manual
MSI
MSI 008XEU User manual
