CHAPTER 1 INTRODUCTION
1-1
Chapter 1
INTRODUCTION
The 694 Master (MS-6309 ver 3.0) ATX mainboard is a high-performance
computer mainboard based on VIA®VT82C694X chipset. The 694 Master
(MS-6309 ver 3.0) is designed for the Intel®CeleronTM or Coppermine (FC-
PGA) processor for inexpensive business/personal desktop markets.
TheApolloPro133A(VT82C694X)isaSocket-370systemlogicnorthbridge
with the addition of 133 MHz capability for both the CPU and SDRAM
interfaces. Apollo Pro133A may be used to implement both desktop and
notebook personal computer systems from 66MHz to 133MHz based on
Socket-370. The primary features of the Apollo Pro133A-North Bridge are:
Slot-1orSocket-370CPU(FrontSideBus)Interface(66 / 100 / 133MHz),
DRAMMemory Interface (66 / 100/133MHz), AGP Bus Interface(66MHz),
PCIBusInterface(33MHz), Mobile Power Management.
TheVT82C686B PSIPC (PCI Super-I/OIntegratedPeripheral Controller) is a
high integration, high performance, power-efficient, and high compatibility
device that supports Intel and non-Intel based processor to PCI bus bridge
functionality to make a complete Microsoft PC99-compliant PCI/ISA system.

CHAPTER 1 INTRODUCTION
1-2
Mainboard Features
CPU
lSocket 370 for Intel®CeleronTM/ Coppermine processor.
lSupports233MHz,266MHz, 300MHz,333MHz,350MHz, 400MHz,
450MHz,500MHZ,533MHzto1GHz.
Chipset
lVIA®694Xchipset (510BGA)
-AGP 4x and PCI plus Advanced ECC Memory Controller
-SupportPC100/133 SDRAM, VCM technology
lVIA®VT82C686Bchipset(352BGA)
- Advanced Power Management Features
-IntegratedSuperI/O(FDC,LPT,COM 1/2, and IR)
- DirectSound AC97 Audio
-DualbusMasterIDEUltraDMA33/66/100
-ACPI
ClockGenerator
l66.6MHz,100MHz and133MHzclocks are supported.
MainMemory
lSupport eight memory banks using four 168-pin unbuffered DIMM.
lSupporta maximummemory sizeof 2GB (32Mx8).
lSupportECC(1-bitErrorCodeCorrect)function.
lSupport 3.3v SDRAM DIMM.
Slots
lOne AGP (Accelerated Graphics Port) slot.
- AGP specification compliant
- AGP66MHz 3.3v/1.5v for 2x/4x device support
lOne CNR (Communication Network Riser) slot which support Modem
only.
lSix 32-bit Master PCI Bus slots.
lSupports 3.3v/5v PCI bus Interface.

CHAPTER 1 INTRODUCTION
1-3
On-BoardIDE
lAnIDEcontrolleron the VIA®VT82C686BChipsetprovidesIDE HDD/
CD-ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation
modes.
lCan connect up to four IDE devices.
On-BoardPeripherals
lOn-BoardPeripherals include:
-1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
-2 serial ports (COMA + COMB)
- 1 parallel port supports SPP/EPP/ECP mode
- 4 USB ports
- 1 IrDA/HP connector for SIR
-1394 (optional)
Audio
lChip Integrated (Software Audio)
-AC’97Compliant
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface (DMI)
function which records your mainboard specifications.
Dimension
lATXFormFactor : 30.5cm (L)x21cm (W) x4 layers PCB
Mounting
l6 mounting holes.

CHAPTER 1 INTRODUCTION
1-4
PCI SLOT 3
PCI SLOT 2
PCI SLOT 1
ATX
Power Supply
VIA
694X
chipset
Socket 370
DIMM 2
Top: mouse
Bottom:
keyboard
Top:Port 1
USB
DIMM 3
IDE1
Bottom:
Port2
IDE2 FDD
VT82C686B
JMDM1
JFP1
JGS1
JGL1
JBAT1
JWOL1
JPH
JAUX
CPUFAN
BATT
+
Top: LPT
Bottom:
COMA
COMB
Top: Midi/
GamePort
Bottom:
Line-Out
Line-In
Mic
694 Master (MS-6309 ver 3.0) Mainboard
JCD
USB2
JRMS1
CNR1
AGP Slot
SYSFAN
JVTT
DIMM 1
PCI SLOT 4
PCI SLOT 5
J4
BIOS
Mainboard Layout
J3
VT1611A
DIMM 4
PCI SLOT 6
JFSH1
J2
DiagnosticLED
JSPK1
J601

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-1
+27
+27
Chapter 2
HARDWARE INSTALLATION
Central Processing Unit: CPU
The mainboard operates with Intel® CeleronTM/Pentium® III (FC-PGA)
processor. The mainboard uses a CPU socket called Socket 370 for easy
CPU installation. The CPU should always have a eat Sink and a cooling
fan attached to prevent overheating.

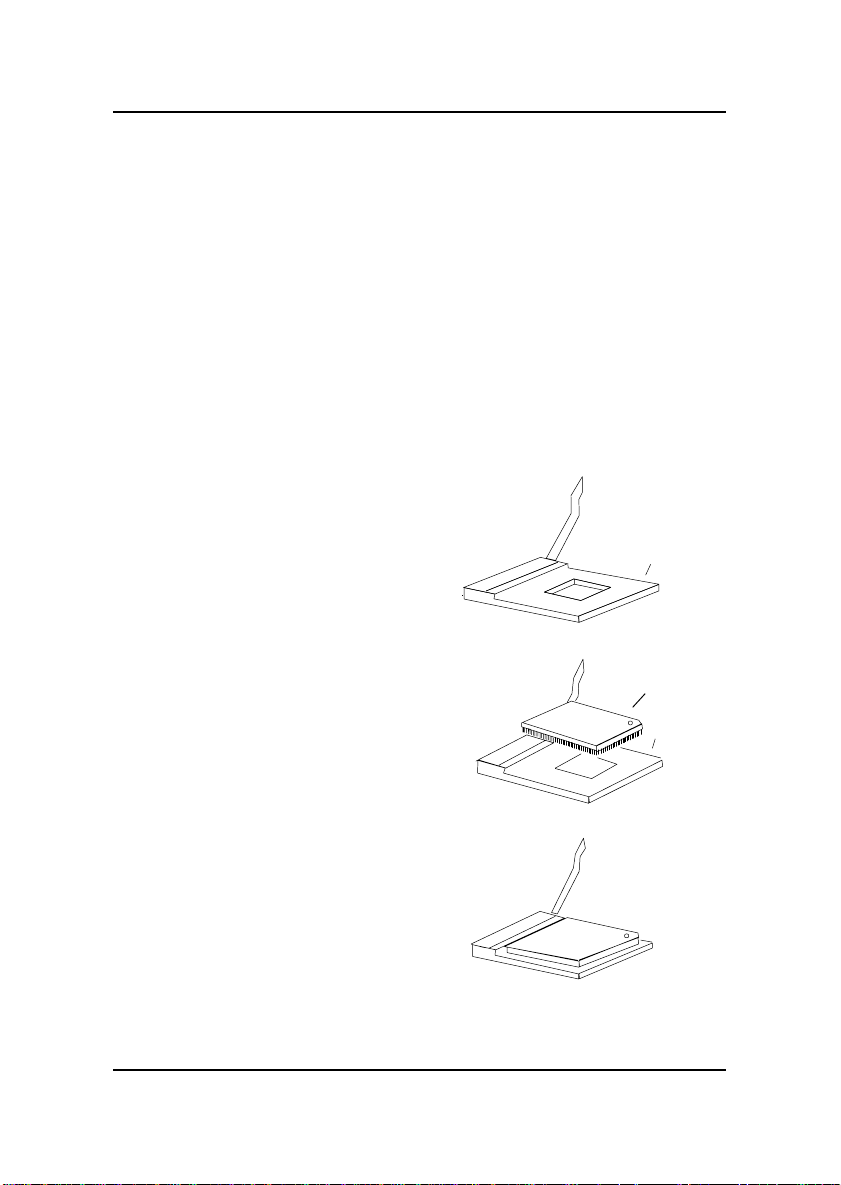

3. Press the lever down to
complete the installation.
2. Locate Pin 1 in the socket
and look for the white dot or
cut edge in the CPU. Match
Pin 1 with the white dot/cut
edge. Then, insert the CPU.
It should insert easily.
Open Lever
Pin 1
Sliding
Plate
White dot/
Cut edge
Close
Lever
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
Pin 1
••
••
• CPU Installation Procedures

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-2
The BIOS can be used to set the CPU ost Bus Frequency Clock.
If CPU Clock = 66M z
Core/Bus ratio = 3.5
then CPU core speed = ost Clock x Core/Bus ratio
= 66M z x 3.5
= 233M z
• CPU Core Speed Derivation Procedure

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-3

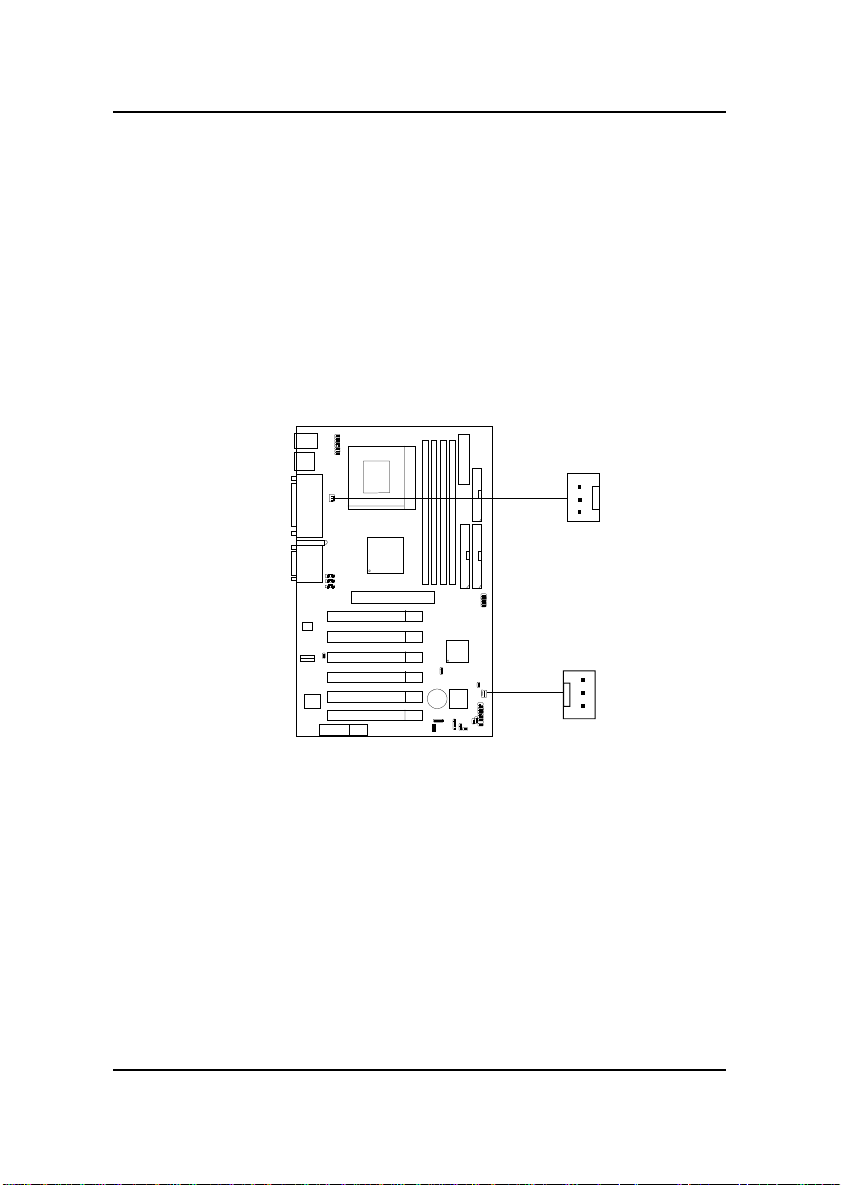

• Fan Power Connectors: CPUFAN & SYSFAN
These connectors support system cooling fan with + 12V. It sup-
ports three pin head connector. When connecting the wire to the
connector, always take note that the red wire is the positive and
should be connected to the +12V, the black wire is Ground and
should be connected to GND. If your mainboard has System ard-
ware Monitor chipset on-board, you must use a specially designed
fan with speed sensor to take advantage of this function.
For fans with fan speed sensor, every rotation of the fan will send out 2
pulses. System ardware Monitor will count and report the fan rotation
speed.
Note: Always consult your reseller for proper CPU cooling fan.
CPUFAN
CPUFAN: Processor Fan
SYSFAN: System Fan
+12V
GND
SENSOR
SYSFAN
+12V
GND
SENSOR

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-

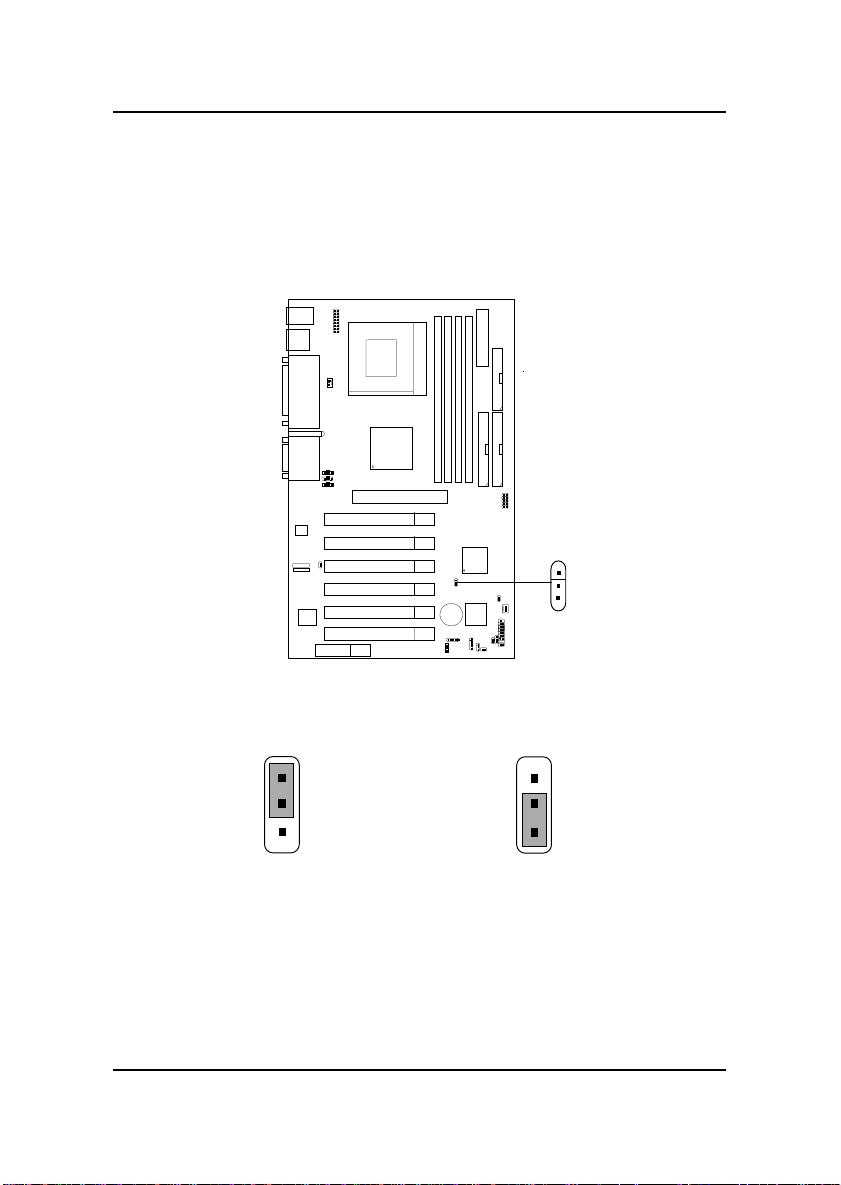

Clear CMOS Jumper: JBAClear CMOS Jumper: JBA
Clear CMOS Jumper: JBAClear CMOS Jumper: JBA
Clear CMOS Jumper: JBAT1T1
T1T1
T1
A battery must be used to retain the mainboard configuration in CMOS
RAM. Short 1-2 pins of JBAT1 to store the CMOS data.
Keep Data Clear Data
11
3
3
Note: You can clear CMOS by shorting 2-3 pin, while the system is off.
Then, return to 1-2 pin position. Avoid clearing the CMOS while
the system is on, it will damage the mainboard. Always unplug
the power cord from the wall socket.
22
1
3
JBAT1

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-5

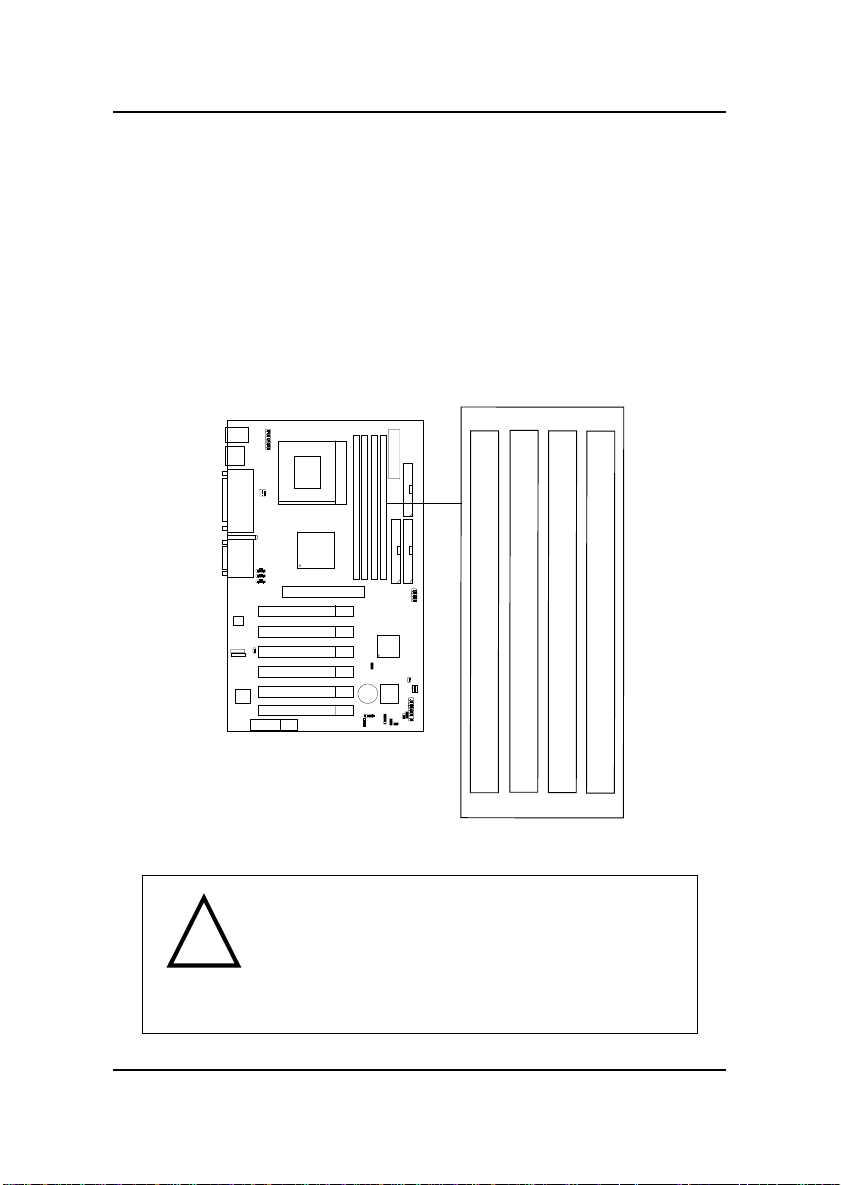

Memory InstallationMemory Installation
Memory InstallationMemory Installation
Memory Installation
••
••
• Memory ank Configuration
The mainboard supports a maximum memory size of 2GB (256-bit
technology) SDRAM: It provides four 168-pin unbuffered DIMMs (Double
In-Line Memory Module) sockets. It supports 8 MB to 512 Mbytes DIMM
memory module.
DIMM1(Bank0+ Bank1)
DIMM2(Bank2+ Bank3)
DIMM3(Bank4+ Bank5) DIMM4(Bank6+ Bank7)
There are three kinds of DIMM specification supported
by this mainboard: PC133, PC100 and PC66 If you
use 66MHz CPU Bus Frequency, these four DIMM
Specs is supported If you use 100 MHz CPU Bus
Frequency, only PC100 DIMM Specs is supported If
you use 133 MHz CPU Bus Frequency, only PC133
DIMM Specs is supported

WARNING!

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-6

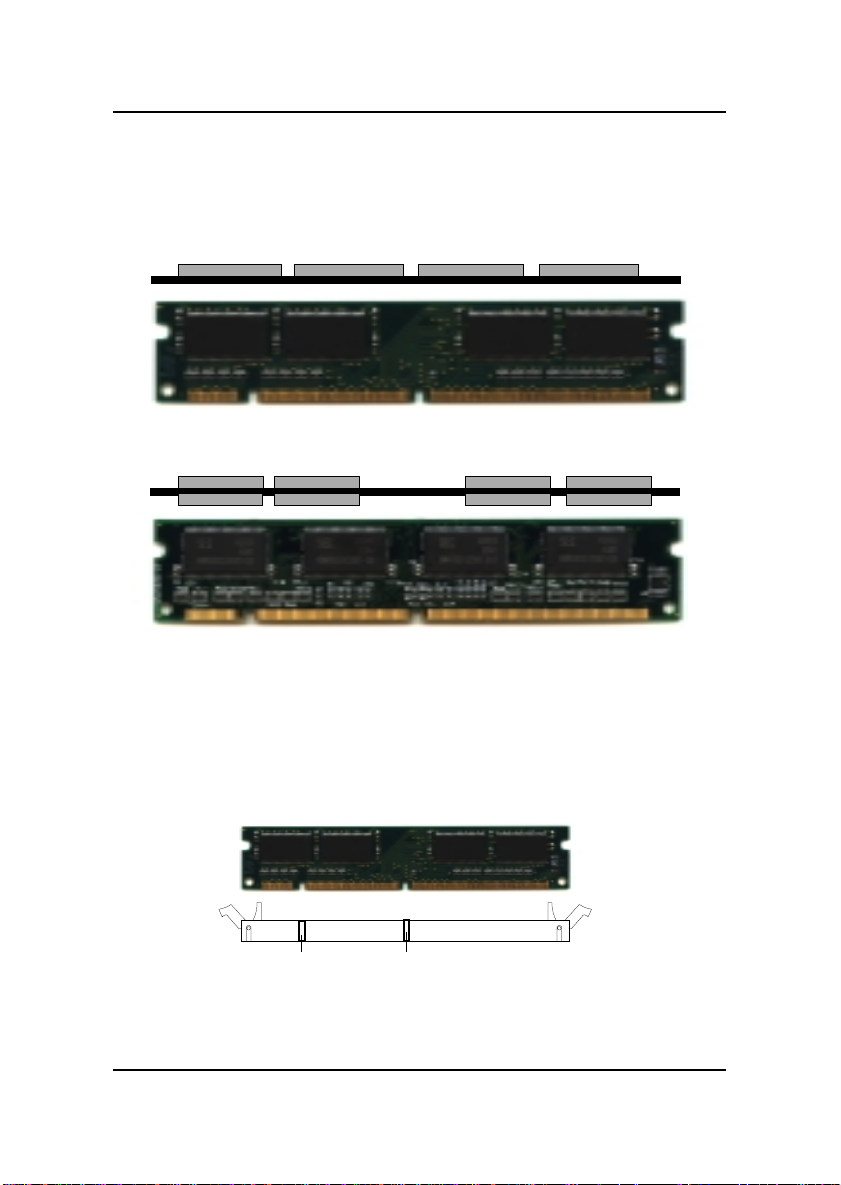

A. How to install a DIMM Module
1. The DIMM slot has 2 Notch Keys VOLT and DRAM, so the
DIMM memory module can only fit in one direction.
2. Insert the DIMM memory module vertically into the DIMM slot.
Then push it in.
3. The plastic clip at the side of the DIMM slot will automatically
close.
Single Sided DIMM
Double Sided DIMM
VOLTDRA
••
••
• Memory Installation Procedures

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-7
1. Supports only SDRAM DIMM.
2. To operate properly, at least one 168-pin DIMM module must be
installed.
3. This mainboard supports Table Free memory, so memory can be installed
on DIMM1, DIMM 2, DIMM 3 or DIMM4 in any order.
4. Supports 3.3 volt DIMM.
5. The DRAM addressing and the size supported by the mainboard is
shown below:
••
••
• Memory Population Rules
SDRAM Memory Addressing
16M 1Mx16 ASYM 11 8 8MBx4 16MBx8
2Mx8 ASYM 11 9 16MBx8 32MBx16
4Mx4 ASYM 11 10 32MB 64MB
64M 2Mx32 ASYM 11 9 32MBx2 64MBx4
2Mx32 ASYM 12 8 16MBx2 32MBx4
4Mx16 ASYM 11 10 32MB 64MB
4Mx16 ASYM 13 8 32MB 64MB
8Mx8 ASYM 13 9 64MB 128MB
16Mx4 ASYM 13 10 128MB 256MB
64M 2Mx32 ASYM 12 8 16MB 32MB
4Mx16 ASYM 13 8 32MB 64MB
8Mx8 ASYM 13 9 64MB 128MB
16Mx4 ASYM 13 10 128MB 256MB
DRAM
Tech.
DRAM
Density &
Width
DRAM
Addressin
Address Size MB/DIMM
Row Column Single
Side(S)
Double
Side(D)
no.
pcs.
no.
pcs.

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-8
Case Connector: JFP1
The Keylock (reserved), Power Switch, Reset Switch, Power LED, Speaker,
and DD LED are all connected to the JFP1 connector block.
JFP1
Power
Switch
Power LED
+
Reset
Switch
HDD
LED
+
Speaker
Buzzer
14
15
Keylock
Dual
Color
LED
Single
Color
LED

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-9
Power Switch
Connect to a 2-pin push button switch. This switch has the same feature
with JRMS1.
Reset Switch
Reset switch is used to reboot the system rather than turning the power ON/
OFF. Avoid rebooting while the DD LED is lit. You can connect the Reset
switch from the system case to this pin.
Power LED
The Power LED is lit while the system power is on. Connect the Power LED
from the system case to this pin. There are two types of LED that you can
use: 3-pin single color LED or 2-pin dual color LED (ACPI request).
a. 3 pin single color LED connect to pin 4, 5, & 6. This LED will lit
when the system is on.
b. 2 pin dual color LED connect to pin 5 & 6.
GREEN Color: Indicate the system is in full on mode.
ORANGE Color: Indicate the system is in suspend mode.
Speaker
Speaker from the system case is connected to this pin.
If on-board Buzzer is available:
Short pin 14-15: On-board Buzzer Enabled.
Open pin 14-15: On-board Buzzer Disabled.
HDD LED
DD LED shows the activity of a hard disk drive. Avoid turning the power
off while the DD led is lit. You can connect the DD LED from the system
case to this pin.

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-10
Floppy Disk Connector: FDD
The mainboard also provides a standard floppy disk connector FDD that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This
connector supports the provided floppy drive ribbon cables.
FDD
1

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-11

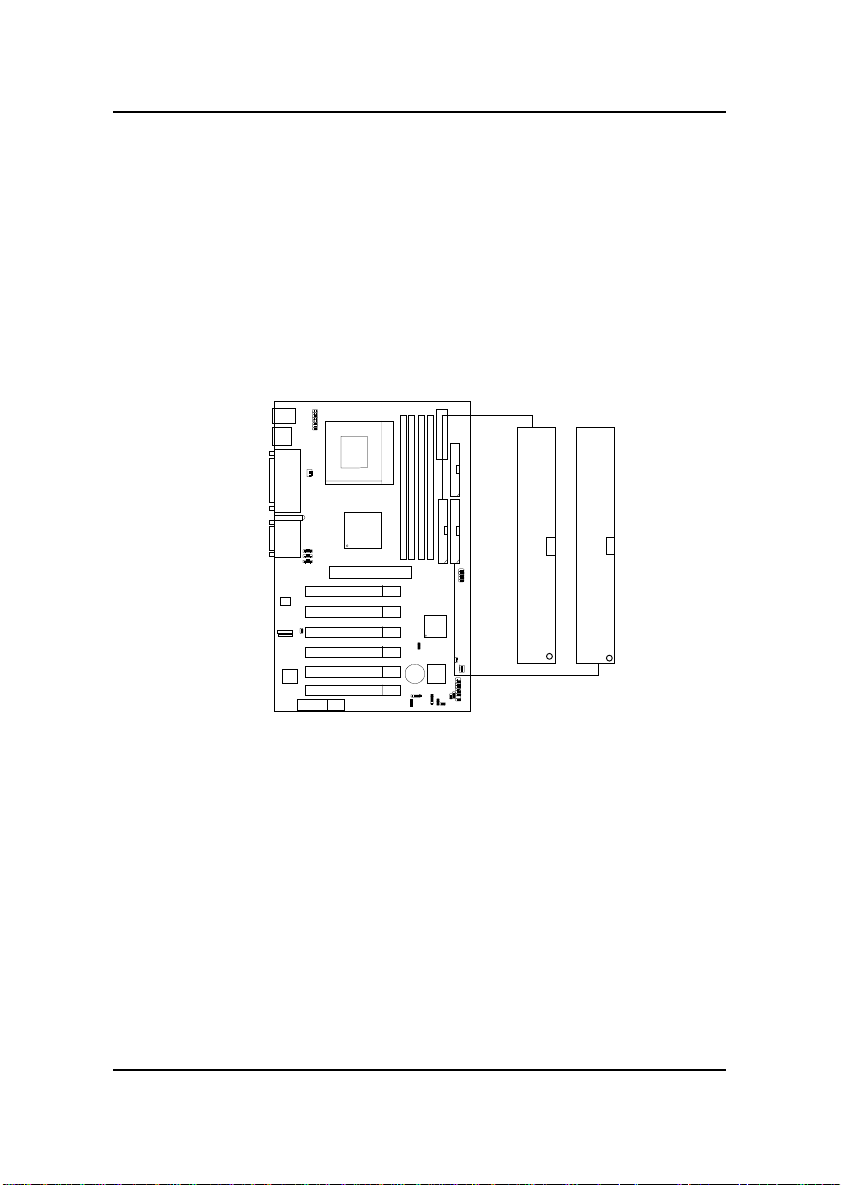

Hard Disk Connectors: IDE1 & IDE2
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA/33/66/100
Controller that provides PIO mode 0~5, Bus Master, and Ultra DMA/33/66/
100 function. It has two DD connectors IDE1 (primary) and IDE2
(secondary). You can connect up to four hard disk drives, CD-ROM, 120MB
Floppy (reserved for future BIOS) and other devices to IDE1 and IDE2.
These connectors support the provided IDE hard disk cable.
IDE1 (Primary IDE Connector)
The first hard drive should always be connected to IDE1. IDE1 can
connect a Master and a Slave drive. You must configure second hard
drive to Slave mode by setting the jumper accordingly.
IDE2 (Secondary IDE Connector)
IDE2 can also connect a Master and a Slave drive.
Secondary IDE Connector
Primary IDE Connector
11

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-12
Power SupplyPower Supply
Power SupplyPower Supply
Power Supply
••
••
• ATX 20-pin Power Connector: JWR1
This connector supports the power button on-board. Using the ATX power
supply, functions such as Modem Ring Wake-Up and Soft Power Off are
supported by this mainboard. This power connector supports instant power
on function which means that system will boot up instantly when the power
connector is inserted on the board.
PIN SIGNAL
11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V
PIN SIGNAL
1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V
PIN DEFINITION
Warning: Since the mainboard has the instant power on function, make
sure that all components are installed properly before inserting the power
connector to ensure that no damage will be done
JWR1
11
20
10
1

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-13
••
••
• Remote Power On/Off Switch: JRMS1
Connect to a 2-pin push button switch. During OFF state, press once and
the system turns on. During ON stage, push once and the system goes to
sleep mode: pushing it more than seconds will change its status from ON
to OFF. If you want to change the setup, you could go to the BIOS Power
Management Setup. This is used for ATX type power supply only.
JRMS1

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-1
IrDA Infrared Module Connector: J4
The mainboard provides one infrared (J4) connector for IR modules. This
connector is for optional wireless transmitting and receiving infrared module.
You should configure the setting through the BIOS setup to use the IR
function.
VCCNCIRRXGNDIRTX
1
J4

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-15
Serial Port Connectors: COM A and COM BSerial Port Connectors: COM A and COM B
Serial Port Connectors: COM A and COM BSerial Port Connectors: COM A and COM B
Serial Port Connectors: COM A and COM B
The mainboard provides two 9-pin male DIN connectors for serial port COM
A & COM B. These port are 16550A high speed communication port that
send/receive 16 bytes FIFOs. You can attach a mouse or a modem cable
directly into this connector.
PIN SIGNAL
1DCD (Data arry Detect)
2SIN (Serial In or Receive Data)
3SOUT (Serial Out or Transmit Data)
4DTR (Data Terminal Ready)
5GND
6DSR (Data Set Ready)
7RTS (Request To Send)
8CTS ( lear To Send)
9RI (Ring Indicate)
PIN DEFINITION
1 2 3 4 5
6 7 8 9
COM A
Serial Port ( -pin Male)
COM B

CHAPTER 2CHAPTER 2
CHAPTER 2CHAPTER 2
CHAPTER 2 HARDHARD
HARDHARD
HARDWW
WW
WARE INSTARE INST
ARE INSTARE INST
ARE INSTALLAALLA
ALLAALLA
ALLATIONTION
TIONTION
TION
2-16
Parallel Port Connector: LPT1Parallel Port Connector: LPT1
Parallel Port Connector: LPT1Parallel Port Connector: LPT1
Parallel Port Connector: LPT1
The mainboard provides a 25 pin female centronic connector for LPT. A
parallel port is a standard printer port that also supports Enhanced Parallel
Port (EPP) and Extended capabilities Parallel Port (ECP). See connector and
pin definition below:
PIN SIGNAL PIN SIGNAL
1 STROBE 14 AUTO FEED#
2 DATA0 15 ERR#
3 DATA1 16 INIT#
4 DATA2 17 SLIN#
5 DATA3 18 ND
6 DATA4 19 ND
7 DATA5 20 ND
8 DATA6 21 ND
9 DATA7 22 ND
10 ACK# 23 ND
11 BUSY 24 ND
12 PE 25 ND
13 SELECT
PIN DEFINITION
LPT 1
13
Parallel Port (25-pin Female)
1
25 14
