MSTRONIC SOL10 plus 8-24G2 Series User manual

Mstronic Co., Ltd.
SOL10+8-24G2 Series
Solar & PoE Battery Charger
USER’S MANUAL

User’s Manual SOL10+8-24G2-xxx Series
Features:
 Dual Input, from solar panel and/or PoE (Solar First) to charge 24V
battery, and another triple outputs: two PoE outputs on front and
rear, terminal block on rear
 Built-in DC/DC converter, with various passive PoE output, 24V,
48V, 56V available. front PoE and rear PoE can be different.
 Active PoE Output support 802.3at handshake (SOL10+8-24G1-
56BDN)
 DIN Rail Mountable
 Support Gigabit Ethernet

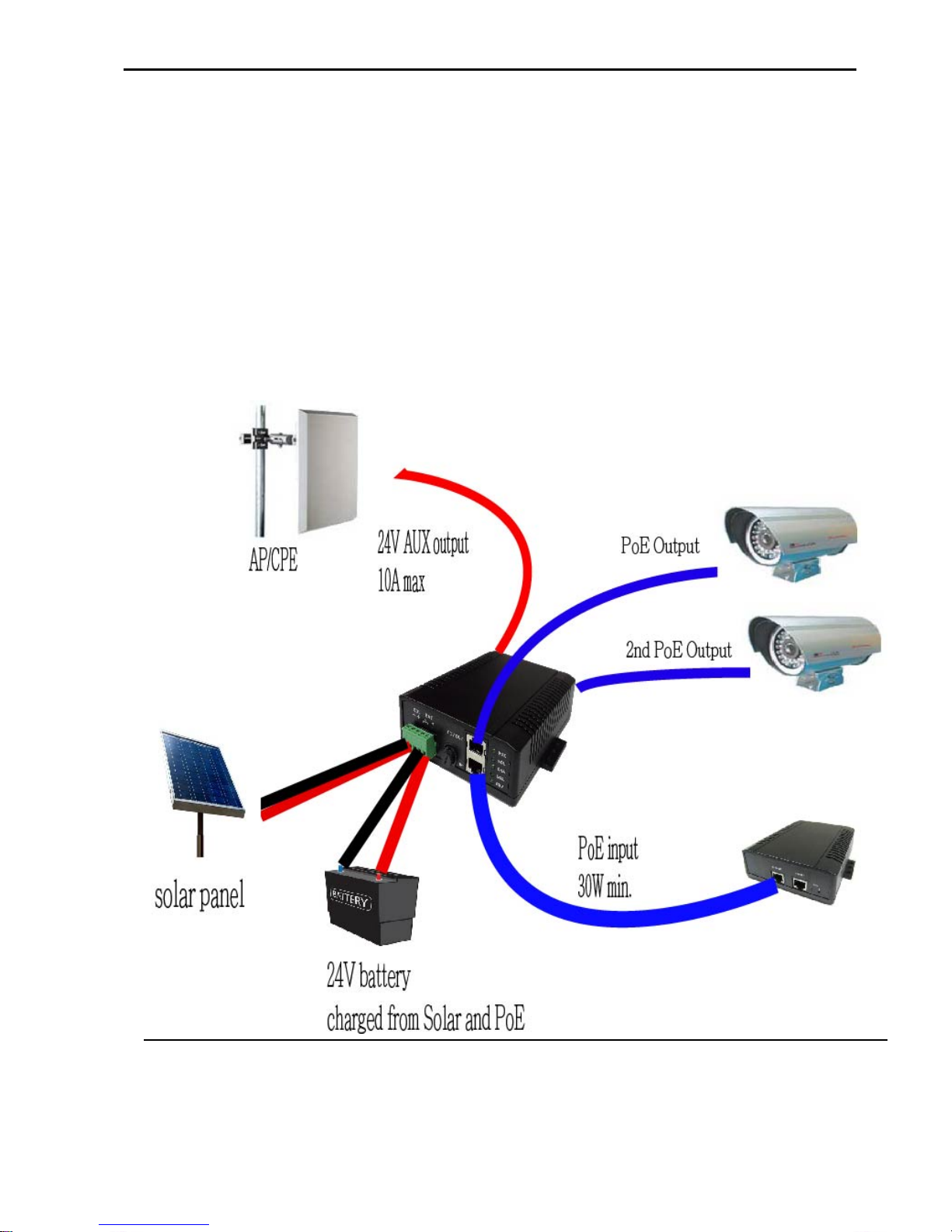

Applications:
 Remote Power Systems; Surveillance, Sensors
 Wireless Station; AP/Client/Repeaters
 UPS Systems; Lighting, Fences, Gates
Protection:
 Battery Polarity Reverse Protection
 Battery Over Charge Protection
 Battery Over Discharge Protection
 Solar Panel Polarity Reverse Protection
 Solar Panel Over Charge Protection
 Output Short Circuit Protection
 Output Over Voltage Protection
 POE Output Short Circuit Protection
 Externally fused with a standard replaceable fuse

User’s Manual SOL10+8-24G2-xxx Series

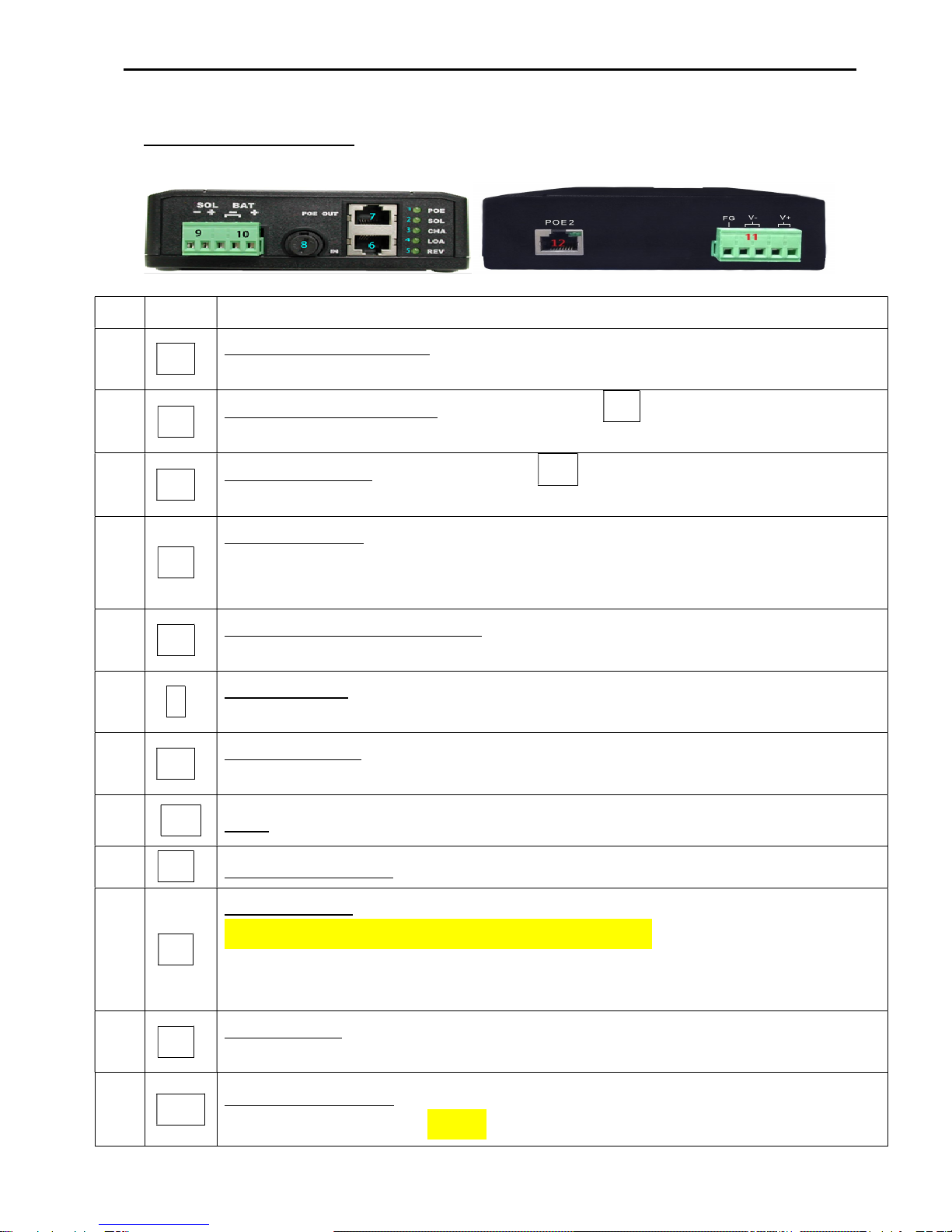

Panel Description:
Item
Name
Descriptions
1 POE :
PoE power input indicator: the LED lights when the PoE input jack (the lower jack)
has 36V~57V input.
2 SOL :
Solar power input indicator: the LED lights when SOL terminal is connecting to a
solar panel and the solar panel input voltage is over 24V.
3 CHA :
Charging indicator: the LED lights when BAT terminal is connected to battery and
charging
4 LOA :
Loading indicator: the LED lights when the rear panel output terminal is connecting
to a device and offering power.
The LED always on when power ready.
5 REV :
Battery polarity reverse indicator: the LED lights when the battery polarities are
reversed. (detail description see Sec. 5.1)
6 IN : PoE Input Jack: the lower RJ45 jack, used for PoE input. Allowed input voltage
36~57V
7 OUT :
PoE Output Jack: the upper RJ45 jack, used for PoE output; Output voltage
depends on what model you selected.
8 Fuse Fuse: for output over current protection, limiting the battery output current <= 10A.
9 SOL :
Solar Panel Terminal: used to connect the solar panel.
10 BAT :
Battery terminal: used to connect the battery.
NOTE: ALWAYS CONNECT THIS TERMINAL FIRST.
If solar panel or PoE source is installed before the battery, and if the polarities of
battery are reversed, then the fuse will be burnt.)
11 LOA :
Load Terminal: for wire size up to 10AWG, the output voltage is the same as battery
voltage.
12 POE2
2nd PoE Output Jack: used for PoE output; Output voltage depends on what model
you selected, power only, no data. Can be different voltage with front PoE output.

User’s Manual SOL10+8-24G2-xxx Series
Operation Guide
1. Connect the battery to the BAT terminal. Make sure the polarities are
correctly connected. Sequentially connect the solar panel to SOL terminal
and connect POE source to PoE input (lower) jack. (If solar panel or PoE
source is installed before the battery, and if the polarities of the battery be
reversed, then the fuse will be burnt.)
2. Make sure the battery is properly connected to the unit. If no battery is
connected, then the voltage at BAT terminal will be approx 27.3V+0.5V
3. The solar panel cannot be used stand alone without battery connected.
4. When a solar panel and PoE input are connected to the charger, if the
voltage of solar panel is higher than 36V, then solar panel is always the
main power source of the charger.
5. When charge from solar panel, as the battery full and turn to floating
stage, the CHA light will start flash.
6. When charge from PoE, as the battery full, the CHA light will be turn off, if
the CHA is always flash, that means the input wattage lower than the
required minimum wattage. If only charge battery, the minimum input
wattage is 30W, if full load, the minimum input wattage is 80W.
7. When battery connect to BAT terminal and with valid voltage, then the
LOA indicator will always light on even no load connected.

User’s Manual SOL10+8-24G2-xxx Series
8. It can be two separate outputs on the rear panel, make sure the total
draw is not over the limit.
9. The V- of PoE input, Solar input, and battery(-) are not the same
grounding, must be properly isolated.

User’s Manual SOL10+8-24G2-xxx Series
Electrical specifications
1. INPUT
1.1 Two Input Source:
A. Solar Panel : 30V~45V,
B. POE : 36V~57V
2. OUTPUT
Model No. Output 1
(at rear terminal)
Output 2
(at front RJ45)
Output 3
(at rear RJ45)
SOL10+8-24G1-
24BNN+24BNN
24V/10A
(as Bat. Volt.)
24V/1.25A
(45+/78-)
(regulated)
24V/1.25A
(45+/78-)
(regulated)
SOL10+8-24G1-
48ANN+24BNN
24V/10A
(as Bat. Volt.)
48V/0.625A
(12-/36+)
(regulated)
24V/1.25A
(45+/78-)
(regulated)
SOL10+8-24G1-
48ANR+24BNN
24V/10A
(as Bat. Volt.)
48V/0.625A
(12+/36-)
(regulated)
24V/1.25A
(45+/78-)
(regulated)
SOL10+8-24G1-
48BNN+24BNN
24V/10A
(as Bat. Volt.)
48V/0.625A
(45+/78-)
(regulated)
24V/1.25A
(45+/78-)
(regulated)
SOL10+8-24G1-
56BDN+24BNN
24V/10A
(as Bat. Volt.)
56V/0.625A
(45+/78-)
(regulated)
24V/1.25A
(45+/78-)
(regulated)
SOL10+8-24G1-
56DDN+24BNN
24V/10A
(as Bat. Volt.)
56V/0.625A
(1278-/3645+)
(regulated)
24V/1.25A
(45+/78-)
(regulated)

User’s Manual SOL10+8-24G2-xxx Series
3. Battery Charge Current:
A. Solar Panel: depends on the solar panel, 10A max,
B. POE: fixed current, 2.0A max
4. Battery Types: 24V Lead Acid Battery
5. Protection:
5.1 Battery Polarity Reverse Protection:
If only battery connected to terminal, when the battery polarities
were reversed, the model will stop output and REV indicator light
on.
When the battery be removed and re-connected to terminal, the
function will be disable, if there is PoE power sources connected,
when the battery polarities reversed, the fuse will be burnt.
5.2 Battery Over Discharge Protection:
Cuts off the load when the battery voltage is lower than 20V + 0.3V,
and auto recover when the battery voltage returns to 24.3V + 0.3V
5.3 Battery Over Charge Protection:
Fuse control, over 10A, the fuse will be burnt.
5.4 Solar Panel Polarity Reverse Protection:
When solar panel polarities be reversed, the charger stop output, it
won’t damage the charger or end device
5.5 Solar Panel Over Charge Protection:
When charge current over 10A, the fuse will be burnt.

User’s Manual SOL10+8-24G2-xxx Series
5.6 Output Short Circuit Protection:
When the rear output terminal or PoE output be short circuit,
protection be active, the product stop output and auto-recover
when the terminal back to normal connection.
5.7 Battery Output Current Limit:
The fuse will be burnt when battery output current over 10A
5.8 Load Output Voltage Limit:
The output voltage of the rear terminal is the same as battery.
6. GENERAL DESCRIPTION
6.1 Operation Temperature: -40 - +60 Degree
6.2 Storage Temperature: -40 - +85 Degree
6.3 Operation Humidity: 5% - 90% non-condensing
6.4 Cooling: Free air cooling
6.5 SIZE 150*118*40mm (L*W*H)

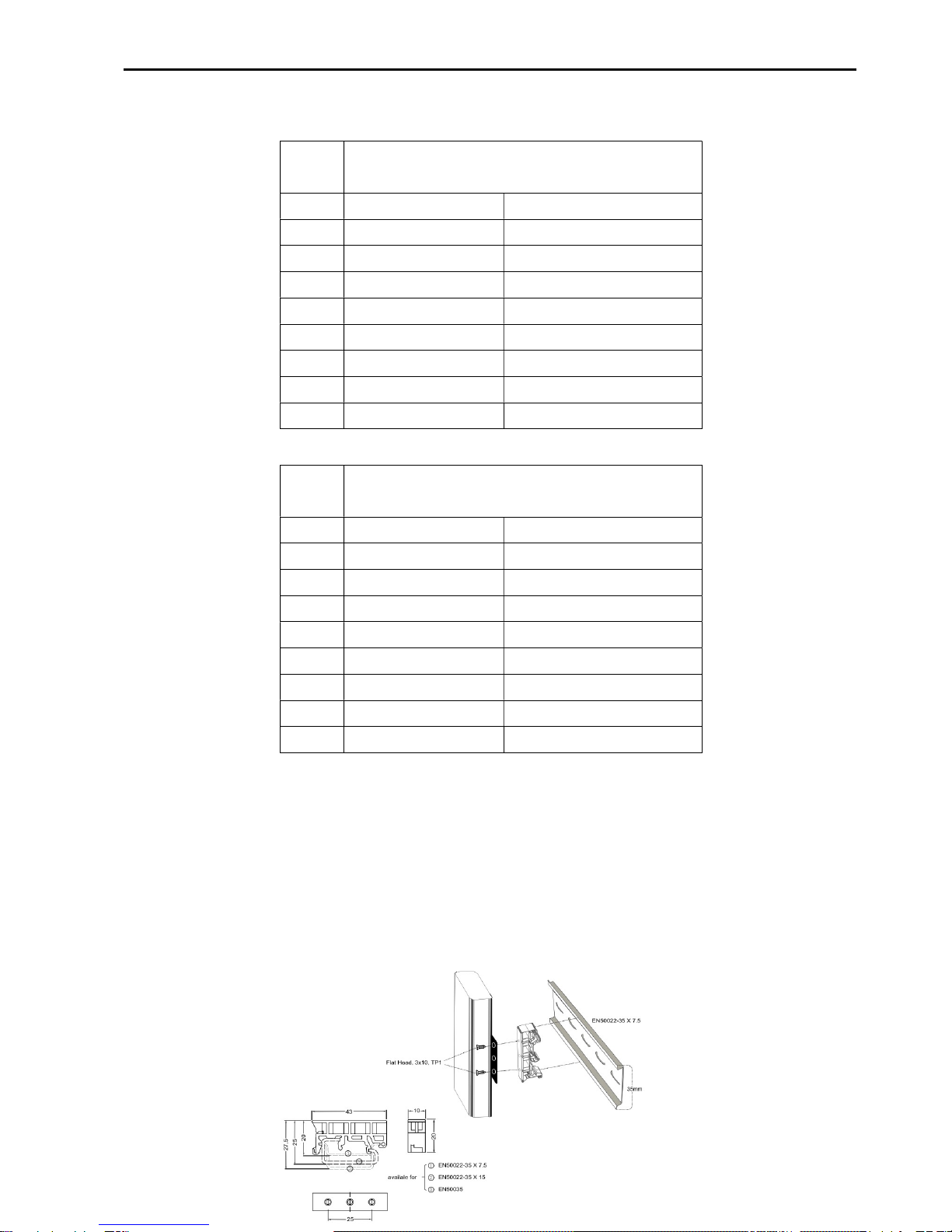

7. Pin out: @1000M
RJ-45 Input (Data & Power)
Compliant to 802.3af/at
Pin Symbol Description
1 (+/-)Vdc + BI_DA+ power(+/-)+Data Pair A+
2 (+/-)Vdc + BI_DA- power(+/-)+Data pair A-
3 (+/-)Vdc + BI_DB+ power(+/-)+Data Pair B+
4 (+/-)Vdc + BI_DC+ power(+/-)+Data Pair C+
5 (+/-)Vdc + BI_DC- power(+/-)+Data Pair C-
6 (+/-)Vdc + BI_DB- power(+/-)+Data Pair B-
7 (+/-)Vdc + BI_DD+ power(+/-)+Data Pair D+
8 (+/-)Vdc + BI_DD- power(+/-)+Data Pair D-

User’s Manual SOL10+8-24G2-xxx Series
Front RJ-45 Output (Data & Power)
Depends on individual models
Pin Symbol Description
1 (+/-)Vdc + BI_DA+ power(+/-)+Data Pair A+
2 (+/-)Vdc + BI_DA- power(+/-)+Data pair A-
3 (+/-)Vdc + BI_DB+ power(+/-)+Data Pair B+
4 +Vdc + BI_DC+ power(+)+Data Pair C+
5 +Vdc + BI_DC- power(+)+Data Pair C-
6 (+/-)Vdc + BI_DB- power(+/-)+Data Pair B-
7 -Vdc + BI_DD+ power(-)+Data Pair D+
8 -Vdc + BI_DD- power(-)+Data Pair D-
Rear RJ-45 Output (Power only)
Depends on individual models
Pin Symbol Description
1 (+/-)Vdc power(+/-)
2 (+/-)Vdc power(+/-)
3 (+/-)Vdc power(+/-)
4 +Vdc power(+)
5 +Vdc power(+)
6 (+/-)Vdc power(+/-)
7 -Vdc power(-)
8 -Vdc power(-)
Note :
1. the model is isolated design, the output +/- or input +/- can be shorted
to ground (FG).
2. The PoE outputs can be 2 pairs or 4 pairs, depends on individual
models, the rear PoE output (POE2) only power, no data.
