MTD 19A30003OEM User manual

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
OperatOr’sManual
Twin Rear Bagger — Model 19A30003OEM & 19A30003000
Form No. 769-05268F
(December 1, 2012)

To The Owner 1
2
Thank you for purchasing a bagging attachment manufactured
by MTD. It was carefully engineered to provide excellent
performance when properly operated and maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain this attachment. Please be sure that you, and any
other persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review this
manual frequently to familiarize yourself with the attachment,
its features and operation. Please be aware that this Operator’s
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. MTD
reserves the right to change product specifications, designs and
equipment without notice and without incurring obligation.
If you have any problems or questions concerning this
attachment, phone your local authorized MTD service dealer
or contact us directly. MTD’s Customer Support telephone
numbers, website address and mailing address can be found on
this page. We want to ensure your complete satisfaction at all
times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position
Thank You
Customer Support
Please do NOT return the machine to the retailer or dealer without first contacting our Customer Support Department.
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
◊ Visit us on the web at www.mtdproducts.com
◊ Call a Customer Support Representative at [phone] or [phone]
◊ Write us at MTD LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019
Record Product Information
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate the
model plate by looking at the topside of the bagger cover. This
information will be necessary, should you seek technical support
via our web site, Customer Support Department, or with a local
authorized service dealer.
Model NuMber
Serial NuMber
Safe Operation Practices ........................................ 3
Carton Contents & Hardware Packs...................... 6
Assembly & Installation.......................................... 8
Operation................................................................15
Parts List..................................................................16
Warranty.................................................................18
Espanol....................................................................19
French..................................................................... 34
Table of Contents

Important Safe Operation Practices 2
3
General Operation
1. Read, understand, and follow all instructions on your
equipment and in their manuals before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
parts.
2. To help avoid blade contact or a thrown object injury, keep
bystanders, helpers, children and pets at least 75 feet from
the mower while it is in operation. Stop machine if anyone
enters the area.
3. Thoroughly inspect the area where the equipment is to be
used. Remove all stones, sticks, wire, bones, toys, and other
foreign objects which could be picked up and thrown by
the blade(s). Thrown objects can cause serious personal
injury.
4. Always wear safety glasses or safety goggles during
operation and while performing an adjustment or repair
to protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
5. Do not operate the mower without the discharge cover
or entire grass catcher in its proper place. A missing
or damaged discharge cover or grass bag attachment
component may result in thrown objects or blade contact
injuries.
6. Do not put hands or feet near rotating parts or under the
cutting deck. Contact with the blade(s) can amputate
hands and feet.
7. Shut off mower’s engine and wait for blades to come to
a complete stop before unclogging mower’s discharge
opening or bagger parts.
8. Slow down before turning. Operate the machine smoothly.
Avoid erratic operation and excessive speed. Be aware
that a grass catcher attachment can affect the handling
characteristics of your mower.
9. Disengage blade(s), set parking brake, stop engine and wait
until the blade(s) come to a complete stop before opening
bagger attachment’s top cover, removing grass catcher,
emptying grass, unclogging chute, removing any grass or
debris, or making any adjustments.
10. Never leave a running machine unattended. Always turn
off blade(s), place transmission in neutral, set parking
brake, stop engine and remove key before dismounting.
11. Your machine is designed to cut normal residential grass of
a height no more than 10”. Do not attempt to mow through
unusually tall, dry grass (e.g., pasture) or piles of dry leaves.
Dry grass or leaves may contact the engine exhaust and/
or build up on the mower deck presenting a potential fire
hazard.
12. If situations occur which are not covered in this manual, use
care and good judgment. Contact your customer service
representative for assistance.
Slope Operation
Slopes are a major factor related to loss of control and tip-over
accidents which can result in severe injury or death. Attachments
can also affect the stability of the machine. All slopes require
extra caution.
For your safety, use the slope gauge included as part of this
manual to estimate the angle of slopes before operating this
machine on a sloped or hilly area. If the slope is greater than 10
degrees as shown on the slope gauge, do not operate the mower
with the grass bag attachment installed on that area or serious
injury could result.
Do:
1. Mow up and down slopes, not across. Exercise extreme
caution when changing direction on slopes.
2. Watch for holes, ruts, bumps, rocks, or other hidden
objects. Uneven terrain could overturn the machine. Tall
grass can hide obstacles.
WARNING! This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
DANGER! This attachment was built to be used according to the safe operation practices in
this manual. Carelessness or error on the part of the operator can result in serious injury.
Mowers are capable of amputating hands and feet and throwing objects. Failure to observe
the following safety instructions as well as the instructions provided with your mower, could
result in serious injury or death.

4Section 2 — important Safe operation practiceS
Safety Symbols
This table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.
Symbol Description
READ THE OPERATOR’S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to
assemble and operate
STOP
Turn off the engine before opening the bagger cover.
3. Use slow speed. Choose a low enough speed setting so
that you will not have to stop or shift while on the slope.
Tires may lose traction on slopes even though the brakes
are functioning properly. Always keep machine in gear
when going down slopes to take advantage of engine
braking action.
4. Follow the manufacturer’s recommendations for wheel
weights or counterweights to improve stability.
5. Keep all movement on the slopes slow and gradual. Do
not make sudden changes in speed or direction. Rapid
engagement or braking could cause the front of the
machine to lift and rapidly flip over backwards which could
cause serious injury.
6. Avoid starting or stopping on a slope. If tires lose traction,
disengage the blade(s) and proceed slowly straight down
the slope.
Do Not:
1. Do not turn on slopes unless necessary; then, turn slowly
and gradually downhill, if possible.
2. Do not mow near drop-offs, ditches or embankments. The
mower could suddenly turn over if a wheel is over the edge
of a cliff, ditch, or if an edge caves in.
3. Do not try to stabilize the machine by putting your foot on
the ground.
4. Do not use a grass catcher on steep slopes.
5. Do not mow on wet grass. Reduced traction could cause
sliding.
General Service
1. Before cleaning, repairing, or inspecting, make certain the
blade(s) and all moving parts have stopped. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting.
2. Keep all nuts, bolts, and screws tight to be sure the
equipment is in safe working condition.
3. Never tamper with your mower’s safety interlock system
or other safety devices. Check their proper operation
regularly.
4. Never attempt to make adjustments or repairs while the
mower’s engine is running.
5. Grass catcher components and the discharge cover are
subject to wear and damage which could expose moving
parts or allow objects to be thrown. For safety protection,
frequently check components and replace immediately
with original equipment manufacturer’s (O.E.M.) parts only,
listed in this manual. Use of parts which do not meet the
original equipment specifications may lead to improper
performance and compromise safety!
6. Maintain or replace safety and instruction labels, as
necessary.
WARNING! Your Responsibility—Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!

5Section 2 — important Safe operation practiceS
(OK) (TOO STEEP)
USE THIS SLOPE GAUGE TO DETERMINE
IF A SLOPE IS TOO STEEP FOR SAFE OPERATION!
To check the slope, proceed as follows: 1. Remove this page and fold along the dashed line. 2. Locate a vertical object on or behind the slope (e.g. a pole, building, fence, tree, etc.) 3. Align either side of the slope gauge with the object (See Figure 1 and Figure 2 ). 4. Adjust gauge up or down until the left corner touches the slope (See Figure 1 and Figure 2). 5. If there is a gap below the gauge, the slope is too steep for safe operation (See Figure 2 above).
10° dashed line
Slope Gauge
Figure 2Figure 1
10° Slope
10° Slope
WARNING! Slopes are a major factor related to tip-over and roll-over accidents which can result in severe injury or death.
Do not operate machine on slopes in excess of 10 degrees. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it. Always mow up and down slopes, never across the face of slopes.

Contents of Carton 3

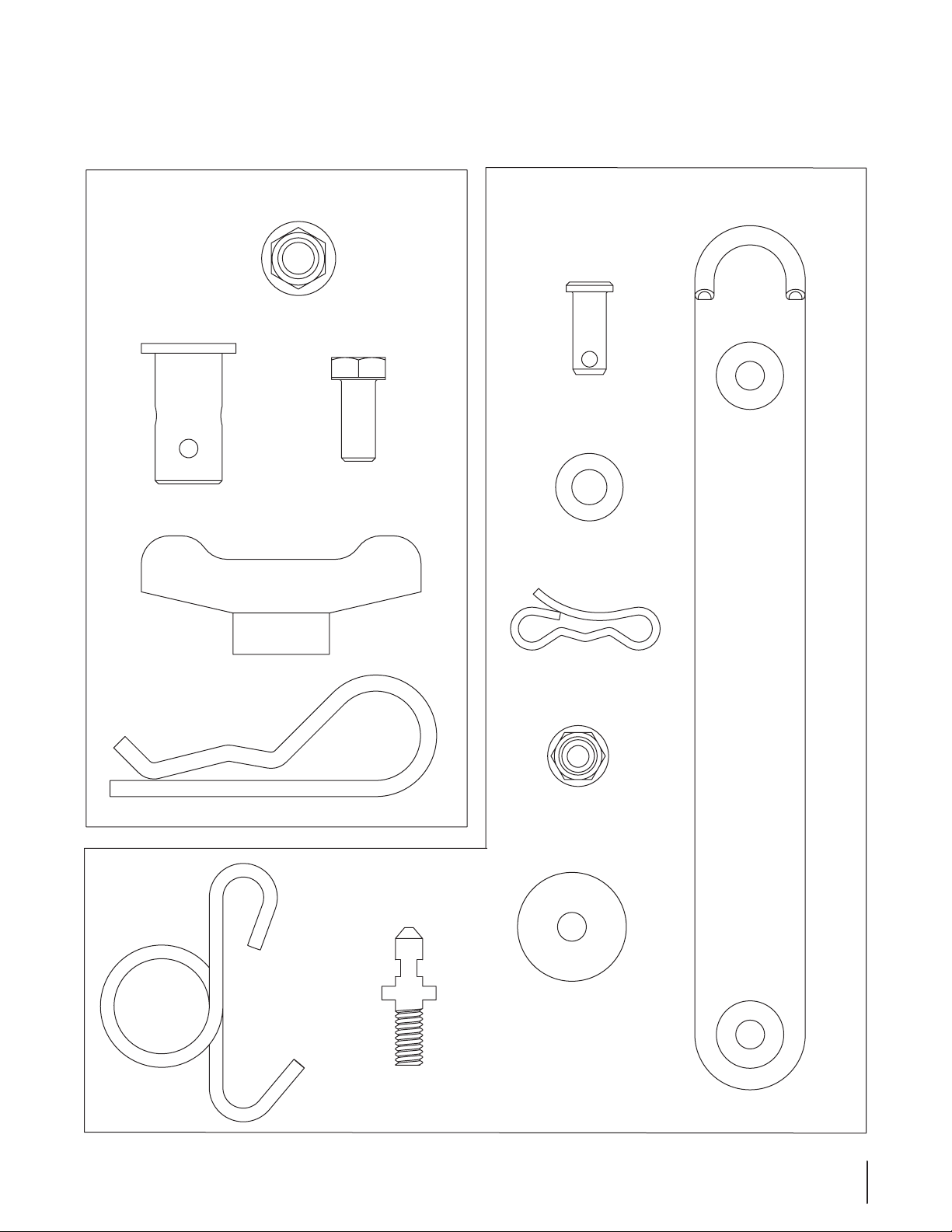

6
Before beginning installation, remove all parts from the carton to make sure everything is present. Carton contents are listed below
and shown in Fig. 3-1. Hardware part numbers are shown in parentheses.
• Hitch Bracket Kit (3 brackets & Hardware Pack)
• 700 Series Mount Kit (2 brackets & hardware)
• Hitch Support
• Discharge Chute Elbow
• Grass Catcher Cover Assembly
• Two Grass Bag Assemblies
• Upper Chute Tube
• Self-Adhesive Foam Strip
• Upper Chute Support
• Hinge Cover Pin
• Upright Support
• Bag Support Assembly
• Two Hardware Packs (Detailed & Pictured on next page)
Figure 3-1
RH Bracket. (783-05889-0637)
LH Bracket. (783-05890-0637)
(4) Hex Bolts (710-04484)
(2) Flange Lock Nuts (712-04065)
(2) Shoulder Bolts (738-04267)
(2) Clevis Pins (711-0332)
(2) Click Pins (914-0145)
Hitch Bracket Kit
(3 Pcs. & Hardware Pack)
700 Series
Mounting Kit
Includes the
following parts:
Hitch Support
Self-Adhesive
Foam Strip
Grass Bag
Assemblies
Hinge Cover Pin
Upright Support
Bag Support
Assembly
Upper Chute Tube
Upper Chute
Support
Grass Catcher
Cover
RH Mount (789-00052)
LH Mount (789-00054)
Rear Attachment Bracket
(789-00053)
Carriage Bolts (4)
(710-0276)
Flange Lock Nuts
(4) (712-04063)
Discharge Chute
Elbow

7Section 3 — contentS of carton
CONTENTS OF HARDWARE PACK
This grass collector kit is shipped with two loose hardware packs enclosed and one set of hardware included in the mounting bracket kit.
Please check your hardware packs against the illustrations below. The quantities for each item is listed in parenthesis.
Hardware Pack 689-00313
Hardware Pack for 689-00319
(4)
(4)
(1)
(1)
(1)
(1)
(1)
(1)
(2)
(2)
(1)
(1)
(1)
710-3008
723-04008A
711-05063
736-0204
714-04040
712-3027
736-0176
711-05049
732-04510A
712-04063
711-0309A
714-0117
720-04122

Assembly & Installation 4
8
Identify The Model of Tractor
This bagging system is designed for use on several different
tractor models. Prior to attempting to mount the bagger, it is
important to determine which model of tractor that you have.
To identify your tractor’s model, simply pivot the seat upward
and locate the model plate on its underside. The model number
will consist of a combination of eleven number and letters.
The 5th, 6th & 7th digits in your model number determine the
model series. For example, 13WC762F065, 13AN795S001 and
13WN77KS011 are all 700-series tractors.
700-Series Tractors Only
If you are assembling this bagger for use on any 700-series model
tractor you will need to install the two tractor mounting brackets
packed in your bagger kit. If you are installing this bagger unit on
any other tractor, disregard these steps and move to Assemble
Mounting Brackets on the next page.
To install these brackets on a model 700-series tractor, follow
these steps:
1. If not already installed by the factory, install a shoulder bolt
from your hardware pack on each bracket, securing them
with flange lock nuts also included in the hardware pack.
Refer to Figure 4-1.
2. If already installed in the brackets, remove the clevis pins
and clips, retain for later instuctions. Refer to Figure 4-1.
Figure 4-1
3. Mount the 700 series tractor mounting brackets to your
tractor using four self-tapping hex screws included with
your kit. See Figure 4-2.
Figure 4-2
For All Tractors:
Assemble Mounting Brackets
To assemble the bagger mounting assembly, locate the hitch
bracket kit and follow these steps:
1. Attach the right-hand and left hand rider hitch bracket
to the universal rear attachment bracket using the four
carriage bolts (710-3008) and flange lock nuts (712-04063)
packed with the mounting brackets. Position the brackets
with the hooks on the right-hand and left hand rider hitch
bracket pointing downward, and the tabs on the universal
rear attachment bracket pointing upwards. See Figure 4-3.
Hitch Side
Bracket
Universal Rear
Bracket
Figure 4-3

9Section 4 — ASSembly & inStAllAtion
2. Install the clevis pin (711-309A) from hardware pack 689-
00319 into the tractor’s hitch and secure with a hairpin clip
(714-0117). See Figure 4-6.
Note: The clevis pin can be fed down through the hitch
plate and secured underneath with the hairpin clip, or it
may be easier to feed the clevis pin up through the hitch
plate hole and secure with the hairpin clip on the topside.
The latter method may be preferred since it can be easier
to insert the hairpin clip. Either way will work, the decision
should be based on operator preference.
Note: If you decided to leave the hitch support only
finger tight during the assembly process, tighten all of the
hardware securely at this time.
Align hole on bracket
with hole on tractor
Figure 4-6
Installing the Mounting Assembly onto a 700 Series Tractors
Install the mounting assembly on the tractor as follows:
1. Place the hooked ends of the bagger mounting assembly
over the shoulder bolts, as in Figure 4-7, on the tractor and
line up the hitch support hole on the mounting assembly
with the hole on the tractor’s hitch.
Figure 4-7
Note: This universal mounting bracket assembly is
designed to work with other available attachments, such
as a weight kit used in conjunction with the snow blade or
snow thrower attachment. Utilize the contact information
on page 2, or contact the retailer in which you purchased
this equipment, to find out more about available
attachments for your specific tractor.
2. Flip over assembly and mount the hitch support bracket to
the mounting assembly using four 710-3008 hex bolts and
712-04063 flange lock nuts from hardware pack 689-00319.
See Figure 4-4 for proper orientation.
For 700 models For all other models.
Figure 4-4
Note: When attaching the hitch support, it is best to not
fully tighten the bracket at this time. This will facilitate the
mounting process in later steps, which will then require
fully tightening of this hitch support bracket.

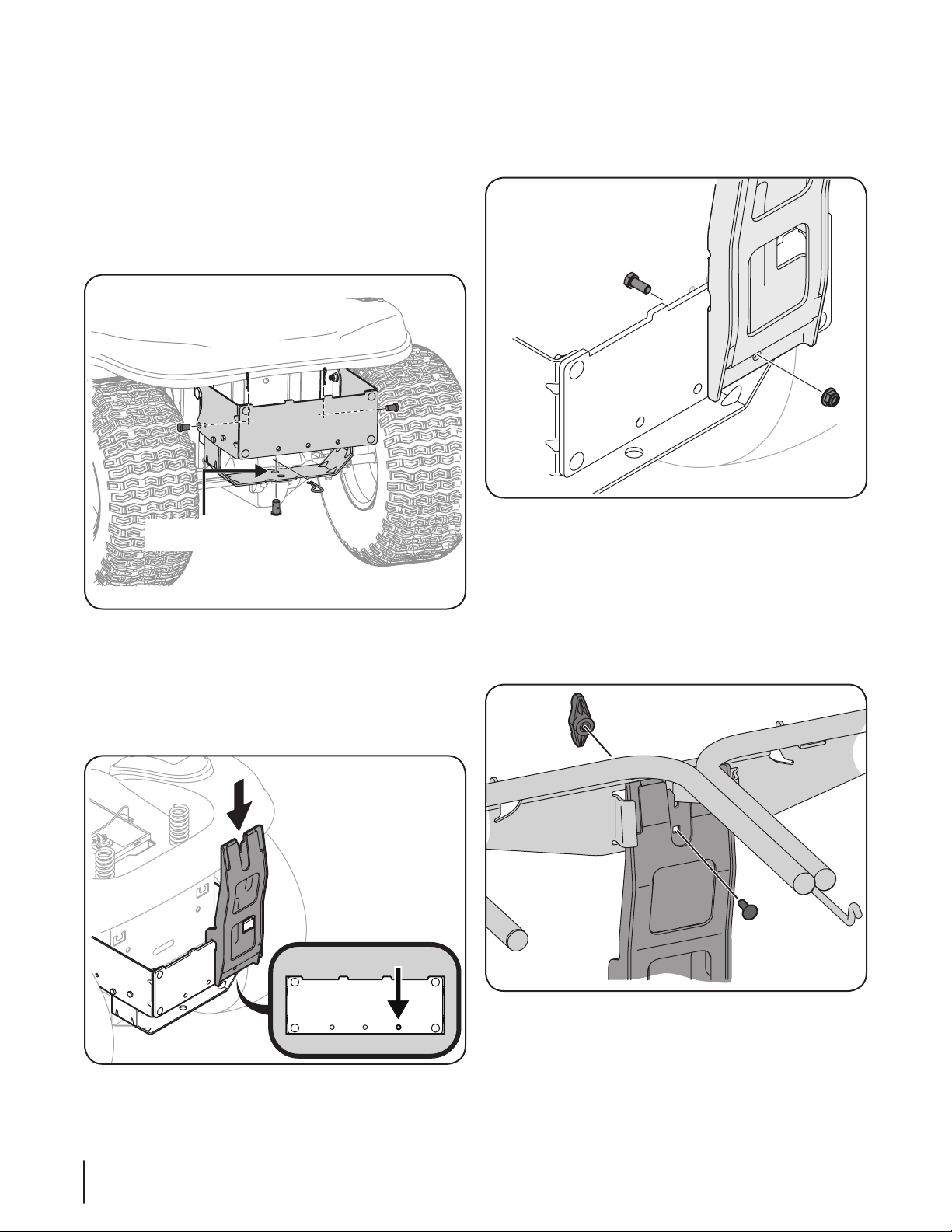

Mount Assembly on Tractor (900 Series Tractors)
Install mounting assembly onto 900 Series tractors as follows:
1. Place the hooked ends of the mounting assembly over the
shoulder bolts, as in Figure 4-5, on the tractor and line up
the hitch support bracket center hole with the hole on the
tractor’s hitch.
Figure 4-5

10 Section 4 — ASSembly & inStAllAtion
6. Secure the bag support assembly to the mounting
assembly using a hex bolt (710-3008) and flange lock nut
(712-04063) packed with the upright mounting bracket.
The support assembly mounts in the right side mounting
hole as seen in Figure 4-10.
Figure 4-10
7. Install the hanger assembly onto the upright support
bracket using the 5/16” carriage bolt packed loosely with
the upright mounting bracket. Simply discard the flange
nut packed with the carriage bolt, and replace it with the
wing knob (720-04122) packed in hardware pack 689-
00319. See Figure 4-11.
Note: The flange nut is extra and will not be needed for this
installation.
Figure 4-11
2. Install the clevis pin (711-0309A) from hardware pack 689-
00319 into the tractor’s hitch and the assembly’s hitch support
and secure with a hairpin clip (714-0117). See Figure 4-8.
Note: The clevis pin can be fed down through the hitch
support and secured underneath with the hairpin clip, or
it may be easier to feed the clevis pin up through the hitch
plate hole and secure with the hairpin clip on the topside.
3. Install the two clevis pins with hairpin clips retained earlier,
as shown in Figure 4-8, to secure the top of the hitch
support assembly.
Align hole on bracket
with hole on tractor
Figure 4-8
4. Tighten all of the hardware securing the hitch support at
this time.
5. Install the upright support bracket onto the mounting
assembly on the tractor by hooking it over the cross
mounting bracket and aligning with the right-side
mounting hole as shown in Figure 4-9.
Figure 4-9

11Section 4 — ASSembly & inStAllAtion
Assembling Remaining Bagger Components
Now that the mounting brackets are assembled and are in place
on the tractor, follow these steps to assemble the remaining
bagger components.

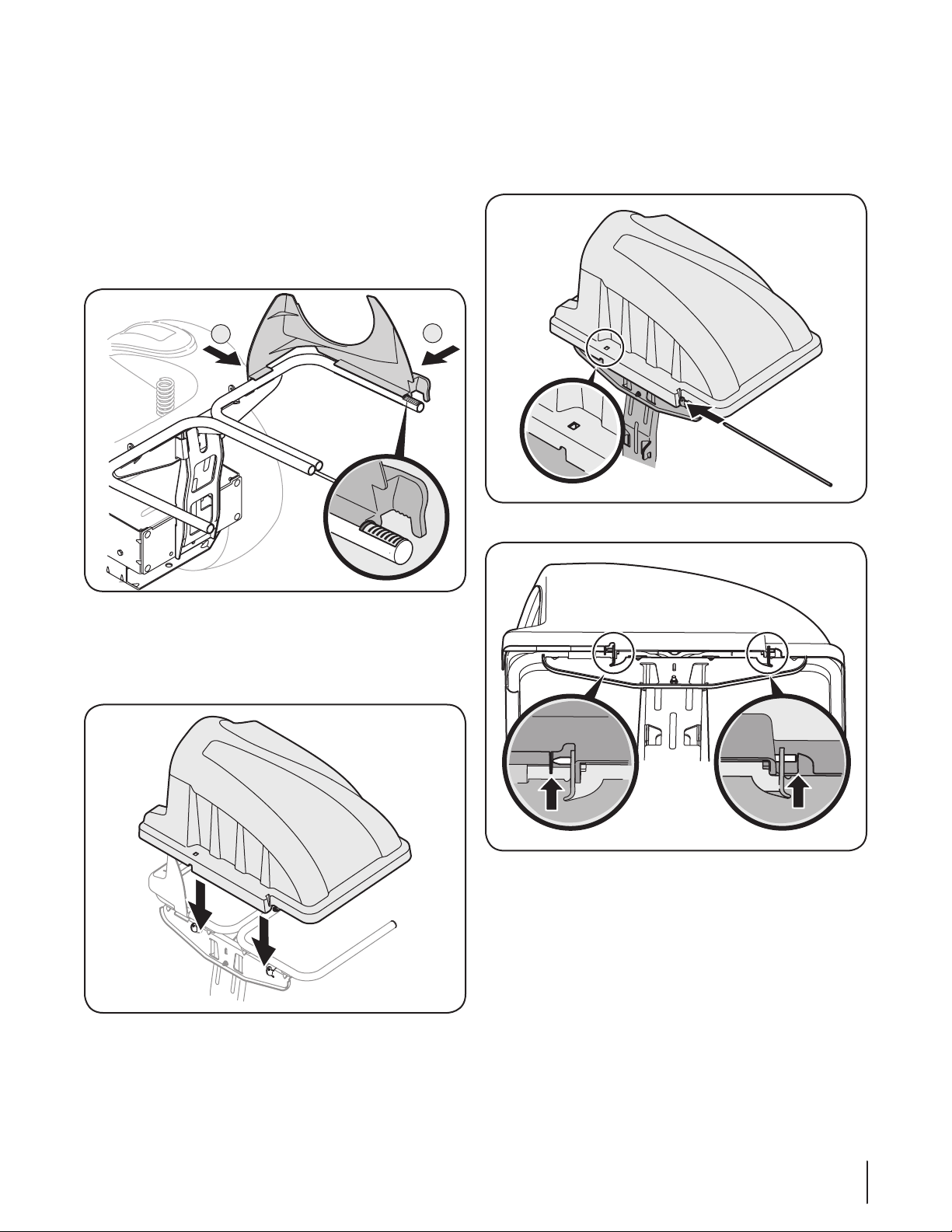

1. Snap the plastic upper chute support in place by first
clipping the side portion onto the bag support rail with
the edge of the snap feature aligned with the red line (1), as
shown in the inset of Figure 4-12.
2. Snap the front portion of the upper chute support to the
bag support rail as seen in 2 of Figure 4-12.
1
2
Figure 4-12
3. Install the grass catcher cover onto the bag support
assembly, as seen in Figure 4-13. The grass catcher cover
goes inside of the two mounting tabs on the bag support
assembly.
Figure 4-13
4. Slide the hinge pin into the hole located on the mounting
tab, as in Figure 4-14. Use the cut-out window (See inset in
Figure 4-14) to line up the hinge pin on the other side and
push pin all the way in until it reaches the end-stop. At this
point the pin clips into place and is secured by a tab in the
bagger cover. See Figure 4-15.
Figure 4-14
Figure 4-15

12 Section 4 — ASSembly & inStAllAtion
Installing the Deck Chute
Note: Determine if your deck is a newer model, or an older
model. Refer to the upper inset of Figure 4-19. If your deck
has a mounting stud present, then you have a newer deck
model and you would follow the instructions below. If no
stud is present, refer to the instructions titled On Tractors
With Older Deck Configurations later in this section.
1. With the tractor’s discharge chute raised up and held open (1),
install the chute elbow by placing the chute elbow mounting
rod into the hole provided in either your deck wheel bracket
or chute mounting tab (2), as seen in Figure 4-18.
1
2
Figure 4-18
2. Secure the chute elbow to the deck using the wing knob
720-04122 from hardware pack 689-00319. See Figure 4-19.
Note: If present, remove the protective cap off of the
mounting stud on the mowing deck as seen in the upper
inset of Figure 4-19.
1
2
Figure 4-19

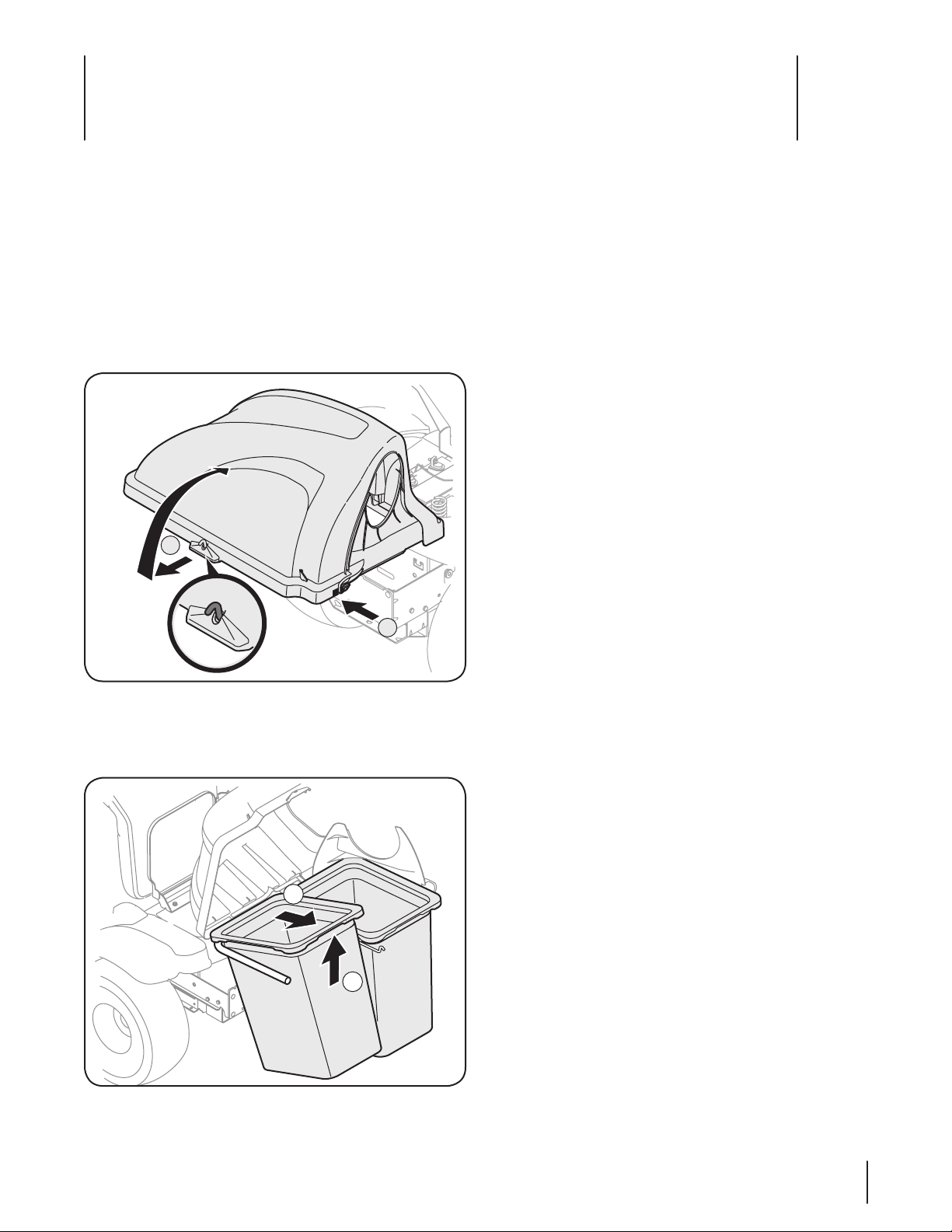

5. Open Hood by pushing in on the rear, right-side tab with
your right hand, as seen in 1 of Figure 4-16, and lifting the
cover with your left hand in the center rear of the bagger
cover, 2.
1
2
Figure 4-16
6. Install both grass bags onto the bag support assembly by
inserting the front edge in first (1), as seen in Figure 4-17,
and setting the back edge down (2) until it fits into the
assembly.
1
2
Figure 4-17

13Section 4 — ASSembly & inStAllAtion

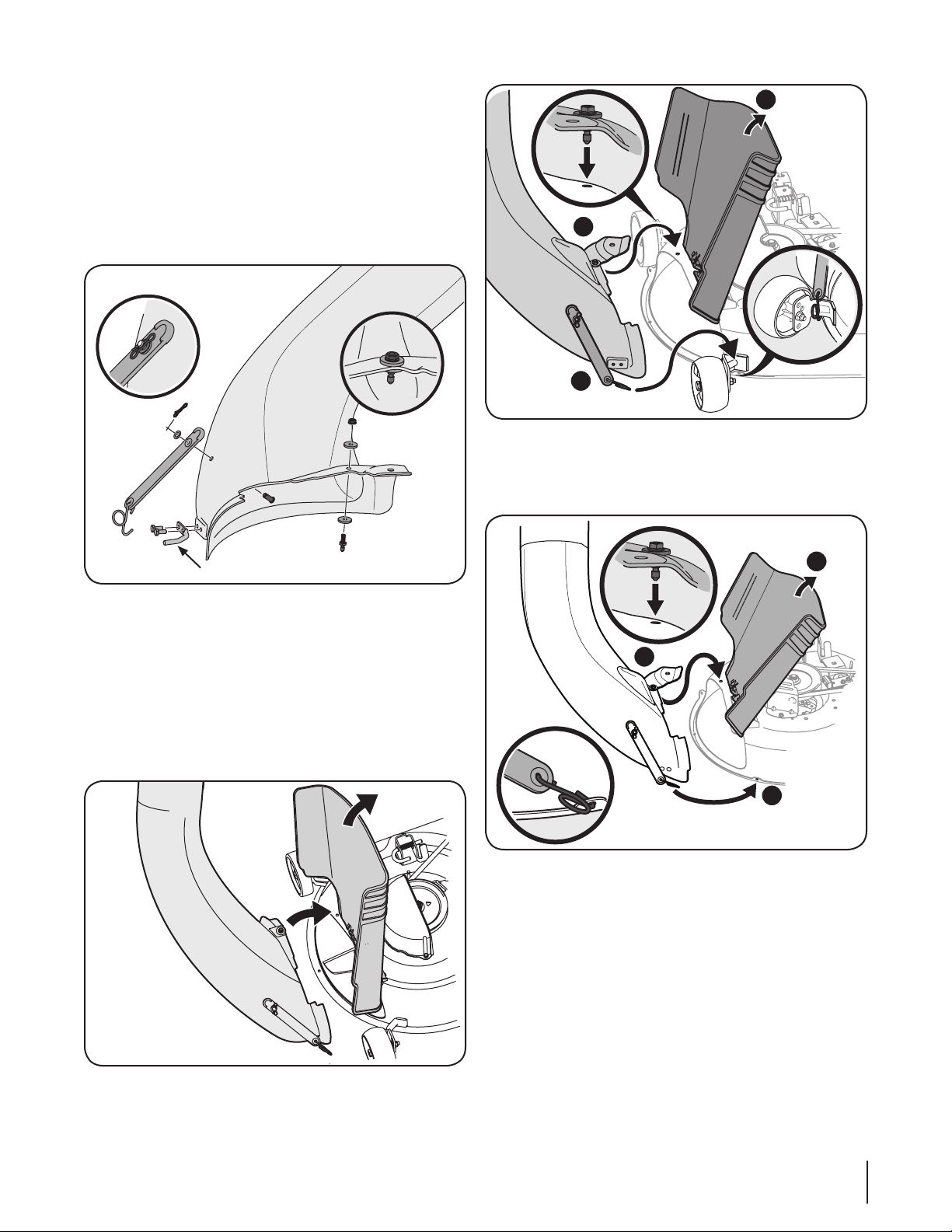

On Tractors with Older Deck Configurations:
1. Install the rubber chute strap, from hardware pack
689-00313, onto the chute elbow using the clevis pin (711-
05063), washer (736-0204) and Bow-tie cotter pin (714-04040)
from hardware pack 689-00313. See Figure 4-20. Secure the
end of the strap utilizing the hole furthest from the end, insert
the torsion spring hook (732-04510A) into the other end.
Note: On decks with front deck wheels, the boot mount
rod must be removed in order to install this discharge chute
elbow onto the tractor. See Figure 4-20.
Remove the Boot Mounting Rod
Figure 4-20
2. Install the deck mounting pin (711-05049) up into the chute
elbow using two flat washers (736-0176) from hardware pack
689-00313 and secure with a flange lock nut (712-3027), as
seen in Figure 4-20.
3. With the tractor’s discharge chute raised up and held open,
install the chute elbow over the chute opening by placing
the deck mounting pin in the hole provided, as seen in
Figure 4-21, then secure the elbow to the deck by hooking
the retainer strap torsion spring hook over the deck wheel
mounting bracket a seen in Figure 4-22.
Figure 4-21
2
3
1
Figure 4-22
Note: On decks without deck wheels, hook the retainer
strap into the hole provided in the flange on the front-side
of the cutting deck. See Figure 4-23.
1
2
3
Figure 4-23
Note: When assembling this bagging unit on an older deck,
an extra wing knob, which is only needed on installations
on new decks, will be left over.

14 Section 4 — ASSembly & inStAllAtion

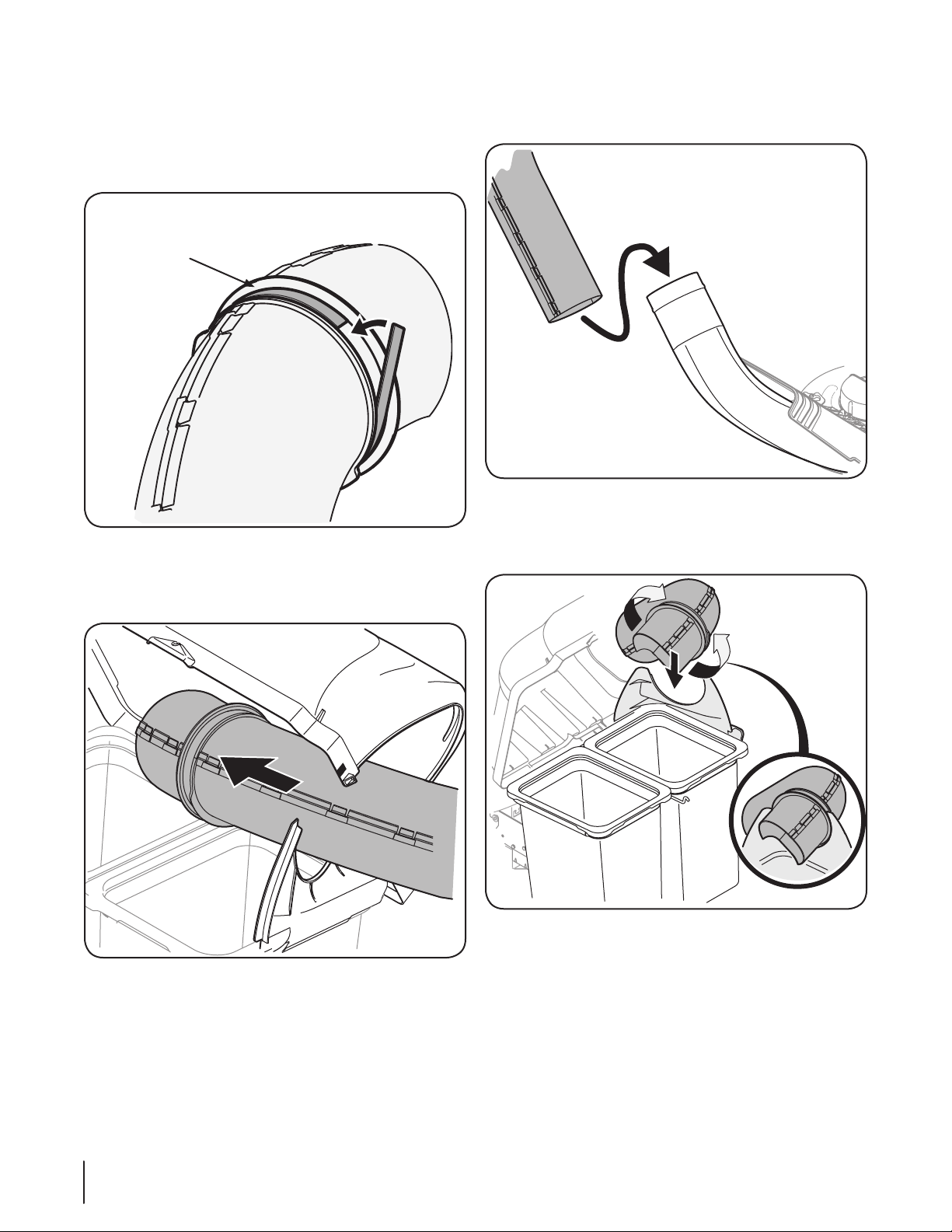

Installing the Upper Chute Tube
1. Peel the backing off of the self-adhesive foam strip
(721-04388) that has been included within your Carton of
Contents. Apply it to the upper chute, flush against the
flange as shown in Figure 4-24.
Flange
Figure 4-24
2. With the grass catcher cover open, install the upper
discharge chute through the discharge chute opening, as
seen in Figure 4-25.
Figure 4-25
3. With the ability now to wiggle the discharge chute tube
back and forth, slide it over the chute elbow mounted on
the cutting deck, as shown in Figure 4-26.
Figure 4-26
4. Continue to work the discharge chute down over the chute
elbow until the groove on the discharge chute aligns with
the upper chute support, as seen in the inset of Figure 4-27.
Figure 4-27

Operation 5
15
Bagger Usage
NOTE: When both grass bags are full, place the tractor on a firm,
level surface, disengage the PTO, turn the tractor engine off and
set the parking brake.
1. Flip Seat up.
2. Open the grass bag cover by pushing in on the rear, right-
side tab with your right hand, as seen in 1 of Figure 5-1, and
lifting the cover with your left hand in the center rear of the
bagger cover, 2. Do not remove the chute tube assembly
from the tractor.
1
2
Figure 5-1
3. Remove the grass bags by lifting these up (1 in Figure 5-2)
and moving the bags away from the bag support assembly
(2).
2
1
Figure 5-2
4. Empty the grass clippings at a proper disposal sight, use
the handle at the bottom of each grass bag. Holding the
bag firmly, empty the contents
5. Replace grass bags, close lid, flip down seat, restart your
tractor and resume cutting your grass.
Note: Retighten all wing knobs periodically throughout the
season.

Twin Rear Bagger 19A30003OEM/19A30003000 Parts List 5
700 Series Mount Kit
35
36
30
33
31
32
34
6
23
16
17
6
29
12
7
14
14
45
10
11
9
15
13
2
19
26
23
2
18
8
18
6
21
12
3
27
25
28
24
22
20
16

Section 5 — twin ReaR BaggeR PaRtS LiSt
Ref. Part Number Description
1. 689-00101 Mounting Bracket Kit (Incl. ref. 16, 17, 18)
2. 710-3008 Hex Head Screw, 5/16-18 x .75”
3. 711- 03 09A Clevis Pin, .62” Dia.
4. 711- 050 49 Attachment Pin, 1/4 x 0.66 Lg.
5. 711- 050 63 Clevis Pin, 5/16 x .75 Lg.
6. 712-04063 Flange Lock Nut, 5/16-18
7. 712-3027 Flange Lock Nut, 1/4-20
8. 714 - 0117 Internal Cotter Pin, .148 x 3.00
9. 714-04040 Bow-Tie Cotter Pin, 72
10. 723-04008A Chute Strap, 6.00 Lg.
11. 631-05029 Bagger Discharge Chute, Elbow
12. 720-04122 Wing Knob, 5/16-18
13. 732-04510A Torsion Spring Hook
14. 736 -0176 Flat Washer, .265 x .938 x .120
15. 736-0204 Flat Washer, .344 x .62 x .033
16. N/A* Mounting Bracket, LH
17. N/A* Mounting Bracket, RH
18. 783-05887-0637 Universal Bracket Support
19. 931-04295A Upper Discharge Chute
20. 931-04292 Double Bagger Cover Assembly
21. 731-06497 Upper Chute Support
22. 731-06504 Bagger Cover Screen
23. 710-0276 Carriage Screw, 5/16-18 x 1.00”
24. 964-04096A Grass-bag Assembly
25. 683-04461-0637 Double Bag Support Assembly
26. 683-04519-0637 Vertical Support Bracket
27. 711- 0 49 88 Cover Hinge Pin
28. 735-0246A End Plug
29. 721-04388 Self-Adhesive Foam Strip
30. 710-04484 Tap Screw, 5/16-18 x .750
31. 711- 0332 Clevis Pin
32. 712-04065 Flange Lock Nut, 3/8-16
33. 914-0145 Click Pin, .092 x 1.64 Lg.
34. 738-04267 Shoulder Screw, .625 x .412
35 783-05889A-0637 Mounting Bracket, RH
36. 783-05890A-0637 Mounting Bracket, LH
*Order Reference 1
17

MANUFACTURER’S LIMITED WARRANTY FOR
GDOC-100167 REV. A
The limited warranty set forth below is given by MTD LLC with
respect to new merchandise purchased and used in the United
States and/or its territories and possessions, and by MTD Products
Limited with respect to new merchandise purchased and used
in Canada and/or its territories and possessions (either entity
respectively, “MTD”).
“MTD” warrants this product (excluding its Normal Wear Parts and
Attachments as described below) against defects in material and
workmanship for a period of one (1) year commencing on the date
of original purchase and will, at its option, repair or replace, free of
charge, any part found to be defective in materials or workmanship.
This limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator’s Manual
furnished with the product, and has not been subject to misuse,
abuse, commercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage because of other
peril or natural disaster. Damage resulting from the installation or
use of any part, accessory or attachment not approved by MTD
for use with the product(s) covered by this manual will void your
warranty as to any resulting damage.
Normal Wear Parts are warranted to be free from defects in material
and workmanship for a period of thirty (30) days from the date of
purchase. Normal wear parts include, but are not limited to items
such as: batteries, belts, blades, blade adapters, tines, grass bags,
wheels, rider deck wheels, seats, snow thrower skid shoes, friction
wheels, shave plates, auger spiral rubber and tires.
Attachments — MTD warrants attachments for this product against
defects in material and workmanship for a period of one (1) year,
commencing on the date of the attachment’s original purchase or
lease. Attachments include, but are not limited to items such as:
grass collectors and mulch kits.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH
PROOF OF PURCHASE, through your local authorized service dealer.
To locate the dealer in your area:
In the U.S.A.
Check your Yellow Pages, or contact MTD LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, or call 1-800-800-7310, 1-330-220-
4683 or log on to our Web site at www.mtdproducts.com.
In Canada
Contact MTD Products Limited, Kitchener, ON N2G 4J1, or call
1-800-668-1238 or log on to our Web site at www.mtdcanada.com.
This limited warranty does not provide coverage in the following
cases:
a. Log splitter pumps, valves, and cylinders have a separate
one- year warranty.
b. Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments,
deck adjustments, and normal deterioration of the exterior
finish due to use or exposure.
c. Service completed by someone other than an authorized
service dealer.
d. MTD does not extend any warranty for products sold or
exported outside of the United States and/or Canada, and
their respective possessions and territories, except those sold
through MTD’s authorized channels of export distribution.
e. Replacement parts that are not genuine MTD parts.
f. Transportation charges and service calls.
g. MTD does not warrant this product for commercial use.
No implied warranty, including any implied warranty of
merchantability or fitness for a particular purpose, applies
after the applicable period of express written warranty above
as to the parts as identified. No other express warranty,
whether written or oral, except as mentioned above, given
by any person or entity, including a dealer or retailer, with
respect to any product, shall bind MTD. During the period of
the warranty, the exclusive remedy is repair or replacement of
the product as set forth above.
The provisions as set forth in this warranty provide the sole
and exclusive remedy arising from the sale. MTD shall not
be liable for incidental or consequential loss or damage
including, without limitation, expenses incurred for substitute
or replacement lawn care services or for rental expenses to
temporarily replace a warranted product.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not apply
to you.
In no event shall recovery of any kind be greater than the amount
of the purchase price of the product sold. Alteration of safety
features of the product shall void this warranty. You assume the
risk and liability for loss, damage, or injury to you and your property
and/or to others and their property arising out of the misuse or
inability to use the product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased as a
gift.
HOW STATE LAW RELATES TO THIS WARRANTY: This limited
warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
IMPORTANT: Owner may be required to present proof of purchase
to obtain warranty coverage.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: [phone]
MTD Canada Limited - KITCHENER, ON N2G 4J1; Phone [phone]

Contenido de la caja 2
19
Gracias por comprar un accesorio embolsador doble fabricado
por MTD. El mismo ha sido diseñado cuidadosamente para
brindar excelente rendimiento si se lo opera y mantiene
correctamente.
Por favor lea todo este manual antes de hacer funcionar el
equipo. Le indica cómo configurar, operar y mantener el
accesorio de manera fácil y segura. Por favor cerciórese de
que usted o cualquier otra persona que opere la máquina siga
cuidadosamente y en todo momento las prácticas de seguridad
recomendadas. En caso de no hacerlo podrían producirse
lesiones personales o daños materiales.
Toda la información contenida en este manual hace referencia
a la más reciente información de producto disponible en el
momento de la impresión. Revise el manual frecuentemente
para familiarizarse con el accesorio, sus características y
funcionamiento. Por favor tenga en cuenta que este Manual
del Operador puede cubrir una gama de especificaciones de
producto para diferentes modelos.
Es posible que las características y funciones incluidas y/o
ilustradas en este manual no se apliquen a todos los modelos.
MTD se reserva el derecho de modificar las especificaciones
de los productos, los diseños y el equipo sin previo aviso y sin
generar responsabilidad por obligaciones de ningún tipo.
Si tiene algún problema o duda respecto a este accesorio, llame
a su distribuidor de servicio MTD local autorizado o póngase en
contacto directamente con nosotros. Los números de teléfono,
dirección del sitio Web y dirección postal de la Asistencia al
Cliente de MTD se encuentran en esta página. Queremos
garantizar su entera satisfacción en todo momento.
En este manual, las referencias al lado derecho o izquierdo de la
máquina se observan desde la posición del operador.
Gracias
Asistencia al Cliente
Por favor, NO devuelva la máquina al minorista o distribuidor sin ponerse en contacto primero con el Departamento de
Asistencia al Cliente.
En caso de tener problemas para montar este producto o de tener dudas con respecto a los controles, funcionamiento
o mantenimiento de esta máquina, puede solicitar la ayuda de los expertos. Elija entre las opciones que se presentan a
continuación:
◊ Visítenos en la Web en www.mtdproducts.com
◊ Llame a un Representante de Servicio al cliente [phone] o [phone]
◊ Escríbanos a MTD LLC • P.O. Recuadro 361131 • Cleveland, OH 44136-0019
Registro de información de producto
Antes de configurar y hacer funcionar su equipo nuevo, por favor
localice la placa de modelo en el equipo y registre la información
en el espacio de la derecha. Podrá localizar la placa de modelo
en la parte superior de la cubierta de la embolsadora. Si tiene
que solicitar soporte técnico a través de nuestro sitio web, el
Departamento de Asistencia al Cliente, o de un distribuidor de
servicio autorizado local, necesitará esta información.
NúMero de Modelo
NúMero de Serie
Medidas importantes de seguridad .................... 20
Contenido de la caja y paquetes de elementos de
ferretería............................................................ 23
Armado e instalación............................................ 25
Funcionamiento.................................................... 32
Lista de piezas ........................................................16
Garantía................................................................. 33
French..................................................................... 34
Índice

Medidas importantes de seguridad 2
20
Funcionamiento general
1. Lea, comprenda y respete todas las instrucciones que
figuran en el equipo y en los manuales antes de intentar
armarlo y hacerlo funcionar. Guarde este manual en un
lugar seguro para consultas futuras y periódicas, así como
para solicitar repuestos.
2. Para ayudar a evitar una lesión por contacto con las
cuchillas o con un objeto que sea arrojado, mantenga a las
personas que observan, a los ayudantes, niños y mascotas
alejados a no menos de 25 metros de la máquina mientras
está funcionando. Detenga la máquina si alguien entra en
la zona.
3. Revise minuciosamente el área donde se va a usar el
equipo. Retire todas las piedras, palos, cables, huesos,
juguetes y otros objetos extraños que podrían ser
recogidos y arrojados por la acción de las cuchillas. Los
objetos arrojados por la máquina pueden causar lesiones
graves.
4. Para protegerse los ojos, utilice siempre gafas o lentes de
seguridad mientras opera la máquina o mientras la ajusta
o repara. Los objetos arrojados que rebotan pueden causar
lesiones oculares graves.
5. Nunca opere la cortadora de césped sin tener bien
colocada la cubierta de descarga o el colector de césped.
Si falta o está dañada la cubierta de descarga o un
componente del accesorio embolsador puede resultar
en lesiones por contacto con la cuchilla o con objetos
arrojados.
6. No ponga las manos ni los pies cerca de las piezas
rotatorias ni debajo de la plataforma de corte. El contacto
con las cuchillas puede resultar en la amputación de una
mano o pie.
7. Apague el motor de la cortadora de césped y espere que
las cuchillas se detengan totalmente antes de desbloquear
la abertura de descarga de la cortadora o las piezas de la
embolsadora.
8. Reduzca la velocidad antes de girar. Opere la máquina
de forma pareja. Evite el funcionamiento errático y la
velocidad excesiva. Tenga en cuenta que el accesorio
colector de césped puede afectar las características de
manejo de su cortadora.
9. Desenganche las cuchillas, coloque el freno de mano,
detenga el motor y espere hasta que las cuchillas se
detengan totalmente antes de abrir la cubierta superior del
accesorio embolsador, sacar el colector de césped, vaciar
los recortes, desbloquear el canal, retirar cualquier residuo
o desecho, o realizar cualquier ajuste.
10. Nunca deje la máquina en funcionamiento sin vigilancia.
Apague siempre las cuchillas, coloque la transmisión en
neutral, coloque el freno de mano, detenga el motor y
retire la llave antes de bajarse del vehículo.
11. Su máquina fue diseñada para cortar césped residencial
normal, con una altura no mayor a 10”. No intente cortar
pasto demasiado crecido y seco (por ej., pastura) ni pilas
de hojas secas. El pasto y las hojas secas pueden entrar
en contacto con el escape del motor y/o acumularse en la
plataforma de la cortadora de césped, convirtiéndose en
un peligro de incendio.
12. Si se presentan situaciones que no están previstas en este
manual, sea cuidadoso y use el sentido común. Póngase en
contacto con su representante de atención al cliente para
solicitar asistencia.
Funcionamiento en pendientes
Las pendientes son un factor importante en los accidentes
ocasionados por pérdida de control y vuelcos que pueden causar
lesiones graves e incluso la muerte. Los accesorios tambíen
pueden afectar la estabilidad de la máquina. La operación en
pendiente requiere mayor precaución.
Para seguridad, use el medidor de pendientes que se incluye
como parte de este manual para estimar el ángulo de la
pendiente antes de hacer funcionar la máquina en una zona
inclinada. Si la pendiente es mayor a 10 grados en el medidor, no
opere la cortadora con el accesorio embolsador en ese sector,
pues podría causar lesiones graves.
Haga lo siguiente:
1. Corte hacia arriba y abajo de las pendientes, no en forma
transversal. Tenga sumo cuidado al cambiar de dirección
en una pendiente.
2. Esté atento a los hoyos, surcos, baches, rocas, u otros
objetos ocultos. El terreno desnivelado puede voltear la
máquina. El pasto alto puede ocultar obstáculos.
¡ADVERTENCIA! La presencia de este símbolo indica que se trata de instrucciones
importantes de seguridad que se deben respetar para evitar poner en peligro su seguridad
personal y/o material y la de otras personas. Lea y cumpla todas las instrucciones de este
manual antes de intentar operar esta máquina. Si no respeta estas instrucciones puede
causar lesiones personales.
CUANDO vea este símbolo. ¡TENGA EN CUENTA LAS ADVERTENCIAS!
¡PELIGRO! Este accesorio está diseñado para ser usado respetando las normas de seguridad
contenidas en este manual. Un descuido o error por parte del operador puede ocasionar
lesiones graves. Una cortadora es capaz de amputar manos y pies y de arrojar objetos
con gran fuerza. Si no se observan las siguientes instrucciones de seguridad junto con las
instrucciones suministradas con la cortadora, se puede ocasionar lesiones graves e incluso la
muerte.
