Multitech MultiVOIP MVP120 User manual

Standalone Voice/IP Gateway
Model MVP120
Proprietary Mode
Quick Start Guide

Quick Start Guide
PN 82060550 Revision A
MultiVOIP 100 Model MVP120
Copyright
This publication may not be reproduced, in whole or in part, without prior
expressed written permission from Multi-Tech Systems, Inc. All rights reserved.
Copyright © 2001, by Multi-Tech Systems, Inc.
Multi-Tech Systems, Inc. makes no representations or warranties with respect to
the contents hereof and specifically disclaims any implied warranties of
merchantability or fitness for any particular purpose. Furthermore, Multi-Tech
Systems, Inc. reserves the right to revise this publication and to make changes
from time to time in the content hereof without obligation of Multi-Tech Systems,
Inc. to notify any person or organization of such revisions or changes.
Revision Date Description
A08/10/01 Initial Release.
Patents
This Product is covered by one or more of the following U.S. Patent Numbers:
6151333, 5757801, 5682386 . Other Patents Pending.
Trademarks
Trademark of Multi-Tech Systems, Inc. is the Multi-Tech logo.
Windows is a registered trademark of Microsoft.
Technical Support
Multi-Tech Systems has an excellent staff of technical support personnel available
to help you get the most out of your Multi-Tech product. If you have any
questions about the operation of this unit or experience difficulty during
installation, you can contact Tech Support via the following:
Country By Email By Telephone
France: [email protected] (33) 1-64 61 09 81
India: [email protected] (91) 124-340778
U.K.: [email protected] (44) 118 959 7774
U.S. & Canada: [email protected] [phone]
Rest of World: [email protected] [phone]
World Headquarters
Multi-Tech Systems, Inc.
2205 Woodale Drive
Mounds View, Minnesota 55112
[phone] or [phone]
U.S. Fax [phone]
http://www.multitech.com

Contents
Introduction ................................................................................... 4
RelatedDocumentation................................................................. 5
Overview ....................................................................................... 6
Unpacking Your MultiVOIP............................................................ 8
Safety Warnings ............................................................................ 8
Cabling Your MultiVOIP................................................................. 9
Software Installation .....................................................................11
Configuring the Host MultiVOIP .................................................. 16
Configuring the Client MultiVOIPs............................................... 29
Deploying the VOIP Network....................................................... 37
VOIPAdministrator ............................................................... 37
Remote SiteAdministrator .................................................... 38
Limited Warranty ......................................................................... 39
FCC Declaration.......................................................................... 39

MultiVOIP Quick Start Guide
4
Introduction
The MultiVOIP model MVP120 enables FXO-only analog voice
and fax communication over an IP network. Multi-Tech’s new
voice/fax gateway technology allows voice and fax
communication to ride, with no additional expense, over your
existing IP network, which has traditionally been data-only. To
access this free voice and fax communication, all you have to
do is connect the MultiVOIP to your telephone equipment, and
then to your existing Internet connection. Once configured, the
MultiVOIP then allows voice and fax to travel down the same
path as your traditional data communications.
The MVP120 has one independent voice/fax channel, a 10
Mbps Ethernet LAN interface, and a command port for
configuration.
System management is provided through the command port
using bundled Windows® software which provides easy-to-use
configuration menus and online Help.
Figure 1. MultiVOIP

5
Introduction
Related Documentation
The MVP120 Quick Start Guide is intended to be used by
qualified systems administrators and network managers. This
quick start guide provides the necessary information for a
qualified person to unpack, cable, load software, and configure
the unit for proper operation.
A detailed MVP120 User Guide is also provided on the system
CD with your unit and provides in-depth information on the
features and functionality of Multi-Tech’s MultiVOIP.
The User Guide is produced using Adobe AcrobatTM. To view
or print your copy of a user guide, install Acrobat ReaderTM on
your computer. The Acrobat Reader is included on your
system CD or is available as a free download from Adobe’s
Web site: http://www.adobe.com
The MVP120 User Guide is also available on Multi-Tech’s Web
site: http://www.multitech.com

MultiVOIP Quick Start Guide
6
Overview
Install Your MultiVOIP
The basic steps of installing your MultiVOIP network involve
unpacking the units, connecting the cables, and configuring
the units using the included management software (MultiVOIP
Configuration). The recommended installation process
includes three phases that, when completed, result in a fully
functional Voice Over IP network.A general description of
each phase is provided below, and detailed instructions follow
throughout the rest of this section.
Configure and Install Your Host MultiVOIP
First, the VOIP administrator configures the MultiVOIP
designated as the “Host” unit. This includes the assignment of
a unique LAN IP address, subnet mask, and Gateway IP
address. Once the VOIP is configured, the administrator
builds the Phone Directory Database that will reside with the
Host unit.
Configure Your Client MultiVOIPs
Once installation has been completed, the administrator
moves on to configure the MultiVOIPs designated as “Client”
units.Again, this includes the assignment of unique LAN IP
addresses, subnet masks, and a Gateway IP address. When
this is done, the Phone Directory Database option is set to
Client, and the IP address of the Host MultiVOIP is entered.
Once all Client units are configured, the VOIP network can be
deployed.

7
Introduction
Deploy the VOIP Network
The final phase of the installation is deployment of the
network. Through the first two phases, the VOIP administrator
controls configuration, so when the Client MultiVOIPs are sent
to their remote sites, the remote site administrators need only
to connect the units to their LAN and telephone equipment.A
full Phone Directory Database (supplied by the Host
MultiVOIP) will be loaded into their unit within minutes of being
connected and turned on.
The final task of the VOIPAdministrator is to develop the VOIP
Dialing Directory based on the Phone Directory Database and
telephone numbers of the interfacing telephone equipment, at
which point, a VOIP user can call any person on the VOIP
network.

MultiVOIP Quick Start Guide
8
Unpacking Your MultiVOIP
Remove all items from the box (See Figure 2).
Figure 2. Unpacking
Safety Warnings
Caution: Danger of explosion if battery is incorrectly replaced.
A lithium battery on the voice/fax channel board provides
backup power for the time keeping capability. The battery has
an estimated life expectancy of ten years. When the battery
starts to weaken, the date and time may be incorrect. If the
battery fails, the board must be sent back to Multi-Tech
Systems for battery replacement.
Note: The Command and Ethernet ports are not designed to
be connected to a Public Telecommunication Network. FXO
can be connected to a PBX/FXO port or PSTN Network.

9
Cabling
Cabling Your MultiVOIP
Cabling your MultiVOIP involves making the proper
connections for power, the command port, the FXO/PBX or
PSTN system, and the Internet. Figure 3 shows the back
panel connectors and the associated cable connections. The
following procedure details the steps necessary for cabling
your MultiVOIP.
1. Connect the power supply to a liveAC outlet, and then
connect it to the MultiVOIP as shown in Figure 3.
Figure 3. Cable Connections

MultiVOIP Quick Start Guide
10
2. Connect the MultiVOIP to a PC using the RJ-45 to DB9
(female) cable provided with your unit. Plug the RJ-45 end
of the cable into the Command port of the MultiVOIP and
connect the other end to the PC serial port you are using.
See Figure 3.
3. Connect a network cable to the Ethernet connector on the
back of the MultiVOIP. Connect the other end of the cable
to your network.
4. Connect an RJ-11 cable to the Voice/Fax Channel
connector on the back of the MultiVOIP and the other end
to the PSTN or FXO/PBX port.
5. Turn on power to the MultiVOIP by setting the power
switch on the right side panel to the On position. Wait for
the Boot LED on the MultiVOIP to go off before
proceeding. This may take a couple of minutes.
Note: If the Ethernet connection is not active, none of the
LEDs will be on after booting. This unit does not have a
Power LED.

11
Software Installation
Software Installation
This section covers software installation.Additional information
on the MultiVOIP software is provided in the User Guide
supplied with your MultiVOIP.
Note: If you are installing a MultiVOIP behind a firewall, you
need to add the following UDP ports to your firewall.
900 Signaling Information 5004 RTP Packets
5000 Status Information 5005 RTCP Packets
Refer to your firewall user documentation to enter and open
these ports.
1. Make certain that your MVP120 has been properly cabled
and that the power is turned on.
Note: If the Ethrenet connection is not active, none of the
LEDs will be on after booting. This unit does not have a
Power LED.
2. Insert the MVP120 CD into your CD-ROM drive. The CD
should start automatically. It may take 10 to 20 seconds
for the installation window to display.

MultiVOIP Quick Start Guide
12
If the Multi-Tech Installation CD window does not appear
automatically, click My Computer, then right-click the CD-
ROM drive icon, click Open, then click the Autorun icon.
3. When the Multi-Tech Installation CD window displays, click
the Install Software icon.
3a. Click Install Software.
3b. Check Proprietary, and then click OK.
4. The MultiVOIP Welcome window displays.
Press Enter or click Next to continue.

13
Software Installation
5. Follow the on-screen instructions to install your MultiVOIP
software.
You can either choose the Destination Location of your
MVP120 software or select the default destination by
clicking Next. If you click Browse, you can select a
different destination folder for the MVP120 software.

MultiVOIP Quick Start Guide
14

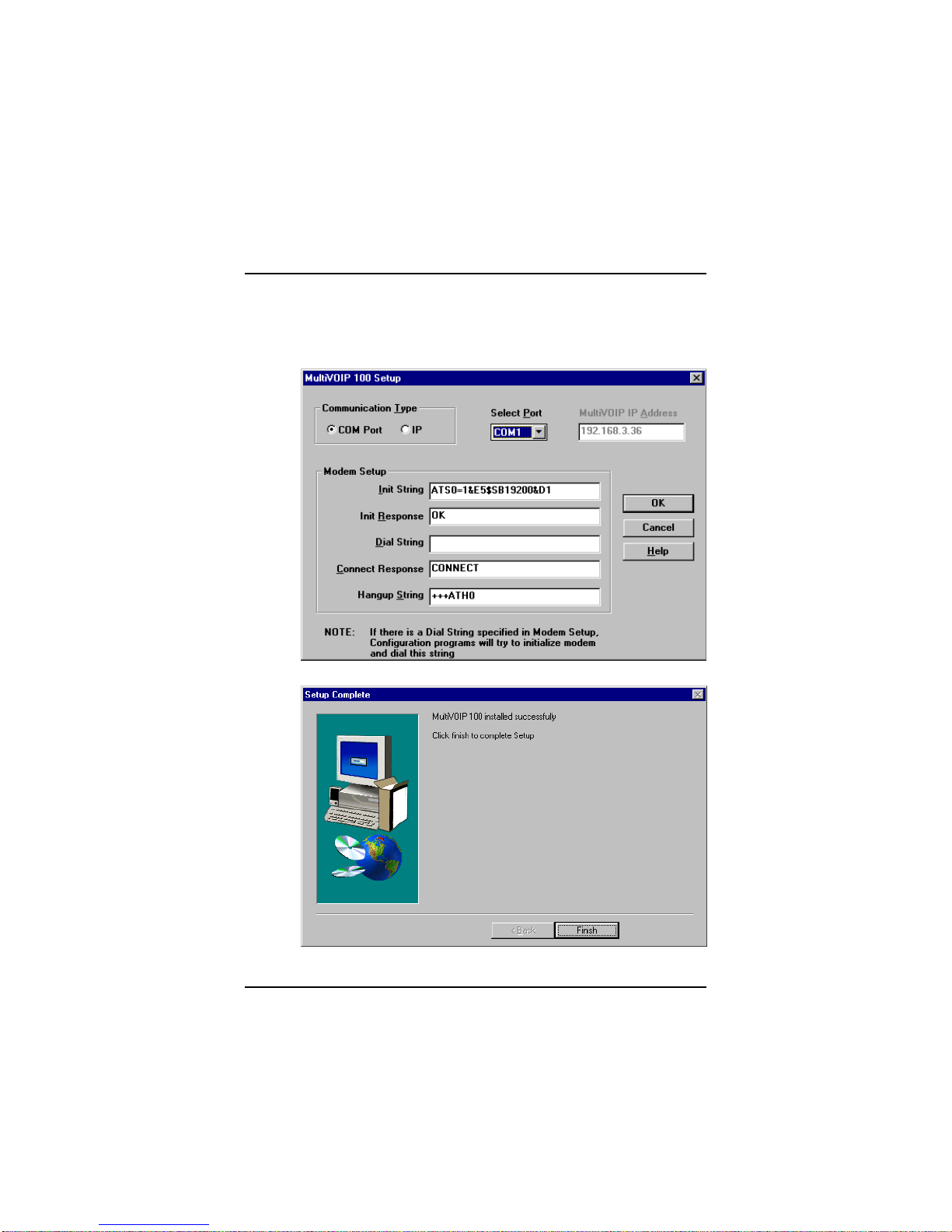

6. The Setup dialog box enables you to select the COM port
of your PC that is connected to the Command port of the
MVP120. From the Select Port list, select the COM port of
your PC. Click OK to continue.
7. The Setup Complete dialog displays. Click Finish.

15
Software Installation
8. The following message displays.
Click No to continue.
9. In the Program group, double-click Upgrade Software.
This loads the Proprietary software.
10. The following message displays.
Click Yes to continue.
11. The IP Protocol Default Setup dialog box displays next
(see page 16) as you continue configuring your MultiVOIP.

MultiVOIP Quick Start Guide
16
Configuring the Host MultiVOIP
The following steps provide instructions for configuring your
MVP120. The configuration sequence includes IP Protocol
default setup, Channel setup, and Phone Directory Database
setup.
12. The IP Protocol Default Setup dialog box displays.
The default Frame Type is TYPE_II. If this does not match
your IP network, change the Frame Type by selecting SNAP
from the Frame Type list. The available Frame Type choices
areTYPE_II and SNAP.
13. In the Ethernet group, enter your unique LAN IP address in
the IP Address box, then enter the Subnet Mask and
Gateway Address for your LAN in the corresponding
boxes.
The IP address is your unique LAN IP address, and the
Gateway address is the IP address of the device
connecting your MultiVOIP to the Internet.
Click OK when you are finished.
14. The Channel Setup dialog box displays. The four tabs in
this dialog box define the channel interface, voice/fax
parameters, billing/security parameter, and regional
telephone parameters (tone pairs).

17
Configuring the Host MultiVOIP
15. Check with your in-house phone personnel to verify
whether your local PBX dial signaling is Pulse or DTMF
(tone). Select the Regeneration option accordingly.
In the Max Dial Digits box, enter the maximum number of
digits allowed when dialing a phone number. The default
number is 5. In the Inter Digit Time option defines the
maximum amount of time between dialed digits that the
unit will wait before mapping the dialed digits to an entry in
the Phone Directory Database. If too much time elapses
between digits, the wrong number will be mapped and you
will hear a rapid busy signal. If this happens, hang up and
dial again. The default setting is 2 seconds.
In the Flash Hook Timer box, enter the amount of time for
the duration of the flash hook signals output on the FXO
interface. The default setting is 600 milliseconds.

MultiVOIP Quick Start Guide
18
For FXO-to-FXO communications, you can enable a
specific FXO Disconnect: Fix Current Loss, Tone
Detection, or Silence Detection. Check with your in-
house phone personnel to verify the type of disconnect to
use. If Current Loss is checked, the VOIP will hangup
when it detects a loss of current on the FXO/phone port.
For Tone Detection, select from the drop down list box
one or two tones that will cause the line to disconnect. The
person hanging up the call must then press the key or
keys that produce those tones to hang up a call. For
Silence Detection, select One Way or Two Way. Then
enter in the Silence Timer box the number of seconds of
silence before disconnect. The default value of 15 seconds
may be shorter than desired for your application.
To dedicate the local voice/fax channel to a remote voice/
fax channel, (so you will not have to dial the remote
channel) select the Auto Call Enable check box. Enter
the phone number of the remote VOIP in the Phone
Number box.
16. The Voice/Fax tab displays the parameters for the voice
gain, DTMF (Dual Tone Multi-Frequency) gain, voice
coder, faxing, and advanced features such as Silence
Compression, Echo Cancellation, and Forward Error
Correction.

19
Configuring the Host MultiVOIP
To change the voice coder, select the new voice coder
entry from the Voice Coder list. If you change the voice
coder, ensure that the same voice coder is used on the
voice/fax channel you are calling. Otherwise, you will get a
busy signal.
Note: If Automatic Coder is selected, enter the bandwidth
in the Max Bandwidth box. Check with your Network
Administrator to determine available bandwidth.
You can set up the Input Gain and Output Gain so that
the volume can be increased or decreased. Input gain
modifies the level of the audio coming into the voice
channel before it is sent over the Internet to the remote
MultiVOIP. Output gain modifies the level of the audio
being output to the device attached to the voice channel.
Make your selections from the Input and Output drop-
down lists in the Voice group. The valid range is +31dB to
–31dB with a recommended/default value of 0.

MultiVOIP Quick Start Guide
20
17. The Fax group enables you to select the maximum baud
rate for faxes and adjust the fax volume. If you do not plan
to send or receive faxes on a given voice/fax channel, you
can disable faxes in the Fax group.
18. The Miscellaneous group lets you set voice/fax advanced
features by clicking (checking) Silence Compression,
Echo Cancellation, or Forward Error Correction.
The Silence Compression option defines whether silence
compression is enabled for the voice channel. If silence
compression is enabled, the MVP120 will not transmit
voice packets when silence is detected, thereby reducing
the amount of network bandwidth used by the voice
channel.
The Echo Cancellation option defines whether echo
cancellation is enabled for the voice channel. If echo
cancellation is enabled, the MVP120 will remove echo
which improves the quality of sound.
The Forward Error Correction (FEC) option defines
whether forward error correction is selected for the voice
channel. The FEC feature allows some of the voice
packets that were corrupted or lost to be recovered. FEC
adds an additional 50% overhead to the total network
bandwidth consumed by the voice channel.
