Must PH5000-T Series User manual

PV Grid Inverter

1.Notes on this manual ...............................................................1
2. Safety ..................................................................................3
3. Product description.................................................................6
4.Unpacking and inspection.........................................................8
5.Electrical Connection..............................................................14
6.Commissioning......................................................................18
7.Start-up and shut down the inverter...........................................21
8.maintenance and Cleaning.......................................................21
9. Trouble shooting...................................................................21
10.Decommissioning.................................................................23
11.Technical Data.....................................................................23
12.PV system installation...........................................................26
13.Contact..............................................................................27

Symbol description
DANGER indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
danger
warning
caution
notice
information
-1-
WARNING indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
CAUTION indicates a hazardous situation which, if not avoided, could result
in minor or moderate injury.
NOTICE is used to address practices not related to personal injury.
Information that you must read and know to ensure optimal operation of the
system.
1.Notes on this manual
1.1 Validity and information
This manual describe the assembly, installation, commissioning, communication, trouble
shooting and maintenance of the following PH5000-T series inverter model: PH50-7000T,
PH50-8000T, PH50-9000T, PH50-10000T, PH50-11000T, PH50-12000T, PH50-13000T,
PH50-15000T. The manual and other documents must be stored in a convenient place and be
available at all times. For possible changes in this manual, we accepts no responsibilities to
inform the users.
1.2 Target Group
This manual is for qualified personnel. Qualified personnel have received training and have
demonstrated skills and knowledge in the construction and operation of this device. Qualified
Personnel are trained to deal with the dangers and hazards involved in installing electric
devices.
Any trouble in the installation, you can contact the supplier .
1.3 Symbols in this document
1.3.1 Warning in this document
A warning describes a hazard to equipment or personnel. It calls attention to a procedure or
practice, which, if not correctly performed or adhered to, could result in damage to or
destruction of part or all of the PH5000-T equipment and/or other equipment connected to
the PH5000-T equipment or personal injury.

1.3.2 Markings on this product
Symbol description
5min
-2-
Electrical voltage!
Risk of burns!
Operation after 5 minutes
CE mark.
The inverter complies with the requirements of the applicable EC
guidelines.
Point of connection for grounding protection
Direct Current (DC)
Alternating Current (AC)
The inverter has no transformer.
Read the manual
Danger of high voltage and electric shock.
Danger of hot surface.
Signals danger due to electrical shock and indicates the time(5 minutes）to
allow after the inverter has been turned off and disconnected to ensure safety
in any installation operation .
1.4 Glossary
AC
Abbreviation for "Alternating Current"
DC
Abbreviation for "Direct Current"
Energy
Energy is measured in Wh (watt hours), kWh (kilowatt hours) or MWh (megawatt hours).
The energy is the accumulation of power over time. for example, your inverter operates at a
constant power of 5000 W for half an hour and then at a constant power of 2500 W for
another half an hour, it has fed 3750Wh of energy into the power distribution grid within that
hour.
Power
Power is measured in W (watts), kW (kilowatts) or MW (megawatts). Power is an instantaneous
value. It displays the power your inverter is currently feeding into the power distribution grid.
Power rate
Power rate is the radio of current power feeding into the power distribution grid and the
maximum power of the inverter that can feed into the power distribution grid.

-3-
PV modules
INVERTER
DC load circuit
breaker
AC load circuit
breaker
Energy meter
Utility grid
Power Factor
Power factor is the ratio of real power and apparent power.
PV
Abbreviation for photovoltaic
wireless communication
The external wireless communication technology is a radio technology that allows the inverter
and other communication products to communicate with each other. The external wireless
communication does not require line of sight between the devices and it is selective purchasing.
2.Safety
2.1 Intended Use
The unit converts the DC current generated by the photovoltaic (PV) modules to grid-compliant
alternating current and performs three-phase feed-in into the electricity Grid.
PH5000-T series inverters are built according to all required safety rules. Nevertheless, improper
use may cause lethal hazards for the operator or third parties, or may result in damage to the
units and other property.
Principle of a PV plant with this PH50-XXXXT three-phase inverter
Fig1.1
The inverter may only be operated with a permanent connection to the public power grid.
The inverter is not intended for mobile use. Any other or additional use is not considered the
intended use. The manufacturer/supplier is not liable for damage caused by such unintended
use. Damage caused by such unintended use is at the sole risk of the operator.
PV modules Capacitive Discharge Currents
PV modules with large capacities relative to earth, such as thin-film PV modules with cells on
a metallic substrate, may only be used if their coupling capacity does not exceed 2.2uF.
During feed-in operation, a leakage current flows from the cells to earth, the size of which
depends on the manner in which the PV modules are installed (e.g. foil on metal roof ) and on
the weather (rain, snow). This "normal" leakage current may not exceed 100mA due to the
fact that the inverter would otherwise automatically disconnect from the electricity grid as a
protective measure.

warning
caution
2.5 Electrical Connection Warnings
danger
-4-
2.2 Qualification of skilled person
This grid-tied inverter system operates only when properly connected to the AC -distribution
network. Before connecting the PH5000-T to the power distribution grid, contact the local
power distribution grid company. This connection must be made only by qualified technical
personnel to connect, and only after receiving appropriate approvals, as required by the local
authority having jurisdiction.
2.3 Safety instruction
The PH5000-T series Inverters is designed and tested according to international safety
requirements; however, certain safety precautions must be observed when installing and
operating this inverter. Read and follow all instructions, cautions and warnings in this
installation manual. Any questions, please contact the supplier .
2.4 Assembly Warnings
Before installation, inspect the unit to ensure absence of any transport or
handling damage, which could affect insulation integrity or safety clearances;
otherwise it could result in safety hazards.
Assemble each inverter the instructions in this manual. Be Careful when
choosing installation location and according to specified cooling requirements.
Unauthorized remove the necessary protections, improper use, incorrect
installation and operation may result the serious safety and shock hazards or
equipment damage.
In order to minimize the potential of a shock hazard due to hazardous voltages,
cover the entire solar array with dark material prior to connecting the array to
any equipment.
Grounding the PV modules: The PH5000-T is a high frequency inverter(without
transformer). That is why it has no galvanic separation. Do not ground the DC
circuits of the PV modules when connected to the PH5000-T. Only ground the
mounting frame of the PV modules. If you connect grounded PV modules to the
PH5000-T, that will show error message "PV ISO Low".
Follow the local requirements for grounding the PV modules and the PV generator.
We recommend connecting the generator frame and other electrically conductive
surfaces in a manner which ensures continuous conduction with ground in order
to have optimal protection of the system and personnel.
The components in the inverter are mobilizable. Touching mobilizable components
can result in serious injury or death.
Do not open the inverter except the wire box by qualified persons.
Electrical installation, repairs and conversions may only be carried out by
electrically qualified persons.
Do not touch damaged inverter.
Danger to life due to high voltages in the inverter.
There has residual voltage in the inverter. The inverter takes 20 minutes to
discharge.
Wait 20 minutes before you open the wire box.
Persons with limited physical or mental abilities may only work with the PH5000-T
inverter following proper instruction and under constant supervision. Children
are forbidden to play with the PH5000-T inverter. Must keep the PH5000-T inverter
away from children.

warning
caution
House grid:
Public grid:
2.6 Operation Warnings
warning
caution
-5-
Make all electrical connections (e.g. conductor termination, fuses, PE connection,
etc.) in accordance with prevailing regulations. When working with the inverter,
adhere to all prevailing safety regulations to minimize risk of accidents.
Systems with inverters typically require additional control (e.g., switches,
disconnects) or protective devices (e.g., fusing circuit breakers) depending
on the prevailing safety rules.
The PH5000-T Inverter converts DC Current from PV generator into AC current.
The inverter is suitable for mounting indoors and outdoors.
You can use the AC current generated as follows:
Energy flows into the house grid. The consumers connected,
for example, household devices or lighting, consume the energy.
The energy left over is fed into the public grid. When the
PH5000-T is not generating any energy, e.g., at night, the
consumers which are connected are supplied by the public
grid. The PH5000-T does not have its own energy meter. When
energy is fed into the public grid, the energy meter spins
backwards.
Energy is fed directly into the public grid. The PH5000-T is
connected to a separate energy meter. The energy produced is
compensated at a rate from the electric power company.
Make sure all covers and doors closed and secure during operation.
Although designed meeting all safety requirements, some parts and surfaces
of Inverter are still hot during operation. To reduce the risk of injury, do not
touch the heat sink at the back of the PV-Inverter or nearby surfaces while
Inverter is operating.
Incorrect sizing of the PV plant may result in voltages which could destroy
the inverter.
Switch the rotary DC Disconnect to the Off position immediately.
Contact installer.
All operations regarding transport, installation and start-up, including
maintenance must be operated by qualified, trained personnel and in
compliance with all prevailing codes and regulations.
Anytime the inverter has been disconnected from the power network, please
be much careful as some components can retain charge sufficient to create a
shock hazard; to minimize occurrence of such conditions, please comply with
all corresponding safety symbols and precautions and present on the unit and
in this manual.
In particular cases, there may still be interference for the specified application
area despite maintaining standardized emission limit values (e.g. when
sensitive equipment is located at the setup location or when the setup location
is near radio or television receivers).In this case, the operator is obliged to
take proper action to rectify the situation.
Do not stay closer than 20 cm to the inverter for any length of time.

3. Product description
3.1 PH5000 Overview
DC switch
PV Input AC Output
information
Symbol on the inverter
DescriptionSymbol Explanation
Inverter status symbol Indicates inverter operation status
-6-
LED
WiFI
A
C
D
BE
Position Description
LED
RS 485
F
A
C
B
D
E
F
PV Input
DC switch
AC Output
RS 485
WiFI
The PH5000-T series inverter can choose whether to bring a DC switch
depending on customers' need.

-7-
Please kindly check the inverter detail specifications as below:
Model Name PH50-
11000T
Max input DC voltage
MPPT voltage range
DC max.current
AC nominal voltage
Grid frequency
Rated AC power
1000V
200V-1000V
12.5A/12.5A
230V/400V
50HZ/60HZ
Max.AC out
apparent power 7700VA
Max.AC current
Protective class
11.1A
Protection degree
USB
Class I
IP65
-25℃-60℃
Operation ambient
temperature
Communications Ports
7000W
3.2 Inverter label
The inverter can be identified by the label on the left side of inverter. It shows the Products
type,the inverter specific features and the parameter on the label.
PV Grid Inverter
Model Name
DC max. voltage
MPPT voltage range
DC max. current
AC nominal voltage
Grid frequency
Rated AC power
Max. AC out apparent power
Max. AC current
Power factor range
Protection degree
Protective class
PH50-***T
***V
**-***V
**A
***V
50Hz/60Hz
****W
****VA
***A
0.95c-0.95i
IP65
Class I
Operation ambient
temperature -25℃~+60℃
PH50-
10000T
PH50-
9000T
PH50-
8000T
PH50-
7000T
8800VA
12.7A
8000W
9900VA
14.3A
9000W
11000VA
15.9A
10000W
12100VA
17.5A
11000W
PH50-
12000T
13200VA
19A
12000W
14300VA
20.6A
13000W
16500VA
23.8A
15000W
PH50-
13000T
PH50-
15000T
Model Height（H）Width（W）Depth（D）Weight
PH50-7000-11000T 428mm 16.85inch 500mm 19.69inch 200mm 7.87inch 22kg
PH50-12000-15000T
3.3 Inverter Dimensions
Dimensions and weight:
428mm 16.85inch 24kg
500mm 19.69inch 200mm 7.87inch
20A/10A


-8-
3.4 Storage environment of Inverter
If you want to storage the inverter in the warehouse, Please select a suitable place to storage.
The inverter must be stored in original package and please keep stored in a dry environment
o o
The storage temperature should be always between -25 C and +60 C. And the storage
relative humidity should be always between 0 and 95%.(Recommend storage environment)
If there are a batch of inverters need to be stored, the maximum layers for original carton
is four.
After long term storage, The local installer or Service centre should perform a comprehensive
test before installation the inverter&system;
3.5 Advantage of the inverter:
Wide input voltage range from 160V-1000Vdc
IP65 protection degree
Integrated DC switch
DSP controller
The maximum efficiency is 98.3%
Multi MPP controller
Easy installation
4.Installation
4.1 Unpacking and inspection
After opening the package, please check the contents of the box. It should contain the
following, Please check all of the accessories in carton. If anything missing, please contact
your dealer at once.
Shows the components and mechanical parts that should be delivered
NO. Pictures description Quantity
1PH5000-T 1PCS
2WiFi 1PCS
3PV+ input terminal 3PCS
4PV- input terminal 3PCS
5
Metal terminals securedto PV+ input
power cables 3PCS
7
6
Metal terminals secured to PV- input
powercables 3PCS
RJ-45 2PCS

4.2 Tools
NO.
1
2
3
4
5
Tool Model
Hammer drill
Recommend drill dia.
6mm
Removal tool
Wire stripper
Wrench
Crimping tools
Function
To drill holes on the wall
Remove PV terminal
Strip wire
Turn the screw to connect rear
panel with inverter
To crimp power cables
9
10 Certificate
Output terminals
1PCS
1PCS
11 Manual 1PCS
-9-
8Blasting screws 4PCS
12 Wi-Fi Plug14 Quick Installation
Guideline 1PCS

-10-
4.3 Safety instruction
Danger to life due to fire or explosion
Despite careful construction, electrical devices can cause fires.
Do not install the inverter on easily flammable materials and where
flammable materials are stored.
Risk of burns due to hot enclosure parts
Mount the inverter in such a way that it cannot be touched inadvertently
Possible damage to health as a result of the effects of radiation!
In special cases, there may still be interference for the specified application
area despite maintaining standardized emission limit values (e.g. when
sensitive equipment is located at the setup location or when the setup
location is near radio or television receivers).In this case, the operator is
obliged to take proper action to rectify the situation.
Never install the inverter near the sensitive equipment(e.g. Radios,
telephone, television, etc)
Do not stay closer than 20 cm to the inverter for any length of time unless it
is absolutely necessary.
We assumes no responsibility for compliance to EMC regulations for the
complete system.
All electrical installations shall be done in accordance with the local and national electrical
codes. Do not remove the casing. Inverter contains no user serviceable parts. Refer
servicing to qualified service personnel. All wiring and electrical installation should be
conducted by a qualified service personnel.
Carefully remove the unit from its packaging and inspect for external damage. If you find
any imperfections, please contact your local dealer. Be sure that the inverters connect to
the ground in order to protect property and personal safety.
The inverter must only be operated with PV generator. Do not connect any other source to it.
Both AC and DC voltage sources are terminated inside the PV Inverter. Please disconnect
these circuits before servicing.
This unit is designed to feed power to the public power grid (utility) only.
Do not connect this unit to an AC source or generator. Connecting Inverter to external
devices could result in serious damage to your equipment.
When a photovoltaic panel is exposed to light, it generates a DC voltage. When connected
to this equipment, a photovoltaic panel will charge the DC link capacitors.
Energy stored in this equipment's DC link capacitors presents a risk of electric shock. Even
after the unit is disconnected from the grid and photovoltaic panels, high voltages may still
exist inside the PV-Inverter. Do not remove the casing until at least 5 minutes after
disconnecting all power sources.
Although designed to meet all safety requirements, some parts and
surfaces of Inverter are still hot during operation. To reduce the risk of injury, do not touch
the heat sink at the back of the PV-Inverter or nearby surfaces while Inverter is operating.

-11-
max 15°
Direction Min. clearance (cm)
above 30
below 50
sides 30
front 30
30cm30cm
30cm
30cm
Ambient dimensions of one inverter

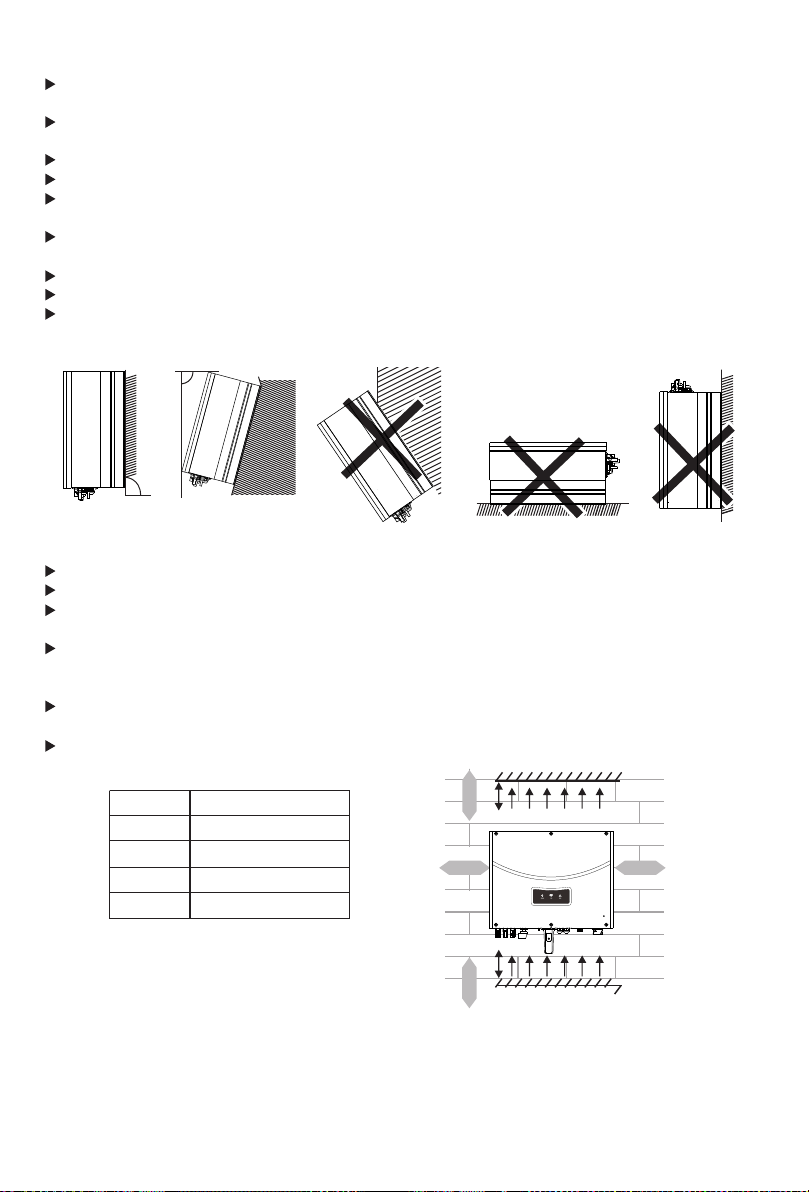

4.4 Selecting the installation location
This is guidance for installer to choose a suitable installation location, to avoid potential
damages to device and operators.
The installation location must be suitable for the inverter's weight and dimensions for a
long period time.
Select the installation location so that the status display can be easily viewed.
Do not install the inverter on structures constructed of flammable or thermolabile materials.
Never install the inverter in environment of little or no air flow, nor dust environment. That
may derate the efficiency of the cooling fan of the inverter.
The Ingress Protection rate is IP65 which means the inverter can be installed outdoors and
indoors.
The humidity of the installation location should be 0~95% without condensation.
The installation location must be freely and safely to get at all times.
Vertically installation and make sure the connection of inverter must be downwards. Never
install horizontal and avoids forward and sideways tilt.
Fig 4.1
Be sure that the inverter is out of the children’s reach.
Don’t put any things on the inverter. Do not cover the inverter.
Do not install the inverter near television antenna or any other antennas and antenna
cables.
Inverter requires adequate cooling space. Providing better ventilation for the inverter to
ensure the heat escape adequately. The ambient temperature should be below 40°C to
ensure optimum operation.
Do not expose the inverter to direct sunlight, as this can cause excessive heating and thus
power reduction.
Observe the Min. clearances to walls, other inverters, or objects as shown in the diagram:

-12-
400mm
400mm400mm
1000mm
1000mm1000mm
400mm
400mm400mm
300mm
300mm300mm
Ambient dimensions of series inverters
OK OK NO OK OK OK
NO
NO
NO
There must be sufficient clearance between the individual inverters to ensure that the
cooling air of the adjacent inverter is not taken in.
If necessary, increase the clearance spaces and make sure there is enough fresh air supply
to ensure sufficient cooling of the inverters.
The inverter can’t install to solarization, drench, firn location. We suggest that the inverters
should be installed at the location with some cover or protection.
Recommend awning installation,t he purpose is to extend the inverter service life and
reduce the power derating of the inverter .The dimension of the awning, refer to fig4.5
>800mm
>200mm
>300mm
>300mm
Fig4.5
300mm
300mm300mm
300mm
300mm300mm

-13-
To mount the inverter on the wall, we should mount expansion bolt to the wall firmly first.
In order to avoid electrical shock or other injury, inspect existing
electronic or plumbing installations before drilling holes.
danger
4.5 Installation the Inverter
4.5.1 Mounting Expansion Bolt
Fig4.6
Please make sure the inverter is installed at the right place.The inverter can’t install close
to trunk.
1. Please make sure the thickness of the wall for inverter installation is more
than 600mm;
2. Please place the bitmap horizontally on the wall and confirm the level by
level;
3. Please mark the holes in the 4 mounting holes of the hoe pattern;
4. Drill a hole with a depth of 55mm at the mark with a drill of φ8mm
5. Please expand the bolt with a hammer into the hole in the wall and install the
nut (including elastic flat pad), do not tighten the nut;
6. Please hang the inverter on the expansion bolt and tighten the nut with a
wrench.
7000-15000T Hole pape
470.25mm
205.00mm
Steps:
Drill four holes for expansion bolt use the fix hole paper as template
Fix the mounting expansion bolt on the wall as the figures shown below. combine four
expansion bolt with four M6 Nuts. Refer to Fig4.7

-14-
5.2 Wiring AC Output
notice
PH50-7000T
PH50-8000T
16A/400V
20A/400V
You must comply with the connection requirements of your utility operator.
All usages must comply with the regulations.
The inveter have the residual current detect and protect function, if you
have device the AC breaker have the residual current detect function, you
must choice breaker the rating residual current more than 300mA.
You must install a separate three-phase circuit-breaker or other load disconnection unit for
each inverter in order to ensure that the inverter can be safely disconnected under load.
We suggest you choose the AC breaker rating current in this table:
PH50-9000-12000T
PH50-13000-15000T
25A/4000V
32A/400V
5.Electrical connection
5.1 safety
warning
Danger to life due to lethal voltages!
High voltages which may cause electric shocks are present in the conductive
parts of the inverter. Prior to performing any work on the inverter, disconnect
the inverter on the AC and DC sides
Danger of damage to electronic components due to electrostatic discharge.
Take appropriate ESD precautions when replacing and installing the inverter.
PV modules
INVERTER
DC load circuit
breaker
AC load circuit
breaker
Energy meter
Utility grid
Fig5.1
We recommend electrical connection as below.Refer to fig5.1
Fig4.7

-15-
TPUT
socket element threaded sleeve sealing ring pressure screw
Note that the polarity of the connection line matches the terminal tag to avoid
incorrect connection.
notice
Click！
Click！
2. Remove the parts of the AC connection plug from the accessory bag. Prepare the pressure
screw, sealing ring, threaded sleeve over the AC cable.
3.Insert the stripped and bared conductors L1,L2,L3,N,PE into the screw terminals with sign L1,L2,L3,
N,PE( ) on the socket element and tighten the screws firmly.
Stranded copper wire
4.Push the threaded sleeve into the socket element; screw the pressure screw tightly onto
the threaded sleeve;
The AC wiring steps:
1. The grid connection is contains using 5 conductors (L1,L2,L3, N, and PE).

-16-
5.Finally, insert the AC connection plug into the AC connection receptacle on the inverter.
Unlock the housingLock the housing
Wire suggestion length：
Conductor cross
section
5.2mm² 10AWG
3.3mm² 12AWG
Max. cable length
PH50-
7000T
56m
35m
6.6mm² 9AWG /
PH50-
8000T
50m
31m
/
PH50-
9000T
40m
28m
/
PH50-
10000T
40m
/
/
PH50-
11000T
36m
/
/
PH50-
12000T
36m
/
/
PH50-
13000T
34m
/
/
PH50-
15000T
29m
/
37m
5.3 Protect the earth
In some installation countries, a second protective conductor is required to prevent a touch
current in the event of a malfunction in the original protective conductor.
For installation countries falling within the scope of validity of IEC standard 62109, you must
install the protective conductor on the AC terminal with a conductor cross-section of at least
10 mm² Cu.
Or install a second protective conductor on the earth terminal with the same cross-section as
the original protective conductor on the AC terminal. This prevents touch current if the
original protective conductor fails.
5.4 Wiring DC Input
5.4.1 Connecting DC Input Power Cables
Step1 Remove cable glands from the positive and negative connectors.
Step2 Take out metal terminals from accessory package, Wiring as illustrated in image.
Fig5.2
L2=8-10mm
L1
L2=8-10mm
L1
Step3 Insert the positive and negative power cables into corresponding cable glands.
Step4 Insert the stripped positive and negative power cables into the positive and negative
metal terminals respectively and crimp them using a clamping tool. Ensure that the cables
are crimped until they cannot be pulled out by force less than 400 N, as shown in image.

-17-
PH5000 DC input terminals positicve and negative connectors
Step5 Insert the positive and negative connectors into corresponding DC input terminals of
the PH5000-T until you hear a "click" sound.
5.4.2 Conditions for DC Connection
The PH5000-T three-phase inverter has two independent input : input A and input B(PH50-
12000-15000T input A has two input terminals(PH50-7000-11000T input A has one input
terminals.)
-
The diagram drawing of DC side is shown as below, notice that the connectors are in paired
(male and female connectors). The connectors for PV arrays and inverters are H4 (yunfan)
connectors;
Suggestions for the PV modules of the connected strings:
Same type
Same quantity of PV modules connected in series
caution
If the inverter is not equipped with a DC switch but this is mandatory in the
country of installation, install an external DC switch.
The following limit values at the DC input of the inverter must not be exceeded:
Model name Max.current input
PH50-7000T
PH50-8000T
10A
10A
PH50-9000T
PH50-10000T
PH50-11000T
PH50-12000T
PH50-13000T
PH50-15000T
Max.current input A
12.5A
10A
12.5A
12.5A
12.5A
12.5A
20A
20A
12.5A
20A
12.5A
12.5A
12.5A
12.5A
