SAJ R5-3K-T2-15 User manual

R5 Series
- 1 -
User Manual
SAJ Solar Inverter
R5-3K/4K/5K/6K/8K/9K/10K/12K-T2-15
R5-3K/4K/5K/6K/8K/9K/10K/12K/13K/15K/17K/20K-T2

R5 Series
- 1 -
Preface
Thank you for choosing SAJ solar inverter. We are pleased to provide you
first-class products and exceptional service.
This manual includes information for installation, operation, maintenance,
trouble shooting and safety. Please follow the instructions of this manual
so that we can ensure delivery of our professional guidance and
wholehearted service.
Customer-orientation is our forever commitment. We hope this document
proves to be of great assistance in your journey for a cleaner, greener
world.
Please check for the latest version at www.saj-electric.com
Guangzhou Sanjing Electric Co., Ltd.
Building e-Energy Management Solution Provider

R5 Series
- 2 -
Content
PREFACE ........................................... - 1 -
CHAPTER 1 SAFETY PRECAUTIONS ................. - 4 -
1.1 SCOPE OF APPLICATION ..................................... - 4-
1.2 SAFETY INSTRUCTIONS..................................... - 4-
1.3 TARGET GROUP ........................................... - 5-
CHAPTER 2 PREPARATION ......................... - 5 -
2.1 SAFETY INSTRUCTIONS ..................................... - 5-
2.2 EXPLANATIONS OF SYMBOLS ................................. - 7-
CHAPTER 3 PRODUCT INFORMATION ............... - 8 -
3.1APPLICATION SCOPE OF PRODUCTS ............................ - 8-
3.2 SPECIFICATION FOR PRODUCT MODEL .......................... - 9-
3.3 OVERVIEW OF PRODUCTS .................................... - 9-
3.4 DATASHEET ............................................. - 11 -
CHAPTER 4 INSTRUCTIONS FOR INSTALLATION.... - 21 -
4.1 SAFETY INSTRUCTIONS .................................... - 21 -
4.2 PRE-INSTALLATION CHECK ................................. - 21 -
4.3 THE DETERMINATION OF THE INSTALLATION METHOD AND POSITION. - 22 -
4.4 MOUNTING PROCEDURE.................................... - 23 -
CHAPTER 5 ELECTRICAL CONNECTION............ - 29 -
5.1 SAFETY INSTRUCTION FOR HOT-LINE JOB ...................... - 29 -
5.2 SPECIFICATIONS FOR ELECTRICAL INTERFACE ................... - 30 -
5.3 AC CONNECTION ......................................... - 31 -

R5 Series
- 3 -
5.4 DC SIDE CONNECTION..................................... - 35 -
5.5 COMMUNICATION CONNECTION.............................. - 38 -
CHAPTER 6 DEBUGGING INSTRUCTIONS ........... - 40 -
6.1 INTRODUCTION OF HUMAN-COMPUTER INTERFACE ............... - 40 -
6.2 MONITORING OPERATION................................... - 41 -
CHAPTER 7 FAULT CODE AND TROUBLESHOOTING. - 49 -
CHAPTER 8 RECYCLING AND DISPOSAL............ - 52 -
CHAPTER 9 CONTACT SAJ......................... - 53 -
SAJ WARRANTY POLICY .......................... - 54 -
WARRANTY CARD ................................. - 57 -

R5 Series
- 4 -
Chapter 1 Safety Precautions
1.1 Scope of Application
This User Manual describes instructions and detailed procedures for installing,
operating, maintaining, and troubleshooting of the following SAJ on-grid inverters:
Please keep this manual all time available in case of emergency.
1.2 Safety Instructions
DANGER
·DANGER indicates a hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING
·WARNING indicates a hazardous situation which, if not avoided, can result in death or
serious injury or moderate injury.
CAUTION
·CAUTION indicates a hazardous condition which, if not avoided, can result in minor or
moderate injury.
NOTICE
·NOTICE indicates a situation that can result in potential damage, if not avoided.
R5-3K-T2;
R5-4K-T2;
R5-5K-T2;
R5-6K-T2;
R5-8K-T2;
R5-9K-T2;
R5-10K-T2;
R5-17K-T2;
R5-12K-T2;
R5-13K-T2;
R5-15K-T2;
R5-20K-T2;
R5-3K-T2-15;
R5-5K-T2-15;
R5-4K-T2-15;
R5-6K-T2-15;
R5-8K-T2-15;
R5-9K-T2-15;
R5-10K-T2-15;
R5-12K-T2-15;

R5 Series
- 5 -
1.3 Target Group
Only qualified electricians who have read and fully understood all safety regulations
contained in this manual can install, maintain and repair the inverter. Operators must
be aware of the high-voltage device.
Chapter 2 Preparation
2.1 Safety Instructions
DANGER
·There is possibility of dying due to electrical shock and high voltage.
·Do not touch the operating component of the inverter, it might result in burning or death.
·To prevent risk of electric shock during installation and maintenance, please make sure that
all AC and DC terminals are plugged out.
·Do not touch the surface of the inverter while the housing is wet, otherwise, it might cause
electrical shock.
·Do not stay close to the inverter while there are severe weather conditions including storm,
lighting, etc.
·Before opening the housing, the SAJ inverter must be disconnected from the grid and PV
generator; you must wait for at least five minutes to let the energy storage capacitors
completely discharged after disconnecting from power source.
WARNING
·The installation, service, recycling and disposal of the inverters must be performed by
qualified personnel only in compliance with national and local standards and regulations.
·Any unauthorized actions including modification of product functionality of any form may
cause lethal hazard to the operator, third parties, the units or their property. SAJ is not
responsible for the loss and these warranty claims.
·The SAJ inverter must only be operated with PV generator. Do not connect any other
source of energy to the SAJ inverter.
·Be sure that the PV generator and inverter are well grounded in order to protect properties
and persons.

R5 Series
- 6 -
CAUTION
·The solar inverter will become hot during operation. Please do not touch the heat sink or
peripheral surface during or shortly after operation.
·R isk of damage due to improper modifications.
NOTICE
·Public utility only.
·The solar inverter is designed to feed AC power directly to the public utility power grid; do
not connect AC output of the inverter to any private AC equipment.

R5 Series
- 7 -
2.2 Explanations of Symbols
Symbol
Description
Dangerous electrical voltage
This device is directly connected to public grid, thus all work to the inverter
shall only be carried out by qualified personnel.
Danger to life due to high electrical voltage!
There might be residual currents in inverter because of large capacitors. Wait
for 5 minutes before you remove the front lid.
Notice, danger!
This is directly connected with electricity generators and public grid.
Danger of hot surface
The components inside the inverter will release a lot of heat during operation.
Do not touch metal plate housing during operating.
An error has occurred
Please go to Chapter 9 “Troubleshooting” to remedy the error.
This device shall not be disposed of in residential waste
Please go to Chapter 8 “Recycling and Disposal” for proper treatments.
Without Transformer
This inverter does not use transformer for the isolation function.
CE Mark
Equipment with the CE mark fulfills the basic requirements of the Guideline
Governing Low-Voltage and Electro-magnetic Compatibility.
CQC Mark
The inverter complies with the safety instructions from China's Quality Center.
No unauthorized operations or modifications
Any unauthorized operations or modifications are strictly forbidden, if any
defect or damage (device/person) occurs, SAJ shall not take any responsibility
for it.

R5 Series
- 8 -
Chapter 3 Product Information
3.1 Application Scope of Products
R5-XK-TX products are grid-tied three phase inverters without transformers, and
the inverters are important components of grid-tied solar power systems.
The R5 inverter converts the DC generated by solar panels into AC which is in
accordance with the requirements of public grid and send the AC into the grid,

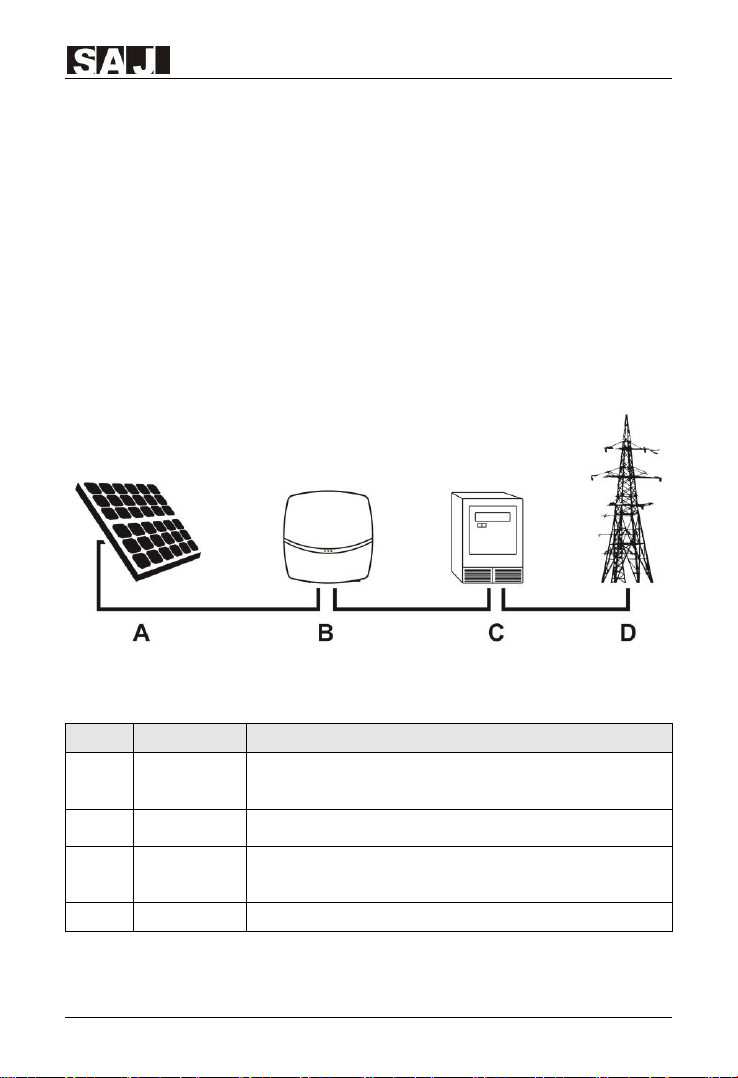

Figure 3.1 shows the structural diagram of the typical application system of R5
inverter.
Figure 3.1 R5 series application
Name
Description
Remarks
A
Solar panels
Monocrystalline or polycrystalline silicon, and thin-film PV
modules with II protection and need no ground connection
B
Inverters
R5-4K/5K/6K/8K/9K/10K/12K/13K/15K/17K/20K-T2
R5-3K/4K/5K/6K/8K/9K/10K/12K-T2-15
C
Metering
equipment
Standard metering tool for measuring the output electric power
of inverters
D
Power grid
TT, TN-C, TN-S, TN-C-S

R5 Series
- 9 -
3.2 Specification for Product Model
R5 –XK –T2-15
①②③○
4
①R5 represents for product name.
②XK represents rated power XkW of inverter, for example 4K means 4kW.
③T means three phase; 2 represents the inverter has the function of dual MPPT.
○
415 means string current is 15A
3.3 Overview of products
The dimensions of R5 series products are shown in Figure 3.2 , Figure 3.3 & Figure
3.4.

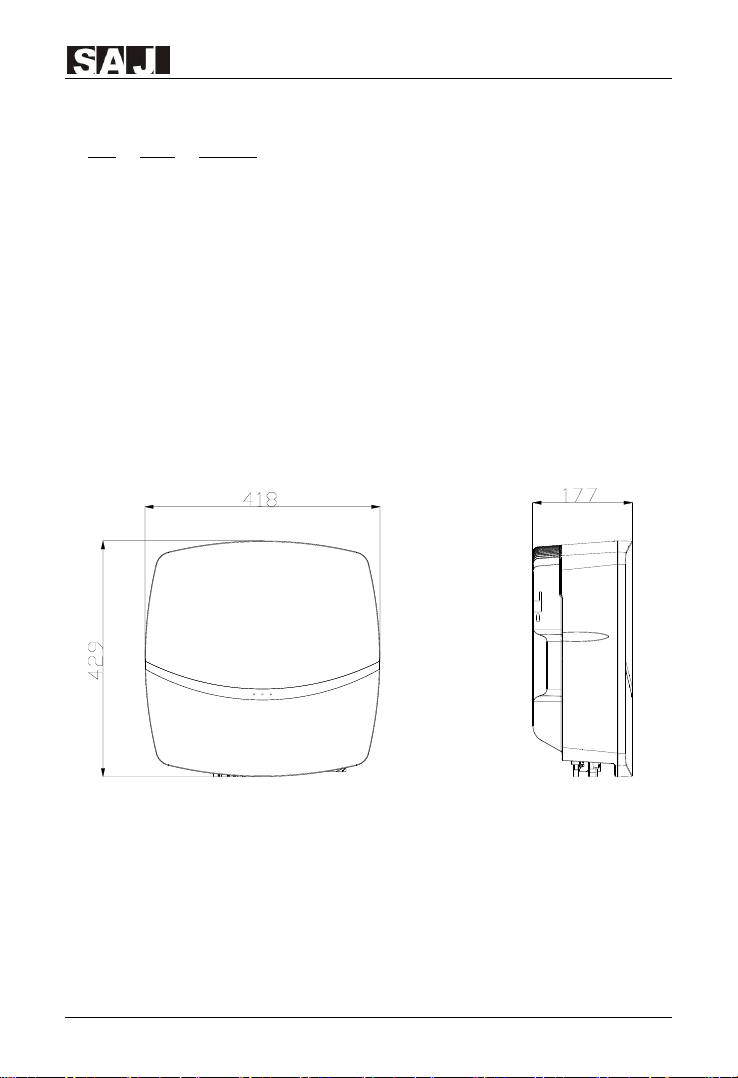

Figure 3.2 Dimensions of R5-3K/4K/5K/6K/8K/9K/10K/12K-T2
R5-3K/4K/5K/6K/8K/9K/10K/12K-T2-15

R5 Series
- 10 -
Figure 3.3 Dimensions of R5-13K/15K-T2
Figure 3.4 Dimensions of R5-17K/20K-T2

R5 Series
- 11 -
3.4 Datasheet
R5-3K/4K/5K/6K-T2
Type
R5-3K-T2
R5-4K-T2
R5-5K-T2
R5-6K-T2
Input (DC)
Max. PV Array Power [Wp]@STC
4500
6000
7500
9000
Max. DC Voltage[V]
1100
MPPT Voltage range [V]
160-950
Nominal DC Voltage[V]
600
Start Voltage[V]
180
Min. DC Voltage[V]
150
Max. DC Input Current [A]
12.5/12.5
Max. DC Short Current [A]
15/15
Number of DC Connection Sets per MPPT
1/1
Number of MPPT
2
DC Switch
Integrated
Output (AC)
Rated AC Power[W]
3000
4000
5000
6000
Max. AC Power[VA] *1
3300
4400
5500
6600
Rated AC Current [A]@230Vac
4.4
5.8
7.3
8.7
Max. AC Current [A]
5.0
6.7
8.4
10.0
Current Inrush [A]
50
Max. AC Fault Current [A]
24.5
Max. AC Over Current Protection [A]
28.4
Nominal AC Voltage/ Range[V]
220/380,230/400,240/415;180-280/312-485
Grid Frequency/ Range[Hz]
50,60/45-55,55-65
Power Factor[cos φ]
0.8 leading~0.8 lagging
Total Harmonic Distortion[THDi]
< 2%
Feed-in
3L+N+PE
Efficiency
Max. Efficiency
98.0%
98.3%
98.6%
Euro Efficiency
97.6%
98.0%
98.2%
MPPT Accuracy
>99.5%
Protection

R5 Series
- 12 -
Internal Over-voltage Protection
Integrated
DC Insulation Monitoring
Integrated
DCI Monitoring
Integrated
GFCI Monitoring
Integrated
Grid Monitoring
Integrated
AC Short Circuit Current Protection
Integrated
AC Grounding Detection
Integrated
DC Surge Protection
Integrated
AC Surge Protection
Integrated
Thermal Protection
Integrated
String Current Detection
Integrated
Anti-island Protection Monitoring
AFD
Interface
AC Connection
Plug-in connector
DC Connection
MC4
Human Machine Interface
LED+(Bluetooth/Wi-Fi+APP)
Communication Port
RS232(USB)+RS485(RJ45)
Communication Mode
Wi-Fi/GPRS/4G(Optional)
General Data
Topology
Transformerless
Consumption at Night [W]
<0.6
Consumption at Standby [W]
<10
Operating Temperature Range
-40℃～+60℃ [45°C to 60°C with derating]
Cooling Method
Natural Convection
Ambient Humidity
0%～100% Non-condensing
Altitude
4000m(>3000m power derating)
Noise [dBA]
<29
Ingress Protection
IP65
Mounting
Rear Panel
Dimensions[H*W*D] [mm]
429*418*177
Weight [kg]
19
Standard Warranty [Year]
5 (standard)/10/15/20/25 (Optional)
Applicable Standard
CQCNB/T32004,EN62109-1/2,EN61000-6-1/2/3/4 EN50438,EN50549,C10/C11,IEC
62116,IEC61727,RD1699,UNE206006,UNE206007-1,CEI0-21,G98

R5 Series
- 13 -
R5-8K/9K/10K/12K-T2
Type
R5-8K-T2
R5-9K-T2
R5-10K-T2
R5-12K-T2
Input (DC)
Max. PV Array Power [Wp]@STC
12000
13500
15000
15600
Max. DC Voltage [V]
1100
MPPT Voltage Range [V]
160-950
Nominal DC Voltage [V]
600
Start Voltage [V]
180
Min. DC Voltage [V]
150
Max. DC Input Current [A]
12.5/12.5
Max. DC Short Current [A]
15/15
Number of DC Connection Sets per MPPT
1/1
Number of MPPT
2
DC Switch
Integrated
Output (AC)
Rated AC Power [W]
8000
9000
10000
12000
Max. AC Power [VA] *1
8800
9900
11000
12000
Rated AC Current [A]@230Vac
11.6
13.1
14.5
17.4
Max. AC Current [A]
13.4
15.0
16.7
18.2
Current Inrush [A]
60
Max. AC Fault Current [A]
41
Max. AC Over Current Protection [A]
45.4
Nominal AC Voltage/ Range [V]
220/380,230/400,240/415;180-280/312-485
Grid Frequency/ Range [Hz]
50，60/45-55，55-65
Power Factor [cos φ]
0.8 leading~0.8 lagging
Total Harmonic Distortion [THDi]
< 2%
Feed-in
3L+N+PE
Efficiency
Max. Efficiency
98.6%
Euro Efficiency
98.2%
98.3%
MPPT Accuracy
>99.5%
Protection
Internal Over-voltage Protection
Integrated
DC Insulation Monitoring
Integrated

R5 Series
- 14 -
DCI Monitoring
Integrated
GFCI Monitoring
Integrated
Grid Monitoring
Integrated
AC Short Circuit Current Protection
Integrated
AC Grounding Detection
Integrated
DC Surge Protection
Integrated
AC Surge Protection
Integrated
Thermal Protection
Integrated
String Current Detection
Integrated
Anti-island Protection Monitoring
AFD
Interface
AC Connection
Plug-in connector
DC Connection
MC4
Human Machine Interface
LED+(Bluetooth/Wi-Fi+APP)
Communication Port
RS232 (USB)+RS485 (RJ45)
Communication Mode
Wi-Fi/GPRS/4G (Optional)
General Data
Topology
Transformerless
Consumption at Night [W]
<0.6
Consumption at Standby [W]
<10
Operating Temperature Range
-40℃～+60℃ [45°C to 60°C with derating]
Cooling Method
Natural Convection
Ambient Humidity
0%～100% Non-condensing
Altitude
4000m(>3000m power derating)
Noise [dBA]
<29
Ingress Protection
IP65
Mounting
Rear Panel
Dimensions [H*W*D][mm]
429*418*177
Weight [kg]
19
Standard Warranty [Year]
5 (standard)/10/15/20/25 (Optional)
Applicable Standard
CQC NB/T 32004,EN 62109-1/2,EN 61000-6-1/2/3/4
EN50438,EN50549,C10/C11,IEC 62116,IEC 61727,RD 1699,UNE
206006,UNE 206007-1,CEI0-21,CEI0-16,G98,G99

R5 Series
- 15 -
R5-13K/15K/17K/20K-T2
Type
R5-13K-T2
R5-15K-T2
R5-17K-T2
R5-20K-T2
Input (DC)
Max. PV Array Power [Wp]@STC
19500
22500
25500
30000
Max. DC Voltage [V]
1100
MPPT Voltage Range [V]
160-950
180-950
Nominal DC Voltage [V]
600
Start Voltage [V]
180
200
Min. DC Voltage [V]
160
180
Max. DC Input Current [A]
25/12.5
25/25
Max. DC Short Current [A]
30/15
30/30
Number of DC Connection Sets per MPPT
2/1
2/2
Number of MPPT
2
DC Switch
Integrated
Output (AC)
Rated AC Power [W]
13000
15000
17000
20000
Max. AC Power [VA]*1
14300
16500
18700
22000
Rated AC Current [A]@230Vac
18.9
21.8
24.7
29.0
Max. AC Current [A]
21.7
25.0
28.4
33.4
Current Inrush [A]
77
90
Max. AC Fault Current [A]
52
63
Max. AC Over Current Protection [A]
57.7
71.1
Nominal AC Voltage/ Range [V]
220/380,230/400,240/415;180-280/312-485
Grid Frequency/ Range [Hz]
50,60/45-55,55-65
Power Factor [cos φ]
0.8 leading~0.8 lagging
Total Harmonic Distortion [THDi]
< 2%
Feed-in
3L+N+PE
Efficiency
Max. Efficiency
98.7%
98.8%
Euro Efficiency
98.4%
98.46%
MPPT Accuracy
>99.5%
Protection
Internal Over-voltage Protection
Integrated
DC Insulation Monitoring
Integrated
DCI Monitoring
Integrated
GFCI Monitoring
Integrated

R5 Series
- 16 -
Grid Monitoring
Integrated
AC Short Circuit Current Protection
Integrated
AC Grounding Detection
Integrated
DC Surge Protection
Integrated
AC Surge Protection
Integrated
Thermal Protection
Integrated
String Current Detection
Integrated
Anti-island Protection Monitoring
AFD
Interface
AC Connection
Terminal Block
DC Connection
MC4
Human Machine Interface
LED+(Bluetooth/Wi-Fi+APP)
Communication Port
RS232(USB)+RS485(RJ45)
Communication Mode
Wi-Fi/GPRS/4G(Optional)
General Data
Topology
Transformerless
Consumption at Night [W]
<0.6
Consumption at Standby [W]
<10
Operating Temperature Range
-40℃～+60℃[45°C to 60°C with derating]
Cooling Method
Natural Convection
Ambient Humidity
0%～100% Non-condensing
Altitude
4000m(>3000m power derating)
Noise [dBA]
<29
Ingress Protection
IP65
Mounting
Rear Panel
Dimensions [H*W*D][mm]
480*440*200
530*490*210
Weight [kg]
26
29
Standard Warranty [Year]
5 (standard)/10/15/20/25 (Optional)
Applicable Standard
CQC NB/T 32004,EN 62109-1/2,EN 61000-6-1/2/3/4
EN50438,EN50549,C10/C11,IEC 62116,IEC 61727,RD 1699,UNE
206006,UNE 206007-1,CEI0-16,G99

R5 Series
- 17 -
R5-3K/4K/5K/6K-T2-15
Type
R5-3K-T2-15
R5-4K-T2-15
R5-5K-T2-15
R5-6K-T2-15
Input (DC)
Max. PV Array Power [Wp]@STC
4500
6000
7500
9000
Max. DC Voltage[V]
1100
MPPT Voltage range [V]
160-950
Nominal DC Voltage[V]
600
Start Voltage[V]
180
Min. DC Voltage[V]
150
Max. DC Input Current [A]
15/15
Max. DC Short Current [A]
18/18
Number of DC Connection Sets per MPPT
1/1
Number of MPPT
2
DC Switch
Integrated
Output (AC)
Rated AC Power[W]
3000
4000
5000
6000
Max. AC Power[VA] *1
3300
4400
5500
6600
Rated AC Current [A]@230Vac
4.4
5.8
7.3
8.7
Max. AC Current [A]
5.0
6.7
8.4
10.0
Current Inrush [A]
50
Max. AC Fault Current [A]
24.5
Max. AC Over Current Protection [A]
28.4
Nominal AC Voltage/ Range[V]
220/380,230/400,240/415;180-280/312-485
Grid Frequency/ Range[Hz]
50,60/45-55,55-65
Power Factor[cos φ]
0.8 leading~0.8 lagging
Total Harmonic Distortion[THDi]
< 2%
Feed-in
3L+N+PE
Efficiency
Max. Efficiency
98.0%
98.3%
98.6%
Euro Efficiency
97.6%
98.0%
98.2%
MPPT Accuracy
>99.5%
Protection
Internal Over-voltage Protection
Integrated

R5 Series
- 18 -
DC Insulation Monitoring
Integrated
DCI Monitoring
Integrated
GFCI Monitoring
Integrated
Grid Monitoring
Integrated
AC Short Circuit Current Protection
Integrated
AC Grounding Detection
Integrated
DC Surge Protection
Integrated
AC Surge Protection
Integrated
Thermal Protection
Integrated
String Current Detection
Integrated
Anti-island Protection Monitoring
AFD
Interface
AC Connection
Plug-in connector
DC Connection
MC4
Human Machine Interface
LED+(Bluetooth/Wi-Fi+APP)
Communication Port
RS232(USB)+RS485(RJ45)
Communication Mode
Wi-Fi/GPRS/4G(Optional)
General Data
Topology
Transformerless
Consumption at Night [W]
<0.6
Consumption at Standby [W]
<10
Operating Temperature Range
-40℃～+60℃ [45°C to 60°C with derating]
Cooling Method
Natural Convection
Ambient Humidity
0%～100% Non-condensing
Altitude
4000m(>3000m power derating)
Noise [dBA]
<29
Ingress Protection
IP65
Mounting
Rear Panel
Dimensions[H*W*D] [mm]
429*418*177
Weight [kg]
19
Standard Warranty [Year]
5 (standard)/10/15/20/25 (Optional)
Applicable Standard
CQC NB/T 32004,EN 62109-1/2,EN 61000-6-1/2/3/4
EN50438,EN50549,C10/C11,IEC 62116,IEC 61727,RD 1699,UNE
206006,UNE 206007-1,CEI 0-21,G98

R5 Series
- 19 -
R5-8K/9K/10K/12K-T2-15
Type
R5-8K-T2-15
R5-9K-T2-15
R5-10K-T2-15
R5-12K-T2-15
Input (DC)
Max. PV Array Power [Wp]@STC
12000
13500
15000
15600
Max. DC Voltage [V]
1100
MPPT Voltage Range [V]
160-950
Nominal DC Voltage [V]
600
Start Voltage [V]
180
Min. DC Voltage [V]
150
Max. DC Input Current [A]
15/15
Max. DC Short Current [A]
18/18
Number of DC Connection Sets per MPPT
1/1
Number of MPPT
2
DC Switch
Integrated
Output (AC)
Rated AC Power [W]
8000
9000
10000
12000
Max. AC Power [VA] *1
8800
9900
11000
12000
Rated AC Current [A]@230Vac
11.6
13.1
14.5
17.4
Max. AC Current [A]
13.4
15.0
16.7
18.2
Current Inrush [A]
60
Max. AC Fault Current [A]
41
Max. AC Over Current Protection [A]
45.4
Nominal AC Voltage/ Range [V]
220/380,230/400,240/415;180-280/312-485
Grid Frequency/ Range [Hz]
50，60/45-55，55-65
Power Factor [cos φ]
0.8 leading~0.8 lagging
Total Harmonic Distortion [THDi]
< 2%
Feed-in
3L+N+PE
Efficiency
Max. Efficiency
98.6%
Euro Efficiency
98.2%
98.3%
MPPT Accuracy
>99.5%
Protection
Internal Over-voltage Protection
Integrated
DC Insulation Monitoring
Integrated
