MuxLab 500417 User manual

© MuxLab Inc. 94-000660-A SE-000660-A
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: [phone] Fax: [phone]
Toll Free (North America): [phone]
E-mail: videoease
@
muxlab.co
m
URL: www.muxlab.co
m

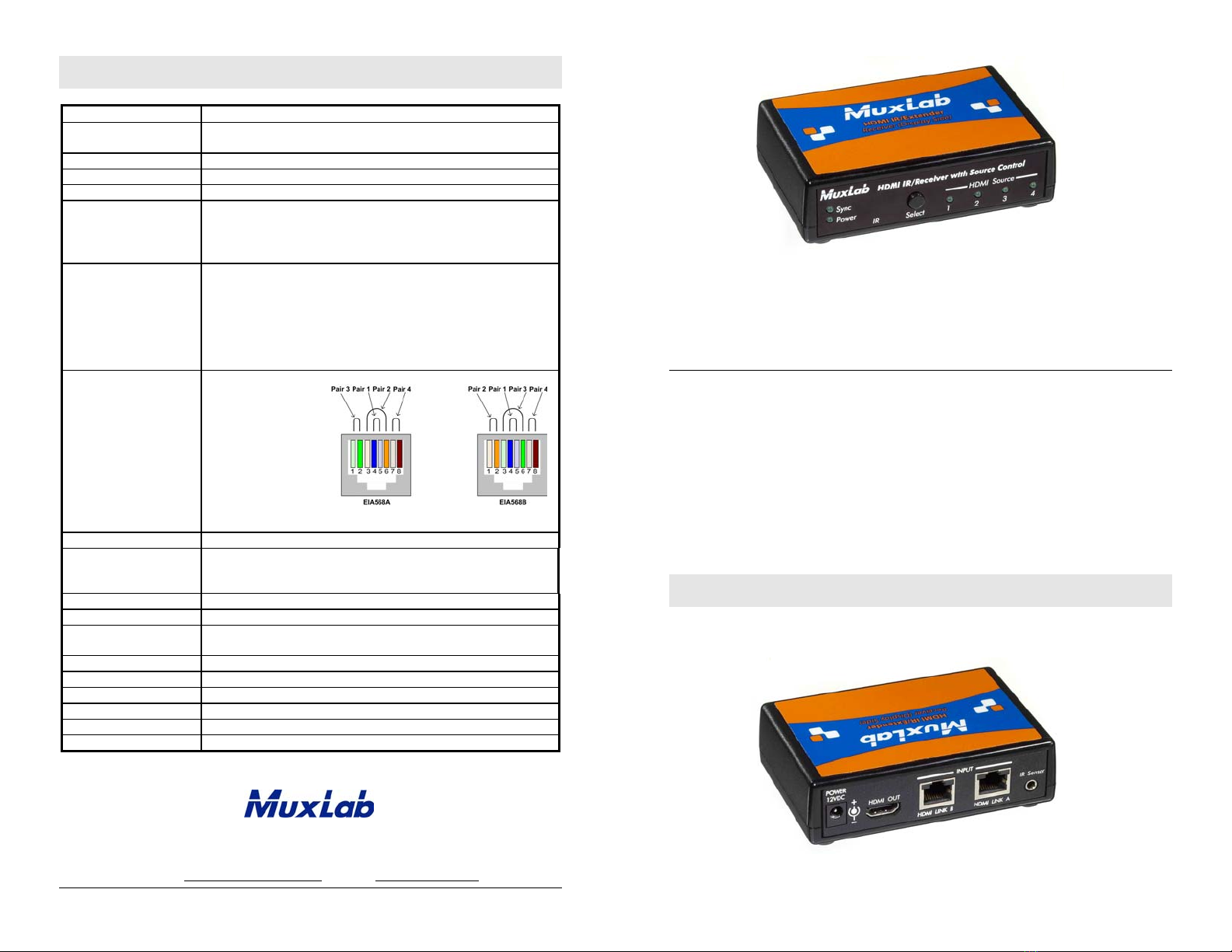

Specifications
Environment HDMI 1.3a
Devices DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting
HDMI.
Transmission Transparent to the user
Bandwidth 225 MHz
Signals HDMI 1.3a protocol
Connectors One (1) HDMI receptacle.
Two (2) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
One (1) 3.5 mm stereo jack for IR Sensor
Note: HDMI cables not included.
Maximum Distance
Based on a maximum
length of 6.6 ft (2 m) of
HDMI cable per end.
480i/p: Cat 5e: 300 ft (91 m) Cat 6: 300 ft (91 m)
720p, 1080i: Cat 5e: 300 ft (91 m) Cat 6: 300 ft (91 m)
1080p: Cat 5e: 150 ft (46 m) Cat 6: 200 ft (61 m)
1080p Deep Color: Cat 5e: 90 ft (27 m) Cat 6: 150 ft (46 m)
Note: When installed in an electrically noisy environment, an STP cable
must be used. Also, cross-connection reduces the effective distance
depending on the grade of twisted cable used.
RJ45 Pin Configuration
Reverse Polarity
Sensitive.
Use EIA/TIA 568A or
586B straight-through
wiring.
RJ45 A (HDMI A)
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
RJ45 B (HDMI B)
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
Cable Two (2) Cat 5e/6 or better twisted pair cables required
IR Remote for matrix
and source control
Pushbutton, built-in IR sensor
External IR sensor included
Wireless handheld remote ncluded
Power Supply One (1) 110-240V/12VDC power supplies with interchangeable blades
Power Consumption 3.6 Watt
Temperature Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure Fire retardant plastic
Dimensions 4.50” x 3.00” x 1.25” (11.4 x 7.6 x 3.2 cm)
Weight 1.0 lb (0.45 kg)
Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty 2 years
Order Information 500417 HDMI IR/Receiver with Source Control
HDMI IR/Extender with Source Control
500417
Quick Installation Guide
Overview
The HDMI IR/Extender with Source Control (500417) allows HDMI equipment to be
connected up to 150 ft (46 m) @ 1080p Deep Color via two (2) Cat 6 unshielded twisted
pair cables in a point-to-point configuration. The HDMI IR/Extender with Source
Control is used with the HDMI 4X4 Matrix Switch (500415).
Applications
Applications include commercial and residential AV systems, classroom projector
systems, digital signage, boardroom systems, collaborative PC systems, and medical
information systems.
Installation
1. Identify the connectors on the Receiver as indicated on the product labels.

© MuxLab Inc. 2010
2. Verify that the distance between the HDMI Receiver and the HDMI Matrix is
within MuxLab specifications (see Specifications table).
3. To install the Receiver:
3a. Connect the Receiver to the HDMI display equipment with an HDMI compliant
cable.
3b. Connect the two (2) Cat 5e/6 cables to HDMI LINK A and HDMI LINK B
connectors on the Receiver.
Note: Verify that the cables are connected straight-through (i.e., HDMI LINK A to
HDMI LINK A and HDMI LINK B to HDMI LINK B) and not inverted.
4. Connect the 12 VDC power supply to the Receiver first, and then plug the power
supply into an AC power outlet. If power is present, the green power LED of the
Receiver will be ON.
Note: Power the HDMI IR/Extender Balun only after all connections are made.
5. Power the HDMI equipment and verify the image quality.
6. If infrared remote sensor is needed, connect the IR Sensor to the 3.5mm Stereo
Jack of the receiver.
Note: The external sensor will disable the internal sensor of the product when
connected.
7. Position the IR Sensor so that it is directed to the hand-held remote control. For a
clear IR signal reception, aim the hand-held remote control at the top of the IR
Sensor enclosure.
8. The push button may also be used to manually select one of the four sources; one
of the four LEDs will light up to indicate which source has been selected.
9. The user can control the HDMI Matrix and the source using the internal or external
IR Sensor of the receiver.
10. The following diagram shows the final configuration.
Troubleshooting
The following table describes some of the symptoms, probable causes and possible
solutions in respect to the installation of the HDMI IR/Extender with Source Control:
Tx LED Rx LED
Symptom PowerSyncPowerSync
Probable
Cause
Possible
Solutions
No Image OFF OFF OFF OFF No power • Check power
connections
No Image OFF OFF ON OFF Source not
power on
• Power on source and
check the HDMI
cable of the source.
No Image ON OFF ON OFF Cable • Check the UTP cables
pin-out.
• Verify that the UTP
cables are not crossed.
No Image ON ON ON OFF Synchronization • Check cable length.
• Check source
resolution versus
distance.
Flickering Image ON ON ON ON Synchronization • Check cable length
Choppy sound ON ON ON ON Synchronization • Check cable length
Green or pink hue ON ON ON ON DDC
communication
• Cycle power of the
HDMI Extender.
• Check UTP cables
and replace.
Image flickers when
powering up nearby
equipment
ON ON ON ON Interference • Use STP cables
IR not functioning ON ON ON ON Remote control
not directed to
the IR Sensor or
IR Emitter not
directed to the
source.
• Make sure the IR
Sensor is directed
towards the remote
and the IR Emitter to
the equipment
IR not functioning ON ON ON ON Interference
from sunlight,
Fluorescent,
Neon or
Halogen lights
• Place the IR
equipment away for
the interfering light
IR not functioning ON ON ON ON Interference
from RF
radiation from
the TV
• Place the IR
equipment away for
the RF radiation
If you still cannot diagnose the problem, please call MuxLab Customer Technical
Support at 877-689-5228 (toll-free in North America) or ([phone]
(International).
