HDMI 2.0 Fiber Extender Kit,
Single Mode
Operation Manual
(500485)

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual
MuxLab © 2022 2 94-000971-A/SE-000971-A
Table of Contents
1. Safety Precautions...................................................................................3
2. Introduction.............................................................................................4
3. Features....................................................................................................4
4. Package Contents ....................................................................................4
5. Specifications...........................................................................................5
6. Panel Descriptions...................................................................................6
6.1 Transmitter Unit.........................................................................6
6.2 Receiver Unit ..............................................................................7
7. Connection Diagram...............................................................................8
8. HDMI Pin Definition ..............................................................................9
9. Troubleshooting.......................................................................................9

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual
MuxLab © 2022 3 94-000971-A/SE-000971-A
1. Safety Precautions
To ensure the best performance from the product, please read all instructions carefully before using
the device. Save this manual for future reference.
⚫Follow basic safety precautions to reduce the risk of fire, electrical shock, and injury.
⚫Do not dismantle the housing or modify the module. It may result in electrical shock or burns.
⚫Do not open or remove the housing of the device as you may be exposed to dangerous voltage
or other hazards.
⚫To prevent fire or shock hazard, do not expose the unit to rain, moisture and do not install this
product near water. Keep the product away from liquids.
⚫Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object
or liquid falls or spills on the housing, unplug the module immediately.
⚫Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
⚫Using supplies or parts not meeting the product specifications may cause damage, deterioration
or malfunction.
⚫Refer all servicing to qualified service personnel.
⚫Install the device in a place with adequate ventilation to avoid damage caused by overheat.
⚫Unplug the power when left unused for a long period of time.
⚫Information on disposal of devices: do not burn or mix with general household waste, please
treat them as normal electrical waste.
Copyright Notice
All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the
express permission of MuxLab Inc. Product specifications and information in this document are for
reference only, and the content may be updated from time to time without prior notice.

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual
MuxLab © 2022 4 94-000971-A/SE-000971-A
2. Introduction
The HDMI 2.0 Fiber Extender Kit, Single Mode (model: 500485) allows one HDMI 2.0 and one USB
1.1 channel to be transmitted up to 10km (6.25miles) at all resolutions up to 4K2K@60Hz over single
mode fiber optic cable in a point-to-point configuration. In addition, the HDMI 2.0 Fiber Extender
Kit, Single Mode is HDCP 2.2 compliant and supports IR and RS-232 pass-through and
keyboard/mouse USB signal transmission.
3. Features
⚫Supports HDMI 4K @ 60fps (4:4:4 8bits)
⚫Supports HDR, which is 4K @ 60fps (4:2:0 10bits)
⚫Supports HDCP 2.2
⚫Extends HDMI signals up to 10km over single mode fiber optic cable
⚫Supports USB 1.1 for keyboard and mouse only
⚫Supports full frequency IR signal from 20KHz to 60KHz
⚫Bi-directional IR pass-through
⚫Link LED indicator light
⚫Wall mounting housing design for easy and robust installation
○
!The RS-232, IR and USB function cannot be used at the same time
4. Package Contents
⚫One (1) HDMI 2.0 Fiber Extender Kit, Single Mode [TX & RX]
⚫One (1) IR Blaster
⚫One (1) IR Receiver
⚫Two (2) PSU 12V DC
⚫Two (2) Single Mode Modules
⚫One (1) Wall bracket kit (with screws)
⚫One (1) User manual (available via download)
Notes：Confirm that the product and accessories are all included. If not, please contact the supplier from
which you purchased the unit.

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual
MuxLab © 2022 5 94-000971-A/SE-000971-A
5. Specifications
Technical
HDMI compliance
HDMI 2.0a
HDCP compliance
HDCP 2.2
Video bandwidth
Single-link 594MHz [18Gbps]
Video support
HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits)
Audio support
Surround sound [up to 7.1ch] or stereo digital audio
Input TMDS signal
1.2 Volts [peak-to-peak]
Input DDC signal
5 Volts [peak-to-peak, TTL]
ESD protection
Human body model
±15kV [air-gap discharge] & ±8kV [contact discharge]
PCB stack-up
4-layer board [impedance control — differential 100Ω; single
50Ω]
IR pass-thru
Bi-directional
RS-232 support
Yes
Input Ports
Transmitter [TX] 1x HDMI, 1x 3.5mm
Receiver [RX] 1x Fiber, 1x 3.5mm
Output Ports
Transmitter [TX] 1x Fiber, 1x 3.5mm
Receiver [RX] 1x HDMI, 1x 3.5mm
In / Out Ports
Transmitter [TX] 1x RS-232, 1x USB
Receiver [RX] 1x RS-232, 2x USB
HDMI source control
Controllable via IR pass-through from RX to TX with IR
extenders
HDMI connector
Type A [19-pin female]
USB connector
Type A
3.5mm connector
Transmitter [TX] IR receiver / IR blaster
Receiver [RX] IR receiver / IR blaster
Mechanical
Housing
Metal enclosure
Unit Dimensions (DxWxH)
Transmitter [TX] 4.9" x 4.4" x 1.1" (125mm x 112mm x 28mm)
Receiver [RX] 4.9" x 4.4" x 1.1" (125mm x 112mm x 28mm)

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual
MuxLab © 2022 6 94-000971-A/SE-000971-A
Unit Weight
Transmitter [TX] 1.02 lbs (0.46Kg)
Receiver [RX] 1.00 lbs (0.45Kg)
Wall-Mounting Hardware
Wall-mount bracket kit, with screws
Power supply
12V2A
Power consumption
Max 10W
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
Warranty
2 years
Order Information
500485 HDMI 2.0 Fiber Extender Kit, Single Mode
(UPC: 627699004852)
6. Panel Descriptions

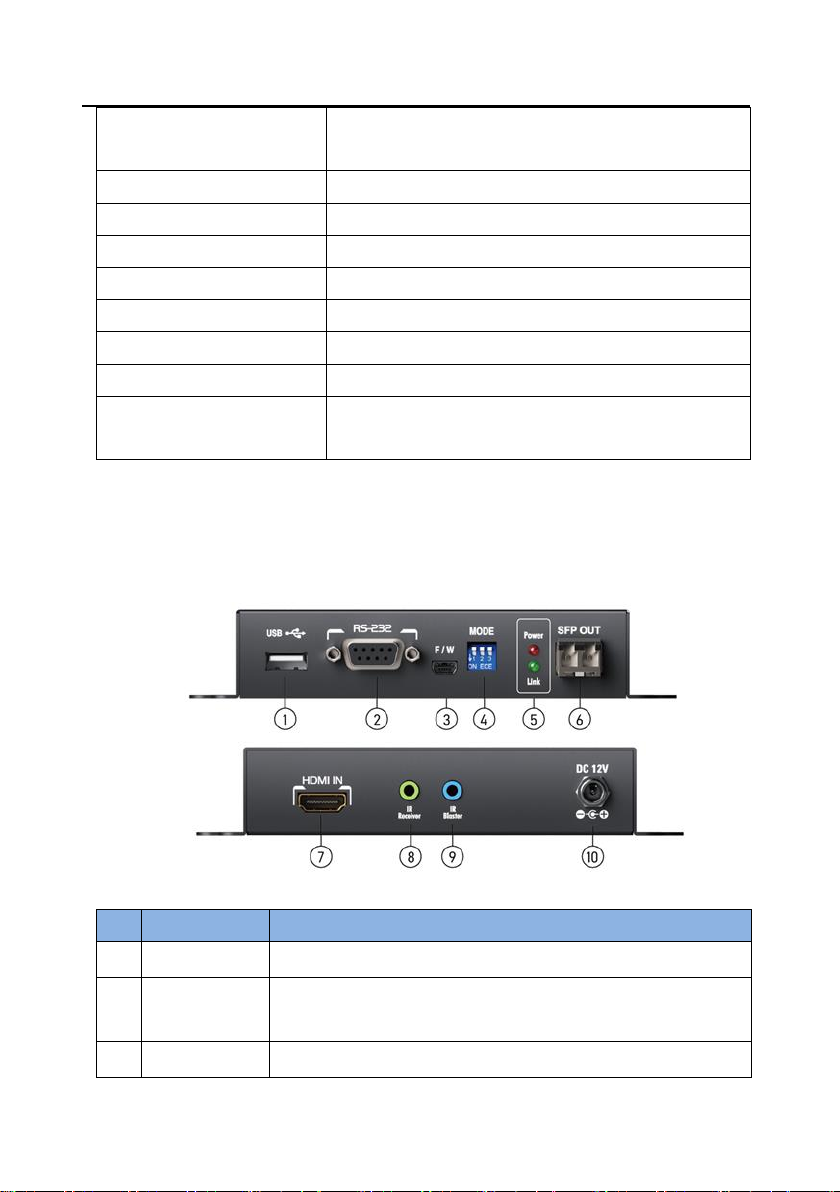

6.1 Transmitter Unit
No
Name
Function Description
1
USB [Host]
Connect to a USB port to the computer for keyboard & mouse control
2
RS-232
Connect to serial port of the device with a DB-9 male-male or male-
female cable
3
Mini USB
For technical support only [firmware update]

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual
MuxLab © 2022 7 94-000971-A/SE-000971-A
4
Dip Switch
PIN # 1
ON []
For system firmware update
OFF []
Normal
PIN # 2
ON []
USB function ON
OFF []
RS-232/IR function ON
PIN # 3
ON []
Disable IR function
OFF []
Enable IR function
5
LED Indicator
[Red]: Power LED indicator [Green]: Link LED indicator
6
SFP OUT
Plug in single mode fiber optic cable that needs to be linked to the
receiver unit
7
HDMI IN
Connect to a HDMI source with a HDMI male-male cable
8
IR Receiver
3.5mm IR socket to plug in the IR receiver extension cable
9
IR Blaster
3.5mm IR socket to plug in the IR blaster extension cable
10
+12V DC
Connect to a 12V power supply unit

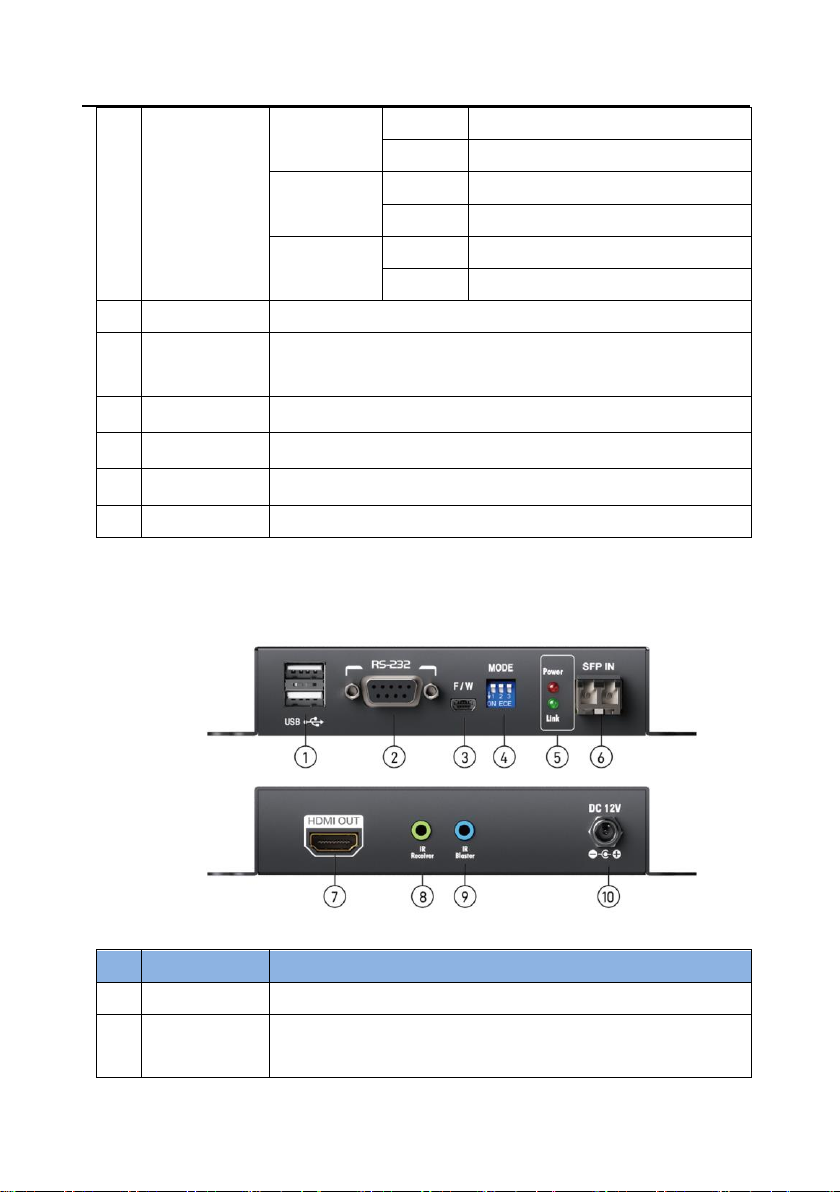

6.2 Receiver Unit
No
Name
Function Description
1
USB [Device]
Connect to USB keyboard & mouse
2
RS-232
Connect to serial port of the device with a DB-9 male-male or male-
female cable

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual
MuxLab © 2022 8 94-000971-A/SE-000971-A
3
Mini USB
For technical support only [firmware update]
4
Dip Switch
PIN # 1
ON []
For system firmware update
OFF []
Normal
PIN # 2
ON []
USB function ON
OFF []
RS-232/IR function ON
PIN # 3
ON []
Disable IR function
OFF []
Enable IR function
5
LED Indicator
[Red]: Power LED indicator [Green]: Link LED indicator
6
SFP IN
Plug in single mode fiber optic cable that needs to be linked to the
transmitter unit
7
HDMI OUT
Connect to a HDMI display with a HDMI male-male cable
8
IR Receiver
3.5mm IR socket to plug in the IR receiver extension cable
9
IR Blaster
3.5mm IR socket to plug in the IR blaster extension cable
10
+12V DC
Connect to a 12V power supply unit
7. Connection Diagram
(Note: IR sensor and emitter not shown in above diagram.)

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual
MuxLab © 2022 9 94-000971-A/SE-000971-A

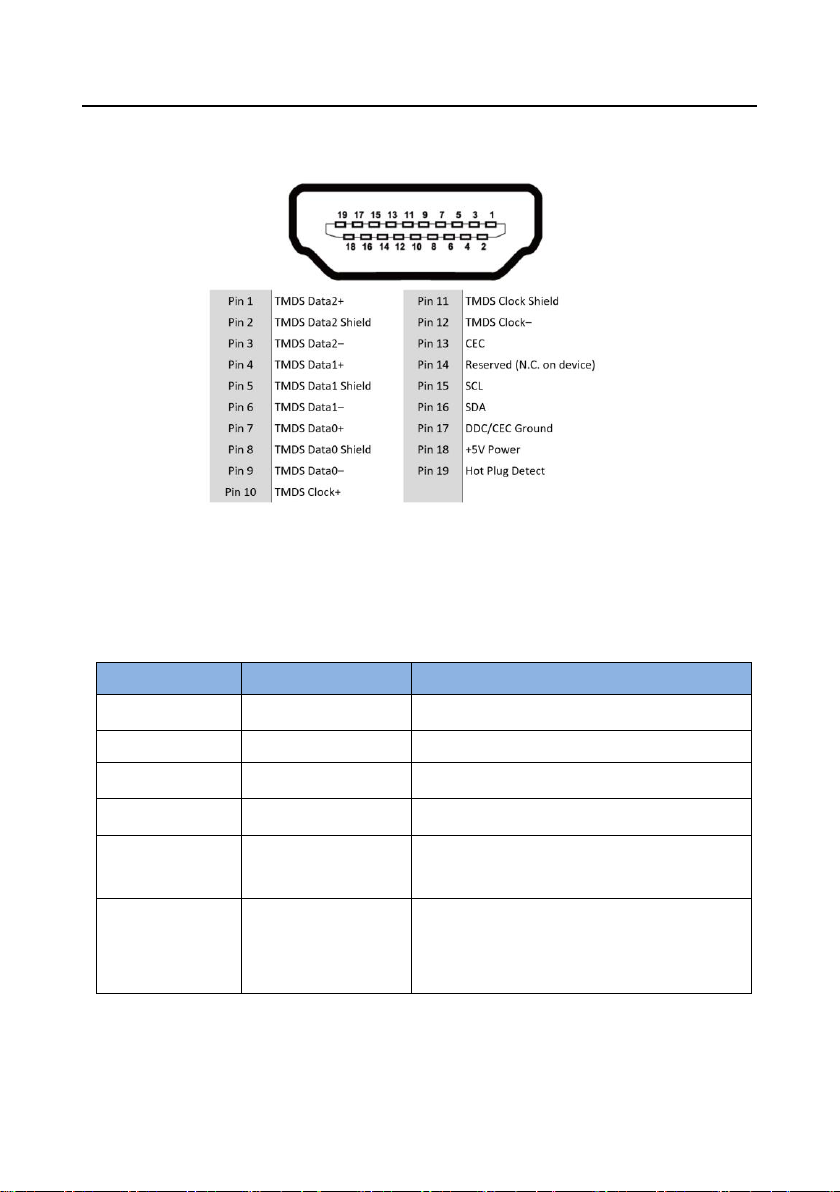

8. HDMI Pin Definition
9. Troubleshooting
The following table describes some of the symptoms and possible solutions regarding the HDMI 2.0
Fiber Extender Kit, Single Mode
Symptom
Probable Cause
Possible Solutions
No Image
No Power
Check power connections
No Image
Fiber optic cable
Check the fiber optic cable
No Image
HDMI Cable
Check the HDMI cable
No Image
Cable length
Check cable length, check with another monitor.
Flickering Image
or bad sound
Cable length
Check cable length / Check the HDMI cable.
USB not working,
but audio/video
OK
USB cable, or too
much power required
for USB peripheral.
Check USB cable or try another USB device.
If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at 877-689-
5228 (toll-free in North America) or ([phone] (International).

HDMI 2.0 Fiber Extender Kit, Single Mode Operation Manual
MuxLab © 2022 10 94-000971-A/SE-000971-A
MuxLab Inc.
2321 Rue Cohen
Montreal, Quebec
Canada H4R 2N7
Tel.: [phone] Fax: [phone]
Toll Free (North America): 877 689-5228
URL: www.muxlab.com
E-mail: inf[email protected]
