Mylek MYC01-10A User manual

www.mylek.co.uk
1| Page
LCD Programmable Panel Heater
INSTRUCTION MANUAL FOR MODELS
MYC01-10A, MYC01-15A, MYC01-20A
BEFORE USE:
Please read the instructions carefully. You must inspect the appliance including its
cable and plug for any signs of damage. If the product is damaged, DO NOT USE and
contact your supplier immediately for refund or replacement.
This product is only suitable for well insulated spaces or occasional use.

www.mylek.co.uk
2| Page
General Information:
Thank you for choosing the Mylek LCD weekly programmable
Panel heater with Open window function. Please take time to
carefully read and understand the entire instruction manual before
using the product and then save it for future reference. We reserve
the right for any errors in text or images and any necessary
changes made to technical data. If you have any questions
concerning operational or technical problems please contact our
Customer Services on 0800 091 3171.
Before Using This Heater:
When using electrical appliances, basic precautions should
always be followed to reduce the risk of fire, electric shock, and
injury to persons. This includes but is not limited to the
following:
CAUTION:
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge of the product. The appliance
is to be operated by responsible adults only after reading and
understanding these instructions. Children should be supervised
at all times to ensure that they do not play with the appliance.
Children under 16 years should not operate the unit or carry out
maintenance and/or clean the unit. Any infirmed persons in the
vicinity of the unit should be accompanied by a responsible and
competent able bodied adult. Remove the packing and make sure
that the appliance is intact. If there is any doubt concerning the
integrity of the unit do not use the appliance and contact our
recommended after-sales service. Do not leave any packaging

www.mylek.co.uk
3| Page
materials within easy reach of children. Before switching on
appliance check if the electrical voltage and frequency of the
circuit correspond to those indicated on the appliance. Use the
appliance only for the stated purpose, namely as a heater for
domestic use. Do not use it for any other application as it could be
dangerous.
Safety Instructions:
• The product is for indoor use only.
• The item should be used only as intended.
• Check item carefully before use. Do not switch on heater with
defects or damaged power cable.
• The appliance should be connected to the same voltage as
shown on the rating label and printed in the manual.
• The heater should only be plugged into grounded sockets.
• Before plugging in the heater, make sure it is switched off.
• Do not use the appliance near flammable liquids or any
flammable materials.
• The appliance must not be located immediately below a socket
outlet.
• If the power cable is damaged in any way, send it to the nearest
after sales service recommended by the manufacturer for
replacement.
• Do not connect the appliance to extension cables or multiple
outlets.
• Do not damage or knot the power cable.
• Before cleaning the appliance or carrying out any maintenance
switch off the heater, unplug from its power source and leave
to cool for 1 hour.

www.mylek.co.uk
4| Page
• Never expose the appliance to external weather conditions (rain,
sun, etc.)
• The appliance must always be placed on a flat and stable
surface with the feet fitted correctly or fitted correctly to a wall
using the correct fixings.
• If the appliance is not being used switch it off. If any repair is
required please contact the after-sale centers approved by the
manufacturer.
• Do not touch heater with wet hands.
• Always unplug the item, before cleaning or if the item becomes
faulty.
• Never carry the heater by the power cable.
• When you switch off the heater unplug from the power source
by the plug. Do not pull on the cable to unplug from the power
source.
• Do not wrap the cable around the appliance after use.
• Children of less than 3 years should be kept away unless
continuously supervised.
• Children aged from 3 years and less than 8 years shall not plug
in, regulate and clean the appliance or perform user
maintenance.
• CAUTION — Some parts of this product can become very hot
and cause burns. Particular attention has to be given where
children and vulnerable people are present.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.

www.mylek.co.uk
5| Page
• The appliance should only be connected to the same voltage as
printed on the rating label and manual.
• If used as a portable heater do not use in the immediate
surroundings of a bath shower or a swimming pool.
• WARNING: In order to avoid overheat i n g , d o n o t c o v e r t h e
heater.
• Never place foreign objects into the air vents.
Installation:
Floor Standing:
• The heater carries an IP22 waterproof rating, If this unit is to be fitted in a bathroom then
it must be “INSTALLED BY A QUALIFIED ELECTRICIAN”.
• The LCD panel heaters can be wall-mounted or floor standing.
• Mount feet on the base of the unit using the 6 screws provided (3 screws per foot) in
accordance with Figure 1 below making sure the screws are securely tightened.
Figure 1
Wall Mounting:
• For wall mounting, carefully remove the already constructed hanging bracket from the rear
of the heater by turning the two plastic securing grips located at the top of the bracket. It is
good practice to remove the bracket and replace a few times so you are familiar on how it
attaches before securing to the wall.
• Using the hanging bracket as a template, place the hanging bracket level against the wall
as a guide ruler (please make sure the holes are parallel level), use a marker pen to mark
the hole position. Image 2 on Figure 2 below.
• Drill holes on the wall with ɸ8mm drill bit and insert the plastic wall plugs. Image 2 on
Figure 2 below.

www.mylek.co.uk
6| Page
• Securely fasten the hanging bracket to the wall with the screws provided. Make sure the
hanging bracket is in the correct direction. Image 3 on Figure 2 below.
• Gently insert the bottom of the heater to the hanging bracket first and then push the top of
the heater body onto the hanging bracket. It is good practice to try attaching the hanging
bracket to the heater and taking off, so you are familiar with how it attaches and detaches.
• When the heater is attached to the hanging bracket, secure into place by turning the two
plastic securing grips. Image 4 on Figure 2 below.
Warning:
Be sure to keep a distance around the heater of at least 15cm (150mm) see image below.
Warning! When drilling holes, always check to ensure there is no electrical wiring, gas pipes,
water pipes etc in the area to be drilled.
Image 1 Image 2 Image 3 Image 4
Figure 2
LCD Control Panel:
!Power button: on /stand by
Increase button: press to increase temperature. Also used for setting forward the hour in
24 hour program setting.
Decrease button: press to decrease temperature. Also used for decreasing the hour in 24
hour program setting.
Select button for mode or program.
≥150mm
EPC01-10A
EPC01-15A
EPC01-20A
≥150mm
≥150mm≥150mm
≥150mm
        
MYC01

www.mylek.co.uk
7| Page
Setting / OK button.
Open-window on/off button.
Unit is in heat mode.
Screen lock:
If the unit controls are not used for more than a minute the controls will automatically lock as
a child safety function. To unlock, simply press and at the same time.
Operation:
Basic Operation:
Press the power button to turn on the screen, the heater will work under COMFORT
mode, press to set your desired temperature and press if you require changing
the heat mode from Comfort to ECO or Ant-frost mode.
Comfort mode: Temperature can be set from 5℃to 35℃.
ECO mode: Temperature can be set from 1.5℃to 31.5℃, which is 3.5℃less than
comfort mode.
Anti-frost mode: Setting 7℃for room temp, this temperature cannot be adjusted and
is a preferred mode for garages, caravans etc.
Clock setting:
Before setting programs P1/P2/P3, the clock will require setting.
Press for 3-4 seconds, the hour setting will flash, press +/- to set to the current hour (0-
23), once hour is selected press and the minute setting will flash, press +/- to set to the
current minute (0-59), once current minute is selected press and the day setting will flash,
press +/- to set the current day from 1-7 (Mon-Sunday), once current day is selected press
to confirm your settings.
Please Note: if the unit is unplugged or power is switched off from its power source the unit
clock may need to be reset when switched back on.
Program Settings P1, P2 & P3:
Before setting any Program, it is ideal to pre-set the heat mode temperature to your desired
temperature. Press until one of the heat modes Comfort mode, ECO mode or
Anti-frost show and choose your temperature by using the or symbol, once set press
to move onto the next heat mode and repeat, remember the Anti-frost is preset and cannot be
changed. These set temperatures will now show in your programs as you set them. You can also
manually change the temperature at any point whilst the program is in operation by simply
pressing the or symbol.

www.mylek.co.uk
8| Page
Program P1 is preset for days 1-7 (Monday – Sunday), but the hour and heat mode can be
adjusted to your requirements, the program repeats your set time and heat mode Monday-
Sunday (1-7). This program is ideal to set if you want the time and heat to operate at the same
time every day.

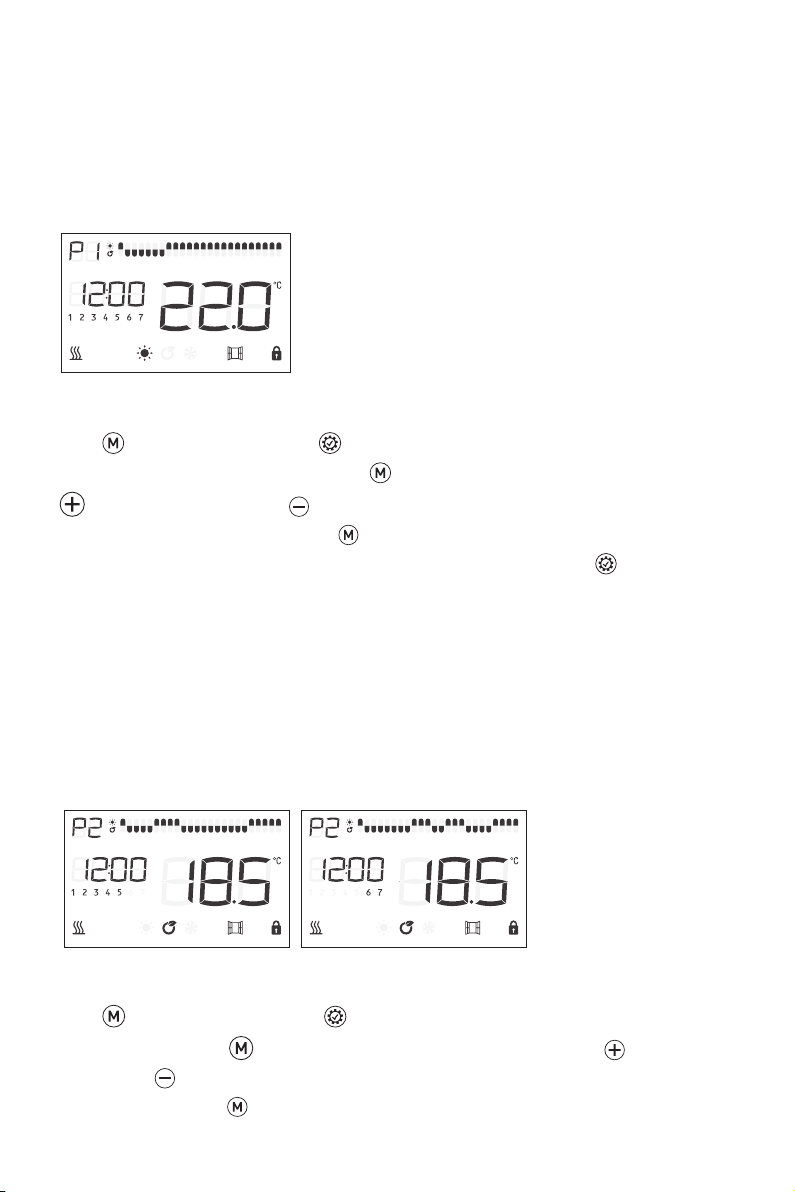

Below is an example of P1 set for Days 1-7 (Monday – Sunday). You can se t y o u r o w n h o u r s
and heat modes for these set days.
How to Set Program 1:
Press until P1 is selected, Press , the first hour bar and P1 will flash and show days 1-7
(Monday–Sunday) under the clock. Press to choose the heat mode for each hour and use
to move to the next hour or to move back to the previous hour, remember for each hour
to choose your heat mode by pressing . Carry out this process until you have chosen your
required heat modes for each hour over a 24 hour period. Once set, press to confirm your
settings. The unit will now operate your same set heat mode for each hour over each day of the
week.
Program P2 is preset for days 1-5 (Monday-Friday) and 6-7 Saturday –Sunday), but the hour
and heat mode can be adjusted to your requirements, the program repeats your set time and heat
mode Monday-Friday (1-5) and Saturday and Sunday (6-7). This program is ideal to set if you
work Monday to Friday and at home Saturday-Sunday.
Below is example of P2 set for Days 1-5 (Monday –Friday) and days 6-7 (Saturday – Sunday).
You can se t y o u r o w n h o u r s and heat modes for th e s e s e t d ays.
How to Set Program 2
Press until P2 is selected, Press , the first hour and P2 will flash and show days 1-5
under the clock. Press to choose the heat mode for each hour and use to move to the
next hour or to move back to the previous hour, remember for each hour to choose your
heat mode by pressing . Carry out this process until you have chosen your required heat
        
        
        

www.mylek.co.uk
9| Page
modes for each hour over a 24 hour period. Once set, press to confirm your settings for
days 1-5 (Monday – Friday). The display will now show days 6-7 (Saturday-Sunday) under the
clock, repeat the process above to set days 6-7, once set press to confirm the settings for
P2. The unit will now operate your set heat modes for each hour for days 1-5 (Monday – Friday)
and 6-7 (Saturday – Sunday).
Program P3 lets you individually program each day, time and heat mode to your requirements,
the program repeats your set time and heat mode for each individual day Monday-Sunday (1-
7). This program is ideal if you want to set each individual day to your requirements.
Below is example of P3 set for Day 1 (Monday) and day 6 (Saturday). You can set your own
hours and heat modes for any day 1-7 (Monday – Sunday).
How to Set Program 3
Press until P3 is selected; Press , the first hour and P3 will flash and show number 1
under the clock on the display. Press to choose the heat mode for each hour and use
to move to the next hour or to move back to the previous hour, remember for each hour to
choose your heat mode by pressing . Carry out this process until you have chosen your
required heat modes for each hour over a 24 hour period. Once set, press to confirm your
settings for day 1 (Monday). The display will now show 2 (Tuesday) under the clock, repeat
the process above to set each individual day to your heat and time requirements, once set press
to confirm the settings for P3. The unit will now operate your set heat modes for each hour
for each individual day 1-7 (Monday –Sunday).
Open window function:
• Press button and the indicator light will illuminate to show the open window
function is activated. If the unit detects an open window or sudden drop in temperature the
open window function is activated, the indicator light flashes and stops heating to
save energy.
• Press button again to cancel open window function and revert back to previous oper-
ational settings.
        
        

www.mylek.co.uk
10 | Page
Screen lock:
If the unit controls are not used for more than a minute the controls will automatically lock as
a child safety function. To unlock, simply press and at the same time.
MAINTENANCE:
The appliance needs regular external cleaning only.
After use and before cleaning always unplug the appliance and wait until the item is cool. When
switched off and cool any dust can be lightly brushed off the grilles. Do not clean the unit with
abrasive materials or solvents. Use only a damp cloth.
PAT TESTING:
When used in a workplace, this product must be safety-tested yearly by a qualified electrician
(PAT Tested) in order to comply with the Electricity at Work Regulations. We recommend
that it is PAT tested regularly when used in a domestic environment.

www.mylek.co.uk
11 | Page
Model identifier(s): MYC01-10A
PManual heat charge control, with integrated
thermostat
Manual heat charge control with room
and/or outdoor temperature feedback
Electronic heat charge control with room
and/or outdoor temperature feedback
Fan assisted heat output
Two or more manual stages, no room
temperature control
With mechanic thermostat room temperature
control
With electronic room temperature control
Electronic room temperature control plus
day timer
Electronic room temperature control plus
week timer
Room temperature control, with presence
detection
Room temperature control, with open
window detection
With distance control option
Minimum heat output
(indicative)
Maximum continuous
heat output
At nominal heat
output
At minimum heat
output
In standby mode
Item Item UnitSymbol Value
Heat output Type of heat input, for electric storage local space
heaters only (select one)
Auxiliary electricity
consumption
Other control options (multiple selections
possible)
1.0
With adaptive start control
With working time limitation
Information requirements for electric local space heaters
nom kW
Pmin
Pmax,c
elmax
elmin
elsb
1.0
0
N/A
N/A
0.0001
[no]
[no]
[no]
[no]
Unit
Nominal heat output
kW
kW
kW
kW
kW
Model identifier(s): MYC01-15A
Item Symbol Value
Heat output
Unit
P
Minimum heat output
(indicative)
1.5
nom kW
Pmin 0
Nominal heat output
kW
Maximum continuous
heat output
Pmax,c 1.5 kW
At nominal heat
output
At minimum heat
output
In standby mode
Auxiliary electricity
consumption
elmax
elmin
elsb
N/A
N/A
0.0001
kW
kW
kW
With black bulb sensor
[no]
[no]
[no]
[no]
[no]
[no]
[no]
[yes]
[yes]
[no]
[no]
[no]
Contact details Contact details: Hygiene Supplies Direct Limited, Ground floor,
Tayson House, Methley Road, Castleford WF10 1PA
Type of heat output/room temperature control
(select one)
Single stage heat output and no room
temperature control

www.mylek.co.uk
12 | Page
Model identifier(s): MYC01-20A
PManual heat charge control, with integrated
thermostat
Manual heat charge control with room
and/or outdoor temperature feedback
Electronic heat charge control with room
and/or outdoor temperature feedback
Fan assisted heat output
Two or more manual stages, no room
temperature control
With mechanic thermostat room temperature
control
With electronic room temperature control
Electronic room temperature control plus
day timer
Electronic room temperature control plus
week timer
Room temperature control, with presence
detection
Room temperature control, with open
window detection
With distance control option
Minimum heat output
(indicative)
Maximum continuous
heat output
At nominal heat
output
At minimum heat
output
In standby mode
Item Item UnitSymbol Value
Heat output Type of heat input, for electric storage local space
heaters only (select one)
Auxiliary electricity
consumption
Other control options (multiple selections
possible)
2.0
With adaptive start control
With working time limitation
Information requirements for electric local space heaters
nom kW
Pmin
Pmax,c
elmax
elmin
elsb
2.0
0
N/A
N/A
0.0001
[no]
[no]
[no]
[no]
Unit
Nominal heat output
kW
kW
kW
kW
kW
With black bulb sensor
[no]
[no]
[no]
[no]
[no]
[no]
[no]
[yes]
[yes]
[no]
[no]
[no]
Contact details Contact details: Hygiene Supplies Direct Limited, Ground floor,
Tayson House, Methley Road, Castleford WF10 1PA
Type of heat output/room temperature control
(select one)
Single stage heat output and no room
temperature control

www.mylek.co.uk
13 | Page

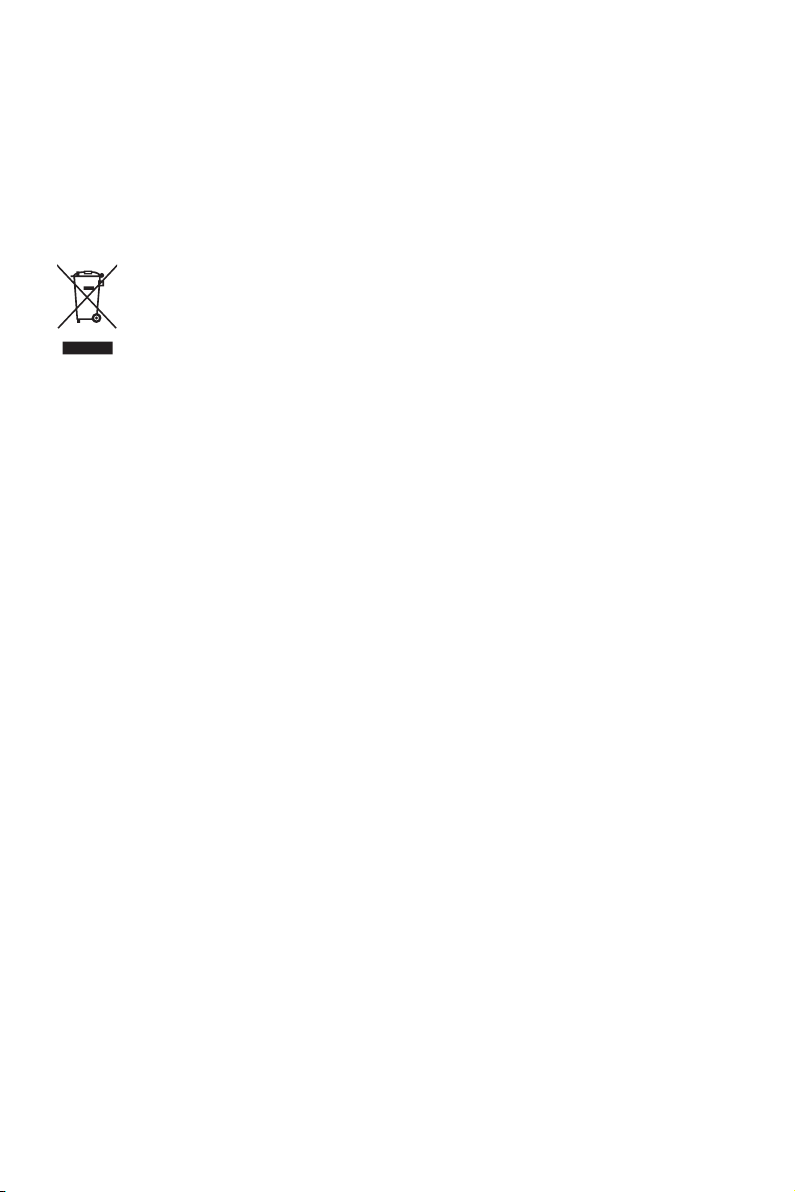

This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this product for environmental safe
recycling.
The importer retains his right to make changes in appearance and completeness of the item
without preliminary notification to the customer.
The item is for indoor use only.
The manufacturer does not assume any liability for any damage caused directly or indirectly
by not following this instruction manual, general safety rules, or interference in the construction
of the product.

www.mylek.co.uk
14 | Page
SERVICE WARRANTY:
Hygiene Supplies Direct guarantees the product free from defects in materials and
workmanship for a period of 1 year from date of purchase. Should this unit be operated under
conditions other than those recommended, at voltages other than the voltage indicated on the
unit, or any attempts made to service or modify the unit, then the warranty will be rendered
void. The product you buy may sometimes differ slightly from illustrations. This warranty is
in addition to, and does not affect, your statutory rights. If you have any problems with this
product, please call our Help Desk on 0800 091 3171 or email:
[email protected]
City Electrical Factors, Castleford, WF10 4SR declares that the Mylek Heaters are exclusively
manufactured and imported for Hygiene Supplies Direct Ltd.
Made In China
www.mylek.co.uk

www.mylek.co.uk
15 | Page
