N-BIOTEK NB-101S User manual

ORBITAL SHAKER
MODEL : NB-101S
OPERATING MANUAL

www.n-biotek.com N-BIOTEK
NB-101S(Ver. 2014) 2/13
1. GENERAL INFORMATION ON PRECAUTION
●Precaution is to prevent the possible accident or danger during operation.
So, you must keep it.
●Precaution is separated into caution and warning. And, each of them means like this.
●Other marks
1.1 Precaution to connect the power cable
You have to use the product under specified electrical conditions.
(If you use the product at the place in different power pressure, it causes a fire and
malfunction of the product.)
Do not make the power plug be pressed by back of the product.
(A space between the product and the plug must be 20cm at least.)
The power outlet must be only for this product.
(Using various products simultaneously can cause a fire)
Clean the power plug with a dry towel and connect it properly.
(Foreign substances or unsafe connection can cause a fire.)

www.n-biotek.com N-BIOTEK
NB-101S(Ver. 2014) 3/13
Do not bend the power cable hardly and do not make it to be pressed by heavy products.
(When it is damaged, it can cause a fire.)
Do not touch the power code with wet hands.
(It can cause an electric shock.)
Do not use the damaged power code and outlet.
(It can cause an electric shock and a fire.
When you see smoke comes out from the product or smells something is burning or see
any other strange symptoms, you have to pull out the power code and stop using it.
(It can cause an electric shock and a fire.)
1.2.Precaution for installation
Use it with the proper voltage.
Please check the voltage & hertz written on serial label.
(Over-voltage, low-voltage can damage the product and poor performance.)
Do not install at a humid place.
(It causes an electric leakage accident and a corrosive of the product.)
Keep this product out of the direct ray of the sun and do not install at a hot place or a
place that is near an electric heat.
(The proper indoor temperature is 20℃~ 30℃)
Do not put inflammable substances near the product.
(It can cause a fire.)
When you install the product, you have to put the distance of more than 20cm
from the wall.
Install at a flat and solid ground.
(If the ground is not flat, it can cause a vibration of the product.)

www.n-biotek.com N-BIOTEK
NB-101S(Ver. 2014) 4/13
When you move the product, do not lay down to its side or reverse the head to bottom.
(It can cause the malfunction.)
When you move the product, hold the door and other movable parts of the product with a
tape. (When the product is moved, the movable door can cause injury of you and
damage of the product.)
When you move the product, you must hold up the product.
(Pushing or pulling the product can damage the bottom part of the product.)
1.3 Precaution for use
You must not disassemble, fix and remodel the product by yourself.
(You can damage the product throughout a fire and malfunction or get a property loss
from a different study result than the original purpose.)
Do not use the product for different purpose
(It can cause malfunction or poor function. Consequently, you will get a wrong result.)
Do not use an inflammable spray near the product.
(The switch and other electric connection parts can cause a fire.)
When you use inflammable substances such as benzene, thinner, alcohol and LP gas,
please be careful. (It can cause a fire and an explosion.)
To prevent water and experiment material from going into the control panel during the
experiment, make sure to clean the control panel with a dry cloth.
(It can cause an electric leakage and a fire.)
Do not wash the product with excessive quantity of water, thinner, benzene and
Petroleum. (It can cause an electric leakage, and malfunction or damage on the surface.)
When you don't use the product or clean it, please pull out the power plug.
(It is to prevent an eclectic leakage.)

www.n-biotek.com N-BIOTEK
NB-101S(Ver. 2014) 5/13
Open and close the door softly and please use a door knob.
(A heavy shock can damage the product and breakdown the operating part. Also your
hands can be stuck between the door and body.)
Do not detach the built-in lamp and electrical devices.
(It can cause an electric shock and a fire.)
1.4 Precaution for ground connection
Please ground before use the product, if you don't ground, you can get an electrocution
when malfunction or an electric leakage occurs.
At the place where you can't ground,
* Please buy the equipment to prevent any electrical leakage.
* An electric shock, an electric leakage and a fire can be occurred without an electric
leakage breaker.
Do not ground to these places; Gas Pipe, water pipe, pipe, lighting rod, telephone wire
etc.
* Wrong ground connection can cause electrical leakage which eventually results in
fire.
If you don't have the outlet for AC 220V, then bury it under the ground after connecting
the ground line to copper plate.
* No ground connection can bring an electrocution, an electric leakage and a Fire.

www.n-biotek.com N-BIOTEK
NB-101S(Ver. 2014) 6/13
2. FEATURE & SPECIFICATION
2.1 Feature
●Magnetic induction drive & Brush less DC motor provides less vibration and maintenance.
●Artificial intelligence system which maintains precise speed & adjust time.
●LED indicates temperature, speed, time and state of power failure.
●No heat generated during operation.
●Easy to change accessory platform.
2.2 Specification

www.n-biotek.com N-BIOTEK
NB-101S(Ver. 2014) 7/13

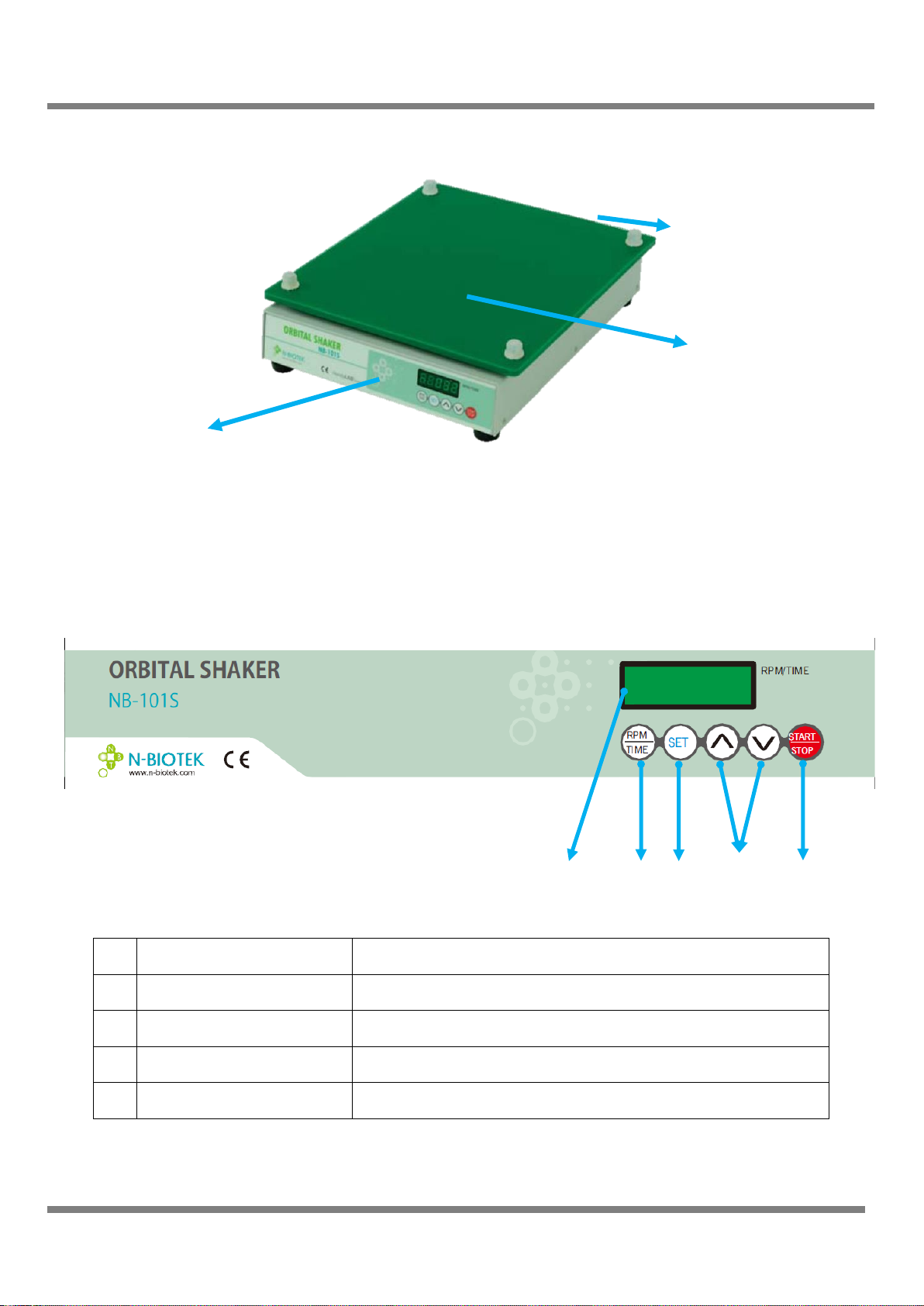

2.3 Configuration
Power switch
PLATFORM
CONTROL PANEL
2.4 Control panel
A B C D E
A
DISPLAY
For displaying RPM and TIME
B
RPM/TIME
Key for selecting RPM and TIME
C
SET
Key for saving desired RPM and TIME
D
UP, DOWN
Key for adjusting RPM and TIME value
E
START/STOP
START / STOP

www.n-biotek.com N-BIOTEK
NB-101S(Ver. 2014) 8/13
3. OPERATION
1) Turn the Power switch “ON”position on the rear of the shaker.

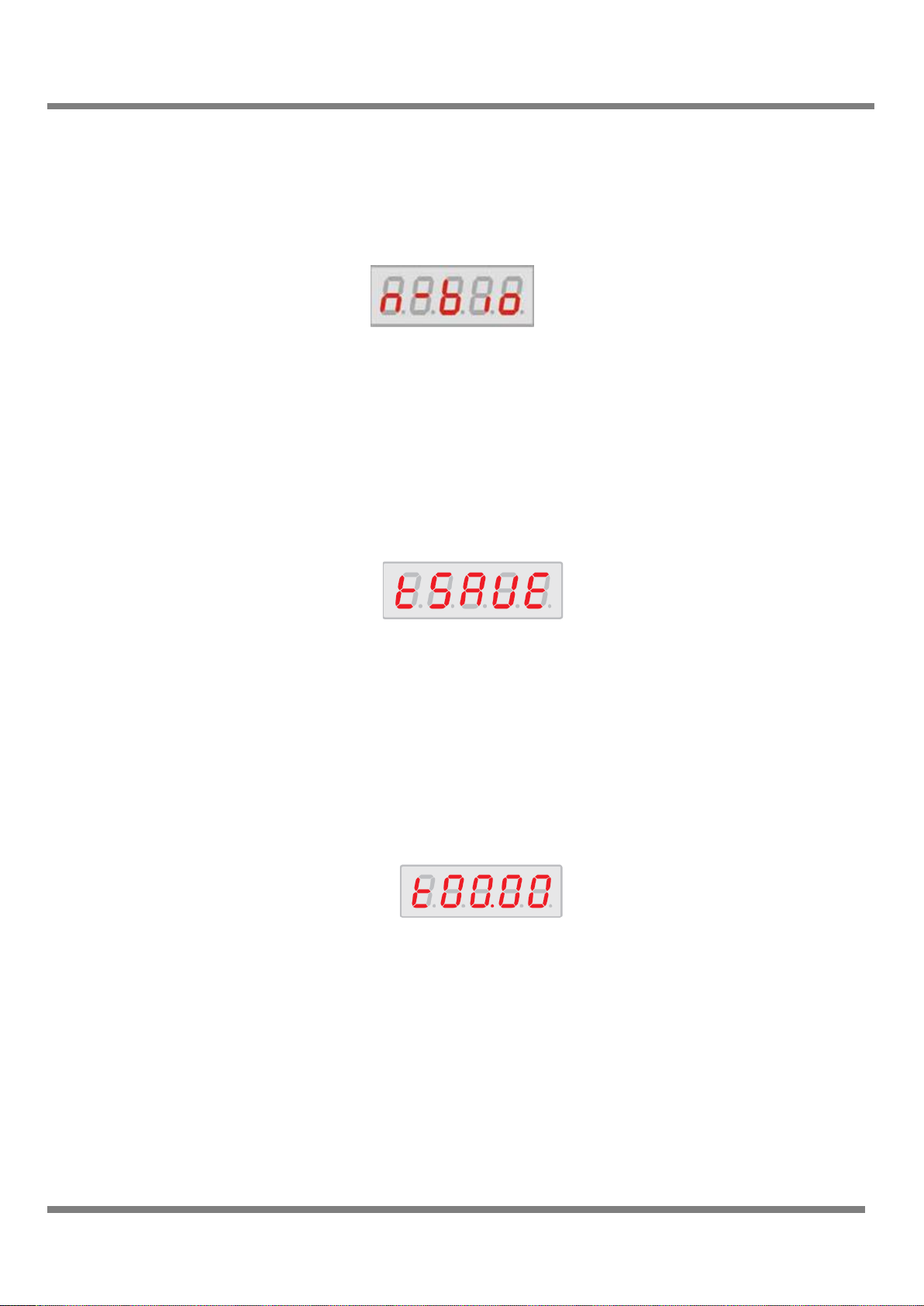

The digital readout will display as below.
2) Speed (RPM) Set-up
Press the “RPM/TIME” key approximately 1 or 2 seconds until LED blinks with current programmed
RPM. Don’t set RPM below 30.
In this input mode, adjust RPM as desired using UP(▲), DOWN(▼) key and press “SET” key finally to
save the adjusted RPM to be programmed.
* RPM setting range is from 30 to 300.
If you do not press the "SET" key to store the desired speed the new speed will not be saved and the
set speed will return to the prior setting
3) Time Set-up
3-1) Press the “RPM/TIME” key for the approximately 1 or 2 seconds until LED displayed
“t 00.00” as below.
3-2) Press the “SET” key. Then LED will display setting time and can be set the time using
UP(▲), DOWN(▼) key as desired set point time.
At first, you can set the hour using UP(▲), DOWN(▼) key and press “SET” key.
You can set the minute using UP(▲), DOWN(▼) key after set the hour.
Press “SET” key again after set time (hour and minute), then LED display as “t SAVE” as
below.

www.n-biotek.com N-BIOTEK
NB-101S(Ver. 2014) 9/13
* Time set point range is maximum 47 hr 59 min.
If you want to use this incubator continually, you must set value as 00:00.
When you set the time like above and operate instrument, -END- is displayed after a minutes.
But shaking is well running without stop till reaching desired time.
After pushing start button under time set-up, the instrument would be stopped with
displaying –END- when the time is reached at set time.

www.n-biotek.com N-BIOTEK
NB-101S(Ver. 2014) 10/13

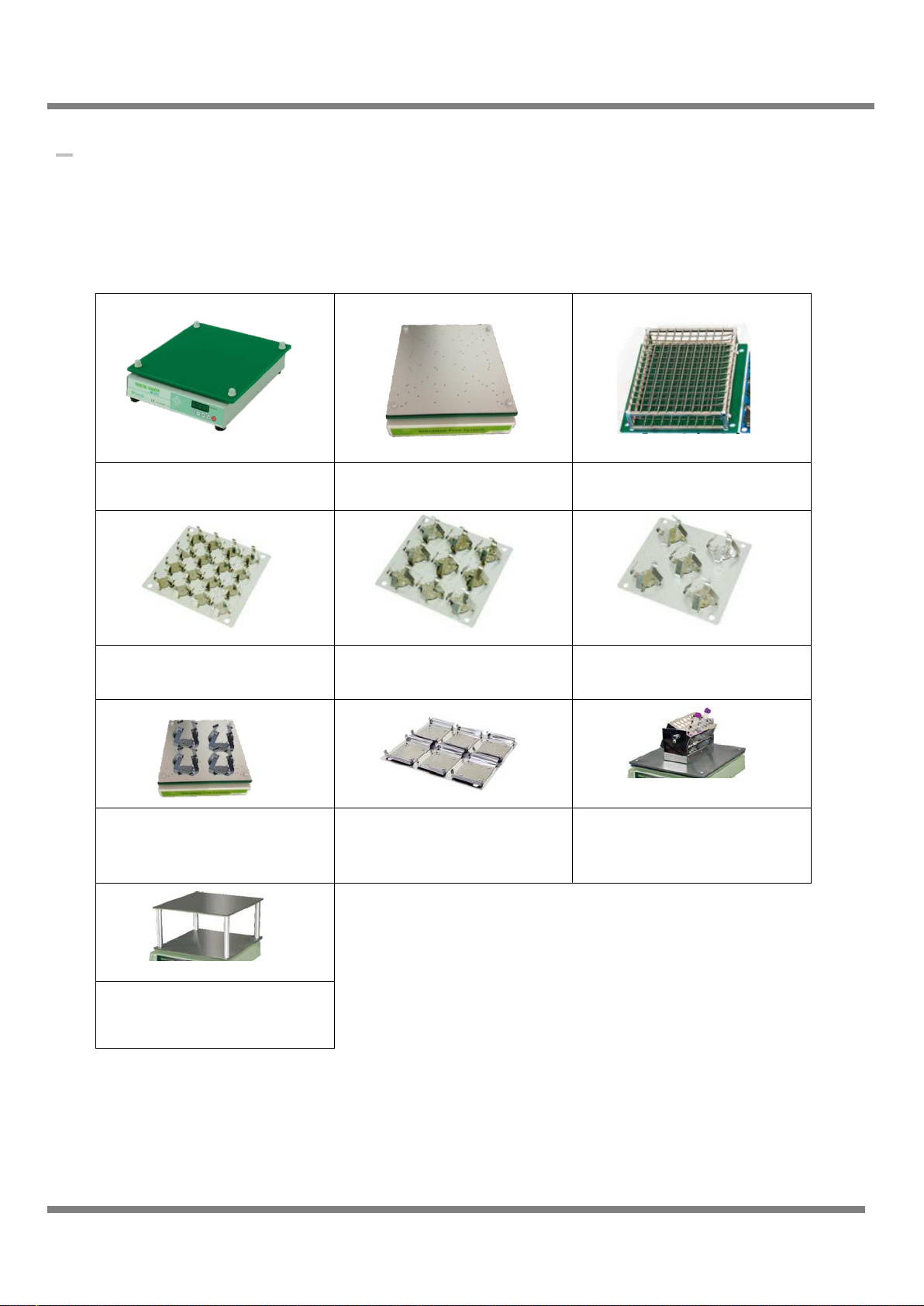

4. Accessory description
NB101S with no accessory
101S-PL Universal platform
101S-SR Spring rack
101S-H10
100ml Flask Holder x 16ea
with 101S-PL
101S-H25
250ml Flask Holder x 9ea
with 101S-PL
101S-H50
500ml Flask Holder x 5ea
with 101S-PL
101S-H100
1000ml Flask Holder x 4ea
With 101S-PL
101M-M
Microplate Rack<6ea>
With 101S-PL
Tube rack + 101S-PL
101S-2S
2 Stairs
(4 Supporters with 101S-PL)

www.n-biotek.com N-BIOTEK
NB-101S(Ver. 2014) 11/13
5. TROUBLE SHOOTING AND GUIDE
Service should be only performed by qualified service personnel
Before replacing any electrical or mechanical components, disconnection unit from its
electrical power source. If electrical power is required for service exercise extreme caution
as LINE VOLTAGE is present.
1) Unit is not working (Check below before thinking this as malfunction)
(1) Electrical connection
Please disconnect main power cable and then reconnect.
(2) Voltage supply
Please check to voltage.
(3) Fuse check.
(4) Verify voltage on unit.
(5) Defective power switch (check voltage at switch)

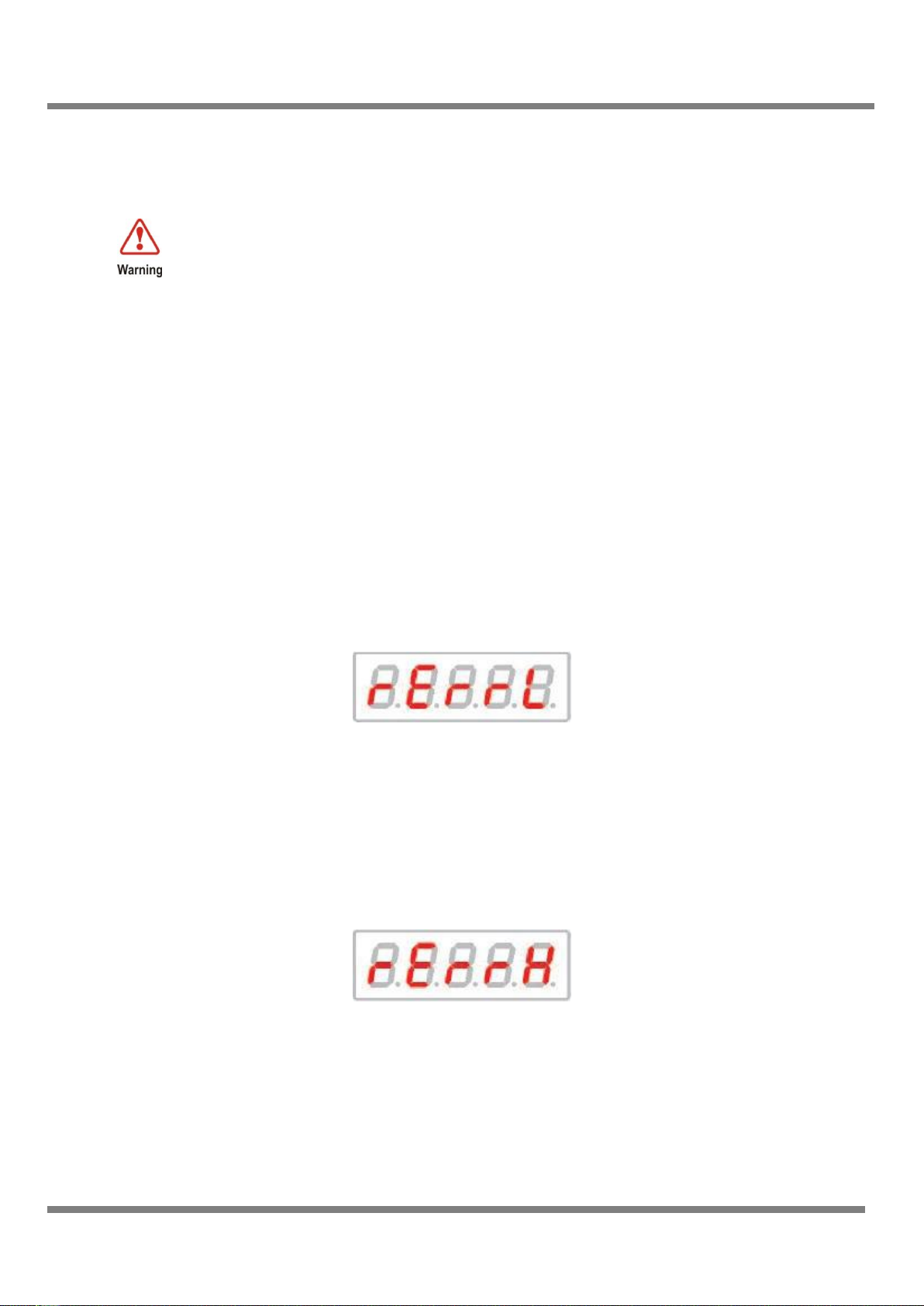

2) This message may be displayed as to
- RPM is being set "0" or less than minimum RPM.
- Something forced not to move when the platform is moving.
- Solution : Use your hands to move platform and push "STOP" button simultaneously and
than push the "SET" button to increase RPM you want.
3) This message may be displayed as to
- Momentary noise symptom.
- When the platform is being moved faster than RPM which you set.
(This message may occur from 200 RPM)
- Solution : These symptoms will be recovered automatically within 3 min or restart it.

www.n-biotek.com N-BIOTEK
NB-101S(Ver. 2014) 12/13
4) This message may be displayed as to
- Finish operation after "TIME" Setting Mode.
5) This message may be displayed as to
- The electricity is on from power failure during “TIME” Momentary noise symptom.
- When the platform is being moved faster than RPM which
5) This message may be marked as to
- The electricity is off during operation.
- Solution : "n"(new record) will be changed to "r"(RPM) if you push "START" button.

www.n-biotek.com N-BIOTEK
NB-101S(Ver. 2014) 13/13
W A R R A N T Y
N-BIOTEK provides a warranty on all parts and factory workmanship. The warranty includes areas
of defective material and workmanship, provided such defect results from normal and proper use of
the equipment.
1. The free warranty service will be provided once the unit is proved to be defective by wrong
workmanship after N-BIOTEK or reliable distributor’s examination.
2. The warranty period is 1 year from date of installation or 16Month year from the date of
shipment from N-BIOTEK, whichever is sooner as indicated in above table. This period is
proved by serial no.
3. N-BIOTEK will not be responsible of free warranty service for the faulty caused by user’s
improper operation, excessive use, use of incorrect voltage & frequency, storage in wrong
environment mentioned in Manual.
4. Complete the above table after installation and keep this card. Then, present it to a dealer or
N-BIOTEK when warranty repair is needed.
Ph: [phone] Fax: [phone]
Em : [e-mail] Web : www.N-BIOTEK.com
P.O. Box 402-803 Techno-Park, YakDae-Dong, WonMi-Gu, BuCheon-Si,
GyeongGi-Do, Korea Rep.
ITEM
Shaker
MODEL
NB-101S
DATE OF
INSTALLATION
mm-dd-year
SUPPLIER
SERIAL NO.
PERIOD
1 year
Thank you for purchasing N-BIOTEK shaker.
This operation manual describes practical information such as performance, usage, cautions and
notices for use of the product. Prior to using the product, please read it carefully all the safety
instructions described in this manual and keep this manual near equipment.
