N-BIOTEK NB-205LF User manual

DESKTOP LARGE SHAKING INCUBATOR
MODEL : NB-205LF
OPERATING MANUAL
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
2/18
- CONTENTS
Page
1. SAFETY
1.1 ..... 3
1.1.1 . 3
1.2 . . 3
1.3 Precauti .. . 4
1.4 .. 5
2. TRANSPORTATION, STORAGE AND LOCATION OF INSTALLATION
2.1 .. 6
2.2 .. . 6
2.3 .. .. 7
3. FEATURE AND SPECIFICATION
3.1 .. 8
3.2 9
3.3 9
3.4 . 10
3.5 Additional Accessories.......................................................................................... 11
3.5.1 Installation of the dedicated microplate holder plate....................................... 12
4. INSTALLATION AND OPERATION
4.1 .. 13
4.2 13
5. WARNING MESSAGES ..15
6. SERVICE AND CHECK POINT .. 17
7. WARRANTY ... 18
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
3/18

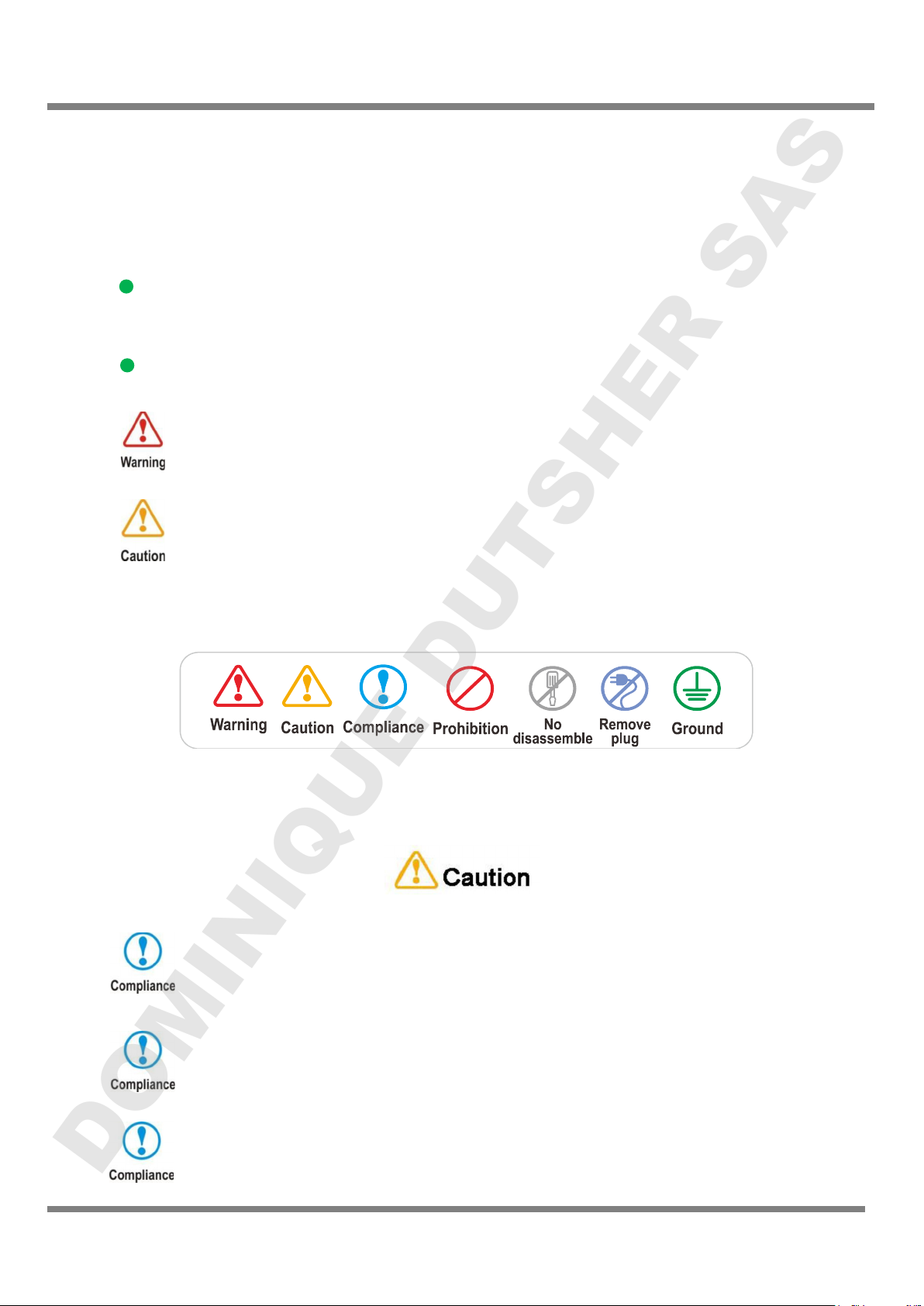

1. SAFETY
1. 1 General Information on Precaution
Precaution is to prevent the possible accident or danger during operation.
So, you must keep it.
Precaution is divided into caution and warning. And, each of them has following meanings.
If you don't keep this warning, you can get an accident or a fire.
If you don't keep this caution, you can get injured as well as a property loss.
1.1.1 Safety warning symbols
1. 2 Precaution for using the power cable
Do not make the power plug be pressed by back of the product.
(A space between the product and the plug must be 30cm at least.
The power outlet must be only for this product.
(Using various products simultaneously can cause a fire)
Clean the power plug with a dry towel and connect it properly.
(Foreign substances or unsafe connection can cause a fire.)
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
4/18
Do not over bend the power cable and do not make it to be pressed by heavy products.
(When it is damaged, it can cause a fire.)
Do not touch the power code with wet hands.
(It can cause an electric shock.)
Do not use the damaged power code and outlet.
(It can cause an electric shock and a fire.
When you see smoke comes out from the product or smell something is burning or see
any other strange symptoms, you have to pull out the power code and stop using it.
(It can cause an electric shock and a fire.)
1. 3 Precaution for ground connection
Please ground before use the product, if you don't ground, you can get an electrocution
when malfunction or an electric leakage occurs.
At the place where you can't ground,
* Please buy the equipment to prevent any electrical leakage.
* An electric shock, an electric leakage and a fire can be occurred without an electric
leakage breaker.
Do not ground to these places; Gas Pipe, water pipe, pipe, lighting rod, telephone
wire etc.
* Wrong ground connection can cause electrical leakage which eventually results
in fire.
If you don't have the outlet for AC 220V, then bury it under the ground after connecting
the ground line to copper plate.
* No ground connection can bring an electrocution, an electric leakage and a Fire.
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
5/18
1. 4 Precaution for use
You must not disassemble, fix and remodel the product by yourself.
(You can damage the product throughout a fire and malfunction or get a property loss as
well as experimental loss.
Do not use the product for different purpose.
(It can cause malfunction or poor function. Consequently, you will get a wrong result.)
Do not use an inflammable spray near the product.
(The switch and other electric connection parts can cause a fire.)
When you use inflammable substances such as benzene, thinner, alcohol and LP gas,
please be careful. (It can cause a fire and an explosion.)
To prevent water and experiment material from going into the control panel during the
experiment, make sure to clean the control panel with a dry cloth.
(It can cause an electric leakage and a fire.)
Do not wash the product with excessive quantity of water, thinner, benzene and
Petroleum. (It can cause an electric leakage, and malfunction or damage on the surface.)
When you don't use the product or clean it, please pull out the power plug.
(It is to prevent an eclectic leakage.)
Open and close the door softly and please use a door knob.
(A heavy shock can damage the product and breakdown the operating part. Also your
hands can be stuck between the door and body.)
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
6/18
Do not detach the built-in lamp and electrical devices.
(It can cause an electric shock and a fire.)
Please be sure to prevent foreign substances from getting into the sealing silicon of the
door. (The inflow of open air can cause the change of temperature in chamber and
discoloration of the packing part by a foreign substance.)
2. TRANSPORTATION,
STORAGE AND LOCATION OF INSTALLATION
2. 1 Transportation
DO NOT try to slide or tilt the unit
Lift the unit at its four lower corners with the aid of 2 people.
(Weight: 35kg)
Permissible ambient temperature range for transport: -10 to 60 .
2. 2 Storage
Permissible ambient humidity: max. 70%
Please check the voltage & Hertz written on serial label.
(Over-voltage, under-voltage can damage the product and poor performance.)
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
7/18
Do not install at a humid place.
(It causes an electric leakage accident and a corrosive of the product.)
Keep this product out of the direct ray of sun and do not install at a hot place or a place
that is near an electric heat. (The proper indoor temperature is 20 ~ 30 .)
Permissible ambient temperature range for transport: -10 to 60 .
2. 3 Location of installation and ambient conditions
Do not put inflammable substances near the product.
(It can cause a fire)
When you install the product, you have to put the distance of at least 30cm from the wall.
To completely separate the unit from the power supply, power plug must be
disconnected. Install the unit in the way that the power plug is easily accessible and can
be easily pulled in case of danger.
.
Install the unit at a flat surface, free from vibration and in a well-ventilated Location.
(If the ground is not flat, it can cause an excessive vibration of the product.)
When you move the product, do not lay down to its side or reverse the head to bottom.
(It can cause a malfunction.)
When you move the product, hold the door and other movable parts of the product with
a tape.
(When the product is moved, the movable door can cause injury of you and damage of
the product.)
.
When you move the product, you must hold up the product.
(Pushing or pulling the product can damage the bottom part of the product.)
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
8/18
3. FEATURE AND SRECIFICATION
3. 1 Features
Artificial intelligence system
Artificial intelligence system maintains precise temperature by using MICOM.
Suitable for bench space
Simple & convenient structure for experiment can be placed on testing bench.
Precise temperature control
Special design for convection allows precise temperature control.
Automatic stop function
When the cover is opened, it automatically stops for safety and convenience.
Artificial intelligence system
Artificial intelligence system maintains precise temperature by using MICOM.
Once-piece construction with acrylic cover
Trans-parent acrylic cover provides wide observation during experiment.
Brushless DC motor provides low noise and no vibration.
Illumination function
Lamps can be used for Photosynthesis experiment.
Watch dog function
Unexpected stop occurred by power failure or somebody is shown to the users.
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
9/18
3. 2 Specification
3. 3 Control Panel
Pilot lamp for heating signal
When chamber is being heated, this lamp is lighting
Pilot lamp for Overheating Safety Control
When overheating is sensed by safety device, this pilot lamp is lighting.
Temperature Control Displa y
RPM Control Display
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
10/18
3. 4 Configuration
- General Notification about the Flak Rack
(Flask rack is not initially included in the package, to order the flask rack please inform the N-Biotek
distributor when ordering the product.)
Shaker with
Basic Platform
with Non Slip Mat
Control Panel
ON/OFF Switch
Foldable Hand Grip
Hand Grip
Safety S/W, Power Inlet
Incubator Lid
Cooling
S/W
Shock Absorber Lid Hinge
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
11/18
3. 5 Accessories
APPERANCE NAME SPECIFICATION
NB-205LH10 36ea x 100ml Flask Holder
NB-205LH25 23ea x 250ml Flask Holder
NB-205LH50 16ea x 500ml Flask Holder
NB-205LH100 9ea x 1000ml Flask Holder
NB-205LH200 5ea x 2000ml Flask Holder
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
12/18

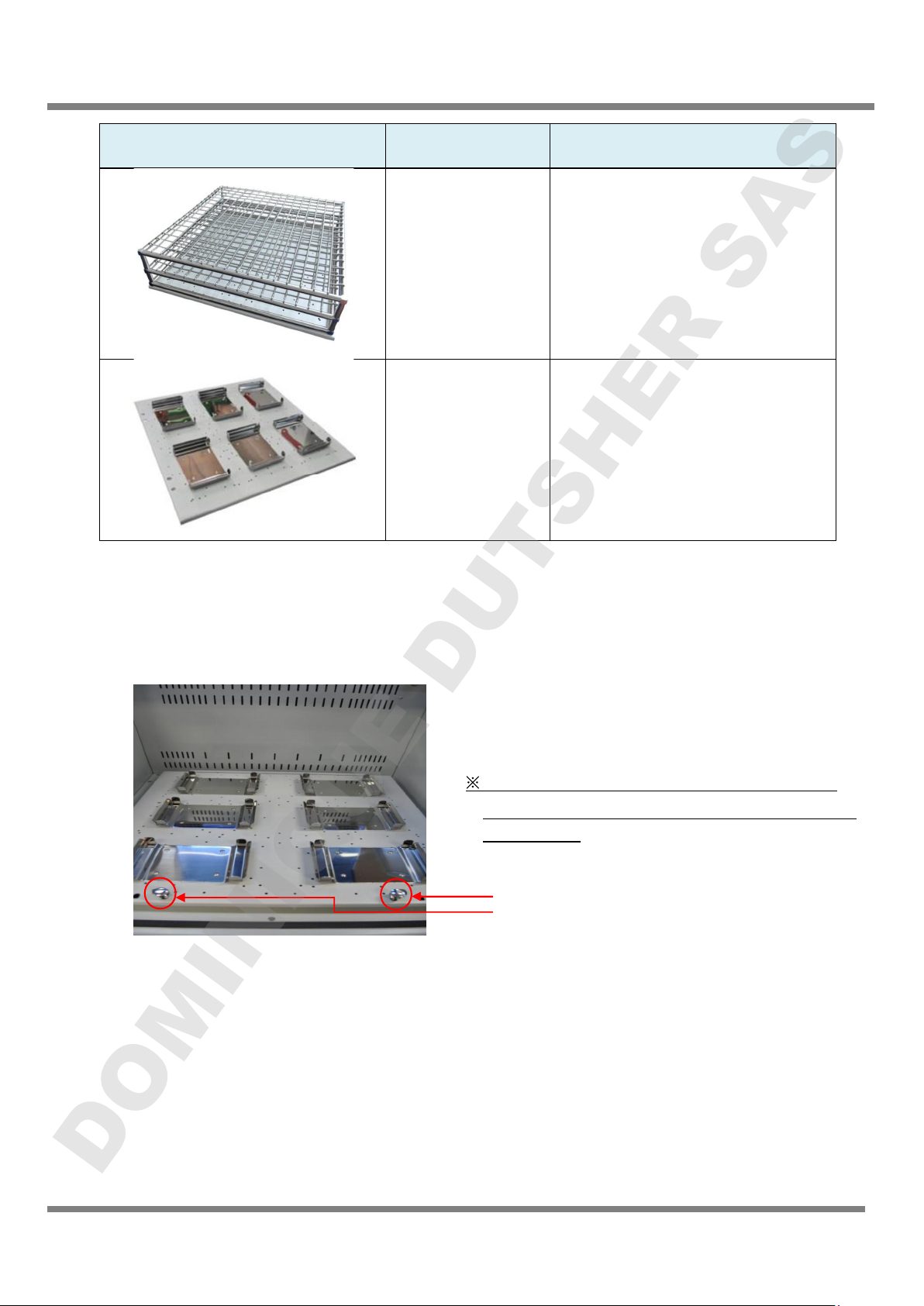

APPERANCE NAME SPECIFICATION
NB-205LS Spring Rack Holder
NB-205LM Micro plate Holder
3.5.1 Installation of dedicated microplate holder plate
1. Carefully place the plate on top of the shaker
from rear edge to front edge.
Note : the four edges of original shaker plate is
slightly bent up vertically so insert the plate inside
these edges.
2. Fasten these screws by hand
in clockwise direction.
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
13/18
4. INSTALLATION AND OPERATION
4. 1 Installation
1) Move to this Shaking Incubator at installation place and un-packing carefully.
2) The unit should be leveled in all directions (side by side, front to back and ground)
and vibration free place.
3) Connect electric power plug.
* Check to electric condition before connect power plug.
- 230V~, 50/60Hz
Before connect the power cable to the plug, turn off the power switch.
4. 2 Operation
1) Place the Power switch ON position which locate by fuse in back of machine
After turn on Main S/W, The digital readout will display as below.
2) Temperature Set-up
locate in right side.
Then, LED screen will displayed present temperature in the chamber.
-
(3) Then, you can set-up the new temperature using UP(
set-point temperature.
-point temperature,
then LED screen will be stop to flicker and saved as new temperature.
*If low temperature set-up is required, turn on COOL Switch which located at front left
side.
*Do not use cooling function, in case that incubator is set at higher temperature more 5 than
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
14/18
room temperature.
* if you do set up the new temperature, new set-up temperature is not
save at all.
* Set-up temperature range is below 15 from Ambient +15 to 60 .
Lowest Set-up temperature is 4 at less than 19 (Room Temperature)
3) Time Set-up
LED
UP(
At first, you can set the hour using UP(
You can set the minute using UP(
below.
* Time set point range is maximum 47 hr 59 min.
If you want to use this incubator continually, you must set value as 00:00.
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
15/18

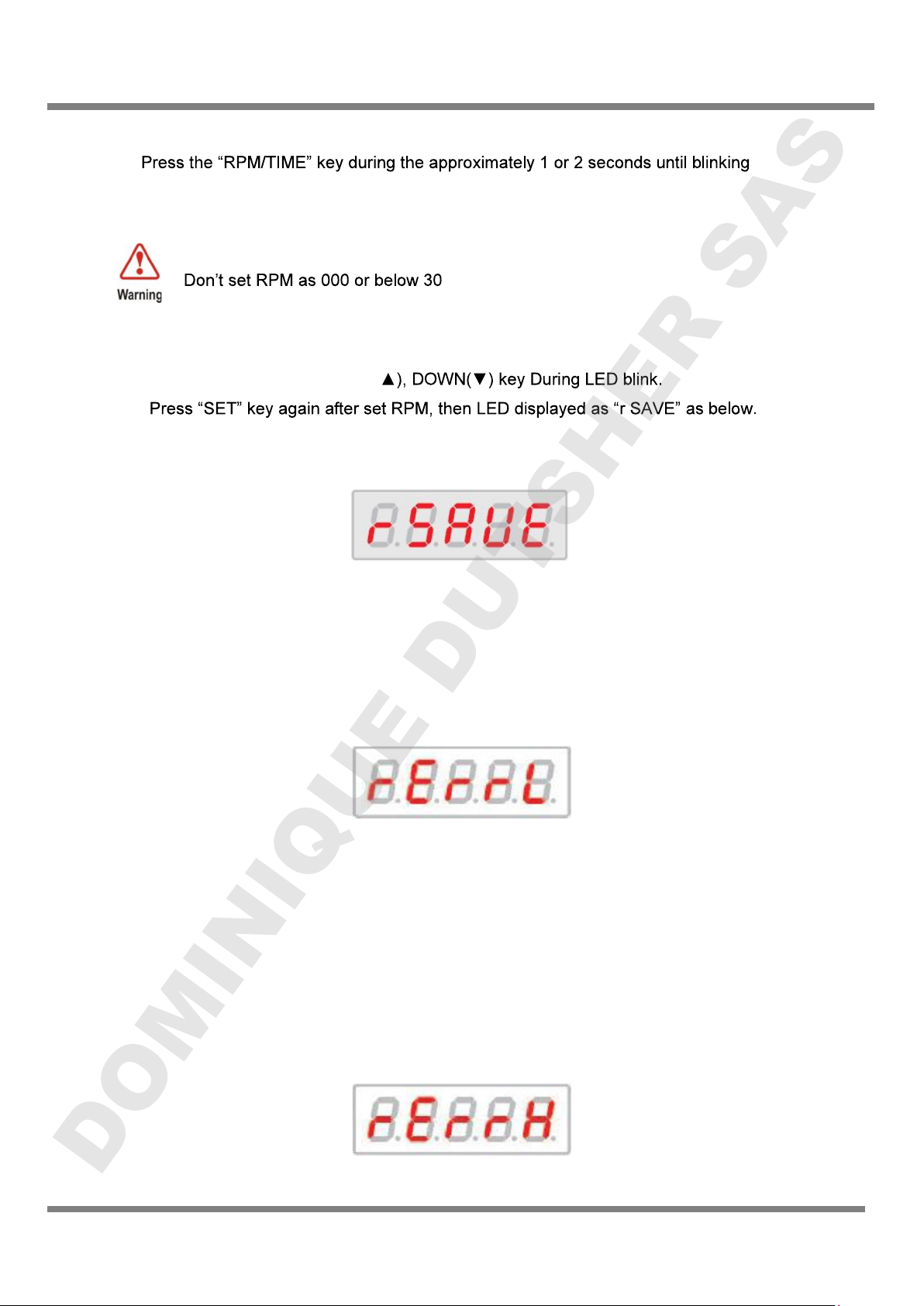

4) Speed (RPM) Set-up
(1)
LED (initial RPM value) is displayed.
.
(2) You can set the TEM using UP(
* RPM set point range is from 30 to 300.
5. WARNING MESSAGES
1) This message may be displayed as to
- RPM is being set "0" or less than minimum RPM.
- Something forced not to move when the platform is moving.
- Solution : Use your hands to move platform and push "STOP" button simultaneously and
than push the "SET" button to increase RPM you want.
2) This message may be displayed as to
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
16/18
- Momentary noise symptom.
- When the platform is being moved faster than RPM which you set.
(This message may occur from 200 RPM)
- Solution : These symptom will be recovered automatically within 3 min or restart it.
3) This message may be displayed as to
- Finish operation after "TIME" Setting Mode.
4) This message may be displayed as to
- The electricity is on from power failure during "TIME" Setting Mode.
- Solution : Push the "START" button once again.
6) This message may be marked as to
- The electricity is off during operation.
- Solution : "n"(new record) will be changed to "r"(RPM) if you push "START" button.
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
17/18
6. SERVICE AND CHECK POINT
Service should be only performed by qualified service personnel
Before replacing any electrical or mechanical components, disconnection unit from its
electrical power source. If electrical power is required for service exercise extreme caution
as LINE VOLTAGE is present.
1) Unit is not working (Check below before thinking this as malfunction)
(1) Electrical connection
Please disconnect main power cable and then reconnect.
(2) Voltage supply
Please check to voltage.
(3) Fuse check.
(4) Verify voltage on unit.
(5) Defective power switch (check voltage at switch)
Please contact N-BIOTEK Technical Service or your local retailer for any enquires and A/S issues.
DOMINIQUE DUTSHER SAS

www.n-biotek.com N-BIOTEK
18/18
W A R R A N T Y
N-BIOTEK provides a warranty on all parts and factory workmanship. The warranty includes areas
of defective material and workmanship, provided such defect results from normal and proper use of
the equipment.
1. The free warranty service will be provided once the unit is proved to be defective by wrong
workmanship after N-
2. The warranty period is 1 year from date of installation or 16Month year from the date of
shipment from N-BIOTEK, whichever is sooner as indicated in above table. This period is
proved by serial no.
3. N- s
improper operation, excessive use, use of incorrect voltage & frequency, storage in wrong
environment mentioned in Manual.
4. Complete the above table after installation and keep this card. Then, present it to a dealer or
N-BIOTEK when warranty repair is needed.
Signed By
ITEM Desktop Large
Shaking Incubator MODEL NB-205LF
DATE OF
INSTALLATION mm-dd-year SUPPLIER
SERIAL NO. PERIOD 1 year
Thank you for purchasing our Shaking Incubator.
This operation manual describes practical information such as performance, usage, and cautions
and notices for use of the product. Prior to using the product, please read it carefully all the safety
instructions described in this manual and keep this manual near equipment.
DOMINIQUE DUTSHER SAS
