NAPCO XP-400 User manual

XP-400
Installation Instructions
Control Panel/Communicator
WI853C 8/97© NAPCO 1997
®
Wi853c
page 1 Tuesday, September 16, 1997 10:42

2
WI853C XP-400 Installation Instructions
*HQHUDO ,QIRUPDWLRQ
The NAPCO EXPRESS XP-400 control panel pro-
vides up to 4 hardwired/wireless zones. Up to four
4-digit user codes can be programmed. Ambush,
when selected, uses User 4 code as an Ambush
code.
The XP-400 is wireless ready. When used with a
GEM-RECV-XP8 receiver, the control panel can sup-
port up to 4 wireless zones and 2 Keyfobs.
The RPX-4 keypad provides complete control of the
XP-400 control panel. Information on system status,
bypassed zones, system troubles etc. can be viewed
at the keypad.
The control panel can be easily and quickly pro-
grammed from the keypad. The panel can also be
locally or remotely downloaded using PCD3000 soft-
ware and a PCI 2000/3000 interface or PCL2000A
local Download cable. See Downloading Section (pg.
5) for more information.
;3 )HDWXUHV
Control Panel
• 4 Zones
• 3 Keypad Panics
• Wireless Ready
• Bell Supervision
• Line Cut Detection
• Answering Machine Override (Second Call)
Communicator
• 2 Telephone Numbers
• Backup Reporting
• Pager Format
• Point ID Format
• Individually Report 4 Users
• Opening after Alarm Report (Cancel Code)
• Conditional Closing Report
For Technical Assistance, Contact the NAPCO Toll Free Helpline 
[phone]
NAPCO Security Systems, Inc.
333 Bayview Avenue
z Amityville, New York 11701
For Sales and Repairs, call Toll Free: [phone]
7DEOH RI &RQWHQWV
General Information..........................................2
XP-400 Features ..............................................2
Specifications...................................................3
Listings and Approvals .....................................4
Ordering Information ........................................4
Optional Accessories........................................4
Programming the Panel....................................5
Installation........................................................6
Wiring...............................................................6
Keypad Operation ............................................7
Panel Operation ...............................................7
Bypassing ........................................................8
User Program Mode.........................................9
XP-400 Commands..........................................10
Dealer Commands ..........................................11
Wireless Operation (Signal Strength) .............11
Zone Features..................................................11
System Times ..................................................13
System Features..............................................13
Telephone Number 1 Programming..................15
Pager Programming .........................................15
Backup Telephone Programming .....................17
Telephone Number 3 Programming..................18
Report Codes...................................................18
Enhanced Communicator Features..................19
Wireless...........................................................19
Downloading.....................................................21
Dealer Programming ........................................22
System Troubles ..............................................23
Troubleshooting................................................25
XP-400 WIRING DIAGRAM..............................27
Wi853c
page 2 Tuesday, September 16, 1997 10:42

3
6SHFLILFDWLRQV
&XUUHQW  9ROWDJH 5DWLQJV
Alarm Output ---------------------------Burg: 12 VDC, 2A (max.)
Fire: 12 VDC, 65 mA
Output Current Limiting --------------Burg/Fire:2.25 A
AUX Power: 750 mA
Combined Standby Current:--------350 mA maximum
(Remote PWR, AUX Output, PGM)
4 Hour Standby:------------------------350 mA Standby Current
Bell Output 65 mA
(Using Rechargeable 12 VDC 4 AH BATTERY, minimal requirement)
7UDQVIRUPHU DQG %DWWHU\
Required Transformer: --------------NAPCO TRF12 OR
BASLER 16.5 VAC 20VA
Required Battery: ---------------------12V 4 AH Rechargeable
Change Battery every 5 years or as required
Maximum Charging Current: -------165 mA
Maximum Input Current:-------------2.58 A
/RRS &KDUDFWHULVWLFV
Loop Voltage: ------------------------- 5 Volts
Loop Current :-------------------------- Zones 1, 2: 0.9 mA
Zones 3, 4: 0.5 mA
Loop Resistance: --------------------- 100Ω per zone (max.)
'HYLFH 6SHFLILFDWLRQV
Max # keypads:------------------------ 4, RPX-4 current = 35 mA
Max # of receivers: ------------------- 2, GEM-RECV-XP8
current = 65 mA each
Max # of compatible
2-wire smoke detectors : ---------- 10
Max Keypad wire length : --------- 1000’ total wire length
0LVFHOODQHRXV
Housing Dimensions : -------------- 105/16"x 86/16"x 3"
(26.2 x 21.3 x 7.6) HxWxD
Shipping Weight: -------------------- XP-400/4 15.5 lbs.
Operating Temperature: ------------ 0-49ºC (32-120°F)
Wi853c
page 3 Tuesday, September 16, 1997 10:42

4
WI853C XP-400 Installation Instructions
4 zone Control Panel
Keypad
Zone Doubling Resistors (2.2K & 3.9K)
Operating Instructions XP-400
Programming Instructions XP-400
XP-400
RPX-4
ZDR
OI220
WI854C
2UGHULQJ ,QIRUPDWLRQ
/LVWLQJV DQG $SSURYDOV
UL HOUSEHOLD BURGLARY WARNING SYSTEM CONTROL UNIT
STANDARDS # 1023, 985
VERIFIED TO COMPLY WITH F.C.C. PART 15 AS CLASS B : DIGITAL DEVICE
(XURSHDQ (0& 5HJXODWLRQV &( &HUWLILFDWLRQ
HARMONIZED STANDARDS: EN50081-1 and EN50082-1
EC DIRECTIVES: 89/336/EEC, Electromagnetic Compatibility Directive
2SWLRQDO $FFHVVRULHV
*Wireless Receiver
Window/Door Transmitter
Key Fob Transmitter
Wireless PIR
Wireless Dual-Technology Sensor
Wireless Glass-Break Detector
Relay Board
Audio Verification Module
Downloading Software for IBM PC Compatibles
Software with Interface for IBM PC Compatibles
(Includes PCL2000A local download cable)
Local Download cable
GEM-RECV-XP8:
GEM-TRANS2
GEM-KEYF:
GEM-PIR:
GEM-DT:
GEM-GB:
RB1000
Veriphone:
PCD3000:
PCI2000/3000:
PCL2000A
*Supports up to 8 zones, 4 Key Fobs, 4 Smoke Detectors
Wi853c
page 4 Tuesday, September 16, 1997 10:42

5
3URJUDPPLQJ WKH 3DQHO
Refer to XP-400 Programming Instructions (WI854C)
Defaulting the Panel
1. Remove power from the panel.
2. Remove all wirin
g
from terminal 15 (PGM)
and terminal 3.
3. Connect terminal 15 (PGM) to terminal 3.
4. Apply power to the XP-400 control panel.
5. After a few seconds the ARMED, READY and
*
SYSTEM TROUBLE LEDs will flash.
6. The keypad will beep 3 times indicating the
panel default values have been loaded.
7. Remove wiring between terminal 15 (PGM)
and terminal 3.
8. Re-install original wiring for terminal 15 (PGM)
and terminal 3.
Keypad Programming
Refer to WI854C for information on keypad pro-
gramming.
Downloading
The XP-400 panel can be download/uploaded
with PCD3000 software using the Ring Method,
Answering Machine Override (Second Call) or

Method of downloading. The panel can
also be automatically downloaded/uploaded us-
ing PCD2000 Software running PCPreset. For
Site Initiated Downloaded, see
Auto Download
ID Number
[93].
Local Downloading
Wire as shown in Figure 1. Use the power up or

method of establishing a connection. The
power up method is recommended if the panel is
attempting to report.
Remote Downloading
Wire as shown in Figure 2. The panel can
be remotely download/uploaded using any
one of the following methods:
1. The

method
2. Call-in method
3. Answering Machine Override (Second Call)
4. Site-Initiated (PCPreset &

)
5. Automatic Downloading (Using PCPreset)
PGM
(-)
[phone] 19
+PWR GND GREEN TIP RING
PHONE
PCL2000A
GREEN
RED
MODEM
FIGURE 1LOCAL DOWNLOAD
TIP RING
TELCO
MODEM
J1
TO COMPUTER
J3
LOCAL
TO
PCI2000
J2
TO EXTERNAL
MODEM
J4
TELCO J5 LINE
OUT TO
TELCO
FIGURE 2REMOTE DOWNLOAD
PGM
(-)
[phone] 19
+PWR GND GREEN
PHONETELCO
GREEN
RED
XP-400 Panel at the site
RINGTIP RING
RJ31X
TIP
GRY
BRN
BLACKRED
NOTE:
Any programming in
Dealer Options 1
[96] and
Dealer
Options 2
[97] will not be defaulted. If
Dealer Code
Lockout
has been programmed the panel will not default
the Dealer Code.
Wi853c
page 5 Tuesday, September 16, 1997 10:42

6
WI853C XP-400 Installation Instructions
,QVWDOODWLRQ
Mounting the Panel
Mount the Panel close to an unswitched AC
source, a cold-water pipe ground, and a tele-
phone line connection.
Mounting the Keypad
A keypad should be located near an exit/entry
door. To remove the keypad from the backplate,
insert a small screwdriver into the slots at the
bottom of the keypad. Pull up on the screwdriver
to pop off the cover.
Up to 3 keypads can be connected on individual
wire runs with #22 AWG wire with a maximum
total cable length of 1000 feet. Each keypad
draws approximately 35 mA.
:LULQJ
Grounding the Panel
Connect the control-panel EARTH GROUND
screw to a metal cold-water pipe. Do
not use a
gas pipe, plastic pipe or AC ground connec-
tions. Use at least #16 AWG wire. Connect a
wire with a ground lug crimped or soldered onto
one end and connect it to the EARTH
GROUND screw in the cabinet.
AC Power and Battery Wiring
Complete all wiring before connecting the bat-
tery or AC Power. Do
not plug the transformer
into a switched outlet.
Telephone Wiring
Wire as shown in the wiring diagram in the back
of this manual.
WARNING
The FCC restricts the use of this equipment on
certain telephone lines. Read the FCC state-
ment on the back of this manual to ensure
compliance.
Burglary Zone Wiring
NAPCO’s EZ Zone DoublingTM is simple. Each
terminal has 2 zones, use an E(2.2 K) type
Zone Doubling Resistor for the primary zone and
a Z(3.9 K) type Zone Doubling Resistor for the
secondary zone.
Wire zones as shown in the wiring diagram (pg.
27). All resistors must be installed, even if the
zone is not used. If required, unsupervised
open
circuit devices may be used instead of closed
circuit devices. Program the zone as an
Open
Circuit Zone
[06] (Zone Doubling Resistor re-
quired). If necessary, use the voltage chart
below to verify proper voltages.
Terminals Primary Secondary
3&4 Zone 1 Zone 3
5&4 Zone 2 Zone 4
TABLE 2 EZ ZONE DOUBLINGTM
Primary and Secondary zones normal 1.9 V
Secondary open 2.5 V
Primary open 3.2 V
Primary and Secondary open 5.0 V
Primary and Secondary shorted (Sys. Trbl 7-
Zone Trbl) 0.0 V
TABLE 3 VOLTAGE AT TERMINALS 3&4, 5&4, 6&7
Keypad Wire Color Control Panel Terminal
RED 12 (+PWR)
BLACK 13 (GND)
GREEN 14 (GREEN)
TABLE 1 KEYPAD WIRING
Wi853c
page 6 Tuesday, September 16, 1997 10:42

7
PGM Wiring
The PGM is a switched negative output that is
activated depending on the programming op-
tion(s) that have been selected [08], [23] - [25].
Connect the device controlled by the PGM be-
tween +PWR and the PGM terminal (maximum
load of 50 mA).
.H\SDG 2SHUDWLRQ
Keypad zone LEDs indicate zone status.
ARMED, READY and  SYSTEM LEDs provide
system status. The keypad sounder provides
feedback beeps for correct and incorrect entries.
Keypad Sounder
3 QUICK BEEPS
Panel Armed (System ON)
Chime ON
Fault Find Mode ON
Keypad Sounder ON
Zone Bypassed
6 QUICK BEEPS
Panel Disarmed (System OFF)
Chime OFF
Fault Find Mode OFF
Keypad Sounder OFF
Zone Un-Bypassed
1 SECOND - STEADY TONE
Incorrect Code Entered
Invalid key entry
4 LONG BEEPS (PRIORITY CONDITION)
1. Entering an Arm Code with a faulted zone
(Not an Auto-Bypass Reentry Zone).
2. Entering an Arm Code when the Bell or
PGM is ON (Bell and PGM will turn OFF).
Keypad LEDs
ARMED LED DEFINITION
Armed ON
Instant Mode Rapid Flash
Zone in Alarm Flashing
READY LED DEFINITION
Ready to be Armed ON
Zone faulted OFF


SYSTEM LED DEFINITION
AC Failure Flashing
System Trouble(s) ON
ZONE LED DEFINITION
Faulted Zone ON
Bypassed Zone Slow Flash
Zone in Alarm Flashing
3DQHO 2SHUDWLRQ
Arming (System ON)
Before arming the system close all protected
zones (unless programmed as Auto-Bypass
Reentry Zones). Enter a 4-digit Arm/Disarm
code, the keypad will provide a feedback beep
for each key pressed. If a valid Arm/Disarm
code is entered, the keypad will beep 3 times. If
an incorrect Arm/Disarm code is entered, the
keypad will sound a 1-second tone indicating an
incorrect entry.
Arming without Entry Delay (Instant
Mode)
Enter the

to eliminate the entry delay.
The ARMED LED will flash rapidly to indicate the
panel is in Instant Mode. If an Exit/Entry Zone is
tripped while the panel is in Instant Mode the
panel will go into alarm immediately.
Wi853c
page 7 Tuesday, September 16, 1997 10:42

8
WI853C XP-400 Installation Instructions
Arming/Disarming with a Keyfob
The system can be armed by pressing the

key, and disarmed by pressing the

key on
the Keyfob. Zones programmed as
Exit/Entry
Follower Zones
can be bypassed when the

or keys on the Keyfob have been pro-
grammed for
Interior
[81-82]. Zones pro-
grammed as Home
/Away with Delay Zones
can
be armed regardless of the state of the
Exit/Entry
Zones
when the

or keys on the Keyfob
have been programmed for
Full Set
[81-82]. To
arm the system with all zones protected press
the

key. Press and hold the

or
key for 1.5s to fully set the system (The LED on
the Keyfob indicates the Keyfob is tranmitting the
signal). Program
Keyfob/Keyswitch Chirp
[23-4]
for an audible indication of system arming and
disarming.
Arming Instant with a Keyfob
The panel can be ARMED INSTANT when the

or keys on the Keyfob have been
programmed for
Instant
[81-82]. To arm the
system with Instant protection press the

key, then press and hold the

or key for
1.5s to arm the panel with INSTANT protection.
Arming/Disarming with a Keyswitch
The system can be armed/disarmed by using a
momentary Keyswitch wired to Zone 4.
Pro-
gram Keyfob/Keyswitch Chirp
[23-4] for an au-
dible indication of system arming and disarm-
ing.
Disarming (System OFF)
After entering the premises through an Exit/
Entry Zone, the keypad will sound the Entry
Delay Tone. Enter a valid Arm/Disarm code. If
a valid Arm/Disarm code is entered, the keypad
will beep 6 times, indicating the panel has been
disarmed. The red Armed LED will go out. If
an incorrect Arm/Disarm Code is entered, the
keypad will sound a 1-second tone, indicating
incorrect entry. Press the

key and re-enter
the code.
Disarming after an Alarm (Alarm Memory)
The armed LED and the zone(s) that caused
the alarm will be be flashing. Disarm the panel.
The system is currently not detecting zone
faults or displaying system trouble. The
zone(s) that caused the alarm will continue to
flash. The Ready and

SYSTEM TRBL LEDs
are out indicating:
The system is displaying Alarm Memory.
Press the

key to clear Alarm Memory.
%\SDVVLQJ
Automatic Bypassing
Home/Away with Delay Zones
This zone type has the following operation de-
pending on whether an
Exit/Entry Zone
has been
violated during the
Exit Delay
time.
Home
Exit/Entry Zone
is not violated
Zones selected as Home/Away with Delay
Zones
will be bypassed automatically.
Away with Delay
Exit/Entry Zone is violated
Zones selected as Home/Away with Delay
Zones
will have a fixed 20-second entry de-
lay when violated before an
Exit/Entry Zone
.
NOTE:
Faulted Keyswitch or silent 24 hour zones normally do not
display at the keypad. If a silent 24 hour zone or
Keyswitch is faulted at the time of arming the faulted zone
will display only while the priority sound is ON.
Wi853c
page 8 Tuesday, September 16, 1997 10:42

9
Full Setting the System with Automatic
Bypassing - Home/Away with Delay
Zones
From the Keypad
Press

to return protection to
Home/
Away with Delay Zones
that have been auto-
matically bypassed. Three minutes are al-
lowed to walk through
Exit/Entry
and
Exit/
Entry Follower Zones
.
Using A Keyfob (GEM-KF)
All zones in the system can be armed re-
gardless of the state of the
Exit/Entry Zone
when arming with a Keyfob and using an
AUX key programmed as Full Set. Press

and press and hold the

or keys
for 1.5s when leaving the premises. All
zones, including
Home/Away Zones
are
armed.
Bypassing a zone
Press the

key, then the zone number to be
bypassed. While the panel is DISARMED, the
bypassed zone LED will flash slowly; indicating
the zone has been bypassed. While the panel
is ARMED, the bypassed zones will only be
displayed if the
Display Bypassed
[21-3] option
has been selected.
Unbypassing a zone (Disarmed
only)
Press the

key then the number of the
zone to be unbypassed.
Group Bypass
Press

to Bypass all
Exit/Entry
Follower Zones
[02] or
Home/Away Zones
[01] (only if the system is programmed
exclusively for
Home/Away with Delay
zones
).
.
Using A Keyfob (GEM-KF)
Hold the

or key on the Keyfob to
Bypass all
Exit/Entry Follower Zones
[02]
or
Home/Away Zones
[01] (only if the sys-
tem is programmed exclusively for
Home/
Away with Delay zones
).
8VHU 3URJUDP 0RGH
To prevent the loss of the User 1 Code, the panel
default program includes
User 1 Code Lockout
[96-2].
To change the User 1 Code from its default value
of 1234, program the 4-digit User 1 Code through
Dealer Programming [95]. User 1 Arm/Disarm
code is also used to program User Codes 2 - 4.
By default, the User 1 code cannot be re-
programmed by the user.
If it is necessary to change the User 1 code, it
can be changed through downloading or Dealer
keypad programming. From Dealer Program
Mode, change the U
ser 1 Code Lockout
([96-2]
LED=OFF) to disabled.
Entering User Program Mode
1. Enter

2. Enter User 1 Code
(

)
(Default)
$50('
5($'<
6<67(0
*
*
),5(
$&
Wi853c
page 9 Tuesday, September 16, 1997 10:42

10
WI853C XP-400 Installation Instructions
While in User Program Mode the Armed, READY
and

System Trouble LEDs will continue to
flash, follow the example below to program a
User 2’s code to 1923.
User Mode Programming Example:
1. Press

, Zone 2 LED will Flash
2. Enter

, Zone 2 LED will
continue to flash until the 4th digit is entered.
The keypad will beep 4 times confirming a
valid entry (Zone LED steady).
Deleting a User Code
Press the number of the User to be deleted, the
zone LED will be flashing indicating that the user
has been selected. Press the

, the LED
associated with the user will now be OFF.
Exiting User Program Mode
To exit User Program Mode press the
"
key.
;3 &RPPDQGV
User Commands

Bell Test
Enter this command to turn on the Bell, keypad
sounder and keypad LEDs for 2 seconds. The
battery is tested during a Bell Test, and auto-
matically every *24 hours to ensure proper
battery operation under load. The Alarm output
requires a battery in order to supply the speci-
fied output. If the battery cannot sustain the
load, a low battery indication will be displayed.
A battery test is also performed on power-up
after a 3 minute delay.
*A battery test occurs every 4 hours when
Household Fire
[96-3] has been selected.

Group Bypass
Enter this command to bypass all
Exit/Entry
Follower Zones
or
Home/Away Zones
(only if
the system is programmed exclusively for
Home/Away with Delay zones).

Instant
Enter this command before or after arming to
remove the entry delay on
Entry/Exit Zones
.
The keypad ARMED LED will flicker rapidly.
Faulting a
Exit/Entry Zone
will result in an
immediate alarm.

Chime ON/OFF
Enter this command to turn chime ON/OFF. The
Keypad will chime on any zone that has not
been
selected as an
Exit/Entry Follower Zone
,
Home/
Away with Delay Zones,
or
24 Hour Zone
.

+ User 1 Code - User Program
Mode

Keypad Sleep Mode ON/OFF
Enter this command to turn the keypad sounder
ON/OFF. When the keypad is in Sleep mode all
keypad sounds will be silenced except for key-
pad feedback beeps and Keypad Sounder on
Alarm.
User Commands - Optional

Easy Exit/Easy Arm
If enabled in Dealer programming, enter this
command while the panel is Armed to allow 3
minutes to exit the premises through
Exit/Entry
and
Exit/Entry Follower Zones
. Enter
!
to
arm the panel. To disarm the panel a valid
Arm/Disarm code must be entered. Requires
Easy Exit/Easy Arm [
21-2] to be enabled.

Access on PGM
If enabled in Dealer programming, enter this
command to activate the PGM output (Terminal
15) for 5 seconds.
Zone LED Meaning
OFF User Arm/Disarm Code not programmed
Flashing User Arm/Code is currently being programmed
Steady User Arm/Disarm Code has been programmed
TABLE 4 ZONE LED DEFINITION-USER PROGRAM MODE
Wi853c
page 10 Tuesday, September 16, 1997 10:42

11
'HDOHU &RPPDQGV

Download (Programming Re-
quired)
Establish a connection between the PCD phone
line and the Control Panel phone line. When
ready, tell the installer to arm, then disarm. Then
enter

in order to establish a connection.
Phone connection to installer will go "dead" as
downloader and panel connect.

Fault Find ON/OFF
Hardwired Zone Operation
Enter this command to turn Fault Find ON/OFF.
While in Fault Find mode, the loop response for
all zones will be set to the faster response of 40
ms. The keypad will beep for .25-seconds when
hardwired zones are faulted and for 1-second
when zones are restored.
:LUHOHVV 2SHUDWLRQ
6LJQDO 6WUHQJWK
While in Fault Find mode the keypad will provide
an audible (Table 5) and visual (Figure 4) indica-
tion of each transmitter’s signal strength. The
signal strength metering is based on a scale of
4 to 10, with 4 being marginal and 10 being
excellent.
The keypad will beep out a number, from 1-4,
corresponding to the signal strength of the
transmitter. See Table 5 below. Each beep is
1-second long. The keypad will sound a short
beep for transmitters with signal strengths of 3
or less.
=RQH )HDWXUHV
[00]Exit/Entry Zones
Delay allows exit and entry through an Exit/
Entry Zone after the system is armed with-
out setting off an immediate alarm.
Exit
Delay
allows the user to leave the premises
after arming.
Entry Delay
allows the user
time to enter and disarm. The entry delay
may be canceled by pressing
!
.
[01]Home/Away with Delay Zones
Zones that automatically bypass at the expi-
ration of the exit delay if the EXIT/ENTRY
zone(s) are not violated. Zones of this type
have a three (3) minute power-up delay,
and do not display or cause an alarm if
faulted when the system powers up. Press-
ing the
"
key cancels the 3 minute timer.
If Exit/Entry zone(s) are violated during the
exit delay, zones programmed as Home/
Away with Delay Zone(s) will have a fixed
20-second entry delay, if violated before
the
Exit/Entry zone.
To eliminate this fixed 20-second entry de-
SIGNAL STRENGTH KEYPAD SOUNDER
3 or less .25S BEEP
4BEEP
5BEEP BEEP
6-7 BEEP BEEP BEEP
8-10 BEEP BEEP BEEP BEEP
TABLE 5 AUDIBLE SIGNAL STRENGTH INDICATION
FIGURE 4VISUAL SIGNAL STRENGTH INDICATION
5 6-74 8-10
=21( 
=21( 
=21( 
=21( 
=21( 
=21( 
=21( 
=21( 
=21( 
=21( 
=21( 
=21( 
=21( 
=21( 
=21( 
=21( 
Wi853c
page 11 Tuesday, September 16, 1997 10:42

12
WI853C XP-400 Installation Instructions
lay, also program zones as
Exit/Entry Fol-
lower Zones
[02].
To return protection to zones of this type,
press
#"
from the keypad or

or
from a Keyfob. Program the Keyfob AUX
1 or AUX 2 button for
Full Set
[81-7].
[02]Exit/Entry Follower Zones
Entry Delay allows the user time to enter and
disarm. Allows exit after the panel is armed
without setting off an immediate alarm and
allows entry only if an
Exit/Entry Zone
[00]
has been violated first. Zones of this type
have a three (3) minute power-up delay, and
do not display or cause an alarm if faulted
when the system powers up. Pressing the
"
key cancels the 3 minute timer.
Group Bypassing - Zones programmed as
Exit/Entry Follower Zones
will be Group by-
passed if the
##
is pressed while
disarmed or within the
Exit Delay
.
Auto Interior Bypassing - Also program
zones as
Home/Away with Delay Zone(s)
[01]
to automatically bypass at the expiration of the
exit delay if the
EXIT/ENTRY Zone(s)
are not
violated during the exit delay.
[03]Auto-Bypass Reentry Zones
Zones programmed as this zone type are
permitted to be faulted at the time of arm-
ing. Once the zone is restored, while the
control panel is still armed, the zone will
automatically be unbypassed and any
subsequent violations of the zone will
cause an alarm condition.
[04]24-Hour Protection
A zone that provides protection at all times,
whether or not the system is armed.
[05]40 ms Loop Response
Normally loop response is 750 ms, select
this option to change the loop response to
40 ms. The slower the loop response, the
less sensitive the system will be to intermit-
tents (swingers). The programming option
is not permitted for UL installations.
[06]Open Circuit Zones
Program this zone type if unsupervised nor-
mally open circuit devices are required The
programming option is not permitted for UL
installations.
[07]Burg (Steady) Output
Enables the Bell Output on a zone trip for
each zone selected. The Bell Output will
remain ON for the length of time pro-
grammed for
Burg (Steady) Output
[07] or it
will remain ON until turned off by entering a
valid Arm/Disarm Code; 0 means output will
stay ON until reset.
If

is Entered during
Exit Time
,
Home/
Away with Delay Zones
will be automatically
bypassed, even if the
Exit/Entry Zone
is vio-
lated.
Easy Exit/Easy Arm
[22-2] must be en-
abled.
NOTE:Normally Open Zone Wiring
Wire the normally
open contact
as shown (Zone 4).
EZ Zone DoublingTM
resistor
is required.
Program the
zone for
Open Circuit
[06].
(Z)
ZONE 1
(E)
.
ZONE 4

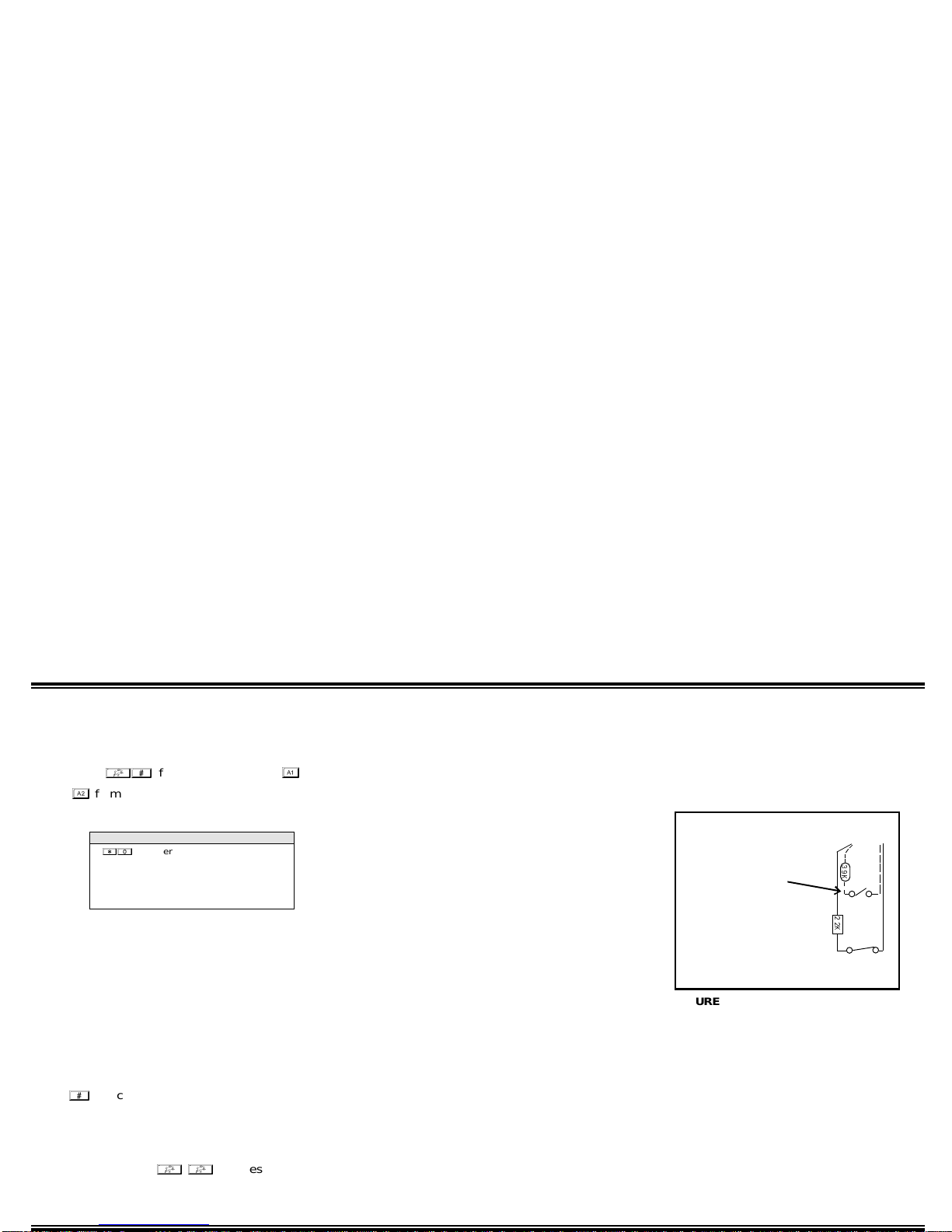

FIGURE 5OPEN CIRCUIT WIRIING
.
Wi853c
page 12 Tuesday, September 16, 1997 10:42

13
[08]PGM Output
Enables the PGM Output on a zone trip for
each zone selected. The PGM Output will
remain ON until reset.
6\VWHP 7LPHV
[10]Exit Delay
The delay time which permits exit through an
Exit/Entry Zone
[00] after the system is
armed, allows a user to leave the premises
without
setting off an immediate alarm.
Exit
Delay
may be programmed for up to 255
seconds (4¼ minutes); a value of 0 defaults
to 60 seconds.
[11]Entry Delay
Delay time permits entry through
Exit/Entry
Zone(s)
after the system is armed without
setting off an immediate alarm.
Entry Delay
allows the user time to enter and disarm the
system. Upon entering, the keypad sounder
will sound a steady tone (Entry Sound) to
remind the user to disarm the system.
Entry
Delay
Time
[11] may be programmed for up
to 255 seconds (4¼ minutes); a value of 0
defaults to 30 seconds.
Entry Delay
may be
canceled by pressing
!
before or af-
ter arming.
[12]Burg (Steady) Output Time-out
Can be programmed from 1 to 255 min (4¼
hours); 0 means output will stay ON until
turned off by entering an Arm/Disarm Code.
[13]Reserved
[14]Test Timer Interval
Program the interval, in days, between Test
Timer reports. Test Timer Interval may be
programmed from 1 to 255 days.
[15]Line Cut Time-to-Fail
Enable this feature by programming the
delay time required to declare a line cut
failure. Programming 000 will disable line
cut detection.
[16]Wireless Supervisory Timer
A transmitter will send a transmission every
time it is tripped; when there is no activity,
the transmitter sends a supervisory trans-
mission about once an hour. If the receiver
does not receive any signal (either a trip or a
status) from a transmitter in the time speci-
fied, a system trouble ‘RF Supervisory Fail-
ure' will be indicated at the keypad. Timer is
programmable from 1-26 hours; 0 means NO
supervision.
6\VWHP )HDWXUHV
[20]Keypad Features 1
(1) Enable Keypad Panic 2 (

)
Additional Programming required:
Select reporting to Telco 1 [36-1] or Telco 3
[56-1].
(2) Enable Keypad AUX (
&&
)
Additional Programming required:
Select reporting to Telco 1 [36-2] or Telco 3
[56-2].
(3) Enable Keypad Panic (
'
)
Additional Programming required:
Select reporting to Telco 1 [36-3] or Telco 3
[56-3].
(4) Enable Ambush - If enabled, the 4th
User Code will send an Ambush report when
entered to disarm the system.
Additional Programming required:
Wi853c
page 13 Tuesday, September 16, 1997 10:42

14
WI853C XP-400 Installation Instructions
Program User 4 Arm/Disarm Code.
Select reporting to Telco 1 [36-2] or Telco 3
[56-2].
[21]Keypad Features 2
(1) Audible Panic - Keypad Panic will not
turn the Bell on unless this option is pro-
grammed.
(2) Exit/Entry with Urgency - select to give
an audible indication of Exit and Entry times.
During the last 10 seconds of entry and exit
time, the keypad sounds a distinct sound to
indicate the premises must be left or the
panel must be disarmed.
(3) Display Bypassed (Armed) - Select to
display bypassed zones while the panel is
armed.
(4) Disable Code Entry Beeps - Program to
disable keypad beeping on valid code and
function entries.
[22]Miscellaneous Features 1
(1) Abort Delay - Program to allow a 15
second Delay (except
24 Hour Zones
) after
a zone trip before reporting. Disarm the
system within 15 seconds to prevent report-
ing.
(2) Easy Exit/Easy Arm - Enables

command. While the system is armed,
entering this command allows 3 minutes to
Exit through
Exit/Entry
and
Exit/Entry Fol-
lower Zones
. Enabling this option also
enables Easy Arm, enter
!
to arm
the system.
(3) Swinger Shutdown - Automatically dis-
ables armed zones with excessive alarm/
restores (swingers). Non-24-Hour Protec-
tion zones: allows only 3 alarms and 2
restores per zone per arming before the
zone is disabled.
(4) Bell on Line Cut (Armed) - Program to
turn the Bell Output on if the telephone line
has been cut while the panel is armed.
[23]Programmable Output Features 1
(1) Audio Verification - Program to acti-
vate the PGM during reporting. Select
specific zones for audio verification by pro-
gramming the required zones in
PGM Out-
put
[08],
PGM Features 2
[24] and
PGM
Features 3
[25]. Connect the PGM to the
VeriphoneTM trigger low input.
(2) Access Output - Activates the PGM
output for 5 seconds using the

com-
mand.
(3) Follow Keypad Sounder - The following
keypad sounds will activate the PGM output:
Entry Sounder, Keypad Pulsing Sounder,
Keypad Output on Alarm, Chime, Fault Find.
(4) Keyfob/Keyswitch Chirp - Program to
chirp the PGM Output (1) one time when the
panel is armed or (2) two times when the
panel is disarmed. Wire as shown in Figure
6.
[24]Programmable Output Features 2
(1) Reserved
(2) AUX - Program to activate the PGM on a
AUX alarm.
N/ON/CCOM
BLK
RED
+AUX
Siren Driver
Steady Input
PGM
+AUX
K1
FIGURE 6KEYFOB/KEYSWITCH CHIRP
Wi853c
page 14 Tuesday, September 16, 1997 10:42

15
(3) Panic - Program to activate the PGM on
a Panic alarm.
(4) Test Timer - Program to activate the
PGM during a Test Timer report.
[25]Programmable Output Features 3
(1) AC Fail - Program to activate the PGM on
the loss of AC. (15 minute delay)
(2) Low Battery - Program to activate the
PGM on a Low Battery condition.
(3) *Trouble - Program to activate the PGM
on a Trouble condition.
(4) Armed - Program to activate the PGM
when the panel is Armed. The PGM output
will flash when the panel has gone into
alarm.
*Includes Bell Cut, Receiver Fail-to-
Respond, Receiver Tamper and Receiver
JAM.
[26]Miscellaneous Features 2
(1) Momentary Keyswitch Arming - Typi-
cally, connect a normally-open Keyswitch
across the zone AND its 3.3K zone-doubling
resistor.
(2) Reserved.
(3) Inhibit Fail-to-Communicate Display -
This option prevents the keypad from either
indicating or sounding when a Fail to Com-
municate has occurred.
(4) Inhibit Low Battery Display - Program
to inhibit the Low Battery Display at the
keypad. Low Battery Reporting is not inhib-
ited. The programming option is not per-
mitted for UL installations.
7HOHSKRQH 1XPEHU  3URJUDPPLQJ
[30]Subscriber ID Number
For 4/2 format enter a 4 digit number. If 3/1
format is required, enter a 3 digit number,
then press the
)
key to blank the last
digit.
[31]Telephone Number 1
Program the phone number to be dialed for
Telephone Number 1. Program the num-
ber directly, just as it is entered on a Touch-
Tone phone. A fixed Dial Tone Detection
(E) is included prior to the
Dialing Prefix
(Block Number 44)
.
Programming an E is
not required for
Telco 1, Telco 2 and Telco 3.
If dial tone detection is not desired select
No
Dial Tone Detection
in Communicator Fea-
tures [46-1].s Use the
)
key to blank out
remaining digits in the phone number.
[32]Receiver Format
Select the receiver format to be used to
report for Telephone Number 1: Program a
0 to disable reporting to Telco 1.
[0] Disabled [4] Universal High Speed
[1] Ademco Slow [5] Reserved
[2] Radionics Slow [6] Point ID
[3] Silent Knight Fast [7] Pager
3DJHU 3URJUDPPLQJ
If Pager Format ([32]and/or[42]and/or[52] =
7) is selected, pager data will be displayed
as shown in Figure 7. If Pager Format is
selected 4/2 format must be programmed
and Sumcheck is not permitted. If a PIN
number is required refer to Pager Extend
[33-4].
Wi853c
page 15 Tuesday, September 16, 1997 10:42

16
WI853C XP-400 Installation Instructions
Pager Alarm data is the same as 4/2 format
with the exception that the 2 digit Report
Code is transmitted before the 4 digit Sub-
scriber ID.
[33]Receiver Options
(1) 2300 Hz HS/Kissoff - Select 2300 Hz
Handshake and Kissoff.
(2) Sumcheck - Only used for the following
Receiver Formats: Ademco Slow, Radionics
Fast, Silent Knight Fast and Universal High
Speed. This is a sophisticated data format
used to enhance the speed and check the
accuracy of the received transmission. This
format should be used whenever the central
station has this capability. Instead of send-
ing a second round to verify correct data, the
panel sends a Sumcheck digit after sending
the Subscriber ID and Alarm Code.
(3) Single Digit - 3/1 Format. 3-digit Sub-
scriber ID number and a 1-digit Alarm Code
will be transmitted.
(4) No Handshake/Pager Extend - The
meanin
g
of this option is dependent on
Receiver Format pro
g
rammin
g
.
No Handshake (
All receiver formats except
Pager Format)
If pro
g
rammed no Handshake is re-
quired.
Pager Extend (Pager Format Selected)
Pager PIN Number - Pro
g
ram if a PIN
number is required by the pa
g
in
g
sys-
tem. The di
g
its in
Telephone Number
2
will be added on to
telephone num-
ber 1
and/or
telephone number 3
al-
lowin
g
for a total of 24 di
g
its. See
sample pro
g
ram below. Note: If se-
lected do not pro
g
ram backup report-
in
g
.
If a 7-di
g
it PIN number is required,
pro
g
ram the panel as follows:
[31] - Pa
g
er Telephone number
[32] - Select Pa
g
er Format
[33] - Select Pa
g
er Extend
[41] - D D D X X X X X X X C 0
[34]Zone Report, Telco 1
Select zone(s) required to send an alarm
report to Telephone Number 1.
[35]Zone Restore Report, Telco 1
Select zone(s) required to send a restore
report to Telephone Number 1. The zones
will send a restore after Bell time-out, unless
programmed as silent zones.
[36]System Reporting, Telco 1
(1) Keypad Panic 2 - Program to activate a
Keypad Panic 2 report (

).
(2) AUX/AMBUSH - Program to activate an
AUX or AMBUSH report (
&&
).
(3) Panic - Program to activate a Panic
report (
'
).
PIN Number Terminating Digit (#)
Delay Leading 0
Pager display will appear as shown in Figure 7
except there will be only one leading 0.

Leading Digits
Report Code
Subscriber ID Number
FIGURE 7DEFAULT PAGER DISPLAY
Wi853c
page 16 Tuesday, September 16, 1997 10:42

17
(4) Test Timer - Program to activate a Test
Timer report.
[37]System Reporting, Telco 1
(1) AC Fail Report - Program to activate an
AC Fail report (15 minute fixed report delay).
(2) Low Battery Report - Program to acti-
vate a Low Battery report.
(3) *Trouble Report - Program to activate a
Trouble report.
(4) Reserved
*Includes Bell Cut, Receiver Fail-to-
Respond, Receiver Tamper and Receiver
JAM. Point ID format will report trouble(s) by
device and ID number.
[38]System Restore Report, Telco 1
(1) AC Restore - Program to activate an AC
Restore report.
(2) Battery Restore - Program to activate a
Battery Restore report.
(3) Trouble Restore - Program to activate a
Trouble Restore report.
(4) Reserved
[39]Opening/Closing Report, Telco 1
Select users required to send opening and
closing reports to Telephone Number 1.
Do not program for users that are intended
to send an
Opening After Alarm
(Cancel
Code) or
Conditional Closing
reports
%DFNXS 7HOHSKRQH 3URJUDPPLQJ
[40]Subscriber ID Number (Telco 2)
For 4/2 format enter a 4 digit number. If 3/1
format is required enter a 3 digit number
then press the
)
key.
[41]Telephone Number 2
Program the phone number to be dialed for
Telephone Number 2. A fixed dial tone
detection (E) is included prior to the Dialing
Prefix [44]. Dial tone detection can be
disabled by programming
No Dial Tone
Detection
[46-1]. To program any addi-
tional delay enter a "D" where required in
the phone number.
[42]Receiver Format (Telco 2)
Select the format that will be used to report
for Telco 2 (Backup reporting). Refer to
section [32].
[43]Receiver Options (Telco 2)
Refer to section [33] Receiver Options.
[44]Dialing Prefix
Dialing prefix for Telco 1, Telco 2, and Telco
3. Program if using an Outside access
number.
[45]Communicator Features 1
(1) Communicator Enabled - Program to
enable the communicator.
(2) DTMF with Rotary Backup - The first
attempt to communicate is dialed using the
TouchTone method of dialing, subsequent
attempts are dialed using the pulse method
of dialing. Disable this feature to dial using
only rotary dialing.
(3) DTMF only - All attempts to communi-
cate dial using the TouchTone method of
dialing.
(4) Backup Reporting to Telco 2 - After 2
attempts are made to communicate to Telco
1 the backup phone number is dialed (Telco
2).
Wi853c
page 17 Tuesday, September 16, 1997 10:42

18
WI853C XP-400 Installation Instructions
[46]Communicator Features 2
(1) No Dial Tone Detection - Program to
disable dial tone detection for Telco 1, Telco
2 and Telco 3.
(2) 2:1 Rotary Dialing - Changes the make
break ratio when rotary dialing from 1.5:1 to
2:1.
(3) Backup if < 4 attemps - If
Backup
Reporting
[45-4] has been enabled, the com-
municator will use
Telephone Number 2
[41]
for the remaining retries when there are less
than 4 retries remaining.
(4) Reserved
7HOHSKRQH 1XPEHU  3URJUDPPLQJ
[50] - [59]
Programming is the same as for Telco 1.
Program to split/double report to Telco 3.
Refer to sections [30] through [39].
5HSRUW &RGHV
[60]Zone Report Codes
Report Code for Zones 1 through 4.
4/2 format - The Zone Report Code is the
1st digit of the report code sent, the second
digit is the zone number of the reporting
zone. For example, if zone 2 has a report-
code of 3, the report code would be 32.
3/1 format - Sends only the report Code
and does not append it with the zone num-
ber.
[61]Point ID Report Codes
Point ID Report Codes are defaulted to
Burglary for zones 1 through 4. Optionally,
Point ID codes for zones 1 through 4 can
be programmed as follows:
[1] Reserved [7] Gas Alarm
[2] Panic [8] Heat Alarm
[3] Burglary [9] Reserved
[4] Holdup [A] Auxiliary
[5] General Alarm [B] 24 Hour
[6] Reserved
[62]Zone Codes
[62-1] Restore code - Zones 1 through 8.
The second digit of the restore code is the
zone number of the restored zone. For
example, if the Zone Restore Code [62] is
programmed to E, the restore code for that
zone would be E4 (4/2 format).
[62-2] Trouble Code - Conditional Closing
Reports. Zones that are bypassed at the
time of arming send this code along with the
zone number of the bypassed zone(s). For
example a conditional closing by User 2,
with zones 2 and 3 bypassed would be as
follows: 1234 C2
F2
F3
[63]System Report Codes
Program a 2-digit report code for
Keypad
Panic 2, Keypad AUX, Keypad Panic, Test
Timer, AC Fail, Low Battery and Trouble.
[64]System Restore Code
The code sent when a system condition
restores. The second digit of the 2-digit
restore code is the second digit of the Sys-
tem Report Code [63]. For example, if a Low
Battery System Report Code is F8 the Bat-
tery Restore would be E8 (4/2 format).
[65]Opening and Closing Codes
Program Opening and Closing Codes for
Users 1 through 4. The second digit of the
report code is the number of the user that
armed or disarmed the system. For exam-
ple, if the Closing Code [65] is programmed
with a C, the closing code for User 2 would
be C2 (4/2 format).
Wi853c
page 18 Tuesday, September 16, 1997 10:42

19
[66]Ambush Report Code
Program a 2-digit report code for Ambush.
To send an ambush report, program a User
Code for User 4, Program report User 4 as
Ambush [20-4] and Select reporting for Telco
1 [36-2] and/or Telco 3 [56-2].
(QKDQFHG &RPPXQLFDWRU )HDWXUHV
[67]Telephone Number 1
(1) Opening After Alarm (Cancel Code) -
When enabled, all users that are not se-
lected to report on
Opening/Closing
[39] will
report an Opening only when opening after
an alarm has occurred.
(2) Conditional Closing Telephone 1 -
When enabled, all users that are not se-
lected to report an Opening/Closing ([39],
[59]) will report a Closing only when zones
have been bypassed. The Zone Trouble
Code [62-2] is used to report zones that have
been bypassed at the time of the closing
report.
(3) Reserved
(4) Reserved
[68]Telephone Number 3
(1) Opening after Alarm (Cancel Code) -
see [67-1].
(2) Conditional Closing Telco 3 - see
[67-1].
(3) Reserved
(4) Reserved
:LUHOHVV
Up to two receivers can be wired to the
XP-400. Each wireless transmitter can be
mapped to a zone. Only 1 wireless device
is permitted per zone, however, the use of
both hardwired and wireless on a zone is
permitted.
To Map a transmitter to a zone:
1. Enter the Programming Block Number
that the transmitter is to be mapped to.
2. Enter the 7-digit RF ID number directly,
just as it is shown on the device label.
After the 7th digit is entered the keypad
will beep.
A transmitter will send a transmission every
time it is tripped. The transmitter also sends
a supervisory transmission about once every
hour. If the receiver does not receive a
signal from a transmitter in the time pro-
grammed in Wireless Supervisory Timer, a
system trouble ’RF Supervisory Failure' will
be indicated at the keypad.
Program Wireless Supervisory Timer [16] to
change the supervisory time from the default
of 12 hours.
The Signal strength of a transmitter can be
checked at the keypad (see

Fault
Find Mode).
Wi853c
page 19 Tuesday, September 16, 1997 10:42

20
WI853C XP-400 Installation Instructions
[71-74] Wireless Transmitters
Enter the RF ID# and the point number that
is to be mapped to the zone.
Programming Example
Map point 1 of a window door transmitter with
an RF ID# of 0012B0:0 to Zone 3.
1. Enter Dealer Mode.
2. Enter
"
(beeps)

(beeps)
3. Enter

4. Enter

(beeps)
Note: If the RF ID# in step 3 is not entered
correctly the keypad will emit a 1 second
tone indicating incorrect entry. Repeat steps
2 - 4 above.
[81] - [82] Wireless Keyfobs
The GEM-KF is a hand held wireless trans-
mitter capable of Arming and Disarming the
control panel and/or activating 2 Auxiliary
Functions. To activate the auxiliary func-
tions, press and hold the

or key for
1.5 seconds (see WI752 for more informa-
tion).
Enter the RF ID# and AUX 1 and AUX 2
options for each Keyfob.
AUX 1 & AUX 2
Programming Options:
1 Panic
Program a 1 in the AUX 1 and/or AUX 2
option to initiate a panic alarm when the

or buttons on the Keyfob are
pressed.
Additional programming required:
Keypad Panic (

) [20-3]
Panic Report to Telco 1[36-2] and/or Telco
3 [56-3].
Audible Panic
(Optional) [21-1]
2 AUX
Program a 2 in the AUX 1 and/or AUX 2
option to initiate a AUX alarm when the

or buttons on the Keyfob are pressed.
Additional programming required:
Keypad AUX
(

) [20-2]
AUX Report to Telco 1[36-2] and/or Telco 3
[56-2].
3 Bell ON
Program a 3 in the AUX 1 and/or AUX 2
option to turn the Bell ON when the

or
buttons on the Keyfob are pressed.
Press the

button to turn the Bell OFF.
4 PGM
Program a 4 in the AUX 1 and/or AUX 2
option to activate the PGM Output when the

or buttons on the Keyfob are
pressed. Press the

button to turn the
PGM Output OFF.
5 Instant
Program a 5 in the AUX 1 and/or AUX 2
option to activate Instant Mode when the

or buttons on the Keyfob are
pressed.
6 Access on PGM
Program a 6 in the AUX 1 and/or AUX 2
option to activate the PGM Output for 5
seconds when the

or buttons on the
Keyfob are pressed.
Addition programming required:
Enable
Access Output [
23-2]
Wi853c
page 20 Tuesday, September 16, 1997 10:42
