Napoleon 1100PL User manual

1
W415-0762 / B / 11.12.10
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
1.27
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 4Y8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.napoleonfireplaces.com • [email protected]
SAFETY INFORMATION
!WARNING
If the information in these instructions is not followed exactly, a
fire or explosion may result causing property damage, personal
injury or death. Improper installation, adjustment, alteration,
service or maintenance can cause injury or property damage,
bodily injury or even death. Please read entire manual before
you install and use your appliance.
This appliance has not been tested with an unvented gas log
set. To reduce risk of fire or injury, do not install an unvented
gas log set into the appliance.
- This appliance can be very hot when burning.
- Combustible materials such as firewood, wet clothing, etc. placed too
close can catch fire.
- Children and pets must be kept from touching the appliance when it is hot.
- The chimney must be sound and free of cracks. Before installing this unit,
contact the local building or fire authority and follow their guidelines.
- Operate only with the door tightly closed.
- Burn wood behind the log retainer directly on the firebricks.
- Do not use an elevated grate or otherwise raise the fire.
- At least 14 square inches of outside air must be admitted to the room or
directly to the unit through a 4” diameter pipe.
- This appliance is designed to burn natural wood only. Higher efficiencies
and lower emissions generally result when burning air dried seasoned
hardwoods, as compared to softwoods or to green or freshly cut
hardwoods.
- Do not start a fire with chemicals or fluids such as gasoline, engine oil,
etc.
- Do not burn treated wood, coal, charcoal, colored paper, cardboard,
solvents or garbage.
- Do not let the appliance become hot enough for any part to glow red.
- KEEP THE STOVE TOP TEMPERATURE BELOW 700°F (371°C). Attempts to
achieve heat output rates that exceed design specifications can result in
steel distortion and damage.
$10.00
CERTIFIED UNDER U.S. ENVIRONMENTAL PROTECTIONAGENCY (E.P.A.) JULY 1990 40 C.F. R. PART 60 AND THE OREGON DEPARTMENT OF ENVIRON-
MENTAL QUALITY (D.E.Q.) PARTICULATE EMISSION STANDARDS BY E.E.M.C THESE STOVES HAVE BEEN TESTED AND LISTED BY INTERTEK TESTING
SERVICES TO STANDARDS: CSA B366.2, ULC S627, UL 1482. MODEL 1100 HAS BEEN TESTED AND LISTED FOR INSTALLATION IN MOBILE HOMES.
EPA 1100PL,
1100C, 1400PL, 1400C
LEG MODELS
1400PL Illustrated

2
W415-0762 / B / 11.12.10
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.
TABLE OF CONTENTS
1.0 INSTALLATION OVERVIEW 3
2.0 INTRODUCTION 4
2.1 DIMENSIONS 5
2.2 SPECIFICATIONS 5
2.3 GENERAL INSTRUCTIONS 6
2.4 GENERAL INFORMATION 7
2.5 RATING PLATE LOCATION 8
3.0 PRE-INSTALLATION PREPARATION 9
3.1 APPLIANCE PLACEMENT 9
3.2 CLEARANCE TO COMBUSTIBLES 9
3.3 ALCOVE INSTALLATION 9
3.4 FLOOR PROTECTION 10
3.5 OUTSIDE AIR 10
3.6 MOBILE HOME 11
4.0 INSTALLATION 12
4.1 CHIMNEY 13
4.1.1 CHIMNEY CONNECTION 14
4.1.2 ADDING SECTIONS 15
4.1.3 TYPICAL THROUGH THE CEILING 16
4.1.4 TYPICAL THROUGH THE WALL 17
4.1.5 TYPICAL EXISTING MASONRY 18
5.0 FINISHING 19
5.1 LEG INSTALLATION (1100PL / 1400PL) 19
5.2 DOOR REMOVAL / INSTALLATION (1100PL / 1400PL) 19
5.3 1100C/1400C DOOR REMOVAL / INSTALLATION 19
5.4 1400C CAST LID LEVELLING 20
5.5 DOOR HANDLE INSTALLATION 20
5.6 BRICKS AND BAFFLES INSTALLATION 21
6.0 OPTIONAL KIT INSTALLATIONS 22
6.1 OPTIONAL BLOWER INSTALLATION 22
6.2 OPTIONALASH DRAWER (1100PL/1400PL ONLY) 22
7.0 OPERATION 23
7.1 AIR CONTROL 24
7.2 FIRE EXTINGUISHERS / SMOKE DETECTORS 24
7.3 LIGHTING A FIRE 25
7.3.1 FLASH FIRE 25
7.3.2 EXTENDED FIRE 25
7.4 SMOKING 25
8.0 MAINTENANCE 26
8.1 ASH REMOVAL PROCEDURES 26
8.1.1 APPLIANCES WITHOUTASH PAN (1100PL/1400PL ONLY) 26
8.1.2 APPLIANCES WITH ASH PAN 26
8.2 CREOSOTE FORMATION AND REMOVAL 26
8.3 RUNAWAY OR CHIMNEY FIRE 27
8.4 CHIMNEY CLEANING 27
8.5 GLASS REPLACEMENT 28
8.6 GASKET REPLACEMENT 28
8.7 CARE OF GLASS 29
8.8 CARE OF PLATED PARTS 29
8.9 WOOD 30
9.0 REPLACEMENTS 31
10.0 TROUBLE SHOOTING 33
11.0 WARRANTY 34
12.0 SERVICE HISTORY 35

3
W415-0762 / B / 11.12.10
1.0 INSTALLATION OVERVIEW
Legs, see “LEG
INSTALLATION”
section.
Blower, see “OPTIONAL
BLOWER KIT
INSTALLATION” section.
Ash drawer, see “OPTIONAL
ASH DRAWER KIT” section.
Door, see “DOOR AND
HANDLE INSTALLATION”
section.
Draft, see “AIR CONTROL”
section.
1400PL ILLUSTRATED Rating Plate, see
“RATING PLATE
INFORMATION” section.

4
W415-0762 / B / 11.12.10
2.0 INTRODUCTION
3.17B
!
WARNING
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND
IS PROHIBITED.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance
according to operating instructions could cause fire or injury.
• Before installing this appliance, contact the local building or fire authority and follow their guidelines.
• This appliance must be installed by a qualified installer.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not let the appliance become hot enough for any part to glow red.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges
may be sharp.
• Young children should be carefully supervised when they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to accidental contact burns. A physical barrier is recommended if
there are at risk individuals in the house. To restrict access to an appliance or stove, install an adjustable safety
gate to keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance. Objects placed in front of
the appliance must be kept a minimum of 48” away from the front face of the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot
surfaces. These screens and guards must be fastened to the floor.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• Under no circumstances should this appliance be modified.
• This appliance must not be connected to a chimney flue pipe servicing a seperate solid fuel burning appliance.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass should
be done by a licensed or qualified service person.
• Do not strike or slam shut the appliance glass door.
• Operate only with the doors tightly closed.
• Only doors / optional fronts certified with the unit are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all
plastic bags, these are not toys and should be kept away from children and infants.
• If the appliance is not properly installed, a house fire may result. Do not expose the appliance to the elements
(ex. rain, etc.) and keep the appliance dry at all times. Wet insulation will produce an odour when the appliance
is used.
• The chimney must be sound and free of cracks. Clean your chimney a minimum of twice a year and as required.
• Do not start a fire with chemicals or fluids such as gasoline, engine oil, etc.
• Your appliance requires periodic maintenance and cleaning. Failure to maintain your appliance may lead to
smoke spillage in your home.
• Higher efficiencies and lower emissions generally result when burning air dried seasoned hardwoods, as
compared to softwoods or too green or freshly cut hardwoods. Burning wet unseasoned wood can cause
excessive creosote accumulation. When this is ignited it can cause a chimney fire that may result in a serious
house fire.
• This appliance is designed to burn natural wood only. Do not burn treated wood, coal, charcoal, coloured paper,
cardboard, solvents or garbage.
• Burn wood directly on the firebricks. Do not elevate grate or otherwise raise the fire.
• Do not store wood within appliance installation clearances or within the space required for re-fueling and ash
removal.
• Ashes must be disposed in a metal container with a tight lid and placed on a non-combustible surface well away
from the home or structure until completely cool.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.
Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or
damage to decorations, a T.V. or other electronic components.

5
W415-0762 / B / 11.12.10
* Figures will vary considerably with individual conditions.
** Wolf Steel Ltd. estimated realistic BTU/h with hardwood logs and regular refueling.
Specifications Ref 1100PL 1100C 1400PL 1400C
WIDTH A 25 1/2” 28” 25 1/2” 28”
DEPTH B 22 1/2” 22 1/2” 27” 27”
FLUE CENTER LINE TO REAR C 6 1/2” 6 3/4” 7 1/2” 6 3/4”
FLUE CENTER LINE TO SIDE D 12 3/4” 14” 12 3/4” 14”
HEIGHT LEG MODEL E 32” 28 1/2” 32” 28 1/2”
CHAMBER (D.W.H) 13 1/2x18x12” 13 1/2x18x12” 18x18x12” 18x18x12”
CAPACITY 1.7ft31.7ft32.25ft32.25ft3
APPROX. AREA HEATED* 600-1500 ft2600-1500 ft21000-2000 ft21000-2000 ft2
HEAT OUTPUT (HIGH BURN) ** 55,000 BTU 55,000 BTU 70,000 BTU 70,000 BTU
DURATION LOW FIRE* 7 Hours 7 Hours 9 Hours 9 Hours
WEIGHT w/o BRICKS 215 lbs 215 lbs 250 lbs 305 lbs
WEIGHT OF BRICKS 110 lbs 110 lbs 145 lbs 145 lbs
IDEAL WOOD LENGTH 12” 12” 16” 16”
2.1 DIMENSIONS
E
B
C
D
A
1400PL ILLUSTRATED
2.2 SPECIFICATIONS

6
W415-0762 / B / 11.12.10
2.3 GENERAL INSTRUCTIONS
• Before beginning your installation, consult with your local building code agency or fire officials and
insurance representative to ensure compliance.
• Non-toxic smoke will be emitted during the paint curing process, to help dissipate the smoke open a
window near the appliance.
• Remove any dust or debris off the top of the appliance before firing the appliance as the paint will be-
come soft as the appliance heats up and will harden as the appliance cures. To cure the paint on your
appliance burn your appliance moderately hot during the first few fires.
• To keep the gasket from sticking to the appliance as the paint is curing, periodically open the door
every 5-10 minutes.
• For the first two weeks use generous amounts of fuel and burn the appliance with the damper wide
open for an hour as the appliance goes through a process of eliminating moisture in the steel and fire-
bricks. The initial heat output will be reduced while the moisture is bring drawn from the appliance and
it will be necessary to build several hot fires to remove this moisture. DURING THIS PROCESS DO
NOT OVERFIRE THE APPLIANCE. REDUCE THE AMOUNT OF AIR COMING INTO THE APPLI-
ANCE IF THE APPLIANCE OR CHIMNEY BECOMES RED.
4.7
ALL WIRING SHOULD BE DONE BY A QUALIFIED ELECTRICIAN AND SHALL BE IN COMPLIANCE WITH
LOCAL CODES. IN THE ABSENCE OF LOCAL CODES, USE THE CURRENT CSA22.1 CANADIAN
ELECTRIC CODE IN CANADA OR THE CURRENT NATIONAL ELECTRIC CODE ANSI/NFPA NO. 70 IN
THE UNITED STATES.
THIS APPLIANCE HAS NOT BEEN TESTED WITH ANY VENTED OR UNVENTED GAS LOG SET. TO
REDUCE RISK OF FIRE OR PREVENT INJURY, DO NOT INSTALL A VENTED OR UNVENTED GAS LOG
SET INTO THE APPLIANCE.
BURNING YOUR UNIT WITH THE ASH DUMP DOOR OPEN OR AJAR CREATES A FIRE HAZARD THAT
MAY RESULT IN DISCOLOURATION TO THE GOLD PLATED DOOR, INTERNAL DAMAGE TO THE
APPLIANCE OR A HOUSE CHIMNEY FIRE.
DO NOT CONNECT THIS APPLIANCE TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
THIS APPLIANCE AND IT’S COMPONENTS ARE DESIGNED TO BE INSTALLED AND OPERATED AS A
SYSTEM. ANY ALTERATION TO OR SUBSTITUTION FOR ITEMS IN THIS SYSTEM, UNLESS ALLOWED
BY THESE INSTALLATION INSTRUCTIONS, WILL VOID THE LISTING AND MAY VOID THE PRODUCT
WARRANTY. IT MAY ALSO CREATE A HAZARDOUS INSTALLATION. READ THROUGH THESE
INSTRUCTIONS THOROUGHLY BEFORE STARTING YOUR INSTALLATION AND FOLLOW THEM
CAREFULLY THROUGHOUT YOUR PROJECT.
!
WARNING

7
W415-0762 / B / 11.12.10
2.4 GENERAL INFORMATION
DO NOT OPERATE THIS APPLIANCE WITHOUT THE LEGS INSTALLED.
!
WARNING
Your appliance has been specifically designed over many months of research to meet the 1990 U.S.A. EPAparticulate
emission standards and have been extensively tested in Canadian andAmerican laboratories. This system is the most
efficient, simple and trouble free we know and works as follows:
The chimney vent system used on your wood burning appliance should be designed with the least amount of
restriction possible to enable the exhaust products to easily flow through it. Chimney vent systems that are
too short or too long can also have an adverse affect on the flow of exhaust through it. The wood burning
appliance and chimney vent system also require a sufficient supply of combustion air not only to support the
combustion in the combustion chamber but to replace the exhaust leaving it so it can flow freely up through
the vent system and out into the atmosphere. It is the correct balance of combustion air and the chimney vent
system that will ensure the appliance provides you with its optimum performance.
Combustion air enters through two holes in the bottom cov-
ered by a single draft control.Air from the front hole goes up
on either side of the door into a preheating airwash located
across the top and then down the window to feed the fire
and also to ensure that the glass remains clean.Air from
this hole also feeds directly into the combustion chamber at
hearth level. Secondary air from the rear hole travels up the
back in the secondary air housing to the manifold located at
the top and shoots out laterally to oxidize the gases below
the smoke exit.
The combustion chamber is lined with high temperature
firebrick on 2 sides, the back and across the bottom, with a
layer of fibre baffles at the top to maintain a high tempera-
ture in the combustion chamber so that gases mixing with
the preheated air from the secondary air manifold tube are
easily ignited and burned. The appliance sides and back are
shielded to direct the heat upwards and forwards into the room.
Be sure to provide sufficient combustion air. There are many other appliances in your home competing for air such as:
a kitchen range hood, forced air heating devices or a bathroom exhaust fan.
Expansion / contraction noises during heating up and cooling down cycles are normal and to be expected.
After extended periods of non-operation such as following a vacation or a warm weather season, the appliance may
emit a slight odour for a few hours. This is caused by dust particles on the firebox burning off. Open a window to suf-
ficiently ventilate the room.
CALIFORNIA PROP 65 WARNING:
Use of this product may produce smoke which contains chemi-
cals known to the State of California to cause cancer, birth
defects, or other reproductive harm.
If optional ash drawer is purchased, ensure that the ash dump
door is tightly closed, allow the door to snap shut dislodging any-
thing (ashes or pieces of coal) that may be stuck in the opening.
If you experience smoking problems, you may been to open a door, a window or otherwise provide some method of
supplying combustion air to the appliance.
HOT SECONDARY AIR
FIBRE BRICKS
REFRACTORY
2 SIDES, BACK
& BOTTOM
SECONDARY AIR
PRIMARY AIR
FLUE GLASS
CERAMIC
GLASS
AIR CONTROL
COMBUSTION AIR
INTAKE
OPEN CLOSED
We suggest that our woodburning hearth products
be installed and serviced by professionals who are
certified in the U.S. by the National Fireplace
Institue® (NFI) as NFI Woodburning Specialists or
who are certified in Canada by
Wood Energy Technical
Training (WETT).

8
W415-0762 / B / 11.12.10
2.5 RATING PLATE LOCATION
1400 1400L 1402
LISTEDSOLID FUELBURNING FIREPLACE INSERT /
ENCASTRÉ ÀCOMBUSTIBLESOLIDEHOMOLOGUÉ
TESTEDTO/TESTÉSELON:
ULCS628/UL1482
FROM HEATER / DU POÊLE
RESIDENTIAL/ RÉSIDENTIEL
1400
12IN/PO (305 mm)
12IN/PO (305 mm)
6IN/PO (150mm)
USINGDOUBLE WALL CONNECTOR/UTILISATION
D’UN CONDUIT DE RACCORDEMENT À MAISON / MOBILEHOME*
1400 1400
10IN/PO (254 mm) 10IN/PO (254mm)
6IN/PO (152 mm) 6IN/PO (152 mm)
4IN/PO (102 mm) 4IN/PO (102 mm)
EPI 1402
INSTALLANDUSE ONLYIN
ACCORDANCE WITH THE
MANUFACTURER’S
INSTRUCTIONS AND LOCAL
BUILDING CODES.
MINIMUM CEILING HEIGHT:
7FT (2.13m)
HEARTH EXTENSION /
COMBUSTIBLE FLOOR
PROTECTION: IF INSTALLED
ON A COMBUSTIBLE FLOOR,
UNIT MUST BE PLACED ON A
NON-COMBUSTIBLE FLOOR
PROTECTOR EXTENDING 18”
(455mm) IN FRONTAND 8”
(205mm) TOTHE SIDES AND
BACK.
CHIMNEY TYPE: MINIMUM 6”
(152mm) DIAMETER
APPROVED RESIDENTIAL
TYPE FOR MOBILE HOME
USE A CHIMNEY LISTEDTO
ULC S629 IN CANADAOR UL
103HT IN THE USA.
CHIMNEY CONNECTOR: 6”
(152mm) DIAMETER MINIMUM
24 GAUGE STEEL MINIMUM
CLEARANCE FROM
HORIZONTAL CONNECTOR
AND CEILING 18” (455mm).
DO NOT OBSTRUCT SPACE
UNDER HEATER.
SPECIAL METHODS ARE
REQUIRED WHEN PASSING A
CHIMNEY THROUGH A WALL
OR CEILING. SEE INSTRUC-
TIONS AND BUILDING
CODES.
DO NOT CONNECT THIS UNIT
TO A CHIMNEY FLUE
SERVING ANOTHER
APPLIANCE.
FUEL: FOR USE WITH WOOD
ONLY. DO NOT USE GRATE
OR ELEVATE FIRE. BUILD
WOOD FIRE DIRECTLY ON
HEARTH.
WARNING: RISK OF SMOKE
SPILLAGE. OPERATE ONLY
WITH DOOR FULLY CLOSED.
REPLACE GLASS ONLY WITH
CERAMIC GLASS.
DO NOT OVERFIRE. IF
HEATER OR CHIMNEY
CONNECTORS GLOW, YOU
ARE OVERFIRING. INSPECT
AND CLEAN CHIMNEY
FREQUENTLY. UNDER
CERTAIN CONDITIONS OF USE
CREOSOTE BUILD-UP MAY
OCCUR RAPIDLY.
OPTIONAL BLOWER KIT:
EP-62, 115V, 60HZ, 0.82AMP.
ROUTE CORD AWAY FROM
UNIT.
DANGER: RISK OF
ELECTRICAL SHOCK.
DISCONNECT POWER
BEFORE SERVICING UNIT.
INSERT: INSTALLAND USE
ONLY IN SOLID FUEL
BURNING FIREPLACES. DO
NOT REMOVE BRICKS OR
MORTAR FROM SOLID FUEL
BURNING FIREPLACE.
INSTALL WITH A POSITIVE
FLUE CONNECTORAND
FACEPLATE.
POUR INSTALLATION ET
UTILISATION CONFORMÉMENT
AUX INSTRUCTIONS DU
FABRICANT ETAUX CODES
LOCAUX DU BÂTIMENT.
HAUTEUR DE PLAFOND MINIMAL
7PI (2,13m).
PROLONGEMENT
D’ÂTRE/PROTECTION DU
PLANCHER COMBUSTIBLE: SI
INSTALLÉ SUR UN PLANCHER
COMBUSTIBLE, L’APPAREIL DOIT
ÊTRE PLACÉ SUR UNE PLAQUE
PROTECTRICE INCOMBUSTIBLE
S’ÉTENDANT SUR 18” (455mm) À
L’AVANT ET 8” (205mm) À L’ARRIÈRE
ET SUR LES CÔTÉS.
TYPE DE CHIMNÉE: DIAMÈTRE
MINIMAL DE 6” (152mm)
APPROUVÉE POUR USAGE
RÉSIDENTIEL. MAISON MOBILE
EMPLOYEZ UNE CHEMINÉE
HOMOLOGUÉE ULC S629AU
CANADAOU UL 103HTAUX
ÉTATS-UNIS.
RACCORD DE CHEMINÉE:
DIAMÈTRE DE 6” (152mm) D’ACIER
DE CALIBRE 24 MINIMUM. 18”
(455mm) DE DÉGAGEMENT
MINIMAL ENTRE LE RACCORD
HORIZONTAL ET LE PLAFOND.
NE RIEN ENTREPOSER SOUS
L’APPAREIL.
DES MÉTHODES SPÉCIALES SONT
REQUISES LORSQU’UNE
CHEMINÉE TRAVERSE UN MUR OU
UN PLAFOND. VOIR LES
INSTRUCTIONS ET LES CODES DU
BÂTIMENT.
NE PAS RACCORDER À LA
CHEMINÉE D’UNAUTREAPPAREIL.
COMBUSTIBLE: POUR USAGE
AVEC LE BOIS SEULEMENT.
N’UTILISEZ PAS DE CHENET OU NE
SURÉLEVEZ PAS LE BOIS.
PRÉPAREZ LE FEU DIRECTEMENT
SUR L’ÂTRE.
AVERTISSEMENT: RISQUE
D’ÉCHAPPEMENT DE FUMÉE.
TENIR LAPORTE FERMÉE
LORSQUE LE POÊLE FONCTIONNE.
REMPLACEZ LAVITRE PAR UNE
VITRE EN CÉRAMIQUE SEULEMENT.
NE SURCHAUFFEZ PAS
L’APPAREIL. SI L’APPAREIL OU LES
RACCORDS ROUGEOIENT,
L’APPAREILSURCHAUFEE.
INSPECTEZ ET NETTOYEZ LA
CHEMINÉE FRÉQUEMMENT. DANS
CERTAINES CONDITIONS, DES
DÉPÔTS DE CRÉOSOTE PEUVENT
SE FORMER RAPIDEMENT.
SOUFFLERIE OPTIONNELLE:
EP-62, 115V, 60HZ, 0,82A. TENEZ LE
CORDON ÉLECTRIQUE LOIN DE
L’APPAREIL.
DANGER: RISQUE DE SECOUSSE
ÉLECTRIQUE. DÉBRANCHEZ AVANT
DE PROCÉDER À L’ENTRETIEN.
ENCASTRÉ:INSTALLEZ ET UTILISEZ
SEULEMENTDANS UNFOYER À
COMBUSTIBLE SOLIDE. NE
RETIREZ PAS DE MORTIER, NI
BRIQUES DU FOYER À COMBUS-
TIBLE SOLIDE.
INSTALLEZ AVEC UNE GAINE
CONFORME ET UNE PLAQUE DE
RECOUVREMENT.
CONTACT LOCAL BUILDING FIRE OFFICIALSABOUT RESTRICTIONSAND
INSTALLATION INSPECTION IN YOUR AREA. MODEL1400 IS SUITABLE FOR USE
IN MOBILE HOMES WHEN USED WITH OUTSIDE AIR INSTALLATION KIT (111KT).A
MINIMUM CLEARANCE OF 18” (457mm) TO THE CHIMNEY CONNECTOR MAY BE
REQUIRED BY THEAUTHORITY HAVING JURISDICTION.
RENSEIGNEZ-VOUS AUPRÈS DESAUTORITÉS LOCALES DU BÂTIMENT ETDU
SERVICE DES INCENDIESAU SUJET DES RESTRICTIONS ET DES INSPECTIONS
D’INSTALLATION DANS VOTRE RÉGION. LES MODÈLES 1400 PEUVENTÊTRE
INSTALLÉS DANS UNE MAISON MOBILE SI INSTALLÉS CONJOINTEMENTAVEC UNE
PRISE D’AIR EXTÉRIEUR (111KT). UN DÉGAGEMENT MINIMAL DE 18” (457mm)
JUSQU’AU RACCORD DE LACHEMINÉE PEUT ÊTRE EXIGÉ PAR L’AUTORITÉ AYANT
JURIDICTION.
8" 8"
18"
8"
ALCOVE
A"
B"
C
BACK WALL (M/A)
45°
SIDE WALL (M/L)
BACK WALL (M/A)
SIDE WALL (M/L)
B
A
IF THE STOVE IS TO BE INSTALLED ON ACOMBUSTIBLE FLOOR, IT MUST BE
PLACED ON AN APPROVED NON-COMBUSTIBLE HEARTH PAD, THAT
EXTENDS 8” (200mm) BEYOND THE STOVE SIDESAND BACK, AND 18”
(455mm) TO THE FRONT.
SI LE PO Ê LE EST INSTALL É SUR UN PLANCHER COMBUSTIBLE, IL DOITÊTREPLACÉ
SUR UNE BASE DE PROTECTION INCOMBUSTIBLE CERTIFÉE QUI DOIT DÉPASSER
LES CÔTÉS ET L’AMÉRE DU
PO Ê LE DE 8” (200mm) ET SE PROLONGER DE 18”
(455mm) SUR LE DEVANT.
MINIMUM CLEARANCE TO COMBUSTIBLE MATERIAL WITH SINGLE WALL
CHIMNEY CONNECTOR / DÉGAGEMENTS MINIMAUXAUX MATÉRIAUX
COMBUSTIBLESAVEC RACCORD DE CHEMINÉE À PAROI SIMPLE:
*MODEL 1400 MAY MAY BE INSTALLED INTO AMOBILE HOME IN THE UNITED
STATES ONLY.
*LE MODÈLE 1400 NE PEUT ÊTRE INSTALLÉ QUE DANS UNE MAISON
MOBILE AUX ÉTATS-UNIS SEULEMENT.
DOUBLE PAROI
CEILING / PLAFOND
C
DBA
FLOOR / PLANCHER
HOT WHILE INOPERATION.DONOTTOUCH.KEEPCHILDREN,
CLOTHINGANDFURNITUREAWAY. CONTACT MAY CAUSE
QUAND L’APPAREIL FONCTIONNE, LA SURFACE DEVIENT
CHAUDE. NE PAS TOUCHER.TENIRLESENFANTS, LES
VÊTEMENTSET LES MEUBLES À L’ÉCARTT.LECON
TACT PEUT
CAUSER DES BRÛLURES À LAPEAU.
CAUTION:
ATTENTION:
U.S. ENVIRONMENTAL PROTECTION AGENCY Certifié conforme à la norme d’émanation de particules de juillet 1992.
W385-0401 / G
DATE CODE / DE DATE
EPA1400
SKIN BURNS.
CLEARANCES TO COMBUSTIBLE CONSTRUCTION /
DÉGAGEMENTS AUX MATÉRIAUX COMBUSTIBLES:
(MEASURED TO UNIT / À PARTIR DE L’APPAREIL)
A SIDE FACING / CÔTÉ 1 IN/PO (25mm)*
B TOP FACING / DESSUS 28 IN/PO (710mm)
C MANTEL / TABLETTE 28 IN/PO (710mm)
D SIDE WALL / MUR LATÉRAL 17 IN/PO (430mm)
*CLEARANCE TO EDGE OF FLASHING / DÉGAGEMENTAU
BORD DE LAFAÇADE
LISTED SOLID FUEL BURNING SPACE HEATER /
POÊLE À COMBUSTIBLE SOLIDE HOMOLOGUÉ
MODEL / MODÈLE - EPA 1400
TESTED TO: / TESTÉ SELON : UL1482 / ULC S627 / CSAB366.2 (DEC 92)
1450
WOLF STEEL LTD.
24NapoleonRd.Barrie,Ontario L4M4Y8 Canada
WOLF STEEL USA
103MillerDrive,Crittenden,Kentucky, USA,41030
1400C
For rating plate location,
see “INSTALLATION
OVERVIEW”
This illustration is for refer-
ence only. Refer to the rat-
ing plate on the appliance
for accurate information.

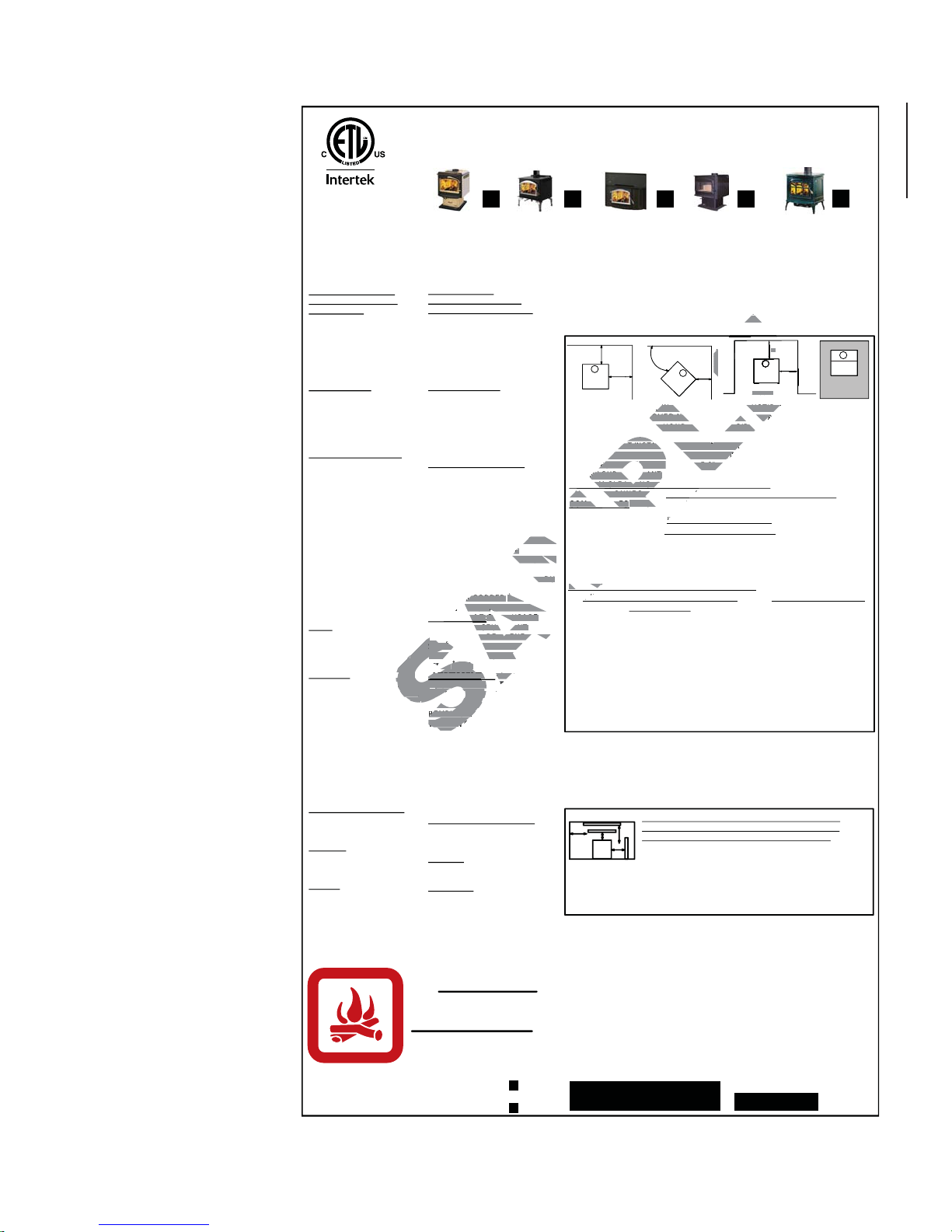

1400 SERIES RATING PLATE ILLUSTRATED
SAMPLE
F
USINGDOUSINGDO
M
DD
’
U
M
NN
SMOKE
MOKE
E ONLY
ONLY
OSED.
OSED.
WITHTH
LES SONTLES SONT
NENE
SE UN MUR OUUN MUR OU
IR LES
S ET LES CODES DUES DU
ACCORDERACCORDER
ÀÀ
LALA
ÀÀ
N
ÉE D’UNAUTREAPPAREIL.E D’UNAUTREAPPARE
MBUSTIBLE:BLE:
P
OU
R
US
A
G
E
POUR USAGE
A
VEC LE BOIS SEULEMENT.IS SEULEMENT.
N’UTILISEZ PAS DE CHENET OU NEAS DE CHENET OU N
SU
RÉLEVEZ PA
S
LE B
O
I
S
.
SURÉLEVEZ PAS LE BOIS.
PRÉPAREZ LE FEU DIRECTEMPRÉPAREZ LE FEU DIRE
SU
R L’
UR L’
ÂTRE.
ÂTRE.
AVERTISSEMENT:
AVERTISSEMEN
RISQURISQ
SA
D’
D’
ÉCHAPPEMENT DEÉCHAPPEMENT DE
TENIR LAPORTE FETENIR LAPORTE
LORSQUE LE POORSQUE LE P
REMPLACEZREMPLACEZ
VITRE EN CVITRE EN C
E SUR
PP
M
RE EXIRE EX
LE
E
E
E
AL
CO
V
EALCOVE
A
"
B
"B"
E
E
E
E
E
E
E
LE
LE
L
LE
LE
LE
L
L
C
SIDE WALL (M/L)E WALL (M/L
AMPLE
BE INSTALLED ON ACOMBUSTIBLEE INSTALLED ON ACOMBUSTIBLE
PROVED NON-COMBUSTIBLE HEAROVED NON-COMBUSTIBLE HEA
0mm) BEYOND THE STOVE SIDESABEYOND THE STOVE SIDES
HE FRONT.E FRON
EST INSTALLEST INSTALL
É SUR UN PLANCHER CSUR UN PLANCHER C
BASE DE PROTECTION INCOMBUSTIBBASE DE PROTECTION INCOMBUSTIB
TÉS ET L’AMTÉS ET L’AM
ÉRE D
UÉRE DU
P
O
Ê
LE DE 8” (20DE 8” (2
mm) SUR LE DEVANT.mm) SUR LE DEVANT.
INIMUM CLEARANCE TO COMBUSUM CLEARANCE T
P
CHIMNEY CONNECTOR /CHIMNEY CONNECTO
D
ÉGAGE
P
P
CO
MB
US
TIBLE
SCOMBUSTIBLES
AVEC RACCORDAVEC R
MP

9
W415-0762 / B / 11.12.10
3.0 PRE-INSTALLATION PREPARATION
Have an authorized dealer install the appliance. If you install the appliance yourself, have your dealer review
your installation plans and/or installation.
Draw out a detailed plan of the installation including dimensions and verify the dimensions with the require-
ments listed in this manual.
You may wish to adjust the appliance position slightly to ensure the vent does not intersect with a framing
member. Appliance must be positioned so that no combustibles are within, or can swing within (e.g. drapes,
doors), 48” of the front of the appliance. 67.1A
3.1 APPLIANCE PLACEMENT
3.2 CLEARANCE TO COMBUSTIBLES
DO NOT INSTALL INTO ANY AREA HAVING A HEIGHT LESS THAN 7 FEET (CEILING OF ENCLOSURE
TO APPLIANCE BOTTOM, EXCLUDING HEARTH HEIGHT).
!
WARNING
BACK WALL
B
SIDE WALL
A
BACK WALL
C
SIDE WALL
F
D
E
E
PARALLEL & CORNER SINGLE WALL CONNECTOR DOUBLE WALL CONNECTOR
1100PL / 1100C 1400PL / 1400C 1100PL / 1100C 1400PL / 1400C
SIDEWALL (A) 12” 12” 10” 10”
SIDEWALL TO FLUE (B) 21 3/4” 21 3/4” 19 3/4” 19 3/4”
BACKWALL (C) 10” 12” 6” 6”
BACKWALL TO FLUE (D) 13 1/2” 16 1/2” 9 1/2” 10 1/2”
CORNER (E) 6” 6” 2” 4”
CEILING (F) 84” 84” 84” 84”
Clearances can be reduced with shielding acceptable to local authorities. Reduced installation must comply
with NFPA 211 or CAN/CSA-B365.
14"
23"
ALCOVE
4 FOOT
MAX
9” 6”
1100 series only may be installed, using a listed double wall connector,
such as Security DL6 in Canada, the Simpson Duravent Plus DVL in
the USA or an equivalent double wall connector, into an alcove having
a depth of no more than 4 feet and a height of at least 7 feet.
The minimum clearances are as shown.
3.3 ALCOVE INSTALLATION

10
W415-0762 / B / 11.12.10
3.4 FLOOR PROTECTION
K
J
J
I
MINIMUM FLOOR PROTECTION
FRONT (I) SIDES (J) BACK (K)
CANADA 18” 8” 8”
USA 16” 8” 8”
NOTE: If a section of horizontal chimney connector is used, floor protection is
required under the chimney connector and 2” beyond each side.
If the appliance is to be installed on top of a combustible floor, it must be placed on an approved non-combusti-
ble hearth pad, that extends 8” beyond the appliance sides and back and 18” to the front. The reduced clear-
ance from the back of the appliance may result in the appliance pad terminating shorter than 8” beyond the
appliance.
3.5 OUTSIDE AIR
The following are signs that a outside air kit may be required:
• When there is combustion present: Wood burns poorly, smoke spills, back-draft takes place and your
chimney does not draw steadily.
• In the winter there is too much condensation on the windows.
• Opening a window seems to alleviate the above symptoms.
• A ventilation system is installed in the house.
• Other devices are present that exhaust house air.
• The house has tight fitting windows and/or is equipped with a well-sealed vapour barrier.
A. Connection from the appliance’s air intake to the outside is
mandatory in mobile homes only, either through a hole in the
wall or through the hole in the floor to line up with the knock out
in the leg model or the hole in the pedestal base.
B. Use a fresh air kit. Secure the aluminum liner by flaring the end
once it is inserted through the hole in the base of the leg or
pedestal model. If the air intake is through the floor, the hole in
the pedestal back must be covered with sheet metal to avoid
cold air spillage into the room. A cover plate is available from
your Wolf Steel Ltd. dealer. Avoid cutting away floor joists, wall
studs, electrical wires or plumbing. Seal around the outside pipe
with insulation to prevent drafts.
C. Attach the rear knockout plate (located inside the ash pan for
shipping purposes).
!
WARNING
IF ROOM AIR STARVATION OCCURS BECAUSE THE FRESH AIR INTAKE IS BLOCKED WITH ICE,
LEAVES, ETC., OR BECAUSE THE APPLIANCE DOOR WAS LEFT OPEN, OR DUE TO A STRONG
EXHAUST FAN OPERATING ETC., DANGEROUS FUMES AND SMOKE FROM THE OPERATING APPLI-
ANCE COULD BE DRAWN INTO THE ROOM.

11
W415-0762 / B / 11.12.10
3.6 MOBILE HOME
MODEL 1100PL, 1100C, 1400PL, and 1400C ARE APPROVED FOR INSTALLATION IN MOBILE HOMES
IN THE UNITED STATES ONLY.
For specific clearances, see “MINIMUM
CLEARANCES TO COMBUSTIBLES” section.
The appliance must be installed between ceiling
joists, with radiation shield and roof flashing, so that
the structural strength, insulation and waterproof
qualities of the home are not lessened. Seal with
silicone to maintain a vapour barrier at the chimney
and outside air pipe penetrations.
DO NOT INSTALL IN SLEEPING ROOM.
THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL AND CEILING/ROOF MUST BE
MAINTAINED.
THE APPLIANCE MUST BE PROVIDED WITH OUTSIDE COMBUSTION AIR.
THE APPLIANCE MUST BE BOLTED TO THE FLOOR.
INSTALL ACCORDING TO 24 CFR, PART 3280 (HUD).
USE A CHIMNEY CERTIFIED FOR WOOD BURNING UL 103 S629, TYPE HT (2100°F).
!
WARNING
RAIN CAP REMOVE TO
ALLOW FOR
TRANSPORATION
MOBILE HOME
ROOF FLASHING
RADIATION SHIELD
CEILING SUPPORT
TRIM COLLAR
APPLIANCE
BOLTED TO FLOOR
HEARTH PAD
OUTSIDE AIR CONNECTION
THROUGH WALL OR FLOOR

12
W415-0762 / B / 11.12.10
4.0 INSTALLATION
68.3A
!
WARNING
WEAR GLOVES AND SAFETY GLASSES FOR PROTECTION.
CAREFULLY FOLLOW THE INSTRUCTIONS FOR ASSEMBLY OF THE PIPE AND OTHER PARTS
NEEDED TO INSTALL THE APPLIANCE. FAILURE TO DO SO MAY RESULT IN A FIRE, ESPECIALLY IF
COMBUSTIBLES ARE TOO CLOSE TO THE APPLIANCE OR CHIMNEY AND AIR SPACES ARE
BLOCKED, PREVENTING THE FREE MOVEMENT OF COOLING AIR.
DO NOT DRAW OUTSIDE AIR FROM GARAGE SPACES. EXHAUST PRODUCTS OF GASOLINE ENGINES ARE
HAZARDOUS.
DO NOT INSTALL OUTSIDE AIR DUCTS SUCH THAT THE AIR MAY BE DRAWN FROM ATTIC SPACES, BASEMENTS
OR ABOVE THE ROOFING WHERE OTHER HEATING APPLIANCES OR FANS AND CHIMNEYS EXHAUST OR UTILIZE
AIR. THESE PRECAUTIONS WILL REDUCE THE POSSIBILITY OF APPLIANCE SMOKING OR AIR FLOW REVERSAL.
THE OUTSIDE AIR INLET MUST REMAIN CLEAR OF LEAVES, DEBRIS ICE AND/OR SNOW. IT MUST BE UNRE-
STRICTED WHILE APPLIANCE IS IN USE TO PREVENT ROOM AIR STARVATION WHICH CAN CAUSE SMOKE SPILL-
AGE AND AN INABILITY TO MAINTAIN A FIRE. SMOKE SPILLAGE CAN ALSO SET OFF SMOKE ALARMS.
NEGATIVE PRESSURE WITHIN YOUR HOME MAY INADVERTENTLY AFFECT YOUR APPLIANCE.
TO PREVENT CONTACT WITH SAGGING OR LOOSE INSULATION, THE APPLIANCE MUST NOT BE INSTALLED
AGAINST VAPOUR BARRIERS OR EXPOSED INSULATION. LOCALIZED OVERHEATING COULD OCCUR AND A FIRE
COULD RESULT.
DO NOT USE MAKESHIFT COMPROMISES DURING INSTALLATION. DO NOT BLOCK OR RESTRICT AIR, GRILLE OR
LOUVRE OPENINGS. DO NOT ADD A HOOD.
KEEP HAND TOOLS IN GOOD CONDITION, SHARPEN CUTTING EDGES AND MAKE SURE TOOL HANDLES ARE
SECURE.
ALWAYS MAINTAIN THE MINIMUM AIR SPACE REQUIRED TO THE ENCLOSURE TO PREVENT FIRES.

13
W415-0762 / B / 11.12.10
NEVER INSTALL A SINGLE WALL SLIP SECTION OR SMOKE PIPE IN A CHASE STRUCTURE. THE HIGHER
TEMPERATURE OF THIS SINGLE WALL PIPE MAY RADIATE SUFFICIENT HEAT TO COMBUSTIBLE
CHASE MATERIALS TO CAUSE A FIRE.
DO NOT CONNECT THIS APPLIANCE TO A CHIMNEY SYSTEM SERVING ANOTHER APPLIANCE.
TO AVOID DANGER OF FIRE, ALL INSTRUCTIONS MUST BE STRICTLY FOLLOWED, INCLUDING THE
PROVISION OF AIR SPACE CLEARANCE BETWEEN CHIMNEY SYSTEM AND ENCLOSURE. TO
PROTECT AGAINST THE EFFECTS OF CORROSION ON THOSE PARTS EXPOSED TO THE WEATHER, WE
RECOMMEND THAT THE CHASE TOP BE PAINTED WITH A RUST-RESISTANT PAINT.
DO NOT FILL ANY FRAMED SPACE AROUND THE CHIMNEY WITH INSULATION OR ANY OTHER MATERIAL.
INSULATION PLACED IN THIS AREA COULD CAUSE ADJACENT COMBUSTIBLES TO OVERHEAT.
MAINTAIN A MINIMUM 2" AIR CLEARANCE TO ALL PARTS OF THE CHIMNEY SYSTEM AT ALL TIMES.
FAILURE TO MAINTAIN THIS 2" AIR CLEARANCE WILL CAUSE A STRUCTURE FIRE. NEVER FILL THIS
SPACE WITH ANY TYPE OF MATERIAL.
DO NOT CUT RAFTERS OR CEILING JOISTS WITHOUT FIRST CONSULTING A BUILDING OFFICIAL
TO ENSURE STRUCTURAL INTEGRITY IS NOT COMPROMISED.
FIRESTOP SPACERS MUST BE USED WHENEVER THE CHIMNEY PENETRATES A CEILING/FLOOR AREA.
THE TOTAL HORIZONTAL VENT LENGTH SHOULD NOT EXCEED 40% OF THE CHIMNEY HEIGHT
ABOVE THE STOVE. ALL HORIZONTAL SMOKE PIPE MUST SLOPE SLIGHTLY UPWARDS A MINIMUM
OF 1/4” PER FOOT AND ALL CONNECTIONS MUST BE TIGHT AND SECURED BY THREE SHEET
METAL SCREWS EQUALLY SPACED. AN UNINSULATED SMOKE PIPE SHALL NOT PASS THROUGH
AN ATTIC, ROOF SPACE, CLOSET OR SIMILAR CONCEALED SPACE, OR THROUGH A FLOOR,
CEILING, WALL OR PARTITION, OR ANY COMBUSTIBLE CONSTRUCTIONS.
DO NOT USE ANY MAKESHIFT MATERIALS DURING INSTALLATION.
!
WARNING
4.1 CHIMNEY
Your appliance may be hooked up with a factory built or masonry chimney. If you are using a factory built chim-
ney, it must comply with ULCS629 (Canada) or UL103 (USA) standards. It must therefore be a 6" HT Type
(2100°F) chimney. It is extremely important that it be installed according to the manufacturer's specifications.
The manufacturer's installation instructions and specified clearances should always be followed in accordance
with local and national codes. In Canada the CSA B365 and the CSA C22.1 installation codes are to be fol-
lowed. In the USA the ANSI NFPA 70 and ANSI NFPA 211 installation codes are to be followed.
Chimney and chimney connector must be in good condition and kept clean.

14
W415-0762 / B / 11.12.10
4.1.1 CHIMNEY CONNECTION
Your chimney connector and chimney must have the same diameter as the appliance’s exhaust flue outlet. The
appliance pipe must be made of aluminized or cold roll steel with a minimum 24 gauge thickness. It is strictly
forbidden to use galvanized steel.
A6” diameter single wall chimney connector, used to connect the appliance to the chimney, must be installed with
the crimped end toward the appliance. This will ensure that the moisture which condenses from the burning wood
will flow back into the fire chamber. Each joint in the chimney connector must be secured with at least three sheet
metal screws.
For installation of your chimney connector, the following recommendations may be useful.
• The chimney connector must be short and straight. For optimum performance it is recommended that
all horizontal runs have a minimum 1/4” rise per foot, with the upper end of the section toward the
chimney. For safe and proper operation of the appliance, see “INSTALLATION” instructions.
• To insure a good draft, the total horizontal length of the connector should never exceed 8’ to 10’. In
the case of vertical installation, the total length of the connector can be longer and connected without
problem to the chimney at the ceiling level.
• There should never be more than two 90° elbows in the entire connector and chimney system. Never
start with a 90° elbow. Always go up vertically for at least 2 feet from the flue collar before using a 90°
elbow.
• The connector must not pass through any combustible material, nor may it pass through a concealed
space (such as an attic, roof space, or closet). If passing through a wall, ceiling, or into a masonry
chimney, use either chimney components listed for that specific use, or means acceptable to local
authorities having jurisdiction over the installation.
This appliance must be connected to:
A
.A chimney complying with the requirements for Type
HT chimneys in the Standard for Chimneys, Factory-
Built, Residential Type and Building Heating Appli-
ance, or
B. A code-approved masonry chimney with a flue liner.
Vent the stove into a masonry chimney or an ap-
proved, insulated solid-fuel stainless-steel chimney
with as short and straight a length of 6” diameter
chimney connector as possible. Connection to a ma-
sonry chimney must be by a metal or masonry thimble
cemented in place.
TOWARD
APPLIANCE
FLUE GAS
DIRECTION
MALE END OF
CONNECTOR
OR CHIMNEY
PIPE
58.1A

15
W415-0762 / B / 11.12.10
4.1.2 ADDING SECTIONS
A
dd chimney sections, according to the manufacturers installation instructions. The chimney must extend at
least, 3 feet above its point of contact with the roof and at least 2 feet higher than any wall, roof, building or
obstacle within 10 feet horizontally.
59.1A
3 FT
MIN
3 FT
MIN
3 FT
MIN
3 FT
MIN
10 FT OR
MORE
LESS THAN
10 FT
FLAT ROOF WALL
2 FT
MIN
10 FT TO
NEAREST
ROOFLINE
RIDGE
LESS THAN
10 FEET
2 FT MIN 2 FT
MIN

16
W415-0762 / B / 11.12.10
4.1.3 TYPICAL THROUGH THE CEILING
A. Move the stove into position with the flue centered, midpoint between two
joists to prevent having to cut them. Use a plumb bob to line up the center.
B. Cut and frame an opening in the ceiling to provide a 2” clearance between
the outside of the chimney and any combustible material. DO NOT FILL THIS
SPACE WITH ANY TYPE OF MATERIAL.
Nail headers between the joist for extra support.
Firestop spacers must be placed on the bot-
tom of each framed opening in any floor or
ceiling that the chimney passes through.
If your chimney system is enclosed within
the attic area, a rafter radiation shield is
required.
C. Hold a plumb bob from the underside of
the roof to determine where the opening in
the roof should be. Cut and frame the roof
opening to maintain proper 2” clearances.
NOTE: The chimney must be supported at the ceiling or roof so that it’s
weight does not rest on the appliance and must comply with it’s
manufacturer’s instructions.
60.1A
HEADERS
FIRESTOP SPACER -
UNDERSIDE OF JOIST
FLOOR
PROTECTOR
ROOF
FLASHING
STORM
COLLAR
TERMINAL
COMBUSTIBLE
WALL
MAINTAIN 2”
CLEARANCE
CHIMNEY
CONNECTOR
CHIMNEY
SUPPORT
LISTED CHIMNEY INSULATION
CEILING
SUPPORT
LISTED
CHIMNEY
SPECIFIED
CLEARANCE
TO STOVE
CONNECTION
DETAIL

17
W415-0762 / B / 11.12.10
4.1.4 TYPICAL THROUGH THE WALL
If possible, design the installation so that the connector does not pass through a combustible wall. If during
your installation you must pass through a combustible wall, check with your building inspector before you be-
gin. Also check with the chimney connector manufacturer for any specific requirements.
Consult with your dealer regarding special connection components available for use for wall pass-throughs.
Use only parts that have been tested and listed for use in a wall pass-through.
61.1
FLOOR
PROTECTOR
ROOF
FLASHING
STORM
COLLAR
TERMINAL
COMBUSTIBLE
WALL
CHIMNEY
CONNECTOR
MAINTAIN 2”
CLEARANCE
THROUGH EAVE
COMBUSTIBLE
CEILING
LISTED
CHIMNEY
COMBUSTIBLE
OUTSIDE WALL
TO
STOVE
2”
CLEARANCE
INSULATED
“T”
WALL
SUPPORT
WALL SPACER
FOR OUTSIDE
WALL
CONNECTION
DETAIL
SECTION
LISTED
CHIMNEY PIPE
THIMBLE

18
W415-0762 / B / 11.12.10
4.1.5 TYPICAL EXISTING MASONRY
You can also install your appliance using your
existing masonry chimney. To do so, follow the
guidelines below. You may want to use a factory-
built thimble, or construct your own brick thimble.
If you are using a masonry chimney, it is
important that it be built in compliance with
the specifications of the Building Code in
your region. It must normally be lined with
fire clay bricks, metal or clay tiles sealed
together with fire cement. (Round flues are
the most efficient). The maximum flue size
is 8” x 8” square or 6” round.
62.1
FLOOR
PROTECTOR
CHIMNEY
CONNECTOR
COMBUSTIBLE
WALL
CLEARANCE
EAVE
RAFTER
CLEARANCE WITH FIRESTOP
CEILING JOIST
THIMBLE

19
W415-0762 / B / 11.12.10
To avoid being damaged during shipping, the appliance has been bolted to the pallet
and must be unbolted before the appliance can be installed.
A. Remove the 4 nuts and washers from
the underside of the pallet.
B. Lift the appliance up and away from
the pallet to clear the threaded studs
sticking through the pallet. Place
the appliance on its back onto a
protective surface such as a carpet or
blanket to avoid scratches during leg
installation.
C. Remove the four additional nuts from
each of the four studs.
D. Use four of the nuts and washers removed above to install the legs as illustrated.
E. Lift the appliance up and gently set down on all four legs. Do not pivot appliance up on its legs, as this
could result in damage to the legs.
5.0 FINISHING
PINS
A. Pivot the door open and lift up to clear the
bushings. Do not pivot the door any further than
necessary.
B. Carefully set the door aside and pull the pins out
from the door bushings. Repeat in reverse order to
install the door.
A. 1400C only: Remove the cast lid.
B. Remove cast top.
C. Pull pin from top door hinge. It is important to hold the door while
removing the pin. Pivot the door to clear the top door hinge. Lift the door
off of the lower pin. Do not pivot the door any further than necessary.
Repeat in reverse order to install the door.
DOOR ADJUSTMENT: Loosen screws of top door bracket and slide side to side
to adjust the door hinge. Close door against paper seal to ensure proper door
seal.
5.1 LEG INSTALLATION (1100PL / 1400PL)
5.2 DOOR REMOVAL / INSTALLATION (1100PL / 1400PL)
5.3 1100C/1400C DOOR REMOVAL / INSTALLATION

20
W415-0762 / B / 11.12.10
BURNING YOUR APPLIANCE WITH THE DOORS OPEN OR AJAR CREATES A FIRE HAZARD THAT
MAY RESULT IN A HOUSE AND OR CHIMNEY FIRE.
DO NOT STRIKE OR SLAM DOOR.
NEVER REMOVE THE DOOR WHEN THE APPLIANCE IS HOT.
!
WARNING
5.4 1400C CAST LID LEVELLING
A. Loosen the clinching nut. (4 places)
B. Tighten or loosen the levelling screw
in the adjusting nut.
C. Tighten the clinching nut.
LEVELLING
SCREW
ADJUSTING
NUT
CLINCHING
NUT
HINGE
BRACKET
CAST TOP
5.5 DOOR HANDLE INSTALLATION
DOOR
HANDLE
NUT
DOOR HANDLE
LATCH LOCK
WASHER
DOOR
SPACER
SPRING
WASHER
FRONT VIEW
NOTE: Position of
door handle latch.
98.1
NOTE: DOOR MAY NOT BE AS
ILLUSTRATED
