Nasco Healthcare CPR+ PROMPT INFANT User manual

2019. 10.
ENGLISH
www.NascoHealthcare.com
User Manual

Contents
1. Product Introduction
1.1. What is the CPR add-on kit? ………………………………………………………………………………………………… 3
2. Components of the product
2.1. Hardware ……………………………………………………………………………………………………………………… 4
2.2. Software ……………………………………………………………………………………………………………………… 5
3. Installing the hardware
3.1. Installing the Add-on kit……………………………………………………………………………………………………… 6
3.2. Installing the lung bag ……………………………………………………………………………………………………… 7
4. Installing the software
4.1. Installing the apps …………………………………………………………………………………………………………… 8
5. Before using
5.1. Checking the power of the Add-on kit……………………………………………………………………………………… 9
5.2. Checking the Add-on kit's ID………………………………………………………………………………………………… 9
6. Main features of the application
6.1. Tab menu …………………………………………………………………………………………………………………… 10
6.2. Learning using the Student app ………………………………………………………………………………………… 11
6.3. Training using the Instructor app………………………………………………………………………………………… 13
7. Feedback & Graph UI
7.1. Compression & Breath Feedback UI …………………………………………………………………………………… 17
7.2. Graph UI (for Instructor app only) ……………………………………………………………………………………… 17
8. More Features
8.1. Reviewing saved data……………………………………………………………………………………………………… 18
8.2. Exporting the result/certi󸽠cate as a PDF 󸽠le …………………………………………………………………………… 19
8.3. Renaming the manikin …………………………………………………………………………………………………… 20
8.4. Renaming the student name (for Instructor app only)………………………………………………………………… 21
8.5. Checking the connected kit information ……………………………………………………………………………… 22
8.6. Changing the settings……………………………………………………………………………………………………… 23
9. Maintenance
9.1. Checking the remaining battery level of the Add-on kit ……………………………………………………………… 24
9.2. After using the Add-on kit (Power on/o󸽟) ……………………………………………………………………………… 24
9.3. Attaching the sensor holder when replacing the lung bag …………………………………………………………… 25
10. Troubleshooting
10.2. Frequently Asked Questions …………………………………………………………………………………………… 26
10.2. Troubleshooting ………………………………………………………………………………………………………… 27
11. Warranty
12. Contact

31. Product Introduction …
1. Product Introduction
1.1. What is the CPR add-on kit?
CPR add-on kit 4points
CPR add-on kit Student CPR add-on kit Instructor
As a sensor kit attached to the dummy manikin, the CPR add-on kit provides feedback regarding the CPR action in real-time, allowing
users to have a complete training experience. CPR feedback can be received in real time by connecting the Add-on kit installed on the
manikin to the mobile application. The application provides feedback for the compression (depth, recoil, rate), breath (volume) and
hands-o󸽟 time in real-time, and the feedback and evaluation standard meets the latest guideline of the American Heart Association
(AHA). CPR add-on kit apps for Add-on kit consist of Student and Instructor apps.
Compliance with
AHA Guideline Real-time feedback Quantitative measurement Intuitive system

4 2. Components of the product…
2. Components of the product
2.1. Hardware
Add-on kit
Lung bag
The Add-on kit equipped with the sensor in the correct form for each manikin sends compression
and breath data to the mobile device in real time.
The lung bag is connected to the breath module and used for measuring the volume and timing of breath.
Compression module
Power(reset) button
Breath module
Battery
holder
Power LED
CPR Prompt Infant chest foam piece
00123
NIP200 1901
Compression
sensor
Lung bag
Sensor holder

52. Components of the product …
2.2. Software
CPR add-on kit Student
CPR add-on kit Instructor
Supported device and version
The Student app is a learning application and this software analyzes CPR carried out by a student in real time and gives feedback.
ㆍMeasures the CPR performance and gives feedback
ㆍMeasures the CPR performance and gives feedback
ㆍSupports connection with up to 6 manikins and feedback
ㆍSaves and converts measured data into a score
ㆍSaves and converts measured data into a score
ㆍReviews and exports the saved score
ㆍReviews and exports the saved score
The Instructor app is a training application that enables the monitoring of CPR carried out by a student in real time and this software
helps with evaluation, recording and management.
Android Devices
Android 7.0 (Marshmallow) or above.
BLE 4.2 or above.
iOS Devices
OS 11.0 or above.
BLE 4.2 or above.

6 3. Installing the hardware…

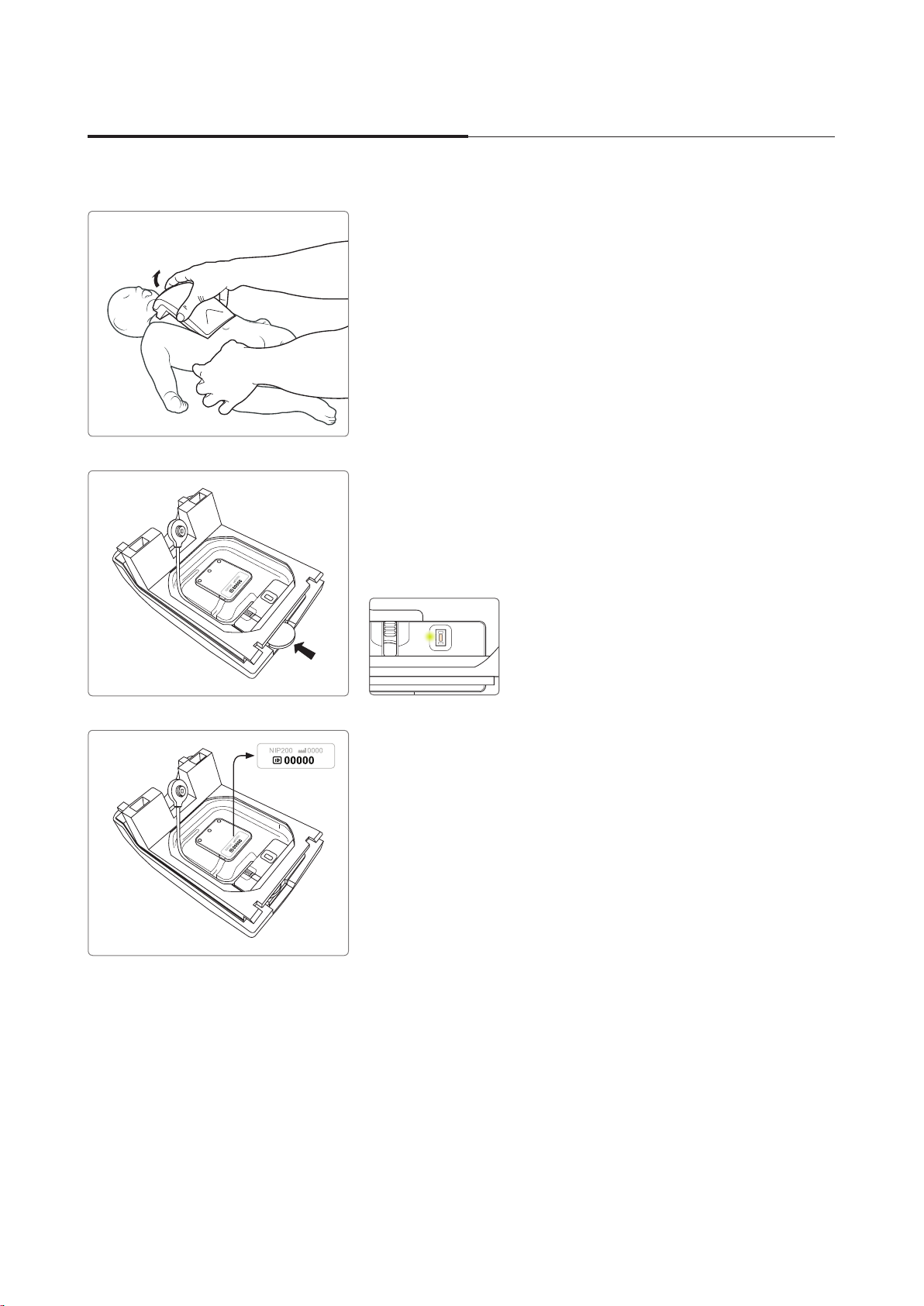

3. Installing the hardware
3.1. Installing the Add-on kit
Separate the chest foam piece from the manikin1)
Make note of 5 digits of ID number on compression module.
It will be needed to link up with CPR add-on kit application.
3)
2) Insert coin-cell battery into the battery compartment and
make sure the power is on (LED lamp should be on).

73. Installing the hardware …
3.2. Installing the lung bag
Use the hook to insert the lung bag through
manikin head towards its neck
1)
Attach breath module to the breath module holder on the lung bag2)
Assemble manikin head into the body,
then assemble chest foam piece into the body.
Use the kit ID when connecting the kit
to the CPR add-on kit applications.
3)
4)

8 4. Installing the software…
4. Installing the software
4.1. Installing the apps
Connect to the App Store (iOS) or Google Play Store (Android).
Search for CPR add-on kit.
Download the Student app and the Instructor app.
CPR add-on kit
GETGET
CPR add-on kit
Instructor
CPR add-on kit
Student
1)
2)
3)

95. Before using …
5. Before using
5.2. Checking the Add-on kit's ID
Make sure the LED lamp is blinking. If there is no sensor input for
10 minutes while the power is ON, the Add-on kit will be turned
o󸽟 automatically to save power.
Check its ON status through the LED lamp
at the bottom of the kit.
Check the ID from the label attached to the Add-on kit.
ID is used for connecting the Add-on kit and the application via Bluetooth.
5.1. Checking the power of the Add-on kit
1)
2)
LED Reset
00000
NIP000 0000
Add-on kit ID

10 6. Main features of the application…

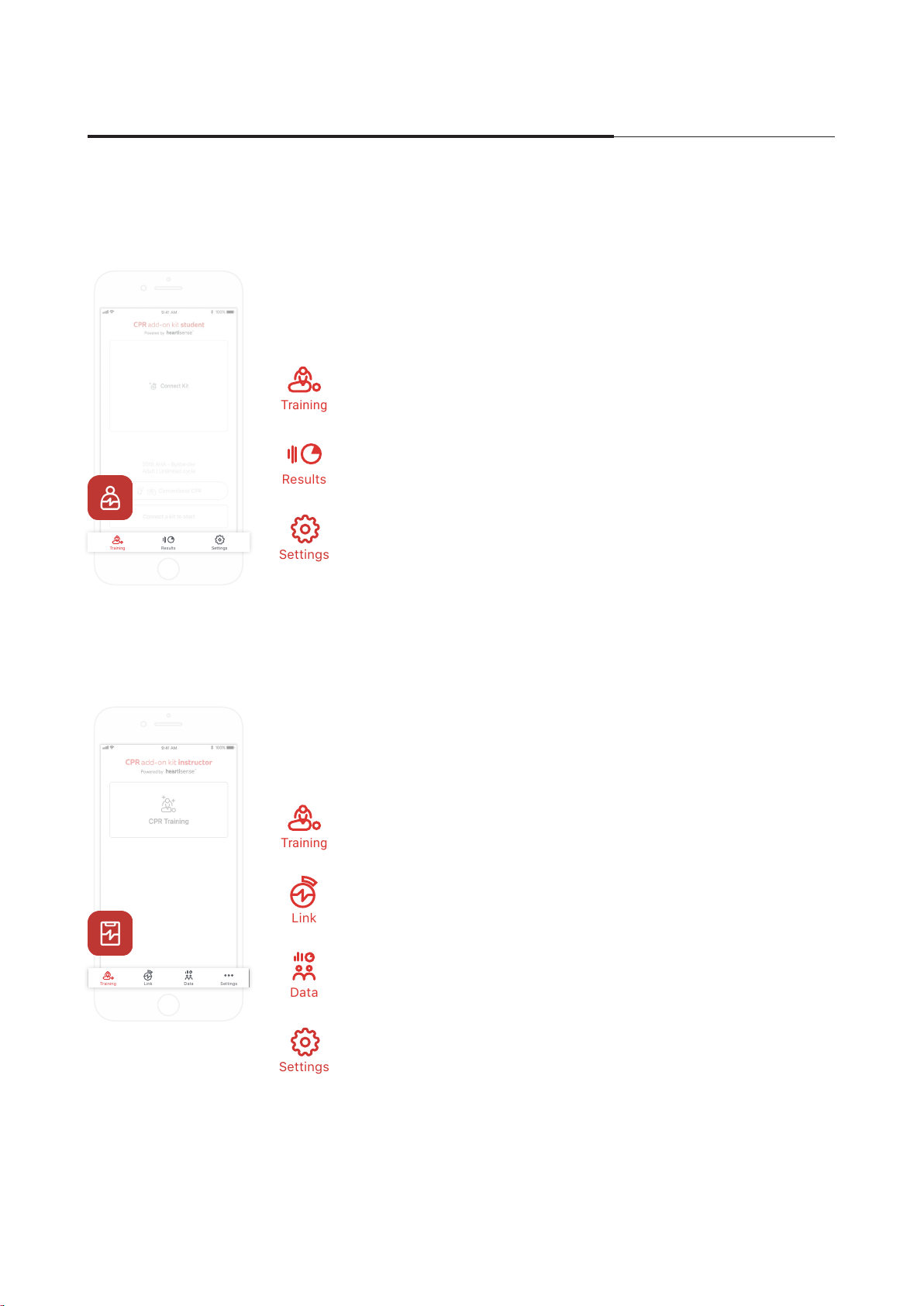

6. Main features of the application
6.1. Tab menu
CPR add-on kit Student
CPR add-on kit Instructor
The CPR add-on kit Student consists of the following tabs.
You can monitor CPR performance in real time.
Training
Results
You can manage saved training records.
Settings
You can adjust the settings applied to the training
including the guideline and score calculation settings.
Training
Settings
Results
The CPR add-on kit Instructor consists of the following tabs.
You can select the measurement method
and monitor CPR performance in real time.
Training
The connected manikin information is displayed,
allowing you to check the status before carrying out training.
Link
You can manage saved training, evaluation records
and student list.
Data
You can adjust the settings applied to the training including
the guideline and score calculation settings.
Settings
Settings
Link
Training
Data

116. Main features of the application …
6.2. Learning using the Student app
3) When the kit is connected to the app for the 󸽠rst time, the breath module should be calibrated.
The calibration screen will pop up automatically.
*Deliver a proper volume of breath 5 times as instructed on the screen and press the Save button.
1) Run the CPR add-on kit Student and then select Connect Kit on the main screen.
2) Select the desired manikin ID from the list to begin the Bluetooth connection.
*The ID of the kit is provided at the back of the product, and refer to '5.2 Check Add-on kit ID' for detailed information.

12 6. Main features of the application…
4) When the Bluetooth connection is made successfully, the manikin information will be
displayed on the screen. Select the evaluation item(s), measuring compression only
or both compression and breath.
5) When a user performs CPR, the application gives feedback for the compression or breath.
*Refer to '7.1 Compression & Breath Feedback UI' for information regarding the feedback displayed on the screen.
6) When CPR is completed, the measured data will be shown in numerical 󸽠gures.
* You can set the metric of measurement
If the breath sensor is calibrated
If the breath sensor is not calibrated
Evaluation is carried out based on the hands-only CPR.
Evaluation is carried out based on the CPR (30:2).
After the session
* You can calibrate the breath sensor by selecting the target-shaped icon.

136. Main features of the application …

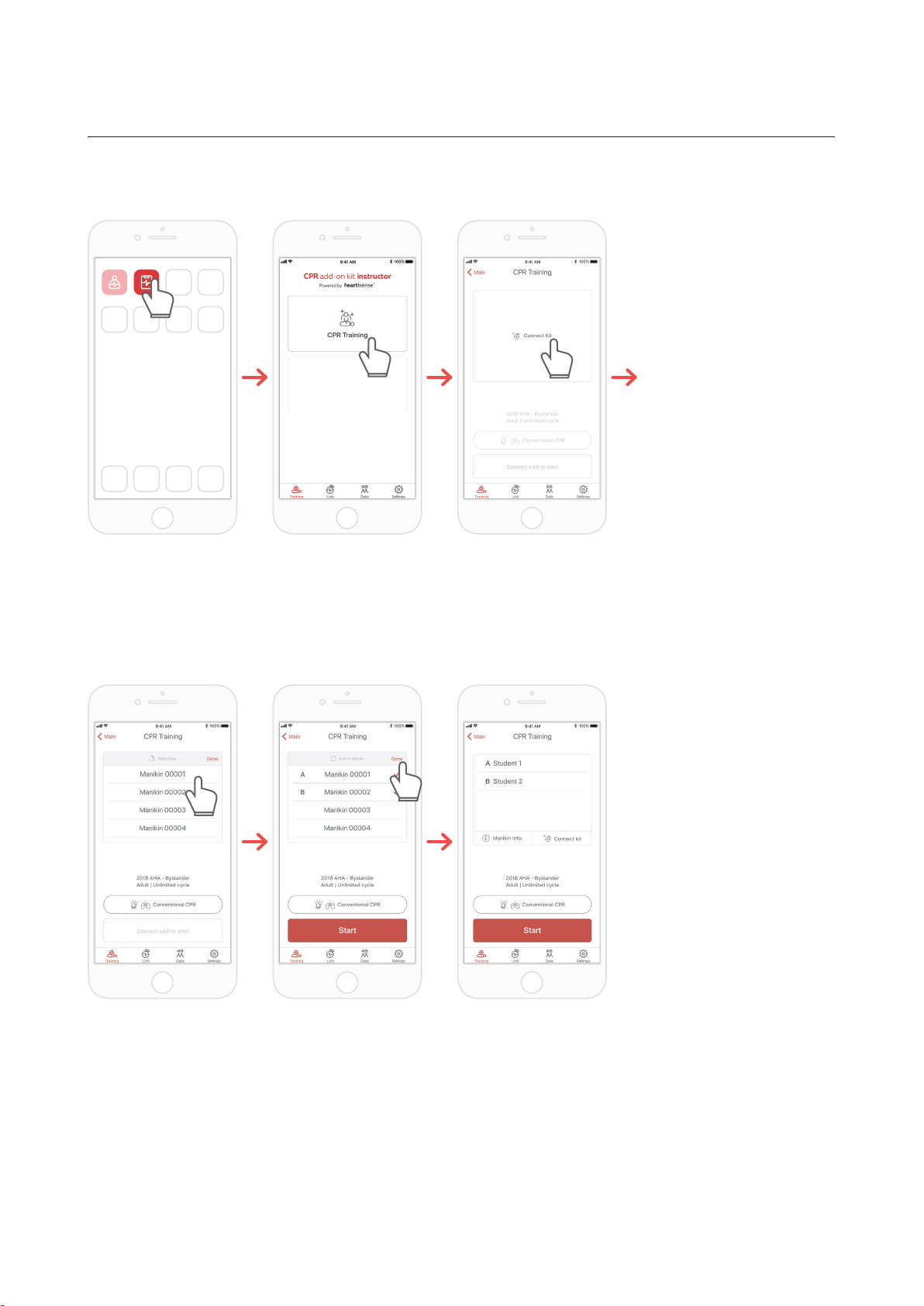

6.3. Training using the Instructor app
1) Run the CPR add-on kit Instructor and select 'CPR training' on the main screen.
2) When you press 'Connect Kit', available kits for connection will be showned.
3) Select the manikin name you wish to connect from the list and try the Bluetooth connection.
4) When the connection is made, press the 'Done' button to end searching for kits
*The ID of the kit is provided at the back of the product, and refer to '5.2 Check Add-on kit ID' for detailed information.

14 6. Main features of the application…
If the breath sensor is not calibrated
* You can calibrate the breath sensor by selecting the target-shaped icon.
5) When the kit is connected to the app for the 󸽠rst time, the breath sensor should be calibrated.
The calibration screen will pop up automatically.
*Deliver a proper volume of breath 5 times as instructed on the screen and press the Save button.
6) When the Bluetooth connections are made successfully, students will be shown
on the screen.
* You can set the metric of measurement
Evaluation is carried out based on the hands-only CPR.
Evaluation is carried out based on the CPR (30:2).

156. Main features of the application …

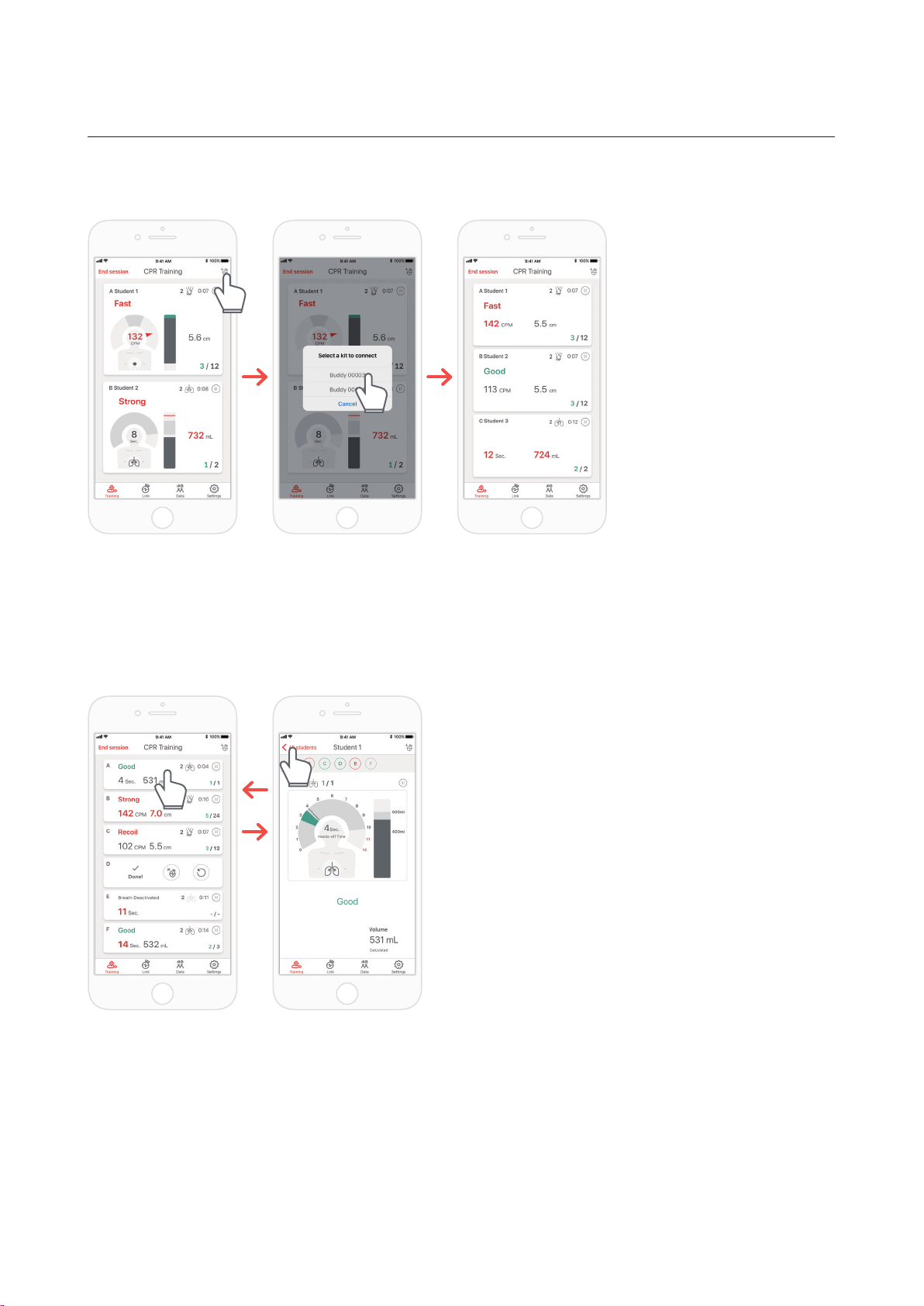

8) If there is a student marked with red text, you can select the slot and check the problem in detail.
*On the 'Detailed view' screen, you can press the back arrow button to return to the previous screen
or press the alphabet button to move to a di󸽟erent slot..
7) The CPR add-on kit Instructor app can monitor up to 6 students.
You can add a kit through the icon on the top right side while evaluating.
*Refer to '7.1 Compression & Breath Feedback UI' for information regarding the feedback displayed on the screen.

16 6. Main features of the application…

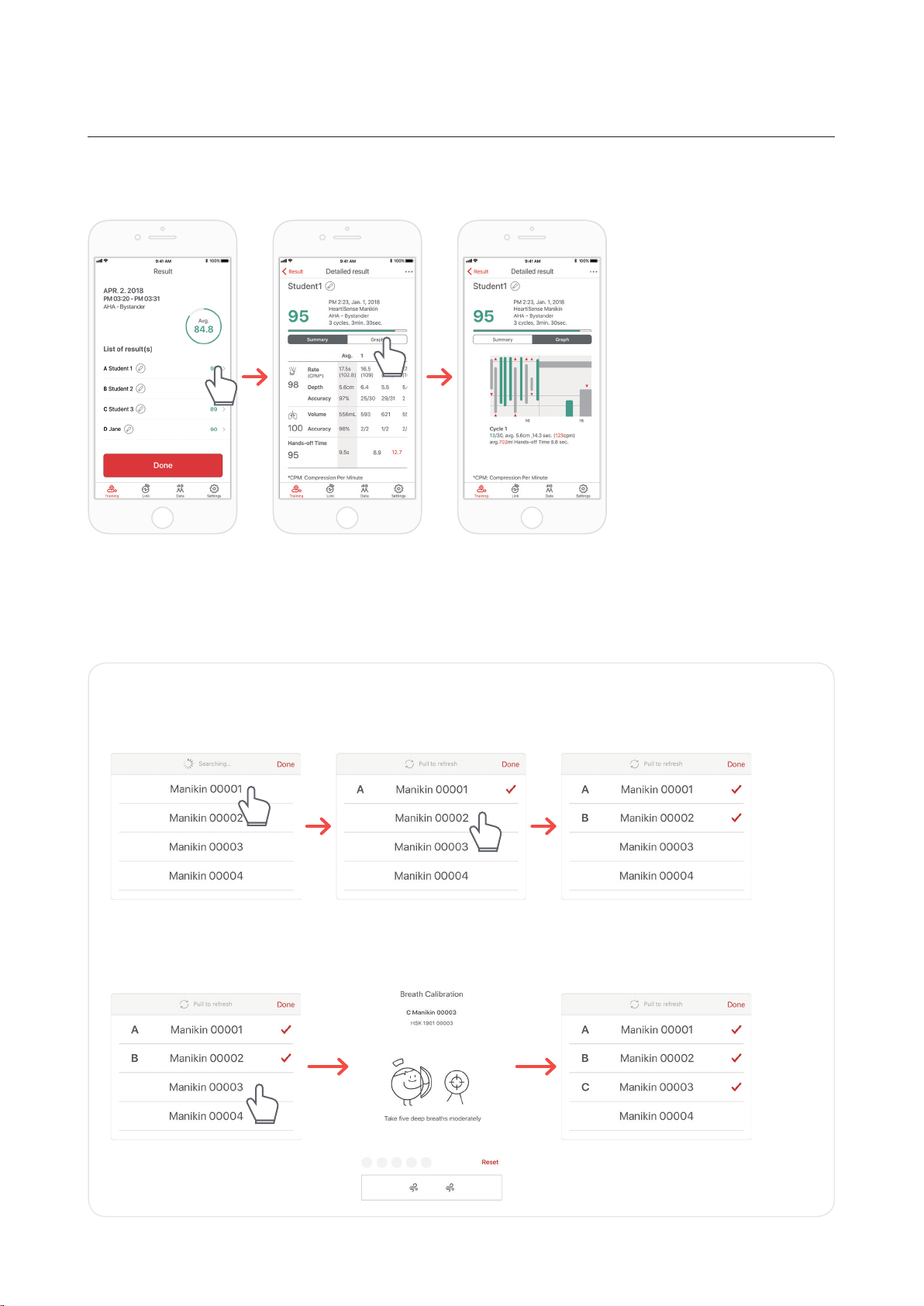

9) You can review CPR performance data in the form of a summary or graph.
*Refer to '7.2. Graph UI (Instructor app)' for information regarding graph view
To connect a number of manikins at the same time, connect them from the list in consecutive order and press the 'Done'
or 'Start' button without searching for them repeatedly.
If there is a kit which is not calibrated among the kits, the calibration screen for the relevant kit will pop up immediately.
You can connect manikins continuously after completing the calibration.
(Kit which is not calibrated)

177. Feedback & Graph UI …

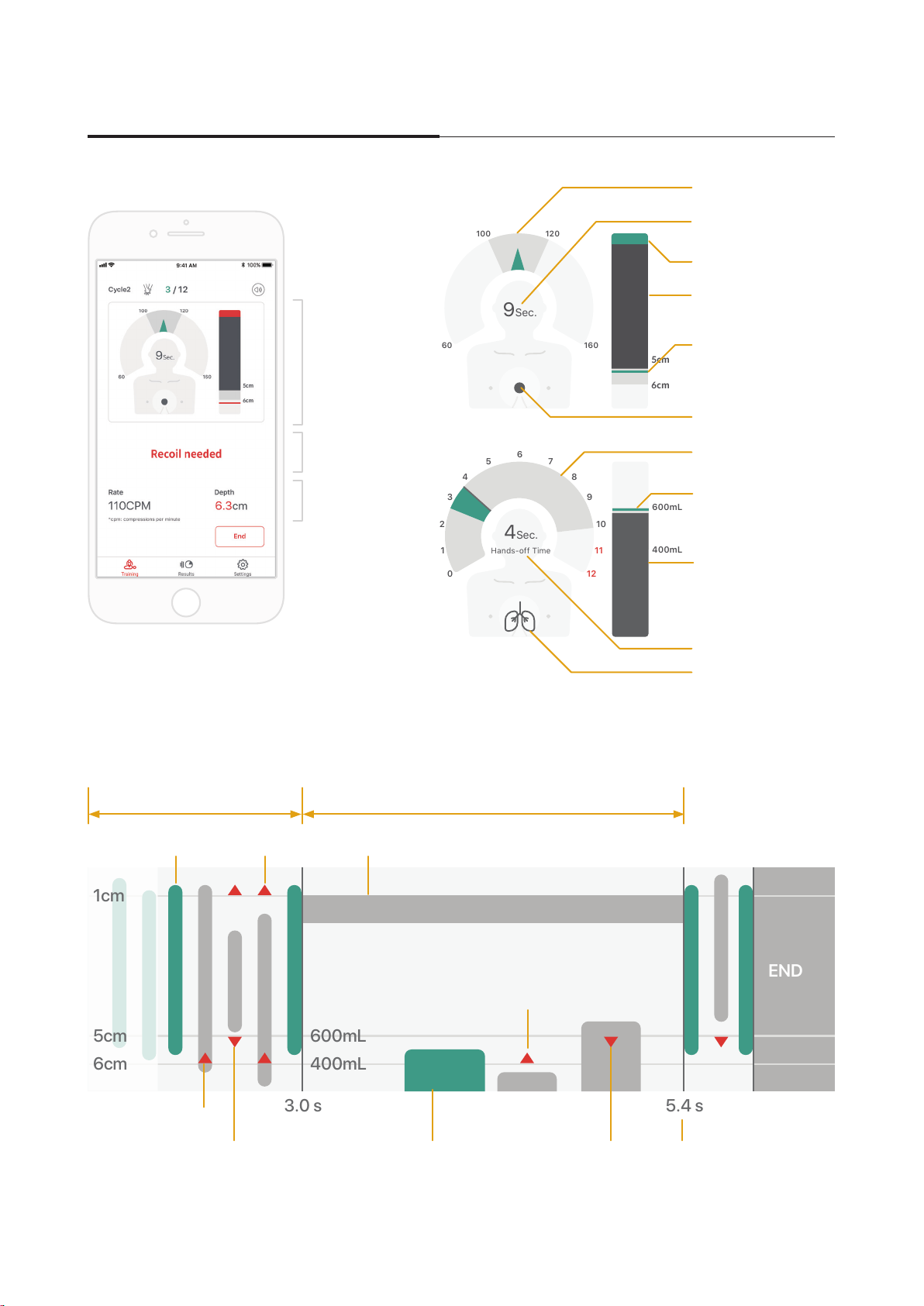

7. Feedback & Graph UI
7.1. Compression & Breath Feedback UI
7.2. Graph UI (for Instructor app only)
1cm
5cm
6cm
600mL
400mL
3.0 s
5.4 s
END
Compression
Recoil
needed Hands-o󸽟 time
Weak Breath
Good
Compression
Strong
Compression
Weak
Compression
Good Breath Strong
Breath
Duration
Breath
6cm
5cm
100
60
160
120
9
Sec.
0
1
2
3
4
5
7
8
9
11
10
12
400mL
600mL
6
4
Sec.
Hands-off Time
Graph Feedback
Compression rate
Elapsed time
Recoil feedback
Compression depth
Maximum depth
performed
Status of
compression input
Timer
Maxium volume
delivered
Breath volume
Hands-o󸽟 time
Status of
Breath input
Text Feedback
Quantitative
Feedback

18 8. More Features…
8.1. Reviewing saved data
CPR add-on kit Student CPR add-on kit Instructor
8. More Features
Deleting the result from the list (common for both the Instructor and Student apps)
Results
The 'Result' tab of the Student app
Data
The 'Data' tab of the Instructor app
❶
❷

198. More Features …
8.2. Exporting the result/certi󸽠cate as a PDF 󸽠le
PDF PDF
You can print the results or export PDF 󸽠les to other apps by clicking the top right icon
in the individual(detailed) results of the Student / Instructor app.
Result sheet (left) and certi󸽠cate (right). Certi󸽠cates can only be exported from the Instructor app.

20 8. More Features…

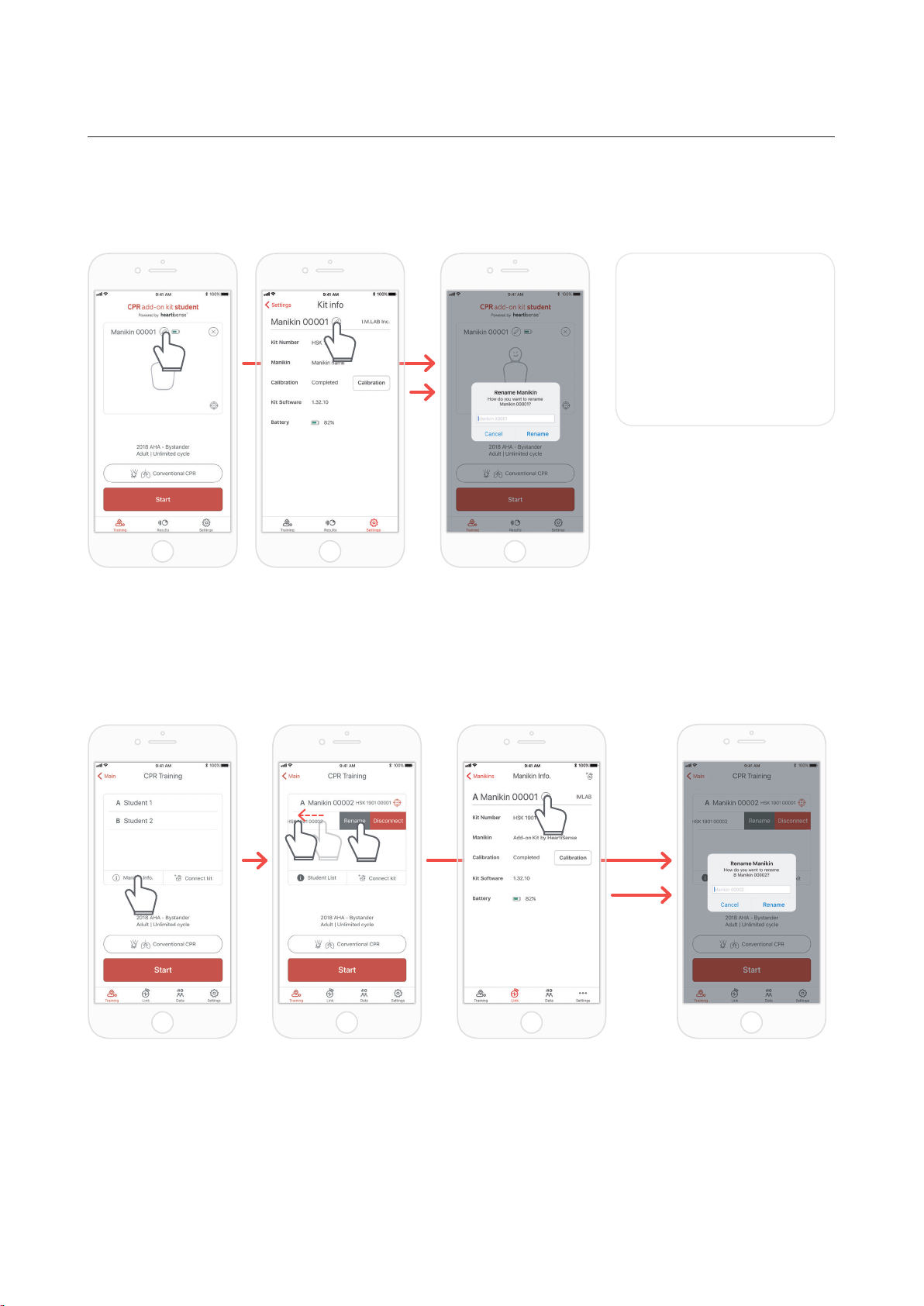

8.3. Renaming the manikin
CPR add-on kit Student app
CPR add-on kit Instructor app
When you display the manikin list and push the slot whose name you intend to change to the left, the Rename button will
be displayed. You can also rename it from the kit information on the Link tab.
When the manikin is renamed, it
will be saved in the kit so that the
changed name will be displayed at
the next connection.
The manikin name can be up to 15
alpha-numeric characters.
You can rename the manikin by pressing the pencil-shaped icon next to the manikin name.
❶
❷
