1
Operation Guide
for the MultiPresenter Stick
DS1-MP10RX series
(Compatible with Ver. 1.01)
To ensure safe use of the MultiPresenter Stick, be sure to read the includ-
ed Important Information before using the stick.

2
Introduction
We greatly appreciate your purchase of this MultiPresenter Stick.
This guide provides detailed explanations of the procedure for operating the MultiPresenter Stick. Before using the Multi-
Presenter Stick, be sure to read the included“Important Information”.
 NOTE
The explanations in this guide are based on the functions of MultiPresenter Stick firmware version“1.01”. For this reason,
the functions may differ depending on the version of the firmware of the MultiPresenter Stick you are using.
The MultiPresenter Stick has a firmware version update function. The firmware version can be updated once the initial
settings for the MultiPresenter Stick are made with the current firmware version.
 IMPORTANT
A commercially available wired network adapter (a product verified by NEC) must be purchased in order to connect the
MultiPresenter Stick to a wired LAN. For details, refer to the NEC website.
http://www.nec-display.com/global/support/solution/mp10rx.html
About trademarks
• MultiPresenter is a trademark or registered trademark of NEC Display Solutions, Ltd. in Japan and other countries.
• ThetermsHDMIandHDMIHigh-DenitionMultimediaInterface,andtheHDMILogoaretrademarksorregisteredtrade-
marksofHDMILicensing,LLCintheUnitedStatesandothercountries.
• Windows,InternetExplorerandMicrosoftEdgeareregisteredtrademarksortrademarksoftheMicrosoftCorporationof
theUnitedStates,intheUnitedStatesandothercountries.
• Google,GooglePlay,AndroidandChromeareregisteredtrademarksortrademarksofGoogleInc.
• OSXandSafariaretrademarksofAppleInc.,registeredintheUnitedStatesandothercountries.
• iOSisatrademarkorregisteredtrademarkofCiscointheUnitedStatesandothercountries,andisusedunderlicense.
• AppStoreisaservicemarkofAppleInc.
• Wi-Fi,WPAandWPA2areregisteredtrademarksoftheWi-FiAlliance.
• Othernamesofcorporationsandproductsaretrademarksorregisteredtrademarksofsaidcorporations.
© NEC Display Solutions, Ltd. 2017 Ver. 1 4/17
Reproduction and modification without the authorization of NEC Display Solutions is prohibited.

3
Contents
1. What can be done with the MultiPresenter Stick...................................................................................... 4
2. Packaged Items................................................................................................................................................ 6
3. Names of parts................................................................................................................................................. 7
4. Basic operation (from connecting to devices to displaying images) .................................................... 8
4-1. Connecting the MultiPresenter Stick to an image display device and turning on the power..................................................8
4-2. Making the MultiPresenter Stick’s initial settings......................................................................................................................................9
4-2-1. Making the initial settings using a computer or smartphone......................................................................................................................... 10
4-2-2.MakingtheinitialsettingsusingacommerciallyavailableUSBmouse...................................................................................................... 12
4-3. Preparing the MultiPresenter application.................................................................................................................................................12
4-3-1.Usingacomputer(WindowsorOSX)...................................................................................................................................................................... 12
4-3-2.UsinganAndroiddeviceoraniOSdevice ............................................................................................................................................................. 12
4-4. Connecting the MultiPresenter application to the MultiPresenter Stick and displaying images .........................................13
4-4-1.Usingacomputer(WindowsorOSX)...................................................................................................................................................................... 13
4-4-2.UsinganAndroiddeviceoraniOSdevice ............................................................................................................................................................. 13
5. Web server functions.................................................................................................................................... 16
5-1. Connecting computers or smartphones to the MultiPresenter Stick’s web server....................................................................16
5-1-1.Usingacomputer ............................................................................................................................................................................................................ 16
5-1-2.Usingasmartphone ....................................................................................................................................................................................................... 17
5-2.Usingawebbrowsertotransferlesbetweendevices(websharing) ..........................................................................................19
5-3. Controlling the number of panels or moderator, in the MultiPresenter Managed mode (MultiPresenter)...................... 21
5-3-1. Switching from the Free mode to the Managed mode ..................................................................................................................................... 21
5-3-2. Displaying the MultiPresenter screen ...................................................................................................................................................................... 22
5-3-3. Changing the number of panels on the screen.................................................................................................................................................... 22
5-3-4. Changing the order of the images on the screen................................................................................................................................................ 23
5-4.UsingawebbrowsertochangetheMultiPresenterStick’ssettings(SETTINGStab)................................................................24
5-4-1. Normal menu.................................................................................................................................................................................................................... 24
5-4-2. Moderator menu.............................................................................................................................................................................................................. 25
5-4-3. Administrator menu....................................................................................................................................................................................................... 26
6. Setting the method of connecting to a wireless or wired LAN............................................................. 28
6-1. Wireless LAN settings........................................................................................................................................................................................28
6-1-1.INTELLIGENTCONNECTIONsettingitems.............................................................................................................................................................. 28
6-1-2.INFRASTRUCTUREsettingitems................................................................................................................................................................................. 29
6-1-3.SIMPLEACCESSPOINTsettingitems........................................................................................................................................................................ 29
6-2. Wired LAN settings.............................................................................................................................................................................................30
7. Displaying the MultiPresenter Stick’s settings menu............................................................................. 31
8. Appendix......................................................................................................................................................... 32
8-1. Troubleshooting .................................................................................................................................................................................................32
8-2. Frequently asked questions............................................................................................................................................................................34
8-3.Updatingthermwareversion .....................................................................................................................................................................36
Index................................................................................................................................................................................................................................38
ADDITIONAL EXPLANATIONS
Aboutthe“INTELLIGENTCONNECTION”and“INFRASTRUCTURE”functions ................................................................................. 9
Connecting to multiple MultiPresenter Sticks.........................................................................................................................................15
UsingtheMultiPresenterapplicationtodisplaythewebserverscreen........................................................................................18
About the MultiPresenter“Free mode”and“Managed mode””.........................................................................................................21

4
1. What can be done with the MultiPresenter Stick
Wireless display of images
WhentheMultiPresenterStickisconnectedtotheHDMIinputportofanNECdisplayorprojector,imagesonacomputeror
smartphonecanbesenttotheMultiPresenterStickbywirelessLANanddisplayedonadisplayorprojectedfromaprojec-
tor. The MultiPresenter Stick includes a built-in wireless LAN function.
In addition, when a commercially available wired network adapter whose operation has been verified by NEC is used, the
MultiPresenter Stick can be connected to a wired LAN as well.
PDF JPEG PNG
BMP GIF
Exclusive application compatible with multiple OSs
The MultiPresenter application is used to send images from a computer or smartphone to the MultiPresenter Stick. The
MultiPresenterapplicationiscompatiblewithmultipleOSs(Windows,OSX,Android and iOS).Inaddition,variousapplica-
tions and their user’s manuals can be downloaded from the NEC website.
http://www.nec-display.com/dl/en/soft/multipresenter/index.html
iOS
AndroidWindows
OS X
Simultaneous display of the images of multiple devices
The images on multiple computers or smartphones can split and displayed simultaneously in up to 16 panels (4 vertical × 4
horizontalpanels).(NOTE:WhenusingtheINTELLIGENTCONNECTION function, up to 12 units can be connected.)
A
C
B
D
Display A
Display C
Display B
Display D

5
Simple connection by PIN code (4-digit number)
The unique INTELLIGENTCONNECTION function allows connection simply by inputting a PIN code (4-digit number), elimi-
nating the need for wireless LAN connection operations. Furthermore, in addition to the INTELLIGENTCONNECTION func-
tion, it is also possible to connect to existing networks (Infrastructure function).
Windows / OS X
Android / iOS
WEB server functions
You can use your device’s web browser to connect to the MultiPresenter Stick’s web server and use the three functions be-
low, with no need to use special file sharing software.
The web server functions are supported by the web browsers shown below.
For Windows
• Internet Explorer 11
• LatestversionofMicrosoft Edge
• LatestversionofGoogleChrome
ForOSX • Safari 6 or later
ForiOS • LatestversionofSafari
For Android • LatestversionofGoogleChrome
(1) Web sharing
•Screen sharing
The pictures displayed on the image display devices connected to the MultiPresenter Stick can be displayed and shared on
the web browser screens of the different participant’s devices.
•File sharing
Files on computers or smartphones can be uploaded to the web server and files on the web server can be downloaded and
stored on computers or smartphones. The files that have been uploaded to the web server are automatically deleted when
the session is closed. (By default)
(2) MultiPresenter Managed mode
MultiPresenter has two modes:“Free” and “Managed”. The mode is set to“Free” upon shipment from the factory.
In the Free mode, when images are sent to the MultiPresenter Stick from multiple computers or smartphones, the images
received by the MultiPresenter Stick are automatically split into panels for display (up to 16 panels).
In the Managed mode, control of the images from the different devices is disabled, and the number of panels and order of
display of the images is controlled by the web browser.
(3) Settings
A web browser can be used to download the MultiPresenterapplication(forWindowsorOSX)fromtheMultiPresenter
Stick and to change the various MultiPresenter Stick settings.

6
2. Packaged Items
Check that all the packaged items are present.
MultiPresenter Stick 1 pc
HDMIextensioncable 1pc
 NOTE
The packaged HDMIextensioncableisexclusiveuse
for the MultiPresenter Stick. Do not use it able for other
products.
AC adapter 1 pc
 NOTE
The AC adapter is exclusive use for the MultiPresenter
Stick. Do not use it able for other products.
Important Information 1 copy
QuickSetupGuide 1copy
WEBServerGuide(A) 1copy
WEBServerGuide(B) 1copy

7

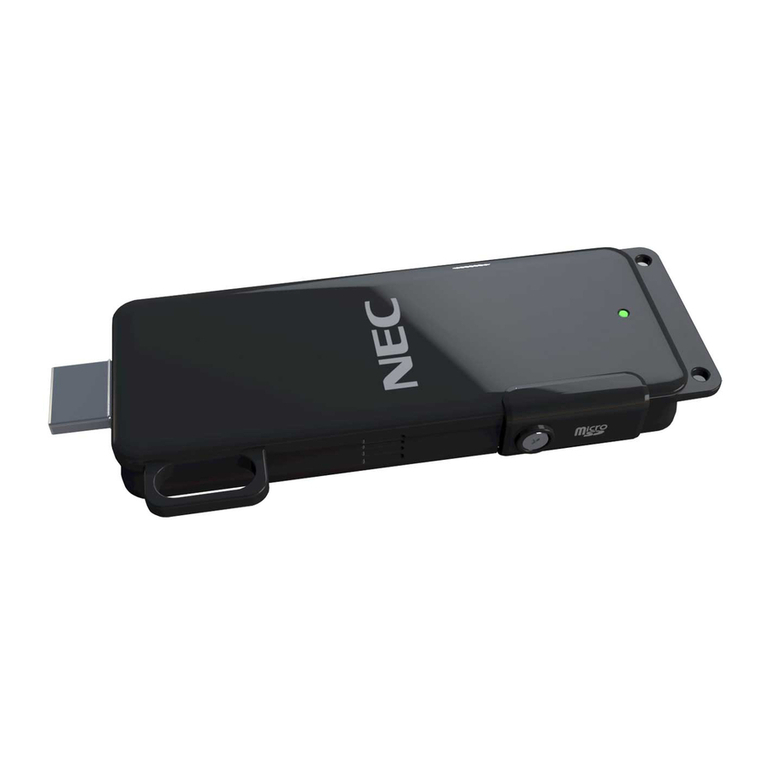

3. Names of parts
①
⑥
⑧
②
③
④
⑨
⑤
⑦
⑩
①HDMIoutputport UsetheincludedHDMIextensioncabletoconnecttotheHDMIinputportonadisplay
orprojector.
②Power button This turns the power on and off.
To turn the power off, press and hold the button (for about 5 seconds).
③⑨Exhaust vents These discharge the heat inside the frame.
NOTE:Donotblocktheexhaust vents.
④DCINjack
Connect the included AC adapter here.
NOTE:WhenconnectingtheAC adapter to the MultiPresenter Stick, check the direc-
tionofthejack.
⑤USBport
A USBmouse(commerciallyavailable)canbeconnectedheretomakethesettingsof
the MultiPresenter Stick.
A wired network adapter (commercially available) can also be connected here.
⑥Security hanger Install a commercially available theft prevention wire here.
⑦Power indicator
This indicates the power status.
When power is on: Lit blue
Whenpoweriso:O
⑧Strap holes
To fix the MultiPresenter Stick in place, put a commercially available strap, etc., through
these holes.
NOTE:Donotuseconductivewires.DoingsomaydecreasethewirelessLANsensitiv-
ity.
⑩microSD card slot * This slot cannot be used. Do not remove the cover.

8
4. Basic operation
(from connecting to devices to displaying images)
4-1. Connecting the MultiPresenter Stick to an image display device and turning
on the power
1.Connect the included HDMIextensioncable to the Multi-
Presenter Stick.
2.Connect the other end of the HDMIextensioncable to the
HDMIinputportonadisplayorprojector.
or
3. Turnonthepowerofthedisplayorprojector.
4.Connect the included AC adapter to the MultiPresenter
Stick.
5.Connect the AC adapter to a power outlet.
6. Pressthe“HDMI”buttonontheremotecontrolofthedisplayorprojector.
The MultiPresenter Stick’s initial settings screen is displayed.
• TheSSID and URLaredisplayedonthescreen.TheSSID indicates the identifier of the wireless LAN’s access
point.
This is the MultiPresenter Stick’s initial settings screen.
 NOTE
• BesuretousetheincludedHDMIextensioncabletoconnecttheMultiPresenterSticktothedisplayorprojector.
• CheckthatthepowerofthedisplayorprojectorisowhenconnectingtheHDMIextensioncable.
• DonotconnectordisconnecttheHDMIextensioncable while the MultiPresenter Stick’s power is on. The images
may not be displayed properly.

9
4-2. Making the MultiPresenter Stick’s initial settings
The MultiPresenter Stick’s initial settings can be made in two ways: by using a computer or smartphone and by connecting
a commercially available USBmouse.
When making the initial settings using a computer or smartphone, the wireless LAN connection can be made with either
the“INTELLIGENTCONNECTION” or the “INFRASTRUCTURE”function. If the initial settings were completed with“INTELLIGENT
CONNECTION”selected, the setting can be changed to“INFRASTRUCTURE”later.
 ADDITIONAL EXPLANATIONS
About the “INTELLIGENT CONNECTION” and “INFRASTRUCTURE” functions
•About [INTELLIGENT CONNECTION (recommended)]
• TheMultiPresenterStickandcomputersorsmartphonesareconnectedwithoutusinganexisting network envi-
ronment.
Example of connections
MultiPresenter
MultiPresenter
MultiPresenter
AB
CD
•About [INFRASTRUCTURE]
• TheMultiPresenterStickisusedconnectedtoanexisting network environment.
Example of connections
MultiPresenter
MultiPresenter
AB
CD
MultiPresenter
Existing LAN
Access point
Internet
When using a commercially available USBmousewiththeMultiPresenterStick,theinitial settings can be ended after only
selectingthelanguageusedontheMultiPresenterStick’smenuscreensandothers.However,thewirelessLANconnection
method is automatically set to “INTELLIGENTCONNECTION”. In this case as well, the setting can be changed to “INFRA-
STRUCTURE”later. (→“4-2-2. Making the initial settings using a commercially available USBmouse”onpage12)

10
4-2-1. Making the initial settings using a computer or smartphone
First, connect the computer or smartphone to the same network as the MultiPresenter Stick (SSID displayed on the screen).
* The following explanation is for Windows 7.
1.Click the wireless LAN icon on the task tray.
2.From the list of wireless networks, select the SSID shown on the
screen(“SetupMultiPresenter_1234567890”(NOTE:the1234567890
section differs from product to product)), then click [Connect].
3.Launch the web browser and input the URLindicatedonthe
screen (“http://192.168.120.1”).
The language selection menu appears.
4.Select [English] on the web browser screen, then click [NEXT].
5.Select [INTELLIGENTCONNECTION (recommended)] or [INFRA-
STRUCTURE],thenclick[NEXT].
• When[INTELLIGENTCONNECTION (recommended)] was select-
ed, this completes the initial settings. Close the web browser.
Proceed to “4-3. Preparing the MultiPresenter application” on
page 12.
• When[INFRASTRUCTURE] was selected, the connection set-
tings screen appears. Proceed to step 6below.
6.Follow the instructions of your network administrator for the set-
tings for connecting to an existing network.
Example of operation
①Click [SITESURVEY] and select the SSID (access point).
②Input the SSID’s security key (password).
③To confirm, input the security key again.
①
②
③
7.After making the connection settings, click [NEXT].
The next screen appears.

11
8.Switch the SSID of the computer or smartphone to the SSID dis-
playedonthescreenofthedisplayorprojector.
• FortheprocedureforswitchingtheSSID, see steps 1and 2on
the previous page.
SSID
URL
Screen on the display or projector
9.Input the URLdisplayedonthescreenofthedisplayorprojector
into the web browser.
NOTE:Performsteps8and 9within 3 minutes of each other. If no
operation is performed within 3 minutes, start over from step 1on
the previous page.
 NOTE
• ItmaytakesometimefortheURLtobedisplayed,depend-
ing on the access point to which you are connecting.
• Iftherearemistakesintheinfrastructuresettingsthatwere
input, connection of the access point and MultiPresenter
Stick may fail and the URLmaynotbedisplayed.
When the screen shown at the right appears, the MultiPresenter
Stick’s initial settings are completed.
Screen on the display or projector
10
.Click “Move to the start-up screen” on the web browser screen
shown on the right in step 9.
The web server screen appears.
Proceed to “4-3. Preparing the MultiPresenter application” on the
next page.
The screen at the right is referred to as the MultiPresenter Stick’s
start-up screen.

12
4-2-2. Making the initial settings using a commercially available USB mouse
Continued from step 6in “4-1. Connecting the MultiPresenter Stick to an image display device and turning on the power”
on page 8.
1.Connect a commercially available USBmousetotheMultiPresenter
Stick’s USBport.
The MultiPresenter Stick’s language selection menu appears.
HDMI input port
AC adapter
Screen on the display or projector
2.Select [English] using the USBmouse.
The MultiPresenter Stick’s start-up screen appears.
This completes the initial settings of the MultiPresenter Stick.
 NOTE
• Whentheinitial settings are performed using a USBmouse,
the wireless LAN connection is set to“INTELLIGENTCONNEC-
TION”.
4-3. Preparing the MultiPresenter application
4-3-1. Using a computer (Windows or OS X)
• AccesstheNECwebsite,downloadthe MultiPresenterapplicationforthecorrespondingOSandinstalltheapplication
on the computer.
http://www.nec-display.com/dl/en/soft/multipresenter/index.html
4-3-2. Using an Android device or an iOS device
• ForAndroid:AccessGooglePlay and install the MultiPresenter application on the device.
• ForiOS:Access the App Store and install the MultiPresenter application on the device.
 REMARKS
• Theuser’smanualsforMultiPresenterforWindows/OSXandforMultiPresenterforAndroid/iOScanbedownloaded
from NEC’s MultiPresenter website.

13
4-4. Connecting the MultiPresenter application to the MultiPresenter Stick and
displaying images
4-4-1. Using a computer (Windows or OS X)
•Connecting with the INTELLIGENT CONNECTION function
1. ConnecttheMultiPresenterSticktothedisplayorprojector,turnonthepoweranddisplaythestart-upscreen.
2.Launch the MultiPresenter application.
The target device screen is displayed.
3.Input the PIN code displayed on the start-up screen on the target device screen.
OncetheconnectionwiththeMultiPresenterStickiscompleted,thecomputerscreenisdisplayedonthedisplayor
projectorscreen.
PIN code input Start-up screen Sent image
•To connect with the Infrastructure function
1. ConnecttheMultiPresenterSticktothedisplayorprojector,turnonthepoweranddisplaythestart-upscreen.
2.Connect your computer to the network to which the MultiPresenter Stick is connected.
* Check the connection information of the network to which the MultiPresenter Stick is connected with the network ad-
ministrator.
3.Launch the MultiPresenter application.
The target device screen is displayed.
4.Input the PIN code displayed on the start-up screen in the target device screen.
OncetheconnectionwiththeMultiPresenterStickiscompleted,thecomputerscreenisdisplayedonthedisplayor
projectorscreen.
•Connecting with the Simple Access Point function
* For details on the Simple Access Point function, see page 28.
1. ConnecttheMultiPresenterSticktothedisplayorprojector,turnonthepoweranddisplaythestart-upscreen.
2.Connect your computer to the SSID displayed on the start-up screen.
3.Launch the MultiPresenter application.
The target device screen is displayed.
4.Input the PIN code displayed on the start-up screen in the target device screen.
OncetheconnectionwiththeMultiPresenterStickiscompleted,thecomputerscreenisdisplayedonthedisplayor
projectorscreen.
4-4-2. Using an Android device or an iOS device
•Connecting with the INTELLIGENT CONNECTION function
1. ConnecttheMultiPresenterSticktothedisplayorprojector,turnonthepoweranddisplaythestart-upscreen.
2.Launch the MultiPresenter application.
The target device screen is displayed.
3.Input the PIN code displayed on the start-up screen on the target device screen.
OncetheconnectionwiththeMultiPresenterStickiscompleted,theapplication’sstandbyscreenisdisplayedonthe
displayorprojectorscreen.
PIN code input Start-up screen Standby screen

14
 IMPORTANT
When using an iOSdevice,theWi-Fi settings must be made manually in order to connect with reception devices (such
astheMultiPresenterStickandaprojector)bywirelessLAN.
•Connection procedure
1. Onthehomescreen,tap“MultiPresenter”.
The MultiPresenter application is launched and the target device screen is displayed.
2.Input the PIN code displayed on the start-up screen of the reception device or on the on-screen menu in the target
device screen.
A screen with explanations on it appears.
3.Tap “Proceed to Wi-Fi settings”.
4.From the list of networks displayed on the device’s screen, select the SSID displayed on the start-up screen.
5.When the password screen appears on the device, input the security key displayed on the start-up screen, then tap
“Connect”.
6. OnceconnectedtotheselectedSSID,tap“RETURNTOMULTIPRESENTER”displayed in the upper left of the “SETTINGS”
screen.Or,pressthehomebuttontodisplaythehomescreen,thentap“MultiPresenter”.
The MultiPresenter application connects with the reception device and the MultiPresenter application’s standby
screen appears on the reception device.
•To connect with the Infrastructure function
1. ConnecttheMultiPresenterSticktothedisplayorprojector,turnonthepoweranddisplaythestart-upscreen.
2.Connect your device to the network to which the MultiPresenter Stick is connected.
* Check the connection information of the network to which the MultiPresenter Stick is connected with the network
administrator.
3.Launch the MultiPresenter application.
The target device screen is displayed.
4.Input the PIN code displayed on the start-up screen in the target device screen.
OncetheconnectionwiththeMultiPresenterStickiscompleted,theapplication’sstandbyscreenisdisplayedonthe
displayorprojectorscreen.
•Connecting with the Simple Access Point function
* For details on the Simple Access Point function, see page 28.
1. ConnecttheMultiPresenterSticktothedisplayorprojector,turnonthepoweranddisplaythestart-upscreen.
2.Connect your device to the SSID display on the start-up screen.
3.Launch the MultiPresenter application.
The target device screen is displayed.
4.Input the PIN code displayed on the start-up screen in the target device screen.
OncetheconnectionwiththeMultiPresenterStickiscompleted,theapplication’sstandbyscreenisdisplayedonthe
displayorprojectorscreen.

15
 ADDITIONAL EXPLANATIONS
Connecting to multiple MultiPresenter Sticks
It is possible to connect from one computer or smartphone to multiple MultiPresenter Sticks (up to about 5) and
display their images.
OntheMultiPresenterapplication’starget device screen, perform the operation to select [Multiple].
1.Set the wireless LAN mode of the MultiPresenter Sticks to be connected to Infrastructure and connect all the
MultiPresenter Sticks to the same network.
2.Connect your computer or smartphone to the same network as the one chosen in step 1.
3.Launch the MultiPresenter application.
4. Onthetarget device screen, click [Select].
A list of connectable devices is displayed.
5.Click [Multiple].
Check boxes appear to the left of the devices on the list.
6.Click the devices you want to connect.
The PIN code input screen appears.
7.Input the PIN code displayed on the device’s start-up screen.
8. Onceallthedevicestobeconnectedarechecked,click[Connect] at
the bottom of the screen.

16
5. Web server functions
5-1. Connecting computers or smartphones to the MultiPresenter Stick’s web
server
5-1-1. Using a computer
* The following is an example of the operation for Windows 7 when connected with the INTELLIGENTCONNECTION func-
tion.
This explanation starts from the point at which the MultiPresenter Stick’s start-up screen is displayed.
1.Click the wireless LAN icon on the task tray.
2.From the list of wireless networks, select the SSID displayed on the start-up screen, then click [Connect].
When connecting for the first time, the security key input screen appears.
3.Input the securitykey(an8-digitnumber)displayedonthestart-upscreen,thenclick[OK].
 NOTE
• Ifthesecurity key has changed since you last connected to that SSID,themessage“CannotconnecttoXXXXXXXX”is
displayed. In this case, right-click the SSID on the wireless network list and select“Properties”. Input the security key (an
8-digit number) displayed on the start-up screen into the“Network security key” field of the properties window, then
click[OK].Next,clickthewirelessLANicononthetasktrayagainandselecttheSSID.
4. OnceconnectedtotheSSID, launch the web browser.
5. InputtheURLdisplayedonthestart-upscreen(http://192.168.120.1)intotheURLinputeldofthewebbrowser,then
press the Enter key.
The MultiPresenter Stick’s web server screen is displayed on the web browser.

17
The web server screen is divided into three tabs: [WEBSHARING], [MultiPresenter] and [SETTINGS].
5-1-2. Using a smartphone
* ThefollowingisanexampleoftheoperationforaniOSdevicewhenconnectedwiththeINTELLIGENTCONNECTION
function.
This explanation starts from the point at which the MultiPresenter Stick’s start-up screen is displayed.
1. Onthehomescreen,tapthe“Settings”icon.
2.Tap “Wi-Fi”.
3.From the list of networks, tap the SSID displayed on the start-up screen.
When connecting for the first time, the password input screen appears.
4.Input the security key (an 8-digit number) displayed on the start-up screen, then tap [Join].
 NOTE
• Ifthesecurity key has changed since you last connected to that SSID, it is not possible to connect to that SSID. In this
case, tap on the right of the SSID to which you want to connect. Next tap “Forget This Network”, then tap“Forget”.
Next tap “Connect to network”. The password input screen appears. Input the security key (an 8-digit number) dis-
played on the start-up screen, then tap [Join].
5.After connecting to the SSID, return to the home screen and tap “Safari”.
6.In the SafariURLinputeld,inputtheURLdisplayedonthestart-upscreen(http://192.168.120.1),thentap“Open”.
The MultiPresenter Stick’s web server screen is displayed in Safari.

18
The web server screen is divided into three tabs: [WEBSHARING], [MultiPresenter] and [SETTINGS].
 ADDITIONAL EXPLANATIONS
Using the MultiPresenter application to display the web server screen
The MultiPresenter application can be used to display the web server screen.
1.Connect your computer or smartphone to the network to which the MultiPresenter Stick is connected.
2.Launch the MultiPresenter application.
3. Onthetarget device screen, input the PIN code.
4.After connection to the MultiPresenter Stick is completed, click or tap the [Control] button on the target device
screen.
5.Click or tap the [Browse Server] button.
The web server screen appears.
•For Windows/OS X
Target device screen
Click [Browse Server]Click [Control]
•For iOS/Android
Target device screen
Click [Browse Server]Click [Control]

19
5-2. Using a web browser to transfer files between devices (web sharing)
• TheimagesdisplayedwiththeMultiPresenterStickcanbedisplayedforapproximately5secondseachontheweb
browser’s screen and the desired images can be saved on your device (Web Capture function).
• Textcanbeaddedonthecurrentlydisplayedscreenandmemoscanbecreatedforupto10pages.Memosyouhave
created can be saved on your device as images.
• Filesonyourdevicecanbeuploaded to the MultiPresenter Stick’s web server and shared among devices connected to
the MultiPresenter Stick on the network.
 NOTE
• WhenusingSafari,thescreenmaynotbedisplayedproperly,dependingonthetimingforreloading.Tryrestarting
Safari.
• WithiOSandOSXdevices,thefunctionforsavinginJPEGformat(⑥on the screen below and ③on the screen on
the next page) and the function for savingmeetingsinHTMLformatonthememo creation screen (④on the screen
on the next page) cannot be used.
• IfyouareusingInternetExplorer,storingbyright-clickingonthecurrentweb capture may not work properly. We
recommendpressingthe[FREEZEIMAGE]button(④on the screen below) to stop the display from renewing every 5
seconds, then saving the image.
• Upto50devicescanbeconnectedtoeachMultiPresenterStick.However,thenumberofunitsthatcanbeconnect-
ed simultaneously will differ depending on the performance of the network devices being used.
①
②
④
⑤
⑥⑦
③

20
No. Description
①http://<the MultiPresenter Stick’s IP address>
②
Displays the names of shared files stored on the MultiPresenter Stick’s web server.
Files can be downloaded to your device by clicking the file name.
NOTE1:Thelesstoredonthewebserverareautomaticallydeletedwhenallthesessionsareclosed.(Bydefault)
NOTE2:Aseparateapplicationmayberequiredtouselesdownloaded on a tablet devices, etc.
③Calls out files to be shared from the device currently being used and uploads them to the web server.
The names of files that have been called out are displayed at [UPLOADEDFILES] above.
④Stops renewing every 5 seconds.
Click again to resume renewing.
⑤References images displayed with the MultiPresenter Stick approximately every 5 seconds.
⑥Stores (downloads) images displayed at ⑤ontoyourdeviceinJPEGformat.
NOTE:NotdisplayedforiOSorOSXdevices.
⑦Creates memos using the image currently displayed at the center.
•About the memo creation screen
①
②
③④ ⑤ ⑥ ⑦
No. Description
①Clicktoinputtext.Aftercompletingtheinput,click[OK]ontherighttoenter.
* [OK]isdisplayedwhen①is clicked.
②A new page for inputting a memo is created when the image at the center of the screen switches, etc.
③SavesthepageonwhichthetexthasbeenaddedinJPEGformat.
NOTE:NotdisplayedforiOSorOSXdevices.
④SavesallpagesinasingleleinHTMLformat.
NOTE:NotdisplayedforiOSorOSXdevices.
⑤Deletes the page currently being edited or all pages.
⑥When multiple pages have been created, returns to the previous page.
⑦When multiple pages have been created, displays the next page.
