NEC Mosaic Connect Box User manual
Mosaic Connect | Product Manual Software Version 1.4
2 © NEC Display Solutions Europe 2019
Table of Contents
1. Introduction ........................................................................................................ 4
Purpose and Scope................................................................................................... 4
2. Overview............................................................................................................. 5
Hardware and Software Specifications ........................................................................ 5
3. Getting started..................................................................................................... 6
3.1 Installation .................................................................................................... 6
3.1.1 Receiver application .................................................................................. 6
3.1.2 Client application ...................................................................................... 6
3.2 Set-up Considerations..................................................................................... 7
3.3 User Access Considerations ............................................................................. 7
3.3.1 Admin user .............................................................................................. 7
3.3.2 Kiosk user ............................................................................................... 7
3.4 Accessing the System ..................................................................................... 8
3.4.1 Wi-Fi Helper............................................................................................. 8
3.4.2 Cloud/LocalConnection .............................................................................. 9
3.4.3 PIN Configuration ..................................................................................... 9
3.5 System Organization & Navigation.................................................................. 12
3.5.1 Sharing a screen .................................................................................... 13
3.5.2 Sharing items ........................................................................................ 15
3.5.3 In-built Media player ............................................................................... 16
3.6 Exit session ................................................................................................. 18
3.7 Error and recovery ....................................................................................... 18
Mosaic Connect | Product Manual Software Version 1.4
3 © NEC Display Solutions Europe 2019
List of figures
Figure 1: Hardware solution (Mosaic Connect Box) Figure 2: Software application .......... 5

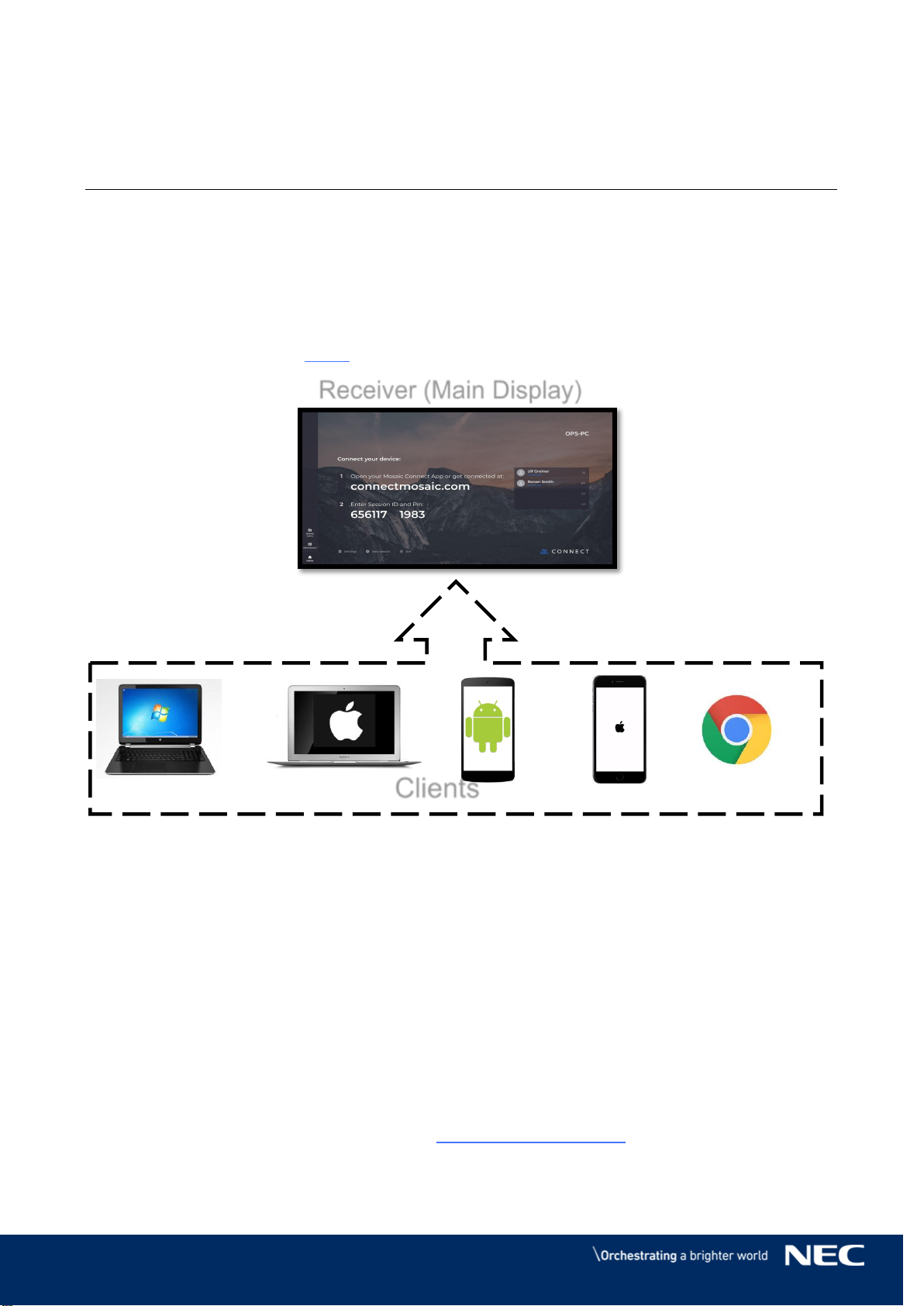

Figure 3: Receiver and client connection .......................................................................................... 6
Figure 4: Launch screen........................................................................................................................ 7
Figure 5: Wi-Fi Helper setting screen................................................................................................. 8

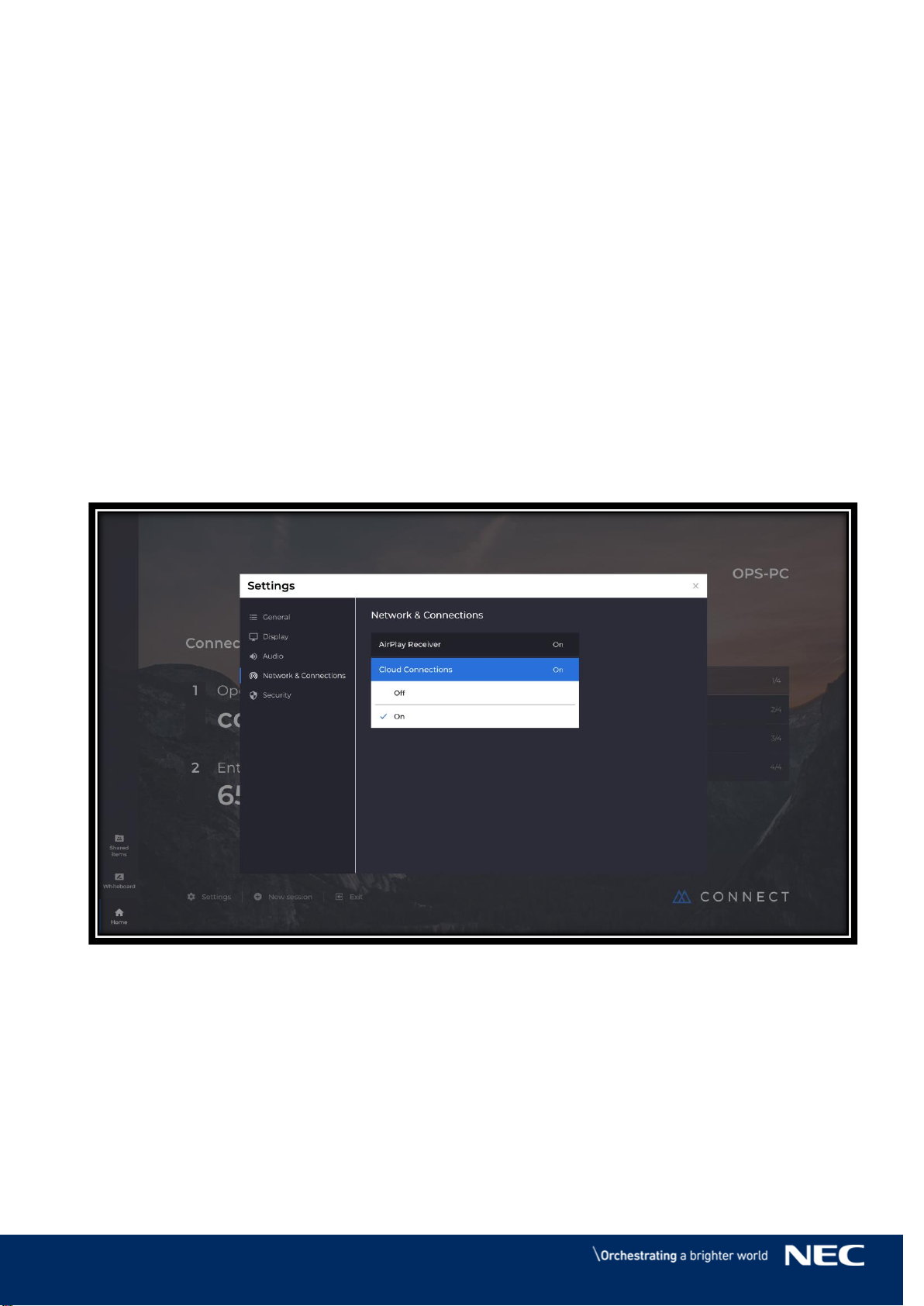

Figure 6: Cloud connections setting ................................................................................................... 9
Figure 7: Local connections setting .................................................................................................. 10
Figure 8: Receiver Home screen ....................................................................................................... 10
Figure 9: Client application connection set-up screen...................................................................11
Figure 10: Web app Home screen......................................................................................................11

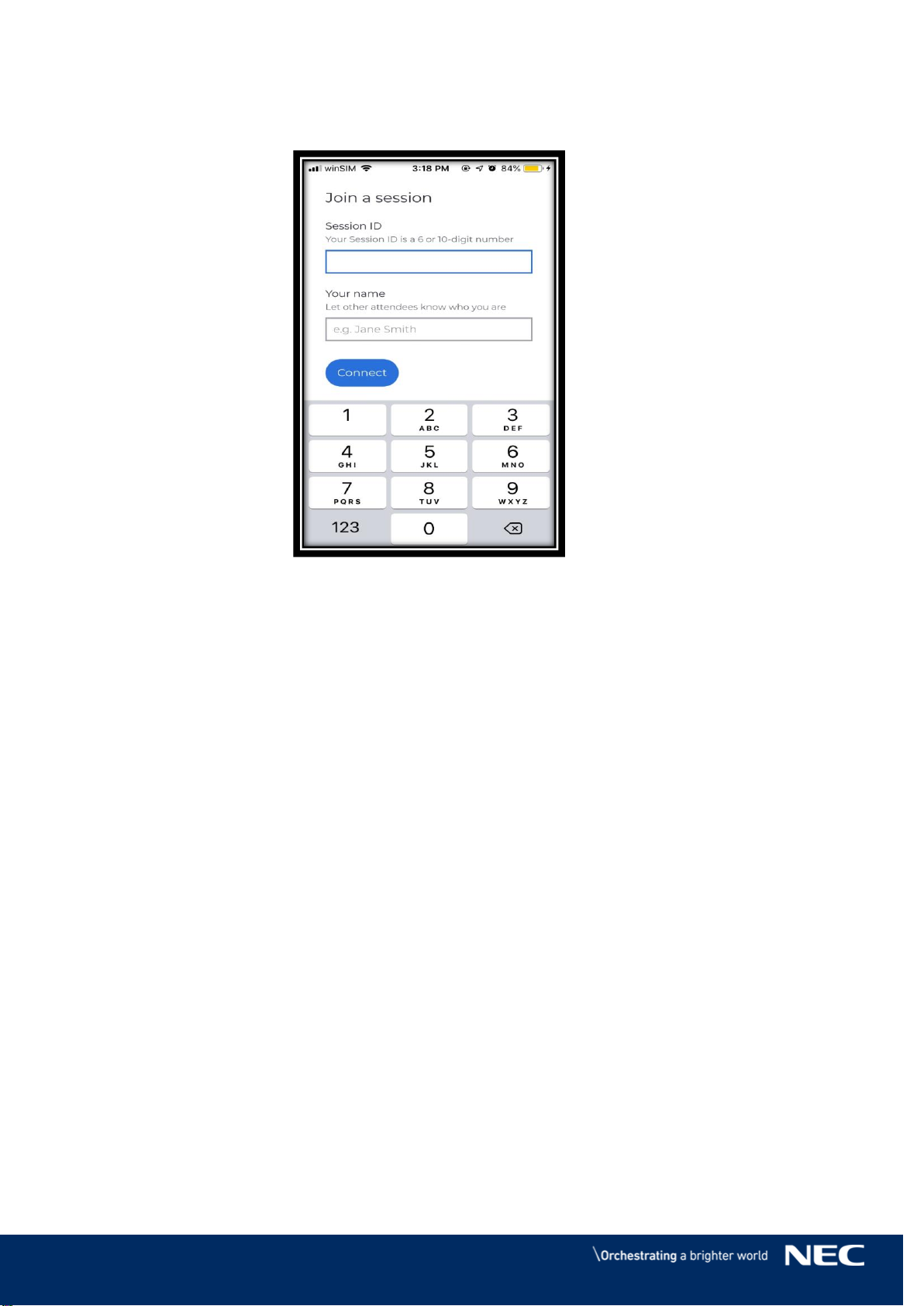

Figure 11: Client Mobile application connection set-up screen .................................................. 12

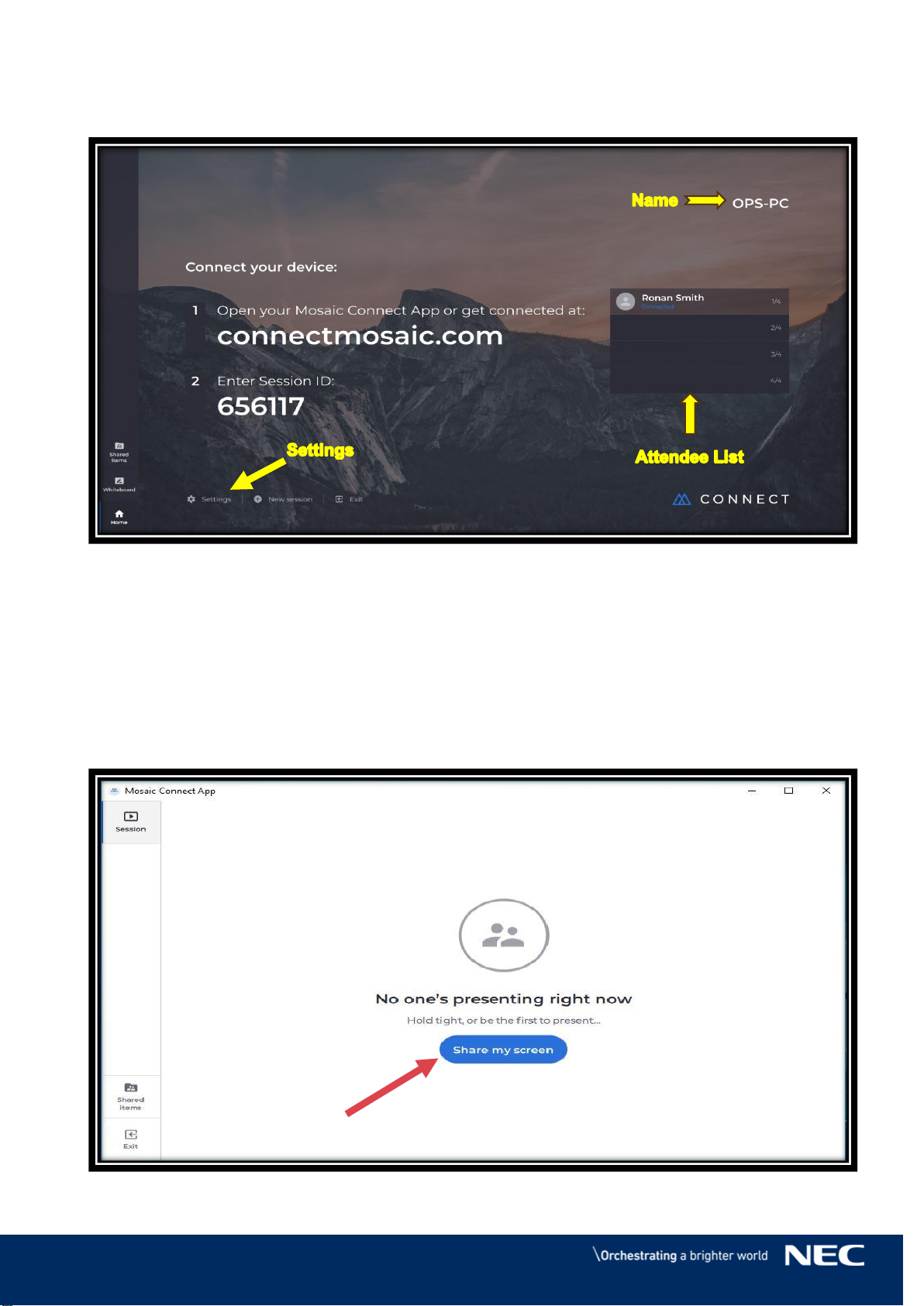

Figure 12: Receiver home screen navigation ................................................................................. 13
Figure 13: Sharing a screen from Desktop client .......................................................................... 13

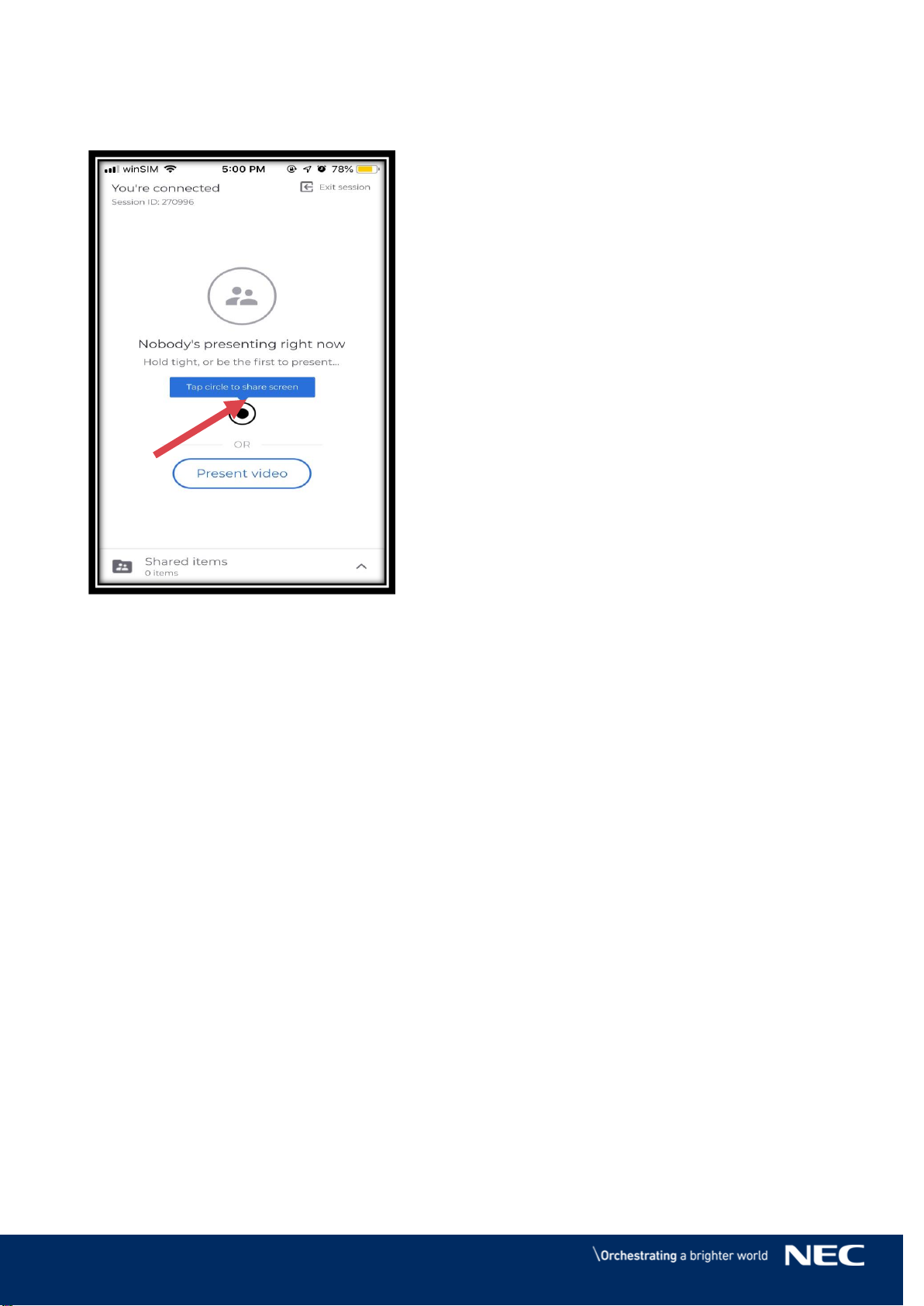

Figure 14: Sharing a screen from Mobile client ............................................................................. 14
Figure 15: Sharing the Whiteboard from the Receiver ................................................................ 15
Figure 16: Whiteboard on client's screen ........................................................................................ 15

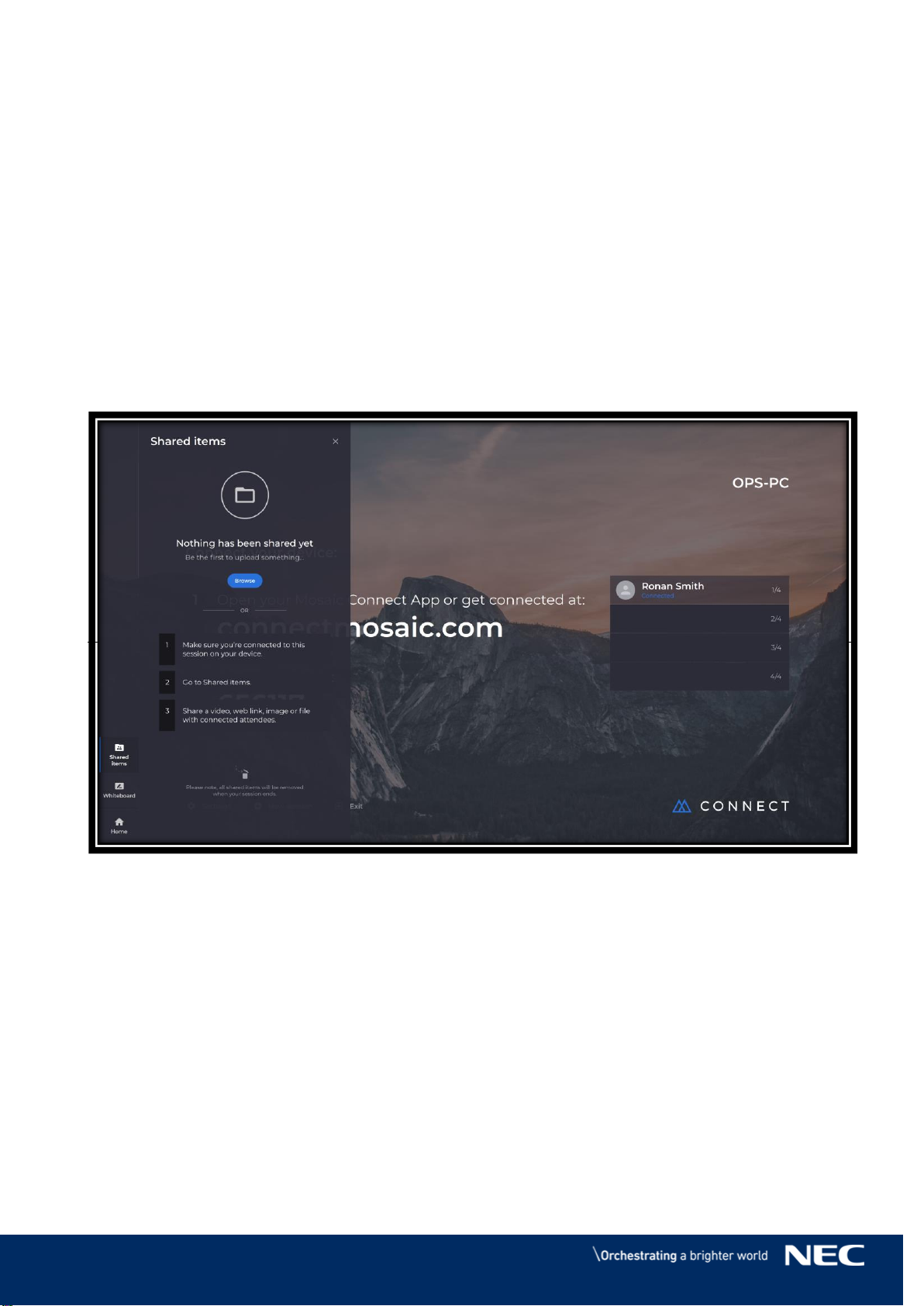

Figure 17: Sharing items .................................................................................................................... 16

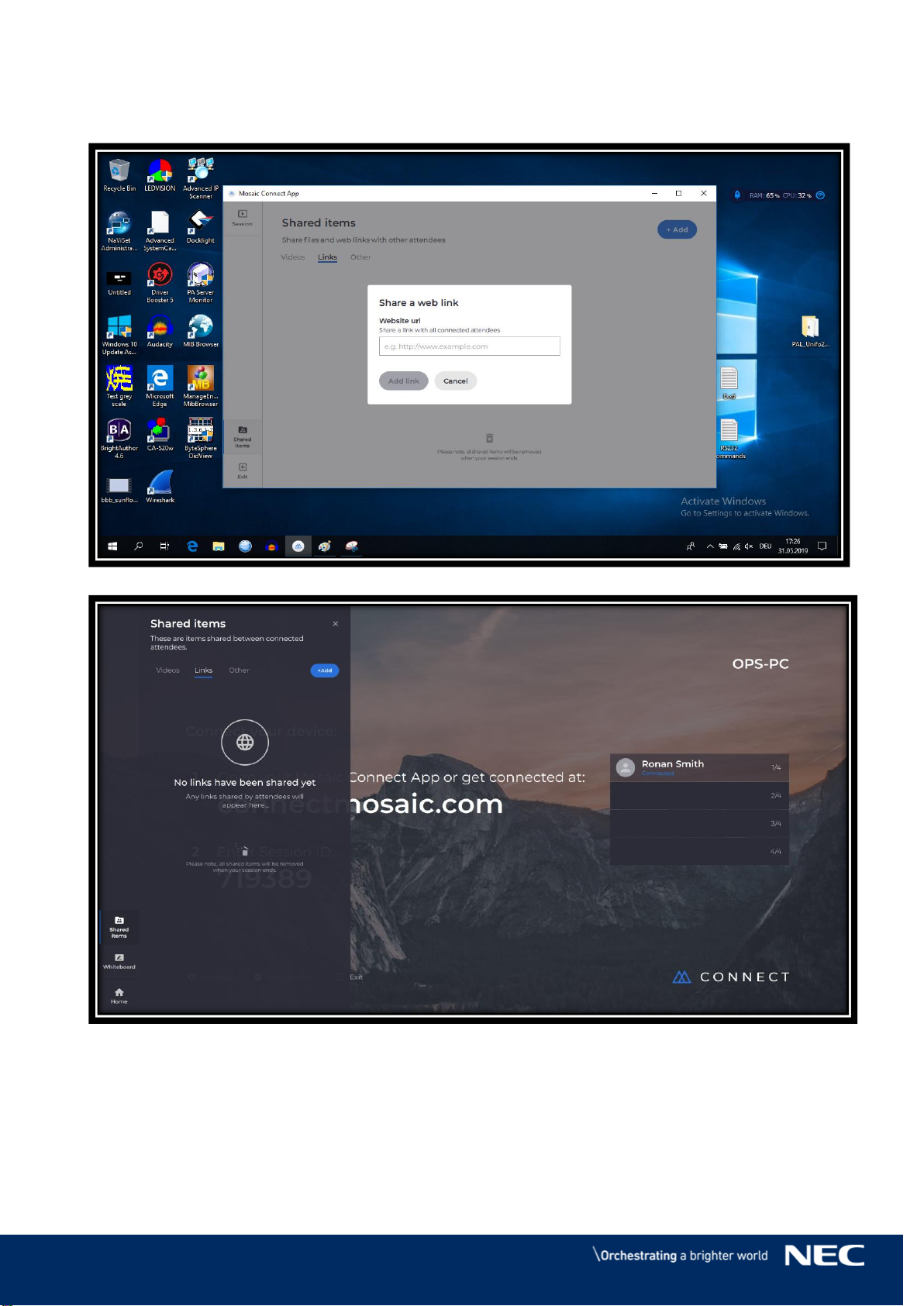

Figure 18: Sharing a web link from Client ...................................................................................... 17
Figure 19: Sharing a web link from Receiver ................................................................................. 17
Figure 20: Network error .................................................................................................................... 18
Mosaic Connect | Product Manual Software Version 1.4
4 © NEC Display Solutions Europe 2019
1. Introduction
This document helps a user to understand the steps to be performed to use the Mosaic
Connect wireless presentation solution.
Purpose and Scope
This Product Manual provides all essential information for a user to make full and
effective use of the Mosaic Connect application. The manual includes a description of
the product functions and capabilities, contingencies and alternate modes of operation,
and step-by-step procedures for system access and use.
In addition to this Introduction section, this manual contains three major sections:
Overview, describing the functionality provided by the software, including examples
of utilization.
Getting started, describing how to install and make the software ready to be used.
This section has been moved into a dedicated manual covering the full VLT software
installation.
Error Messages and Recovery, provides a list of errors and diagnostic messages
and possible recovery actions.
Mosaic Connect | Product Manual Software Version 1.4
5 © NEC Display Solutions Europe 2019
2. Overview
Mosaic Connect allows meeting attendees to wirelessly share content from any device
to your meeting room display. It is simple to use. With one click you're wirelessly
presenting.
It works with all modern laptops, tablets, phones and support for your browser. With a
dedicated app for guests and extended browser support, your guests can also connect
and present as easily as you do. The solution supports dual network connectivity and
enables collaboration among users on primary and guest networks.
Mosaic Connect comes with content sharing tools that makes meeting room
collaboration even easier. You can get the application as either a Windows Hardware
box which you simply connect to your meeting room display. For your meeting rooms
that have dedicated PCs, you can choose to deploy Mosaic Connect as a software-only
solution.

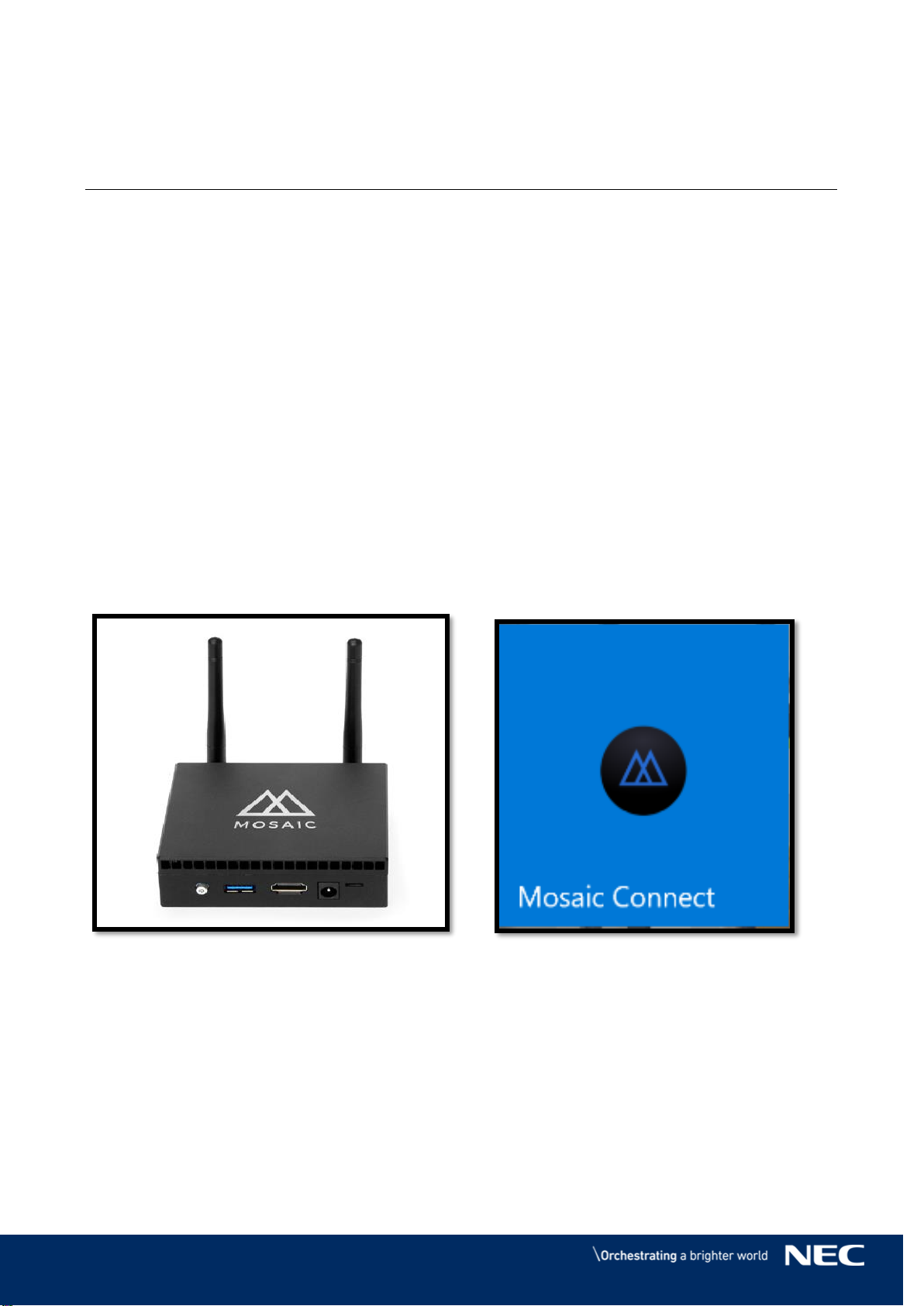

Figure 1: Hardware solution (Mosaic Connect Box) Figure 2: Software application
Hardware and Software Specifications
•Hardware: Cherry Trail Intel(R) Atom(TM) x5-Z8350 CPU @ 1.44GHz, 4010MB
RAM, Intel HD Graphics 400.
•OS Windows 10 Enterprise
•64Gb Storage
•Recommended internet speed 3Mbps per device
